DISCLAIMER
PREFACE
This manual includes warning, caution and notice concerning the safe operation of equipment. These warning,
caution and notice come with the following icons. Please read them carefully!
This warning indicates a dangerous situation that may result in death or serious injury if
not avoided.
This alert indicates a dangerous situation that may result in mild or moderate injury if not
avoided.
This means that you need to be careful.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A1
Please read the manual carefully before installing and using this product. Fallure to read or comply with
thismanual may result in injury to products and personnel, and park Fabrica shall not be responsible for this.
This product is a professlonal machine, we do not assume any responsibiity for accldents or losses caused by
theuse or maintenance of this product by personnel without professional training and permisslon.
If the information contalned in the manual or the product speclfications are changed, Spark Fabrica will not
informou further and responsible for anv errors or omissions.
Our company reserves the right to modify the user manual at any time
1. PRODUCT INTRODUCTION
Kungfupao is a new spark device without gunpowder and �reworks invented by Changsha Spark Technology
Electronics Co.,Ltd. It is a new product which produce istant spark e�ect. This product can be widely used in
weddings, opening celebration, meeting, sports events, concert and so on.

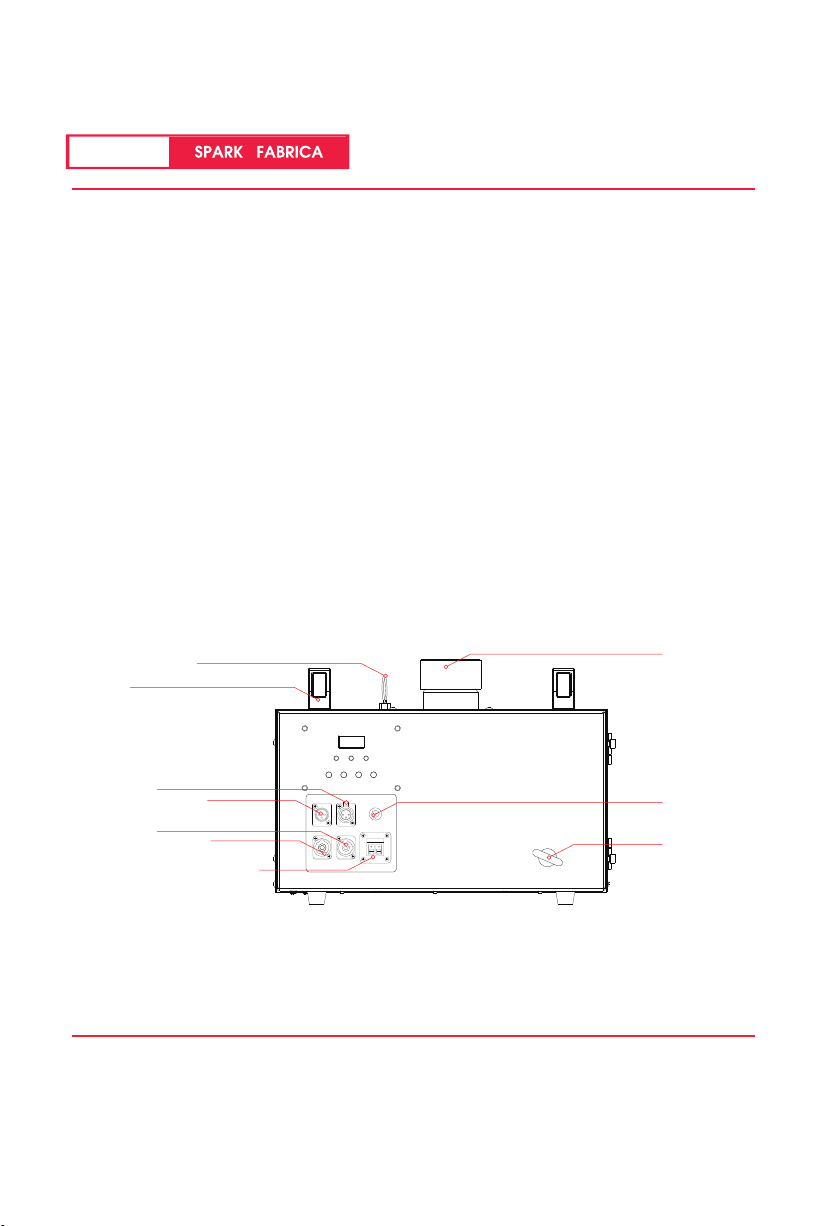

1.1 PRODUCT OVERVIEW
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A2
DMX IN DMX OUT
POWER
POWER IN POWER OUT
IMPULSE
SAFETY RING
NOZZLE
POWER IN
DMX IN
IMPULSE CONTROL SIGNAL
INPUT 12V
DMX OUT
HANDLE
LOCK PIN
POWER OUT
POWER
Open the package carefully and check to make sure the goods are in good condition.
NOTICE

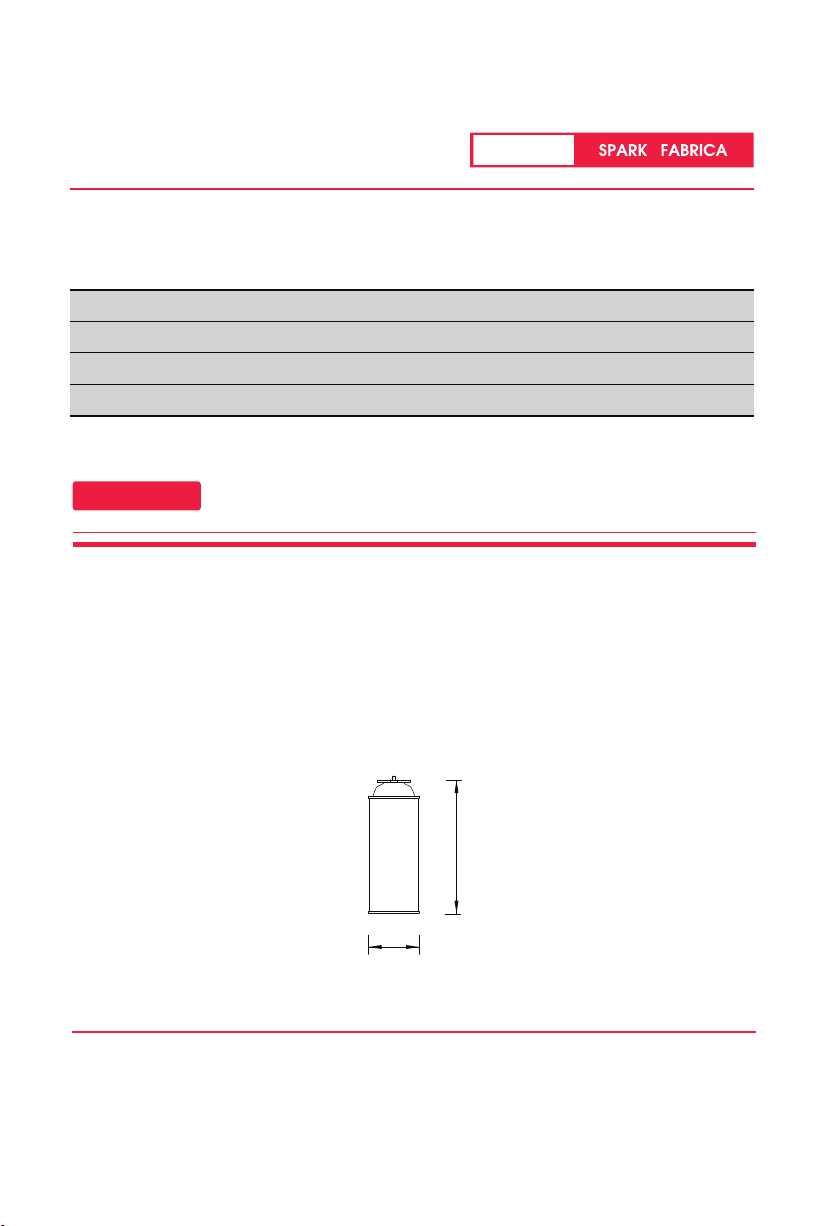

1.2 PRODUCT ACCESSORIES
Granule for this product is liquefied butagas, and the gas cylinder is universal portable butagas cylinder. Its
dimension is 68mm*180mm, and volume is 220±5g. Please use qualifed products from formal manufacturer.
1.3 BUTANE GAS
1.6M Power Plug
User Manual
3 Meters DMX Pair Cable
3 Meters Power Pair Cable (optional)
180mm
68mm
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A3
2 TECHNICAL PARAMETER
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A4
Brand SPARK FABRICA
Kungfupao/SF-K2
100-260V，50 / 60HZ
10W
Name
Power
Composite Ti (medium)
Portable Butagas Cylinder
Granule
Tank type
2
8g-10g /min
Net Weight 16Kg
Gross Weight 18Kg
Machine Dimensions - L*W*H 400*350*285mm
Machine Packing Dimensions - L*W*H 455*400*310mm
Input Voltage & Frequency
Identification
AC Power
Granule
Gas Cylinder
Weight
Dimension
Number Of Installed Gas Tanks
Gas Consumption
3M
70g
Height
Powder Tank Capacity
1g
Powder Consumption (100% Output)
•Cold sparks projected up to 3m high
•2 DMX channels
•Tilt detector
•TFT screen which displays the operating status of the machine
•Works with a low residue metal powder that generates no smoke, odours or other harmful gases.
•Automatic cleaning to avoid the accumulation of residues in the combustion chamber
2.1 FUNCTIONAL CHARACTERISTICS

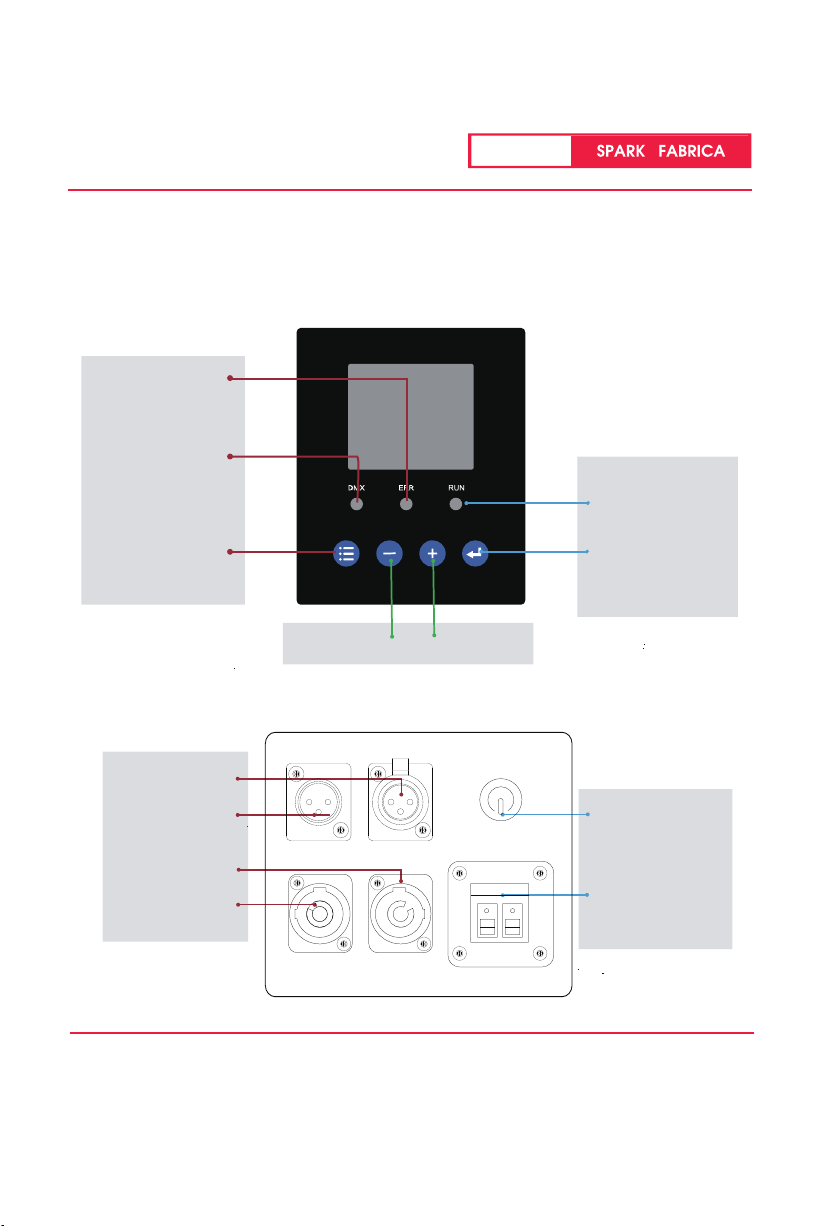

3.1 BACK PANEL INTRODUCTION
3 SCREEN OPERATION GUIDE
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A5
POWER
POWER OUT
DMX OUT
DMX IN
IMPULSE
Impulse Control Signal Input
12V
POWER IN
DMX IN DMX OUT
POWER
POWER IN POWER OUT
IMPULSE
Decrease Increase
RUN
Working Indicator
MENU
DMX
ERR
ENTER
DMX signal. Flash means DMX
signal available, otherwise no
DMX signal
Light on
when there is an error.
Switch interface to setup
parameter
Confirm and save
parameters (screen will flash
when parameters saved)
3.2 DMX PARAMETER LIST
4 SAFETY NOTICE
FIRST CHANNEL
0-9
10-255
SECOND CHANNEL
0-9
10-255
FUNCTION
Close gas loading
Start gas loading
FUNCTION
Fire off
Fire on
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A6
Don't try to repair the unit by yourself or you invalidate the warranty. Repairs must only be
car ried out by a qualied technician.
Keep the unit dry and do NOT use in rain or snow.
Make sure the lid of the feeding hopper is well covered when using the unit. Accidentally
burning of Ti powder can only be extinguished with sand. Composite Ti should be kept
away from mois ture and stored in a dry, sealed environment.
Do not mount the product on a ammable surface (linoleum, carpet, wood, paper, carton,
plastic, etc.). Keep audience and ammable material at a minimum distance of 3m from
SPARK JET PRO. Make sure the sparks shoot out by the unit can NOT touch any objects.
Clean the unit before and a�er the show. Make sure that no Composite Ti remains in the
pipe and the nozzle. Remove all residues of Composite Ti aggregate, otherwise it will
affect the shooting effect or even damage the unit.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A7
Do not use the unit in a confined space. Always install the product in a location with
adequate ventilation, at least 50cm from adjacent surfaces.
For better heat dissipation, never block the air intake and air outlet.
Do not cover the nozzle of the unit. Do not aim the nozzle at people or objects.
Make sure that no foreign objects or liquids can fall into the nozzle.
During operation the unit becomes very hot and remains hot for a long time after
operation has stopped. Do not touch the housing or put a finger into the output nozzle.
Make sure that children, unauthorized people or animals get never access to the
machine.
The noise level generated from the spark machine is estimated at 80dB.
Wear eye protection when you fi`ll in granules or test the spark machine.
5 MACHINE OPERATION
5.1 ADJUSTANGLE
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A8
* The angle of gun tube can be adjusted freely. There are 5 angles, and each angle is spaced 15 degrees apart.
Please install safety shaft to the position required before adjustment and pull up lock pin to adjust the angle.
Lock Pin
Angle Shaft
Handle
5.2 INSTALL MACHINE
Install machine on the solid horizontal ground or truss, through four M10 nuts on the base-plate.
5.3 INSTALL BUTANE GAS
If the tank can’t be installed successfully,please check buckle is in the right place.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A9
*Symbol of are showed on the panel.
*Install tank: Combine tank’s gas with ，and spin to .
*Remove tank：Spin tank to for removing it.
5.4 FILL GRANULE
5.5 Silo installation and Angle adjustment
Please do not aim Nozzle as person or other things.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A10
Spark Fabrica Granule is the consumable specially designed
for spark machine,to simulate cold fountain re works eect for
stage.
*Tear the vacuum package of granule,and fill the granule
into the nozzle of Kungfupao.
Place the silo into the spout and secure it with torx screws. (as shown below)
The machine can adjust a total of 5 nozzle angles. Each Angle is 15 degrees apart. Before adjusting the
Angle, please install the safety shaft to the position that needs to be adjusted, and then pull up the
locating pin to adjust the nozzle Angle.
6 START TO OPERATE
6.1 TURN ON MACHINE’S POWER
6.3 DISCONNECT POWER AND CLEAR
6.2 DMX CONTROL
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A11
AC power supply: Turn on the power switch, the RUN indicator light is lit, which means the power is
connected. It indicates that no consumables are added when the LCD displays E1.
There are 2 ways of controlling this product, namely DMX control and pulse control.
Pulse control only has a working mode of "press once and play once".
*Turn off the machine.
* Disconnect power and DMX signal cable.
*Remove gas tank and store it in a cool, well-ventilated place to avoid direct sunlight.
*Check if there is foreign matter in machine and remove it.
6.3 IMPULSE CONTROL
Use IMPULSE control: Input a controlled DC12V signal into the IMPULSE interface to control the machine to
start.
Use DMX cable to connect 512 console and machines’ DMX IN interface. DMX OUT can connect multiple
machines, and set the ADDRESS code of DMX for each machine after connection. This product has 2 channels
mode. Please refer to screen operation guide to set DMX parameters ,and please do not set address code
repeatedly.
Display Code Error Information
Lack of granule
E1
E3 Gas leakage fault
Replace granule
Check the leakage and replace the pipe
Solution
7 FAILURE HANDLING
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A12
Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
Disassemble, modify or repair products without SPARK FABRICA permission;
8 WARRANTY INSTRUCTIONS
NOTICE
NOTICE
Damage caused by external reasons (lightning strike, power supply etc)；
Damage caused by improper installation or use;
NOTICE
NOTICE
Sincere thanks for your choosing Kungfupao SF-K2, you will receive quality servicefrom us.
The product warranty period is 3 year. If there are any quality problems within 7 days aftershipping out from
our factory, we can exchange a brand new same model machine for you.We will offer free of charge mainte-
nance service for machines which with hardwaremalfunction (except for the instrument damage caused by
human factors)in warrantyoeriod. Please don't repair machine without factory permission.Below situations
NOT included in warranty service:
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL SF-K2 | A13
9 WARRANTY CARD
*Invoice and warranty card are necessary when applying for maintenance service from SPARK FABRICA.
Product Name:
Purchase Date:
Tel:
Address:
Actual Problem:
Maintenance Detail:
Service Engineer:
Info.Feedback About
The Problem：
Serial No：
Service Date:
For product damage not included in warranty range, we can provide paid service.
WARRANTY CARD
NOTICE
Table of contents
