Spartan SC-BAT-BX1 User manual

Copyright © 2018 Spartan Camera, Inc. All rights reserved.
SC-BAT-BX1, SC-BAT-BX2
Features:
•Works with either 6V or 12V sealed lead acid (SLA) batteries
•Solar charging compatible, 6.5 ft. charging cable built in (SC-BAT-BX2 only)
Maximum charging voltage: 25V
Minimum power: 10W
•Built-in LED battery meter
•Push-button status display
•Weather-resistant case
•5 ft. weather- and chew-resistant power output cable
•Heavy-duty latches
•Fold-down handle
•Dust proof, crush proof
•Resistant to high impact, corrosion, and extreme temperatures
•Charging protection
•Reverse protection
•Two battery cables included (for batteries with tab connectors or screw post
connectors)
•External power source for extending camera performance
•Battery not included

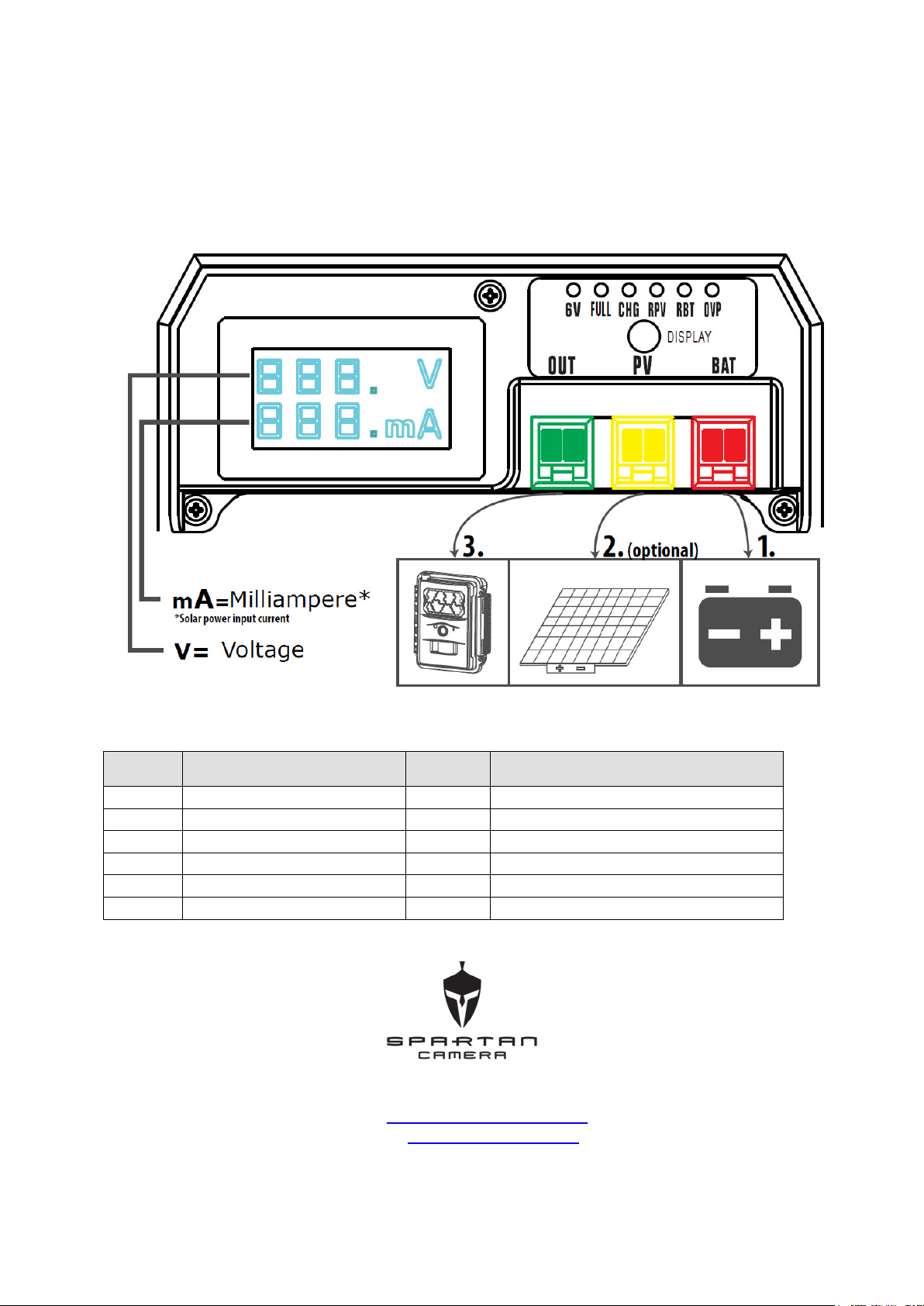

1. Connect the battery using the proper battery cable, red wire to the positive
terminal and black wire to the negative terminal. Once the battery is connected,
the built-in controller will automatically detect the battery voltage. Press the
Display button to display the voltage of the connected battery.
2. Connect the solar panel (if applicable, SC-BAT-BX2 only).
3. Connect the power cable to the camera.
Status Display
LED Item Status Function
6V
Output
Lit
Output normal
FULL
Charge Status
Lit
Battery fully charged
CHG
Charging Status
Lit
Charging
RPV
Solar Connection Error
Lit
Reversed solar connection
RBT
Battery Connection Error
Lit
Reversed battery connection
OVP
Overvoltage protection
Lit
Overvoltage protection enabled
