Spatech CADI User manual

PEDICURE SPA USERMANUAL
Before Operating the unit, please read this manual thoroughly and retain it for future reference
RECEIVING AND INSPECTION:
PLEASE TAKE NOTE! Thoroughly inspect each shipment immediately upon arrival. It is
important that you notify the driver and insist on a notation of the damage. Make
this notation directly on the freight company’s waybill or bill of lading. Failure to note
damage on the waybill or bill of lading may impede and/or prevent any claims that
you may have against the freight carrier.
If missing parts or damage is found. Please notify the carrier at once and request an
inspection. DO NOT DISCARD THE SHIPPING BOX. If you give the carrier a clear
receipt for goods that have been damaged in transit, you do so at your own risk and
expense.
TRADEMARK DISCLAIMER
CADI, BELLO, CELIO, BENILLI, MARLO, PORADA, ELO, and LUXE is the registered trademarks of
Spatech, Inc. Reproduction or reuse of part or all of trademarks are expressly prohibited without
written permission from Spatech, Inc. Due to limitation of the printing process, product colors shown
might look different from actual colors. Spatech will not be responsible for any misprint of this
advertisement. Spatech’s footspa specification and prices may change without prior notice.
Pedicure Spas are intended for professional used only, always follow your State Board’s sanitation
and disinfectant guideline.

SAFETY PRECAUTIONS:
!
Warning
THIS PRODUCT IS FOR INDOOR USE ONLY
DISCONNECT POWER SUPPLY CORD BEFORE SERVICING
This product is to be connected to a branch circuit outlet protected by a Class
A GROUND FAULT CIRCUIT INTERRUPTER (GFCI), and the GFCI shall be tested
regularly for continued protection and correct operation. If a Class A GFCI
protected outlet is not available, DO NOT USE THIS PRODUCT! Please contact a
licensed electrician for installation of a Class A GFCI according to local electric
c
od
e
s, or
e
qui
v
a
lent
!
Warning
DO NOT USE if you are diabetic, have poor circulation, or if any area of your
feet or legs is inflamed or has an open sore. Consult your physician before
using if you have any kind of fungal infection, swelling, fracture or persistent
pa
i
n.
!
Warning
TO REDUCE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS UNIT
UNLESS THEY ARE CLOSELY SUPPERVISED AT ALL TIME

LIRE LES INSTRUCTION DU FABRICANT AVANT DE METTRE EN MARCHE

UTILISER SEULEMENT A L’INTERIEUR

COUPER LE COURANT AVANT DE PROCEDRE AU DEPANNAGE, AU
NETTOYAGE
!
Warning
1. Excessive water temperature is dangerous and should be checked BEFORE
use.
2. Maximum temperature of the water should never exceed 100 degrees F.
3. DO NOT STEP/ STAND IN FOOT BASIN.
4. Always enter and exit the Pedicure Spa slowly and carefully.
5. NEVER bring and / or operate any electrical devices into or near the
Pedicure Spa.
6. M
a
x
i
m
um
load in spa
c
h
a
ir is 250
l
bs (114
k
g
).
!
Warning
If a crack in the GLASS BOWL occurs, DO NOT handle unless the proper attire
and equipment is used. Discontinue use of the bowl until proper equipment is
replaced. You may be held accountable for any injury that may occur. Spatech,
Inc. is not liable for any injury that may occur.
STATES’ NOTICE
In the common wealth of most of the States, all pedicure spas shall be installed for Commercial
usage in the states, are required to have backflow preventer. This equipment shall be installed
between the water inlets and the spa at Salon’s cost.
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Connect drain with power drain (pump) or gravity drain (no pump)
Using ¾” schedule 40 PVC (Power Drain) or 1 ¼” flex tube (Gravity Drain) and appropriate P-
Traps connect drain to meet local plumbing codes.
Rubber connection to the drain should be removable for easy service and should not be
permanent to prevent damages.

Plumbing Flow Pattern for Gravity Drain:
*** Extra 1 ¼” Flex-hose is supplied for fast connecting to underground 1 ½” connector
Hot and cold water supply lines
Before water line connections, please follow
below:
Determine if your spa chair is used for a new construction of a salon or a replacement spa
chair.
1. New construction: Make sure to remove any and all debris and/or dust from current hot cold
water pipes before hooking up to spa. Suggested direction to remove debris: turn on water and
drain into a bucket or container.
2. Replacement Spa: Always use new hot/cold water hoses when connecting a new spa chair
to prevent debris, such as old rubber particles, from clogging drain.
*** Vaccum Breaker
Due to Town and/or State requirement/s are varies in building code, if the Town and /or
State requires Vacuum Breaker, As the Plumber MUST provide Vacuum Breaker according
to building code requirement.

Electrical Service:
INSTALLATION
A 110V, 60Hz, 15 Amp GFCI protected grounded circuit must be used to
supply power to the pedicure spa
Water Supply:
• Observe and follow all local codes in regards to plumbing connections
• 30 to 80 PSI water pressure is needed to correctly fill the basin a correct
level
• The hot water supply temperature must not exceed 150oF (65oC);
exceeding this temperature may cause damage to your unit and injury. If
the temperature is higher than this, then please lower your water heater to
the correct and acceptable temperature
• Carefully connect the incoming water supply lines to appropriate fittings
located on the back of the pedicure spa. For hot and cold water supply
fittings below. For power drain/floor drain fittings location
• Shut-off valves are recommended
• To prevent the water supply contamination, our shower head includes a
back flow preventer (see figure 1). We also highly recommend you to install
a Reduced Pressure Back Flow (RPBP) for each hot & cold water supply line.
Please check with your local plumbing code requirements.
Spatech recommends Watts 909 RPBP for each main supply line (see figure
2). Installation must be done by a licensed plumber, and installation
procedures must comply with all state and local codes.

Connect drain with power drain (pump) or gravity drain (no pump)
Using ¾” schedule 40 PVC (Power Drain) or 1 ¼” flex tube (Gravity Drain) and appropriate P-
Traps connect drain to meet local plumbing codes.
Rubber connection to the drain should be removable for easy service and should not be
permanent to prevent damages.
WALL CLEARANCE & SPA to SPA RECOMMENDED CLEARANCE SPA
DIMENSION.

ELECTRICAL AND PEDICURE SPA COMPONENT SPECIFICATIONS
All electrical connections MUST be made by a qualified, licensed electrician, in accordance with Local & National
Electrical and Building Codes. An 110V-50/60 Hz, 15 Amp, GFCI protected grounded circuit MUST be used to
supply power to the Pedicure Spa. A dedicated circuit must be used with a GFCI. All wiring must conform to National
& Local Electrical Codes.
!
Warning It is extremely important that the foot spa operates with GFCI protection
VERY IMPORTANT Both back of chair and seat are adjustable. When both are at maximum positions one must allow
18” (44cm) from back wall to foot spa. This minimum distance assures unobstructed recline. Failure to follow this
required dimension might damage your spa components and plumbing connections, which will void your warranty
PEDICURE SPA SPECIFICATIONS:

Construction: Marble composite, high gloss, acetone-resistant gel coat.

Two (2) electro-mechanical knobs control the drain and whirlpool.

Electro-mechanically operated reclining, massaging, and sliding seat with hand held control.

One (1) pipe-less whirlpool jet. (Pipe-free technology)

Power drain or Gravity drain

Extendable water spray positioned well above water line, air gap is accommodated with backflow
prevention required by plumbing code

Depending on pedicure spa model, arms may swing open, swing up / down or slide forward / backward.
SPECIFICATIONS
S
p
a
D
i
m
e
ns
i
o
n
s
&
W
ei
g
h
ts
Adjustable Stool
All Spa (seat-up-right): L≈51”-52” (129-132cm), LUXE model Length =
52” (127cm)
W=22” (56cm) w/ Tray ≈ 45”-46” (114-116cm) H = 58” (147cm)
*Clearance of 18” (20.32cm) needed for recline
Empty Weight: ~ 220 lbs.
Shipping Weight: ~ 250 lbs.
Pedicure Stool: 12” – 13”. Manicure Stool: 16.25” – 20”
S
p
a
W
ater
~
4
.5
US
Gall
o
n
J
et
M
o
t
o
r
120
V
A
C
,
at
85
W
60
Hz
M
a
ss
a
g
e
M
o
t
or
s
,
Seat
Sl
i
d
i
n
g
&
Reclining
2
4
VDC,
5 A
m
p
Di
s
c
h
a
r
g
e
P
u
m
p
M
o
t
o
r
–
120
V
at
85
W
60
Hz
Maximum vertical lift: 3ft
Flow rate 500 GP level
P
o
w
er
s
o
u
r
ce
115
V
A
C
,
60
Hz
Power needed per spa chair = 6 Amp
2
A
ir
S
w
it
c
h
es
F
o
r
c
o
n
tr
o
l,
t
u
r
n
W
h
irl
poo
l
J
e
t
a
n
d
D
r
ain
P
l
u
g
&
P
l
a
y
I
ns
ta
l
lati
o
n
I
ns
talla
t
i
o
n
s
h
o
u
ld
b
e
m
a
d
e
w
i
th
c
on
n
e
c
ti
o
n
at
t
h
e
e
x
te
r
n
al
i
n
te
r
f
a
c
e
parts.
P
lease
c
o
nsu
lt
w
ith
y
o
u
r
l
o
c
a
l
p
l
u
m
b
er
Sa
f
e
t
y
S
p
ate
c
h
®
i
s
UL
l
i
s
te
d
.

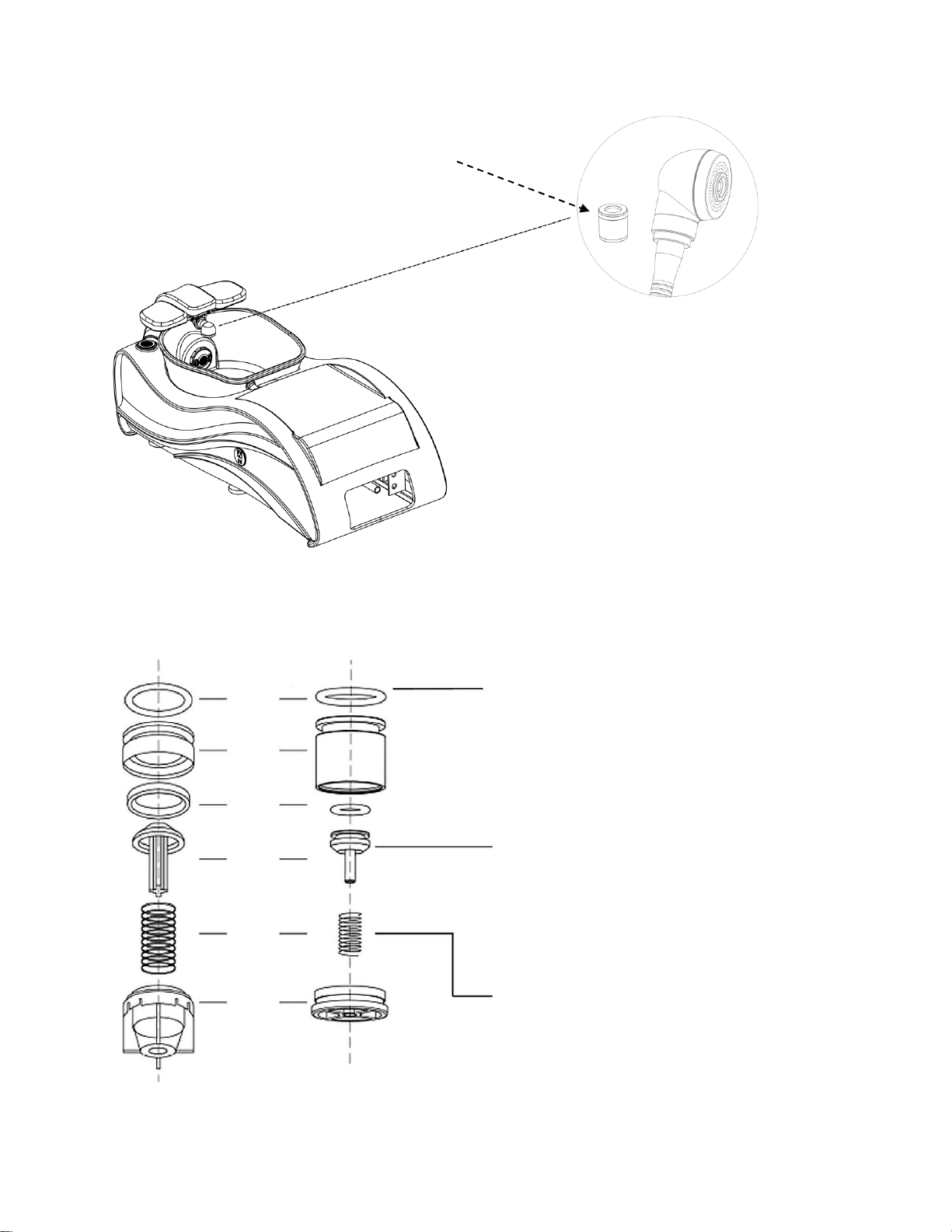

In-line Check Valve. Complied
with ASME A112.18.3M &
IAPMO CERTIFIED FILE# 4374
SPATECH
A112.18.3M BACK FLOW PREVENTER
Exlernol
seal
EPDM
Housing
POM
Internal
seal
EPDM
Core
POM
Spring
S304
Cover
POM
External o-ring seal provides sealing between the
check valve cartridge and the mating cavity into
which it is inserted.
Center stem guidance optimizes the return of
the plunger head into its seat for effective
sealing and to prevent jamming even in hard
water conditions (water with high mineral
content or sediments)
Standard XHnotion check valves are spring
loaded to ensure reliable operation in any
position of installation and fast positive sealing
even in low backpressure conditions.

OPERATION AND CARE INSTRUCTIONS
Manual Operation (For Non-Auto-Fill / Drain Models):
Filling
Close the Drain Stopper by turning the Drain Knob counterclockwise. Utilizing the single lever
hot/ cold mixer faucet located on the front of the Pedicure Spa, fill the tub to the water level
above the whirlpool jet at least 1 inch. You must completely submerge the jet. If during the
operation of the whirlpool, the water level decreases, simply add more water.
Whirlpool Starting
Turn the Jet Knob located on the right side of the front panel to clockwise to turn on.
Turn counterclockwise to shut off.
!
Warning Do NOT turn “ON” the WHIRLPOOL JET unless adequate water is in the tub.
Draining
Turn the Drain Knob clockwise to open the Drain Stopper. Power Drain will turn on automatically
if drain pump exist
!
Warning Do NOT turn “ON” the DRAIN PUMP unless adequate water is in the tub.
THE WARRANTY IS VOID IF THE PUMP HAS BEEN RUNNING DRY
NOTE: Whirlpool action can cause even small amounts of soap or body oil to foam excessively.
For this reason, refrain from using these products during the whirlpool cycle.

WHIRPOOL JET INSTALLATION
NOTE: 1. To avoid water leakage, it is essential to align lips from electric motor perfectly with slots on housing.
2. When installing motor, first apply moderate pressure to motor to engage motor lips (4) with
housing slots (4), then twist motor counterclockwise until secured.

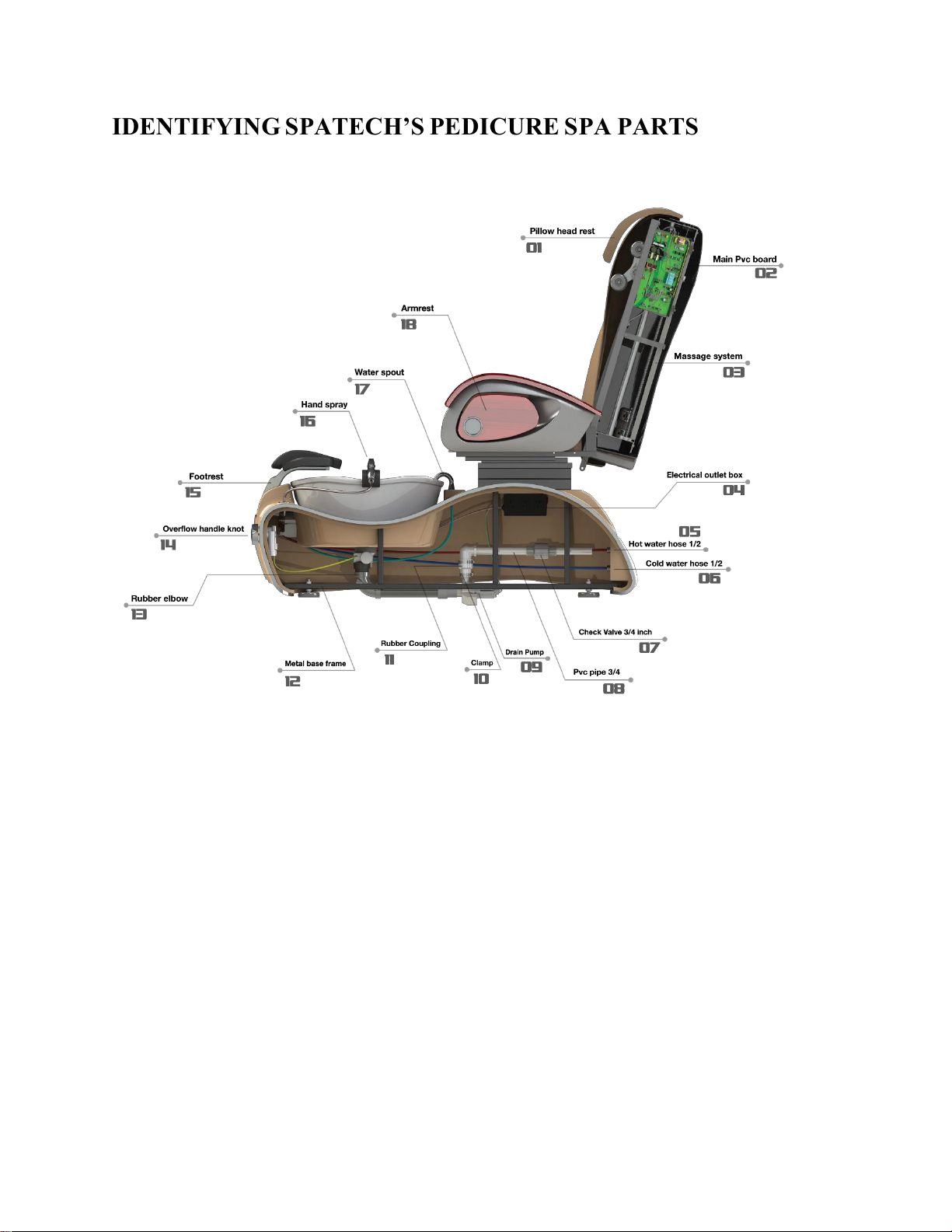

IDENTIFYING SPATECH’S PEDICURE SPA PARTS
1. Pillow Head Rest 2. Main PVC Board
3. Massage System 4. Electrical Outlet Box
5. Hot Water Hose ½ 6. Cold Water Hose ½
7. Check Valve ¾ inch 8. PVC Pipe ¾
9. Drain Pump 10. Clamp
11. Rubber Coupling 12. Metal Base Frame
13. Rubber Elbow 14. Overflow Handle Knot
15. Footrest 16. Hand spray
17. Water Spout 18. Armrest

MASSAGE SYSTEM & REMOTE CONTROLLER:
1. Press Auto Button to start Auto mode. Press again to turn off massage. Auto and Manual mode will run for
duration of 20mins.
2. Press any button (Rolling/Spot, Kneading, Tapping, and Combine) to enter Manual mode.
3. Press Rolling/Spot to stop rolling up/down and stop at desired spot.
4. Press Intensity button to select tapping intensity.
5. Button/LED is an option. Pressing this button will resume with Tapping action.
6. Press any chair button (Recline, Incline, Backward, and Forward) to move the chair to desired positions.
POWER
ON/OFF
AUTO MASSAGE
Automatic program selection
buttons: UPPER BODY, NECK &
SHOULDER, and BACK & WAIST.
Each AUTO MODE is designed
for regular purpose of massage
about timing, strength, and
type of massage.
MANUAL MASSAGE
Manual massage selection
buttons: KNEAD, FLAP,
KNEAD&FLAP, PRESS, KNOCK,
and BACK STRETCHING. Each
MANUAL MODE can adjust
SPEED and WIDTH.
SEAT ADJUSTMENTS
Chair can adjust
- Up and Down with RECLINER
- Backward and forward with
SLIDER
TIMING
Manual time setting for
10 / 20 30 minutes
BACK STRETCHING
It has Weak / Medium / Strong
to choose
SPEED
It has Slow / Fast / Fastest
to choose
WIDTH
It has 3 different types:
Out / Regular / In
