T-SPA BRIANNA T-200 User manual

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 1
Version: T-200
VERSION: T-200
MODEL: BRIANNA PEDICURE CHAIR
OWNER’S MANUAL
PLEASE SAVE THIS MANUAL FOR FUTURE REFERENCE

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 2
Version: T-200
TABLE OF CONTENTS
Safety & Precaution 03
Specification 08
Identify Your Foot Spa 09
Foot-spa Clearance 10
Installations 11
Operation & Use 18
Maintenance & Use 20
Warranty & Service 22
UL Certificate 24
Warranty Registration Form 25

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 3
Version: T-200
DANGER: Risk of Electric Shock. Connect only to a circuit protected by a ground fault
circuit interrupted
GROUNDING IS REQUIRED. The unit should be installed by a qualified service
representative and grounded.
Install to permit access for servicing.
CAUTION: Risk of electric shock. Disconnect electric power before servicing.
WARNING: Risk of accidental injury or drowning; children should not use hydro
massage bathtub with- out adult supervision.
WARNING: Risk of accidental injury or drowning; do not use hydro massage bathtub
unless all suction guards are installed to prevent body and hair entrapment.
WARNING: To avoid injury, exercise care when entering or exiting the hydro massage
bathtub.
WARNING: Risk of accidental injury or drowning, do not use drugs or alcohol before or
during the use of a hydro massage bathtub equipped with heater to avoid
unconsciousness and possibledrowning
WARNING: Risk of fetal injury; pregnant or possibly pregnant women should consult a
physician before using a hydro massage bathtub equipped with heater.
WARNING: Risk of hyperthermia and possible drowning; do not use a hydro massage
bathtub equipped with heater immediately following a strenuous exercise
WARNING: Risk of electric shock; do not permit electric appliances (such as a hair dryer,
lamp,telephone, radio, or television) within 1.SM (5 feet) of this hydro massage bathtub.
CAUTION: Test the ground fault circuit interrupted protecting this appliance periodically
in accordance with the manufacturer’s instructions
SAFETY & PRECAUTION

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 4
Version: T-200
WARNING: Risk of hyperthermia and possible drowning; water temperature
inexcessof38°C(100.4°F) may be injurious to your health. Check and adjust water
temperaturebeforeuse.
WARNING: Risk of hyperthermia; people using medications and/or having an adverse
medical history should consult a physician before using a hydro massage bathtub
equipped with heater.
WARNING: It is very important that you carefully follow the basin cleaning procedures
on page 17 to ensure that the spa is sanitized after each use. T-SPA is not liable for any
infections or disease that may result from improper cleaning or failure to adhere to
sanitation requirements.
This pedicure spa unit should only be operated in a room temperature between 40°F (4°C) and
100°F(38°C). DO NOT use unit outdoorsorin excessively humidordusty environments.
DO NOT use unit where aerosol (spray) products are being used or oxygen is being
administered. DO NOT operate unit if it has been damaged.
Always connect this unit to a properly grounded electrical outlet. This unit is designed
only to operate on a standard 110 Volt 60Hz current. Exceeding this standard may cause
injury and/or seriousbodily harmand/ordamage to property.
DO NOT use this unit if noise above normal sound is heard.
To reduce the risk of burns, fires, and electrical shock, never leave this unit unattended if
plugged in and always unplug when not in use for an extended period, before
installation, cleaning, or removal of parts. Keep the power cord away from heated
surfaces.
DO NOT operate unit if the power cord or plug has been damaged.
If this unit is operating abnormally or malfunctioning, immediately turn off the
power and disconnect the power cord from the outlet; do not operate unit if it is
not working properly.
SAFETY & PRECAUTION

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 5
Version: T-200
Intheeventofapowerfailure,alwaysturnthepowerswitchtoitsOFFposition. Whennotin
use alwaysturn the powerswitchOFFposition.
To disconnect unit, turn all controls to OFF position and remove power cord from the
outlet. Keepallelectrical devices awayfrom this unit.
This unit only has a weight capacity of 300pounds (136.06 kg). Enter and exit the unit
slowly and carefully.
Never drop or insert any object into any opening of the unit.
Close supervision is necessary when this unit is used by, on or near children, invalids, and
disabled persons. Do notstandorallowanyonetostandinthespabasin.
Please be aware that a spa basin filled with water is a potential drowning hazard.
Check the water temperature before each use; water temperature should not exceed
105°F (41°C) and water temperature in heater should not exceed 150°F (65°C).
Disinfect the spa basin and jets, after each use with an approved cleaner.
Do not massage any area of the body that is swollen, inflamed, or covered with skin
eruptions. Before operating the massage chair, make sure the chair arms are down.
If there is severe discomfort during the massage, discontinue use and consult a
physician. Donotusethe massagechairformorethan15minutesatonetime.
Do not put hands or fingers near massage mechanism or rollers while the chair is
operating; touching the mechanism can result in injury from the rollers squeezing
together.
Keepthemassagechairanditsairopeningscleanandfreeof hair and dust;neveroperate
themassage chair if the air openings areblocked.
Misuse or failure to properly clean pedicure spa unit may result in serious health issues,
bodily injury, and/or death.
SAFETY & PRECAUTION

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 6
Version: T-200
HEALTH RISK WARNING:
Use of the pedicure spa unit should be pleasant and comfortable; if there is any pain or
discomfort, stopuseofthe pedicure spaimmediately.
A physician should be consulted before use of the massage chair by anyone with the
following conditions: Malignant tumor, heart disease, pregnancy, Conditions requiring
rest, and back disease or trouble from an injury or accident.
A physician should be consulted before use of the spa basin and jets, by anyone with
diabetes,swelling,fracture,or persistent pain.
Anyone with inflamed legs or feet, open wounds, or fungal infections should not use the
spa basin and jets.
Misuse or failure to properly clean pedicure spa unit may result in serious health issues,
bodily injury, and/or death.
WARNING - GROUNDING INSTRUCTIONS AND METHODS:
This unit must be grounded. If it should malfunction or break down, grounding provides
a path of least resistance for electrical current to reduce the risk of electric shock. All
outlets connected to epicures as must include a GFCI device (Ground Fault Circuit
Interrupter). Thiswillreducetheriskofelectric shock.
This unit is for use on a standard 110 Volt 60Hz current.
This unit is equipped with a cord having an equipment grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
If you are in doubt as to whether this unit is properly grounded, check with a qualified
electrician or serviceman. Fatal electric shock and fire could occur with improper
connection of the equipment- grounding conductor. Do not modify the plug provided
with the product for any reason; if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
SAFETY & PRECAUTION

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 7
Version: T-200
WARNING: THERMAL RESETTING PROTECTION DEVICE
The massage chair is equipped with a thermal resetting protection device. This is a
safety feature to protect it from overheating. If the chair should suddenly stop and will
not start, turn the main power switch off, and do not operate the chair for at least 30
minutes. Failure to turn the chair off may result in the chair starting unexpectedly when
the device cools.
SAFETY & PRECAUTION

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 8
Version: T-200
MODEL: T-200
Dimension (Shipping)
Pedicure Spa
Massage Chair
Stool
43L x 19W x 16H
19L x 18W x 30H
13L x 13W x 14H
Weight (Shipping)
Pedicure Spa
Massage Chair
Stool
60 lbs.
50 lbs.
15 lbs.
Capacity
T-800
3.0 US Gal
Switch
On/Off Air Activated Switch
Power Source
Dedicated 15A Wall Outlet.
Require Pipe-less whirlpool
motor
120V, 0.4A, 60Hz
Water Pump Power Source
Discharge Pump motor
(optional)
115V, 3.2A, 60Hz
Massage System
120V, 60Hz
Plumbing Source
Hot Water
Cold Water
Drain
3/8 inches
3/8 inches
1-1/4 inches –1-1/2 inches
Warranty
Unit
Optional Item
1 year
120 Days
SPECIFICATION

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 9
Version: T-200
SEAT OPERATION
SPA DIMENSION
IDENTIFY YOUR FOOT-SPA
Armrest can be raised up/down
Chair Sliding
Length 43”
Front Width 19”
Rear Width 19”
Height 46”

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 10
Version: T-200
WALL CLEARANCE
TYPICAL FOOT-SPA
FOOT-SPA CLEARANCE
22” between
edge of spa and wall
2”-3” minimum between
manicure trays
50” between each spa

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 11
Version: T-200

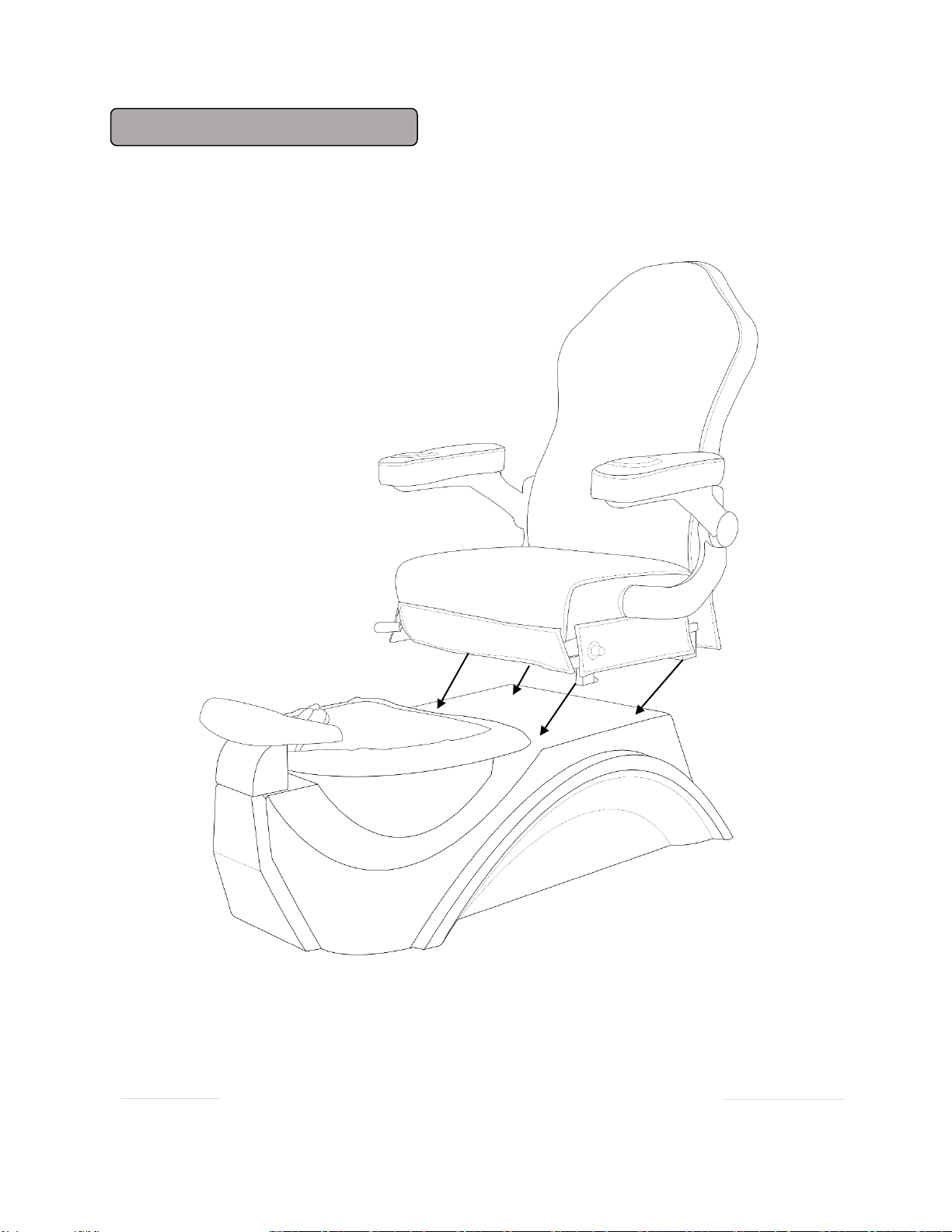

Align the seat with pre-drilled holes on the base then tightly secure with provided nuts
and bolts.
Attach trays or remote stand to armrest with provided screws.
VERSION: T-200
MODEL: BRIANNA PEDICURE CHAIR
INSTALLATIONS

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 12
Version: T-200
When using electrical equipment, basic safety precautions must be followed to
reduce the risk of fire, electrical shock, and injury to persons.
1. Read and follow all instructions before using the equipment.
2. Keep electrical cord out of heavy traffic area to avoid fire hazard. NEVER place
electrical cord under the rug, or near a heat generating device.
3. Always turn off the equipment before service.
4. Do not drop or insert any object into any openings.
5. Do not operate any equipment with damaged parts.
6. Any other use not recommended by the manufacturer may cause electrical shock
or injury to person.
7. Never use it outdoor.
8. Do not attempt to repair or adjust any electrical or mechanical
CLEANING INSTRUCTION
1. Turn off the unit and wait until the motor fully stops.
2. Hold whirlpool jet cover firmly and pull to separate from the round magnetic field.
3. Turn hydro whirlpool jet cover to the left to open and pull out the impeller.
4. Use Anti-Bacterial solution (EPA Registered) to clean all parts.
5. After sanitizing all parts, place impeller back inside and close hydro whirlpool jet
cover, turn right to lock the cover.
6. Firmly hold the whirlpool jet cover and gently place it onto the round magnetic
field. DO NOT release the hydro whirlpool jet cover until jet cover is on the round
magnetic housing.
INSTALLATIONS

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 13
Version: T-200
JET UNIT COMPONENTS
MAGNET JET FEATURE
1. Hydro dual-massage jet stream.
2. Magnetic whirlpool jet cover can be removed for quick cleaning and sanitizing.
3. Built-in electronic sensor for pump control.
4. AC Whirlpool motor (long life).
5. Very low power consumption (27W).
6. Manufactured in the U.S.A.
MAGNET JET SPECIFICATIONS
Model: MAGNA JET –120 VAC, 60 Hz, 1.0 A
Pump: Hydro Dual-Massage Jet Flow
Mounting: Single 3.5”-diameter hole with auto tighten mounting screws (4)
INSTALLATIONS
Whirlpool Motor
Magnetic Jet Base
Magnetic Impeller
Whirlpool Jet Cover
Bottom view of magnetic jet base

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 14
Version: T-200
PLUMBING CONNECTIONS
1. A discharge pump system connected to an existing sink drain or floor drain can
pump up to 7ft high but will increase draining time. Drain connections at the rear
of the unit by ¾” fitting.
2. Gravity drain uses a standard gravity drain. A Floor drain is recommended. P-
Trap is not installed nor supplied. The Floor drain should already have a P-Trap
and UPC codes. DO NOT allow double P-Trap in the system.
3. Hot and Cold-water supply connections are located at the rear of the unit (½”
fitting). Please be advised that the Hot and Cold-water supply lines are not fitted
with optional backflow. Preventers unless ordered at initial sale.
4. Have a qualified licensed electrician to install the wiring according to local codes.
The Clean jets are 1/18 HP, 120V A.C., 0.55 AMP, 60 Hz. GFI protected circuit
must be used to supply power to the unit. The roller back massage chair uses a
115V A.C. supply.
5. Spa base should be anchored securely to the floor. The base may be anchored
through the opening in the back of the base wherever access is convenient for
the installer.
6. Handheld sprayer. It has complied with applicable requirements of ASME
A112.18.1-2005/CSA B125.1-05
FAILURE TO ANCHOR THE BASE MAY RESULT IN PERSONAL INJURY OR
DAMAGE TO UNIT. DAMAGE AS A RESULT WILL VOID THE WARRANTY.
INSTALLATIONS

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 15
Version: T-200
Typical Gravity Sink (Direct Drain) Installation:
INSTALLATIONS
2”-3” Gravity Sink
to sewer line
P-Trap 1-1/2”or 1-1/4”
2”-3” Gravity Sink
to sewer line
L-Trap 1-1/2”or 1-1/4”

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 16
Version: T-200
Discharge Pump Installation (OPTIONAL):
Hot and Cold Hoses Installation:
INSTALLATIONS
Backflow Valve
supplied by plumber
Discharge Pump
Motor
1 inches Output
3/8 inches Output
Hot and Cold Hoses

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 17
Version: T-200
Typical Ventilation System Installation (OPTIONAL)
1.5 inches Output
1.5 inches Input
INSTALLATIONS

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 18
Version: T-200
1. FILL WATER:
The Foot-spa is provided with a single hot and cold mixing valve located in the
front of your spa. Lift the handle to start the water flow and adjust to the desired
temperature. Let the water fill up the bowl until clean jet body is completely
submerged in water.
CAUTION: DO NOT USE FOAMING, SUDSING, OR MINERAL OIL BASED
ADDITIVES IN THE WATER.
2. START WHIRLPOOL MAGNETIC JET
Press the Jet Button located in the front of your spa. This will start your Whirlpool
Magnetic Jet. To stop the whirlpool function, simply press the Jet Button again.
3. DRAIN FOOT-SPA BOWL
Turn Drain Knob to popup drain plug/stopper.
- If the spa has gravity drain (discharge pump) system: water in bowl will be
empty with duration determined by waste-water plumbing.
- If optional discharge pump system is installed: press Drain/Pump button to
activate discharge pump motor. Average drain time approximately one minute
(depending on plumbing characteristics).
4. MASSAGE CHAIR MANUAL BOOK WILL BE SEND SEPARATELY
OPERATION & USES
Overflow Knob
Mixer Knob
Drain/Pump Button
Jet Button

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 19
Version: T-200
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED INCLUDING:
1. Read and follow all instructions.
2. DANGER. To reduce the risk of injury, DO NOT permit children to use this unit
unless they are always supervised.
3. Use this unit only for its intended use as described in this manual. DO NOT use
attachments that are not recommended by the manufacturer.
4. NEVER drop or insert any object into any opening.
5. DO NOT block magnetic jet during whirlpool operation.
6. The unit must be connected to an electrical supply circuit that is protected by a
ground fault circuit interrupter.
7. The clean jet motor is magnetically driven and is insulated twice. Therefore, it
does not require to be bonded. Save these instructions!
OPERATION & USES

T-SPA MFG, LLC
10510-10520 Kinghurst St Houston, TX 77099
☏[phone] | ✉[e-mail]
www.tspallc.com
Page 20
Version: T-200
PLEASE REFER THE DIAGRAM TO REMOVE JET COVER FOR CLEANING
T-SPA highly recommends the following cleaning regimen. You should always contact
your local governing agency for their specific cleaning and disinfecting requirements
and regulations for pedicure spas. For your client’s safety, always use the regulations as
a minimum standard for cleaning and disinfecting. Combining your states standards with
the regimen listed below will provide your clients with a safe and healthy pedicure spa
environmentexperience.
ROUTINE MAINTENANCE
Powdered cleansers or abrasives are NOT RECOMMENDED. A clean towel or sponge
are all that are usually needed. A soft bristled brush may be used when excessive
residue is present. Use a mild soap and water solution to clean the upholstery, but DO
NOT over wet. Wipe dries with a clean towel. No internal maintenance of the spa
components is necessary. Remove clean jet caps and spray with disinfectant after each
use. For extra protection, our recommendation is that the system be flushed daily or
weekly depending on use. To flush the clean jet system, fill the spa with hot water to just
above the jets. Add disinfectant. Run whirlpool for 15 minutes, drain and then wipe dry
with clean, soft cloth.
NOTE:
The use of oil-based products can build up in the whirlpool system, causing clogging in
the jets. Adherence to the above cleaning will minimize build up. T-SPA DO NOT
recommend the use of mineral oil-based products.
MAINTENANCE & USE
Cleaning or sanitizing is NOT disinfecting. According to the Centers of Disease
Control and Prevention (CDC), and the US Environmental Protection Agency
(EPA), disinfecting occurs only when there is a reduction of pathogenic
microbes at 99.999%. Sanitizing is only a reduction of 99.9%. Cleaning of
whirlpool pedicure spa requires surfactant and chelating detergents that are
low-foaming and can remove body oils, organic oil additives, mineral oil, skin
cells, nail clippings etc. that can accumulate both in the basin and the jets which
may become a fertile area for microorganism to grow.
