INSTRUCTION
MANUAL
31cc 25cm
4 Stroke Petrol
Brush Cutter S3125PT
YT9022-08
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your petrol brush cutter, ensuring it is assembled
correctly and safely. If you need help or have damaged or missing parts,
call the Customer Helpline on 0345 605 2070
AFTER SALES SUPPORT
0345 605 2070

2AFTER SALES SUPPORT 0345 605 2070
As a testament to the quality of our products, we offer a 3 year
manufacturers warranty and a comprehensive after sales service.
The warranty covers manufacturing faults, however in the event that the
item has been deliberately damaged, used in a commercial environment or
disassembled then the warranty will be null and void.
Please retain proof of purchase.
We want you to get the best out of your products. Our easy-to-read
instruction manual guides you with best practice use and maintenance
tips. Please call 0345 605 2070 for technical support, we can solve around
80% of questions directly over the phone.
We hope you enjoy your product and we look forward to any feedback, as
this allows us to develop even better products for the future.
For more than 250 years gardeners have enjoyed high quality performance
and great results using Spear & Jackson tools.
Our garden power tools combine continuous innovation and the latest in
manufacturing technologies with a proud heritage.
Each product is carefully designed with performance,comfort and
durability rmly in mind,which has earned Spear & Jackson an enviable
reputation as a maker of tools to trust.
SPEAR & JACKSON SINCE 1760
3 YEARS GUARANTEE
TECHNICAL SUPPORT

AFTER SALES SUPPORT 0345 605 2070 3
SAFETY INFORMATION........................................................................................................04
Description of symbols........................................................................... 04
General safety warnings............................................................................06
Work area safety....................................................................................07
Personal safety ...........................................................................................07
Operating safety .............................................................................................08
Garden tool use and care ................................................................................10
Intended use ..................................................................................................11
IN THE BOX....................................................................................................................14

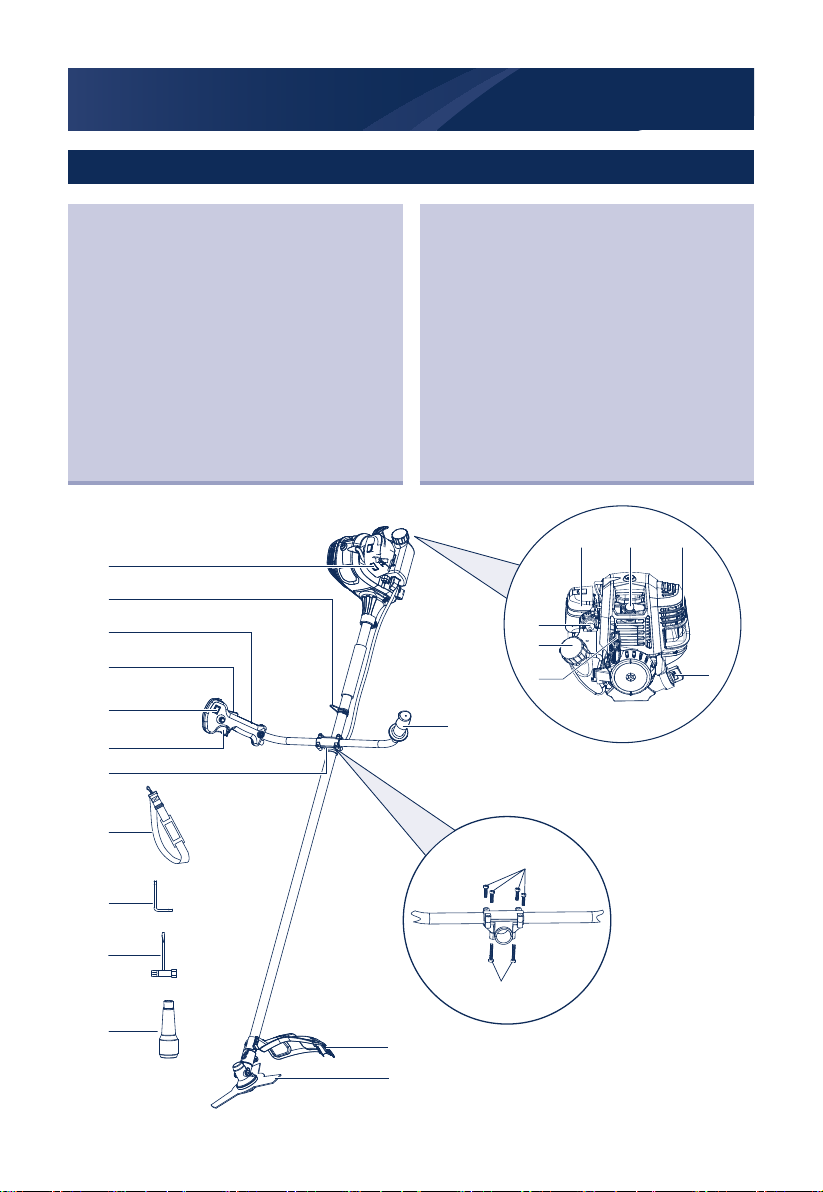

Part list...........................................................................................................14
ASSEMBLE.......................................................................................................15
Unpacking..................................................................................15

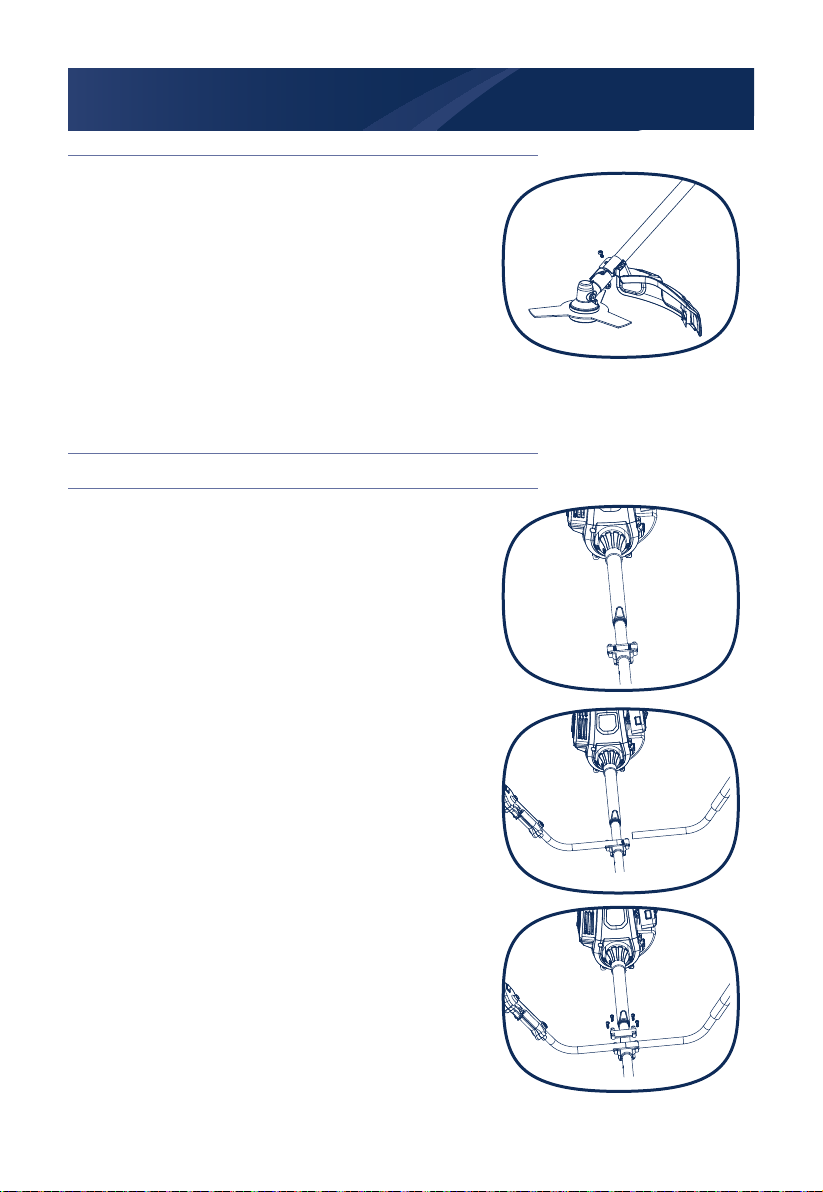

Cutting blade assembly........................................................................15
Cutting head guard assembly................................................................16
U handle assembly............................................................................16
Harness assembly.................................................................................17
PREPARE........................................................................................................... 18
Add engine lubricant oil: Initial use................................................................. 18
Fueling.............................................................................................................18
OPERATE................................................................................................................20
Switch on...... .............................................................................................20

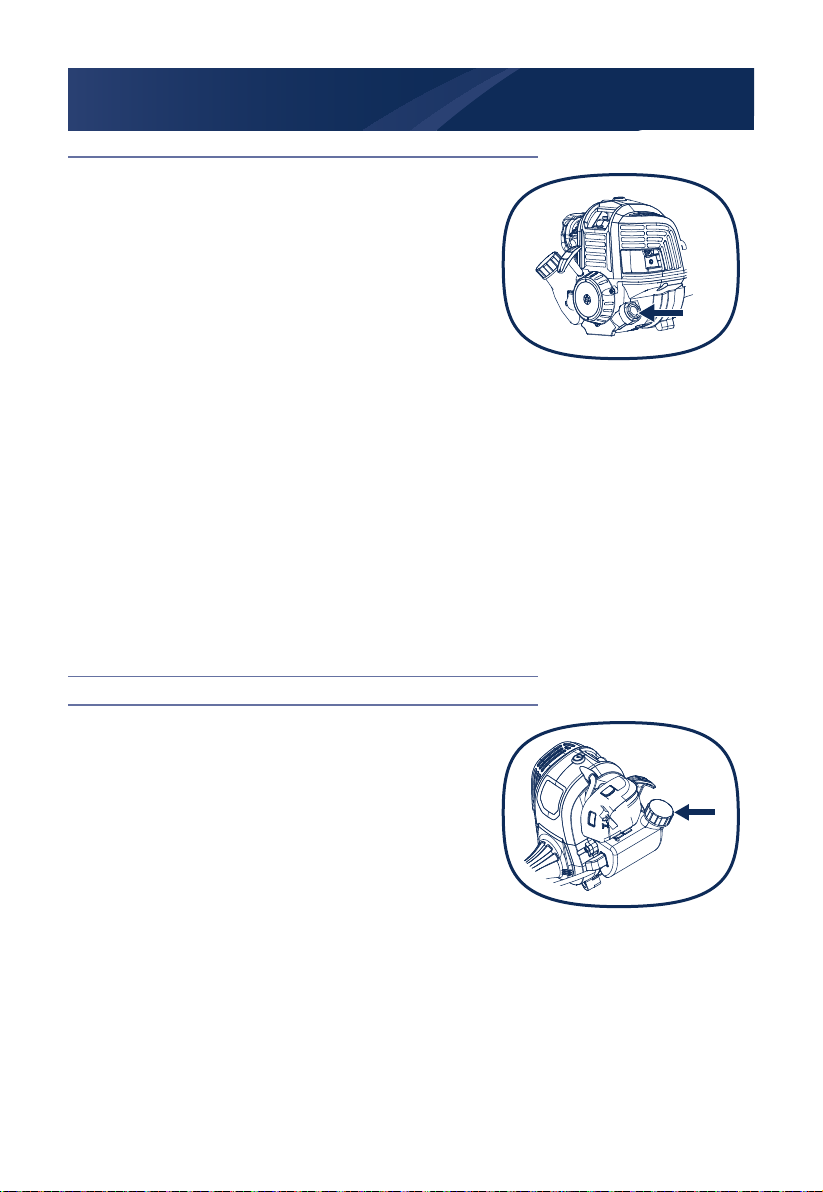

press the primer bulb...................................................................................20
Push the choke button.........................................................................20
Pull the starter grip......................................................................................21
Hold the machine............................................................................21
Squeeze throttle to start..................................................................................22
Cutting work....................................................................................................22
Stop machine ................................................................................................23
MAINTENANCE ..............................................................................................................24
Clean machine body.......................................................................................25
Check engine lubricant oil level before each use............................................25
Change engine lubricant oil ...........................................................................26
Air Filter Cleaning............................................................................................26
Clean cutting blade........................................................................................27
Inspect the Spark Plug...................................................................................27
Storage................................................................................................27
TECHNICIAL DATA............................................................................................................ 29
TROUBLESHOOTING....................................................................................................30
WARRANTY...................................................................................................................31
CONTENTS

4AFTER SALES SUPPORT 0345 605 2070
Some of the following symbols may be used on your tool.Be sure to study
them and learn their meaning. Proper interpretation of these symbols will
allow you to use the machine more effectively and reduce the risk of accident.
SAFETY INFORMATION
Description of symbols
Indicates danger, warning or
caution.
Danger of injury from ying
parts! Beware of thrown
objects.
WARNING: Keep all
bystanders, especially children
and pets,at least 50 feet (15 m)
from the operating area.
113
WARNING:Do not touch a hot
mufer or cylinder. You may
get burned. These parts get
extremely hot from operation.
When turned off, they remain
hot for a short time.
WARNING – To reduce the
risk of injury, user must read
instruction manual.
Guaranteed sound power level
((tested according too Directive
2000/14/ EC as amended by
20005/88/EC).
Wear eye and hearing
protection. Wear head
protection, where there is a
risk of falling objects.
Wear gloves to protect against
shock Clothing must be
sturdy and snug-tting, but
allow complete freedom of
movement.
Always wear foot protection
when using the device.
Please read these instructions fully before operating or maintaining your machine.
Do not touch the blade
until it stops completely
when replacing new blade.
Maximum rotational frequency
of the spindle.
Beware of objects ung by
cutting attachments.
Never use without properly
mounted protection
guard.
Keep 15 meters away from
any other person.
5700 min
Max.
-1

AFTER SALES SUPPORT 0345 605 2070 5
Some of the following symbols may be used on your tool.Be sure to study
them and learn their meaning. Proper interpretation of these symbols will
allow you to use the machine more effectively and reduce the risk of accident.
SAFETY INFORMATION
DESCRIPTION OF SYMBOLS
UNLEADED FUEL
Always use clean, fresh
unleaded fuel.
OIL
Refer to operator’s manual for
the proper type of oil.
Conforms to relevant EU
directives.
Please read these instructions fully before operating or maintaining your machine.

6AFTER SALES SUPPORT 0345 605 2070
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
GENERAL GARDEN TOOLS SAFETY WARNINGS
General safety warnings
WARNING Read all
safety warnings and all
instructions.
Failure to follow the
warnings and instructions
may result in re and/or
serious injury.
For safe operation, read and
understand all instructions
before using this
product. Follow all safety
instructions. Failure to
follow all safety instructions
listed below, can result in
serious personal injury.
a) Do not allow children or
untrained individuals to
use this unit.
b).Do not start or operate
the engine in a conned
space,building, near
open windows or in other
unventilated space where
dangerous carbon onoxide
fumes can collect.Carbon
monoxide,a colorless,
odorless, and extremely
dangerous gas, can
cause Unconsciousness
or death.
c).Clear the work area
before use. Remove all
objects such as rocks,
broken glass, nails, wire,
or loose string which can
be thrown or become
entangled in the cutting
line or blade.
d).Always wear eye
protection with side
shields marked to comply
with ISO 7010 along with
hearing protection when
operating this equipment.
e).Wear heavy, long
trousers, long sleeves,
boots, and gloves.Do
not wear loose tting
clothing, short trousers,

AFTER SALES SUPPORT 0345 605 2070 7
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
sandals, or go barefoot.
Do not wear jewelry of
any kind.
Heavy protective clothing
may increase operator
fatigue, which could lead
to heat stroke. During
weather that is hot and
humid, heavy work
should be scheduled
for early morning or late
afternoon hours when
temperatures are Cooler.
Work area safety
a) Keep work area clean
and well lit. Cluttered
or dark areas invite
accidents.
b) Do not operate power
tools in explosive
atmospheres, such
as in the presence of
ammable liquids, gases
or dust. Power tools
create sparks which may
ignite the dust or fumes.
c) Keep children and
bystanders away while
operating a garden tool.
Distractions can cause
you to lose control.
Personal safety
a) Stay alert, watch what
you are doing and use
common sense when
operating a garden tool.
Do not use a garden
tool while you are tired
or under the inuence
of drugs, alcohol or
medication. A moment
of inattention while
operating garden tools
may result in serious
personal injury.
b) Use personal protective
equipment. Always wear
eye protection. Protective
equipment such as dust
mask, non-skid safety

8AFTER SALES SUPPORT 0345 605 2070
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
shoes, hard hat, or
hearing protection used
for appropriate conditions
will reduce personal
injuries.
c) Prevent unintentional
starting. Ensure the
switch is in the off-
position before starting,
picking up or carrying
the tool. Carrying garden
tools with your nger on
the switch or energising
garden tools that have
the switch on invites
accidents.
d) Remove any adjusting
key or wrench before
turning the garden tool
on. A wrench or a key
left attached to a rotating
part of the garden tool
may result in personal
injury.
e) Do not over reach.
Keep proper footing and
balance at all times. This
enables better control
of the garden tool in
unexpected situations.
f) Dress properly. Do not
wear loose clothing or
jewellery. Keep your hair,
clothing and gloves away
from moving parts. Loose
clothes,jewellery or long
hair can be caught in
moving parts.
g) If devices are provided
for the connection of dust
extraction and collection
facilities, ensure these are
connected and properly
used. Use of dust
collection can reduce
dust-related hazards.

AFTER SALES SUPPORT 0345 605 2070 9
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
Operating safety
This product is equipped
with a spark arrestor;
however, other user
requirements may apply.
Check with your local
authorities.
Never operate this unit on
the operator’s left side.
Secure long hair above
shoulder level to prevent
entanglement in moving
parts.
Keep all bystanders,
children,and pets at least
50 ft away Bystanders
should be encouraged
to wear eye protection. If
you are approached, stop
the engine and cutting
attachment. In the case of
bladed units, there
is the added risk of injury
to bystanders from being
struck with the moving
blade in the event of a
blade thrust or other
unexpected reaction of the
saw.
Do not operate in poor
lighting.
Keep rm footing and
balance. Do not over reach.
Over reaching can result in
loss of balance or exposure
to hot surfaces.
Keep all parts of your body
away from any moving part.
To avoid hot surfaces, never
operate the unit with the
bottom of the engine above
waist level.
Do not touch area around
the mufer or cylinder of the
unit, these parts get hot
from operation. Contact
with hot surfaces could
result in possible serious
personal injury.

10 AFTER SALES SUPPORT 0345 605 2070
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
Always stop the engine and
remove the spark plug wire
before making any
adjustments or repairs
except for carburetor
adjustments.
Garden tool use and care
a) Do not force the power
tool. Use the correct
garden tool for your
application.The correct
garden tool will do the
job better and safer at
the rate for which it was
designed.
b) Do not use the garden
tool if the switch does
not turn it on and off.Any
garden tool that cannot
be controlled with the
switch is dangerous and
must be repaired.
c) Stop the garden tool
before making any
adjustments, changing
accessories, or toring
power tools.Such
preventive safety
measures reduce the risk
of starting the power tool
accidentally.
d) Store idle garden tools
out of the reach of
children and do not allow
persons unfamiliar with
the garden tool or these
instructions to operate
the garden tool.Garden
tools are dangerous in
the hands of untrained
users.
e) Maintain garden tools.
Check for misalignment
or binding of moving
parts, breakage of parts
and any other condition
that may affect the
garden tool’s operation.
If damaged,have the

AFTER SALES SUPPORT 0345 605 2070 11
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
garden tool repaired
before use. Many
accidents are caused by
poorly maintained garden
tools.
f) Keep cutting tools sharp
and clean. Properly
maintained cutting tools
with sharp cutting edges
are less likely to bind and
are easier to control.
g) Use the garden tool,
accessories and tool bits
etc. in accordance with
these instructions, taking
into account the working
conditions and the work
to be performed. Use
of the garden tool for
operations different from
those intended could
result in a hazardous
situation.
The cutting attachment
should never rotate at
idle during normal use.
The cutting attachment
may rotate at idle during
carburetor adjustments.
Intended use
This product is intended
for infrequent use by
homeown-ers and other
occasional users for such
general applica-tions as
cutting light and heavy
vegetation, etc. It is not
intended for prolonged
use. Prolonged periods
of opera-tion can cause
circulatory problems in
the user’s hands due to
vibration. For such use, it
may be appropriate to use
a product having an anti-
vibration feature.
This product should not be
used for any other purpose
than described.
While operating, always
wear substantial footwear

12 AFTER SALES SUPPORT 0345 605 2070
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
and long trousers. Do not
operate the product when
barefoot or wearing open
sandals. Wear protective
glasses or goggles.
Thoroughly inspect the area
where the product is to be
used and remove all objects
which can be thrown by the
product.
Before using the product
and after any impact, check
for signs of wear or damage
and repair as necessary.
Never operate the product
with damaged guards or
without the guards in place.
Keep hands and feet away
from the cutting means
at all times and especially
when switching on the
motor.
Never allow children or
people unfamiliar with the
instructions to use the
product.
Stop using the product
while people, especially
children, or pets are nearby.
Only use the product in
daylight or good articial
light.
Stop the engine before
· cleaning or when clearing
a blockage,
· checking, carrying out
maintenance or working
on the product,
· adjusting the working
position of the cutting
device,
· leaving the product
unattended.
Ensure that the product
is correctly located in a
designated working position
before starting the engine.
While operating the
product, always ensure that
the operating position is
safe and secure.
Do not operate the
product with a damaged
or excessively worn cutting

AFTER SALES SUPPORT 0345 605 2070 13
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
device.
To reduce re hazards, keep
the engine and silencer
free of debris, leaves and
excessive lubricant.
Always ensure that all
handles and guards are
tted when using the
product. Never attempt to
use an incomplete product
or one tted with an
unauthorised modication.
Always use two hands to
operate a product tted
with two handles.
Always be aware of your
surroundings and stay
alert for possible hazards
of which you may not be
aware due to the noise of
the product.
Be careful when handling
any cutting device / sharp
edge tted for trimming the
lament line length. Ensure
a new lament trimming line
is installed correctly before
turning the product on.
Always ensure that air vents
are kept clear of debris.

14 AFTER SALES SUPPORT 0345 605 2070
IN THE BOX
Parts List
1. Fuel tank cap
2. Primer bulb
3. Air lter
4. Spark plug
5. Mufer
6. Oil tank cap
7. Recoil start grip
8. Cutting blade
9. Cutting head guard
10. Fixed seat
11.a U handle(left part)
11.b U handle(right part)
12. Throttle lockout
13. Throttle trigger
14. On/off switch
15. Harness hook
16. Choke button
17. Harness
18. Allen key
19. Wrench
20. Measuring bottle
16
10
13
15
9
8
11.a
11.b
12
14
43
2
5
1
6
7
17
M5x16
M5x40
19
18
20

AFTER SALES SUPPORT 0345 605 2070 15
ASSEMBLE
1. Unpacking
2. Cutting blade assembly
a) Unscrew the locknut(7) from the shaft by
turning it clockwise.
b) Remove the oating disc(6) and washer(5).
c) Insert the allen key(1) through the hole in
the head assemblyand into the opening
on the mounting disc(3).
d) Holding the allen key tight so the
mounting disc does not move. Install
the blade(4), washer(5), concave to be
upwards, and the floating disc(6) as
shown in picture. Note: The pit side of
washer must be contacted with the blade.
e) Screw down the locknut(7) and tighten
it counter clockwise by holding the allen
key.
f) Remove allen key and check for freedom
of motion of the blade.
a) Unpack all parts and lay them on a flat,
stable surface.
b) Remove all packing materials and
shipping devices if applicable.
c) Make sure the delivery contents are
complete and free of any damage.
d) Ensure that you have all the accessories
and tools needed for assembly and
operation. This also includes suitable
personal protective equipment.
1
3
2
4
5
6
7

16 AFTER SALES SUPPORT 0345 605 2070
4. U handle assembly
a) Lay the machine horizontally then fix
the base seat with 2 screws(M5*40) as
shown in the picture.The screws are pre-
attached to the base seat.
b) Insert the right U handle into the screw.
Do not mistake-left and right.
c) Then insert the left U handle into the
screw.
d) Install the cover,and tighten the 6 screws
until the U handle is secure.
Note:It will be easier to assemble the
machine by two persons.
3. Cutting head guard assembly
a) Remove the screw from Cutting head
guard.
b) Insert the left tab into the slot on the
Cutting head guard.
c) Align the screw hole in the mounting
bracket with the screw hole into the
Cutting head guard.
d) Tighten the screw through the mounting
bracket and into the Cutting head guard
by the screw driver provided.
ASSEMBLE

AFTER SALES SUPPORT 0345 605 2070 17
5. Harness assembly
ASSEMBLE
Connect the latch on the shoulder harness
to the strap hanger. Adjust the strap to a
comfortable position.

18 AFTER SALES SUPPORT 0345 605 2070
1. Add engine lubricant oil: Initial use
1) Set the unit on a at surface.
2) Remove the oil cap from the machine
3) Pour 60ml 4 stroke garden engine oil into
lubricant bottle.
4) Add lubricant oil from the bottle into the
lubricant oil tank.
5) Screw and tighten the oil cap.
WARNING:
OVERFILLING THE CRANKCASE MAY
CAUSE SERIOUS PERSONAL INJURY.
Check the oil level before each use. The
importance of maintaining the proper oil level
cannot be overemphasized. Change the oil
according to the Maintenance Schedule.
Use 4 stroke garden engine oil. DO NOT use
dirty oil. Failure to use clean oil of the correct
type can cause premature engine wear and
failure.
2. Fueling
1) Remove the fuel tank cap by turning
counterclockwise. Rest the cap on a
clean surface.
2) Carefully pour fuel into the tank. Avoid
spillage.
3) Immediately replace fuel cap and hand
tighten by turning it clockwise.
4) Wipe up any spilled fuel.
The use of old fuel is the most common
cause of performance problems. Use only
fresh, clean unleaded gasoline.
NOTE: This unit has a 4-stroke engine. DO
NOT mix oil with petrol.
PREPARE

AFTER SALES SUPPORT 0345 605 2070 19
WARNING: Add fuel in a clean, well-
ventilated outdoor area. Wipe up any spilled
fuel immediately. Avoid creating a source
of ignition for spilled fuel. Do not start the
engine until fuel vapors dissipate.
Remove the fuel cap slowly to avoid injury
from fuel spray. Never operate the unit
without the fuel cap securely in place.
Petrol is extremely ammable. Ignited vapors
may explode. Always stop the engine and
allow it to cool before lling the fuel tank. Do
not smoke while lling the tank.
Keep sparks and open ames at a distance
from the area.
PREPARE
