Specialized RETUL MATCH GLOBAL User manual
1/2
RETUL MATCH GLOBAL
PART# 09118-1010
5
1
3
4
2
BOX NO.
NO.
DESCRIPTIONS
PART NO.
QTY.
1
1
MAIN CHASSIS
SBC-13-2601
1
2
BASE PLATE
SBC-13-2602
1
3
VANTAGE SHELF
SBC-13-2610
1
4
DIGITAL FOOT DEVICE SHELF
SBC-13-2609
1
5
POWER CORD
HARDWARE
1
6
WING BOLT M6X12
HARDWARE
4
TRIPOD HEAD
HARDWARE
17
7
FOLLOW MANUFACTURER INSTRUCTIONS BELOW TO ENSURE PROPER SETUP OF MATCH TOWER.
HAZARDOUS CONDITIONS MAY EXIST IF INSTRUCTIONS ARE NOT FOLLOWED.
6
For further assistance please call (800) 722-4423
ASSEMBLY INSTRUCTIONS
P/N : 09118-1010
2/2
HARDWARE:
POWER SWITCH
COMPUTER SWITCH
PRIOR TO TURNING PC ON, PLEASE MAKE SURE THAT USB
PLUG IS INSERTED AND KEPT STRAIGHT. PLEASE MAKE SURE
ALL OTHER PLUGS ARE INSERTED CORRECTLY.
HEX HEAD BOLT M8X20
(6) HEX HEAD
BOLTS M8X20
PROTECTIVE LAYER
(4) WING BOLTS
QTY: 6
TRIPOD HEAD
QTY: 1
WING NUT M6X12
QTY: 4
TRIPOD HEAD BOLT 3/8” -16X 5/8”
QTY: 1
POWER CORD
(1) 3/8”-16X5/8” BOLTS
RETUL MATCH GLOBAL

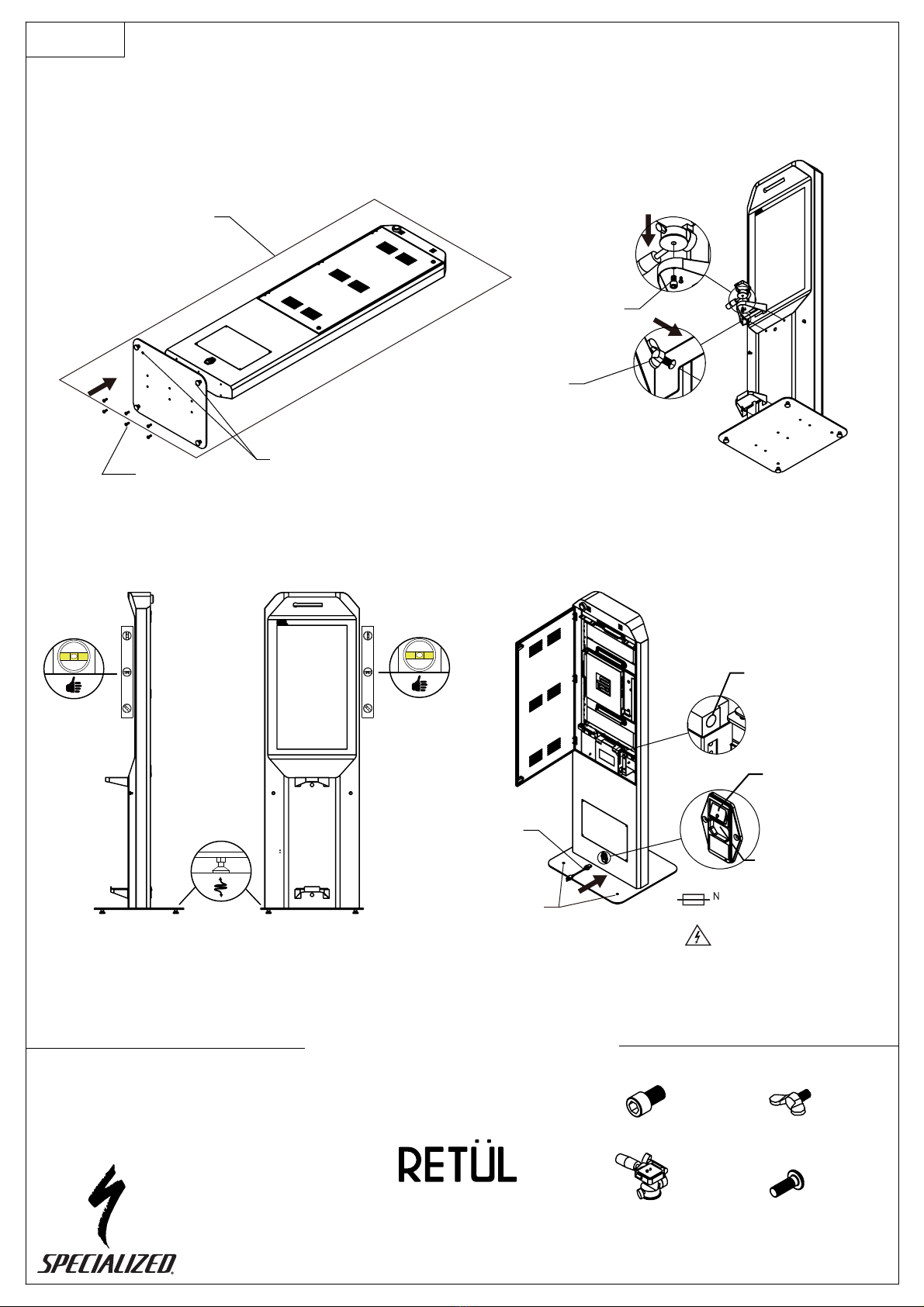

STEP 1:
LAY PROTECTIVE LAYER ON FLOOR. USING 2 PEOPLE
LIFT TOWER FROM BOX, REMOVE PLASTIC COVER. LAY
TOWER ON PROTECTIVE LAYER. ATTACH
BASE PLATE TO BOTTOM OF MAIN CHASSIS.
TILT ASSEMBLY UP & ONTO BASE.
STEP 2:
ATTACH DEVICE SHELF AND VANTAGE MOUNT
W/ (4) WING BOLTS. INSTALL TRIPOD HEAD ON UPPER SHELF
USING 3/8’’ BOLT.
STEP 3:
ADJUST LEVELERS AS NEEDED. POSITION TOWER IN
DESIRED LOCATION. BOLT TO FLOOR THROUGH 2
HOLES IN BASE PLATE. CONSULT LOCAL CONTRACTOR
TO DETERMINE CORRECT TYPE OF FLOOR ANCHOR
DEPENDING ON BUILDING CONSTRUCTION.
STEP 4:
INSERT POWER CORD INTO HOLE IN BACK OF CHASSIS &
PLUG INTO MODULE. TURN ON POWER SWITCH. OPEN
BACK DOOR W/ KEY. TURN ON COMPUTER SWITCH.
CLOSE & LOCK BACK DOOR.
ANCHOR TO FLOOR
5600 Airport Blvd
Boulder, CO 80301
www.retul.com
BASE SHOULD BE INSTALLED
WITH 2 EXTRA HOLES ON BACK
OF TOWER
REPLACEABLE FUSE
250VAC 4A, 5X20MM
FUSED NEUTRAL
HAZARDOUS VOLTAGE
ENCLOSED. DISCONNECT
ALL POWER BEFORE
SERVICING.
INPUT: 100-240V~50-60Hz 3.5A
DISCONNECT: ADJUST POWER SWITCH TO OFF
POSITION OR REMOVE POWER CORD.
ELECTRICAL:
