Speedwolf FS18 User manual

SPEEDWOLF
FS18
User’s Manual
Shenzhen SPEEDWOLF Technology CO.,LTD.
Version 2.00(201801)

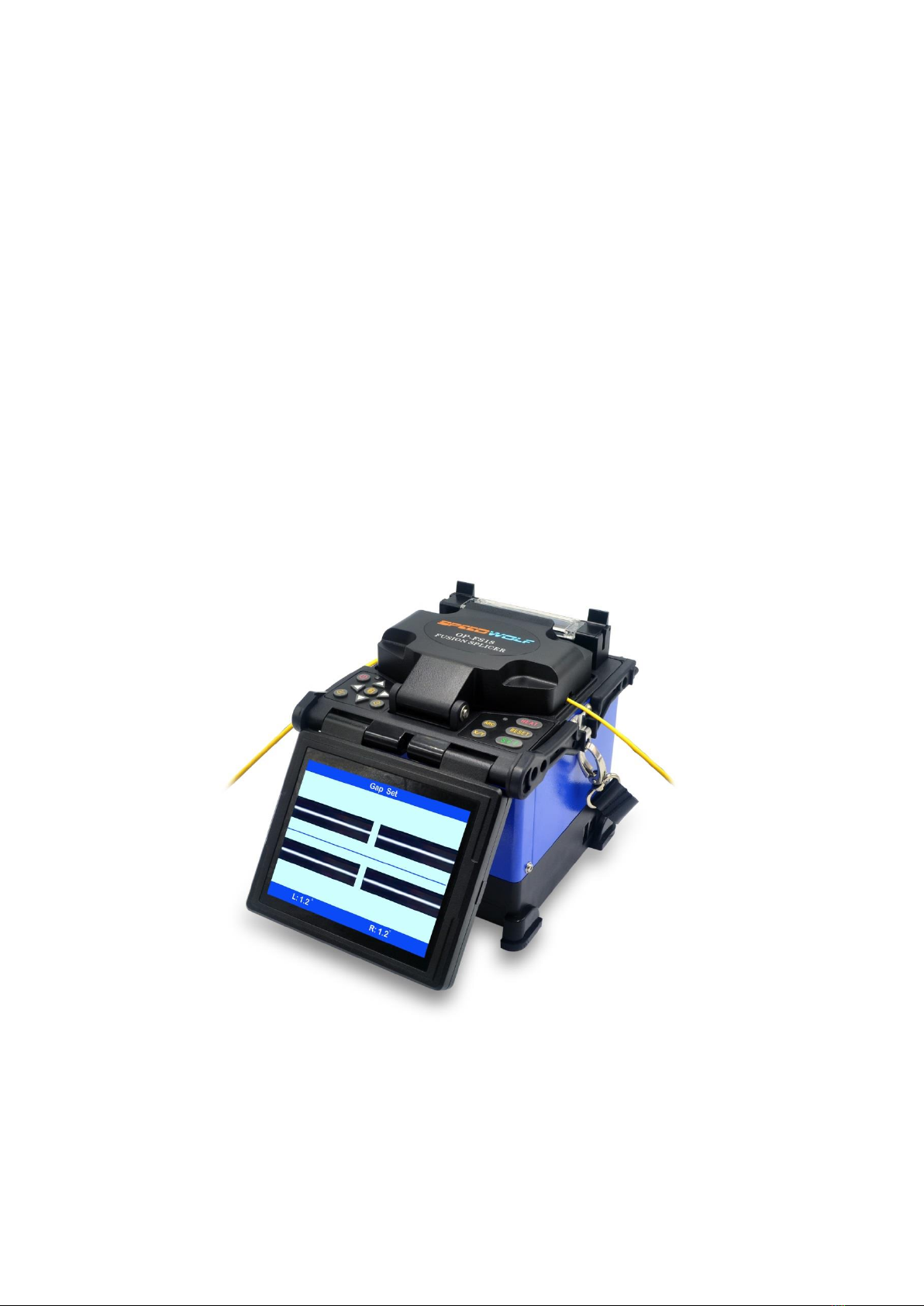

Optical Fiber Fusion Splicer

Warning: Ignore the warning, non-proper use of fusion splicer could lead to fatal
and serious injury.
1. The input voltage of this model of machine is definite; please do not use the voltage
outside the scope. Please use the correct AC and DC power supply.
2. When the fusion splicer comes across the following failures, please immediately
remove the AC power cord from the power supply input and turn off the fusion
splicer, otherwise will lead to the incapable of the repairing and even will cause
personal injury, death and fire.
★Smoke, smell, noise or heat anomaly
★Broken or damaged machines
★Liquid or foreign matter enters the interior of the machine
3. This model of fusion splicer does not have the need to maintain internal
components, dismantling of fusion splicer and power modules is prohibited; any
mistake in maintenance will lead to the machine beyond repair even causing bodily
harm.
4. The machine has strictly limitation to the power supply module used.
5. The fusion splicer is prohibited to be used under the environment with the
inflammable liquid or flammable gas; otherwise will lead to fire, explosion and
other serious consequences.
●Disclaimer Clause
The Company does not assume any liability for all damage caused by the use
of non original battery.
●To avoid possible wrong operation or insecurity, a valid ground three-hole
socket must be used when AC/DC adaptor access to AC 220V 50HZ power.

Content
1. Brief Introduction ...............................................................1
1.1 Specifications.............................................................................................................1
1.2 Configuration of fusion splicer................................................................................2
1.3 Parts Name of fusion splicer....................................................................................3
1. 4 Descriptions of the Keyboard .................................................................................4
2. Basic operation....................................................................5
2．1 Descriptions of the power modules.......................................................................5
2．2 AC operation .......................................................................................................5
2．3 Battery supply operation....................................................................................6
2.4 Turn on and turn off.................................................................................................9
2.5 Display brightness control......................................................................................10
2.6 Cover fiber protection sleeve ..............................................................................10
2.7 Preparation of fiber end-face.................................................................................11
2.8 Place fiber................................................................................................................13
3 ． Check and Maintenance.................................................13
3.1 Cleaning V-grooves .................................................................................................14
3.2 Cleaning Fiber Clamp Chips.................................................................................14
3.3 Cleaning Wind Protector Mirrors.........................................................................15
3.4 Cleaning Objective Lenses.....................................................................................15
3.5 Replace Electrodes..................................................................................................16
3.6 Set Calendar............................................................................................................17
4. Change the spare lithium battery pack.............................18
5 ． Power Supply.................................................................19
Addenda A: Summary of quick operating............................20
Addenda B: Guarantee period and limits.............................22

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
1
1. Brief Introduction
Shenzhen SPEEDWOLF Technology CO.,LTD. specializing in the production of optical fiber
fusion splicer, optical fiber cleaver, OTDR, light source, optical power meter, and optical fiber
fixture, and other optical communication instrument high-tech enterprises. Company production of
OP-FS16,FS18fiber splicing machine is not only widely used in China Telecom, China Mobile,
Unicom, radio and television major domestic telecommunications operators, but also exported to
South America, Europe, Russia, Southeast Asia and Africa and other parts of the world.
1.1 Specifications
FS18 FTTH Fusion Splicer
Splicing Type
SM, MM, DS, NZDS
Splicing Loss
0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，
Return Loss
>60dB
Splicing Mode
Manual, Half Auto, Auto
Fiber Alignment
Core to Core Alignment by PAS technology
Applicable Fiber
Cable indoor and 0.25mm,0.9mm fiber, SC
connector(option)
Splicing Time
≤9s
Heat Time
≤30s
Cleaved Length
8～16mm
Fiber Image/ Magnification
300/200 times
View Display
5 inch digital high-quality LCD screen
Tension Test
Standard 2N (option)
Heat Shrinkable Sleeve
60mm, 40mm and serials heat Shrinkable Sleeve
Battery Capacity
200 cycles splicing and heating, 3 hours charging time
( splicing and charging at same time)
Battery Life
Cycling charge 300-500 times, easy to replace battery
Electrodes Life
3000, easy to replace electrodes
Power Source
≤20W
Interface
USB Convenient data download and software update
Construction Lighting
Built in high brightness, wide range of lights, easy to
operate at night
Power supply
Built in lithium battery 5200mAh 11.1V; external
adapter, input: AC100-240V, output: DC13.5V/4.5A
Operating Condition
0-5000m above sea level, Temperature: -10-60℃,
Humidity:0～95%RH (No dew)
Weight (including battery)
1.98 KG (including battery)
Dimension (LxWxH)
135mm(L)×158mm(W)×155mm(H)

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
2
1.2 Configuration of fusion splicer
Following is the standard configurations of fusion splicer:
No.
Name
Quantity
1
FS18 Fusion Splicer
1 set
2
Carrying Case
1 set
3
AC Adaptor
1 pc
4
Power cord
1 pc
5
Cooling tray
1 pc
6
Spare Electrodes
2 pair
7
User Manual CD
1 pc
8
Test Report
1 pc
9
Cleaning brush
1 pc

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
3
1.3 Parts Name of fusion splicer
Left Keyboard Right Keyboard
Power Module
Key board
Power switch
Windshield
cover
Heater
LCD

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
4
1. 4 Descriptions of the Keyboard
Membrane figure of left and right keyboards
Keyboard
Standby mode
Mode of manual
operation
Mode of automatic
operation
Mode of parameter menu
Power switch
Power switch
Power switch
Power switch
To increase the
brightness of the display
The optical fiber moves
upward
Invalid
Increase the parameter quantum or
move the cursor
To reduce the brightness
of the display
The optical fiber moves
downward
Invalid
Increase the parameter quantum or
move the cursor
Invalid
The optical fiber moves
left
Invalid
Increase the parameter quantum or
move the cursor
Turn on the help screen
The optical fiber moves
right
Invalid
Increase the parameter quantum or
move the cursor
To enter the menu
mode
To switch on the manual
driver at pausing state
Invalid
Select→edit the fusion(heating)
parameter files
To enter “select splice
parameter files” menu
To enter the “select
parameter files” menu
Invalid
To enter the next menu interface/
confirm the modifier
Invalid
Invalid
Invalid
Exit from the current menu screen
Heater switch
Heater switch
Heater switch
Heater switch
Reset of motor
Reset of motor
Reset of motor
Invalid
Start to fusion
Further propulsion/start
fusion
Invalid
Invalid
Discharging
Discharging
Invalid
Invalid

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
5
Switch X/Y display
screen
Switch X/Y display
screen
Switch X/Y display
screen
Invalid
2. Basic operation
FS18 Fusion splicer is designed to splice
many types of fiber by using core
diameter aiming rationale, its shape is
compact, light weight, which is suitable for
field work. Operation is simple, fusion speed
is high, and fusion loss is small.
2．1 Descriptions of the power modules
FS18 Fusion Splicer uses 2 in 1 power module design, during the work, the Fusion
Splicer can be supplied by the polymer lithium ion battery separately; or use AC
adapter for electricity supply; when adapter is used for electricity supply, the
polymer lithium ion battery is charged at the same time. The lithium battery to be
changed must be the model specified by the Company.
2．2 AC operation
2.2.1 When AC power supply is adopted, the AC/DC adapter supplied by the
company should be used. The basic parameters of the adapter are as follows:
INPUT: AC100-240V～1.8A 50/60HZ
OUTPUT: DC13.5V ∕5A
2.2.2 The AC/DC adapter will not be able to supple normal DC output if the input
AC voltage is lower than 100V or higher than 240V. At this situation, the

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
6
DC output line of the adapter must not be inserted into “POWER INPUT
“specified on the power module of the Fusion Splicer, otherwise it will
results in the damage of fusion splicer.
2.2.3 If lithium battery is arranged in the battery case, the battery pack will also be
charged when the adapter is supplying power. However, it is recommended
that the Fusion Splicer be shut when charged.
2．3 Battery supply operation
The user may choose to use the polymer lithium battery in the splicer to
separately supply for the Fusion Splicer.
2.3.1 Checking of battery capacity

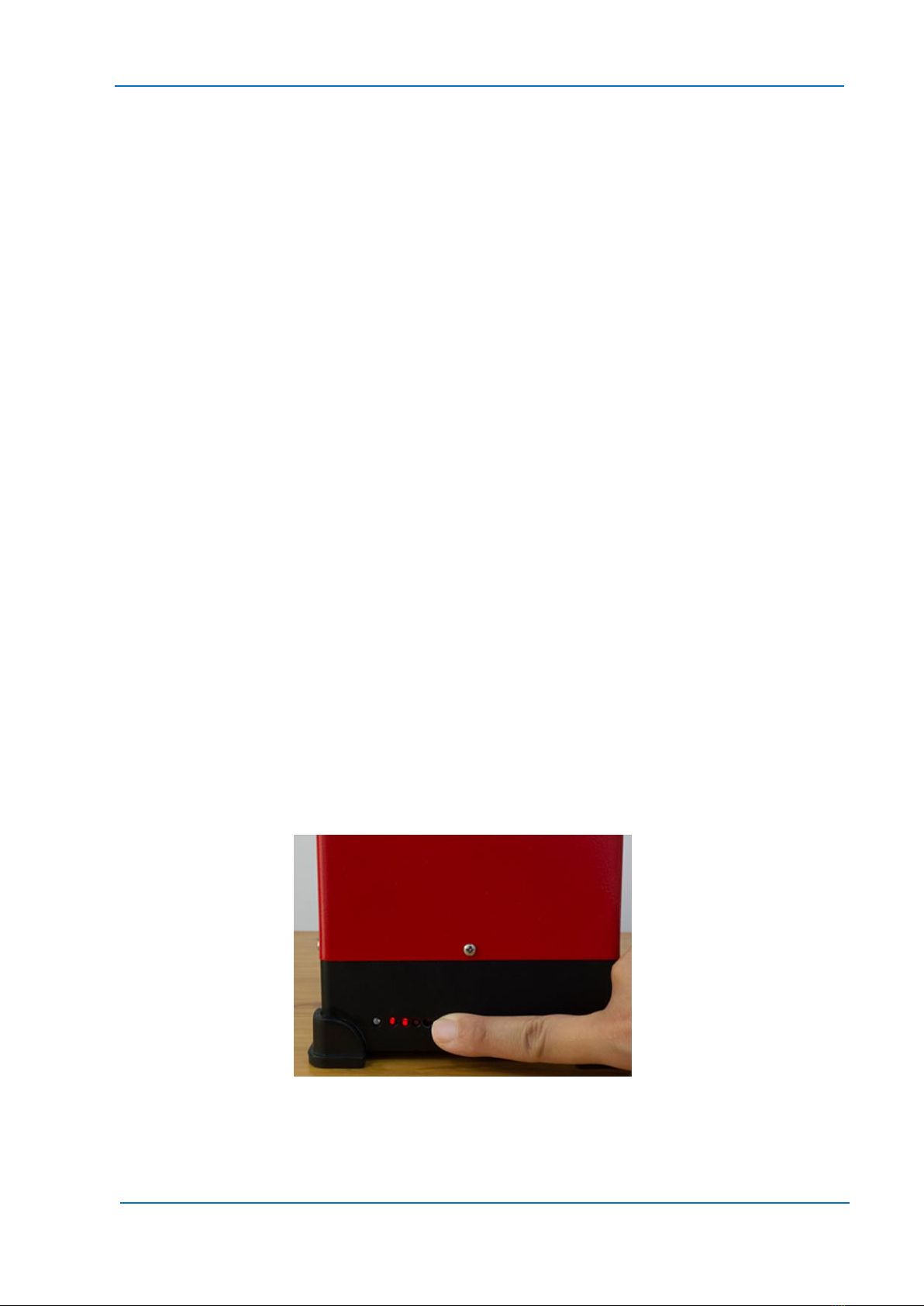

When the power module is not in the charged state, press the "PUSH"
button on the flank of the power module. Then the four battery capacity
indicator (red) lights on the left side will be bright. The number of the lit light
represents the highness or lowness of the battery capacity. See the following
table.
When the power module is in the charged state, the four battery capacity
indicator (red) lights on the left side will be bright, which only represents the

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
7
highness of the current charge voltage, but the capacity of the battery.
2.3.2 Battery charging
<1> Whether the battery capacity is in adequacy, every time the AC power
adapter is inserted into “POWER INPUT “on the Fusion Splicer power
module, the power module will start a charging process.
<2> Display of charged state: During the charging, the charging indicator
(CHARGE) light is red; after the charging completion, the charging
indicator (CHARGE) will be green.
<3> When the splicer is shut down, the maximum charging time is three hours
40 minutes, and the shortest is 40 minutes. The length of the charging time is
dependent on the current battery capacity of the splicer.
<4> If the splicer is charged when it is active, the charging time should be longer.
The user is recommended to charge the battery when the splicer is shut down,
thus the charging time will be shortened.
2.3.3 Under Voltage Alarm
This model of fusion splicer has the function of “Under Voltage Alarm”. If
the capacity of the lithium battery is lower than the specified value (the default
value is around 10.3V), the splicer will automatically alarm and lock the
keyboard to disable input. The user should press until the Fusion Splicer

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
8
is shut down, and charge the lithium battery pack as soon as possible, or use the
adapter to supply power.
2.3.4 The other considerations
<1> For any fusion splicer not to be used for more than 1 month, it is suggested
to separate the lithium battery and machine for saving.
<2> The lithium battery should be charged in the environmental temperature
ranging between 0℃～＋40℃.
<3> The battery, with certain service life, belongs to consumables. When the
fusion splicer can only work for a short time despite the battery level of
the lithium battery above 90%, please replace the battery. Please use the
battery of the model designated by the Company for replacement.
<4> Before the battery power supply for the fusion splicer, the battery level
must be checked. If the battery is low or the low voltage warning is given,
please recharge the lithium battery timely.
<5> Please do not charge or discharge the battery in a low temperature for a
long time to prevent the decrease of the battery life. Accidents may happen
if charging or discharging the battery or special battery charger and battery
in a high temperature.
<6>When charging the battery with the special battery charger, immediately
disconnect the charger when the battery is fully charged. Huge damage may

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
9
be incurred or accidents may occur on the lithium battery if the battery fully
charged is still under the charging state.
<7> The battery should be stored in a clean, dry and ventilated indoor
environment of temperature ranging –5℃～＋35℃and humidity of 65±20％
RH.
<8> If the battery is stored for a long time, it should be charged with the special
charger provided by the Company once every 90 days. The life of the
battery may be extended if the battery is half fully charged in a long time.
<9> It is prohibited to remove the battery without explicit approval or put it
into fire, to prevent explosion of battery.
2.4 Turn on and turn off
Turn on

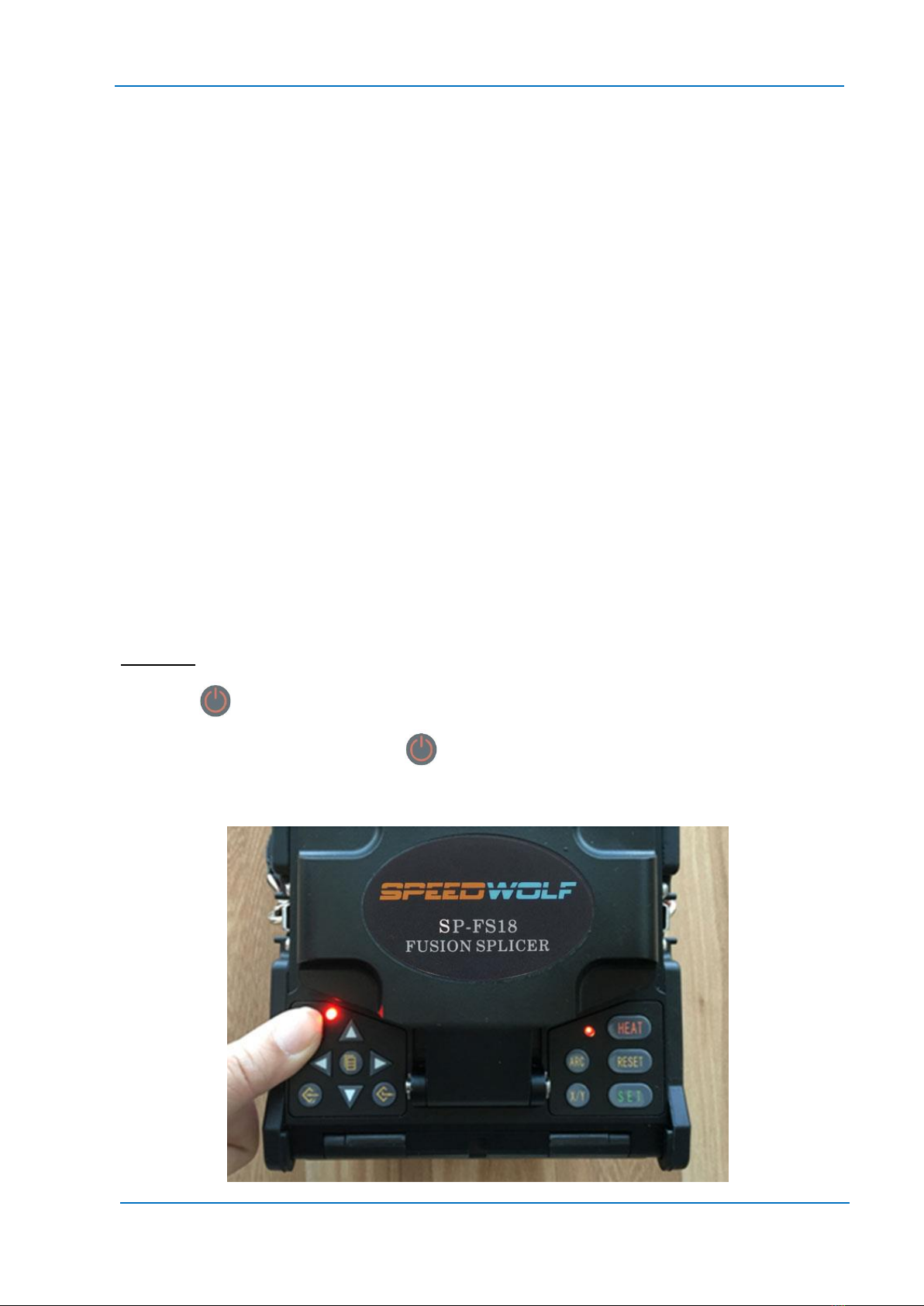

Press button on the operator panel until the LED indicator lights turn from
green to red, release the button . When all of the motors return to the initial
position, the screen shows the reset menu.

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
10
Turn off
Press button on the operator panel until the LED indicator turn from
red to green, release the button , now the machine is turned off.
2.5 Display brightness control
When the external environment is different, the user can adjust the display
brightness for the convenience of theFusion Splicer operation. Display brightness
control should be done in the “standby” operation interface.
<1> Press or in the “standby” operation interface to change the
brightness of the display.
<2> Press to confirm the brightness changes, and return to “standby”
operation interface.
●When the display brightness is moderate, the capacity loss can be reduced,
and the endurance of the battery can be prolonged.
2.6 Cover fiber protection sleeve
The installation of fiber protection sleeve

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
11
2.7 Preparation of fiber end-face
2.7.1 Open the big and small clips of the cutter; push the sliding plate
installed with blade from the end to the front.
2.7.2 Use fiber stripping pliers to strip fiber coating layer, the length of which is
30-40 mm. Use gauze dipping with alcohol or wadding soft enough to
wipe clean the fiber. Wiping with a clean cotton cloth once, and do not
clean it with the same cloth for the second time. (Notes: Please use the
alcohol with purity more than 99 %.)

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
12
Fiber stripping Clean
2.7.3 Aim the edge of the fiber coating layer at the “16”calibration of the
cutter yardstick and put the fiber into orientation pressure tank with
the left hand, and be sure that the bare fiber has been straightly put on
the right and left rubber pads.
2.7.4 Close the small clip, big clip by right hand and promote sliding plate
installed with blade to the other side, and then cut the fiber.
2.7.5 Hold the cutter by left hand and open the big clip by right hand and
remove the fiber chips to put them in fixed containers.
2.7.6 Pinch and hold the fiber with the left hand, and open the small clip with the
right hand at the same time, and carefully remove the fiber.
●Notes: The clean cross-section of fiber cannot touch other things.

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
13
2.8 Place fiber
2.8.1 Open shielding cover and left and right fiber clips.
2.8.2 Put the good fiber end face in the V-shaped groove; ensure the tip of the
fiber between the tip of the electrode and V-shaped groove’s edge.
●If the fiber is bending, bending part should be upward when placing the
fiber.
●To ensure the splice quality of the fiber, the clean cross-section of fiber
cannot touch other things.
2.8.3 Use fingers to pinch the fiber, and then close the left clip, and press the
fiber. Ensure the fiber is placed in the bottom of V-shape groovy. If the
fiber is placed incorrect, please replace the fiber. The fiber end face don’t
touch the V-shape groove when place the fiber.
2.8.4 Place another optical fiber according to the above steps.
2.8.5 Close shielding cover.
3．Check and Maintenance
Critical cleaning points and maintenance checks are described below.

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
14
3.1 Cleaning V-grooves

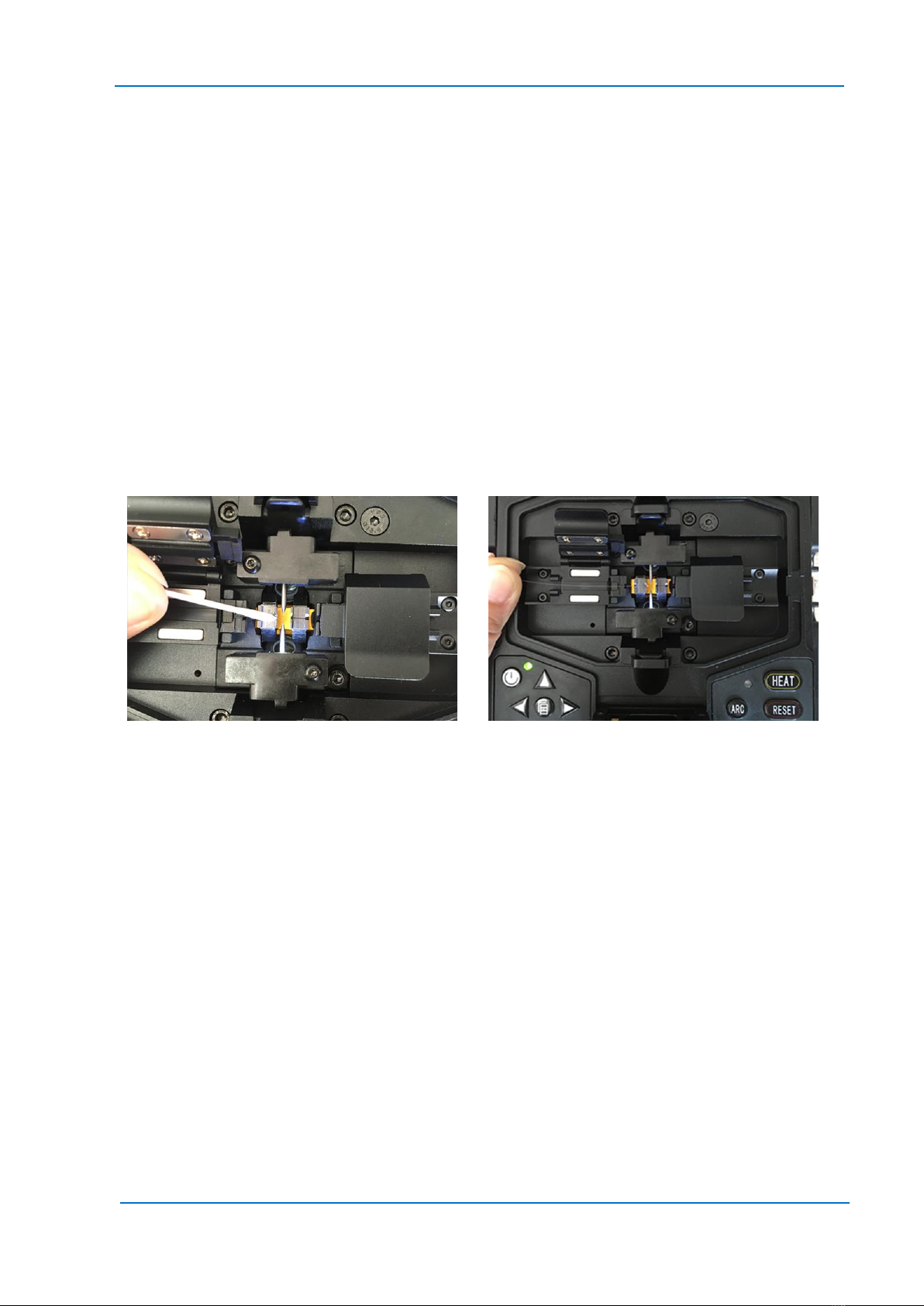

If contaminants are present in the V-grooves, proper clamping may not occur,
resulting in higher splice loss. The V-grooves should be frequently inspected and
periodically cleaned during normal operation. To clean the V-grooves do the
following:
<1> Open the wind protector.
<2> Clean the bottom of the V-groove With an alcohol-impregnated thin cotton swab.
Remove excess alcohol from the V-groove with a clean dry swab.
Be careful to not contact the electrode tips.
Do not use excessive force when cleaning the V-groove.
The V-groove arm may get damaged.
If the contaminants in the V-groove cannot be removed with an
alcohol-impregnated thin cotton swab, use a cleaved fiber end-face to dislodge
contaminants from the bottom of the V-groove. Repeat step 2 after this
procedure.
3.2 Cleaning Fiber Clamp Chips
<1> If contaminants are present on the clamp chips, proper clamping may not occur,
resulting in poor quality splices. The fiber clamp chips should be frequently

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
15
inspected and periodically cleaned during normal operation.
<2> To clean the clamp chips, do the following: Open the wind protector. Clean the
surface of the chip clamp with an alcohol-impregnated thin cotton swab.
Remove excess alcohol from the chip clamp with a clean dry swab.
3.3 Cleaning Wind Protector Mirrors
If the wind protector mirrors become dirty, the fiber core position may be
incorrect due to decreased optical path clarity, resulting in higher splice loss. To
clean the mirrors, do the following: Clean the mirror surface with an
alcohol-impregnated thin cotton swab. Remove excess alcohol from the mirror
surface with a clean dry swab. Mirror should look clean with no streaks or
smudges.
3.4 Cleaning Objective Lenses
If the objective lenses’ surface becomes dirty, normal observation of the core
position may be incorrect, resulting in higher splice loss or poor splicer operation.
Therefore, clean both of them at regular intervals. Otherwise, dirt may
accumulate and become impossible to remove. Cleaning Objective Lenses：

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
16
<1> Before cleaning the objective lenses, always turn off the splicer.
Do not hit or touch tip of electrode when cleaning it.
<2>Gently clean the surface of lenses (X-axis and Y-axis) with an
alcohol-impregnated thin cotton swab. Using the cotton swab, start at the
center of the lens and move the swab in a circular motion until you spiral out to
the edge of the lens surface. Remove excess alcohol from the mirror surface
with a clean dry swab. The lens surface should be clean and free of streaks or
smudges.
<3> Turn on the power and make sure no smudges or streaks are visible on the
monitor screen. Press X/Y to change the screen and check the state of the lens
surface on both the X- and Y-screens. Perform dust check.
3.5 Replace Electrodes
Electrodes wear with use and also must be cleaned periodically due to silica
oxide buildup. It is recommended that the electrodes should be replaced after 1,000
arc discharges. When the number of arc discharges reaches a count of 1,000, a
message prompting to replace the electrodes is displayed immediately after turning
on the power. Using the electrodes without a replacement will result in greater
splice loss and reduced splice strength.
Replace Electrodes
<1> Press button on the operator panel until the LED indicator turn from red to
green, release the button , now the machine is turned off.
<2> Remove the old electrodes and Method for tearing:

SPEEDWOLF —FS18 Fusion Splicer User’s Manual
Shenzhen Speedwolf Technology Co.,LTD
A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China
If you have any question,please contact us directly for help,Email: [e-mail]
17
a. Loosen screw located on electrode cover.
b. Take electrode out of electrode cover.
(Electrode is fixed in the electrode cover)
<3> Clean the new electrodes with alcohol-impregnated clean gauze or lint-free
tissue and install them in the splicer.
<4> Place the electrode cover and tighten screw
●Do not pull out night light wiring when replacing electrode.
●The tightening of the screw should not exceed the strength of fingers.
3.6 Set Calendar
This function sets the date and time in the calendar incorporated in the splicer.
<1> In the［Maintenance Men1］Menu, press or and move the cursor to
select the [ Calendar ]
