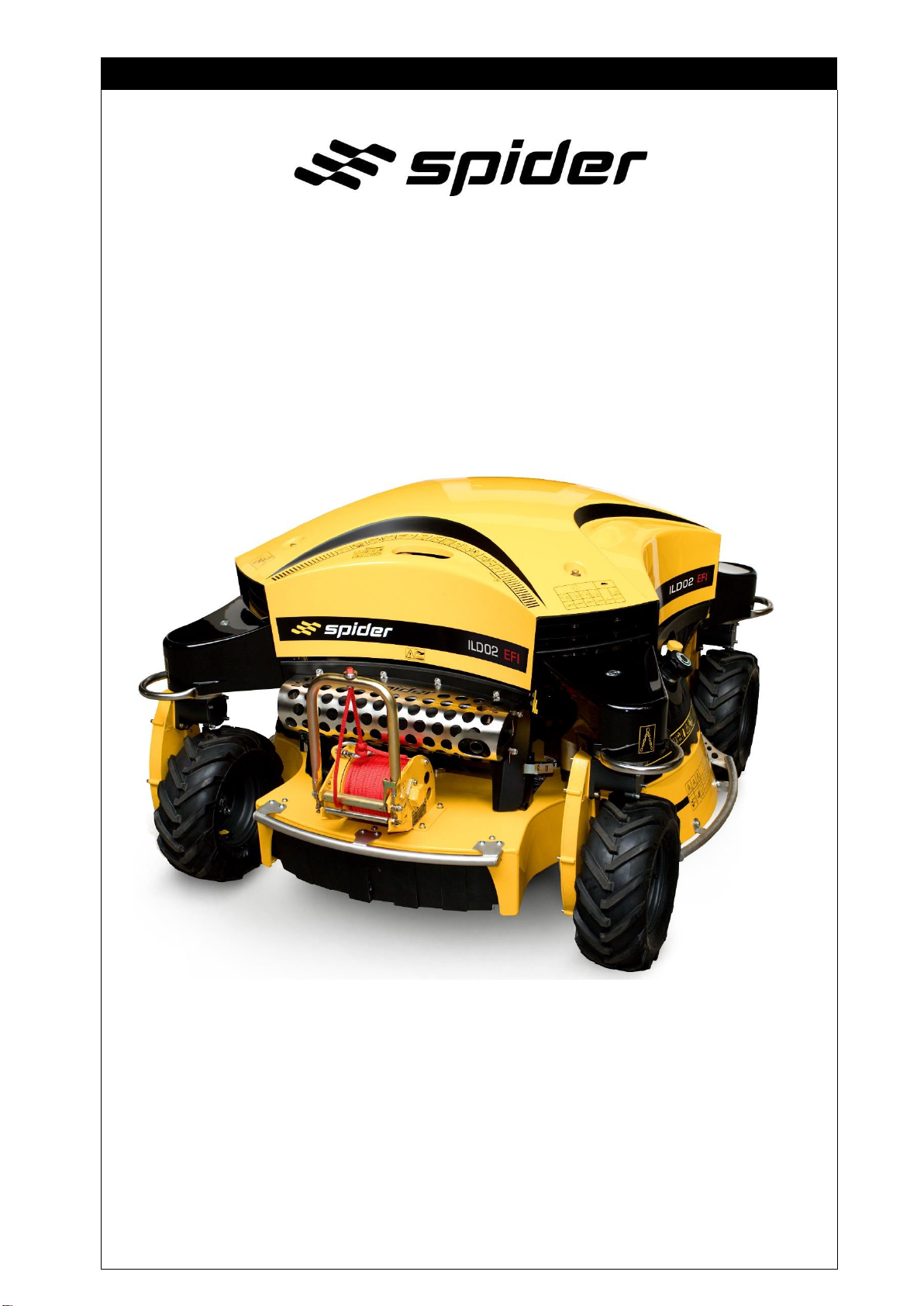

SPIDER ILD02 EFI User manual

R O T A R Y S L O P E M O W E R
OPERATION MANUAL
ILD02 EFI (SN 00001 - )
Operation manual
Revision
01-01-02-2021
Product serial number: …………………………………………………
Engine type: …………………………………………………
Engine serial number: …………………………………………………
DVOŘÁK – svahové sekačky s.r.o., Pohled 277, 582 21 Pohled, Česká Republika
[phone], [email protected], www.spider-cz.com

Operation Manual –Spider ILD02 EFI
2 / 55
rev. 01-01-02-2021
1 CONTENTS
1 CONTENT ........................................................................................................................................................... 2
2 INTRODUCTION................................................................................................................................................. 4
2.1 IMPORTANT................................................................................................................................................. 4
2.2 MACHINE USAGE ....................................................................................................................................... 5
2.3 PROHIBITED USE ....................................................................................................................................... 6
2.4 PRODUCT IDENTIFICATION ...................................................................................................................... 7
2.5 GUIDELINES FOR THE DISPOSAL OF SCRAP PRODUCTS................................................................... 8
3 SAFETY INSTRUCTIONS .................................................................................................................................. 9
4 SPECIFICATION............................................................................................................................................... 12
4.1 SPECIFICATION ........................................................................................................................................ 12
4.2 NOISE EMISSION ...................................................................................................................................... 12

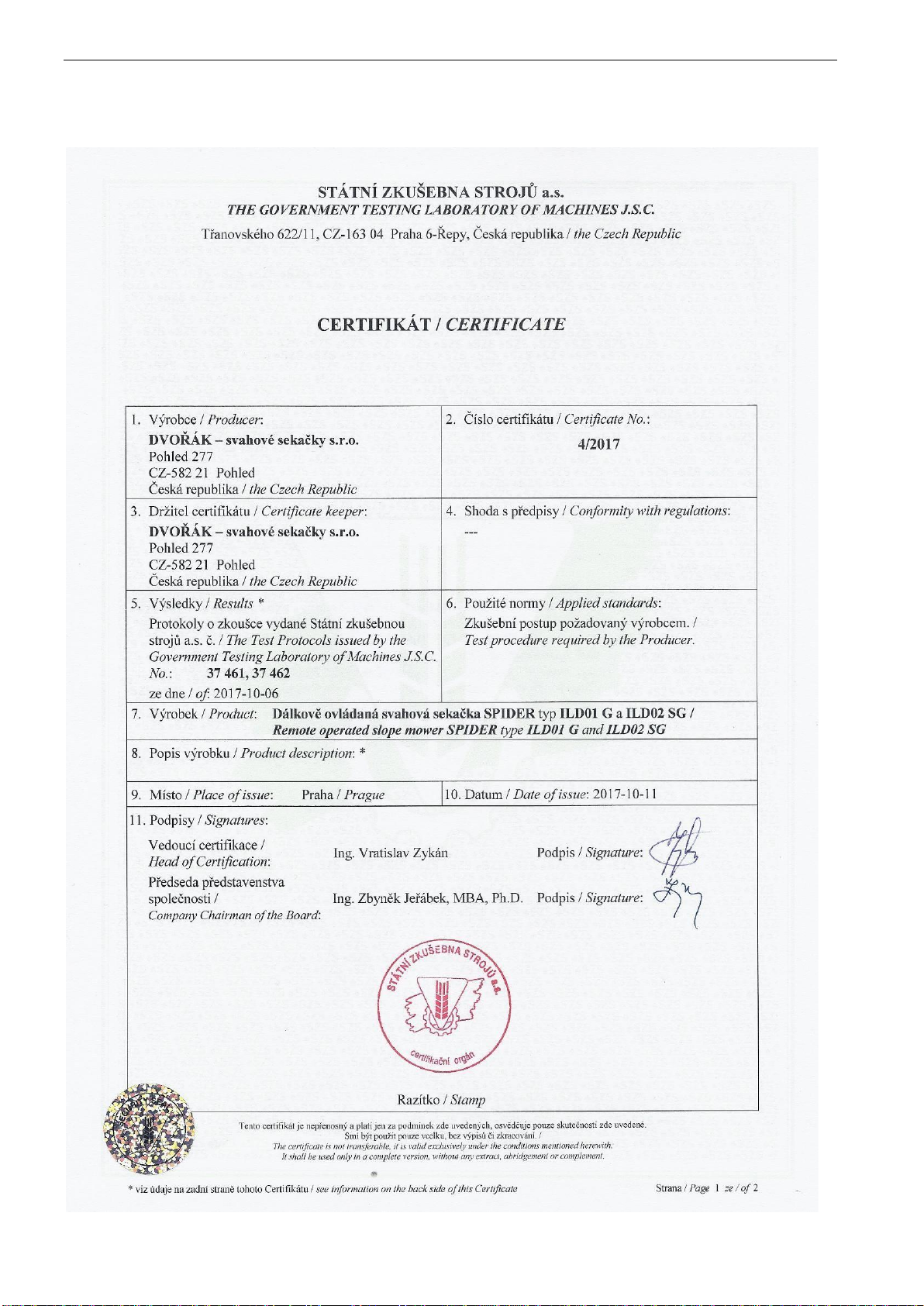

4.3 CONFORMITY CERTIFICATES ................................................................................................................ 13
4.4. CERTIFICATE OF STABILITY .................................................................................................................14

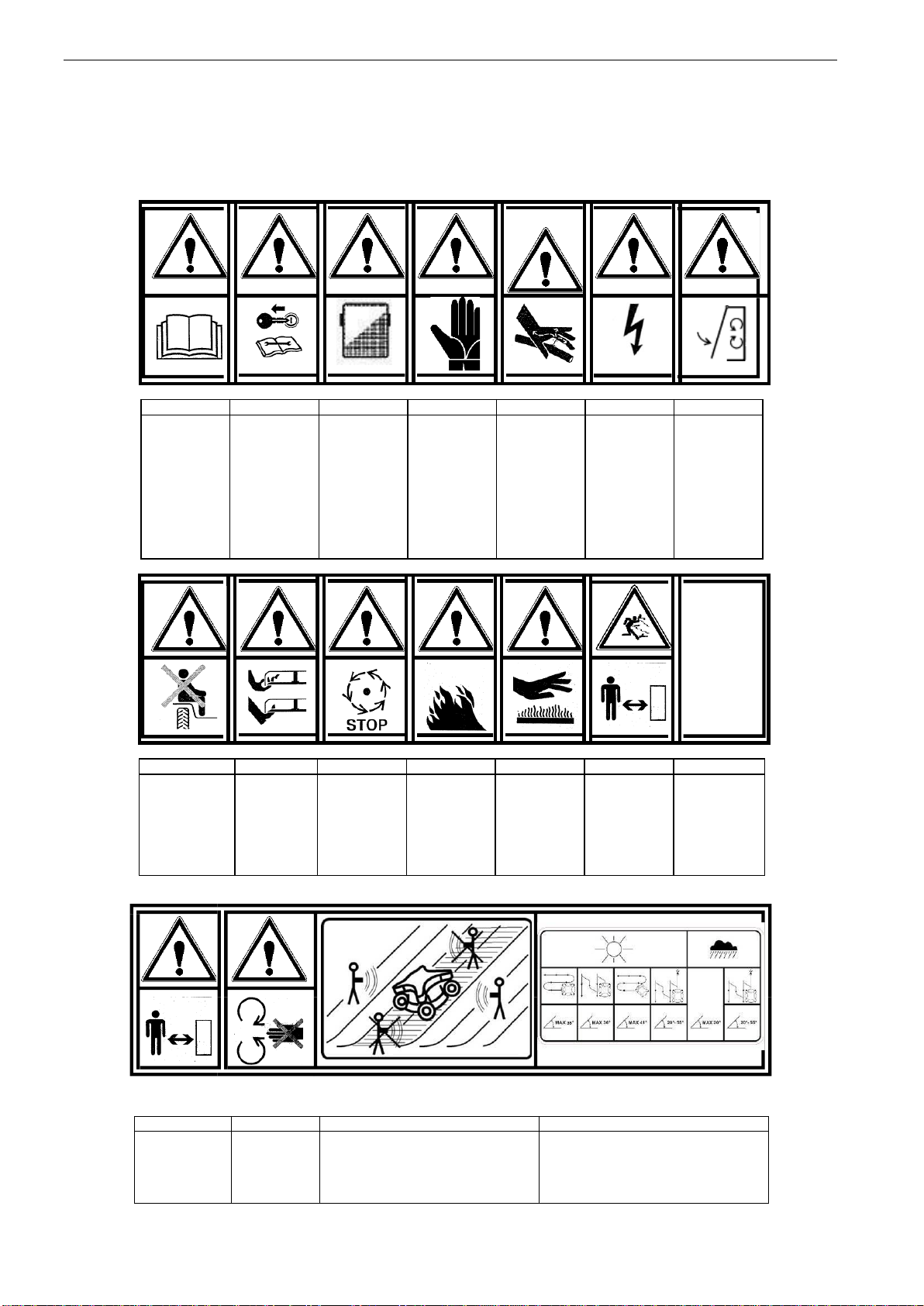

5 SAFETY DECALS............................................................................................................................................. 16
5.1 RECOMMENDED METHODS OF OPERATION ....................................................................................... 18
6 CONTROLS ...................................................................................................................................................... 20
6.1 REMOTE RADIO CONTROLLER NBB..................................................................................................... 20
6.2 MOWER CONTROLS................................................................................................................................. 21
7 DISPLAYS......................................................................................................................................................... 22
7.1 NBB RADIO CONTROLLED DISPLAYS .................................................................................................. 22
7.2 MOWER DISPLAYS................................................................................................................................... 22
8 SAFETY SYSTEMS .......................................................................................................................................... 23
8.1 MOWER SAFETEY SYSTEMS.................................................................................................................. 23
9. PREPARING THE MACHINE.......................................................................................................................... 24
9.1 MACHINE DELIVERY TO A DEALER OR RETAILER............................................................................. 24
9.2 HYDRAULIC PUMP BY-PASS .................................................................................................................. 25
9.3 CHECKING ENGINE OIL LEVEL .............................................................................................................. 25
9.4 CHECKING HYDRAULIC DRIVE OIL LEVEL........................................................................................... 26
9.5 PREPARING THE BATTERY .................................................................................................................... 26
9.6 FUEL TANK................................................................................................................................................ 26
9.7 PREPARING THE NBB REMOTE RADIO CONTROLLER ...................................................................... 27
9.8 CHARGING THE NBB REMOTE RADIO CONTROLLER BATTERY...................................................... 27
10 OPERATION ................................................................................................................................................... 28
10.1 TRANSPORTING THE MOWER.............................................................................................................. 28
10.2 STARTING THE ENGINE OF THE MOWER........................................................................................... 28
10.3 ENGINE LIMP MODE............................................................................................................................... 29
10.4 SHUTTING OFF THE ENGINE ............................................................................................................... 29
10.5 EMERGENCY SHUTTING OFF THE ENGINE........................................................................................ 29
10.6 ENGAGING THE BLADES ...................................................................................................................... 30
10.7 DISENGAGING THE BLADES ................................................................................................................ 30

Operation Manual –Spider ILD02 EFI
3 / 55
rev. 01-01-02-2021
10.8 HEIGHT OF CUT ADJUSTMENT ............................................................................................................ 30
10.9 ENGAGING THE WINCH......................................................................................................................... 30
10.10 DRIVING THE MACHINE....................................................................................................................... 31
10.11 DRIVING SPEED OF THE MOWER ...................................................................................................... 32
10.12 DRIVING ON SLOPES........................................................................................................................... 32
10.13 STOPPING THE MACHINE ON A SLOPE............................................................................................ 32
10.14 SKID STEERING.................................................................................................................................... 32
11 MAINTENANCE AND LUBRICATION ........................................................................................................... 33
11.1 MAINTENANCE CHART - MOWER........................................................................................................ 33
11.2 MAINTENANCE CHART - ENGINE......................................................................................................... 34
11.3 ENGINE MAINTENANCE ........................................................................................................................ 35
11.4 CHANGE THE ENGINE OIL .................................................................................................................... 35
11.5 CLEANING THE FUEL TANK ................................................................................................................. 35
11.6 MAINTENANCE OF HYDRAULIC DRIVE............................................................................................... 36
11.7 CHECKING AND REFILLING OIL........................................................................................................... 36
11.8 ADJUSTMENT OF THE NEUTRAL POSTION OF THE HYDRAULIC DRIVE....................................... 36
11.9 DRIVE BELTS .......................................................................................................................................... 38
11.10 GEOMETRY ADJUSTMENT.................................................................................................................. 38
11.11 FINAL GEAR DRIVE TO THE WHEELS............................................................................................... 39
11.12 MAINTAINING ELECTRIC CIRCUITS AND DEVICES, TRANSMITTER............................................. 39
11.13 ADJUSTING BLADES DECELERATION.............................................................................................. 39
11.14 STEERING CHAIN................................................................................................................................. 40
11.15 FUSES.................................................................................................................................................... 40
11.16 MOWING BLADES................................................................................................................................. 41
11.17 CHANGING THE WHEEL...................................................................................................................... 42
11.18 TYRE PRESSURE.................................................................................................................................. 42
11.19 MOWING HEIGHT ADJUSTMENT MECHANISM................................................................................. 42
11.20 LUBRICATION ....................................................................................................................................... 43
11.21 CLEANING THE MACHINE................................................................................................................... 43
11.22 TORQUE CHARTS................................................................................................................................. 43
11.23 VISCONSITY OF ENGINE OILS............................................................................................................ 44
11.24 TECHNICAL PLATE .............................................................................................................................. 45
11.25 TOOLS.................................................................................................................................................... 45
11.26 AUXILIARY BRAKE............................................................................................................................... 46
11.27 BATTERY MAINTENANCE ................................................................................................................... 47
12 TROUBLESHOOTING.................................................................................................................................... 48
13 MAINTENANCE AFTER SEASON................................................................................................................. 52
14 WARRANTY CONDITIONS............................................................................................................................ 54

Operation Manual –Spider ILD02 EFI
4 / 55
rev. 01-01-02-2021
2 INTRODUCTION
2.1 IMPORTANT
This is a precision machine and the service obtained from it depends on the way it is operated and
maintained.
This OPERATION MANUAL should be regarded as part of the machine and should always be
present at the machine and available to the operator. Suppliers of both new and second-hand machines
are advised to retain documentary evidence that this manual was provided with the machine.
This machine is designed solely for use in customary grass cutting operations. Use in any other way is considered
as contrary to the intended use. Compliance with and strict adherence to the conditions of operation, service and
repair as specified by the manufacturer, also constitute essential element of the intended use.
Before attempting to operate this machine, ALL operators MUST go through a practical training in machine usage,
read through this manual and make themselves thoroughly conversant with Safety Instructions, controls,
lubrication and maintenance. The machine may be operated with additional accessories specifically designed for
this purpose. Operating and Safety Instructions of such accessories must be strictly adhered to.
Accident prevention regulations, all other generally recognized regulations on safety and occupational medicine,
and all road traffic regulations shall be observed at all times.
Any arbitrary modifications carried out on this machine as well as non-adherence to this OPERATION
MANUAL may relieve the manufacturer of liability for any resulting damage or injury.
In several places this Manual contains instructions for safe work. If the text includes such an instruction, then the
instruction is marked by the following WARNING symbol:
Warning against a highly probable danger of severe injury or life threat if appropriate instructions
are not followed.
Other symbols:
Provides useful information
Links to the service video on the manufacturer´s website

Operation Manual –Spider ILD02 EFI
5 / 55
rev. 01-01-02-2021
2.2 MACHINE USAGE
The machine is designed for the mowing of grass on level as well as extremely steep terrain. Any other use is
prohibited. The maximum slope on which the machine may be used depends on the type of area to be mowed,
on the current condition of the area and on the method of mowing:
DRY CONDITIONS:
Cutting across a slope: Maximum slope is 35°
Cutting up and down a slope: Maximum slope is 36°
Cutting across a slope with mower positioned diagonally: Maximum slope is 41°
Cutting up and down a slope with use of theintegrated
stabilizing winch Maximum slope is 60°
WET CONDITIONS:
All areas and applications without use of the integrated
stabilizing winch: Maximum slope is 20°
Cutting up and down a slope with use of the integrated
stabilizing winch: Maximum slope is 60°
The Spider is a mulching mower designed for mowing of well-maintained, but also unkept or only
occasionally mowed areas. The mower is operated by one person using radio control.
The mower may only be operated by authorized persons over 18 years of age both mentally and physically
fit, who are familiar with this Safety, Operator’s and Maintenance Manual and all applicable regulations
and laws pertaining to work health and safety that need to be observed while operating the mulching
mower Spider.
For use of the integrated stabilizing winch, it is obligatory to have read the Operation manual Winch HSN
02 and be properly trained by the seller on how to use the integrated stabilizing winch.
When driving on a slope the operator of the machine must carefully watch and evaluate the movements of the
mower and the characteristics of the terrain, especially the momentary adhesion of the wheels to the ground.
Pay attention to climatic conditions. Do not rely on the anchoring of the mower on the rope. Climbing
ability of the mower will rapidly change on dry, wet or moist grass.
The soil characteristics and firmness will also play a significant role. Sideslip will be much bigger on
newly built slopes then on hard ground. When working on a slope with the integrated stabilizing winch
use only one driving method: driving vertically / up and down a slope.

Operation Manual –Spider ILD02 EFI
6 / 55
rev. 01-01-02-2021
2.3 PROHIBITED USE
• The mower may not be used for other purpose than for which it was designed, and which is described
in chapter 2.2.
• The mower may not be used on surfaces littered by glass, loose stones, pieces of iron and other foreign
objects that can either be thrown by the blades during mowing or damage the mower.
• The mower may not be used on slopes exceeding 20 degrees when wet or foggy without us of the
integrated stabilizing winch, as the climbing ability and mower stability are adversely influenced bypoor
ground adhesion, regardless of the type of area to be mowed.
• The mower may not be used where other people, children or animals can be found within 3 m (10 ft.)
from the mower/mowed area.
• Never use the mower unless you are properly acquainted with the terrain and mainly withthe
occurrence of undesired terrain irregularities, stumps, swamps, pits, unstable and poor load
bearing soil etc.
• The mower may not be used on slopes with incline exceeding the values stated in chapter 2.2.
• The mower may not be used as a towing/transporting device or as means of transportingpersons.
• It is prohibited to drive the mower on publicthoroughfares.
• It is prohibited to increase the engine revolutions or the engine performance above the limits specified
by the manufacturer. It is also prohibited to make any other modifications to the machine constructionor
to the engine setup. The manufacturer does not bear any liability for damage or injury resulting from
such modifications.
• It is prohibited to use the mower under the influence of alcohol or drugs
• It is prohibited to drive the mower into heaps of sand, gravel or similar material, on stumps,rocks,
construction elements or any other obstacle, which may compromise the stability of the machine
• It is prohibited to use the machine under low visibility (dust, fog, heavy rainetc.)
1) Stabilizing winch is an optional accessory. Read the winch operating manual before use.

7 / 55
rev. 01-01-02-2021
Operation Manual –Spider ILD02 EFI
2.4 PRODUCT IDENTIFICATION

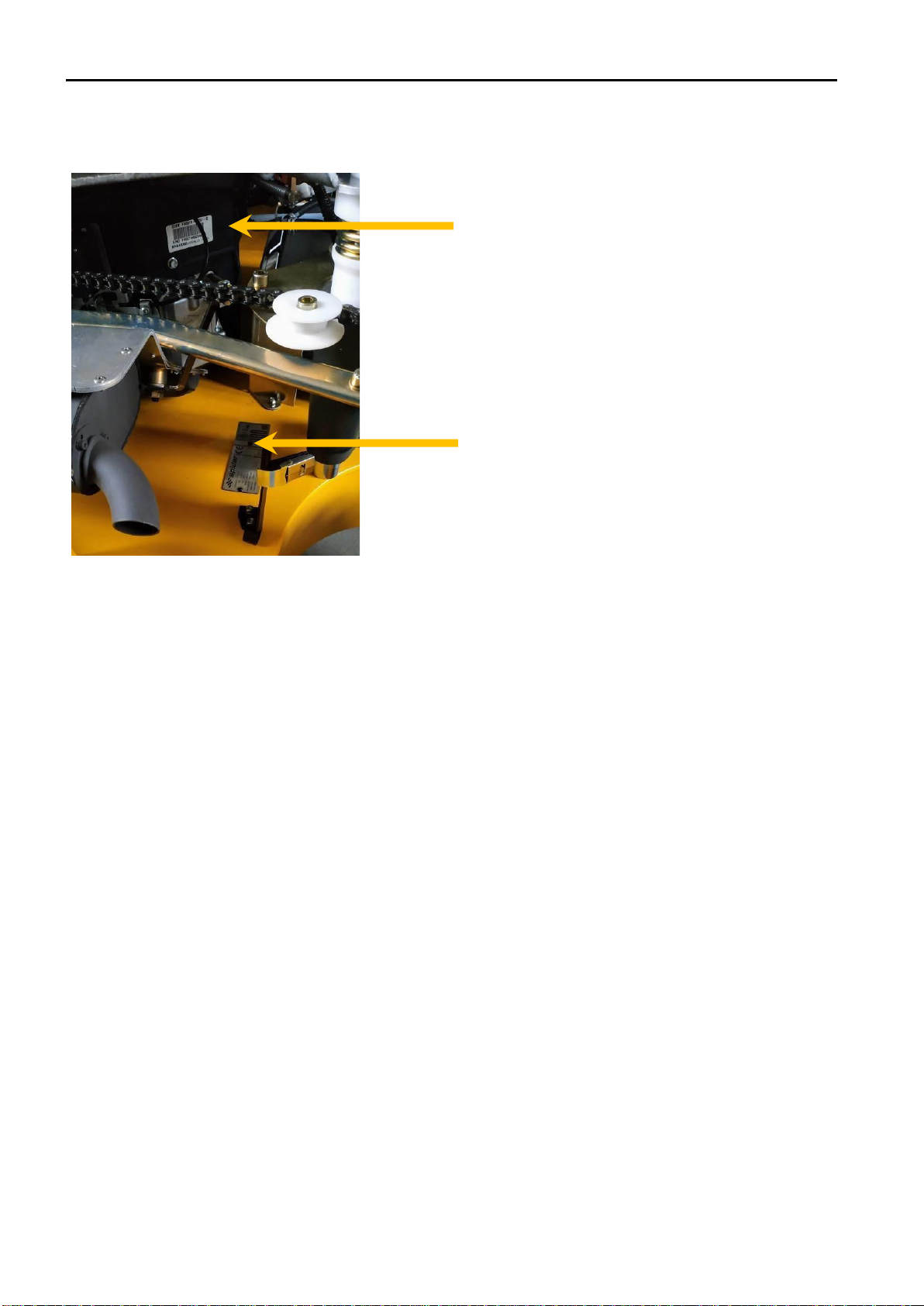

On the internal engine you can also find a factory label placed there by the enginemanufacturer.
Engine factory label location
Mower factory label location

Operation Manual –Spider ILD02 EFI
8 / 55
rev. 01-01-02-2021
2.5 GUIDELINES FOR THE DISPOSAL
OF SCRAP PRODUCTS
When it has been identified that a turf care product
has no further functional value and requires
disposal, the following actions should be taken.
These guidelines should be used in conjunction
with Health, Safety and Environmental legislation
and use of approved local facilities for waste
disposal and recycling.
• Use appropriate tools and Personal
Protective Equipment (PPE) and take
guidance from the technical manuals
applicable to the machine.
• Remove and store appropriately:
1. Batteries
2. Fuel Residue
3. Oils
• Disassemble the structure of the machine
referring to the technical manuals where
appropriate. Special attention should be made
for dealing with “stored energy” within
pressurized elements of the machine or
tensioned springs.
• Any items that still have a useful service life as
second-hand components or can be re-
serviced should be separated and returned to
the relevant center.
• Other worn-out items should be separated into
material groups for recycling and disposal
consistent with available facilities. More common
separation types are as follows:
o Steel
o Nonferrous metals
• Aluminum
• Brass
• Copper
o Plastics
• Identifiable
▪ Recyclable
▪ Non-recyclable
• Non-identified
o Rubber
o Electrical andelectronic
components
• Items that cannot be separated economically into
different material groups should be added to the
“General waste” area.
• Do not incinerate waste.
Finally update machinery records to indicate that the
machine has been taken out of service and scrapped.

Operation Manual –Spider ILD02 EFI
9 / 55
rev. 01-01-02-2021
3 SAFETY INSTRUCTIONS
This safety symbol indicates important
safety messages in this manual. When
you see this symbol, be alert to the
possibility of injury, carefully read the
message that follows, and informother
operators.
Safety checks
• Do not enter or reach under the machine if it is
lifted and not sufficiently supported. The machine
should be supported on places marked by the
symbol of a lifting jack.
• The mower should only be transported in a
container or on a trailer.
• Check bolt torques at regular intervals. The first
check should be done after 8 operating hours.
Pay attention to the attachment of the cutting
blade and the proper bolt torque. Use a torque
wrench and a specified torque. See 11.22.
• The attaching flange of the blades or the bolts
must not show sign of damage or wear. The bolts
must be complete. The blade must be
undamaged, evenly worn and adequately sharp.
• If you are driving the machine outside of the
working area, always turn off the mowing blades
and set the maximum mowing height, otherwise
the blades may get damaged.
• Keep the product clean after use. Do not use
gasoline or similar oil products for cleaning.
• Do not reach into the space under the mower with
your hands or feet. Do not reach under the engine
cover or into the gear mechanism.
• If you are forced to reach under the machine, wait
until all rotating parts stop. Attention, it takes
some time before blade runs down! The run-down
time depends on the state and wear of the
brake/clutch. Have the brake checked at regular
intervals at an authorized servicing facility.
• While operating, wear closed shoes and work
clothing. Do not wear loose clothes that could get
caught by the machine, short trousers or light
shoes.
• It is strictly prohibited for the operator to wear
loose clothing.
• A local risk assessment should determine the
need for a face shield.
• Do not operate the machine after drinking alcohol
or using medication influencing perception.
• Before starting the engine, make sure that the
mower blade is disengaged. If the blade switch is
in the ON position, the machine cannot be
started. When engaging the mower blade, step
aside far enough to be protected against object
accidentally thrown from the mower and to be
• able to stop the mower in case of an emergency.
Do not enter the path of the mower.
• While operating the mower make sure that the
mower is clearly visible at all times and within the
range of the remote-control unit and that you can
clearly recognize dangerous situations and react
to them properly. Do not abuse the maximum
reach of the remote control.
• When using the mower, follow all general work
safety regulations.
• Work with the mower may only be started if the
mower is not damaged by previous operation.
• Do not change the engine tuning, especially the
engine speed regulator. Do not modify the
exhaust pipe.
• Do not use the mower if there is less than 30%
of fuel in the fuel tank.
• Do not move the mower by means of towing it
behind another machine.
Operating Environment
• The machine should only be used by persons
over 18 years of age, who have been acquainted
with the machine and the user’s manual. The
remote control (further referred to as “RC”) is
considered as a part of the machine
• The user’s manual must be stored in a place
permanently accessible to the operator and must
be available to him at all times.
• Do not allow children or unauthorized persons
use the product.
• Before starting to operate the machine, you have
to be familiar with all the symbols next to the
controls and indicators used on the mower and
the RC.
• Pay special attention to the stopping and
shutting-off of the engine and to the emergency
shutting-off of the mower.
• Before using the mower on a slope, make sure
you test and practice your mower-control skills
on flat and level ground, which is sufficiently free
and spacious. Master how to control the
movement on a surface, to mow around bushes,
trees and other terrain elements and obstacles.
• When operating the mower on slope, make sure
that the engine revolutions are set to maximum
speed. If you stop the mower on a slope, position
the wheels across the slope.
• While operating or transporting the mower, the
operator must always have the mower in their
view. The maximum distance between the
operator and the mower is 50 m/165 ft.
• While using the mower follow all safety
regulations given in this manual and respect

Operation Manual –Spider ILD02 EFI
10 / 55
rev. 01-01-02-2021
local regulations and provisions concerning
noise-emissions, especially when using in
hospitals, spas and other sensitive areas.
• The operator must pay attention to the area into
which the mulched grass may be thrown. Neither
the operator, nor any other persons, children nor
animals should be allowed to enter this area. If
mowing uneven terrain, the ejection and throwing
of undesirable objects becomes more probable
due to the displacement of the mowing device (tilt
of one side of the machine) while crossing the
edges of different terrain.
• The operator of the machine may be responsible
for any damage caused to third parties by
operating the machine.
• The mower may be used on dry surface on slopes
listed in chapter 2.2. On wet or moist surfaces,
the mowed slope should not exceed 20 degrees
when using the machine without use of the
integrated stabilizing winch.
• Before operating the machine, make sure you
remove all loose stones, sticks, glass, wire,
bones, branches and all other objects that can be
picked up by the blades and thrown or that could
damage the mower from the mowing area.
• While operating the mower avoid obstacles, do
not drive over higher obstacles (such as stones,
stumps, brick), near precipices, on unstable soil
or in places where the mower could fall down or
flip over.
• When operating pay attention to electric power
lines especially when driving beneath electric
wires where the radio signal may be lost. In such
case the mower immediately shuts off the internal
combustion engine and stops all movements.
• When using the machine near busy
thoroughfares make sure that the mower does
not endanger (by throwing undesirable objects)
passers-by or their property. Choose a suitable
working procedure (see chapter: Operating the
mower).
• The operator/user is responsible for the safety of
persons that enter the working area of the
machine. Stop your work if these persons enter
the working area.
• The transportation of persons, animals or loads
on the mower is prohibited.
• Do not place any objects or tools on the product.
• While operating, especially in windy conditions,
choose the operator’s position carefully so as to
keep the operator away from the stream of
exhaust gas, dust or mulched grass.
• Stop work and clean the machine and its cooling
surfaces several times while working in dusty
conditions to avoid over-heating during operation.
If necessary, clean the machine and
its cooling surfaces several times while working.
The dust layer must not exceed 1 mm.
• Refuel only when the machine is off –before
operating, if possible –and the fuel tank is cold.
Always keep at least 30% of the fuel in the tank.
If you need to refuel during your work, do not fill
the fuel into a hot tank or while the engine is still
hot. Let the machine cool down.
• Before refueling push the STOP button on the
control panel of the mower.
• Never refuel while the engine is running.
• Do not start the engine if you find spilled fuel,
open vessels with fuel or other combustible
objects or gases in the immediate proximity of
the mower.
• Do not refuel near open fire.
• Do not place this product near open fire or other
sources of heat.
• While operating or immediately after shutting the
machine off do not touch those parts of the
machine that heat up during operation. This
concerns mainly the engine exhaust pipe, metal
parts of the hydraulic drive and metal parts of the
internal combustion engine.
• While operating do not touch the high voltage
conductor leading to the sparking plug.
• After starting the engine, test the correct
functioning of the emergency engine stop on the
radio transmitter. This function should be
checked at least once during every shift and
every time you enter a new area for mowing or
mulching.
• Before starting your work test the correct
functioning of the safety components
(EMERGENCY STOP...) on the mower and the
RC.
• Never leave the engine running without
supervision.
• If the engine is running, do not put aside the
transmitter and do not touch or move any parts
of the machine.
• Always stop the engine when leaving the
machine, secure it against starting by pushing
the red EMERGENCY STOP button on the
control panel of mower and by removing the key.
Never leave the transmitter next to the mower,
but put it in a different, properly secured place
inaccessible to third persons.
• Do not engage the mowing blade until
immediately before mowing.
• Turn off the mowing mechanism, shut off the
engine and remove the key from the ignition
every time:
• You clean the machine
• You remove dirt from the mowing mechanism
(grass or debris).
• You run over an unknown object and need to
check for possible damage or to repair it

Operation Manual –Spider ILD02 EFI
11 / 55
rev. 01-01-02-2021
• The machine unusually intensively vibrates, and
you need to find the cause
• You repair the engine or other parts of the mower
(also unplug cables from sparking plugs)
• While operating, avoid molehills, concrete bases,
guard-stones, stumps, loose stones and curbs.
These must not come into direct contact with the
blade as they could cause serious damage.
These may also compromise the mower stability.
• Do not drive the mower into heaps of sand, gravel
or similar materials
• The mower may only be operated during daylight
or under very good artificial light conditions.
• Do not use the mower in limited visibility (dusk,
fog, heavy rain etc.)
• Do not let the engine run in enclosed spaces. The
exhaust gases contain CO. They damage health
and can ultimately cause death.
• The engine should only be started and operating
in open spaces. If the engine is started and
operated in enclosed spaces, the exhaust gases
must be conducted away by the means of
prolonging the exhaust pipe outside the enclosed
space. Proper ventilation and fresh air supply
must be secured in order to prevent the
accumulation of CO.
• Before storing the machine in a closed space, let
the engine and the hydraulic drive of the machine
cool properly.
• Regularly remove all combustible objects (dry
grass, leaves...) from the areas around the
exhaust pipe, engine, and battery.
• Always control the machine from a working
station, which gives you a perfect view of the
whole working area and of the machine.
• While working, change your working position to
have a perfect view of the mower at all times.
• When operating the mower on slopes never enter
the space directly below or above the mower.
• The working position should be far enough
(maximum 50 m / 165 ft.) to prevent the operator
from getting hit by objects that may be
accidentally thrown by the mower.
• Do not operate the mower if you cannot see it
(behind terrain obstacles, corners of buildings,
hidden in grass etc.)
Safety Decals
• Before starting the mower, check the state of the
safety labels. If any labels are damaged or
missing, contact your dealer and replace such
labels on the machine. Get thoroughly
acquainted with these labels. The placement of
the labels on the machine is obligatory.
• Do not remove or damage any of the safety
labels.
• Do not remove any covers or safety elements.
They are for your protection.
• Do not use the machine if any of the protecting
devices or covers is damaged or missing.
• Keep the machine and its accessories clean and
in a good technical condition at all times.
• It is strictly prohibited to make any changes or
modifications to the machine that were not
previously approved by the manufacturer. Any
modification to the machine may lead to a
hazardous situation or injury. If these instructions
are not followed, the manufacturer does not bear
any liability for the machine and the terms of
warranty may be invalidated.
• The machine must always be equipped with all
covers and protective elements.
• It is strictly forbidden to use the machine with
improperly mounted or damaged rubber
mulching cover with chains.

Operation Manual –Spider ILD02 EFI
12 / 55
rev. 01-01-02-2021
4 SPECIFICATION
4.1 SPECIFICATION
TECHNICAL DESCRIPTION
The mower is a self-propelled machine with four-wheel drive, controlled by a transmitter (remote radio controller)
signal. Its unique wheel-steering technology ensures a high maneuverability both on level ground and on slopes.
The basic part of the machine is formed by a square solid frame, which is connected to a sliding frame. The middle
part of the sliding frame carries all transmission parts such as the engine, the hydraulic pump, the hydraulic motor
and the control unit. 4 mowing blades are attached to the bottom part of the frame. An electromagnetic clutch is
placed between the main belt pulley and the engine. Circles formed by the rotation of blades do not overlap. The
blades are fixed and attached to the flanges by bolt. The cutting deck is open on two sides in order to facilitate
the intake and discharge of grass. These openings are covered by a chain curtain and by a rubber cover, which
prevent the throwing of undesirable objects. A steel bumper above the rubber cover on the outside of the mower
marks the safe distance from the blades. Transmission is by chains and gears on all four wheels. The wheels are
driven by two hydraulic motors through V-belts. Wheels are steered by an electric motor. The gel battery and the
control unit are situated in the front part of the mower. The mower is controlled by a multi-channel transmitter.
TECHNICAL SPECIFICATION
Parameter
Unit
Value
Length/Width
mm (inch)
1640 x 1430 (65 x 56)
Height
mm (inch)
920 (36)
Mowing width
mm (inch)
1230 (49)
Mowing blade height
mm (inch)
70–120(3.1-4.7), 90–140(3.5-5.5)
continuous regulation
Weight
kg (pound)
372 (820)
Driving speed
km/h (mph)
0 –8 (0 - 5)
Mowing mechanism
-
Four-blade, fixed blades
Blade length
mm (inch)
505 (20)
Mowing clutch
-
Electromagnetic with a friction brake
Hydraulic pump
-
Hydro Gear BDP 21L
Hydraulic motor
-
Sauer Danfoss OMP 40
Propelled wheels
-
4 x 4
Travel wheel
inch
16 x 6,5 with an arrow (V) tread pattern
Battery
12 V, 18 Ah, gel
Fuel
-
Unleaded gasoline
Fuel tank capacity
litre (gallon)
16 (4)
Engine
-
Air-cooled four-stroke two
cylinders Kawasaki FS730V EFI
25,5 HP
Cylinder volume
cm3
726
Performance
kW
19
Engine speed
1/min (RPM)
2900
Ignition
-
Electronic
Starter
-
Electric
4.2 NOISE EMISSIONS
The mower emits the following noise: Sound pressure level LWA = 99,9dB
Guaranteed Sound pressure level LWA = 101,0 dB
The measuring was carried out in conformity with ISO 3744
Noise at the operator’s station (ear): L = 81. dB (A) Leq - Measured in the distance of 3 m from the machine
according to EN 11 201

Operation Manual –Spider ILD02 EFI
13 / 55
rev. 01-01-02-2021
4.3. CONFORMITY CERTIFICATES
ES/EU PROHLÁŠENÍ O SHODĚ (originál)
EC/EU declaration of conformity (the original)
Výrobce / Manufacturer:
DVOŘÁK – svahové sekačky s.r.o.
Adresa / Address:
č.p. 277, 582 21 Pohled, ČR
IČ / ID:
26013797
Jméno a adresa osoby pověřené sestavením technické
dokumentace (podle 2006/42/ES, NV č. 176/2008 Sb.) a jméno
a adresa osoby, která uchovává technickou dokumentaci
(podle 2000/14/ES, NV č. 9/2002 Sb.)/
Name and address of the person authorised to compile the
technical file (according to 2006/42/EC) and the name and
address of the person who keeps the technical documentation
(according to 2000/14 / EC, NV No. 9/2002 Coll.):
DVOŘÁK – svahové sekačky s.r.o.
č.p. 277, 582 21 Pohled, ČR
Výrobek (stroj) – typ /
Product (Machine) –Type:
Dálkově řízená sekačka SPIDER ILD02 EFI/
Remote controlled mower SPIDER ILD02 EFI
Výrobní číslo / Serial number:
Popis / Description:
Dálkově řízená sekačka SPIDER ILD02 EFI je určená pro
sečení a mulčování travnatých porostů na běžném i
svažitém terénu.
Remote controlled mower SPIDER ILD02 EFI is designed
for mowing and mulching grasslands on normal and
sloping terrain.
Prohlašujeme, že strojní zařízení splňuje všechna příslušná
ustanovení uvedených směrnic (NV) /
We declare that the machinery fulfils all the relevant provisions
of the mentioned Directives (Government Provisions):
Směrnice 2006/42/ES, NV č. 176/2008 Sb. /
Directive 2006/42/EC.
Směrnice 2014/30/EU, NV č. 117/2016 Sb. /
Directive 2014/30/EU.
Směrnice 2000/14/ES, NV č. 9/2002 Sb. /
Directive 2000/14/ES.
Harmonizované technické normy a technické normy použité
k posouzení shody /
The harmonized technical standards and the technical standards
applied to the conformity assessment:
ČSN EN ISO 12100, ČSN EN ISO 5395-1, ČSN EN ISO
5395-2,
ČSN EN ISO 4413, ČSN EN ISO 13857,
ČSN EN ISO 14982:2009, ČSN EN ISO 11201, ČSN EN
ISO 3744.
Osoby zúčastněné na posouzení shody/
Persons participating conformity assessment:
Notifikovaná osoba č. 1016/ Notified Body No. 1016.
Státní zkušebna strojů a.s., Třanovského 622/11, 163 04
Praha 6–Řepy, ČR /
The Government Testing Laboratory of Machines, Joint-
stock company.
Závěrečná zpráva č.: 38 917
Použitý postup posouzení shody/
Used conformity assessment procedure:
Na základě směrnice 2000/14/ES, příloha VIII;
NV č. 9/2002 Sb., příloha č.7.
On the basis of Directive 2000/14/EC, Annex VIII.
Naměřená hladina akustického výkonu/ Measured sound
power level:
LWA= 99,9 dB
Garantovaná hladina akustického výkonu/ Guaranteed sound
power level:
LWA,G = 101 dB
Poznámka: Veškeré předpisy byly použity ve znění jejich změn a doplňků platných v době vydání tohoto prohlášení bez jejich citování.
Note: All regulations were applied in wording of later amendments and modifications valid at the time of this declaration issue without any citation of them.
Místo a datum vydání /
Place and date of issue: Pohled, 15.4.2021
Osoba zmocněná k podpisu za výrobce / Signed by the person
entitled to deal in the name of producer: Lubomír Dvořák, MBA
Jméno /
Name: Lubomír Dvořák, MBA
Funkce /
Grade: jednatel
Podpis /
Signature:
Note: All regulations were applied in wording of later amendments and modifications valid at the time of this declaration issue without any citation of them.

Operation Manual –Spider ILD02 EFI
14 / 55
rev. 01-01-02-2021
4.4. CERTIFICATE OF STABILITY

Operation Manual –Spider ILD02 EFI
15 / 55
rev. 01-01-02-2021

Operation Manual –Spider ILD02 EFI
16 / 55
rev. 01-01-02-2021
5 SAFETY DECALS
Attention! This machine may be dangerous. Incorrect and negligent use may result in damage, serious
injuries or death. This chapter is devoted to the safety symbols (pictograms) used on the product, their
placement and meaning. Safety labels inform the operator about risks while using the product.
Understanding their meaning will make the use of this product safe.
1
2
3
4
5
6
7
Read the
user’s manual
before use
While
maintaining,
repairing or
adjusting the
mower, follow
the user’s
manual and
remove the
key from the
ignition
Use
protective
work aids;
faceshield
Attention, use
protective
gloves when
changing the
mowing
blades
Attention, the
device uses
hydraulic
energy drive,
danger of
injury caused
by the
squirting
hydraulic oil
Attention,
electric
accumulator
Before
starting close
all protective
covers
8
9
10
11
12
13
14
Transportation
of persons on
the machine is
prohibited
Attention,
danger of
hand or feet
injury
caused by
rotating
blades
Attention,
rotating parts
are
decelerating
after they
were turned
off
Attention,
combustible
substance,
danger of fire
Danger of
getting
burned by hot
parts
Attention,
danger of
getting hit by
flying object.
Keep safe
distance.
Slinging point
15
16
17
18
Keep safe
distance from
the machine
when it is
moving
Attention,
rotatingparts
On a slope never enter the area
below or directly above themachine
Maximum permissible slope with
regards to machine application and
climatic conditions.

Operation Manual –Spider ILD02 EFI
17 / 55
rev. 01-01-02-2021
1,9,13,10,2
17,18
9,13,10,18
12
1,16

Operation Manual –Spider ILD02 EFI
18 / 55
rev. 01-01-02-2021
5.1 RECOMMENDED METHODS OF OPERATION
This chart shows basic information about recommended methods of cutting grass in various types of terrain. It
also describes the correct procedure of anchoring the hydrostatic stabilizing winch. However current terrain and
climatic conditions may require different methods of operation than those shown in this chart. The operator is
always responsible for choosing the most suitable method of operation especially with regards to safety. In any
case it is always absolutely necessary to comply with all safety instructions listed in thisManual.
Chart of recommended methods of operation is placed together with the basic set of tools on the machine. See
chapter 11.25 Tools
Alwa ys j ee p th e t yres in flate d to
the recommended pressure. Other
values may unfavourably
influence the driving
characteristics. Maximum
p ress u re – 300 j P a /3,0b ar / 43 PSI
Check th e blad es . Blad es m u st b e
properly tightened. Blades must
not be bent and the edges must
not be damaged.
Check th e fu e l l eve l
Check th e o vera ll c ondition o f t h e
winch. The rope and the snap
hook m u st no t b e d ama g e d.
On slopes never enter the area
below or directly above the
machine.
Recommended method of cutting
on slopes up to 36 degrees
provided the operator is well
acquainted with the terrain and
t h ere i s no r isk o f t ipping th e
machine over.
Recommended method of cutting
on slopes up to 35 degrees
provided the operator is well
acquainted with the terrain and
t h ere i s no r isk o f t ipping th e
machine over.
On slopes exceeding 36 degrees
always use the stabilizing winch.
On slopes never enter the area
below or directly above the
machine.
Recommended method of cutting
around trees on slopes up to 36
degrees.
Recommended method of cutting
around trees on slopes exceeding
36 degrees. On slopes exceeding
36 degrees always use the
stabilizing winch.
Recommended method of cutting
bushes on slopes up to 36
degrees.
Recommended method of cutting
bushes on slopes exceeding 36
degrees. On slopes exceeding 36
degrees always use the stabilizing
winch.
Recommended method of cutting along roads. Never enter the area
below or directly above the machine. Danger of getting injured by
obje cts th r own b y th e blad es . Caref ull y c h eck th e t erra in in f r on t o f t h e
mower.
Po s ition o f i m po rta n t c o m pon e n ts on th e mac hin e ( a ir fil ter , s p ark plug s ,
hydraulic by-pass allowing the disengagement of hydraulics and
consequent towing of the machine, fuse box, battery,tools)

Operation Manual –Spider ILD02 EFI
19 / 55
rev. 01-01-02-2021
Instructions for turning on and off the hydrostatic winch
Rotate the machine so that the
winch is facing up the hill toward
the expected anchoring point.
Turn the wheels so that they are
orientated across the slope (along
the slope contours)
Turn off theblades
Reduce the engine RPMto
minimum (idling speed)
On the remote controller of the
machine turn on the hydrostatic
winch by the ON-OFF switch.
By pu s hing th e d r iving jo ystick
s ligh tly b ackward th e r op e will
begin to unwind. Fasten the rope
properly to the anchoring point.
Increase the engine RPM to
maximum
Tighten the winch rope by
pu s hing th e d r iving jo ystick
slightly in the forward direction.
Turn on the blades
Leave the anchoring position of
the mower by pushing the driving
jo ystick fo r wa r d a nd b y d r iving up
the slope.
Method of cutting up and down a
slope: driving up the slope –push
t h e jo ystick fo r wa r d, d r i v ing down
t h e s lop e –pu s h th e jo ystick
b ac k ward
Method of cutting across the
slope: Drive according to the
pictu re . Th e jo ystic k s hould
always be pushed in the forward
direction.
Place the mower at the bottom of
the slope
Turn the wheels across the slope,
perpendicular to the anchoring
point
Turn off the blades
Reduce the engine RPMto
minimum (idling speed)
Loosen the winch rope by
pu s hing th e d r iv e jo ystick s ligh tly
b ack wa r d.
Untietheropefromtheanchoring
poin t . Wind th e r op e b ack on t o
the winchdrumbypushing the
d r iv e jo ystick s ligh tly f o r wa r d.
On the remote controller of the
machine turn off the hydrostatic
winch by the ON-OFF switch.
Check th e o vera ll c ondition o f t h e
winch. The rope and the snap
hook m u st no t b e d ama g e d.

Operation Manual –Spider ILD02 EFI
20 / 55
rev. 01-01-02-2021
6 CONTROLS
6.1 REMOTE RADIO CONTROLLER NBB
1 Main Switch / EMERGENCY STOP button
2 Driving speed controller H/L
3 Engine stop switch
4 Engine starter switch
5 Mowing blades ON switch
6 Mowing blades OFF switch
7 Height of cut adjustment
8 Joystick for driving forward / backward
9 Joystick for steering left / right
10 Skid steering switch
11 Remote controller power display
12 Operator’s preparedness confirmation / Horn
13 Frequency check / change button
14 Engine speed controller
15 Winch switch On/Off
