SPIDER ILD01 G User manual

Operation manual
Spider ILD01 G (SN 2474 - )
original Operation manual
revised
03-01-04-2019
Product serial number: ILD01…………………………………………………………
Engine type/serial number: FS541VB / ……………………………………………
DVOŘÁK –svahové sekačky, s.r.o., Pohled 277, 582 21 Pohled, Czech Republic
[email protected]; www.spider-cz.com

Operation manual - Spider ILD01G
2 / 54 rev. 03-01-04-2019
1 CONTENTS
1 CONTENTS......................................................................................................................................................... 2
2 INTRODUCTIONS............................................................................................................................................... 4
2.1 IMPORTANT................................................................................................................................................. 4
2.2 MACHINE USAGE ....................................................................................................................................... 5
2.3 RESTRICTIONS........................................................................................................................................... 6
2.4 PRODUCT IDENTIFICATION ...................................................................................................................... 6
2.5 GUIDELINES FOR THE DISPOSAL OF SCRAP PRODUCTS .................................................................. 7
3 SAFETY INSTRUCTIONS .................................................................................................................................. 8
4 SPECIFICATION............................................................................................................................................... 11
4.1 SPECIFICATION ........................................................................................................................................ 11
4.2 NOISE EMISSIONS.................................................................................................................................... 11
4.3 CONFORMITY CERTIFICATES ................................................................................................................ 12
4.4 CERTIFICATE OF STABILITY .................................................................................................................. 13
5 DECALS............................................................................................................................................................ 15
5.1 SAFETY DECALS...................................................................................................................................... 15
5.2 INSTRUCTION DECALS........................................................................................................................... 17
5.3 RECOMMENDED METHODS OF OPERATION ....................................................................................... 18
6 CONTROLS ...................................................................................................................................................... 20
6.1 REMOTE RADIO CONTROLLER.............................................................................................................. 20
6.2 MOWER CONTROLS................................................................................................................................. 20
7 DISPLAYS......................................................................................................................................................... 21
7.1 RADIO CONTROL DISPLAYS .................................................................................................................. 21
7.2 MOWER DISPLAY ..................................................................................................................................... 21
8 SAFETY SYSTEMS.......................................................................................................................................... 22
8.1 MOWER SAFETY SYSTEMS .................................................................................................................... 22
9. PREPARING THE MACHINE.......................................................................................................................... 23
9.1 MACHINE DELIVERY TO A DEALER OR RETAILER............................................................................. 23
9.2 HYDRAULIC PUMP BY-PASS .................................................................................................................. 24
9.3 CHECKING ENGINE OIL LEVEL .............................................................................................................. 24
9.4 CHECKING HYDRAULIC DRIVE OIL LEVEL........................................................................................... 25
9.5 PREPARING THE BATTERY .................................................................................................................... 25
9.6 FUEL TANK................................................................................................................................................ 26
9.7 PREPARING THE REMOTE RADIO CONTROLLER............................................................................... 26
9.8 CHARGING THE REMOTE RADIO CONTROLLER BATTERY............................................................... 26
10 OPERATION ................................................................................................................................................... 27
10.1 TRANSPORTING THE MOWER.............................................................................................................. 27
10.2 STARTING THE ENGINE OF THE MOWER........................................................................................... 27
10.3 SHUTTING OFF THE ENGINE ................................................................................................................ 28
10.4 EMERGENCY SHUTTING OFF OF THE ENGINE.................................................................................. 28
10.5 ENGAGING THE MOWING BLADES...................................................................................................... 29
10.6 DISENGAGING THE BLADES ................................................................................................................ 29
10.7 HEIGHT OF CUT ADJUSTMENT ............................................................................................................ 29
10.8 ENGAGING THE WINCH......................................................................................................................... 29
10.9 MULCHING COVER (OPTIONAL ATTACHMENT) ................................................................................ 30
10.10 DRIVING THE MACHINE....................................................................................................................... 31
10.11 DRIVING SPEED OF THE MOWER...................................................................................................... 31
10.12 DRIVING ON SLOPES........................................................................................................................... 32
10.13 STOPPING THE MACHINE ON A SLOPE............................................................................................ 32
10.14 PIVOT SUPPORT FOR ILD01 ............................................................................................................... 33
11 MAINTENANCE AND LUBRICATION ........................................................................................................... 34
11.1 MAINTENANCE CHART –MOWER ....................................................................................................... 34
11.2 MAINTENANCE CHART - ENGINE......................................................................................................... 35
11.3 ENGINE MAINTENANCE ........................................................................................................................ 35
11.4 CLEANING THE FUEL TANK ................................................................................................................. 36
11.5 MAINTAINING THE HYDRAULIC DRIVE ............................................................................................... 36
11.6 CHECKING AND REFILLING OIL........................................................................................................... 36
11.7 ADJUSTMENT OF THE NEUTRAL POSTION OF THE HYDRAULIC DRIVE....................................... 36
11.8 DRIVE V-BELTS....................................................................................................................................... 38
11.9 GEOMETRY ADJUSTMENT.................................................................................................................... 38
11.10 FINAL GEAR DRIVE TO WHEELS ....................................................................................................... 39
11.11 MAINTAINING ELECTRIC CIRCUITS AND DEVICES, TRANSMITTER............................................. 39
11.12 ADJUSTING BLADE DECELERATION ................................................................................................ 39
11.13 STEERING CHAIN................................................................................................................................. 39

Operation manual - Spider ILD01G
3 / 54 rev. 03-01-04-2019
11.15 MOWING BLADE................................................................................................................................... 41
11.16 CHANGING THE WHEEL...................................................................................................................... 42
11.17 TYRE PRESSURE.................................................................................................................................. 42
11.18 MOWING HEIGHT ADJUSTMENT MECHANISM................................................................................. 42
11.19 LUBRICATION ....................................................................................................................................... 43
11.20 CLEANING THE MACHINE................................................................................................................... 44
11.21 TORQUE CHART................................................................................................................................... 44
11.22 OIL VISCOSITY...................................................................................................................................... 44
11.23 TECHNICAL PLATE .............................................................................................................................. 45
11.24 TOOLS.................................................................................................................................................... 45
11.25 BATTERY MAINTENANCE ................................................................................................................... 46
12 TROUBLESHOOTING.................................................................................................................................... 47
13 MAINTENANCE AFTER SEASON................................................................................................................. 50
14 WARRANTY CONDITIONS............................................................................................................................ 52
15 SERVICE RECORDS...................................................................................................................................... 54

Operation manual - Spider ILD01G
4 / 54 rev. 03-01-04-2019
2 INTRODUCTION
2.1 IMPORTANT
This is a precision machine and the service obtained from it depends on the way it is
operated and maintained.
This OPERATION MANUAL should be regarded as part of the machine and should
always be present at the machine and available to the operator. Suppliers of both new and
second-hand machines are advised to retain documentary evidence that this manual was
provided with the machine.
This machine is designed solely for use in customary grass cutting operations. Use in any other way is
considered as contrary to the intended use. Compliance with and strict adherence to the conditions of
operation, service and repair as specified by the manufacturer, also constitute essential element of the
intended use.
Before attempting to operate this machine, ALL operators MUST go through a practical training in machine
usage, read through this manual and make themselves thoroughly conversant with Safety Instructions,
controls, lubrication and maintenance. The machine may be operated with additional accessories specifically
designed for this purpose. Operating and Safety Instructions of such accessories must be strictly adhered to.
Accident prevention regulations, all other generally recognized regulations on safety and occupational
medicine, and all road traffic regulations shall be observed at all times.
Any arbitrary modifications carried out on this machine as well as non-adherence to this
OPERATION MANUAL may relieve the manufacturer of liability for any resulting damage or
injury.
In several places this Manual contains instructions for safe work. If the text includes such an instruction, then
the instruction is marked by the following WARNING symbol:
Warning against a highly probable danger of severe injury or life threat if appropriate
instructions are not followed.
other symbols:
Provides useful information.

Operation manual - Spider ILD01G
5 / 54 rev. 03-01-04-2019
2.2 MACHINE USAGE
The machine is designed for the mowing of grass on level as well as extremely steep terrain. Any
other use is prohibited. The maximum slope on which the machine may be used depends on the type
of area to be mowed, on the current condition of the area and on the method of mowing:
DRY CONDITIONS:
Cutting across a slope: Maximum slope is 30°
Cutting up and down a slope: Maximum slope is 35°
Cutting across a slope with mower positioned diagonally: Maximum slope is 40°
Cutting up and down a slope with use of the integrated
stabilizing winch Maximum slope is 55°
WET CONDITIONS:
All areas and applications without use of the integrated
stabilizing winch: Maximum slope is 20°
Cutting up and down a slope with use of the integrated
stabilizing winch: Maximum slope is 55°
The Spider is a mulching mower designed for mowing of well-maintained, but also unkempt
or only occasionally mowed areas. The mower is operated by one person using radio
control.
The mower may only be operated by authorized persons over 18 years of age both mentally
and physically fit, who are familiar with this Safety, Operator’s and Maintenance Manual and
all applicable regulations and laws pertaining to work health and safety that need to be
observed while operating the mulching mower Spider.
For use of the integrated stabilizing winch it is obligatory to have read the HSN 02 Winch
Operation manual and be properly trained by the seller on how to use the integrated
stabilizing winch.
When driving on a slope the operator of the machine must carefully watch and evaluate the
movements of the mower and the characteristics of the terrain, especially the momentary
adhesion of the wheels to the ground.
Pay attention to climatic conditions. Do not rely on the anchoring of the mower on the rope.
Climbing ability of the mower will rapidly change on dry, wet or moist grass.
The soil characteristics and firmness will also play a significant role. Sideslip will be much
bigger on newly built slopes then on hard ground. When working on a slope with the
integrated stabilizing winch use only one driving method: driving vertically / up and down a
slope.

Operation manual - Spider ILD01G
6 / 54 rev. 03-01-04-2019
2.3 RESTRICTIONS
•The mower may not be used for other purpose than for which it was designed and which is
described in chapter 2.2.
•The mower may not be used on surfaces littered by glass, loose stones, pieces of iron and other
foreign objects that can either be thrown by the blades during mowing or damage the mower.
•The mower may not be used on slopes exceeding 20 degrees without use of the integrated
stabilizing winch when wet or foggy as the climbing ability and mower stability are adversely
influenced by poor ground adhesion, regardless of the type of area to be mowed.
•The mower may not be used where other people, children or animals can be found within 3 m
(10 ft.) from the mower/mowed area.
•Never use the mower unless you are properly acquainted with the terrain and mainly with the
occurrence of undesired terrain irregularities, stumps, swamps, pits, unstable and poor load
bearing soil etc.
•The mower may not be used on slopes with incline exceeding the values stated in chapter 2.2.
•The mower may not be used as a towing/transporting device or as means of transporting
people.
•It is prohibited to drive the mower on public thoroughfares.
•It is prohibited to increase the engine revolutions or the engine performance above the limits
specified by the manufacturer. It is also prohibited to make any other modifications to the
machine construction or to the engine setup. The manufacturer does not bear any liability for
damage or injury resulting from such modifications.
•It is prohibited to use the mower under the influence of alcohol or drugs
•It is prohibited to drive the mower into heaps of sand, gravel or similar material, on stumps,
rocks, construction elements or any other obstacles, which may compromise the stability of the
machine
•It is prohibited to use the machine under low visibility (dusk, fog, heavy rain etc.)
2.4 PRODUCT IDENTIFICATION
The machine can be identified by the serial number, which
can be found on the factory label on the front of the
machine beside the exhaust pipe.
On the internal engine you can also find a factory label
placed there by the engine manufacturer.
Mower factory label location

Operation manual - Spider ILD01G
7 / 54 rev. 03-01-04-2019
2.5 GUIDELINES FOR THE DISPOSAL
OF SCRAP PRODUCTS
When it has been identified that a turf care
product has no further functional value and
requires disposal, the following actions should be
taken.
These guidelines should be used in conjunction
with Health, Safety and Environmental legislation
and use of approved local facilities for waste
disposal and recycling.
•Position the machine in a suitable
location for any necessary lifting
equipment to be used.
•Use appropriate tools and Personal
Protective Equipment (PPE) and take
guidance from the technical manuals
applicable to the machine.
•Remove and store appropriately:
1. Batteries
2. Fuel Residue
3. Oils
Disassemble the structure of the machine
referring to the technical manuals where
appropriate. Special attention should be made for
dealing with “stored energy” within pressurized
elements of the machine or tensioned springs.
Any items that still have a useful service life as
second hand components or can be re-serviced
should be separated and returned to the relevant
centre.
Other worn out items should be separated into
material groups for recycling and disposal
consistent with available facilities. More
common separation types are as follows:
•Steel
Nonferrous metals
•Aluminium
Brass
•Copper
•Plastics
• Identifiable
• Recyclable
• Non-recyclable
• Non identified
• Rubber
• Electrical and electronic components
•Items that cannot be separated
economically into different material groups
should be added to the “General waste”
area.
• Do not incinerate waste.
Finally update machinery records to indicate that the
machine has been taken out of service and
scrapped.

Operation manual - Spider ILD01G
8 / 54 rev. 03-01-04-2019
3 SAFETY INSTRUCTIONS
This safety symbol indicates important
safety messages in this manual. When
you see this symbol, be alert to the
possibility of injury, carefully read the
message that follows, and inform other operators.
Safety Checks
•Do not enter or reach under the machine if it
is lifted and not sufficiently supported. The
machine should be supported on places
marked by the symbol of a lifting jack.
•The mower should only be transported in a
container or on a trailer.
•Check bolt torques at regular intervals. The
first check should be done after 8 operating
hours. Pay attention to the attachment of the
cutting blade and the proper bolt torque.
Use a torque wrench and the specified
torque. See 11.21.
•The attaching flange of the blades or the
bolts must not show signs of damage or
wear. The bolts must be complete. The
blade must be undamaged, evenly worn and
adequately sharp.
•If you are driving the machine outside the
working area, always turn off the mowing
blade and set the maximum mowing height,
otherwise the blade may get damaged.
•Keep the product clean after use. Do not
use gasoline or similar oil products for
cleaning.
•Do not reach into the space under the
mower with your hands or feet. Do not reach
under the engine cover or into the gear
mechanism.
•If you are forced to reach under the
machine, wait until all rotating parts stop.
Attention, it takes some time before the
blade runs down! The run-down time
depends on the state and wear of the
brake/clutch. Have the brake checked at
regular intervals at an authorised servicing
facility.
•While operating, wear closed shoes and
work clothing. Do not wear loose clothes
that could get caught by the machine, short
trousers or light shoes.
•It is strictly prohibited for the operator to
wear loose clothing.
•A local risk assessment should determine
the need for a face shield.
•Do not operate the machine after drinking
alcohol or using medication influencing
perception.
•Before starting the engine, make sure that
the mower blade is disengaged. If the blade
switch is in the ON position, the machine
cannot be started. When engaging the
mower blade, step aside far enough to be
protected against object accidentally thrown
from the mower and to be able to stop the
mower in case of an emergency. Do not
enter the path of the mower.
•While operating the mower make sure that
the mower is clearly visible at all times and
within the range of the remote-control unit
and that you can clearly recognize
dangerous situations and react to them
properly. Do not abuse the maximum reach
of the remote control.
•When using the mower, follow all general
work safety regulations.
•Work with the mower may only be started if
the mower is not damaged by previous
operation.
•Do not change the engine tuning, especially
the engine speed regulator. Do not modify
the exhaust pipe.
•Do not use the mower if there is less than
30% of fuel in the fuel tank.
•Do not move the mower by means of towing
it behind other machines.
Operating Environment
•The machine should only be used by
persons over 18 years of age, who have
been acquainted with the machine and the
user’s manual. The remote control (further
referred to as “RC”) is considered a part of
the machine
•The user’s manual must be stored in a
place permanently accessible to the
operator and must be available to him at all
times.
•Do not allow children or unauthorised
persons use the product.
•Before starting to operate the machine, you
have to be familiar with all the symbols next
to the controls and indicators used on the
mower and the RC.
•Pay special attention to the stopping and
shutting-off of the engine and to the
emergency shutting-off of the mower.
•Before using the mower on a slope, make
sure you test and practice your mower-
control skills on flat and level ground, which
is sufficiently free and spacious. Master
how to control the movement on a surface,
to mow around bushes, trees and other
terrain elements and obstacles.
•When operating the mower on a slope,
make sure that the engine revolutions are
set to maximum speed. If you stop the
mower on a slope, position the wheels
across the slope.
•While operating or transporting the mower,
the operators must always have the mower
in their view. The maximum distance
between the operator and the mower is 50
m (164 ft).

Operation manual - Spider ILD01G
9 / 54 rev. 03-01-04-2019
•While using the mower follow all safety
regulations given in this manual and respect
local regulations and provisions concerning
noise-emissions, especially when using in
hospitals, spas and other sensitive areas.
•The operator must pay attention to the area
into which the mulched grass may be
thrown. Neither the operator, nor any other
persons, children or animals should be
allowed to enter this area. If mowing uneven
terrain, the ejection and throwing of
undesirable objects becomes more probable
due to the displacement of the mowing
device (tilt of one side of the machine) while
crossing the edges of different terrain.
•The operator of the machine may be held
responsible for any damage caused to third
parties by operating the machine.
•The mower may be used on dry surfaces on
slopes listed in chapter 2.2. on wet or moist
surfaces, the mowed slope should not
exceed 20 degrees when using the machine
without use of the integrated stabilizing
winch.
•Before operating the machine, make sure
you remove all loose stones, sticks, glass,
wire, bones, branches and all other objects
that can be picked up by the blades and
thrown or that could damage the mower
from the mowing area.
•While operating the mower avoid obstacles,
do not drive over higher obstacles (such as
stones, stumps, bricks), near precipices, on
unstable soil or in places where the mower
could fall down or flip over.
•When operating pay attention to electric
power lines especially when driving beneath
electric wires where the radio signal may be
lost. In such case the mower immediately
shuts off the internal combustion engine and
stops all movement.
•When using the machine near busy
thoroughfares make sure that the mower
does not endanger (by throwing undesirable
objects) passers-by or their property.
•Choose a suitable working procedure (see
chapter: 10 Operation).
•The operator/user is responsible for the
safety of persons that enter the working area
of the machine. Stop your work if these
persons enter the working area.
•The transportation of persons, animals or
loads on the mower is prohibited.
•Do not place any objects or tools on the
product.
•While operating, especially in windy
conditions, choose the operator’s position
carefully so as to keep the operator away
from the stream of exhaust gas, dust or
mulched grass.
•Stop work and clean the machine and its
cooling surfaces several times while
working in dusty conditions to avoid over-
heating during operation. If necessary,
clean the machine and its cooling surfaces
several times while working. The dust layer
must not exceed 1mm (3/64 inch).
•Refuel only when the machine is off –
before operating, if possible –and the fuel
tank is cold. Always keep at least 30% of
the fuel in the tank. If you need to refuel
during your work, do not fill the fuel into a
hot tank or while the engine is still hot. Let
the machine cool down.
•Before refuelling push the STOP button on
the control panel of the mower.
•Never refuel while the engine is running.
•Do not start the engine if you find spilled
fuel, open vessels with fuel or other
combustible objects or gases in the
immediate proximity of the mower.
•Do not refuel near open fire.
•Do not place this product near open fire or
other sources of heat.
•While operating or immediately after
shutting the machine off do not touch those
parts of the machine that heat up during
operation. This concerns mainly the engine
exhaust pipe, metal parts of the hydraulic
drive and metal parts of the internal
combustion engine.
•While operating do not touch the high
voltage conductor leading to the sparking
plug.
•After starting the engine, test the correct
functioning of the emergency engine stop
on the radio transmitter. This function
should be checked at least once during
every shift and every time you enter a new
area for mowing or mulching.
•Before starting your work test the correct
functioning of the safety components
(EMERGENCY STOP...) on the mower and
the RC.
•Never leave the engine running without
supervision.
•If the engine is running, do not put aside the
transmitter and do not touch or move any
parts of the machine.
•Always stop the engine when leaving the
machine, secure it against starting by
pushing the red EMERGENCY STOP
button on the control panel of mower and by
removing the key. Never leave the
transmitter next to the mower, but put it in a
different, properly secured place
inaccessible to third persons.
•Do not engage the mowing blade until
immediately before mowing.

Operation manual - Spider ILD01G
10 / 54 rev. 03-01-04-2019
•Turn off the mowing mechanism, shut off the
engine and remove the key from the ignition
every time:
oYou clean the machine
oYou remove dirt from the mowing
mechanism (grass or debris).
oYou run over an unknown object and need
to check for possible damage or to repair it
oThe machine unusually intensively
vibrates, and you need to find the cause
oYou repair the engine or other parts of the
mower (also unplug cables from sparking
plugs)
•While operating, avoid molehills, concrete
bases, guard-stones, stumps, loose stones
and curbs. These must not come into direct
contact with the blade as they could cause
serious damage. These may also
compromise the mower stability.
•Do not drive the mower into heaps of sand,
gravel or similar materials
•The mower may only be operated during
daylight or under very good artificial light
conditions.
•Do not use the mower in limited visibility
(dusk, fog, heavy rain etc.)
•Do not let the engine run in enclosed
spaces. The exhaust gases contain CO,
they damage health and can ultimately
cause death.
•The engine should only be started and
operated in open spaces. If the engine is
started and operated in enclosed spaces,
the exhaust gases must be conducted away
by the means of prolonging the exhaust pipe
outside the enclosed space. Proper
ventilation and fresh air supply must be
secured in order to prevent the accumulation
of CO.
•Before storing the machine in a closed
space, let the engine and the hydraulic drive
of the machine cool properly.
•Regularly remove all combustible objects
(dry grass, leaves...) from the areas around
the exhaust pipe, engine, and battery.
•Always control the machine from a working
station, which gives you a perfect view of
the whole working area and of the machine.
•While working, change your working
position to have a perfect view of the mower
at all times.
•When operating the mower on slopes never
enter the space directly below or above the
mower.
•The working position should be far enough
(maximum 50 meters) to prevent the
operator from getting hit by objects that may
be accidentally thrown by the mower.
•Do not operate the mower if you cannot see
it (behind terrain obstacles, corners of
buildings, hidden in grass etc.)
Safety Decals
•Before starting the mower, check the state
of the safety labels. If any labels are
damaged or missing, contact your dealer
and replace such labels on the machine.
Get thoroughly acquainted with these
labels. The placement of the labels on the
machine is obligatory.
•Do not remove or damage any of the safety
labels.
•Do not remove any covers or safety
elements. They are for your protection.
•Do not use the machine if any of the
protecting devices or covers are damaged
or missing.
•Keep the machine and its accessories clean
and in a good technical condition at all
times.
•It is strictly prohibited to make any changes
or modifications to the machine that were
not previously approved by the
manufacturer. Any modification to the
machine may lead to a hazardous situation
or injury. If these instructions are not
followed, the manufacturer does not bear
any liability for the machine and the terms
of warranty may be invalidated.
•The machine must always be equipped with
all covers and protective elements.

Operation manual - Spider ILD01G
11 / 54 rev. 03-01-04-2019
4 SPECIFICATIONS
4.1 SPECIFICATIONS
TECHNICAL DESCRIPTION
The mower is a self-propelled machine with four-wheel drive, controlled by the transmitter (remote radio
controller) signal. Its unique wheel-steering technology ensures a high manoeuvrability both on level ground and
on slopes.
The basic part of the machine is formed by a square solid frame, which is connected with a sliding frame. The
middle part of the sliding frame carries all transmission parts such as the engine, the hydraulic pump, the oil
cooler and the control unit. A cutter blade is attached to the bottom part of the frame. An electromagnetic clutch
is placed between the blade carrier and the engine.
Transmission is by chains and gears on all four wheels. The wheels are driven centrally by the hydraulic drive
through V-belts. The wheels are steered by an electric motor.
The control unit is situated in a box above the cover of the gel battery. The mower is controlled by a multi-
channel transmitter.
Parameter
Unit
Value
Length×Width
mm (inch)
1340×1200 (52,7×47,2)
Height
mm (inch)
913 (35,9)
Mowing width
mm (inch)
800 (31,5)
Mowing blade height
mm (inch)
60 - 110 (2,36 –4,33); 30 - 80 (1,18 - 3,14)
continuous regulation
Weight
kg (pound)
288 (635)
Driving speed
km/h (mph)
0 –3, 0 –7 (0-2, 0-4,5)
Mowing mechanism
-
Single-blade with a fixed blade attached by the
flange in the middle
Mowing clutch
-
Electromagnetic with a friction brake
Hydraulic pump
Hydro Gear BDP 21L
Hydraulic motor
-
Sauer Danfoss OMP 40
Propelled wheels
-
4 x 4
Travel wheel
inch
16x6,5 - 8 with and arrow (V) tread pattern
Battery
12 V, 18 Ah, gel
Fuel
-
unleaded gasoline
Fuel tank capacity
l (gallon)
11 (2,9)
Engine
Air-cooled four-stroke two cylinder
Kawasaki FS541V
Cylinder volume
cm3
603
Performance
kW/min-1
13,4/3600
Torque
N.m/min-1
46/2200
Ignition
Electronic
Starter
Electric
Frequency range of the Remote
controller NBB for EU and USA
MHz
434.050 - 434.750
4.2 NOISE EMISSIONS
The mower emits the following noise: Sound pressure level LWA = 96,0 dB
Guaranteed Sound pressure level LWA = 97,0 dB
The measuring was carried out in conformity with EN ISO 3744
Noise at the operator’s station (ear): L = 77,9 dB (A) Leq –Measured in the distance of 3 m from the
machine according to EN 11201

Operation manual - Spider ILD01G
12 / 54 rev. 03-01-04-2019
4.3 CONFORMITY CERTIFICATES
EC DECLARATION OF CONFORMITY
We manufacturer
DVOŘÁK - svahové sekačky s.r.o.
Pohled 277, 582 21 Pohled, Czech Republic
VAT ID: CZ26013797
declare that the product
name:
Slope applicable rotary mower
model:
SPIDER ILD 01 G
designed for:
mowing of grass areas
serial number:
fulfils all the relevant provisions of Directives
Directive 2006/42/EC –machinery
Directive 2014/30/EC - EMC
Directive 2000/14/EC - noise
Directive 2002/88/EC, 97/68/EC
List of technical
standards, specification
and harmonised norms
used for review of its
conformity:
EN ISO 5395-1, EN ISO 5395-3, EN ISO 12100, EN ISO 13850, EN ISO
13732-1, EN ISO 4254-1, EN ISO 4254-12, EN ISO 4413, EN ISO
14120, EN ISO 13849-1, EN 1005-3+A1, EN ISO 3744, EN ISO 11 201,
ISO 3767-1, EN ISO 3767-3, EN ISO 19353, EN 55012 ed.2, EN 1175-
2+A1, EN 60215, EN 300-220-03, EN 300-220-2, ISO 11 684
Description, basic
technical specification
Parameter
Unit
Value
mowing width
cm
80
Weight (without winch)
kg
288
driving speed
km/h
0 - 7
engine
-
KAWASAKI FS541V
performance
kW
13,4
engine speed
rpm
2700
Conformity assessment in accordance with directives 2000/14/EC, art 14, point 1
The person participating in this conformity assessment in accordance with directives 2000/14/EC:
NB 1017, TÜV SÜD Czech s.r.o., Novodvorská 994, CZ –142 21 Praha 4
Measured sound pressure emission level
LWA = 96,0 dB
Guaranteed sound pressure emission level
LWA = 97,0 dB
The person authorised to compile
the technical file
Jakub Trachtulec
DVOŘÁK - svahové sekačky s.r.o.
Pohled 277, 582 21 Pohled
In Pohled on 01.12.2018
………………………………………
Lubomír Dvořák, CEO

Operation manual - Spider ILD01G
13 / 54 rev. 03-01-04-2019

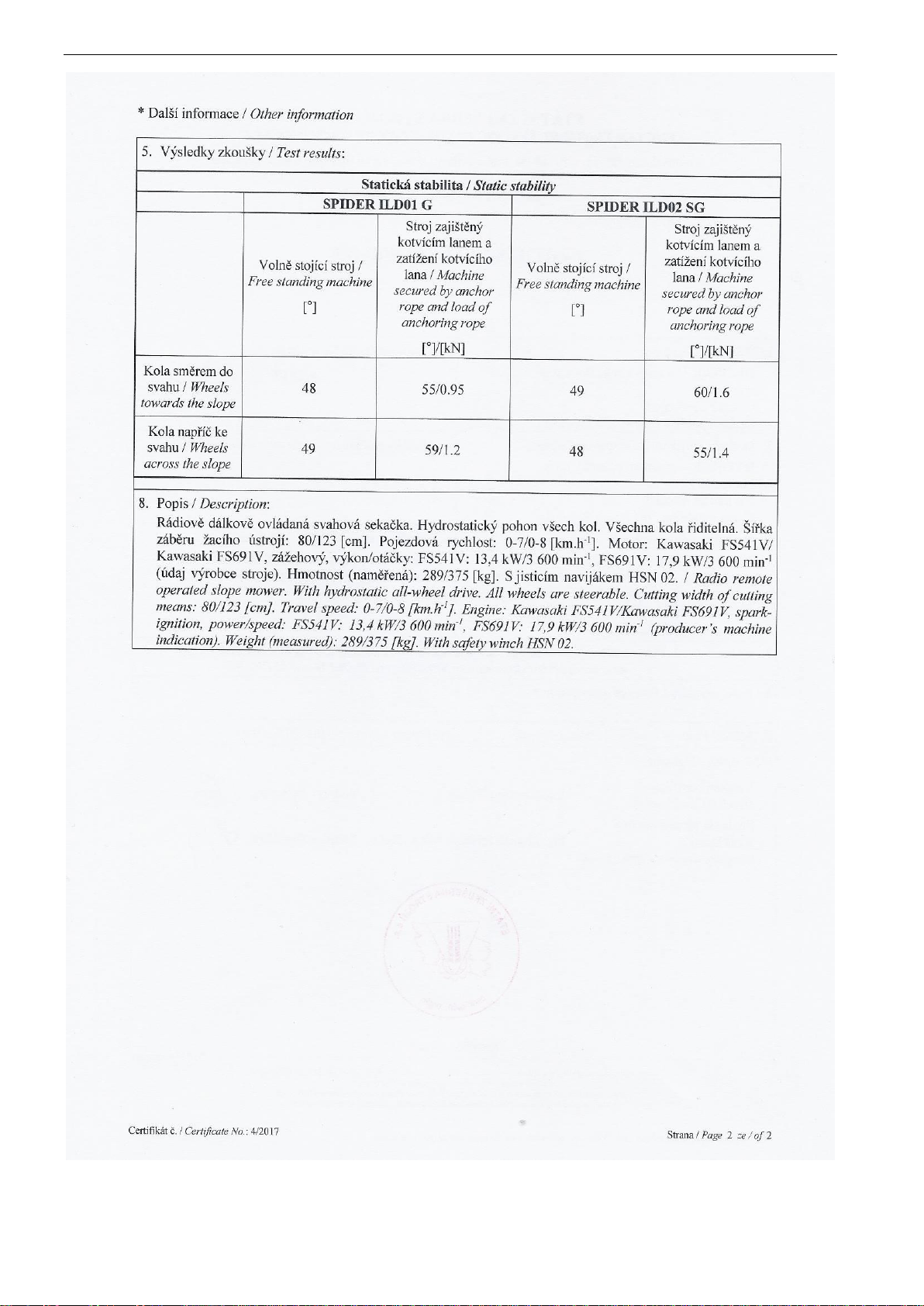

4.4 CERTIFICATE OF STABILITY

Operation manual - Spider ILD01G
14 / 54 rev. 03-01-04-2019

Operation manual - Spider ILD01G
15 / 54 rev. 03-01-04-2019
5 DECALS
5.1 SAFETY DECALS
Attention! This machine may be dangerous. Incorrect and negligent use may result in damage, serious
injuries or death. This chapter is devoted to the safety symbols (pictograms) used on the product, their
placement and meaning. Safety labels inform the operator about risks while using the product.
Understanding their meaning will make the use of this product safe.
1
2
3
4
5
6
7
Read the
user’s manual
before use
While
maintaining,
repairing or
adjusting the
mower, follow
the user’s
manual and
remove the
key from the
ignition
Use
protective
work aids;
face shield
Attention, use
protective
gloves when
changing the
mowing
blades
Attention, the
device uses
hydraulic
energy drive,
danger of
injury caused
by the
squirting
hydraulic oil
Attention,
electric
accumulator
Before
starting close
all protective
covers
8
9
10
11
12
13
14
Transportatio
n of persons
on the
machine is
prohibited
Attention,
danger of
hand or feet
injury caused
by rotating
blades
Attention,
rotating parts
are
decelerating
after they
were turned
off
Attention,
combustible
substance,
danger of fire
Danger of
getting
burned by hot
parts
Attention,
danger of
getting hit by
flying object.
Keep safe
distance.
On slope
never enter
the area
below or
directly above
the machine.
Slinging point

Operation manual - Spider ILD01G
16 / 54 rev. 03-01-04-2019
15
16
17
18
19
Lifting jack
support point
Keep safe
distance from
the machine
when it is
moving
Attention,
rotating parts
Attention
moving parts
Maximum permissible slope with regards
to machine application and climatic
conditions.

Operation manual - Spider ILD01G
17 / 54 rev. 03-01-04-2019
5.2 INSTRUCTION DECALS
Direction of wheels must
be correct (along hydraulic
tank)
Switch off the mowing
device. Cutting height must
be set to maximum
Push down the lever of the
support leg to lift two wheels
in the air
Set the driving speed
controller to turtle mode,
the Rotation starts by
using joystick for driving
forward/backward

Operation manual - Spider ILD01G
18 / 54 rev. 03-01-04-2019
5.3 RECOMMENDED METHODS OF OPERATION
This chart shows basic information about recommended methods of cutting grass in various types of terrain. It
also describes the correct procedure of anchoring the hydrostatic stabilizing winch. However current terrain and
climatic conditions may require different methods of operation than those shown in this chart. The operator is
always responsible for choosing the most suitable method of operation especially with regards to safety. In any
case it is always absolutely necessary to comply with all safety instructions listed in this manual.
Chart of recommended methods of operation is placed together with the basic set of tools on the machine. See
chapter 11.24 Tools.
Always keep the tyres inflated to the
recommended pressure. Other values
may unfavourably influence the driving
characteristics. Maximum pressure –
300kPa/3,0bar/43PSI
Check the blades. Blades must
be properly tightened. Blades
must not be bent and the edges
must not be damaged.
Check the fuel level
Check the overall condition of the
winch. The rope and the snap hook
must not be damaged.
On slopes never enter the area
below or directly above the
machine.
Recommended method of cutting on
slopes up to 35 degrees provided
the operator is well acquainted with
the terrain and there is no risk of
tipping the machine over.
Recommended method of cutting on
slopes up to 30 degrees provided
the operator is well acquainted with
the terrain and there is no risk of
tipping the machine over.
On slopes exceeding 35 degrees
always use the stabilizing winch. On
slopes never enter the area below
or directly above the machine.
Recommended method of cutting
around trees on slopes up to 35
degrees.
Recommended method of cutting
around trees on slopes exceeding
35 degrees. On slopes exceeding
35 degrees always use the
stabilizing winch.
Recommended method of cutting
bushes on slopes up to 35 degrees.
Recommended method of cutting
bushes on slopes exceeding 35
degrees. On slopes exceeding 35
degrees always use the stabilizing
winch.
Recommended method of cutting along roads. Never enter the area below or
directly above the machine. Danger of getting injured by objects thrown by the
blades. Carefully check the terrain in front of the mower.
Position of important components on the machine (air filter, spark plugs,
hydraulic by-pass allowing the disengagement of hydraulics and consequent
towing of the machine, fuse box, battery, tools

Operation manual - Spider ILD01G
19 / 54 rev. 03-01-04-2019
Instructions for turning on and off the hydrostatic winch
Rotate the machine so that the
winch is facing up the hill toward
the expected anchoring point.
Turn the wheels so that they are
orientated across the slope (along
the slope contours)
Turn off the blades
Reduce the engine RPM to
minimum (idling speed)
On the remote controller of the
machine turn on the hydrostatic
winch by the ON-OFF switch.
By pushing the driving joystick
slightly backward the rope will
begin to unwind. Fasten the rope
properly to the anchoring point.
Increase the engine RPM to
maximum
Tighten the winch rope by
pushing the driving joystick
slightly in the forward direction.
Turn on the blades
Leave the anchoring position of
the mower by pushing the driving
joystick forward and by driving up
the slope.
Method of cutting up and down a
slope: driving up the slope –push
the joystick forward, driving down
the slope –push the joystick
backward
Method of cutting across the
slope: Drive according to the
picture. The joystick should
always be pushed in the forward
direction.
Place the mower at the bottom of
the slope
Turn the wheels across the slope,
perpendicular to the anchoring
point
Turn off the blades
Reduce the engine RPM to
minimum (idling speed)
Loosen the winch rope by
pushing the drive joystick slightly
backward.
Untie the rope from the anchoring
point. Wind the rope back onto the
winch drum by pushing the drive
joystick slightly forward.
On the remote controller of the
machine turn off the hydrostatic
winch by the ON-OFF switch.
Check the overall condition of the
winch. The rope and the snap
hook must not be damaged.

Operation manual - Spider ILD01G
20 / 54 rev. 03-01-04-2019
6 CONTROLS
6.1 REMOTE RADIO CONTROLLER
1 Main Switch / EMERGENCY STOP button
2 Driving speed controller H/L
3 Engine stop switch
4 Engine starter switch
5 Mowing blades ON switch
6 Mowing blades OFF switch
7 Height of cut adjustment
8 Joystick for driving forward / backward
9 Joystick for steering left / right
10 Skid steering switch –for ILD01 inactive
11 Remote controller power display
12 Operator’s preparedness confirmation / Horn
13 Frequency check / change button
14 Engine speed controller
15 Winch switch On/Off
6.2 MOWER CONTROLS
On the body of the mower there are two
controls for operating the mower.
1 Lockable EMERGENCY STOP button
/ Ignition switch
2 Choke for cold start
1
2
Battery
