SPIDER MINI User manual

R O T A R Y S L O P E M O W E R
Operation manual
Spider MINI
revize
02-01-10-2011
Product serial number :
……………………….
Dvořák – svahové sekačky, s.r.o.
Dvorce 62
58001 Havlíčkův Brod
Czech Republic
Tel: [phone]
Fax: [phone]
Mail: [e-mail]
Web: www.spider-cz.com
Engine type :
………………………
Engine serial number :
………………………

Operation manual –Spider MINI
2 / 53 rev. 02-01-10-2011
1. INTRODUCTION............................................................................................................................................ 4
1.1. IMPORTANT .............................................................................................................................................. 4
1.2. MACHINE USAGE ..................................................................................................................................... 5
1.3. PROHIBITED USE ..................................................................................................................................... 6
1.4. PRODUCT IDENTIFICATION.................................................................................................................... 7
1.5. GUIDELINES FOR THE DISPOSAL OF SCRAP PRODUCTS................................................................. 8
2. SAFETY INSTRUCTIONS.............................................................................................................................. 9
3. SPECIFICATION.......................................................................................................................................... 13
3.1. SPECIFICATION...................................................................................................................................... 13
3.2. NOISE EMISSIONS ................................................................................................................................. 13
3.3. CONFORMITY CERTIFICATES .............................................................................................................. 14
4. SAFETY DECALS........................................................................................................................................ 15
5. INSTRUCTION DECALS.............................................................................................................................. 18
6. CONTROLS AND DISPLAYS ...................................................................................................................... 19
6.1. ON THE MOWER..................................................................................................................................... 19
6.2. ON THE REMOTE CONTROL................................................................................................................. 19
6.3. FUNCTIONS OF MOWER INDICATORS................................................................................................ 19
7. SAFETY SYSTEMS ..................................................................................................................................... 20
7.1. MOWER SAFETY ELEMENTS................................................................................................................ 20
8. PREPARING THE MACHINE....................................................................................................................... 21
8.1. MACHINE DELIVERY TO A DEALER OR CUSTOMER......................................................................... 21
8.2. HYDRAULIC PUMP BY-PASS................................................................................................................. 22
8.3. CHECKING ENGINE OIL LEVEL............................................................................................................. 23
8.4. HYDRAULIC SYSTEM OIL...................................................................................................................... 24
8.5. PREPARING THE BATTERY................................................................................................................... 24
8.6. FUEL TANK.............................................................................................................................................. 25
8.7. PREPARING THE RADIO REMOTE CONTROLLER ............................................................................. 26
9. OPERATION ................................................................................................................................................ 26
9.1. TRANSPORTING THE MOWER.............................................................................................................. 26
9.2. STARTING THE ENGINE OF THE MOWER........................................................................................... 27
9.3. SHUTTING OFF THE ENGINE................................................................................................................ 28
9.4. ENGAGING THE MOWING BLADES...................................................................................................... 29
9.5. DISENGAGING THE MOWING BLADES................................................................................................ 29
9.6. HEIGHT OF CUT ADJUSTMENT ............................................................................................................ 30
9.7. ENGINE BRAKE....................................................................................................................................... 31
9.8. MOWER DRIVE AND STEER.................................................................................................................. 32
9.9. DRIVING ON SLOPES............................................................................................................................. 33
9.10. FOLD-OUT BUMPERS ........................................................................................................................ 34
9.11. STOPPING THE MOWER ON A SLOPE............................................................................................. 34
10. MAINTENANCE AND LUBRICATION ..................................................................................................... 35
10.1. MOWER MAINTENANCE CHART....................................................................................................... 35
10.2. ENGINE MAINTENANCE..................................................................................................................... 36
10.3. CLEANING THE FUEL TANK.............................................................................................................. 36
10.4. HYDRAULIC DRIVE MAINTENANCE ................................................................................................. 36
10.5. VERTICAL SERVICE POSITION......................................................................................................... 37
10.6. ADJUSTING THE NEUTRAL POSITION OF THE DRIVE SERVO..................................................... 38
10.7. DRIVE V-BELT..................................................................................................................................... 38
10.8. GEOMETRY ADJUSTMENT................................................................................................................ 39
10.9. WHEEL DRIVE GEAR.......................................................................................................................... 40
10.10. MAINTAINING ELECTRIC CIRCUITS, DEVICES AND TRANSMITTER............................................ 40
10.11. CLUTCH OF THE MOWING BLADE ................................................................................................... 41
10.12. DRIVE AND STEERING CHAINS........................................................................................................ 41
10.13. FUSES, RELAYS ................................................................................................................................. 42
10.14. MOWING BLADE................................................................................................................................. 43
10.15. CHANGING THE WHEEL.................................................................................................................... 44
10.16. TYRE PRESSURE............................................................................................................................... 44

Operation manual –Spider MINI
3 / 53 rev. 02-01-10-2011
10.17. HEIGHT OF CUT ADJUSTMENT MECHANISM................................................................................. 44
10.18. LUBRICATION ..................................................................................................................................... 45
10.19. CLEANING THE MACHINE ................................................................................................................. 46
10.20. TORQUE CHART................................................................................................................................. 46
10.21. OIL VISCOSITY.................................................................................................................................... 46
10.22. TECHNICAL PLATE............................................................................................................................. 47
11. TROUBLESHOOTING ............................................................................................................................. 48
12. AFTER-SEASON MAINTENANCE .......................................................................................................... 51
13. WARRANTY CONDITIONS ..................................................................................................................... 52

Operation manual –Spider MINI
4 / 53 rev. 02-01-10-2011
1. INTRODUCTION
1.1. IMPORTANT
This is a precision machine and the service obtained from it depends on the way it is operated and
maintained.
This OPERATION MAUAL should be regarded as part of the machine and should always be
present at the machine and available to the operator. Suppliers of both new and second-hand machines
are advised to retain documentary evidence that this manual was provided with the machine.
This machine is designed solely for use in customary grass cutting operations. Use in any other way is
considered as contrary to the intended use. Compliance with and strict adherence to the conditions of
operation, service and repair as specified by the manufacturer also constitute essential element of the intended
use.
Before attempting to operate this machine, ALL operators MUST go through a practical training in machine
usage, read through this manual and make themselves thoroughly conversant with Safety Instructions, controls,
lubrication and maintenance. The machine may be operated with additional accessories specifically designed
for this purpose. Operating and Safety Instructions of such accessories must be strictly adhered to.
Accident prevention regulations, all other generally recognized regulations on safety and occupational medicine,
and all road traffic regulations shall be observed at all times.
Any arbitrary modifications carried out on this machine as well as non-adherence to this OPERATION
MANUAL may relieve the manufacturer of liability for any resulting damage or injury.
In several places this Manual contains instructions for safe work. If the text includes such an instruction, then
the instruction is marked by the following WARNING symbol:
Warning against a highly probable danger of severe injury or life threat if appropriate instructions
are not followed.
Other symbols:
Provides useful information

Operation manual –Spider MINI
5 / 53 rev. 02-01-10-2011

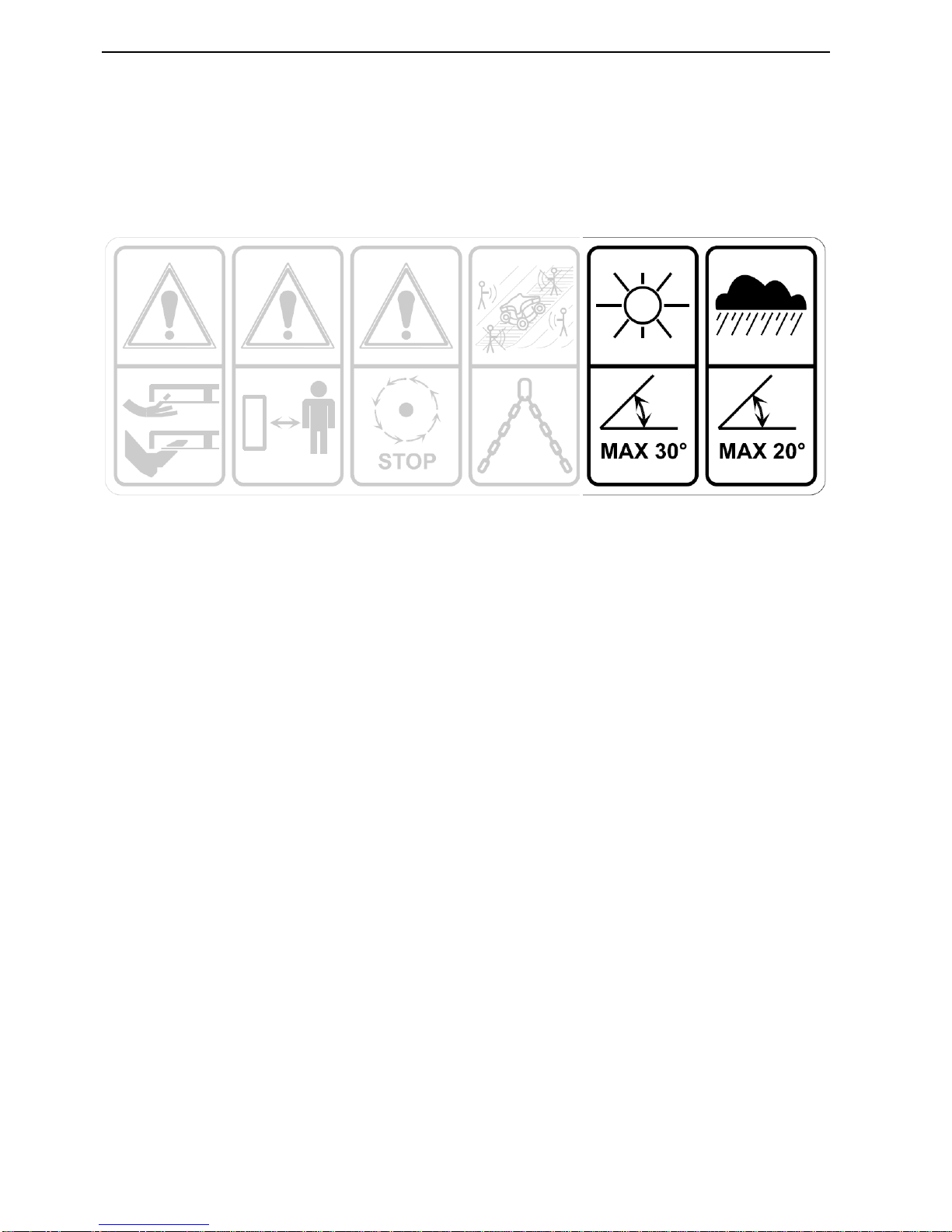

1.2. MACHINE USAGE
The machine is designed for the mowing of grass on level as well as steep terrain. Any other use is prohibited.
The maximum slope on which the machine may be used depends on the current condition of the area to be
mowed:
Dry conditions: 30°
Wet conditions: 20°.
Spider is a mulching mower designed for mowing of well maintained as well as unkempt or only occasionally
mowed areas. The mower is operated by one person using radio control.
The mower may only be operated by authorized persons over 18 years of age both mentally and physically fit,
who are familiar with this Operation Manual and all applicable regulations and laws pertaining to work health
and safety that need to be observed while operating the mulching mower Spider.

Operation manual –Spider MINI
6 / 53 rev. 02-01-10-2011
1.3. PROHIBITED USE
The mower may not be used for other purpose than for which it was designed and which is described in
chapter 1.2.
The mower may not be used on surfaces littered by glass, loose stones, pieces of iron and other foreign
objects that can either be thrown by the blades during mowing or damage the mower
The mower may not be used on slopes exceeding 20 degrees when wet or foggy as the climbing ability
and mower stability are adversely influenced by poor ground adhesion. During favourable climatic
conditions (dry surface, good visibility) the mower may not be used on slopes exceeding 30 degrees.
The mower may not be used where other people, children or animals can be found within 20 m (65 ft.)
from the mower/mowed area.
Never use the mower unless you are properly acquainted with the terrain and mainly with the
occurrence of undesired terrain irregularities, stumps, swamps, pits, unstable and poor load
bearing soil etc.
The mower may not be used as a towing/transporting device or as means of transporting persons.
It is prohibited to drive the mower on public thoroughfares
It is prohibited to increase the engine revolutions or the engine performance above the limits specified by
the manufacturer. It is also prohibited to make any other modifications to the machine construction or to
the engine setup. The manufacturer does not bear any liability for damage or injury resulting from such
modifications.
It is prohibited to use the mower under the influence of alcohol or drugs
It is prohibited to drive the mower into heaps of sand, gravel or similar material, on stumps, rocks,
construction elements or any other obstacle, which may compromise the stability of the machine
It is prohibited to use the machine under low visibility (dusk, fog, heavy rain etc.)
It is prohibited to use the mower unless the operator is familiar with the Operation Manual
It is prohibited to dis-/engage the blade drive and adjust the height of cut while the engine is running
An intermittent acoustic signal (beeping) informs the operator that the mower has reached a dangerous
incline and threatens to roll over. It is prohibited to use the mower on slopes while the mowers beeps
and indicates its dangerous incline.

Operation manual –Spider MINI
7 / 53 rev. 02-01-10-2011
1.4. PRODUCT IDENTIFICATION
The mower can be identified by the serial number, which can be found on the factory label placed on the
mower deck. The serial number and the year of manufacturing must be provided during every request for
servicing and with every order of spare parts. On the internal engine you can also find the engine
manufacturer´s factory label.

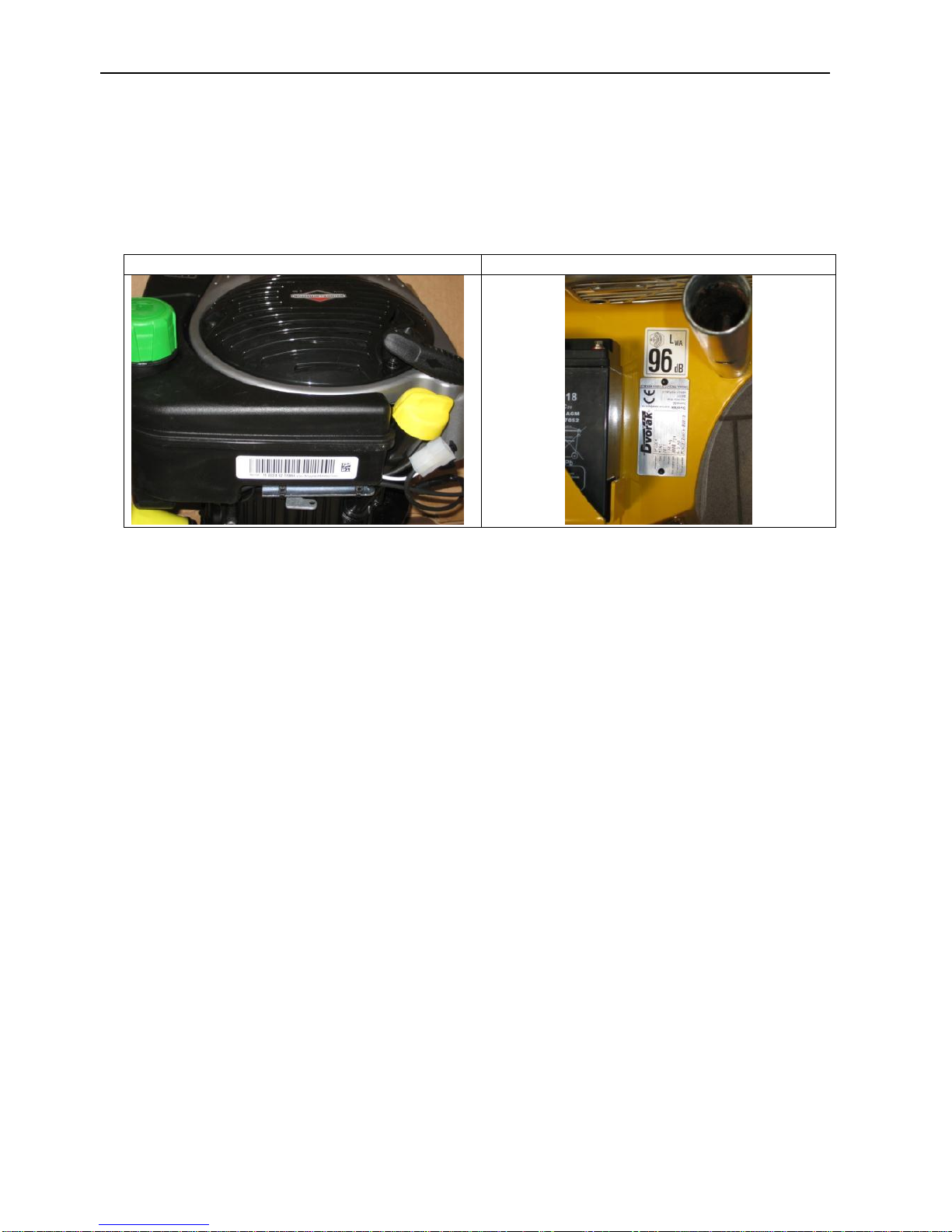

Location of engine factory label
Location of mower factory label

Operation manual –Spider MINI
8 / 53 rev. 02-01-10-2011
1.5. GUIDELINES FOR THE DISPOSAL OF SCRAP PRODUCTS
When it has been identified that a turf care product has no further functional value and requires disposal,
the following actions should be taken.
These guidelines should be used in conjunction with Health, Safety and Environmental legislation and use
of approved local facilities for waste disposal and recycling.
•Position the machine in a suitable location for any necessary lifting equipment to be used.
•Use appropriate tools and Personal Protective Equipment (PPE) and take guidance from the technical
manuals applicable to the machine.
•Remove and store appropriately:
1. Batteries
2. Fuel Residue
3. Oils
Disassemble the structure of the machine referring to the technicalmanuals where appropriate. Special attention
should be made for dealing with “stored energy” within pressurized elements of the machine or tensioned springs.
Anyitems that still have a useful service life as second hand components or can be re-serviced should be
separated and returned to the relevant centre.
Other worn out items should be separated into material groups for recycling and disposal consistent with
available facilities. More common separation types are as follows:
•Steel
Non ferrous metals
•Aluminium
•Brass
•Copper
•Plastics
•Identifiable
• Recyclable
• Non recyclable
•Non identified
• Rubber
• Electrical and electronic components
Items that cannot be separated economically into different material groups should be added to the “General
waste” area.
Do not incarnate waste.
Finallyupdate machineryrecords to indicatethat themachinehas been takenoutofservice andscrapped.
Always adhere to local legislation.

Operation manual –Spider MINI
9 / 53 rev. 02-01-10-2011
2. SAFETY INSTRUCTIONS
This safety symbol indicates important safety messages in this manual. When you see this
symbol, be alert to the possibility of injury, carefully read the message that follows, and inform
other operators.
Safety Instructions
Do not enter or reach under the machine if it is lifted and not sufficiently supported. The machine should
be supported on places marked by the symbol of a chain.
The mower should only be transported in a container or on a trailer.
Check bolt torques at regular intervals. The first check should be done after 8 operating hours. Pay
attention to the attachment of the cutting blade and the proper bolt torque. Use a torque wrench and a
specified torque of 60Nm.
The blade hub bolts and the blade bolts must not show any signs of damage or wear. The bolts must be
complete. The blade must be undamaged, evenly worn and adequately sharp. The bolts should be
tightened with a torque of 60Nm.
If you are driving the mower outside the working area with disengaged blades, always set the maximum
height of cut otherwise the blade may get damaged.
Keep the product clean after use. Do not use gasoline or similar oil products for cleaning.
Do not reach with your hands or feet inside the mower, under the mowing deck, under the engine
covers or into the transmission system.
If you are forced to reach under the machine, wait until all rotating parts (including the engine) stop.
Attention, it takes some time before blade runs down! The run-down time depends on the state and
wear of the brake/clutch. Have the brake checked at regular intervals at an authorised servicing facility.
While operating, wear closed shoes and work clothing. Do not wear loose clothes that could get caught
by the machine, short trousers or light shoes.
A local risk assessment should determine the need for a face shield.
Do not operate the machine after drinking alcohol or using medication influencing perception.
Before starting the engine make sure that the mower blade is engaged (for mowing operation) or
disengaged (for transport). The blade may be dis-/engaged and height of cut adjusted only if the engine
is shut off. When starting the engine always step aside far enough to be protected against object
accidentally thrown from the mower and to be able to stop the mower in case of an emergency. Do not
enter the path of the mower.
While operating the mower make sure that the mower is clearly visible at all times and within the range
of the remote control unit and that you can clearly recognize dangerous situations and react to them
properly. Do not abuse the maximum reach of the remote control.
When using the mower, follow all general work safety regulations.
Work with the mower may only be started if the mower is not damaged by previous operation.
Do not change the engine tuning, especially the engine speed regulator. Do not modify the exhaust
pipe.
Do not use the mower if there is less than 30% of fuel in the fuel tank.
Do not move the mower by means of towing it behind another machine.
Operating Environment
The machine should only be used by persons over 18 years of age, who have been acquainted with the
machine and the user’s manual .The remote control (further referred to as ”RC”) is considered a part of
the machine
The user’s manual must be stored in a place permanently accessible to the operator and must be
available to him at all times.
Do not allow children or unauthorised persons use the product.
Before starting to operate the machine, you have to be familiar with all the symbols next to the controls
and indicators used on the mower and the RC.
Pay special attention to the stopping and shutting-off of the engine and to the emergency shutting-off of

Operation manual –Spider MINI
10 / 53 rev. 02-01-10-2011
the mower.
Before using the mower on a slope, make sure you test and practice your mower-control skills on flat
and level ground, which is sufficiently free and spacious. Master how to control the movement on a
surface, to mow around bushes, trees and other terrain elements and obstacles.
If you stop the mower on a slope, position the wheels across the slope and secure it against
undesirable movement by the means of the emergency brake.
While operating or transporting the mower, the operator must always have the mower in their view. The
maximum distance between the operator and the mower is 50 m /165 ft.
While using the mower follow all safety regulations given in this manual and respect local regulations
and provisions concerning noise-emissions, especially when using in hospitals, spas and other sensitive
areas.
The operator must pay attention to the area into which the mulched grass may be blown. Neither the
operator, nor any other persons, children nor animals should be allowed to enter this area. If mowing
uneven terrain the ejection and throwing of undesirable objects becomes more probable due to the
displacement of the mowing device (tilt of one side of the machine) while crossing the edges of different
terrain.
The operator of the machine may be responsible for any damage caused to third parties by operating
the machine.
The mower may be used on dry surface on slopes listed in chapter 1.2.
Before operating the machine, make sure you remove from the mowing area all loose stones, sticks,
glass, wire, bones, branches and all other objects that can be picked up by the blades and thrown or
that could damage the mower.
While operating the mower avoid obstacles, do not drive over higher obstacles (such as stones, stumps,
brick), near precipices, on unstable soil or in places where the mower could fall down or flip over.
When operating pay attention to electric power lines especially when driving beneath electric wires
where the radio signal may be lost. In such case the mower immediately shuts off the internal
combustion engine and stops all movements.
When using the machine near busy thoroughfares make sure that the mower does not endanger (by
throwing undesirable objects) passers-by or their property. Choose a suitable working procedure (see
chapter: Operating the mower).
The operator/user is responsible for the safety of persons that enter the working area of the machine.
Stop your work if these persons enter the working area.
The transportation of persons, animals or loads on the mower is prohibited.
Do not place any objects or tools on the product.
While operating, especially in windy conditions, choose the operator’s position carefully so as to keep
the operator away from the stream of exhaust gas, dust or mulched grass.
Stop work and clean the machine and its cooling surfaces several times while working in dusty
conditions to avoid over-heating during operation. If necessary, clean the machine and its cooling
surfaces several times while working. The dust layer must not exceed 1 mm.
Refuel only when the machine is off –before operating, if possible –and the fuel tank is cold. Always
keep at least 30% of the fuel in the tank. If you need to refuel during your work, do not fill the fuel into a
hot tank or while the engine is still hot. Let the machine cool down.
Do not overfill the fuel tank.
Never refuel while the engine is running.
Before refuelling push the STOP button on the control panel of the mower.
Do not start the engine if you find spilled fuel, open vessels with fuel or other combustible objects or
gases in the immediate proximity of the mower.
Do not refuel near open fire.
Do not place this product near open fire or other sources of heat.
While operating or immediately after shutting the machine off do not touch those parts of the machine
that heat up during operation. This concerns mainly the engine exhaust pipe, metal parts of the
hydraulic drive and metal parts of the internal combustion engine.
While operating do not touch the high voltage conductor leading to the sparking plug.

Operation manual –Spider MINI
11 / 53 rev. 02-01-10-2011
After starting the engine, test the correct functioning of the emergency engine stop on the radio
transmitter. This function should be checked at least once during every shift and every time you enter a
new area for mowing or mulching.
Before starting your work test the correct functioning of the safety components (EMERGENCY STOP)
on the mower.
Never leave the engine running without supervision.
If the engine is running, do not put aside the transmitter and do not touch or move any parts of the
machine.
Always stop the engine when leaving the machine, secure it against starting by pushing the red
EMERGENCY STOP button on the control panel of mower and by removing the key. Never leave the
transmitter next to the mower, but put it in a different, properly secured place inaccessible to third
persons.
Do not engage the mowing blade until immediately before mowing and only when the engine is turned
off.
Shut off the engine and disengage the mower blade and remove the key from the ignition every time:
- You clean the machine
- You remove dirt from the mower deck (grass or debris)
- You run over an unknown object and need to check for possible damage or to carry out a repair
- The machine unusually intensively vibrates and you need to find the cause
- You repair the engine or other parts of the mower (also unplug cables from spark plugs).
While operating, avoid mole-hills, concrete bases, guard-stones, stumps, loose stones and curbs.
These must not come into direct contact with the blade as they could cause serious damage. Do not
drive the mower into heaps of sand, gravel or other material. These may also compromise the mower
stability.
The mower may only be operated during daylight or under very good artificial light conditions.
Do not use the mower in limited visibility (dusk, fog, heavy rain etc.)
Do not let the engine run in enclosed spaces. The exhaust gases contain CO. They damage health and
can ultimately cause death.
The engine should only be started and operating in open spaces. If the engine is started and operated
in enclosed spaces, the exhaust gases must be conducted away by the means of prolonging the
exhaust pipe outside the enclosed space. Proper ventilation and fresh air supply must be secured in
order to prevent the accumulation of CO.
Before storing the machine in a closed space, let the engine and the hydraulic drive of the machine cool
properly.
Regularly remove all combustible objects (dry grass, leaves...) from the areas around the exhaust pipe,
engine, alternator and battery. Cleaning may only be performed when the mower is turned off.
Always control the machine from a working station, which gives you a perfect view of the whole working
area and of the machine.
While working, change your working position to have a perfect view of the mower at all times.
When operating the mower on slopes never enter the space directly below the mower or the area to
which the mower could fall.
The working position should be far enough (maximum 50 m / 165 ft.) to prevent the operator from
getting hit by objects that may be accidentally thrown by the mower.
Do not operate the mower if you cannot see it (behind terrain obstacles, corners of buildings, hidden in
grass etc.)
Safety Decals
Before starting the mower, check the state of the safety labels. If any labels are damaged or missing,
contact your dealer and replace such labels on the machine. Get thoroughly acquainted with these
labels. The placement of the labels on the machine is obligatory.
Do not remove or damage any of the safety labels.
Do not remove any covers or safety elements. They are for your protection.
Do not use the machine if any of the protecting devices or covers is damaged or missing.
Keep the machine and its accessories clean and in a good technical condition at all times.

Operation manual –Spider MINI
12 / 53 rev. 02-01-10-2011
It is strictly prohibited to make any changes or modifications to the machine that were not previously
approved by the manufacturer. Any modification to the machine may lead to a hazardous situation or
injury. If these instructions are not followed, the manufacturer does not bear any liability for the machine
and the terms of warranty may be invalidated.
The machine must always be equipped with all covers and protective elements.

Operation manual –Spider MINI
13 / 53 rev. 02-01-10-2011
3. SPECIFICATION
3.1. SPECIFICATION
TECHNICAL DATA
The mower is a self-propelled machine with all-wheel drive controlled by the transmitter (remote radio controller)
signal. Its unique wheel-steering technology ensures a high manoeuvrability both on level ground and on
slopes. The basic part of the machine is formed by a square solid frame, which is connected with a sliding
frame. The middle part of the sliding frame carries all driving components such as the engine, the hydraulic
drive, oil cooler the control unit.1 mowing blade is attached to the bottom part of the sliding frame. A clutch is
placed between the engine and the blade hub. The wheels are driven by a hydraulic motor through chains
gears. The wheels are steered by and electric motor. The control unit is placed under the main cover of the
machine. The mower is controlled by a multi-channel transmitter.
Parameter
Unit
Value
Length/Width
mm (inch)
910 x 1040 (36 x 41)
Height
mm (inch)
600 (23,6)
Mowing width
mm (inch)
560 (22)
Mowing blade height
mm (inch)
40 –90 (1,5 –3,5) - 6 levels
Weight
kg (pound)
125 kg (275)
Driving speed
km/h (mph)
0 –4 (2,5)
Mower deck
-
Single blade with a firm blade attached to a clutch flange
Blade clutch
-
Mechanical with a friction brake
Hydraulic pump
Hydro Gear PC
Hydraulic motor
-
Sauer Danfoss OMM20
Drive system
-
4 x 4
Wheels
inch
13 x 5,00 –6 with V-pattern
Battery
12 V, 18 Ah, gel
Fuel
-
Unleaded petrol / gasoline
Fuel tank capacity
litre (gallon)
4 (1)
Engine
Briggs&Stratton 850 SERIES I/C ECO PLUS
Cylinder volume
cm3
190
Power output
HP/min-1
6,5 /3600
Torque
N.m/min-1
11,5 / 3060
Ignition
Electronic
Electric
Electric
Frequency range of the Remote
controller NBB for EU and USA
MHz
433.100 - 434.750
3.2. NOISE EMISSIONS
The mower emits the following noise:
Sound pressure level LWA= 95,2 dB
Guaranteed sound pressure level LWA = 96 dB
The measuring was carried out in conformity with EN ISO 3744at the engine working RPM (3000 min-1)
Noise at operator´s station (ear): L = 77 dB (A) Leq –measured in the distance of 1 m from the machine
according to EN 11201
Uncertainty of measurement U = ± 0,8 dB

Operation manual –Spider MINI
14 / 53 rev. 02-01-10-2011
3.3. CONFORMITY CERTIFICATES

Operation manual –Spider MINI
15 / 53 rev. 02-01-10-2011
4. SAFETY DECALS
Attention! This machine may be dangerous. Incorrect and negligent use may result in damage, serious injuries
or death. Safety and warning decals described in this chapter are placed on important parts of the machine and
inform about possible danger. The pictograms explain the nature of the hazard. Understanding their meaning is
a precondition for a safe use of this product.

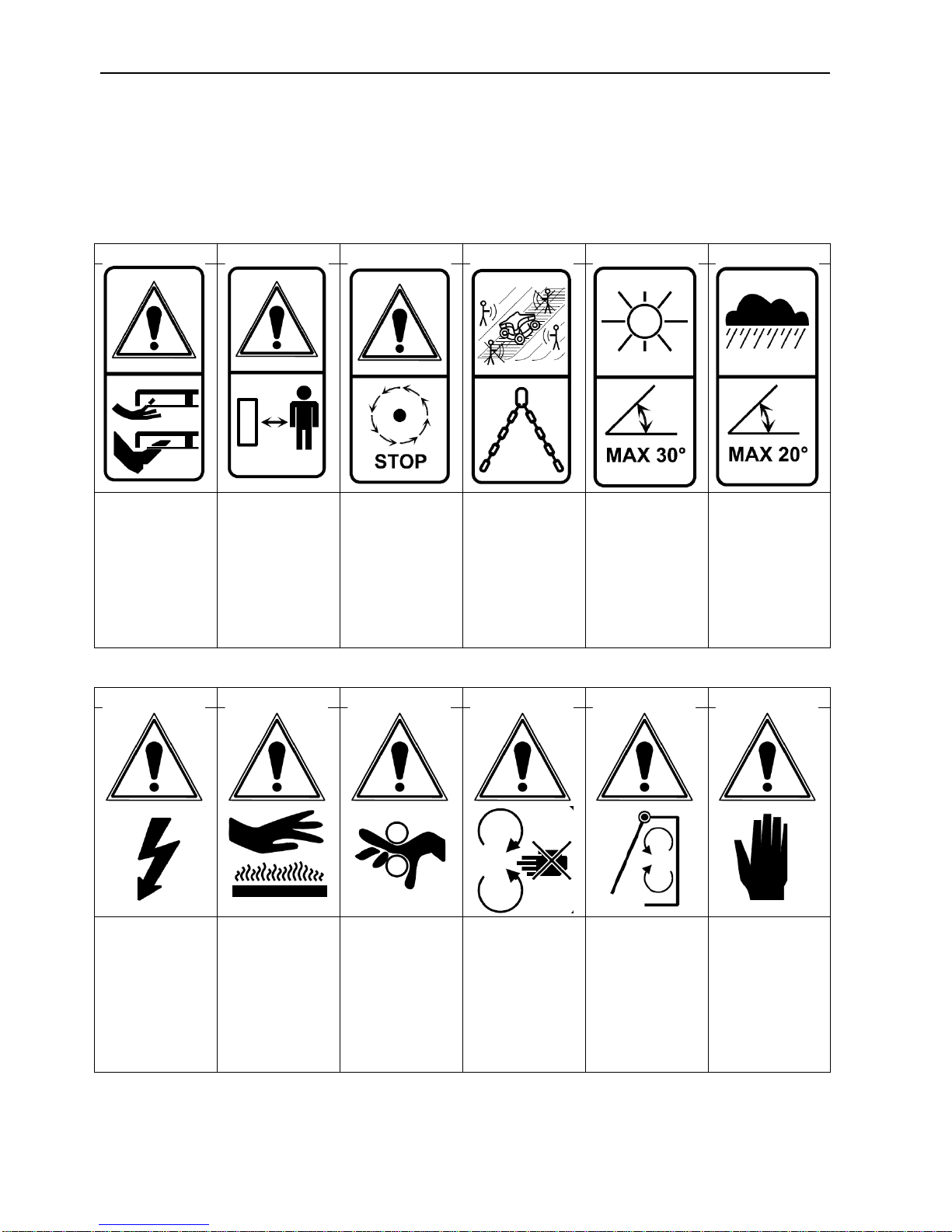

1
2
3
4
5
6
Attention,
danger of hand
or feet injury
caused by
rotating blades
Keep safe
distance from
the moving
machine
Attention,
rotating parts
are
decelerating
after they were
turned off
On a slope
never enter the
area
below or
directly above
the machine
------------------
Slinging point
Maximum
permissible
slope during
dry conditions
Maximum
permissible
slope during
wet conditions
7
8
9
10
11
12
Attention,
electric
battery.
Attention,
electric
voltage,
danger of
short-circuit.
Danger of
getting burned
by hot parts
Danger of
getting caught
by rotating
parts
Attention,
rotating parts.
Handle only
when they
have come to a
complete stop.
Before starting
close all
protective
covers
Attention, use
protective
gloves when
changing the
mowing blades

Operation manual –Spider MINI
16 / 53 rev. 02-01-10-2011

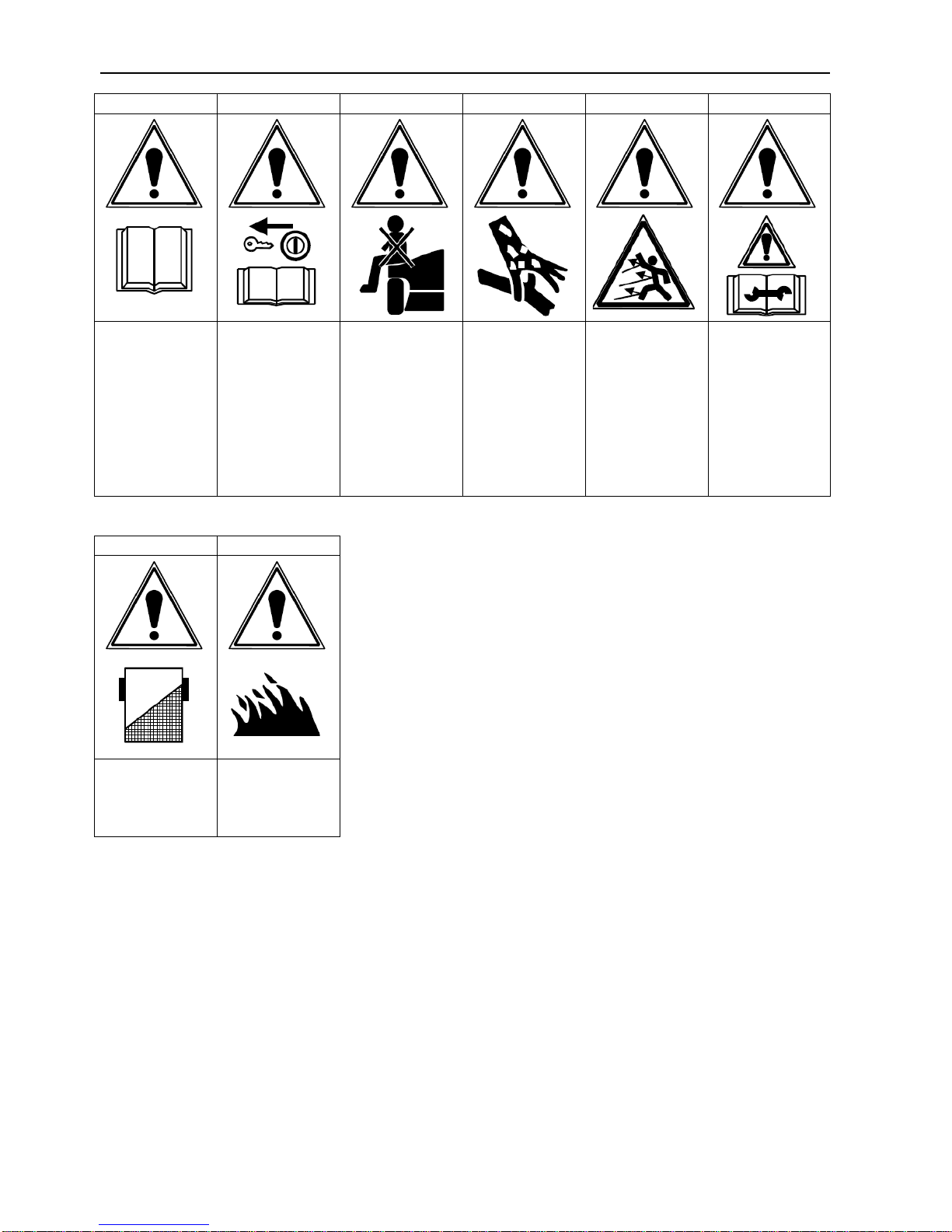

13
14
15
16
17
18
Read the
operation
manual before
use
While
maintaining,
repairing or
adjusting the
machine
remove the key
from the
ignition
It is prohibited
to transport
people with the
machine
Attention, the
device uses
hydraulic
energy drive,
danger of
injury caused
by the
hydraulic oil
jet.
Attention,
danger of
getting hit by
flying object.
Keep safe
distance.
While
maintaining,
repairing or
adjusting the
machine follow
the operation
manual
19
20
Use protective
work aids; face
shield
Attention,
combustible
substance,
danger of fire

Operation manual –Spider MINI
17 / 53 rev. 02-01-10-2011
8, 9, 10
7
1, 2, 3, 4, 5, 6
11, 12
13, 14
15, 16
17, 18
19, 20

Operation manual –Spider MINI
18 / 53 rev. 02-01-10-2011
5. INSTRUCTION DECALS
Check engine
oil level, add
oil if necessary
Check fuel
level, add fuel
if necessary.
Use only fuel
recommended
by the
manufacturer
Turn on the
mower and the
remote control
by turning the
Emergency
Stop buttons
Confirm
connection by
pressing the
horn
Set the
required height
of cut
Engage or
disengage the
clutch of the
mowing blade
Press the level
to release the
engine brake
For starter
activation the
drive
servomotor
must be in a
neutral
position
Press the start
button (Hold
for max. 5
seconds. If
starting fails
repeat after
min. 1 minute)
Control the
mower by RC
joysticks
Stop the
mower by
pressing the
Emergency
Stop button on
the RC
Turn off the
mower by
pressing the
Emergency
Stop button on
the mower

Operation manual –Spider MINI
19 / 53 rev. 02-01-10-2011
6. CONTROLS AND DISPLAYS
6.1. ON THE MOWER
Tilt indicator: An intermittent acoustic signal (beeping) sounds when mower reaches dangerous slope.
6.2. ON THE REMOTE CONTROL
6.3. FUNCTIONS OF MOWER INDICATORS
- After unlocking the EMERGENCY STOP button on the mower the beacon starts to flash.
- After turning on the RC, a green light on the RC starts to flash.
- After pressing the confirmation button/horn an acoustic signal (beeping) will sound.
- If the drive servo is neutral position a green neutral light on the mower will illuminate.
- If the RC is turned off, signal interrupted or drive servo displaced (by moving the RC drive joystick) the
neutral light will dim.
- After pressing the EMERGENCY STOP button on the mower the beacon stops to flash.
- If a dangerous slope / mower tilt is reached an intermittent acoustic signal (horn beeping) will sound.
Inginiton switch
EMERGENCY STOP
Beacon / mower
operation indicator
Neutral light
Mowing blade
clutch lever
žacího nože
Emergency brake
Engine brake lever
Bonnet attachment
locks
Height of cut lever
Fuel tank
Battery
Drive pump by-pass
čerpadla
Steering joystick
Drive joystick
EMERGENCY STOP
Main switch
Confirmation button
Horn
Starter button
Frequency change
button
Empty RC battery
indicator
Power indicator
(green)
Battery

Operation manual –Spider MINI
20 / 53 rev. 02-01-10-2011
7. SAFETY SYSTEMS
7.1. MOWER SAFETY ELEMENTS
The mower is controlled by a radio remote controller. This means that the operator is not permanently near the
mower and cannot use the controllers placed directly on the mower. For the safety of the operator as well as
other person the following chart lists various situations and protective measures taken:
Command EMERGENCY STOP (automatic or manual) has the following effects:
1. Engine is stopped
2. Wheel steering is blocked
3. Wheel drive is blocked
4. Starter is blocked
5. Engine brake is engaged
6. Ignition is turned off
EMERGENCY STOP command is activated if:
1. mower get out of the signal range
2. radio connection is interrupted / interfered with
3. another machine on the same frequency channel works nearby
A safety block prevents the engine from starting if:
1. there is no connection between the RC and control unit of the mower
2. confirmation button on the RC is not pressed
3. drive servomotor is not in the neutral position
4. engine brake is activated
In case the mower rolls over the engine brake is activated automatically. This ensures quick stopping of
the mowing blade.
