phantom
AMPLIFIERS

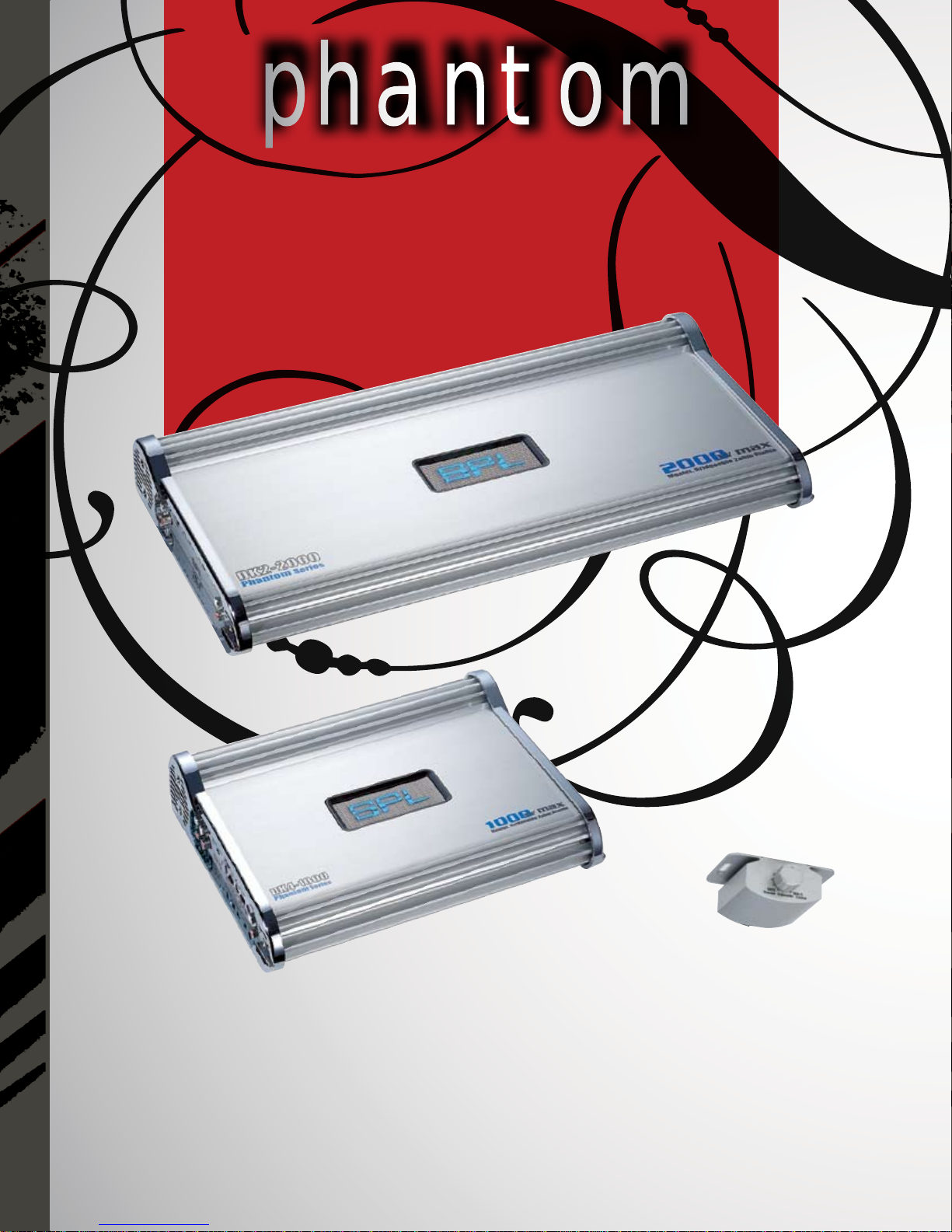

SPL introduces the new Phantom series amplifiers with stylish wedge shape
case with cool blue back-lit mesh logo plate. Once again we have coupled
this with our proprietary mosfet power supply and 18db. Subwoofer slopes with
dash mounted bass controls on 1000 watt and up versions. All connectors are
tri-angular crystalline terminal blocks for simplified installation.
Remote Dash Mount
Bass Knob Control

3
NEW HYPER BASS
COMMON FEATURES FOR CLASS D SERIES:
• HiSpeedDigitalCircuitry• HiSpeedDigitalCircuitry
• FullyRegulatedPWMPowerSupply
• FourWayProtectionCircuit
• 1OhmStable
• BridgingSynchronization
• VariableLowPass50Hz-150Hz
• VariableSubsonicFilter15Hz-40hz
• VariableSubwooferEQ@45Hz
• PhaseSwitch0-180
• RemoteDashMountLowLevelGainControlWithCable
• FrequencyResponse:15Hzto150hz
• S/NRatio:100db
• THD:0.5%
• SystemDistressIndicator
• InputsSensitivity:200mv-8v
• DualMonoSpeakerOutputConnectors
• GoldPlatedHeavyDutyPower&SpeakerTerminals
COMMON FEATURES FOR CLASS A/B SERIES:
FOR CLASS A/B SERIES:
Model 2ch/4ch 4ohm RMS 2ohm RMS Mono RMS Bridged Max Dimension W”xH”xD” Bass Knob
DK2-340 2 80x2 95x2 190 340 8x2.3x10.3 No
DK2-460 2 95x2 120x2 240 460 9x2.3x10.3 No
DK2-620 2 150x2 180x2 360 620 12x2.3x10.3 No
DK2-1000 2 220x2 280x2 560 1000 14.7x2.3x10.3 Yes
DK2-1500 2 300x2 380x2 760 1500 19x2.3x10.3 Yes
DK2-2000 2 370x2 450x2 900 2000 20.2x2.3x10.3 Yes
DK2-2400 2 450x2 540x2 1080 2400 24x2.25x11 Yes
DK4-680 4 80x4 95x4 190x2 680 10.7x2.3x10.3 No
DK4-1000 4 100x4 125x4 250x2 1000 12.7x2.3x10.3 No
CHROME END CAPS
COOL BLUE BACK LIT MESH LOGO PLATE
FOR CLASS D SERIES:
Model CH 4ohm RMS 2ohm RMS 1ohm RMS Max Dimension W”xH”xD” BassKnob D
DK-2000D 1 800 1300 1600 2000 12.7X2.7X11 Yes
DK-2600D 1 1100 1600 2000 2600 15X2.7X11 Yes
DK-3400D 1 1400 2100 2600 3400 16.75X2.7X11 Yes
• FullMosfetPowerSupply
• PWMCircuitry
• FullSelectableCrossoverHi/Full/Low
• ThreeWayProtectionCircuit
• 2OhmStableStereo
• Tri-ModeCapable
• VariableLowPass40Hz-250Hz
• VariableHiPass40Hz-250Hz
• Variable18dBBassBoost@40Hz
• FrequencyResponse:10Hzto30KHz
• S/NRatio:98dB
• THD:0.02%
• SystemDistressIndicator
• 4GuagePower/GroundConnection
• PlatinumPlatedRCAConnectors
• LineOutput
• High/LowLevelInputswithFloatingGround

4
This new series of amplifiers were designed to meet the demanding condi-
tions todays youth provide. Although, it’s not just for the young ones, this se-
ries includes a function called “Hyper Bass” which will boost the low frequen-
cies in the adjusted range, this can appeal anyone. Stimulate you hearing...
get Hyper Bass!!!
Remote Dash Mount
Bass Knob Control

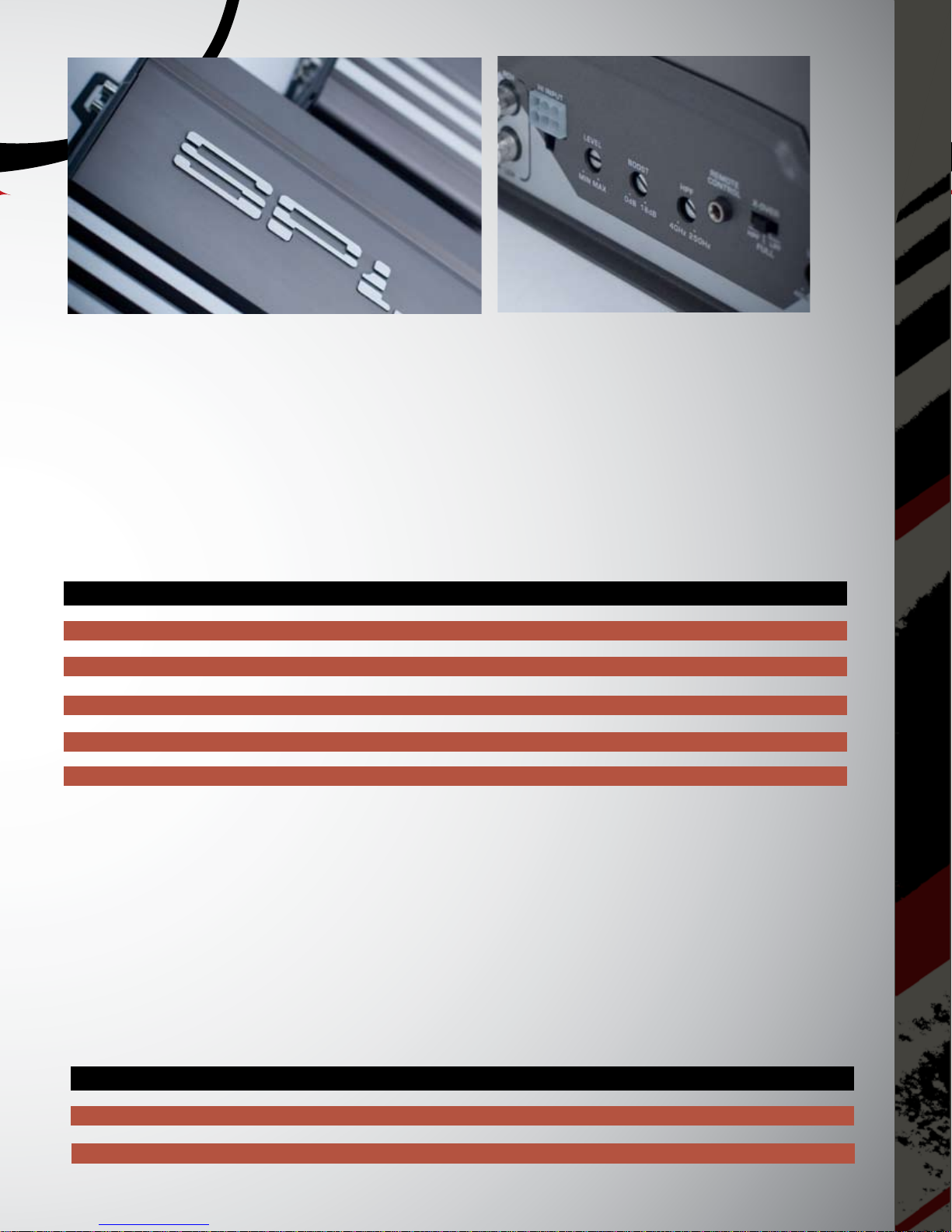

FXSERIES
AMPLIFIERS

5
Embossed Logo Hyper Bass
FOR CLASS A/B SERIES:
• FullMosfetPowerSupply
• PWMCircuitry
• FullSelectableCrossoverHi/Full/Low
• ThreeWayProtectionCircuit
• Tri-ModeCapable
• VariableLowPass40Hz-250Hz
• VariableHiPass40-250Hz
• Variable18dBBassBoost@40Hz.
• FrequencyResponse:10Hzto30Khz
• S/NRatio:98db
• THD:0.02%
• 2ohmStableStereo
• SystemDistressIndicator
• High/LowLevelinputsWithFloatingGround
• 4GaugePower/GroundConnection
• PlatinumRCAConnectors
• LineOutput
Model CH 4oHM RMS 2oHM RMS Mono RMS BRidged Max diMenSion W”xH”xd” BaSS KnoB
FX2-420 2 80X2 95X2 190 420 8.4X2.3X11.7 NO  
FX2-600 2 95X2 120X2 240 600 9.7X2.3X11.7 NO
FX2-800 2 150X2 180X2 360 800 12.4X2.3X11.7 NO
FX2-1250 2 220X2 280X2 560 1250 15.2X2.3X11.7 YES
FX2-1800 2 300X2 380X2 760 1800 19.6X2.3X11.7 YES
FX2-2200 2 370X2 450X2 900 2200 20.7X2.3X11.7 YES
FX2-2600 2 450X2 540X2 1080 2600 23X11.25X2.25 YES
FX4-840 4 80X4 95X4 190X2 840 11.25X11.25X2.25 NO
FX4-1200 4 100X4 125X4 280X2 1200 14X11.25X2.25 NO
FX4-1600 4 150X4 180X4 360X2 1600 14X11.25X2.25 NO 
Model CH 4oHM 2oHM RMS 1 oHM RMS Max diMenSion W”xH”xd” BaSS KnoB
FX-2000D 1 600 900 1200 2000 11X2.3X11.7 YES
FX-3000D 1 900 1300 1700 3000 12.75X2.3X11.7 YES
FX-4000D 1 1200 1700 2200 4000 15X2.3X11.7 YES
FX-5500D 1 1700 2500 3200 5500 18X2.3X11.7 YES
FOR CLASS D SERIES:
• HiSpeedDigitalCircuitry
• FullyRegulatedPWMPowerSupply
• FourWayProtectionCircuit
• 1OhmStable
• BridgingSynchronization
• VariableLowPass50Hz-150Hz
• VariableSubsonicFilter15Hz-40hz
• VariableSubwooferEQ@45Hz
• PhaseSwitch0-180
• RemoteDashMountLowLevelGainControlWithCable
• FrequencyResponse:15Hzto150hz
• S/NRatio:100db
• THD:0.5%
• SystemDistressIndicator
• InputsSensitivity:200mv-8v
• DualMonoSpeakerOutputConnectors
• GoldPlatedHeavyDutyPower&SpeakerTerminals

6
SPLWSERIES
SUBWOOFER
If you want bass that leaves a lasting impression with your friends and neighbors,
the SPLW series woofers do it all. Specifically designed for use in a ported box to
give you the ultimate in heart pounding, vision-blurring bass.
Dual 1ohm Extreme competition Subwoofers
Common Features
SPLW-10
•2200wattspowerhandling
•1000wattsRMS
•270oz.Magnet
•3”BASV/Kaptonhybrid18AWG 
voicecoil
•FS32(Hz)
•Vas0.5cu.ft.
•Qes:0.359
•Qms:3.53
•Qts:0.23
•Xmax:0.4”
•SPL89dB
•Sealedbox:N/A
•Portedbox:1.65cu.ft.
•Tuning:45Hz
•Portsize:3”x9.25”
•#ofports:2-3”diam.
•MountingDepth:6.4”
•ClothlaminatedpaperconewithMD6coating
•Dual1ohmvoicecoil
•Diecastaluminumbasket
•Aluminumdustcapforextrarigidity
•Blackwrinklenish/Diamondcutbasket
•Chromeplatedfront&backplates
•Largerolltreatedfoamsurround
•Onepiecerubbergask
•Dualconexspiders
•Woventinselleadthroughspider
•Chromebindingpostterminals
SPLW-12
•2200wattspowerhandling
•1100wattsRMS
•340oz.magnet
•4”BASV/Kaptonhybrid18
AWGvoicecoil
•FS33.5(Hz)
•Vas0.8cu.ft.
•Qes:0.34
•Qms:5.668
•Qts:0.32
•Xmax:0.47”
•SPL90dB
•Sealedbox:N/A
•Portedbox:2.4cu.ft.
•Tuning:40Hz
•Portsize:4”x16.75”
•#ofports:2-4”diam.
•MountingDepth:7.25”
SPLW-15
•2800wattspowerhandling
•1400wattsRMS
•340oz.magnet
•4”BASV/Kaptonhybrid18
AWGvoicecoil
•FS29.1(Hz)
•Vas1.6cu.ft.
•Qes:0.52
•Qms:4.06
•Qts:0.31
•Xmax:0.59”
•SPL92dB
•Sealedbox:N/A
•Portedbox:3.4cu.ft.
•Tuning:40Hz
•Portsize:4”x10”
•#ofports:2-4”diam.
•MountingDepth:8.9”
PACkAgED IN WOODEN BOx

7
S3-10H

•1800wattspowerhandling
•600wattsRMS
•140oz.Magnet
•2.5”BAEISVAluminumVoiceCoil
•Fs:37Hz
•Vas:.58cu.ft.
•Qes:.1.025
•Qms:7.224
•Qts:.897
•Xmax:.57”
•SPL:81dB
•MountingDepth:5.875”
•RecommendedBoxTypeS/P/BP
S=Sealed/P=Ported/BP=Bandpass

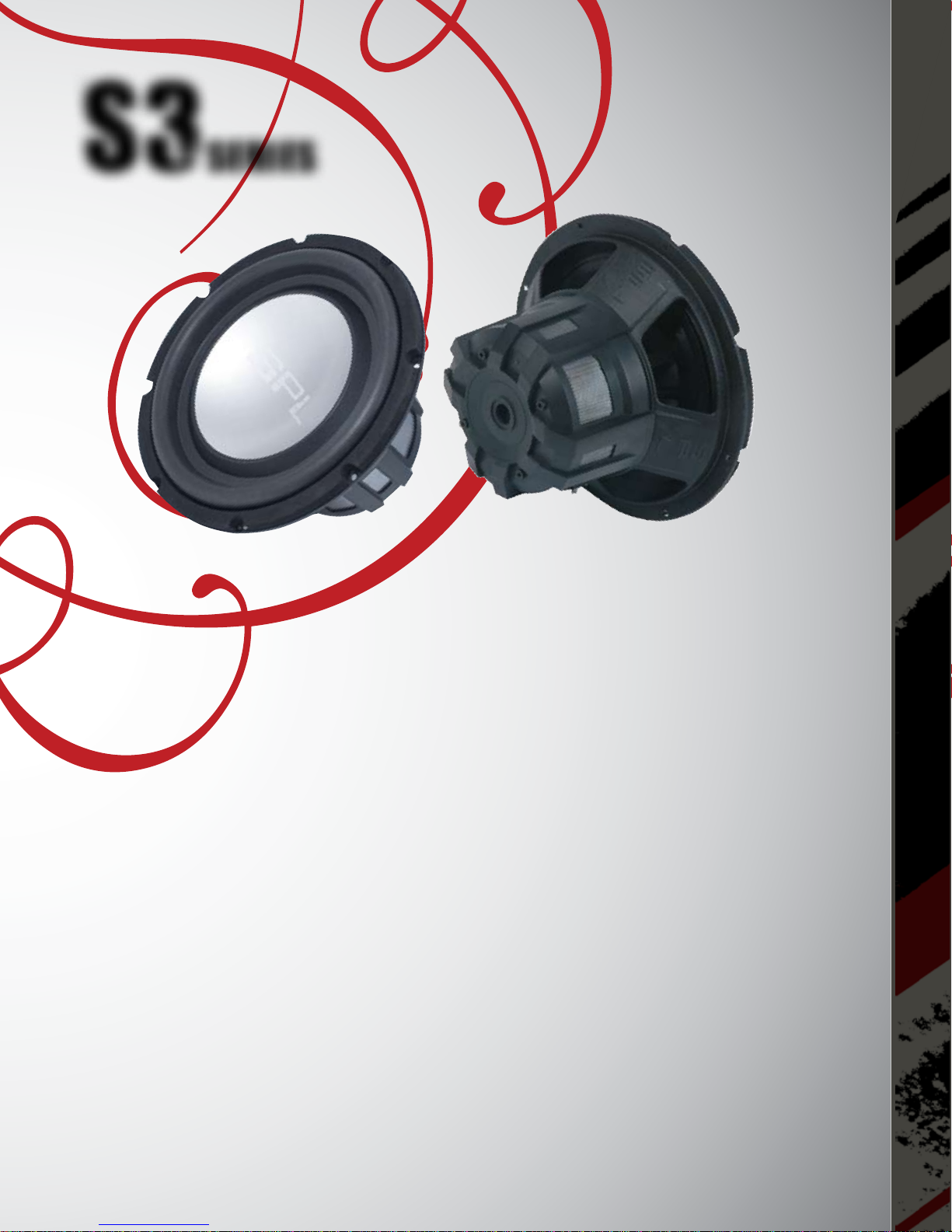

Rock and Roll or Rump to your favorite jams!!!! The NEW S3 woofers bring it
all together. Great looks and Performance, with an aluminum dust cap and PP
injected/lightened cone to provide stunning looks but still keep the structural
integrity needed to keep up to par with the massive motor structure bolted to
the sleek basket design. Should you lead, or follow, the S3 is made to lead!!
S3-12H

•2000wattspowerhandling
•700wattsRMS
•140oz.Magnet
•2.5”BAEISVAluminumVoiceCoil
•Fs:30Hz
•Vas:1.77cu.ft.
•Qes:.970
•Qms:6.659
•Qts:.847
•Xmax:.57”
•SPL:83.3dB
•MountingDepth:6.5”
•RecommendedBoxTypeS/P/BP
S=Sealed/P=Ported/BP=Bandpass
S3-15H

•2200wattspowerhandling
•800wattsRMS
•140oz.Magnet
•2.5”BASVAluminumVoiceCoil
•Fs:29.4Hz
•Vas:3.28cu.ft.
•Qes:1.467
•Qms:7.527
•Qts:1.228
•Xmax:.57”
•SPL:84dB
•MountingDepth:7.75”
•RecommendedBoxTypeS/P/BP
S=Sealed/P=Ported/BP=Bandpass
S3SERIES
SUBWOOFER
ALUMINUM DUST CAP
REINFORCED PP CONE
DUAL 4 Ohm COILS
DUAL STACKED MAGNETS

8
S2SERIES
SUBWOOFER S1SERIES
S2-10M
•1100wattspowerhandling
•400wattsRMS
•100oz.Magnet
•2”BASVAluminumVoiceCoil
•Fs:37Hz
•Vas:.812cu.ft.
•Qes:.694
•Qms:8.373
•Qts:.641
•Xmax:.375”
•SPL:84dB
•MountingDepth:5.25”
•RecommendedBoxTypeS/P/BP
S=Sealed/P=Ported/BP=Bandpass
From daily bump and grind to weekend fun, the NEW S2 series woofers will fill
in the voids of missing low frequencies in your music. It’s a versatile woofer
than can work in different types of enclosures from sealed to ported and not
ask for a ton of power to perform. Brilliant blue color basket and cone with ag-
gressive curves and superior motor parts, make this woofer great for the budget
minded but with better performance than an entry level woofer. Available in
10”, 12” and 15” sizes with dual 4 ohm coil configurations.
S2-12M

•1200wattspowerhandling
•450wattsRMS
•100oz.Magnet
•2”BASVAluminumVoiceCoil
•Fs:34Hz
•Vas:1.64cu.ft.
•Qes:1.018
•Qms:13.357
•Qts:.946
•Xmax:.375”
•SPL:84.4dB
•MountingDepth:5.75”
•RecommendedBoxTypeS/P/BP
S=Sealed/P=Ported/BP=Bandpass
S2-15M

•1300wattspowerhandling
•500wattsRMS
•100oz.Magnet
•2”BASVAluminumVoiceCoil
•Fs:28Hz
•Vas:4.38cu.ft.
•Qes:1.212
•Qms:10.697
•Qts:1.088
•Xmax:.375”
•SPL:85.2dB
•MountingDepth:6.875”
•RecommendedBoxTypeS/P/BP
S=Sealed/P=Ported/BP=Bandpass
REINFORCED PP CONE
DUAL 4 Ohm COILS
DUAL STACKED MAGNETS
DISCRETE MOUNT TERMINALS

9
S1SERIES
SUBWOOFER
S1-10L

•800wattspowerhandling
•300wattsRMS
•70oz.Magnet
•1.5”BASVAluminumVoiceCoil
•Fs:36Hz
•Vas:1.2cu.ft.
•Qes:.858
•Qms:9.718
•Qts:.788
•Xmax:.2”
•SPL:84.7dB
•MountingDepth:4.625”
•RecommendedBoxTypeS/P
S=Sealed/P=Ported/BP=Bandpass
Adequate engineering, style and performance are taking over the S1 Series sub-
woofers. Bringing performance to an economic package is difficult, but we think
we covered all the bases here. Discrete mount terminals help you create great
installs, stylish grey coated PP cone and matching dust cap give you uniformity
and large magnets with BASV voice coils allow you to rock in style. These woofers
work great in sealed and ported enclosures with minimal power consumption and
are available in dual 4 ohm coils and in three popular sizes - 10”, 12” and 15”
sizes.
S1-12L

•900wattspowerhandling
•350wattsRMS
•70oz.Magnet
•1.5”BASVAluminumVoiceCoil
•Fs:29Hz
•Vas:3.86cu.ft.
•Qes:.601
•Qms:9.120
•Qts:.564
•Xmax:.2”
•SPL:88dB
•MountingDepth:5.0625”
•RecommendedBoxTypeS/P
S=Sealed/P=Ported/BP=Bandpass
S1-15L

•1000wattspowerhandling
•400wattsRMS
•70oz.Magnet
•1.5”BASVAluminumVoiceCoil
•Fs:27Hz
•Vas:6.85cu.ft.
•Qes:.906
•Qms:9.182
•Qts:.825
•Xmax:.2”
•SPL:88dB
•MountingDepth:6.25”
•RecommendedBoxTypeS/P/BP
S=Sealed/P=Ported/BP=Bandpass
UDV Coated PP CONE
DUAL 4 Ohm COILS
DISCRETE MOUNT TERMINALS

10
I I I I
I I I I
I I I I
ASSERIES
FULL RANGE SPEAKERS
AS-6930
6x9”3WaySpeakers280Watts
•40ozMagnet
•1.5”VoiceCoil
•SPL92dB
•Imp.4Ohm
•ElectroPlatedSilverCDHairlineCone
•RubberButylSurround
•Freq.Resp.50Hzto20KHz
•PolymideMidrange
•SuperiorDomeTweeter
•IncludingGrills
AS-6830
6x8”3WaySpeakers200Watts
•23ozMagnet
•1.5”VoiceCoil
•SPL91dB
•Imp.4Ohm
•ElectroPlatedSilverCDHairlineCone
•RubberButylSurround
•Freq.Resp.60Hzto20KHz
•PolymideMidrange
•SuperiorDomeTweeter
•IncludingGrills
AS-6520
6.5”2WaySpeakers160Watts
•18ozMagnet
•1.25”VoiceCoil
•SPL91dB
•Imp.4Ohm
•ElectroPlatedSilverCDHairlineCone
•RubberButylSurround
•Freq.Resp.60Hzto20KHz
•PolymideMidrange
•IncludingGrills
AS-520
5.25”2WaySpeakers130Watts
•13ozMagnet
•1”VoiceCoil
•SPL90dB
•Imp.4Ohm
•ElectroPlatedSilverCDHairlineCone
•RubberButylSurround
•Freq.Resp.65Hzto20KHz
•SuperiorDomeTweeter
•IncludingGrills
AS-420
4”2WaySpeakers110Watts
•10ozMagnet
•0.75”VoiceCoil
•SPL90dB
•Imp.4Ohm
•ElectroPlatedSilverCDHairlineCone
•RubberButylSurround
•Freq.Resp.90Hzto20KHz
•SuperiorDomeTweeter
•IncludingGrills
AS-320
3.5”2WaySpeakers90Watts
•10ozMagnet
•0.75”VoiceCoil
•SPL90dB
•Imp.4Ohm
•ElectroPlatedSilverCDHairlineCone
•RubberButylSurround
•Freq.Resp.95Hzto20KHz
•SuperiorDomeTweeter
•IncludingGrills
AS-4620
4x6”2WaySpeakers120Watts
•10ozMagnet
•1”VoiceCoil
•SPL90dB
•Imp.4Ohm
•ElectroPlatedSilverCDHairlineCone
•RubberButylSurround
•Freq.Resp.65Hzto20KHz
•SuperiorDomeTweeter
•IncludingGrills
AS-5730
5x7”or6x8”3WaySpeakers150Watts
•20ozMagnet
•1.25”VoiceCoil
•SPL91dB
•Imp.4Ohm
•ElectroPlatedSilverCD
HairlineCone
•RubberButylSurround
•Freq.Resp.60Hzto20KHz
•PolymideMidrange
•SuperiorDomeTweeter
•IncludingGrills
splseries

11
I I I I
splseries
COMPONENT SYSTEM
•Freq.Resp.50Hz-8kHz
•30oz.StrontiumMagnet
•ButylRubberSurround
•ScrewPlatinumTerminals
•ShallowMount21/4”
•1”KaptonVoiceCoil
•150Watts
•1”TitaniumDomeTweeter
•Freq.Resp.3kHzto20kHz
•NeodymiumMagnet
•FerrouidCooled
•ThreeWayMounting
•Two-WayCrossover
•80Hz/6kHz
•Imp.4Ohm
•12dB/OctaveRolloff
•Imp.BalancingNetwork

S P C - 6 0 6.5” InjectIon PP cone MId-Bass

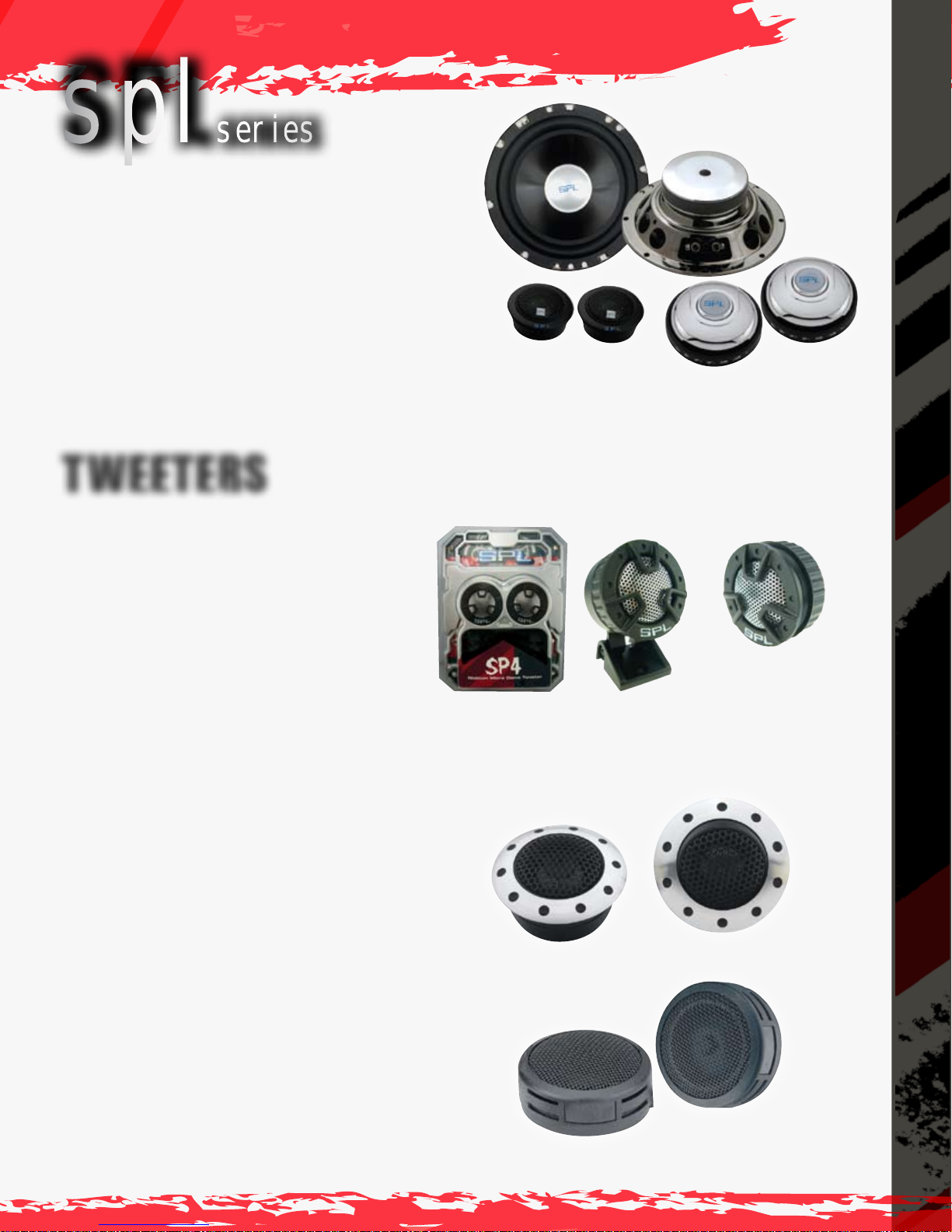

TWEETERS
SP-1 2-Way Mount tWeeter 200 Watts
• NiobiumRareEarthFerroelectricTransducerMagnet
• PolypropyleneDiaphragm
• 100WattsR.M.S.
• Freq.Resp.5KHz-25KHz
• Imp.4Ohm
• Surface/AngleMount
• SPL97dB
• BuiltinCrossover
SP-3 (aluMInuM dIe-cast HousInG
FlusH/anGle/surFace Mount neodyMIuM tItanIuM doMe tWeeter 220 Watts
• AdjustableEyeballAngleDesign
• In-LineCrossoverNetwork
• 1”HighTemp.VoiceCoil
• Freq.Resp.2to25kHz
• Imp.4Ohm
SP-4 4 - Way Mount tWeeter 250 Watts
• NiobiumRareEarthFerroelectricTransducerMagnet
• PolypropyleneDiaphragm
• 125WattsR.M.S.
• Freq.Resp.5KHz-25KHz
• Imp.4Ohm
• Surface/AngleMount
• SPL97dB
• BuiltinCrossover

12
I I I I
TO CAP OR TO CELL? THAT IS THE QUESTION!
Often called a “power cap” or “stiffening cap”, some people prefer caps over secondary
batteries. A second battery is great for high power systems, but should be accompanied
by an upgraded alternator that can efficiently charge both batteries. This gets expensive.
A cap stores power too, but can charge and discharge in a fraction of a second, depend-
ing on size. While great for transient peaks in music, it does not have the stamina that
a battery has and is not an equivalent substitute.
Our Cap Cells are a fusion of both products. The Cap Cell offers auxiliary power with the
ability to enhance the transient notes, often suppressed in car audio systems with an
OEM battery, while being able to reinforce the battery during long, intense bass notes.
A second alternator is not necessary, making the Cap Cell a perfect addition and an af-
fordable way to supply the necessary power for a system.
CPseries
CAPCELL
SBT-300
300AmpCAPCELL
•SatinChromeFinish
•16VoltsDC
•3-6YearCycleLife
•DigitalVoltMeter
•LEDDisplay
•¼”BoltTerminal
•4.5MilliohmInt.Resistance
•2.5Amp/Hour
•Surge300ampx2seconds
SBT-400
400AmpCAPCELL
•SatinChromeFinish
•16VoltsDC
•3-6YearCycleLife
•DigitalVoltMeter
•LEDDisplay
•¼”BoltTerminal
•4.5MilliohmInt.Resistance
•5Amp/Hour
•Surge400ampx2seconds
SBT-800
800AmpCAPCELL
•SatinChrome&AluminumFinish
•16VoltsDC
•3-6YearCycleLife
•DigitalVoltMeter
•LEDDisplay
•BatteryPosts
•5MilliohmInt.Resistance
•8Amp/Hour
•Surge800ampx8seconds

13
CPseries
DIGITAL POWER CAPACITORS
HYBRID SUPER CAPACITORS
CP 2.0 
Digitalpowercapacitor
•2Farad
•24VoltsDC
•Digitaldisplay
•BlueLEDlights
•Brushedaluminumwithblack
meshjacket
•Chromemountingbracket
CP 3.0
Digitalpowercapacitor
CP 5.0
Digitalpowercapacitor
•3Farad
•24VoltsDC
•Digitaldisplay
•BlueLEDlights
•Brushedaluminumwith
blackmeshjacket
•Chromemountingbrackets
•5Farad
•24VoltsDC
•Digitalbluedisplay
•BlueLEDlights
•Brushedaluminumwithblackmeshjacket
•Chromemountingbrackets
CP 8.0
Digitalhybridpowercapacitor
CP 15.0
Digitalhybridpowercapacitor
CP 25.0
Digitalhybridpowercapacitor
•8Farad
•24VoltsDC
•Digitalbluedisplay
•BlueLEDlights
•Lowprolemountingsystem
•Chromemountingbrackets
•15Farad
•24VoltsDC
•Digitalbluedisplay
•BlueLEDlights
•Lowprolemountingsystem
•Chromemountingbrackets
•25Farad
•24VoltsDC
•Digitalbluedisplay
•BlueLEDlights
•Lowprolemountingsystem
•Chromemountingbrackets

14
in-dash dvd monitors
Sk-10g
•10ga./20ftClearRedPowerCable
•10ga./3ftClearBlackGroundCable
•18ga./33ft.ClearSpeakerCable
•17ft.BlueTurnOnCable
•17ft.ShieldedClearBlueRCACable
•ATCFuseHolderwith30AATCFuse
•CompleteAccessories
•DoubleClampBlisterPackaging
Meter systems Plasma displays
Equalizers
METER-4

•UniversalamplierstatusanddistressmonitoringsystemVoltagemeter
•Temperaturemeter
•TwinVUmeters
•Coolblueback-litmeters
•Three-waymounting(UnderdashL-bracket,ConsoleorA-pillarmount,
ISOdinmountingsystem)
•Separateeasymountcontrolboxandcabling
PLASMA-1

•Threecolorrectangularlightningdish(Red,WhiteandBlue)
•Respondstomusic(SignalInputs)
•Voicerecognitionbymicrophone
•Pre-programmedautopulse
•Cut-inmountingshroud
•Butterystandmountingsystem
SPQ-20 4 Band ParaMetrIc Pre-aMP equalIzer

•SeparateVolume&SubWooferControls
•4GainControls+/-18dB.
•SubWooferCrossover(30~250Hz.)
•IsolatedPWMPowerSupply
•MaxOutputVoltage:8Volts
•SelectableRadio/CD(Aux)Inputs
•SubWooferOutput(Gain)Control
•MasterVolume(Gain)Control
•FrontToRearFaderControl
•CrossoverSlopes12dB.perOctave
•THD:0.05%
•S/NRatio“A”weighted115dB.
•RemoteTurn-on
•Dim:1.25x7x4.6”
Sk-8g
•8ga./20ftClearRedPowerCable
•8ga./3ftClearBlackGroundCable
•16ga./33ft.ClearSpeakerCable
•17ft.BlueTurnOnCable
•17ft.ShieldedClearBlueRCACable
•MaxiFuseHolderwith40AMaxiFuse
•CompleteAccessories
•DoubleClampBlisterPackaging
Sk-4g
•4ga./20ftClearRedPowerCable
•4ga./3ftClearBlackGroundCable
•12ga./33ft.ClearSpeakerCable
•17ft.BlueTurnOnCable
•17ft.ShieldedClearBlueRCACable
•AGUFuseHolderwith60AAGUFuse
•CompleteAccessories
•DoubleClampBlisterPackaging

15
in-dash dvd monitors
SID-8900
7” WIde toucH screen In-dasH Fully MotorIzed tFt MonItor/dVd/aM/FM/tV tuner
• FullyMotorizedscreentelescopesoutandupincludingfronttobackangling
• DropdownDetachableFrontpanelforinvisibleDVDinsertionslot
• ElectronicTouchScreenfunctionsincludeDVD,Radio,USB,&MP-3/4
• FrontPaneldisplaywhenthemonitorisclosed
• Frontpanel“HumanEQBarGraph”display
• ElectronicTouchScreenfunctionsincludeOSDfunctions
• (Optional)NavigationBlackBoxModulewithNavteqmapsofNorth 
 America
• DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX
• MenuscanbedisplayedonscreenviaOSD(fourteenlanguages)
• 30-secondelectronicanti-shockmechanism
• AccessoryI-PodInputConnection(CablenotIncluded)
• USBminiinputforMP-3Music,DiVx,Xvid&MP-4Movies
• IRRepeaterforExternalRemoteEye
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• Built-inTVtuner
• AM/FMwith30pre-sets(18/FM–12AM)
• AutoStorepre-setscan
• 4-channelhighpower50x4channels(mosfetpower)
• DualRCAoutputs(Front&Rear)
• SubWooferSelectableFrequencyOutputs(80,120Hz)
• VariableSubWooferVolumeControl
• 1-AuxiliaryVideoInputforBack-upCamera
• 1-A/Vinforsecondarysourceinput
• 1-RCAVideoOutput
• LO/DXandstereomonoselectorswitch
• Electronic(Bass,Treble,Volume,Balance,Fader)
• Pre-setEQfunctions(Rock,Pop,Classic,Jazz,User)
• DigitalClock
• DVD,PAL/NTSCselectable
• USA/Europefrequencystepping
• Resolution:1440x234
• Panelbrightness350NIT
• ISO/DIN
• Fullfunctionremotecontrol
• 4screenmodes
• LastpositionDVDmemory

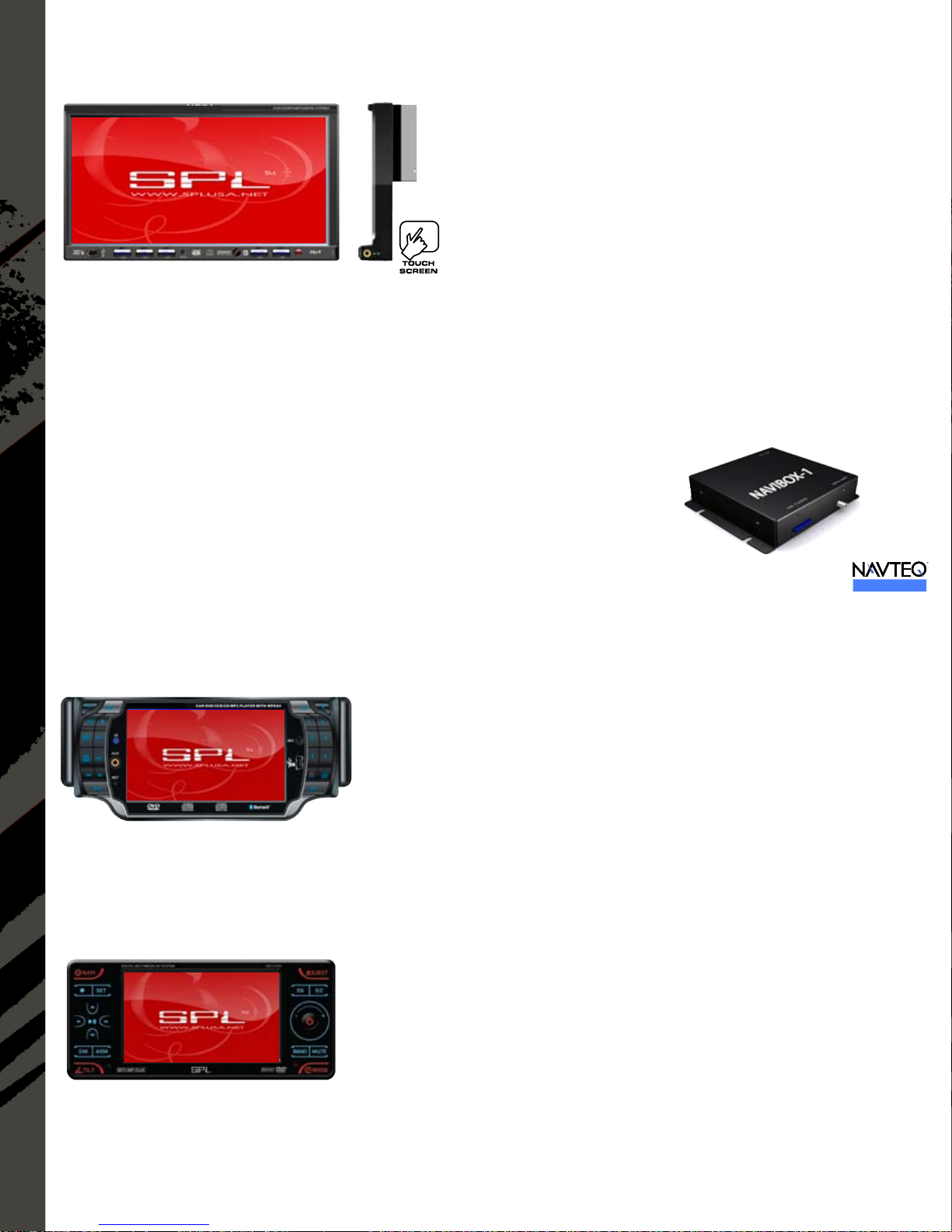

SID-7205N
7” WIde toucH screen douBle-dIn In-dasH MotorIzed tFt MonItor/dVd/aM/FM
SID-8904N
7” WIde toucH screen In-dasH Fully MotorIzed tFt MonItor/dVd/aM/FM
• FullyMotorizedscreentelescopesoutandupincludingfronttobackangling
• DropdownDetachableFrontpanelforinvisibleDVDinsertionslot
• ElectronicTouchScreenfunctionsincludeDVD,Radio,USB,&MP-3/4
• FrontPaneldisplaywhenthemonitorisclosed
• ElectronicTouchScreenfunctionsincludeOSDfunctions
• (Optional)NavigationBlackBoxModulewithNavteqmapsofNorth
 America
• DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX
• MenuscanbedisplayedonscreenviaOSD(fourteenlanguages)
• 30-secondelectronicanti-shockmechanism
• AccessoryI-PodInputConnection(CablenotIncluded)
• USBminiinputforMP-3Music,DiVx,Xvid&MP-4Movies
• IRRepeaterforExternalRemoteEye
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• AM/FMwith30pre-sets(18/FM–12AM)
• AutoStorepre-setscan
• 4-channelhighpower50x4channels(Mosfetpower)
• DualRCAoutputs(Front&Rear)
• SubWooferSelectableFrequencyOutputs(80,120Hz)
• VariableSubWooferVolumeControl
• 1-AuxiliaryVideoInputforBack-upCamera
• 1-A/Vinforsecondarysourceinput
• 1-RCAVideoOutput
• LO/DXandstereomonoselectorswitch
• Electronic(Bass,Treble,Volume,Balance,Fader)
• Pre-setEQfunctions(Rock,Pop,Classic,Jazz,User)
• DigitalClock
• DVD,PAL/NTSCselectable
• USA/Europefrequencystepping
• Resolution:1440x234
• Panelbrightness350NIT
• ISO/DIN
• Fullfunctionremotecontrol
• 4screenmodes
• LastpositionDVDmemory
• FullyMotorized4positiondropscreenwithlast  
 anglememory
• (Optional)NavigationBlackBoxModulewith 
 NavteqmapsofNorthAmerica
• ElectronicTouchScreenfunctionsincludeDVD,Radio,USB,&MP-3/4
• DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX
• MenuscanbedisplayedonscreenviaOSD  
 (fourteenlanguages)
• 30-secondelectronicanti-shockmechanism
• AccessoryI-PodInputConnection(CablenotIncluded)
• USBminiinputforMP-3Music,DiVx,Xvid&MP-4Movies
• SDCardSlotforMP-3MusicorMP-4Movies  
 (memorynotincluded)
• FrontPanelAux-inforEarphoneOutputofMP-3players
• IRRepeaterFunctionforExternalRemoteEye
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• AM/FMwith30pre-sets(18/FM–12AM)
• AutoStorepre-setscan
• 4-channelhighpower50x4channels(Mosfetpower)
• DualRCAoutputs(Front&Rear)
• SubWooferSelectableFrequencyOutputs(80,120Hz)
• VariableSubWooferVolumeControl
• 1-AuxiliaryVideoInputforBack-upCamera
• 1-A/Vinforsecondarysourceinput
• 1-RCAVideoOutput
• LO/DXandstereomonoselectorswitch
• Electronic(Bass,Treble,Volume,Balance,Fader)
• Pre-setEQfunctions
 (Rock,Pop,Classic,Jazz,User)
• DigitalClock
• DVD,PAL/NTSCselectable
• USA/Europefrequencystepping
• Resolution:1440x234
• Panelbrightness350NIT
• ISO/DoubleDIN
• Fullfunctionremotecontrol
• 4screenmodes
• LastpositionDVDmemory

16
SID-4300
4.3” WIde dIn sIze In-dasH Fully MotorIzed tFt MonItor/dVd/aM/FM
• Ghostfrontpanelwithfeathertouchsensorcontrols
• FullyMotorized3positiondropscreenwithlastanglememory
• Alltransportfunctionsby(feathertouchcontrols)
• DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX
• AllDVDfunctionsaredisplayedonscreenviaOSD
 (eightlanguages)
• 30-secondelectronicanti-shockmechanism
• SDCardSlotforMP-3Music,Divx3.1,MP-4Movies
 orJ-Pegpictures(memorynotincluded)
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• AM/FMwith18pre-sets(12/FM–6AM)
• AutoStorepre-setscan
• 4-channelhighpower50x4channels(Mosfetpower)
• DualA/VInputs
• 1-RCAOutputDualRCAoutputs(Front&Rear)
• SubWooferSelectableFrequencyOutputs(80,120)
• Electronic(Bass,Mid,Treble,Volume,Balance,Fader)
• Pre-setEQfunctions(Rock,Pop,Classic)
• DVD,PAL/NTSCautoselect
• Digitalclock
• USA/Europefrequencystepping
• Resolution:1440x272
• Panelbrightness350NIT
• DINMount
• LastPositionDVDMemory
• Fullfunctionremotecontrol
• DualZone

SID-7100n
7” WIde toucH screen 1-dIn oVersIzed Fully MotorIzed tFt MonItor/dVd/aM/FM
SID-4306
4.3” WIde toucH screen dIn sIze In-dasH Fully MotorIzed tFt MonItor/dVd/aM/FM
• FullyMotorized4positiondropscreenwithlastangle 
 memory
• DetachableFlipDownFrontPanel
• ElectronicTouchScreenfunctions
• DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX
• OSDOnScreenDisplay(sixlanguages)
• 11BackGroundScreenSaverOptions
• 30-secondelectronicanti-shockmechanism
• USBminiinputforMP-3Music&MP-4Movies
• SDCardAdaptorforUSBinput
• FrontPanelAux-inforMP-3players
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• AM/FMwith30pre-sets(18/FM–12AM)
• AutoStorepre-setscan
• 4-channelhighpower40x4
• 1-A/Vinforsecondarysourceinput
• 1-RCAOutput
• RearCameraInput
• LO/DXandstereomonoselectorswitch
• Electronic(Bass,Treble,Volume,Balance,Fader)
• SubwooferOutput
• Pre-setEQfunctions(Rock,Pop,Classic)
• DVD,PAL/NTSCselectable
• USA/Europefrequencystepping
• Panelbrightness300NIT
• ISO/DIN
• Fullfunctionremotecontrol
• LastPositionDVDMemory
• FullyMotorized4positiondropscreenwithlastanglememory
• (Optional)NavigationBlackBoxModulewithNavteqmapsofNorth
 America
• ElectronicTouchScreenfunctions
• DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX
• AllfunctionsaredisplayedonscreenviaOSD(fourteenlanguages)
• 30-secondelectronicanti-shockmechanism
• AccessoryI-PodInputConnection(Cablenot
 Included)
• USBminiinputforMP-3Music,DiVx,Xvid&
 MP-4Movies
• SDCardAdaptorforUSBinput
• FrontPanelAux-inforAudio/VideoMP-3/ 
 MP-4players
• IRRepeaterforExternalRemoteEye
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• AM/FMwith30pre-sets(18/FM–12AM)
• AutoStorepre-setscan
• 4-channelhighpower50x4channels
 (Mosfetpower)
• DualRCAoutputs(Front&Rear)
• SubWooferSelectableFrequencyOutputs
 (80,120,160Hz)
• VariableSubWooferVolumeControl
• 1-AuxiliaryVideoInputforBack-upCamera
• 1-RCAVideoOutput
• LO/DXandstereomonoselectorswitch
• Electronic(Bass,Treble,Volume,Balance, 
 Fader)
• Pre-setEQfunctions(Rock,Pop,Classic, 
 Jazz,User)
• DigitalClock
• DVD,PAL/NTSCselectable
• USA/Europefrequencystepping
• Resolution:1440x234
• Panelbrightness350NIT
• ISO/DINMount
• LastPositionDVDMemory
• Fullfunctionremotecontrol
NAVIBOX-1
PluG-n-Play sMall naVIGatIon Box Module WItH naVteq MaP Works WItH coMPatIBle
Head unIts
• Touchscreencontrolwithcompatibleheadunits
• Plug-n-playeasyinstallation&mounting
• 2GigabyteSDcardwithallUSAandCanadamapand7
 millionpointsofinterest
• 8Megflashmemory,64MegSDRAM
• 20parallelreceivingchannels
• OS2.6.xLinuxbasedsoftware400MHz.processorforfast
 recalculationtimes
• Theabsolutelatestintechnology“SirfStarIIIchipset”
• Turnbyturninstructions(Male&Female,Southernaccent,
 Urbanaccent)
• ChoiceofQuickestRouteorShortestRoute
• Dimensions:4.1”x4.2”x1”
• 2-D&3-Dviewingofthemapsonscreen
• IncludingGPSantenna
• 15footA/Vinterfacecable
NavigatioN Ready veRsioN that uses NaviBoX-1 NavigatioN BoX will Be availaBle fRom apRil 2008
CompatiBle model: sid-7205N, sid-8940N, sid-7100N
ONBOARD

17
SID-4100

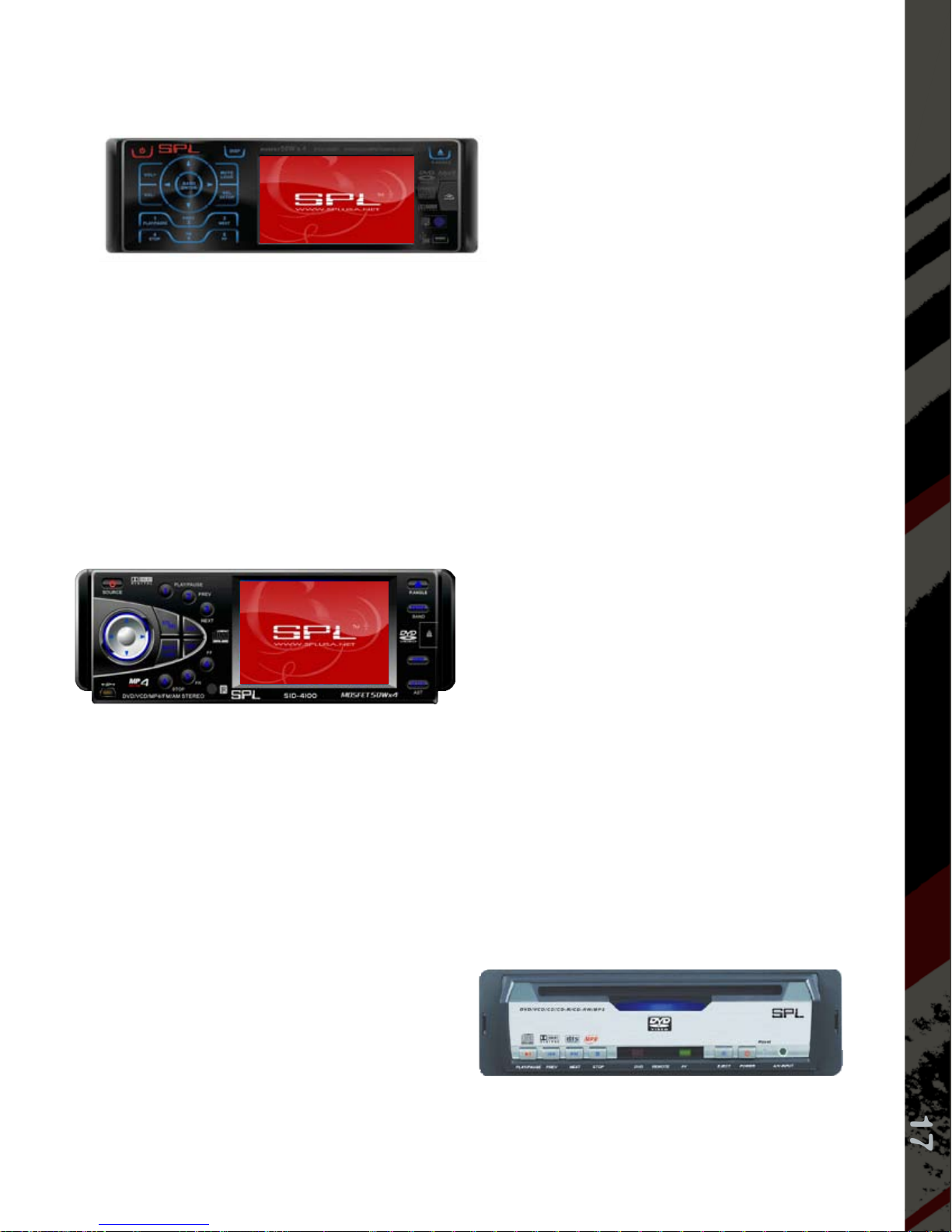

3.6” 4:3 ratIo dIn sIze In-dasH Fully MotorIzed tFt MonItor/dVd/aM/FM
SDVD-3600
In-dasH dVd, MP3, cd, cdr, cdrW Player
• SlotLoadingDVDforMultipleAngleMounting
• In-Dash,Floor&UnderDashMountingBrackets
• FrontPanelA/VRCAInputs
• LastPositionMemory
• DolbyPro-logic/DTSCompatible
• RemoteControl
• AccessoryRemoteEye
• FullyMotorizeddetachable5positiondropscreenwithlastanglememory
• DVD,CD,MP-4,MP-3,CDR,CDRW,JPEG,MPEG
• NTSC/PALcompatible
• AllfunctionsaredisplayedonscreenviaOSD(sixteenlanguages)
• 30-secondelectronicanti-shockmechanism
• AccessoryI-PodInputConnection(CablenotIncluded)
• USBminiinput(excludingcable)forMP-3MusicorMP-4Movies
• AM/FMwith30pre-sets(18/FM–12AM)
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• 4-chhighpower50x4-ch(mosfetpower)
• AutoStorepre-setscan
• 5.1outputsDolbyDigitalOutput(Front,Rear&2fixedfreq.Sub)
• 1-AuxiliaryInputforBack-upCamera
• 1-A/Vinforsecondarysourceinput
• 1-RCAA/VOutput
• 1Videoinputforrearviewcamera
• LO/DXandstereomonoselectorswitch
• Electronic(Bass,Treble,Volume,Balance,Fader)
• Pre-setEQfunctions(Rock,Pop,Classic)
• PAL/NTSCselectable
• Panelbrightness300NIT
• ISO/DIN
• LastpositionDVDmemory
• Fullfunctionremotecontrol
• OSDOnScreenDisplay
• DigitalAnti-shock
• NTSC/PALSelectable
• DINSizeTrimRingForDashMounting
• Dimensions:6.4”x6.2”x2”
SID-4700
3.6” WIde razor look dIn sIze In-dasH Fully MotorIzed tFt MonItor/dVd/aM/FM
• FullyMotorizeddetachable5positiondropscreenwithlastanglememory
• Razorfrontpanelwithback-litELsheetfornightviewing
• DVD,CD,MP-4,MP-3,CDR,CDRWPlayerNTSC/PALcompatible
• AllfunctionsaredisplayedonscreenviaOSD(sixteenlanguages)
• 30-secondelectronicanti-shockmechanism
• SDCardSlotforMP-3MusicorMP-4Movies(memorynotincluded)
• AccessoryI-PodInputConnection(CablenotIncluded)
• USBminiinputforMP-3MusicorMP-4Movies
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• TelephoneMutetriggerwireforBlueToothadaptation
• AM/FMwith30pre-sets(18/FM–12AM)
• 4-channelhighpower50x4channels(mosfetpower)
• Subwooferoutput
• 1-AuxiliaryInputforBack-upCamera
• 1-A/Vinforsecondarysourceinput
• 1-VideoOutput
• LO/DXandstereomonoselectorswitch
• Electronic(Bass,Treble,Volume,Balance,Fader)
• Pre-setEQfunctions(Rock,Pop,Classic)
• DigitalClock
• DVD,PAL/NTSCselectable
• Panelbrightness300NIT
• ISO/DINMount
• Fullfunctionremotecontrol
• 4screenmodes
• LastpositionDVDmemory
• FullyMotorized4positiondropscreenwithlastangle 
 memory
• DetachableFlipDownFrontPanel
• ElectronicTouchScreenfunctions
• DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX
• OSDOnScreenDisplay(sixlanguages)
• 11BackGroundScreenSaverOptions
• 30-secondelectronicanti-shockmechanism
• USBminiinputforMP-3Music&MP-4Movies
• SDCardAdaptorforUSBinput
• FrontPanelAux-inforMP-3players
• Antennatriggerwire
• Amplifiertriggerwire
• Brakescreensafetytrigger
• AM/FMwith30pre-sets(18/FM–12AM)
• AutoStorepre-setscan
• 4-channelhighpower40x4
• 1-A/Vinforsecondarysourceinput
• 1-RCAOutput
• RearCameraInput
• LO/DXandstereomonoselectorswitch
• Electronic(Bass,Treble,Volume,Balance,Fader)
• SubwooferOutput
• Pre-setEQfunctions(Rock,Pop,Classic)
• DVD,PAL/NTSCselectable
• USA/Europefrequencystepping
• Panelbrightness300NIT
• ISO/DIN
• Fullfunctionremotecontrol
• LastPositionDVDMemory
ONBOARD

18
Gray Beige BlackDark Gray
ceiling monitors
M-1004CMgR (gRAY) / M-1004CMBg (BEIgE/NEUTRAL)
10.4” sWIVel tFt/lcd FlIP doWn
• SlimandCompactDesign
• EasyInstallation
• NTSC/PALAutoSelect
• OnScreenDisplaywithRemoteControl
• 1Video/Audio(R/L)Inputs
• 1A/VOutput
• 2Screenmodes(letterboxed&fullscreen)
• Rearpanel(AuxiliaryInput)
• Built-inIRtransmitterforwirelessheadphones
• Domelights
• Resolution:1600x320
• Brightness:380NIT
PACkAgES:
M-1004Pkg/g (gRAY)
M-1004Pkg/B (BEIgE/NEUTRAL)
10.4” MonItor WItH sdVd-3600 tWo WlHP-100
HeadPHones and aVc-17
a/V caBle
headrest monitors
SH-8gR (gRAY), SH-8gRDk (DARk gRAY), SH-8Bg (BEIgE), SH-8Bk (BLACk)
sInGle Pre-loaded unIVersal rePlaceMent Headrest MonItor
• 8.8”Wide(16:9)ActiveMatrixTFT/LCD
• 3.5minifrontpanelAudio/Videoinput
• 1Audio/VideoInputs
• Built-insinglechannelIRTransmitter
• OSDonScreenDisplay
• SwivelScreenAdjustmentforBetterViewingAngle
• FullFunctionRemoteControl
• PoleDiameterOptions5/8or7/16
• PolewidthAdjustments4”~8.5”
• PanelBrightness:400NIT(ultrahighresolution)
• Resolution:1440x234
• Dimensions:8.9”Hx13.9”W

19
Black
headrest monitors
SHD-95gR (gRAY) / SHD-95gRDk (DARk gRAY)
SHD-95Bg (BEIgE) / SHD-95Bk (BLACk)
2 Pre-Installed unIVersal Headrests WItH 9.5” WIde screen tFt/lcd MonItors
M-700
7” WIde (16:9) Headrest MonItor
• AmorphousActiveMatrixTFT/LCD
• IncludingPre-CurvedHeadrestAdaptor
• AdjustableInstallationDepthShroud
• 4ScreenModes(Full,Cinema,Wide,Zoom)
• InjectionMoldedCase
• OSDOnScreenDisplay(NTSC&PAL)Selectable
• SingleVideoInput
• RemoteControl
• Resolution:1440x234
• StandIncluded
• Dimensions:7“x5”x.9”
• Brightness:400NIT
M-717
7” WIde (16:9) Headrest MonItor
• AmorphousActiveMatrixTFT/LCD
• 2Audio/VideoInputs
• Built-inIRforWirelessHeadphones
• PAL/NTSCSwitchable
• OSDonScreenDisplay
• RemoteControl
• SwingStyleHeadrests
• 4screenModes(Full,Wide,Cinema,Zoom)
• PanelBrightness:300NIT
• Resolution:640x480
• AdjustablePoleDistance4.75”~7.5”
• PoleDiameter5/8”or7/16”
PolediameterOptions
5/8”or7/16”
Mimimum4.75”

Maximum7.7”
• AmorphousActiveMatrixTFT/LCD
• 2Audio/VideoInputs
• IRRepeaterFunctions,controls(SDVD-3600,6100)
• OSDonScreenDisplay
• RemoteControl
• 2screenModes(letterbox&full)
• InjectionMoldedCase
• NTSC/PALswitchable
• PanelBrightness:350(highresolution)
• Resolution:1440x234
• Dimensions:6¾x41/8x13/16

20
HP-10S
FoldaBle sInGle cHannel Ir WIreless HeadPHone
• EVAhardcarryingcaseincluded
• AdjustableHeadphoneStrapsforComfort
• ReceivesBroadcastsupto180DegreesfromTransmitter
• On/OffSwitchSavesBatteryLife
• AutoPowerOffFunction
• AutoMuteFunction
• VariableVolumeControl
• ALCAutoLevelControl
HP-22IRT 
2 sWIVel ear Pad sInGle cHannel Ir WIreless
HeadPHones WItH transMItter
• EarPadsfoldflatforseatpocketstorage
• EVAhardcarrycaseincluded
• AdjustableHeadphoneStrapsforComfort
• ReceivesBroadcastsupto180Degreesfrom
 Transmitter
• MuteControl
• MP-3PlayerInputVia3.5mmJack
• On/OffSwitchSavesBatteryLife
• AutoPowerOffFunction
• AutoMuteFunction
• VariableVolumeControl
• ALCAutoLevelControl
HP-11S
sWIVel ear Pad sInGle cHannel Ir WIreless HeadPHone
•AdjustableHeadphoneStraps
• EarPadsfoldflatforseatpocketstorage
• EVAhardcarrycaseincluded
• AdjustableHeadphoneStrapsforComfort
• ReceivesBroadcastsupto180DegreesfromTransmitter
• MuteControl
• MP-3PlayerInputVia3.5mmJack
• On/OffSwitchSavesBatteryLife
• AutoPowerOffFunction
• AutoMuteFunction
• VariableVolumeControl
• ALCAutoLevelControl
HP-900S
sWIVel ear Pad 2-cH rF 900MHz WIreless HeadPHone
HP-902RFT
2 sWIVel ear Pad 2-cH rF 900MHz WIreless HeadPHones
WItH transMItter
• EarPadsfoldflatforseatpocketstorage
• Operationaldistance100ft.
• SelectableProgramSourceInputs
• EVAhardcarrycaseincluded
• AdjustableHeadphoneStrapsforComfort
• AutoMuteControl
• Built-inMonitoringFunction
• MP-3PlayerInputVia3.5mmJack
• On/OffSwitchSavesBatteryLife
• AutoPowerOffFunction
• VariableVolumeControl
• ALCAutoLevelControl
WLHP-100
WIreless InFrared HeadPHone
•AdjustableHeadphoneStraps
•SingleChannelUHFIRTXWaveHeadPhoneReceiver
•ReceivesBroadcastsUpTo180OFromTransmitter
•ON/OFFSwitchSavesBatteryLife
•VariableVolumeControl
•ALCAutoLevelControl
•AutoOffandautoMute
HEADPHONE
• EarPadsfoldflatforseatpocketstorage
• Operationaldistance100ft.
• SelectableProgramSourceInputs
• EVAhardcarrycaseincluded
• AdjustableHeadphoneStrapsforComfort
• AutoMuteControl
• Built-inMonitoringFunction
• MP-3PlayerInputVia3.5mmJack
• On/OffSwitchSavesBatteryLife
• AutoPowerOffFunction
• VariableVolumeControl
• ALCAutoLevelControl
