Splendor 5200 User manual

ITEM PART # QTY DESCRIPTION
A 882 1 Tub Track with T- Fin
B 884 2 Wall Jamb
C 113 6 Plastic Wall Anchor
D 110 6 #8 x 1 1/2” Pan Head Screw
E880 1 Tub Header
F 2 Glass Panels
G 185 4 Vinyl Jamb Bumpers
H 115 4 #6 x 3/4” Pan Head Screws
I 116 4 #6 x 32-3/8” Hex Head Screws
J 132 4 Roller Bearing
Parts
K 153 1 Bottom Guide
L ETB 2 Towel Bar
M 119 3 #6 X 1/2” Pan Head Screws
N 886 4 Hanger Bracket - Attached
E
M
B
C
D
G
H
D
F
A
MKF
B
C
D
G
H
D
M
J
I
L
I
J
L
GH
D
G
H
D
N (4)
Elite Series 5200 / 6200
Installation Instructions
REV-08/2017
Page 1

Installation Notes
Unpack your unit carefully. Lay out and identify all parts using the instruction sheets as a
reference. Before discarding the carton, check for any small hardware bags.
If any parts are damaged or missing, refer to the description noted in the instructions when
contacting your dealer for replacements.
Please wear safety glasses whenever drilling or cutting.
Handle the glazed panels carefully; tempered glass is dicult to break, but the sharp corners
of the panels can damage tile and oor coverings.
Before installing, check the tub rim for level and both walls for plumb. If either are out of
plumb more than 3/8”, you may want to contact your dealer for tapered llers which can be
used to level tub track or plum the side jambs.
.
.
.
.
.
Caution: Tempered glass cannot be cut or drilled
Tools
Hacksaw Philips Screwdriver Level #32 and 3/16” Drill Bit Drill
Tape Measure Silicone Mallet
Masking Tape Safety Glasses
REV-08/2017
Page 2

SETTING the TUB TRACK with VINYL
1.
1a
1c
2a
1b
Measure
Exterior
A
MARKING for WALL JAMB
2.
B
A
B
Step 1a.
Measure from wall-to-wall, 1/2” above the sill and
cut the tub track (A) 1/16” short of these dimensions.
.
Step 1c.
.
Step 1b.
.
.
Use a level to plumb both wall jambs (B), then mark the
pre-drilled hole locations on the wall. You can use a center punch
or pencil.
Lightly mark along both sides of the tub track (A) with a pencil.
Remove all parts and drill the walls using a 3/16” drill bit (for tile or
marble use 3/16” masonry bit). Insert wall anchors (C) into holes.
Step 2a.
.Position the tub track in the center of the tub rim with
the tall leg facing the exterior. It may be necessary to le a
radius on the ends of the tub track and wall jambs to match
the corners of the tub.
Press both wall jambs (B) into position over the tub track.
Masking tape can be used to temporarily hold parts in place.
Note: Attachments to berglass or acrylic can be made in two ways:
if reinforcement is built into the wall of the unit, drill six 1/8” diameter
holes and install the screws directly into the reinforcement.
If wall is not reinforced, drill 3/16” holes and install
plastic wall anchors (C).
REV-08/2017
Page 3

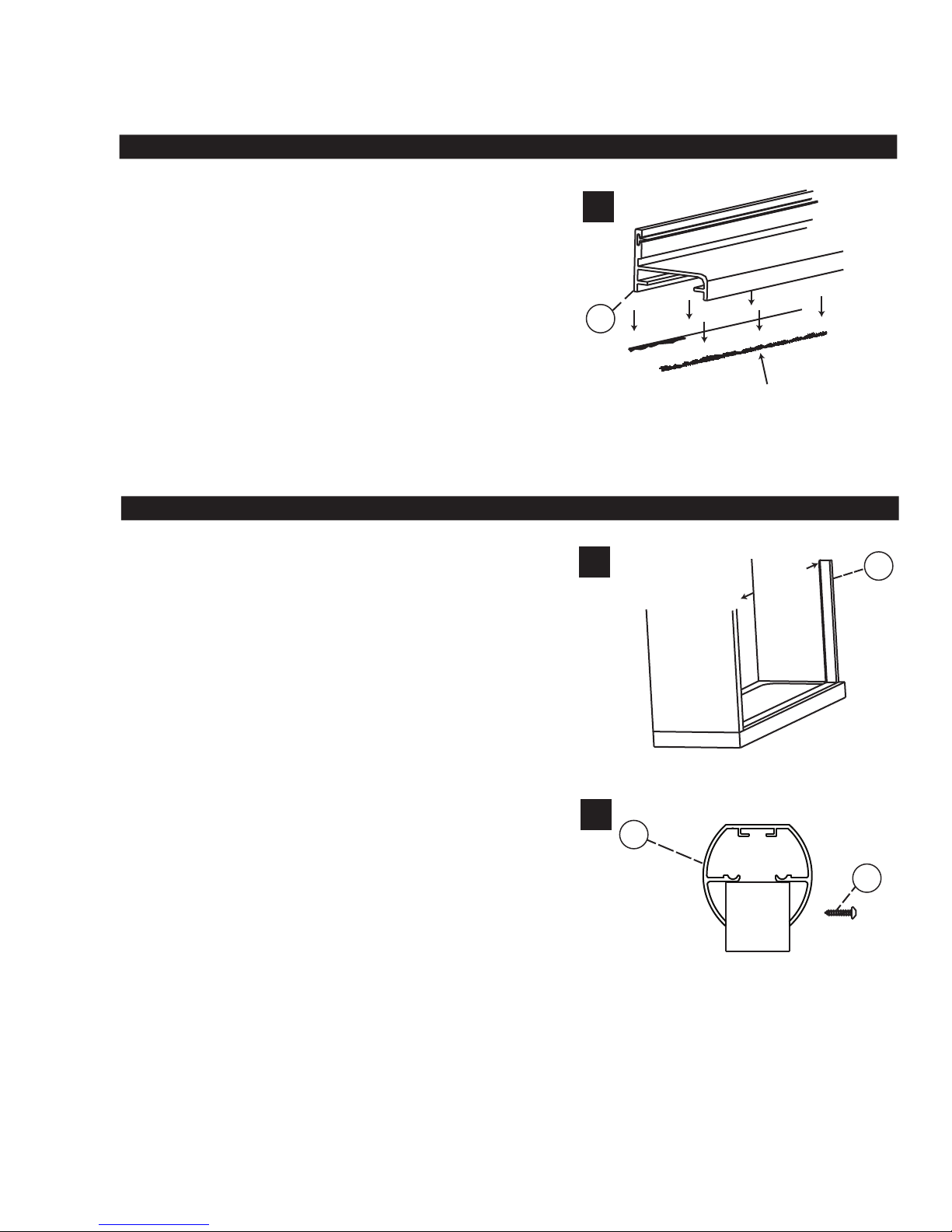

SECURING the TUB TRACK
3.
3a
4a
FITTING the TUB HEADER
4.
A
Measure
- 1/16”
B
Place silicone along previously
pencil marked tub rim
4b
E
M
REV-08/2017
Page 4
Step 3a.
Before replacing tub track (A), force a slight downward
bow in the middle of extrusion. This will ensure that the track
ts tight to the tub.
Run two beads of silicone inside the penciled mark on the tub rim.
Place the stay clean sill in the exact position you marked in step 2a
and set it rmly in the silicone.
Silicone the end where stay clean sill (A) meets the wall.
Replace wall jamb (B) and attach to wall with #8 X 1 1/2” screws (D).
Do not over tighten jamb screws.
.
.
Measure from wall-to-wall at top of the wall jambs, subtract 1/16”
from this dimension and cut the tub header (E) to its nished
length. Set the header in place over the top of the wall jambs (B).
Step 4a.
.
.
From the inside of the enclosure, drill one hole (#32 drill bit )
through the header and the wall jamb on each end of the header.
Attach the header to the tub jamb using two #6 X 1/2”screws (M).
.
.
Step 4b.
.

To install panels, attach the four nylon roller bearings (J) to
the door panels using four #6-32 X 3/8”hex head screws (I)
centered in the slots in the top ns. Patterned glass is always
installed with the rough surface of the glass to the exterior of
the unit.
.
Step 5a.
.
.
.
.
.
To set slider glass in place, hold interior panel inside of
tub, insert rollers up into header and lower into roller track.
Step 5b.
Next, insert lower end of exterior slider panel in front of interior
slider panel by pushing lower ends far enough in to allow
clearance on inside edge of tub. Avoid roller-to-roller contact while
lifting panel into place.
The inside slider panel will close against wall jamb on showerhead side.
Step 5c.
Next, push vinyl jamb bumpers (G) into side jambs (B)
approximately 1” below top screw and bottom screw.
Align the slot in the bumper with the outer rail of the slider panel
and mark holes through the bumper and drill with #32 drill bit.
Screw bumper in with #6 X 3/4” pan head screw (H). Repeat on
other side. Do not over tighten or rubber can tear rubber with movement.
Step 5e.
Step 5d.
.The interior panel should always be positioned closest to the
showerhead for maximum waterproong, as shown in illustration.
.
INSTALL the GLASS PANELS
5.
5a
J
I
G
B
Rough Exterior
Rough Exterior
5b
5c
5e
5d
F
Outside
Inside
Inside
Outside
REV-08/2017
Page 5
H

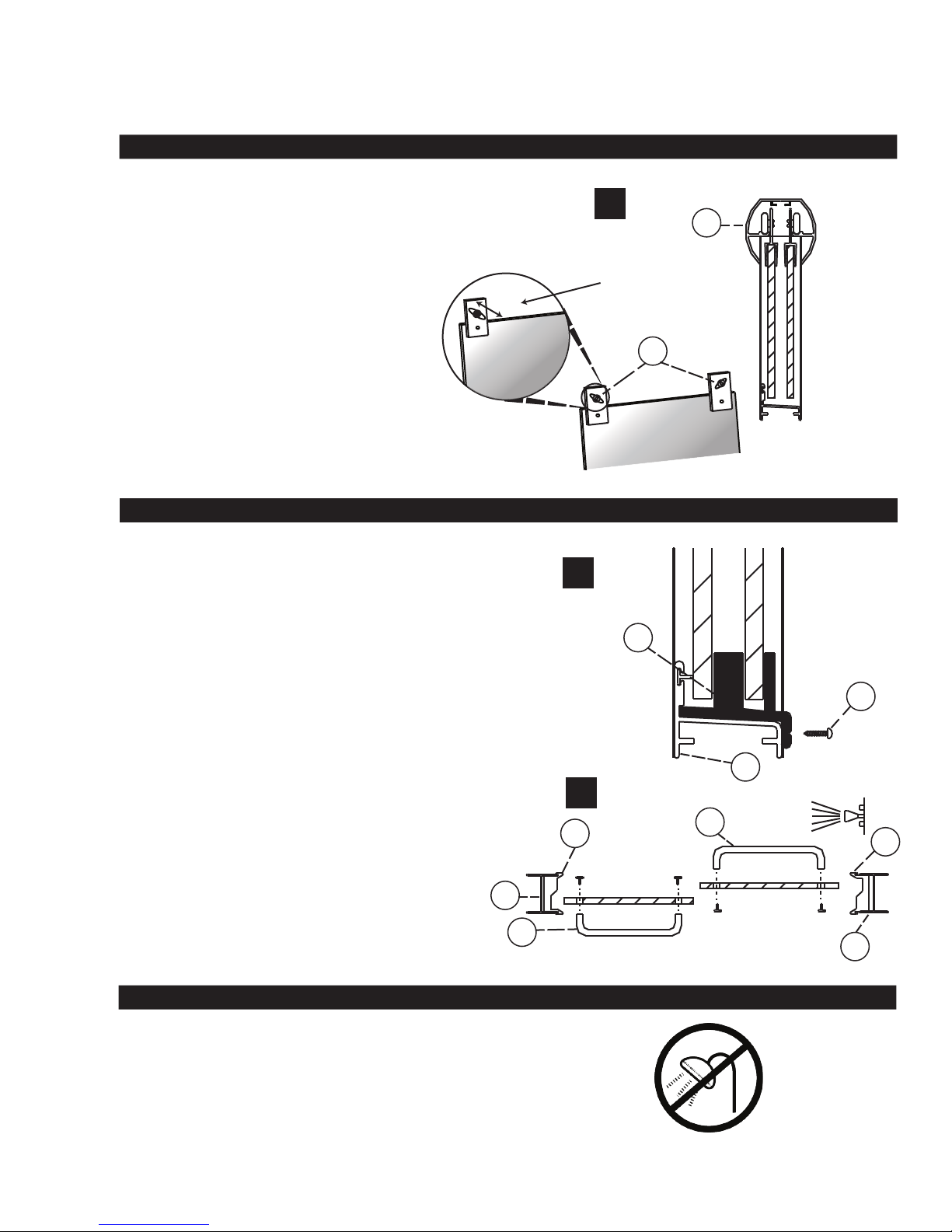

Step 6a.
Locate the nylon bottom guide (K) in the center of the
tub track (A) and place the center guide into place.
Using the factory holes as a template, drill through hole into
track with # 32 drill bit.
Attach center guide with #6 X 1/2” pan head screw (M).
.
.
.
Units include two Euro towel bars. These should be enclosed
in a sealed box with all components attached. If back of knob
hits when rolling enclosure, take clear plastic spacers o.
Install on glass using the diagram below as reference.
.
Step 6b.
INSTALL the GLASS PANELS CONTINUED
5.
6a
CENTER GUIDE
6.
.
Step 5f.
If the door panels are not parallel to their respective wall jambs,
remove and adjust rollers up or down in their slots to compensate
for out of plumb walls.
5f
J
Adjust roller in slot
6b
E
Interior
K
A
M
B
GL
G
B
L
Step 7a.
Silicone the entire unit where metal meets wall and curb.
We recommend you let silicone set for 24 hours before
using shower
24hrs
.
SILICONE SETUP
7.
