Srivaru Motors Prana User manual

1
Prana Grand Motorcycles
User Manual

2
Message from the Founding Team!
Dear Prana Owner and SVM Customer,
We heartily congratulate you on owning a Prana, revolutionized personal commuter solution. We also
salute your pioneer leadership in choosing to embrace a healthier lifestyle.
Prana (Engineered by SVM) is a high-performance premium class motorcycle, designed to treat you with
smooth rides the way you choose!. Just like your body, Prana has simple care instructions for smoother
operation.
Prana uses Electrical energy stored in the Battery to power itself, this also means you can have the
convenience of full-tank every morning from your comfortable home.
Prana has unique features such as “mode” which caters the power based on the mode selection. We
recommend you to Practise riding and then experience the drive and sports modes. You Prana also has
Reverse mode to help you with ease of operation.
Please remember that even when the torque setting is set to a slow (Practise) setting, the torque on these
motors is virtually instant. This means that opening the throttle will propel the motorcycle to a rapid
speed almost instantly.
For developing good riding skills this is a wonderful feature, as it will help you to learn the throttle
control gradually with lower power. In Drive and Sports mode, it delivers quite a bit of power and
acceleration.
Your Prana has great capabilities and can grow with the skills of the rider to very high levels of
performance, but it is important to start slow and speed up as you improve.
Thanks again for purchasing a wonderful Prana from SVM. Enjoy your smooth, fast, fun and safe rides!
For every km you drive in the Prana you are avoiding the harmful emission into your local atmosphere.
We expect to share your privilege and pleasure with your friends and family.
On Behalf of the founding team,
Mohanraj Ramasamy
Founder & CEO,
Srivaru Motors Pvt Ltd.
Visit us at www.srivarumotors.com

3
Table of Contents
INTRODUCTION 4
VEHICLE IDENTIFICATION NUMBER (VIN) & MOTOR NO 4
SAFETY INFORMATION 5
KEY FUNCTIONS 6
GOOD RIDING GUIDELINES 6
VEHICLE OVERVIEW 7
SPECIFICATIONS – PRANA 9
BEFORE THE FIRST RIDE 9
CHARGING 10
SELF HEALING 10
BRAKES 12
TYRES 13
FRONT WHEEL REMOVAL AND INSTALLATION 13

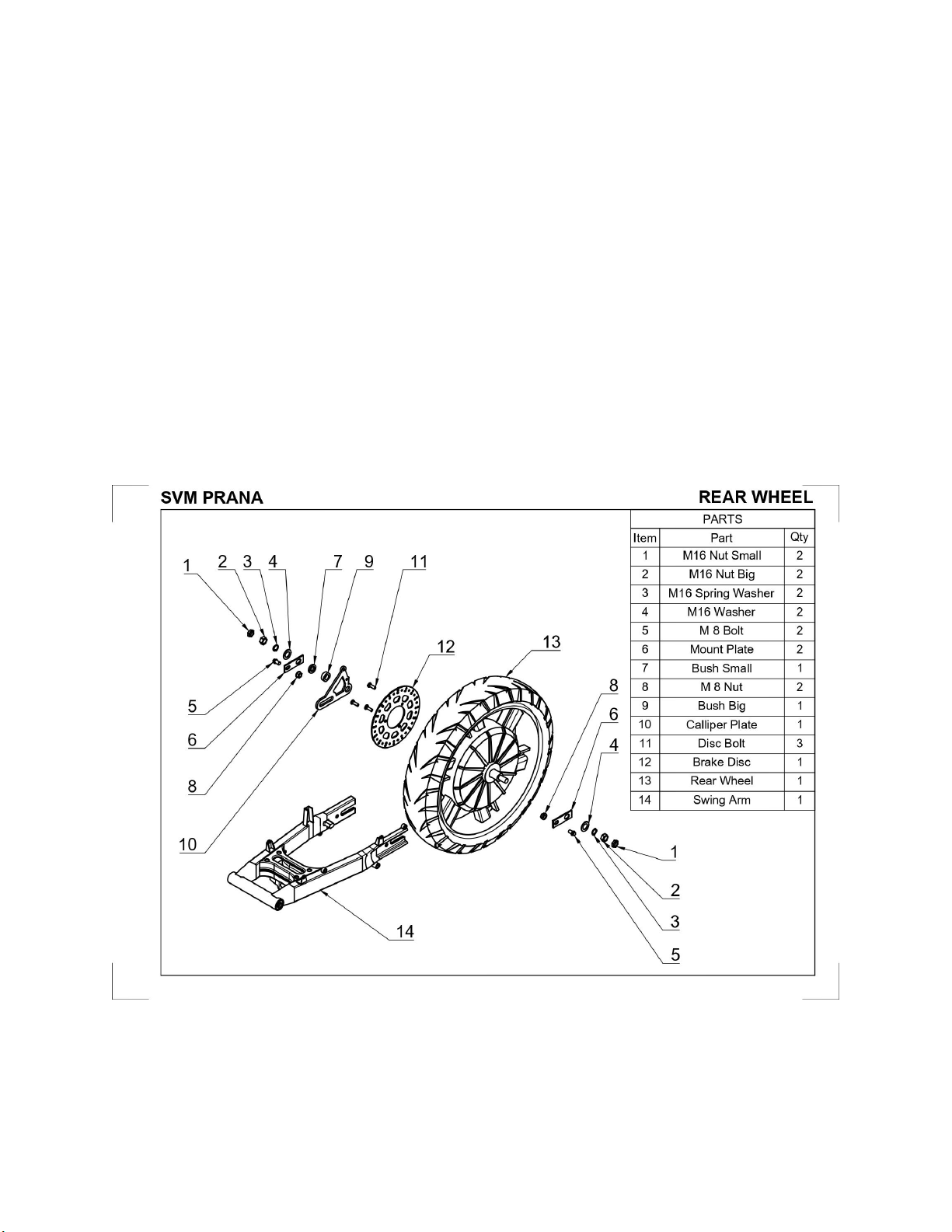

REAR WHEEL REMOVAL AND INSTALLATION 14
BATTERY USE, CARE AND MAINTENANCE 17
CHARGING THE BATTERY 17
BATTERY REMOVAL AND INSTALLATION 17
RIDING INSTRUCTIONS & SAFETY TIPS (NOVICE RIDERS) 18
RANGE AT SINGLE CHARGE 19
LIMITED WARRANTY 22

4
INTRODUCTION
PLEASE READ THIS SAFETY INSTRUCTION MANUAL PRIOR TO OPERATION !
Understanding the operation and safety instruction helps to have a smooth experience with Prana. It is
important to fully understand the features of the motorcycle. This manual contains Important information
that every owner must fully understand. Please read this manual carefully and completely before
operating your Prana. Do not attempt to operate the motorcycle until you have attained the adequate
knowledge of its controls and operating properties. You can seek out to your SVM contact to receive
training and safe riding techniques.
Please read, understand and follow all Warning, Caution and Note notes on your Prana all-
electric motorcycles. If you do not understand any of this important information, please contact your
selling dealer/distributor or the SVM Customer Service Department (Whats-app [phone] or
www.srivarumotors.com/contacts)

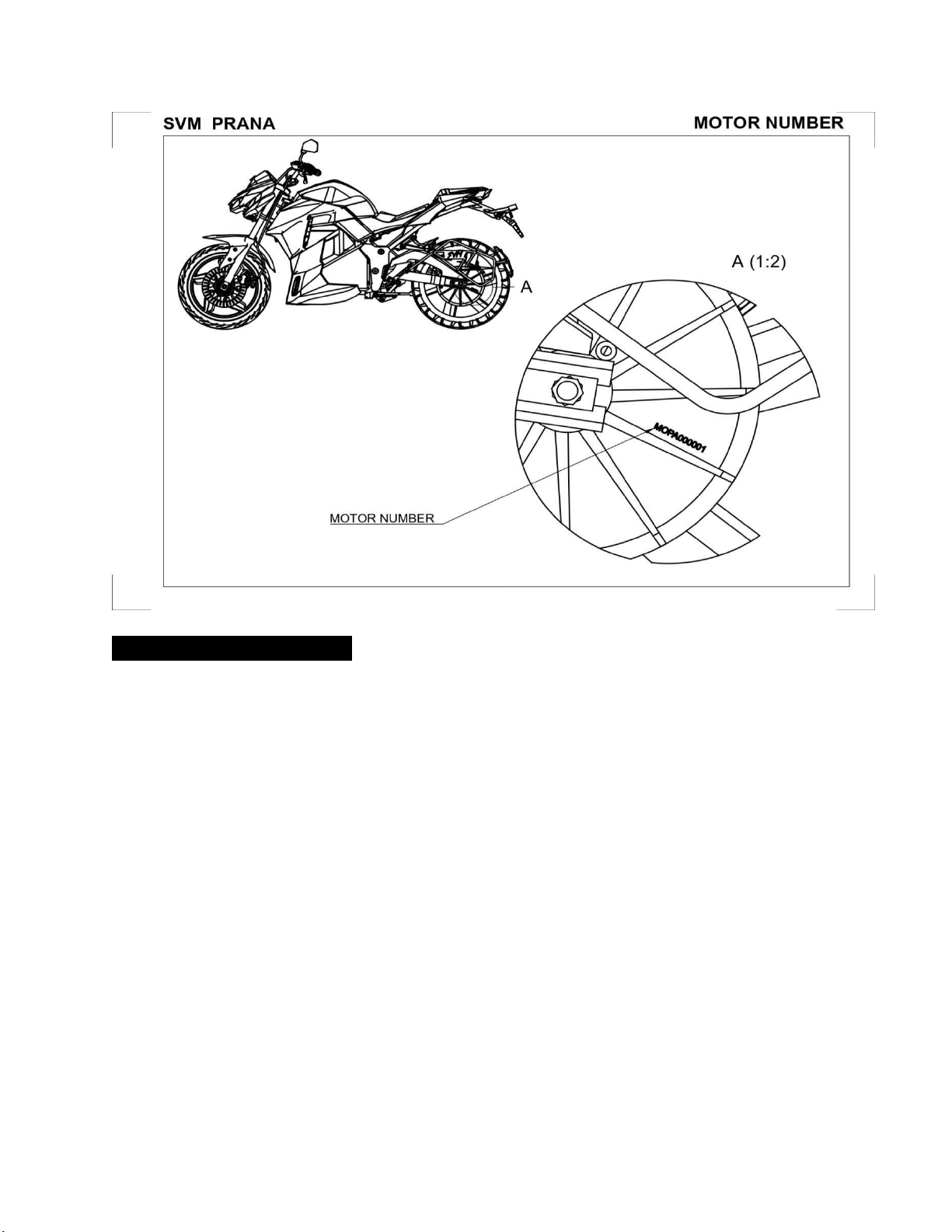

VEHICLE IDENTIFICATION NUMBER (VIN) & MOTOR NO
Serial numbers of frame and motor can help for vehicle identification & assist dealer for operating parts
or referring to the product service related information.

5
SAFETY INFORMATION
WARNING: DRIVING LICENSE REQUIRED
Prana needs driving license to drive.
Failure to obey all of the warnings & instructions contained in this manual may result in serious injury or
death and/or permanent damage to your Prana.
This motorcycle is for personal use only and is not intended for commercial purposes. The use of this
Prana for commercial purposes, such as rentals, will void all warranties.
Maintain proper posture while riding. The posture of the rider is important for proper control of the
motorcycle. The rider should keep both hands on the handlebars and both feet on the footrests during
operation in order to maintain control of the motorcycle. Never ride under the influence of alcohol or
other drugs.
HELMETS
Always follow these instructions for protective equipment for every ride in order to limit the risk of
injury in case of an accident. The rider and passenger should wear standard good quality helmet. Helmet
is the single most critical factor to reduce injuries in case of accident.
Don’t ever allow your Prana motorcycle to be ridden without helmet

6
KEY FUNCTIONS
MODE SELECTION :
Prana has 4 driving modes, the driving mode selector is located in the left-hand side of the handlebar.
The mode controls the amount of power the Prana will deliver & also limits the top-speed. Please check
the mode selector prior to every ride to ensure predictable operation. Page #10 has a detailed mode
selection function.
ELECTRIC DRIVETRAIN:
Prana has all electric direct drive system. It frees you from complex gear changing and clutch function
so that you can focus on driving and enjoy the surroundings. Prana is elite than the regular petrol
motorcycle.
REGENERATIVE BRAKING:
Prana turns into power generator while braking. It helps to gain electricity otherwise wasted as heat.
Therefore it has faster braking action and easy on tyres.
ENGINE ON AS SOON AS POWER IS ON:
Prana’s engine is ON as soon as the key is turned ON. Be aware that your motorcycle is still ON when
stopped and while at an “idle”. Accidentally twisting the throttle can quickly accelerate the vehicle &
cause harm. Use the kill switch to cut-off the engine/motor.
GOOD RIDING GUIDELINES
1. Prana motorcycle is designed to drive with a maximum of two people.
2. Long hair, loose clothing or items worn by the rider must be covered to prevent entanglement in
moving parts of the vehicle or the surroundings while riding.
3. Do not exceed the weight limit. Heavier riders may significantly reduce performance and/or render the
vehicle unstable and/or over-tax the brakes and other control devices.
4. Do not touch any moving or hot parts.
5. Do not ride on steep or uneven surfaces. Steep or uneven surfaces greatly increase the likelihood of
loss-of-control.
6. Do not ride faster than the conditions permit for safe operation. Excess speed greatly increases the
likelihood of loss-of-control.
7. The rider should be securely seated on the vehicle ready to ride before turning the power switch on.
NOTE:
Many motorcycle accidents are caused by rider error. A typical error made by motorcycle riders is
veering wide on a turn due to EXCESSIVE SPEED or under cornering due to insufficient lean angle
for the given speed.
OBEY ALL LAWS:
SVM bikes are for ON ROAD USE ONLY. Prana motorcycle cannot be used on OFF roads. The
purchaser, owner, and/or riders of this motorcycle are directly responsible for ensuring that they obey
all local, state, federal and national laws regarding the riding and use of this motorcycle.
BATTERIES:
Prana is equipped with Lithium-ion batteries. Go to page no 16 learn about these batteries and the correct
charging procedure.

7

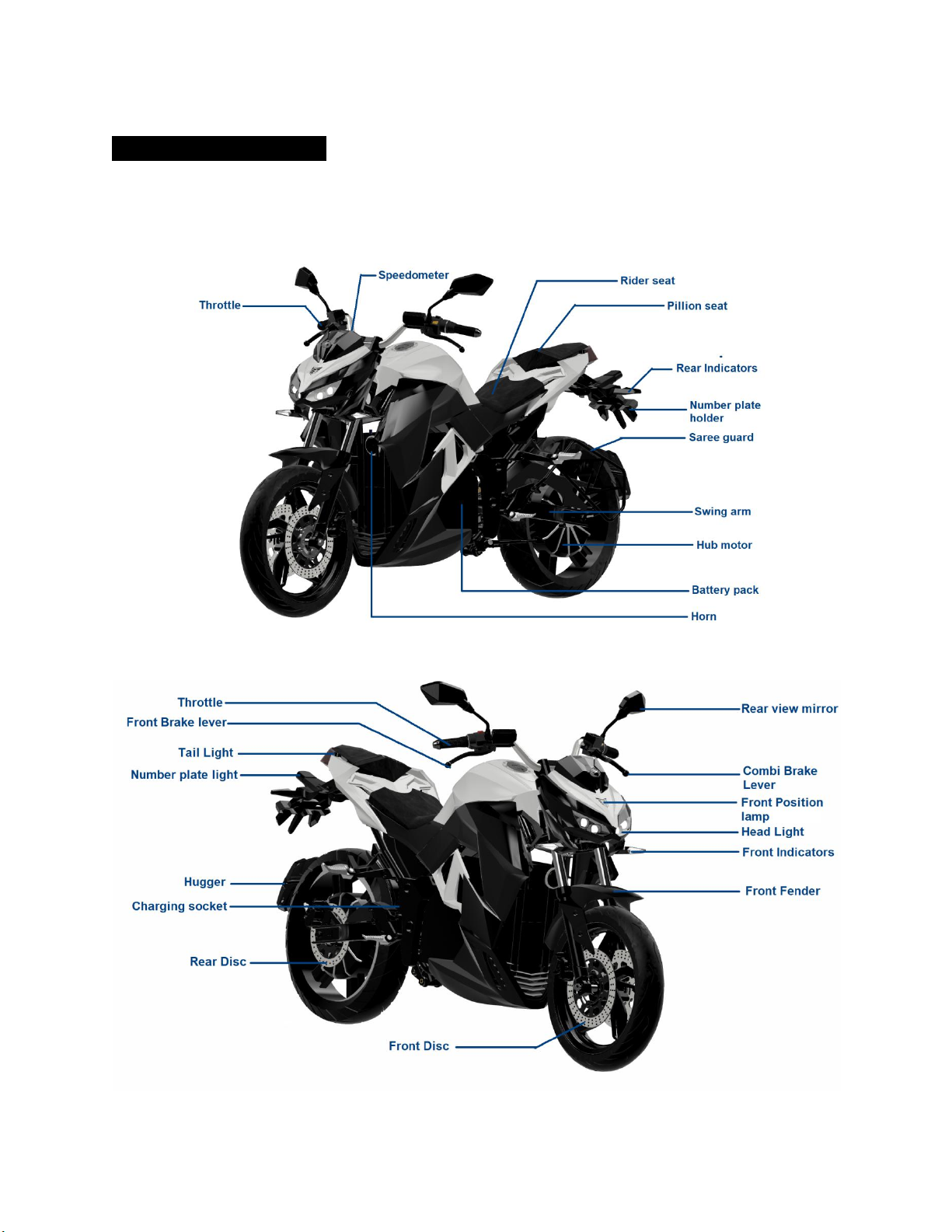

VEHICLE OVERVIEW
Prana from SVM.
Prana is designed to be an elite vehicle for people who are demanding better engineering from
unwanted vibration, harmful emission. The Prana is designed to be used by youths and adults who love
faster but cleaner personal commute solution. Powerful PRANA opens the door to a whole new riding
experience

8

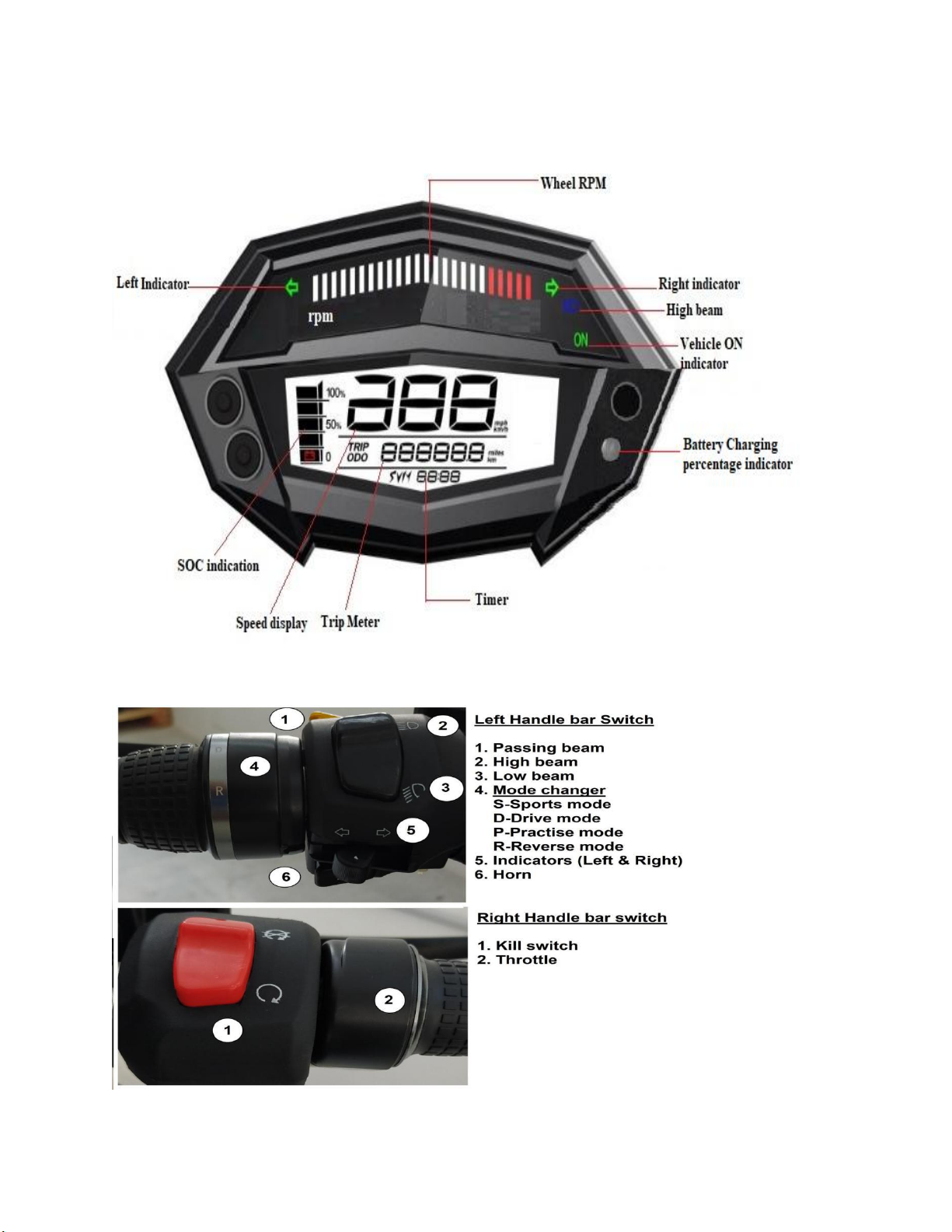

INSTRUMENT CLUSTER :
MOTORCYCLE CONTROLS:

9
SPECIFICATIONS – PRANA
TOP SPEED
123 Kmph
WEIGHT
165 Kg
MOTOR POWER
4000W
CONTROLLER
Space vector and direct torque controller.
AC CHARGING
IEC<60320>, BS 546 - 15A plug
HEAD LIGHT
Dual LED
BATTERY CAPACITY
72V, 60 Ah
TRANSMISSION
Direct Drive System
MAXIMUM TORQUE
39NM
FRAME TYPE
Steel double cradle tube frame
WHEEL BASE
1413 mm
OVERALL WIDTH
770 mm
OVERALL LENGTH
2120 mm
SEAT HEIGHT
775
OVERALL HEIGHT
1295mm
GROUND CLEARANCE
145mm
BRAKES
Front: Dual Hydraulic Disc Brake System with 275mm discs
Rear: Hydraulic Single Disc Brake System with 240mm disc
Combi regenerative braking system
FORK
Telescopic Suspension
SHOCK ABSORBER
Swing arm (link suspension)
TIRES
Front: 110/70/R17
Rear: 140/60/R17
single rider(front : 29 Psi, rear : 29 Psi), Rider with Pillion
(front : 29 Psi, rear : 32Psi)
CARRYING CAPACITY
180kg
COLORS
Progressive Green, Perfect White, Mystery Black, Passionate Red
BEFORE THE FIRST RIDE
FIRST SETUP:
1. Check the tire pressure of both tires and confirm that they are properly inflated. The optimal tire
pressure for the Prana is 28-33 PSI for general use.
2. Compress each brake lever. The lever should not compress completely to the handlebar. Each
individual brake should hold the bike securely when you push the motorcycle against the brake.
THROTTLE KILL SWITCH:
Kill or lock switch is located on the right-hand side of the handlebars. Activate kill/lock switch while
stopped or parked.
MODE CHANGER:
Mode changer allows the selection riding profile. The P - stands for Practise Mode, D - stand for Drive
Mode, S - stands for Sports Mode. Always check the mode selection before accelerating.

10
MODES AND SPEED PROFILE
1.PRACTISE MODE: Maximum Speed of 48 km/hour with smooth acceleration,
2.DRIVE MODE: Maximum Speed of 123 km/hour with smooth acceleration,
3.SPORTS MODE: Maximum Speed of 123 km/hour with aggressive torque.
4.REVERSE MODE: Reverse driving with maximum speed of less than 5 km/hour
* All mentioned speeds are under standard testing conditions.
While driving the vehicle, forward to forward can be shifted, the response of the vehicle changes all of a
sudden. Either from the forward to reverse or reverse to forward, The vehicle starts to move only after the
idle condition.
CHARGING
CHARGING PORT
When it’s time to recharge the bike, Just Plug a 15A cord to power socket in your home and charge the
vehicle up to 4~4.5 hours for a full charge or until the charging state LED glows steady green.
CHARGE INDICATOR
The LED battery charge indicator is located on the Speedometer. The LED blinks GREEN for 2
seconds when the charger is plugged in.
LED : Red light keeps on(standby mode (normal power, no battery)
LED : Red light flashes slowly, normal charging (less than 50% charged)
LED : Yellow light flashes Slowly, normal charging (less than 75% charged)
LED : Green light flashes slowly, normal charging (less than 100% charged)
LED : Green light keeps on, fully charged
SELF HEALING
● Automatic Motor Temperature Management.
● Controller Self-Diagnostics & Self-Healing
● Automatic Thermal & Power Management in the Energy system.
MAINTENANCE:
Prana requires significantly less maintenance compared to traditional gas bikes since they have very
few moving parts, no fuel burning engine, and no exhaust. The brake fluids and disc need normal
routine maintenance. Our authorized dealers have extensive experience and know the SVM motorcycle
in and out, so they can provide high-quality service for your SVM Bikes.
BEFORE EACH RIDE:
● Check the air pressure
● Check the throttle and brake controls.

11
DAILY MAINTENANCE, CLEANING AND WASHING:
Keep your Prana clean and dry. Regularly check all components for tightness and adjustment,
including handlebars, levers, axles, brakes.
CLEANING :
Cleaning is extremely important. This will ensure your PRANA to serve you for a long time. In the long
run, it will save you money and a lot of time waiting for the PRANA to be repaired. You should clean
your PRANA weekly. Clean gently but thoroughly. Do not use aggressive power jets or water sprays
when washing the Motorcycle. Recommended to use a soft wet cloth to wash and wipe the vehicle.
Keep water out of the battery as much as you can. After cleaning make sure that vehicle parts are dry
and clean. While cleaning, it is a good opportunity to look closely for a worn, loose, cracked, rust,
teared or damaged parts. For any assistance, contact your dealer.
Make sure that the charger port is closed before cleaning.
LUBRICATION
A clean, lubricated Motorcycle tends to be faster, smoother and quieter. Apply the lubricant to the brake
levers, side stand and wipe out the excess lubricant with a rag. After a while, clean the parts with a
degreaser to remove any excess dirt that has been collected.
WEATHER
Avoid the PRANA out in the rain, snow and sunlight. Do not open up the motor, battery, and charger
casings, etc. as you are unlikely to be able to reseal them effectively afterward, making them more
susceptible to water damage and other extreme weather conditions.
CAUTION:
Do not use any harsh chemical products on plastic parts. Be sure to avoid using cloths or sponges which
have been in contact with strong abrasive cleaning products, solvent or thinner, fuel(gasoline), rust
removers or inhibitors, brake fluid, antifreeze, or electrolyte.
NOTE :
After washing the motorcycle, allow all of the electrical components to dry prior to operation. If the
motorcycle is ridden after being washed, apply both brakes several times in order to remove any
moisture from the brake pads.
WARNING!
Do not operate your Prana if any damage is apparent. Immediately contact your local retailer/
distributor or SVM Customer Service.
There are no user serviceable elements incorporated into the motor, motor controller, batteries, battery
charger, throttle or wiring harness of your PRANA.

12
TO DISASSEMBLE OR ADJUST ANY COMPONENT
Doing so may cause extensive damage to these components, will void your warranty and may result in
danger to persons and/ or property. If you cannot resolve any problem using this owner’s manual,
contact your SVM authorized dealer, or call the SVM Customer Service for assistance.
BRAKES
FRONT BRAKE & COMBI BRAKE LEVERS

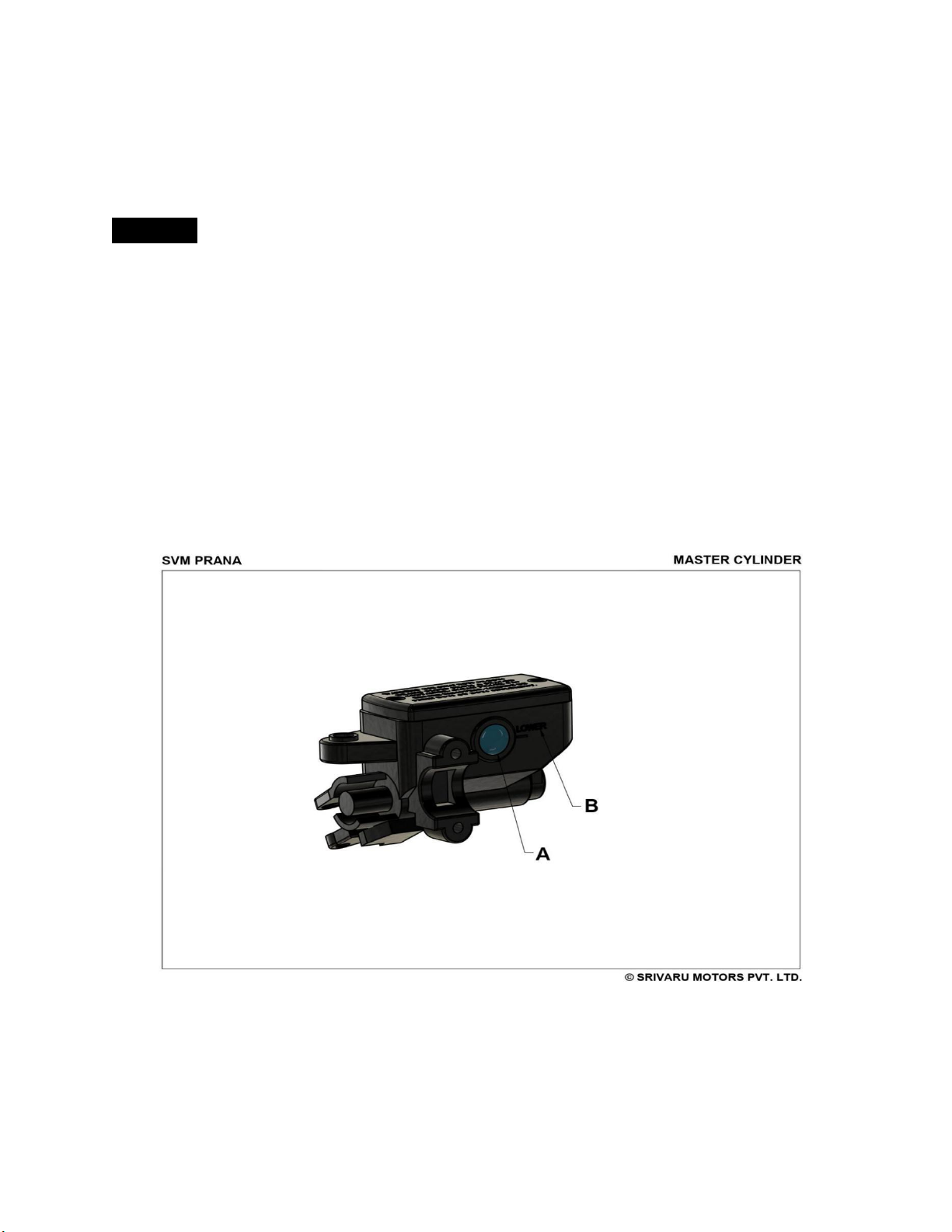

You can observe the master cylinder on the right and left side of the handle bar.
1) Check the master cylinder brake fluid level through the view piece glass (A).
2) Brake fluid (DOT 3 or DOT4) level should always above the lower mark (B) provided on the master
cylinder when the master cylinder is parallel to the ground.
3) If the brake fluid is below the mark or while applying brake is more spongy or ineffective due to air
entry, contact SVM authorized dealer for topping-up the brake fluid, air bleeding and other brake related
inspections.
BRAKE PAD WEAR INDICATOR:
Visually check the brake pads wear. If the wear is beyond the wear indicator groove as shown in the
figure, then replace the brake pads as a set with a new one.

13
TYRES
TYRE PRESSURE :
Check the tyre pressure at least once a week, if not more frequently. Insufficient air pressure in the tyres
not only hasten tyre wear, but also seriously affects the stability of the vehicle.
Under inflated tyres make smooth cornering difficult and over inflated tyres decreases the tyre contact
with the ground which can lead to skidding and loss of control, Be sure the tyre pressure is within
specified limits at all times.
Solo Pillion
Front
2.0 kg/cm2 or 29 Psi
2.0 kg/cm2 or 29 Psi
Rear
2.0 kg/cm2 or 29 Psi
2.25 kg/cm2 or 32 Psi
TYRE ROTATION DIRECTION:
While re assembling the
tyre, after removing from
the wheel rim ensure that
arrow mark provided on
the tyre facing the
direction of wheel
rotation.
TYRE TREAD CONDITION :
Operating the vehicle with excessively worn tyres will decrease the riding stability and can lead to loss
of control.
It’s recommended to replace the tyre when the tyres wear off to the tyre wear indicator level
FRONT WHEEL REMOVAL AND INSTALLATION
1. Turn OFF the miniature circuit breaker (MCB) located under the Pillion rider seat.
2. Lift the bike onto a block or stand so that both wheels are off the ground.
3. carefully remove the Calipers from Fork and loosen the axle bolts and lower the wheel away from the
front fork
4. To re-install the wheel, reverse the above procedure and ensure the wheel is aligned correctly and the
axle bolts are tight. .
5. Spin the wheel to ensure it is centered and Rotates freely.

14
REAR WHEEL REMOVAL AND INSTALLATION
1. Turn OFF the miniature circuit breaker (MCB) located under the Pillion rider seat.
2. After switching off MCB, wait for 2-3 minutes, because fully charged capacitor in controller needs
time to discharge. Remove the side fairing, seat, tank and then remove Power wire & Hall sensor
connection from the Power Controller.
3. Lift the bike onto a block or stand so the wheels are off the ground. Remove the caliper from Disc.
4.In case the wheel need to be fully removed, the motor cables need to be disconnected along with
controller cable. Do it carefully and put back to the same place during installation.
5. Loosen the axle bolts.
6. Pull back on the wheel to remove it.
7. To re-install the wheel, reverse the above procedure and ensure the wheel is aligned correctly and the
axle bolts are tight.

15

16

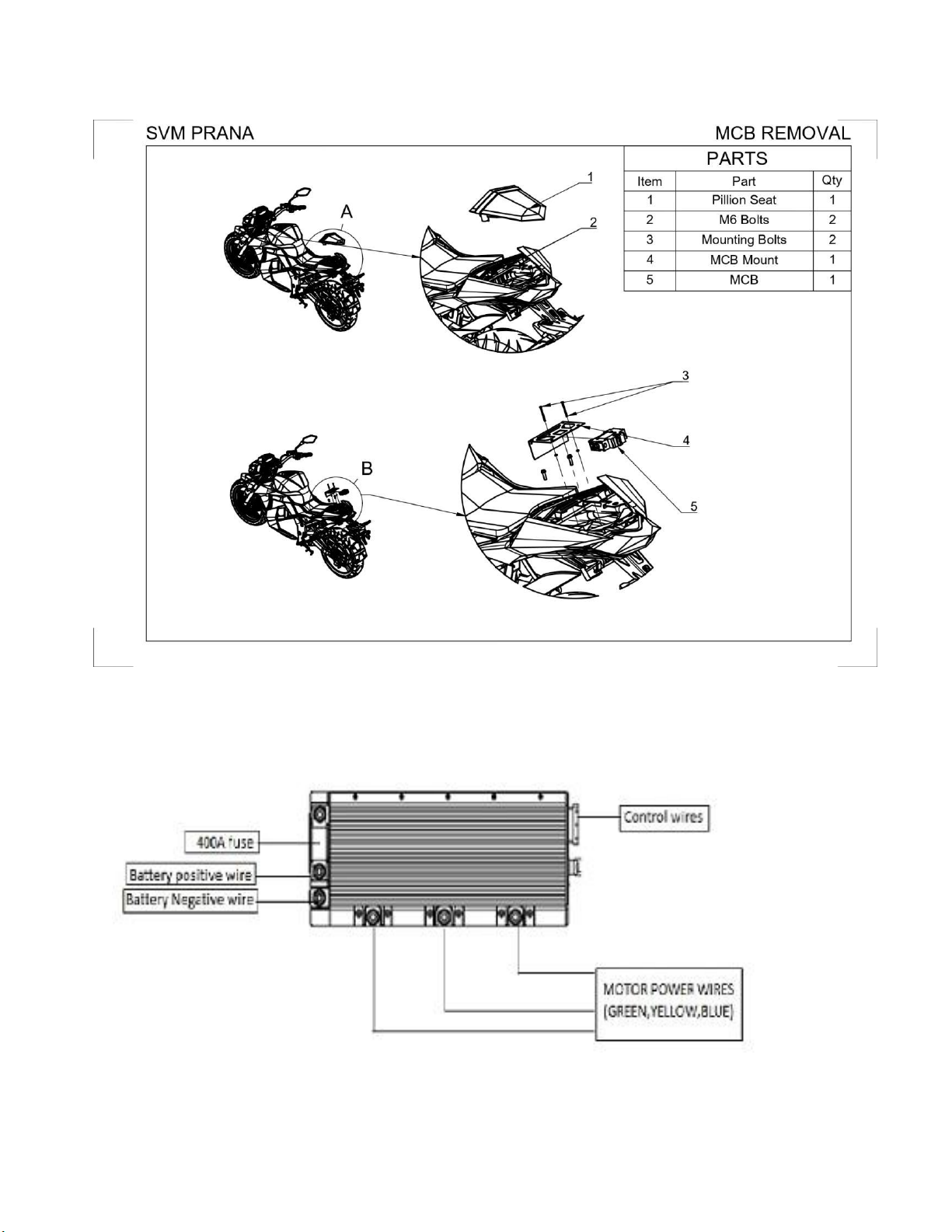

CONTROLLER TERMINALS

17
BATTERY USE, CARE AND MAINTENANCE
For the proper use, maintenance and storage of the battery, it is critically important that you follow
and understand the instructions in this manual. If you have any questions about the battery or its
usage, please do not hesitate to contact the SVM Customer Service Department.
WARNING!
1)Don’t use this battery with any other vehicle or appliance. Use of this battery with any other product
will void the warranty and may create a hazardous situation that may cause a fire resulting in severe
injury or death, and/or damage to property.
2)Never short-circuit the discharge terminals of the battery.
A short circuit will damage the battery and may cause a fire resulting in severe injury or death, and/or
damage to property.
3)Never manipulate the battery, never open the battery pack and do not puncture the battery cover or the
battery itself.
4)Keep the battery away from excessive heat and/or open flames. Avoid long-term exposure to direct
rays from the sun light
5)To avoid damage to the battery, never subject it to intense physical shock or severe vibration.
CHARGING THE BATTERY
Always follow these steps when charging your PRANA.
1. Make sure your SVM-PRANA is turned off (key).
2. Connect the charger cable to an electrical outlet (AC 15A Socket).
3. Connect the other end of the charger cable C13 connector to the port on your bike.
The inbuilt charger is 15A, so that 60AH battery pack would take ~ 4 to 4.5 hours to fully charged.
Always use inbuilt vehicle charger for healthy charging.
BATTERY REMOVAL AND INSTALLATION
During normal use, SVM does not recommend removing the batteries from the Prana motorcycle. In
case you need to replace the battery or remove it, SVM highly recommends taking the motorcycle to a
certified technician or an SVM dealer.
WARNING!
Incorrectly connecting the battery wires to bike’s terminals may cause irreparable damage to motorcycle
electrical components.
LONG TERM STORAGE
If you do not plan to use your PRANA for an extended period of time (2 months or more), connect the
charger cable to power outlet and charge for 4 hrs. This will help to keep the battery fully charged.

18
BATTERY DISPOSAL
We carefully choose the Lithium battery with 2000 charging cycle to provide best battery life. After the
battery cycles are completely used, the battery can be disposed based on the lithium battery disposal
procedure. For guidance regarding proper disposal of your batteries, please contact the SVM Customer
Service.
RIDING INSTRUCTIONS & SAFETY TIPS (NOVICE RIDERS)
With the bike set up correctly, your SVM PRANA is ready to ride. The novice riders, please follow
these tips and instructions. The riders will get the most enjoyment if they feel safe and in control. Do
not be tempted to accelerate too quickly. Make sure the speed and power settings are set slow, to begin
with.
FIRST RIDE (NOVICE RIDERS)
Sit down on the bike and locate the controls while the bike is switched OFF. After you understand the
controls and are comfortable with them, it’s time for the first ride. For this, make sure you are dressed
correctly in suitable safety wear, helmet. The area for riding must be flat, open and safe, with no
obstacles of any kind. Set the drive mode to Practise.
1. Ensure the power is turned off.
2. Sit down on the bike, rock the motorcycle from side to side, and forward and back, to get
comfortable.
3. Switch the motorcycle ON, by switching the power switch to the ON position.
4. Before twisting the throttle, you should have your legs off the foot pegs and spread out.
5. Twist the throttle smoothly and slowly and set off.
6. Once comfortable, lift your feet onto the foot pegs as you ride.
7. Once stopped, turn the lock switch to lock position. & turn the power switch to the OFF.
BRAKING
For safe riding, it is very important to master the braking techniques
1. Release the throttle. While releasing the throttle, the vehicle itself undergoes regenerative
braking,
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brakes is safer
4. Apply both the brakes
5. Riding down hills, while cornering and wet roads, close the throttle, the regenerative braking
helps to control the over speed.
WARNING
As the vehicle speed increases, the stopping distance also increases progressively. Be sure that you have
sufficient distance between you and the vehicle or obstruction ahead of you. Apply both brakes together
and with great care on a wet road or other slippery surfaces. Any abrupt braking on the slippery or
irregular roads can cause loss of rider’s control.

19
RANGE AT SINGLE CHARGE
The range depends upon the acceleration and deceleration of the vehicle. Soft braking / releasing the
throttle slows down the vehicle and adds the range. Hard braking decreases the range and stopping
distance of the vehicle.
TROUBLESHOOTING
Problem
Possible Cause
Solution
Prana doesn’t
turn on
Low battery
Charge the battery. A new battery
should have been charged for at
least 3 to 4 hours.
Check all connectors. Make sure
the charger connector is tightly
plugged into the charging port, and
that the charger cable is plugged
into the Power socket
Loose wires or connectors
Make sure power flow to the
Power socket switch is on.
Check all wires and make sure all
the connectors are tight
Controller May fault
Contact your local SVM authorized
service center for diagnosis and
repair
Prana stopped suddenly
MCB Tripped due to
short circuit or loose wires
An excessive overload, such as too
heavy a rider or too steep a hill,
could cause the Motor to overheat.
So 150 to 160 kg Weight is
suggested (maximum two
passengers recommended.)
Controller, DC-DC converter may
be fault.
Contact your local SVM
authorized service center for
diagnosis and repair
Run time less than 15 min per
charge
Motor or electrical switch damage
Charge the battery. A new battery
should have been charged for at
least 4 hours
Undercharged battery
Check all wires and connectors.
Make sure the battery connector is
tightly plugged into the charger
connector, and that the charger is
plugged into the power socket
The battery is old and will not
accept full Charge
Even with proper care, a
rechargeable battery doesn't last
forever. Average
battery life depends on product use
and conditions. Replace only with
an SVM authorize dealer
Brakes are not adjusted properly
Contact your local SVM authorized
service center for diagnosis and
repair.

20
Prana Running Sluggishly
Riding conditions are too
stressful
Use only on solid, flat, clean and
dry surfaces, such as pavement or
level ground
Tires are not properly inflated
The tires are inflated when
shipped, but they invariably will
lose some pressure
Prana runs sluggishly
Electric motorcycle is overloaded
Make sure you do not overload the
electric motorbike or block the air
vents or exceeding the maximum
weight limit, going up too steep on
a hill or towing objects behind the
product.
Sometimes the Prana doesn’t
run, but other times it does
Loose wires or connectors
Motor or Electrical switch damage
Check all wires around the motor
and all connectors to make sure
they are tight. Contact your local
SVM authorized service center for
diagnosis and repair.
Prana does not stop
Brakes are not adjusted properly
Contact your local authorized
service center for diagnosis and
repair.
Brake Pads/Disc are worn out or
there is oil or water on them
For more troubleshooting tips, a list of available replacement parts or to locate an authorized Service
Center in your area, visit our website at www.srivarumotors.com or call [phone] to speak to a
live Customer Service Representative
Emergency roadside assistance is standard on all SVM-PRANA for the duration of the warranty period.
Contact your authorized SVM bikes dealer for further information.
Product quality and customer satisfaction are critical ingredients to the success of SVM bikes. This
information is designed as a tool to help you understand how to efficiently service our products by
working with an Authorized SVM Dealer near you or a Regional Dealer Support Representative.
A question or a problem arises concerning service and warranty which cannot be resolved by an
authorized SVM Dealer or a Regional Dealer Support Representative, please contact SVM bikes
headquarters directly.
Contact: [e-mail]
