IW-H1

Owner’s Manual
More Powerful Than It Looks
… At least that's the case for the IW-H1 Elite. The eciently compact IW-H1 utilizes state of
the art Starke Sound LMF Technology™ that is proven to eectively reduce audio distortion.
This model now oers a rear enclosure shell ensuring easy installation perfect for limited
depth wall/ceiling assemblies. In addition to this we included rear aluminum hangers in
order to provide a stable mounting foundation thus diminishing its vibration factor. This
beautifully designed speaker can be installed as an in-wall or on-wall application.
Specifications IW-H1 Elite / Be
Max SPL output（1m）
Frequency response (±2dB)
Recommended amplifier power
Nominal impedance
Sensitivity (2.83v at 1m)
Drivers
Tweeter
Midrange
Bass driver
Cabinet Structure
Input terminals
Crossover
Boundary compensation
Grille
Finish
Color options
Full size
Weight
Shipping size
Shipping weight
Warranty
107dB
62Hz - 28kHz (Elite) / 62Hz-40 kHz (Be)
40 - 250W
4 ohms
89dB
1 inch / 4 inch / 5.25 inch
1 inch custom made softdome tweeter (Elite)
/ 1 inch Super Beryllium tweeter (Be)
LMF® technology inside*
4 inch carbon fiber cone with phase plug
LMF® technology inside*
5.25 inch Starke Carbon cone
LMF® technology inside*
Sealed
Binding posts(Press type)
Bare wire supported
3 way
300Hz / 2900Hz
None
Aluminum and Piano Lacquer
Piano black / Piano white / Piano red
H 15.1 x W 7 x D 5.1 inches
H 385 x W 180 x D 130 mm
17.6 lbs (8kg) / each
L 18.1 x W 8.1 x H 10.6 inches
L 461 x W 206 x H 270 mm
20.2 lbs (9.2 kg) / each
10 years (from original purchase date)

Owner’s Manual

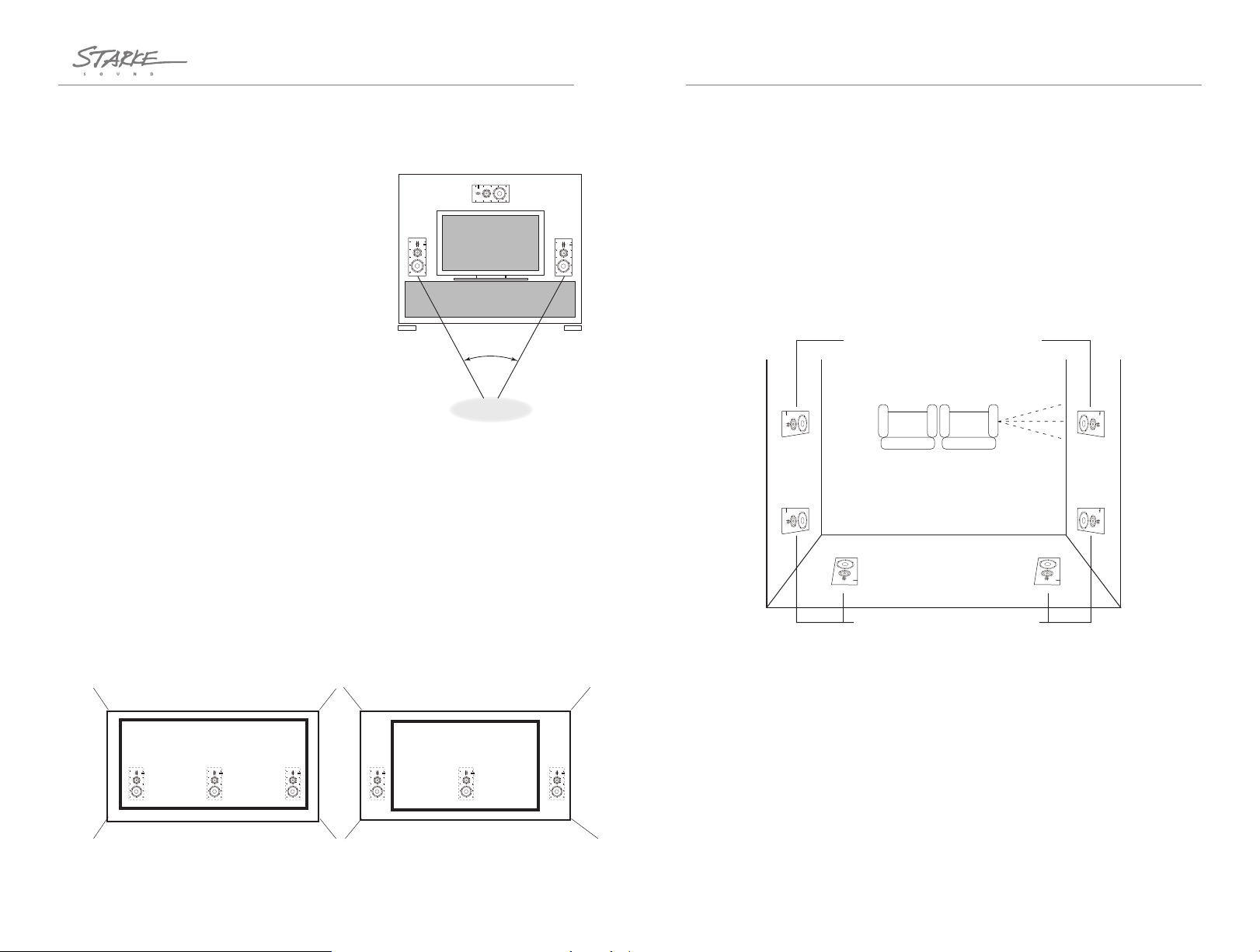

Location of Front Channel Speakers
Three loudspeakers are to be placed across in the
front of the listening room for the home theater
system. The width of the stereo image is
determined by the distance between the left and
right speakers. The image will be too narrow if the
speakers are placed too close together and,
conversely, if placed too far apart, the blend will
su!er creating a void in the middle section.
Your speakers should create a continuous "virtual
image" when properly placed from left to right. As a
result an illusion of sound outside, in front of, and
behind the speaker systems will be created.
Starke Sound recommends a 45 degree to 60
degree angular separation when viewed from
above. The distance between the speakers is 75% of
the distance from the speakers to the listener at the
minimum 45° separation. At the maximum 60°
separation the distance between the speakers is
equal to the distance from the speakers to the
listener.
In order to create a seamless sound image across the front of the speakers one must
carefully consider location and placement.
Optimally, there should an equal distance from the left, right, and center channel
speakers to the listener location.
The height of the midrange/tweeter module of the front channel speakers should be
installed as close as possible to the height of a seated listener's ears. The front channel
tweeters should be located within two vertical feet of that height.
Location of Surround Speakers
Starke Sound has provided the following information for the placement of surround
speakers. Although there are many opinions regarding placement and location of
surround speakers Starke Sound has provided the following recommendations based on
thorough research, academics, and our experience with many installations. Note: The
choice of models used in the illustration below is arbitrary. The information described in
the illustrations can be applied to both the IW and the IC series covered in this manual
and in any of the surround locations.
If two surrounds are used in a standard 5.1 configuration (not 7.1 or EX), they are best
mounted directly to the sides of the primary seating location, preferably within ±15° (see
illustration). This placement is the preferred method over back wall mounting for a few
reasons: 1. the placement of the surround speakers are located where the ear's ability to
discriminate left from right is optimum. This produces the maximum sense of
"envelopment" being surrounded by sound, 2. Mounting the rear speakers behind the
listener increases the angle between the front and rear speakers. This results in
reducing the chance that there will be a continuous front-to-rear sound image, lastly, 3.
Since our ability to discriminate the front-to-rear location of a sound source is not very
strong, locating surround speakers to the side of the listener will improve the listening
experience. 7.1 or EX systems that use side and rear speakers together overcome all of
these obstacles and give both maximum envelopment and a more continuous surround
eect.
15°
15°
Alternate Surround Speaker Locations
Preferred Surround Speaker Locations
Picture 1：Recommended LCR speakers placement for screen size greater than 150".
Picture 2：Recommended LCR speakers placement for screen size smaller than 150".
① ②
LISTENING
AREA
45°- 60°

Owner’s Manual
15°
15°
15°
15°
Preferred Surround Speaker Locations Speaker Connection
Prior to wiring Starke Sound recommends that you plan
and layout the wiring paths from the speakers to the
amplifier. For runs up to 25 feet Starke Sound
recommends a 16-gauge wire and for runs longer a
14-gauge wire is recommended. Take care to ensure that
the integrity of the speaker wire is not threatened or
compromised by resting/rubbing against any sharp or
pointed objects. Before setting the wire in position be sure
to allow approximately an extra foot (305 mm) of wire at
the speaker location to ensure an easy connection the
speaker.
For standard single wire connections, unscrew one set of
the terminal knobs (rotate counter-clockwise). Remove
approximately 1/2" (12mm) of the wire insulation from the
two wire conductors and twist the wire strands into a tight
bundle. Insert the wire into the terminal shaft hole and
rotate the terminal knob clockwise to secure the wire in
place. Take care that there are no stray or loose strands of
wire that could touch the other terminal shaft.
Confirm that both the positive and negative speaker terminals of the
amplifier are in connection with the corresponding + (red) and - (black) terminals at the
speakers. If you look closely you will see that all wire is marked in some way to trace their
respective connections. The two conductors will striped or ridged insulation in order to
identify them. Alternatively the conductors may be color coded to ensure their identity.
Wires with pin lugs or spade lugs are also accepted by the terminals. In addition, dual
banana plugs can be plugged into the rear of the terminals.
Series/parallel wiring should be used when connecting more than two speakers per
amplifier channel. Make certain in all cases that the total impedance does not fall below
the amplifier's rating. If there is any question be sure to contact your STARKESOUND
dealer.
Recommended surround speakers placement for two rows of seats.
Another factor to consider is the evenness of sound coverage over the listening area. As
most surround processors have the ability to set the balance of all channels, it is
recommended to adjust a circulating noise signal in each channel until the apparent or
measured sound level is even. The balance levels should be checked at multiple listening
locations and adjusted for the best balance overall so as to provide the best sonic
experience for as many of the listeners as possible. Surround speakers placed properly
will minimize the level variation from seat to seat. Increasing the distance of the
surround speakers from the listening area is the best way to improve evenness. Mounting
the speakers high on the side walls or in the ceiling will improve the listening experience.
Surround speakers should be mounted at a minimum of one foot (305 mm) above the
height of a standing listener Note: In the event of ceiling-mounted speakers, be sure to
place the speakers close to the side walls well away from an overhead position. Be aware
that placing the speakers too high can create an artificial elevation in the surrounds so be
sure to place accordingly.
If you are planning a large theater room with three or more rows of seating, there should
be more than one pair of surround speakers to give even more coverage and a more
immersive sound field. Starke Sound recommends one pair of surround speakers be
used for every other seating row (first, third, fifth, etc.). This method mimics the standard
for most professional cinema applications.

Owner’s Manual
Power Handling and Listening Levels
Starke Sound recommends reasonable power output settings for the amplifier so it
operates in a way that will not result in distortion. Even a modest amplifier, if producing
distortion, can damage speakers. Turn down the volume if you hear a gritty noise or
other signs of strain. Prolonged or repeated operation of your speakers with a distorted
signal can cause damage that is not covered by the warranty. It is imperative you do not
overdrive the bass capability of smaller speakers. Listen for noises, such as pops,
caused by the music's bass line. Use of the loudness control and/or full bass boost at
louder volumes may overdrive the woofer. Use such controls sparingly.
How to Care for your Speakers
Slightly dampen a soft terry cloth towel with water, glass cleaner, or a diluted, mild
detergent and then carefully clean the speakers. The towel should be just damp enough
to remove surface dirt without leaving a trail of moisture. Do not, under any
circumstances, use abrasive cleaners or any cleaner containing chemicals harsher than
those found in glass cleaner.
Limited warranty
Starke Sound will repair for the original owner any defect in materials or workmanship
that occurs in normal use of the speaker system, without charge for parts and labor,
for ten years from the date of purchase.
It is your responsibility to use the product according to the instructions supplied, to
provide safe and secure transportation to an authorized Starke Sound service
representative, and to present proof of purchase from an authorized Starke Sound
dealer in the form of your sales slip when requesting service.
Damage that results from abuse, misuse, accidents, shipping, repairs, or modifications
by anyone other than an authorized Starke Sound service representative is excluded
from this warranty. This warranty is void if the serial number has been removed or
defaced.
This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state.
If Service Seems Necessary
Contact the dealer from which you purchased the speaker system. If that is not
possible, email us at:
[email protected]om
or write to:
Starke Sound, Inc.
ATTN: Service Department
17810 S. Main St. Ste. B, Gardena, CA 90248
We will promptly advise you of what action to take. If it is necessary to return your
speaker system to the factory, please ship it prepaid in the original factory packaging.
Please note that Starke Sound will not be held liable for shipping damage due to
improper packaging. After it has been repaired, we will return it freight prepaid in the
U.S. or Canada.
For European Customers
This symbol found on the product indicates that the product must
not be disposed of with household waste. Instead, it may be placed
in a separate collection facility for electronic waste or returned to a
retailer when purchasing similar product. The producer paid to
recycle this product. Doing this contributes to reuse and recycling,
minimizes adverse eects on the environment and human health
and avoids any fines for incorrect disposal.
