STATESMAN LEGACY 50 GSLF Quick start guide


USER / INSTALLER
INSTRUCTION BOOKLET
Please read the instructions before using the appliance
MODEL
LEGACY 50 GSLF


CONTENTS
Introduction.....................................................................Page 4
Safety (General) .............................................................Page6
Using the Oven………………………………………………Page 8
Using the Hotplate……………………………….…………Page 9
Using the Grill………………………………………………..Page 9
Cleaning………………………………………….….….……Page 10
Installation.........................................……………………...Page 11
LPG Conversion…………………………………………….. Page 14
Technical Data..................................………………..…….Page 16
Specification .....................................………………..…….Page 17
3

INTRODUCTION
Thank you for choosing a STATESMAN appliance.
IMPORTANT; Before using your appliance, please read this manual carefully to
assist safe and successful operation
INSTALLATION (See Page 8)
WARNING – THIS APPLIANCE MUST BE
EARTHED
This cooker must be installed by qualified personnel, according to the manufacturer’s
instructions and to the relevant British Standards.
This cooker is heavy, take care when moving it. Remove all packaging before using
the cooker.
Ensure that the electrical supply complies with type stated on the rating plate.
Do not attempt to modify the cooker in any way as this may be dangerous and will
invalidate the warranty.
FOLD DOWN LID
The lid provided for this cooker is for cosmetic purposes only. It is safe to use the
cooker with the lid in the raised position but the lid may become discoloured or
scratched if cleaned while hot, used as a work surface or left in position while
using the oven. We recommend that the lid is removed during cooking. This can
be simply achieved by raising the lid to its vertical position, holding the lid firmly at
each side and pulling gently in the upwards direction. To re-fit, simply lower the
hinge pins back into their sockets – no tools are required.
GENERAL SAFETY NOTE
This appliance has been tested to the latest stringent European safety standards.
However, cooking appliances do become very hot during use. After use, some parts
of this appliance may remain hot for a long time. Take care to avoid touching parts
until the appliance has cooled. Please ensure that the deflector device is used
and the door remains open when grilling.
4

NOTE
This is a modern safety design of gas cooker and the oven uses a base burner
below the floor of the oven. As a result, the performance characteristics may vary
considerably from previous experience using older oven designs with exposed
rear gas burners.
Please allow for variation from previous experience with using older designs of
gas ovens until you become familiar with the characteristics of this oven. (See–
“using the oven”).
SERVICE
This appliance should only be repaired or serviced by an authorized service
engineer and only genuine approved spare parts should be used.
NATIONAL SERVICE LINE: 0844 848 5861
SPARE PARTS LINE: 0844 848 5862
5


SAFETY
It is important to read this manual and take all safety measures
recommended.
This appliance has been designed for domestic, non-professional
use.
Check for any damage once unpacked. If there are any defects or
damage, do not use the appliance. Report the defect/damage to your
supplier or Statesman Service. Remove and dispose of all packaging
immediately to prevent any risk of harm to children.
This appliance must be installed and commissioned by a
qualified person as Statesman will not take any responsibility for
damage caused by incorrect installation.
Before installing this appliance, make sure that the gas and electricity
supplies are compatible with the specification on the rating plate and
the packaging.
The supply cable must never be changed by the customer. If the supply
cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Always switch the power supply off before any cleaning or
maintenance is carried out.
This appliance has been tested to the latest stringent European safety
standards. However, cooking appliances do become very hot during
use. After use, some parts of this appliance may remain hot for a long
time. Take care to avoid touching parts until the appliance has cooled.
Keep flammable materials away from the appliance.
Ensure that no cables of other appliances come into contact with this
appliance, especially hot parts.
Turn any control knobs to the off position when not
being used.
6

7
SAFETY CONTINUED
When heating fats or oils, do not leave pans unattended
as there is risk of fire.
Keep children away from this appliance.
CAUTION: Accessible parts may be hot when the grill is in use. Young
children should be kept away.
Never use steam cleaners for cleaning the appliance.
For hobs incorporating a lid, any spillage should be removed from the
lid before opening.
Do not close the lid after use until the appliance has cooled down.
Make sure that the lid is open when using the appliance.
IF A REPAIR IS REQUIRED, ONLY GENUINE PARTS SHOULD BE
USED AND ANY WORK MUST BE CARRIED OUT BY A QUALIFIED
ENGINEER.
The installer of this appliance should read the installation instructions and
should be a suitably qualified person.
Please be aware of the risk of leaving the oven door or drawer open.
Any downwards pressure could tilt the cooker forward and tip any pans
being used from the hotplate. Excess weight or pressure on the open
door or drawer may also result in damage which will not be covered by
the guarantee.
Do not place any flammable items in the lower drawer (nylon, plastic,
paper, cloth etc.)...
Switch the power supply switch (cooker switch) off at the wall when not in
use.
7

8
SAFETY CONTINUED
Always protect the appliance from the effects of damp or wet weather
conditions.
Prior to installation, ensure that the local distribution conditions (nature
of the gas and gas pressure) and the adjustment of the appliance are
compatible
This appliance is not connected to a combustion products evacuation
device. It shall be installed and connected in accordance with current
installation regulations. Particular attention shall be given to the
relevant requirements regarding ventilation.
While using the grill burner, keep the oven door open and always use
the grill deflector shield supplied with the product. Never use the grill
burner with the oven door closed.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety
Children should be supervised to ensure that they do not play with the
appliance.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass since they can scratch the surface, which may
result in shattering of the glass.
8


USING THE OVEN
Note – This is a modern design of gas cooker using a base burner below the
floor of the oven. As a result, the performance characteristics may vary
considerably from previous experience using older oven designs with exposed rear
gas burners. Please allow for variation from previous experience with older
designs of gas ovens until you become familiar with the characteristics of this
oven.
OPERATION
Open the door fully, push in and turn the oven control knob to max. Hold the
control knob in and press the ignition button. Keep the oven control knob pressed
in for a further 5 - 10 seconds before slowly releasing and turning to the desired
temperature. If the burner fails to light, do not attempt to re-light it for 1 min.
PREHEATING
Allow the oven to preheat for approximately 10-15 minutes before cooking food.
The cooking times will be reduced when preheating the oven. If cooking without
preheating, you may wish to increase the cooking time by 10-15 minutes.
WARMING
When keeping food warm, the minimum setting may be too hot for some food.
Heat the empty oven for at least 15 minutes using the lowest setting and turn the
oven control knob to the off position. The food can then be kept warm for up to 30
minutes.
POSITIONING
The temperature at the centre of the oven corresponds with the selected
temperature and will vary according to the shelf position being used. The base of
the oven will become very hot during operation and should not be used as a shelf
position.
CONDENSATION AND STEAM
When moist food is heated it produces steam in the same way as boiling a kettle. If
this steam comes into contact with a cool surface on the outside of the cooker, it
will condense and produce water droplets. This is quite normal and is not a fault
with the oven.
COOKWARE
Use any oven proof cookware which will withstand temperatures of 2500C.
Do not use baking trays larger than 30cm x 35cm, as they will restrict the
circulation of heat and may affect the performance.
9

USING THE HOTPLATE
IGNITION
Push in and turn the selected control knob anticlockwise to the ‘full on’ position (as
indicated by the flame symbols), whilst pressing the ignition button until the burner
lights. ONCE THE BURNER HAS LIT, HOLD THE CONTROL KNOB IN FOR 5-10
SECONDS BEFORE SLOWLY RELEASING. If the burner fails to light, do not
attempt to re-light it for 1 minute. WARNING – when lit, ensure flames are crisp
and blue, not long and yellow. Should flames become long and yellow, consult the
service department.
SIMMERING
To achieve a simmer flame, light the burner on the full position and then slowly
turn the control knob anticlockwise to the small flame symbol. When trying to
achieve a small simmer flame, ensure burner remains lit before placing a pan over
it.
PANS

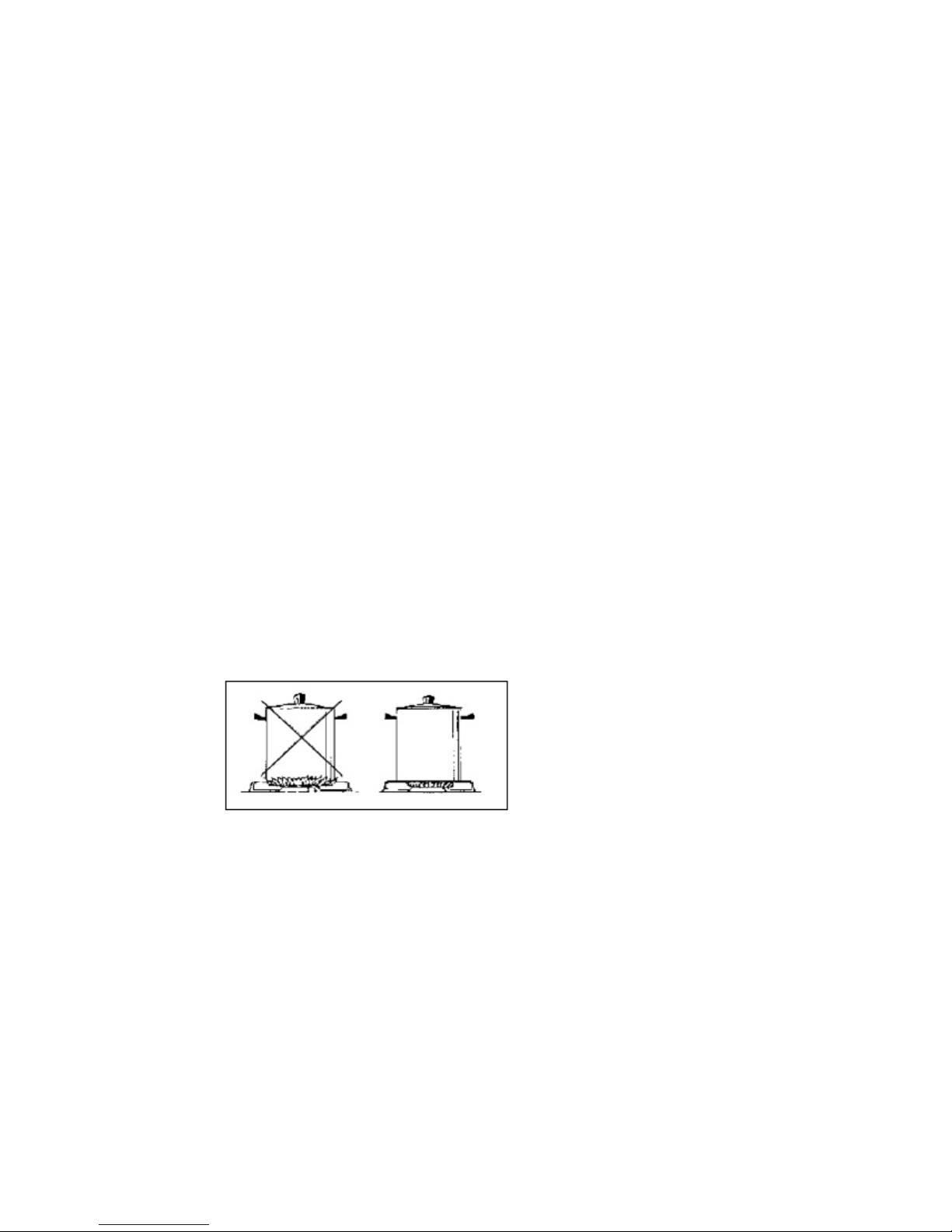

For optimum safety and performance, please ensure pans are placed centrally
over the burner flame. Do not use pans with concave or convex bases. Use only
pans with flat bases.
FOLD DOWN LID
The lid provided for this cooker is for cosmetic purposes only. It is safe to use the
cooker with the lid in the raised position but the lid may become discolored or
scratched if cleaned while hot or used as a work surface. We recommend that the
lid is removed during cooking. This can be simply achieved by raising the lid to its
vertical position, holding the lid firmly at each side and pulling gently in the
upwards direction.
USING THE GRIIL
IMPORTANT- When grilling, the door must be open and the grill deflector
plate in place. The deflector plate will fit beneath the control panel by locating it
onto the 2 metal lugs.
IGNITING AND USING THE GRILL
Open the door fully, push in and turn the oven / grill control knob to the grill
position (as per symbol). Hold the control knob in and press the ignition button
Keep the control knob pressed in for a further 5–10 seconds before slowly
releasing.
10


If the burner fails to light, keep the oven door open and do not attempt to re-
light it for 1 min.
Allow 5 minutes for the grill burner flame to stabilize and reach the required
temperature.
Adjust the grill pan on the runner positions to allow for different types of food.
WARNING: The grill burner in this appliance can’t be modulated and acts as a
constant source of heat. Use it only at designated position

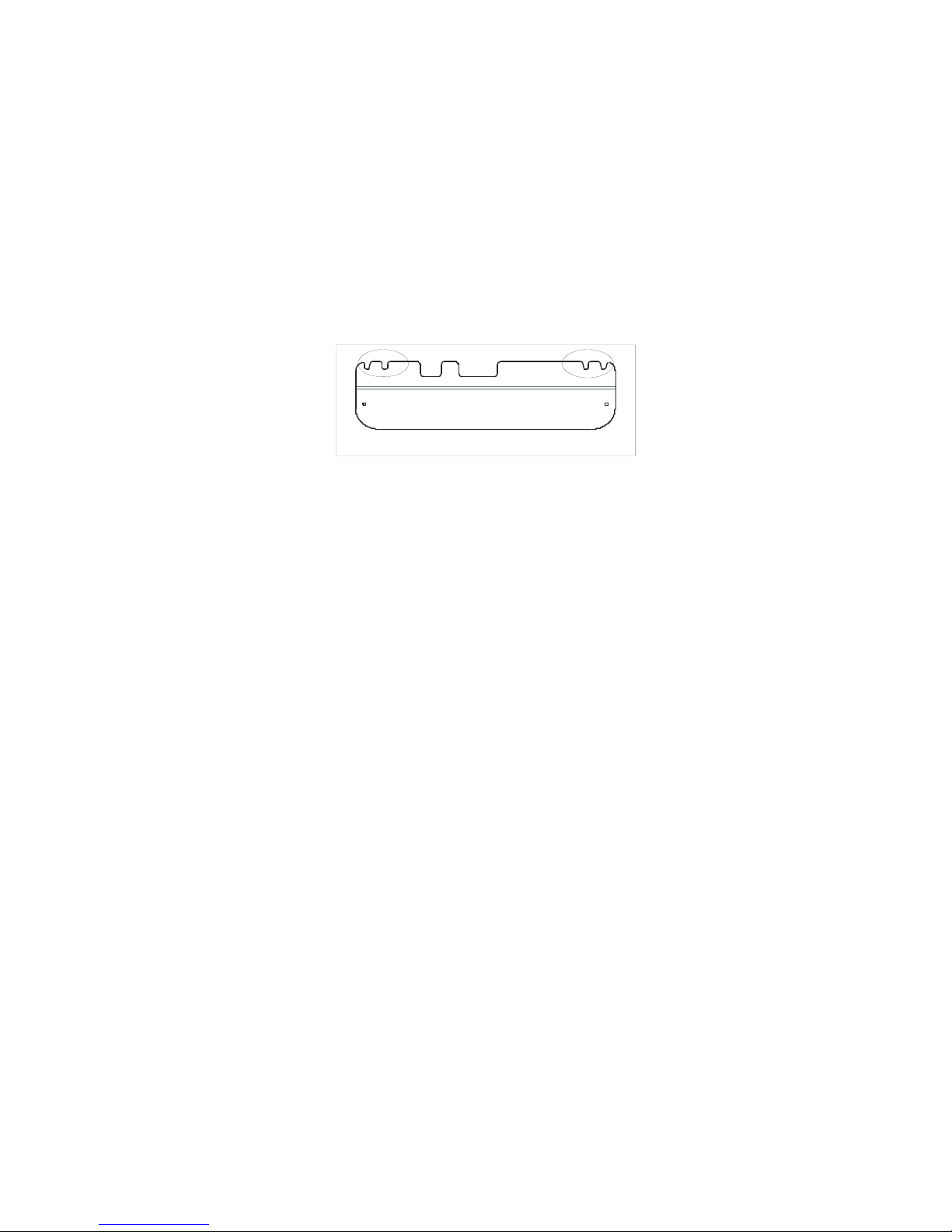

Assembling the grill heat shield
Hold the heat shield as the warnings face upwards. There are two
small slots on the right and left side of the rear edge of the shield,
as shown in the below figure.
There are two screw equipped with bushes under the oven control
panel. Align the bushes with the assembly slots so that the shield is
stuck between the control panel and the bush. Push the shield
towards the appliance until it is firmly in its place.
CLEANING
IMPORTANT- Before any maintenance or cleaning can be carried out, the
cooker must be un-plugged from the electricity supply.
HOTPLATE
The hotplate is best cleaned when it is still warm as it is easier to remove spillages
before it has cooled.
Regularly wipe over the hob top using a soft cloth well wrung out in warm water to
which a little washing up liquid has been added. Avoid the use of the following:
11


Household detergents and bleaches;
Impregnated pads unsuitable for non-stick saucepans;
Steel wool pads;
Bath/sink stain removers.
CONTROL PANEL AND LID
Before cleaning the control fascia and lid, ensure that the fascia surface is cool.
For best results use a soft dampened cloth, if marks should remain use a very mild
detergent using a light rubbing action being particularly careful around graphics.
THE OVEN
The oven should be kept clean at all times. A build up of fats or other foodstuffs
could result in a fire.
The oven cavity is a smooth enamel finish and can be scrubbed with a soft cloth
soaked in warm soapy water, however from time to time it may require a more
thorough clean using an oven cleaner. Ensure that the oven cleaner used is
suitable for smooth enamel.
In order to obtain maximum performance from the main burners,
use pots with the following flat bottom diameters. Using smaller
pots than the minimum dimensions stated below will cause
energy loss.
Rapid Burner: 22-26cm
Medium Burner: 14-22cm
Auxiliary Burner: 12-18cm
Make sure that the tips of the flames do not spread out of the
outer circumference of the pan, as this may also harm the
plastic accessories around the pan (handles etc.).
12


INSTALLATION
IMPORTANT - Installation of this cooker must be carried out by qualified
personnel.
CLEARANCES
COOKER HOOD
Min.650mm
with hood
or
Min.700mm
Min.110mm without hood Min.420mm
O O O O O
O
Min. 2 mm
This cooker may be fitted flush to the base units. Leave a gap of approximately
2mm minimum from any adjacent cupboard or appliance. Any adjacent surface
must be heat resistant to 500C above room temperature and if it is higher than
the appliance it must be a minimum of 110mm away from the appliance. Any
such adjacent cupboard less than 110mm away horizontally, must be at least
420mm higher than the hotplate level.
No cupboard over the appliance should be closer than 700mm or cooker
hood closer than 650mm above hotplate.
13


VENTILATION REQUIREMENTS
This appliance needs 2m3/h of air per KW input.
This appliance must not be installed in a bed sitting room of less than 20m3or
in a bathroom or shower room.
If there are other fuel burning appliances in the same room, BS5440; Part2;
1989 should be consulted to determine the air vent requirements.
For room volumes between 5m3and 10m3, an air vent of 50cm2is required.
If the room has a door that opens directly to outside, or the room exceeds
10m3, no air vent is required.
For room volumes of up to 5m3, an air vent of 100cm2 is required.
All rooms require an openable window or equivalent and some rooms will
require a permanent vent as well.
NOTE; the use of a gas cooker results in the production of heat
and moisture in the room in which it is installed. Always ensure
that the kitchen is well ventilated. Keep natural ventilation holes
open or install a mechanical ventilation device. In particular, when
using the grill or more than one burner, open a window if a
mechanical ventilation device is not in operation.
14


ANTI-TILT DEVICE
The cooker must be fitted with an anti-tilt/restraint device to prevent it tipping
forward when in use. To use the floor mounted bracket supplied, see the
instructions provided.
LEVELLING
Place a spirit level on an oven pan or shelf and adjust the feet accordingly. Make
sure that the appliance is stable and does not rock.
GAS CONNECTION
Always grip the appliance inlet fitting firmly when
fitting the hose to prevent any damage occurring.
Never check for gas leaks with a naked flame.
The cooker is fitted with a ½’’ BSP internal thread situated at the rear right corner.
A flexible hose of correct rating in size and temperature should be used. For
Natural Gas it will be a black hose with a yellow band or label and should comply
with BS 669
LPG hoses should be suitable for LP gases up to 50 mbar pressure and 700C
temperature rise. It will be a black hose with a red band or label.
Hoses should not exceed 1.5m in length.
Pressure setting – G20 Natural Gas @ 20 mbar
G30 Butane @ 28.3 mbar
G31 Propane @ 37 mbar
NOTE; The gas hose and electrical cables of your cooker must
not come into direct contact with any hot or sharp surfaces or
objects. Do not move the appliance after the gas connection has
been made. Make sure that the hose is not kinked, damaged or
trapped.
15


ELECTRICAL CONNECTION
WARNING - This appliance must be earthed.
Make sure that the electricity supply is compatible with
the type stated on the data plate of the appliance.
The cable should not touch any hot surface or sharp
objects.
The electrical switch should be within 1.5m of the
appliance and an extension lead should not be used.
Electrical connection (UK ONLY)
For your safety please read the following information.
WARNING: This appliance must be earthed.
• The appliance must be connected to a 240 volts 50 Hz AC
supply by means of a three pin socket, suitably earthed and should
be protected by a 3 amp fuse in the plug.
• The appliance is supplied with 3-pin mains plug fitted with a 3
amp fuse. Should the fuse require replacement, it must be
replaced with a fuse rated at 3 amp and approved to BS1362.
• The plug contains a removable fuse cover that must be refitted
when the fuse is replaced. In the event of the fuse cover being lost
or damaged, the plug must not be used until a replacement cover
has been obtained. If the mains plug is unsuitable for the socket
outlet in your home or is removed for any other reason, then the
fuse should be removed and the cut off plug disposed of safely to
prevent the hazard of electric shock.
• There is a danger of electric shock if the cut off plug is
inserted into any 13 amp socket outlet.
16



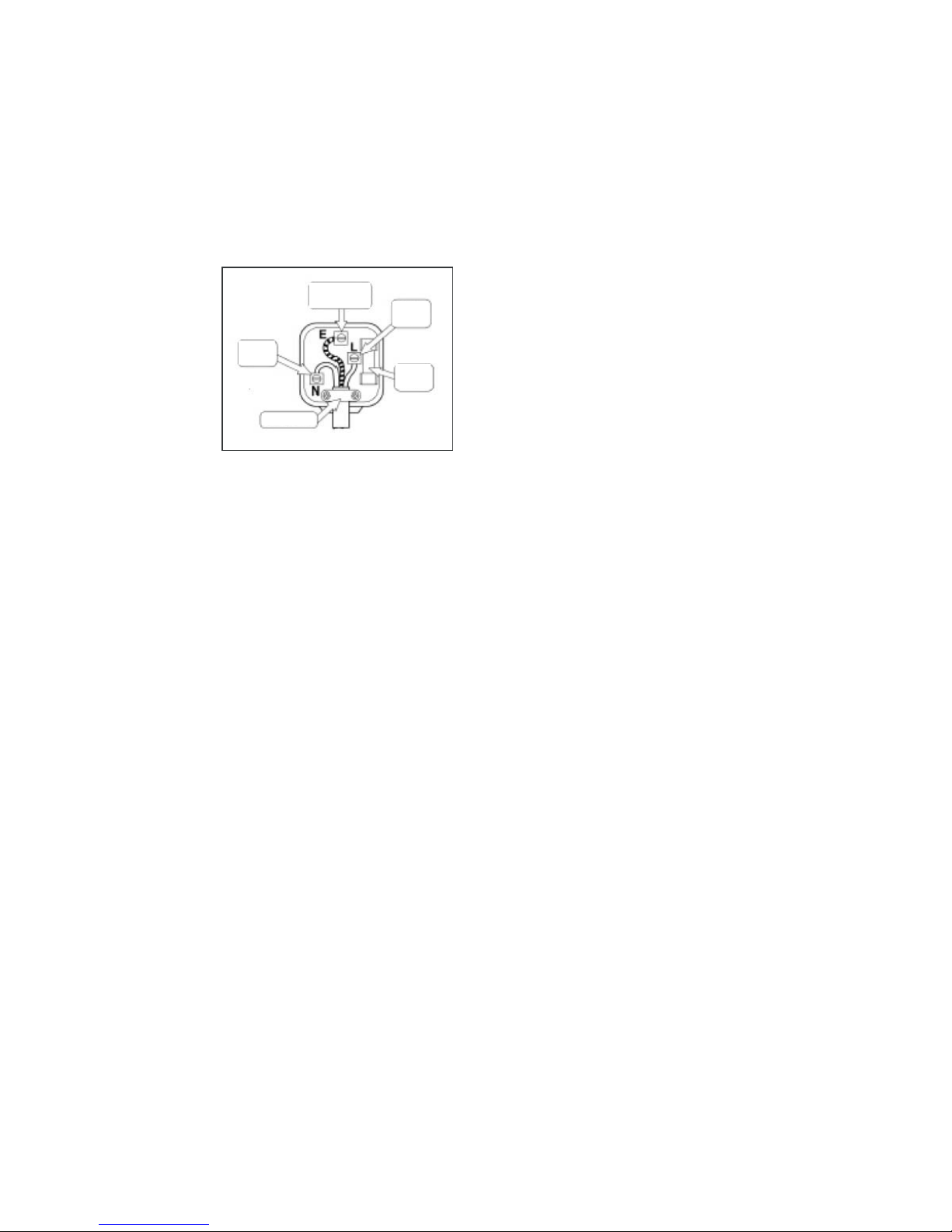

IMPORTANT: How to wire a 3 amp plug
The wires in the mains lead on this appliance are colored in
accordance with the following code:
• Green and Yellow – Earth
• Blue – Neutral
• Brown – Live
GREEN-YELLOW
EARTH
BROWN
LIVE
FUSE
3 Amp
Cord Clamp
BLUE
NEUTRAL
As the colours may not correspond with the markings identifying
the terminals in your plug proceed as follows. The green and
yellow wire must be connected to the terminal in the plug, which is
marked with the letter E, or with the earth symbol or coloured
green and yellow. The blue wire must be connected to the terminal
marked N. The brown wire must be connected to the terminal
marked L.
17


LPG CONVERSION
This cooker has been pre-set for use on Natural Gas (G20 – 20 mbar). A
conversion kit is included for converting the appliance for use on LP Gas. This
should only be carried out by a suitably qualified engineer. The instructions below
must be followed in full, otherwise the guarantee becomes invalid.
CHANGING THE INJECTORS
Refer to the table of injector sizes to select the correct injectors. The hotplate
injectors are situated underneath the hotplate caps. To access the oven and grill
injectors, proceed as follows:
1. Remove the outer back panel. Unscrew the gas supply tube nut from the
injector block.
2. Remove the oven base panel inside the oven.
3. Remove the 2 screws at the rear, either side of the oven burner to
release the oven injector block behind.
4. Replace the injector with the relevant LPG one and re-fit the injector
block.
5. Remove the grill burner by undoing the screw at the front of the burner.
6. Exchange the injector without removing the injector block and re-fit the
grill burner.
SETTING THE SIMMER RATES
HOTPLATES;
(Access procedure is the same for the oven)
Switch off the electricity supply and access the hotplate by-pass screws
as follows;
1. Remove the hotplate tray by undoing the rear fixings and the 2 small
screws beneath each hotplate burner head. Now slide the hotplate
forwards to unhook it from the front locators.
2. Unscrew and remove the control panel, taking care with the ignition
switch wires.
18


3. The by-pass adjustment screw can now be accessed and adjusted as
necessary. When converting from NG to LPG, completely fasten the by-
pass screw. When converting from LPG to NG, the same screw must be
loosened.
4. Carry out the oven adjustment before re-assembling.
OVEN; by-pass/simmer rate MUST be adjusted to ensure a sufficient
maintenance rate to the burner once the oven temperature has been reached.
Proceed as follows:
1. Light the oven and select 1800C. After a few minutes the oven will
have reached temperature and the flame size will have decreased.
2. Turn the oven control knob to minimum.
3. Switch off the electricity supply and access the thermostat by-pass
screw as follows;
Remove the hotplate tray by undoing the rear fixings and the 2
small screws beneath each hotplate burner head. Now slide the
hotplate forwards to unhook it from the front locators.
Unscrew and remove the control panel, taking care with the
ignition switch wires.
4. Adjust the flame size small enough to enable lowest temperature
settings to be maintained and large enough to maintain flame stability.
If the flame is too small, the thermocouple may cool down and shut off
the gas supply to the burner.
5. Ensure that the hotplate simmer rates have been adjusted before re-
assembling.
Grill; The grill does not have any adjustment as it is always in the full-on position
when in use.
19

TECHNICAL DATA
GAS TYPE-
GASCATGORY-
AERATION-
ELECTRICAL -
FUSE-
Nat Gas @ 20 mbar
LPG- Propane @37 mbar
LPG- Butane @ 28.3 mbar
Nat Gas- I2H
LPG- I3+I3P
Preset
220-240V 50HZ
3Amp
OVEN CAPACITY 50.5 Litres
KW RATING Max Total = 9.35 kw
OVEN 2.1 kw
GRILL 2.0 kw
BURNER Large 2.75 kw
BURNER Med 1.75 kw
BURNER Small 1.0 kw
This appliance is designed and made in accordance with the
European standards listed below:
EN30-1-1, EN30-2-1,& EN437+subsequent amendments(gas)
EN60 335-1 & EN60 335-2-6(electric.)+relative amendments
The appliance complies with the prescriptions of the European
Directives as below:
73/23+93/68 EC concerning electrical safety (BT).
89/336+92/31+93/68 EC concerning electromagnetic
compatibility(EMC)90/396+93/68 EC concerning gas
safety.
Oven accessories that could come into contact with food
stuffs are made with materials that comply with the
provisions of the89/109 EC directive dated 21/12/88
20
