Stealthbox SB-MA-MZDA3/10W1v2/BK User manual

INSTALLATION GUIDE
for the
SB-MA-MZDA3/10W1v2/BK
SKU#94504
2010+
Thank you for choosing a JL Audio Stealthbox®for your automotive sound system. With proper installation, your new
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox®installed by your authorized JL Audio dealer. The
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox®be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
STEP 1
Empty out the trunk of the car so that you have a clean area
to work in.
Continued on Next Page
STEP 2
Locate the amplifier harness, and disconnect the amplifier.
STEP 3
Using the factory lug wrench, unbolt and remove the factory
subwoofer enclosure.
SB-MA-MZDA3/10W1v2/BK INSTR_SKU# 011319
INSTALLATION
DIFFICULTY:
15
OUT
OF
ESTIMATED TIME:
1 HOUR
Continued on Next Page
SB-MA-MZDA3/10W1v2/BK INSTR_SKU# 011319
STEP 7
Place the Stealthbox® into position as shown, and spin the
enclosure to thread and secure it to the trunk floor.
STEP 6
Pictured is the Bracket Assembly mounted on the enclosure.
In the event the bracket needs to be removed, remove the
woofer from the enclosure to access a pair of 3/8 - 16 Hex
Nuts holding the assembly to the Stealthbox®. It is not nec-
essary to remove the bracket for this installation.
STEP 5
Place the spare tire back into position.
STEP 4
Remove the spare tire, then remove and discard the padded
trunk liner.
Page 2 • JL Audio, Inc 2010
STEP 9
Remove the clips and handle from the factory trunk floor,
then peel back and remove the carpet from the floor.
STEP 11
CONGRATULATIONS!
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
STEP 10
Place the carpet over the supplied Trunk Floor Panels as
shown.
STEP 8
Place the two new Trunk Floor Panels over the Stealthbox®
as shown.
SB-MA-MZDA3/10W1v2/BK INSTR_SKU# 011319
Page 4• JL Audio, Inc 2010
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc.“Ahead of the Curve”and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 94504 08.22.2011 • Printed in USA • ©2010 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
INCLUDED HARDWARE
(2) Trunk Floor Panels
(1) Bracket Assembly (already attached to enclosure)
SPECIFICATIONS
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W1v2
Nominal Impedance: 4 ohm
Continuous Power Handling: 300 watts
POWER RECOMMENDATION
JL Audio recommends high quality amplifiers such as the XD300/1 or J2 250.1. The diagram below shows
the recommended crossover settings for the XD300/1. If another amplifier is being used, please reference this
illustration and use similar settings on that amplifier.
All JL Audio amplifiers are very versatile audio components. Please consult the owner’s manual for even more
detailed information about installing and tuning your amplifier.
CONNECTIONS
Using quality power, signal and speaker wire is essential in ensuring the performance of your Stealthbox®.
JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplifier, other
kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium
Audio Interconnect Cables should be used that will provide signal for both channels of the amplifier. JL Audio
reccommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-1/2” - Front Doors
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x,
C3-650, C5-650, C5-650x & ZR650-CSi
Rear Speaker Size / Location: 6-1/2” - Rear Door
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x,
C3-650, C5-650, C5-650x & ZR650-CSi

Other Stealthbox Car Speakers manuals

Stealthbox SB-GM-EQNX/10W1v2/BK User manual

Stealthbox

Stealthbox SB-GM-EQNX/10W1v2/BK User manual

Stealthbox Stealthbox SB-T-TUNCNSL/10W3 User manual

Stealthbox

Stealthbox Stealthbox SB-T-TUNCNSL/10W3 User manual

Stealthbox SB-F-MUCUPE/13W3v3 User manual

Stealthbox

Stealthbox SB-F-MUCUPE/13W3v3 User manual

Stealthbox Stealthbox SB-HYU-SON/12W3v3/BK User manual

Stealthbox

Stealthbox Stealthbox SB-HYU-SON/12W3v3/BK User manual

Stealthbox SB-VW-CC/10W3v3 User manual

Stealthbox

Stealthbox SB-VW-CC/10W3v3 User manual

Stealthbox SB-SC-TCG2/10W3v3 User manual

Stealthbox

Stealthbox SB-SC-TCG2/10W3v3 User manual

Popular Car Speakers manuals by other brands

Kenwood KFC-HQ575C Service manual

Kenwood

Kenwood KFC-HQ575C Service manual

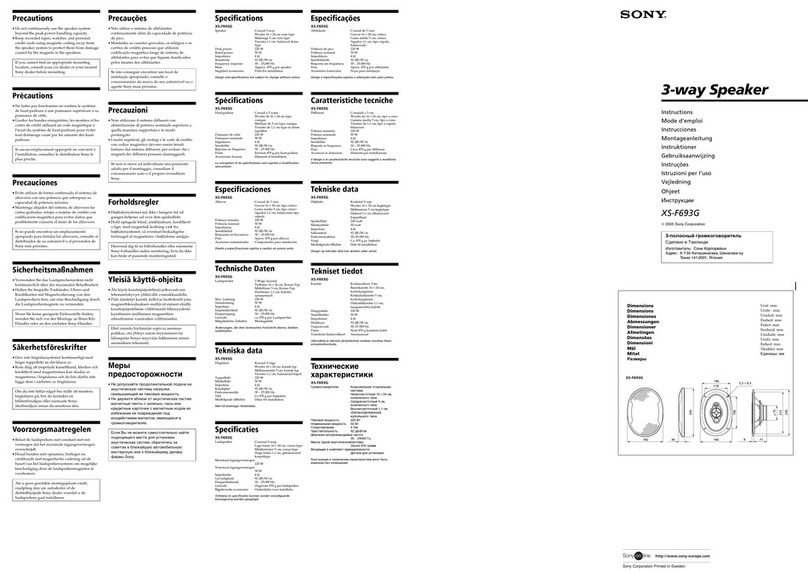

Sony XS-F693G instructions

Sony

Sony XS-F693G instructions

Sony XS-GS1720S instructions

Sony

Sony XS-GS1720S instructions

Blaupunkt Blue MaQiC CL 100 manual

Blaupunkt

Blaupunkt Blue MaQiC CL 100 manual

Wharfedale Pro TITAN SUB-A15 quick guide

Wharfedale Pro

Wharfedale Pro TITAN SUB-A15 quick guide

Kicker CSS65 installation guide

Kicker

Kicker CSS65 installation guide

AudioBahn AT67 operating instructions

AudioBahn

AudioBahn AT67 operating instructions

Insignia NS-S6000 user guide

Insignia

Insignia NS-S6000 user guide

Sony XS-F6920SL instructions

Sony

Sony XS-F6920SL instructions

JVC CS-HX6948 instructions

JVC

JVC CS-HX6948 instructions

Sony XS-V1335X Instructions  (primary manual) instructions

Sony

Sony XS-V1335X Instructions (primary manual) instructions

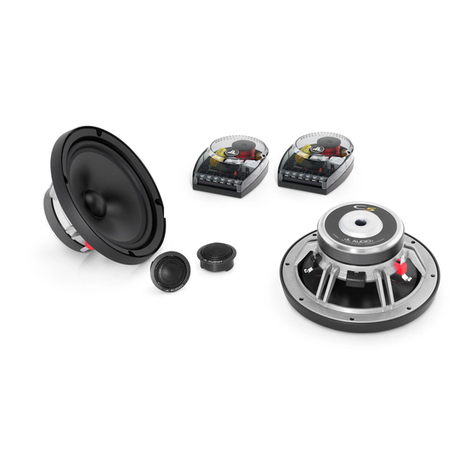

JL Audio Evolution C5-650 owner's manual
