Stealthbox Stealthbox SB-HYU-SON/12W3v3/BK User manual

INSTALLATION GUIDE
for the
SB-HYU-SON/12W3v3/BK
SKU#94500
2010+
Thank you for choosing a JL Audio Stealthbox®for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox®installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox®be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
STEP 1
Empty out the trunk of the car so that you have a clean area
to work in.
Continued on Next Page
STEP 2
Remove the trunk floor. Remove the two clips that hold the
plastic storage pocket in place, and remove the pocket.
STEP 3
Remove the two clips and the cargo net screw that hold
the trunk liner in place, and pull the liner out of the way as
shown.
SB-HYU-SON/12W3v3/BK INSTR_SKU# 011317
INSTALLATION
DIFFICULTY:
25
OUT
OF
ESTIMATED TIME:
1 HOUR

Continued on Next Page
SB-HYU-SON/12W3v3/BK INSTR_SKU# 011317

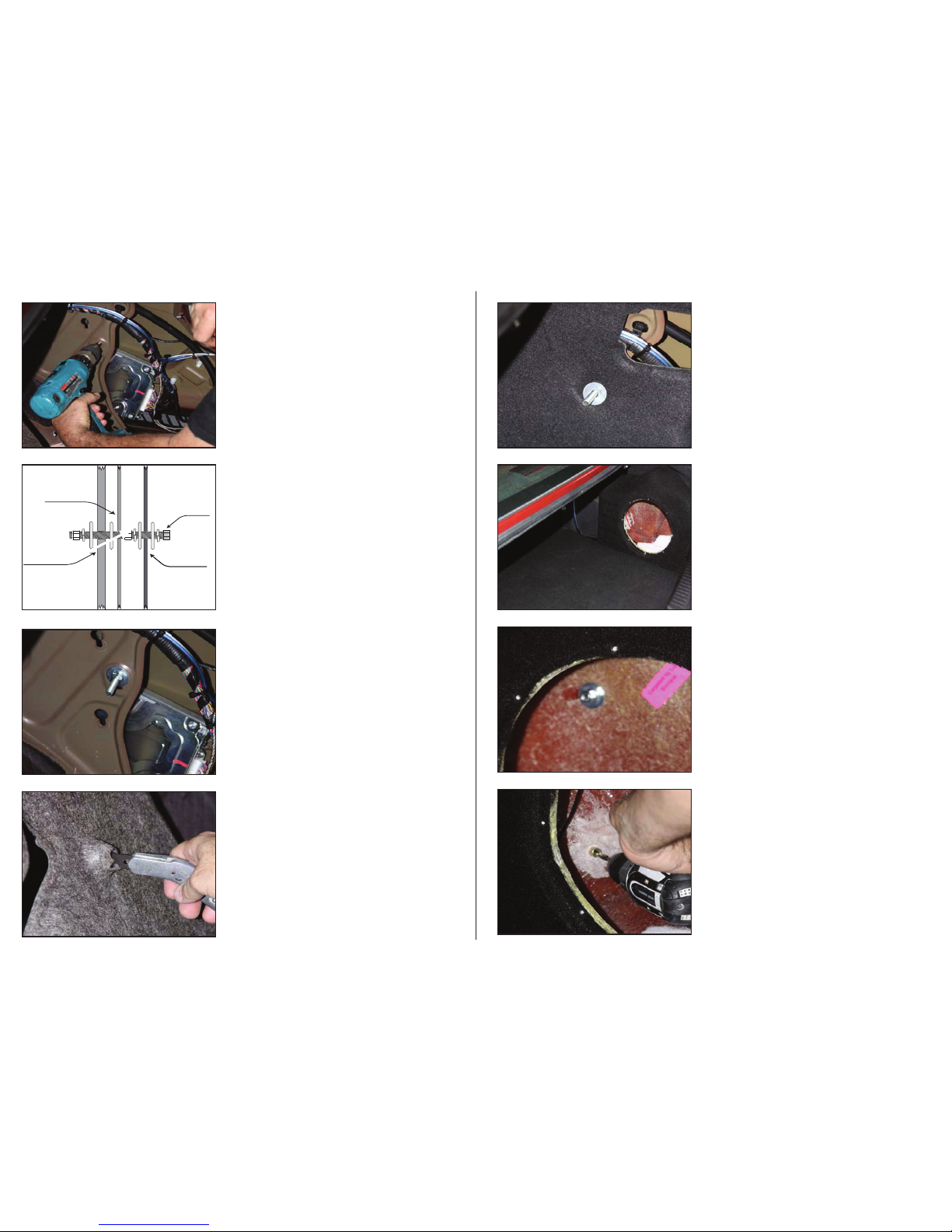

STEP 7
Using a razor knife, cut a small “X” over the hole in the trunk
liner as shown to allow clearance for the 3/8 - 16 x 2” Tap Bolt
to slide through.
STEP 6
Place a 3/8” Split Lock Washer and 3/8” x 1-1/4” Fender
Washer on the 3/8 - 16 x 2” Tap Bolt, and thread it through
the hole drilled in Step 4, then place a 3/8” x 1-1/4” Fender
Washer, 3/8” Split Lock Washer, and 3/8 x 16 Hex Nut on the
3/8 - 16 x 2” Tap Bolt, and tighten as shown.
STEP 5
Shown in the illustration is the assembly of the hardware for
reference in the following steps.
STEP 4
If equipped, the factory amplifier must be temporarily
unbolted and moved before proceeding. Shown is the
amplifier after it’s been moved. Using a 1/2” drill bit, enlarge
the existing hole as shown.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a
reduction in your weekly pay.
Always wear eye protection when drilling!
Page 2 • JL Audio, Inc 2010
STEP 9
Remove the subwoofer from the Stealthbox®. Place the
Stealthbox® in position as shown, allowing the 3/8 - 16 x 2”
Tap Bolt to come through the predrilled hole in the back of
the enclosure.
STEP 11
Usinig a 1/4” drill bit, carefully drill through the threaded
insert inside the Stealthbox®, through the trunk liner and
fender well, using caution not to damage the threads on the
insert.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a
reduction in your weekly pay.
Always wear eye protection when drilling!
STEP 10
Place a 3/8” x 1-1/4” Fender Washer, 3/8” Split Lock Washer,
and 3/8 x 16 Hex Nut on the 3/8 - 16 x 2” Tap Bolt, and hand
tighten.
STEP 8
Push the trunk liner back into place, allowing the 3/8 - 16 x 2”
Tap Bolt to come through the hole in the liner. Slide a 3/8” x
1-1/4” Fender Washer over the bolt as shown.
STEALTHBOX WALL METAL FRAME
HEX BOLT
TRUNK LINER

SB-HYU-SON/12W3v3/BK INSTR_SKU# 011317

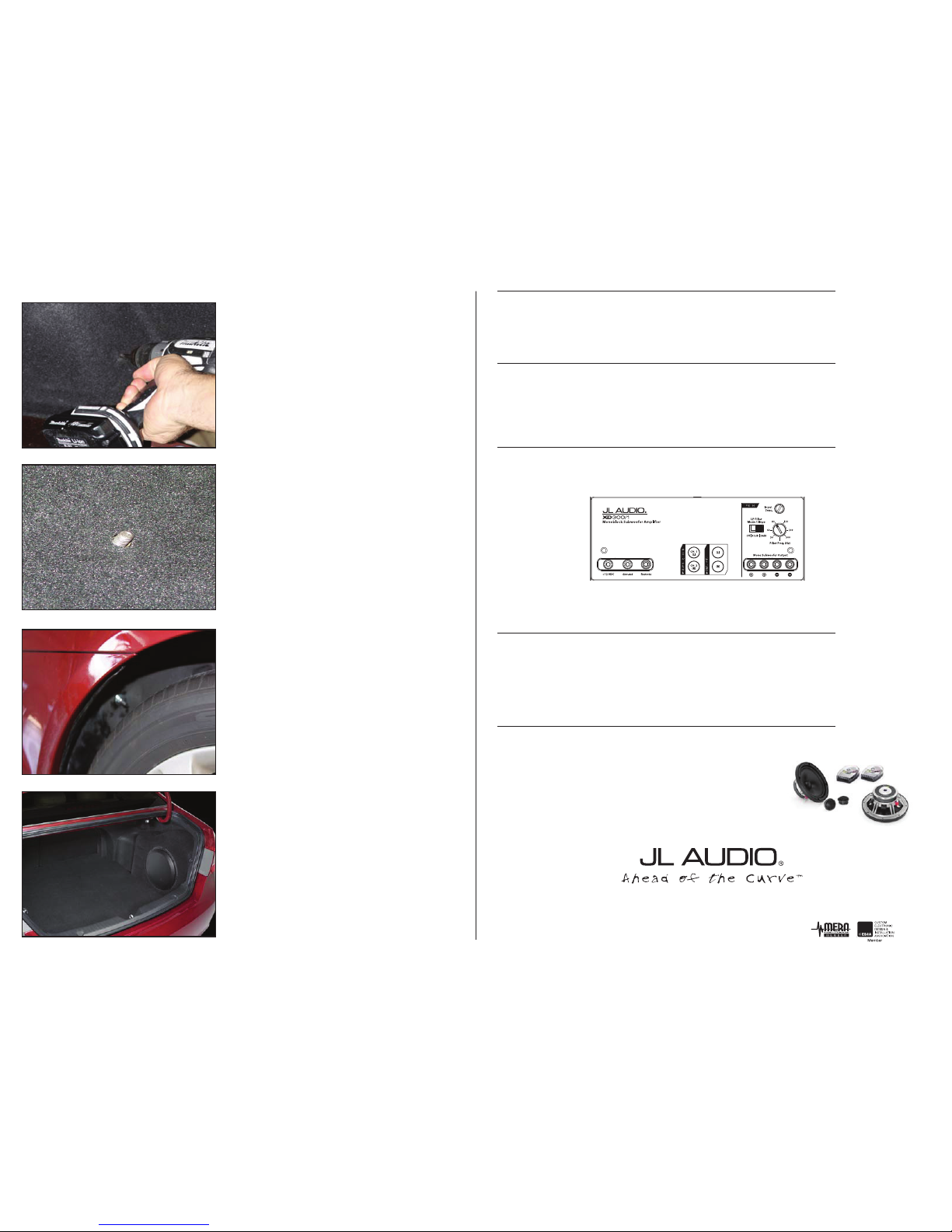

STEP 15
CONGRATULATIONS!
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
STEP 14
Attach the speaker wire to the terminal cup, and place the
Stealthbox® back into position, allowing the 3/8 - 16 x 2-1/4”
Allen Head Set Screw to go through the hole drilled in Step
12, and the 3/8 - 16 x 2” Tap Bolt to come through the hole in
the back of the enclosure. From the outside, place a 3/8” Flat
Washer, 3/8” Split Lock Washer, and 3/8 - 16 Hex Nut on the
3/8 - 16 x 2-1/4” Allen Head Set Screw as shown, and firmly
tighten.
Place the 3/8” x 1-1/4” Fender Washer, 3/8” Split Lock Washer,
and 3/8 -16 Hex Nut back on the 3/8 - 16 x 2” Tap Bolt, as in
Step 10, and firmly tighten. Reinstall the subwoofer.
STEP 13
Thread the 3/8 - 16 x 2-1/4” Allen Head Set Screw into the
threaded insert on the Stealthbox, leaving approximately
1-1/4” exposed.
STEP 12
Remove the Stealthbox® from the vehicle. Locate the hole in
the fender well that was drilled in the previous step. Using a
1/2” drill bit, enlarge the hole.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a
reduction in your weekly pay.
Always wear eye protection when drilling!
Page 3 • JL Audio, Inc 2010
INCLUDED HARDWARE
(1) 3/8” Flat Washer (1) 3/8 - 16 x 2” Tap Bolt
(4) 3/8” x 1-1/4” Fender Washer (1) 3/8 - 16 x 2-1/4” Allen Head Set Screw
(4) 3/8” Split Lock Washer (3) 3/8 - 16 Hex Nut
SPECIFICATIONS
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 12W3v3
Nominal Impedance: 2 ohm
Continuous Power Handling: 300 watts
POWER RECOMMENDATION
JL Audio recommends high quality amplifiers such as the XD300/1 or J2 500.1. The diagram below shows
the recommended crossover settings for the XD300/1. If another amplifier is being used, please reference this
illustration and use similar settings on that amplifier.
All JL Audio amplifiers are very versatile audio components. Please consult the owner’s manual for even more
detailed information about installing and tuning your amplifier.
CONNECTIONS
Using quality power, signal and speaker wire is essential in ensuring the performance of your Stealthbox®.
JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplifier, other
kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium
Audio Interconnect Cables should be used that will provide signal for both channels of the amplifier. JL Audio
reccommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-1/2”- Front Doors
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x,
C3-650, C5-650, C5-650x, ZR650-CSi
Rear Speaker Size / Location: 6-1/2”- Rear Door
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x,
C3-650, C5-650, C5-650x, ZR650-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc.“Ahead of the Curve”and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 94500 10.21.2010 • Printed in USA • ©2010 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
