Stealthbox Stealthbox SB-VW-GTI/10W6v2 User manual

INSTALLATION GUIDE
for the
SB-VW-GTI/10W6v2
SB-VW-GTI/10W6v2
2006-Up
2006-Up
GTI MkV, Rabbit & R32
GTI MkV, Rabbit & R32
Thank you for choosing a JL Audio Stealthbox®for your automotive sound system. With proper
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox®installed by your authorized JL Audio
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation,
please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox®be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
STEP 1
Remove any contents from the cargo area.
Continued on Next Page
STEP 2
Place the supplied wax square onto the driver’s side rear
cargo panel.
STEP 3
Thread the supplied socket cup screw into the rear of the
Stealthbox®.
SB-VW-GTI/10W6v2_INSTR_SKU#011250
SB-VW-GTI/10W6v2_INSTR_SKU#011250
13 1/2-inches
INSTALLATION
DIFFICULTY:
2
5
OUT
OF
ESTIMATED TIME:
1 HOUR
1 HOUR
6-inches
Continued on Next Page
SB-VW-GTI/10W6v2_INSTR_SKU#011250
SB-VW-GTI/10W6v2_INSTR_SKU#011250
STEP 5
Note: Before drilling, you are drilling into the rear
fender well. Once you protrude to the outside, do not
go any further or you will be paying for a new rear
tire. Always wear eye protection when drilling!
With a drill and a 1/2-inch drill bit, drill through the
impression made in the wax square.
Remove the wax square.
STEP 4B
The Stealthbox® will be raised off the floor. This is to allow
the factory flooring to be pulled from the cargo area, once
the Stealthbox® is installed.
STEP 4A
The Stealthbox® needs to fit all the way to top plastic panel.
*Read the next three steps to fully understand
this procedure.*
STEP 4
Place the Stealthbox® into the mounting location and press
firmly onto the Stealthbox®.
Page 2 • JL Audio, Inc 2007
STEP 7
Place the Stealthbox® into the mounting location. Guide the
socket cup set screw through the drilled hole.
STEP 9
Behind the strut, pull the black plastic guard to gain access to
the protruding socket cup set screw.
STEP 8
Jack up the driver’s side rear of the vehicle.
You should be able to access the socket cup set screw with
the rear wheel on the car. If necessary, you may remove the
wheel off the car.
STEP 6
Run speaker wire from the amplifier’s location to the
Stealthbox®location and check for proper operation of
the woofer.
SB-VW-GTI/10W6v2_INSTR_SKU#011250
SB-VW-GTI/10W6v2_INSTR_SKU#011250
CONGRATULATIONS
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
STEP 10
Place a supplied fender washer, flat washer, split
lock washer
lock washer
and hex nut onto the socket cup set screw. Secure, but do
not over tighten. We know you are “Strong like bull”, but you
do not have to use all your He-man power on this little nut.
Note: For added protection it is recommended that
you apply a bead of silicone between the vehicle and
the fender washer. After the bolt assembly is tightly
secured, it is also recommended that vehicle under-
coating material is applied to the exposed assembly
Page 3 • JL Audio, Inc 2007
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc.“Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU#011250 -11-1-200
JLA-SKU#011250 -11-1-200
7
7• Printed in USA • ©2007 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
INCLUDED HARDWARE
(1)
(1)
3/8-inch -16 x 2 1/2-inch Socket Cup Set Screw
3/8-inch -16 x 2 1/2-inch Socket Cup Set Screw
(1)
(1)
3/8inch -16 Hex Nut
3/8inch -16 Hex Nut
(1)
(1)
3/8-inch Fender Washer
3/8-inch Fender Washer
(1)
(1)
3/8-inch Flat Washer
3/8-inch Flat Washer
(1)
(1)
3/8-inch Split Lock Washer
3/8-inch Split Lock Washer
SPECIFICATIONS
Enclosure Type:
Acoustic Suspension (sealed)
Acoustic Suspension (sealed)
Driver Type:
10W6v2-D4
10W6v2-D4
Nominal Impedance:
2 ohms mono
2 ohms mono
Continuous Power Handling:
400 Watts
400 Watts
P O W E R R E C O M M E N D A T I O N
POWER RECOMMENDATION
JL Audio recommends using a high quality amplifier such as the JL Audio A1400.
The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the A1400 when
being used to power your Stealthbox®.
Bass Boost Controls
Input Voltage
Low |High
CH 1 (Left)
Input Sens. LP Filter
Filter Fre q. (Hz)
40
45
55
65
80
100
200
Bass Boost
Remote
Bass Port
Power Protect
CH 2 (Right)
Pre-Outs
The JL Audio A1400 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location:
6.5-inch / Front Doors
6.5-inch / Front Doors
Fits JL Audio Models:
TR650-CSi, TR650-CXi, VR650-CSi, VR650-CXi, C5650, C5-650x & ZR650-CS
TR650-CSi, TR650-CXi, VR650-CSi, VR650-CXi, C5650, C5-650x & ZR650-CS
i
i
Rear Speaker Size / Location:
6.5-inch / Rear Doors / Side Panels
6.5-inch / Rear Doors / Side Panels
Fits JL Audio Models:
TR650-CXi, VR650-CXi, XR650-CXi & C5-650x
TR650-CXi, VR650-CXi, XR650-CXi & C5-650x

This manual suits for next models

1

Other Stealthbox Subwoofer manuals

Stealthbox STEALTHBOX SB-VW-NB/10W3 User manual

Stealthbox

Stealthbox STEALTHBOX SB-VW-NB/10W3 User manual

Stealthbox SB-T-TACCAB/10W3v3 User manual

Stealthbox

Stealthbox SB-T-TACCAB/10W3v3 User manual

Stealthbox Stealthbox SB-T-TDCMAX/13TW5 User manual

Stealthbox

Stealthbox Stealthbox SB-T-TDCMAX/13TW5 User manual

Stealthbox SB-F-150/10W3v3 User manual

Stealthbox

Stealthbox SB-F-150/10W3v3 User manual

Stealthbox SB-SC-XB User manual

Stealthbox

Stealthbox SB-SC-XB User manual

Stealthbox Stealthbox SB-T-SEQ/10W3 User manual

Stealthbox

Stealthbox Stealthbox SB-T-SEQ/10W3 User manual

Stealthbox SB-F-EXPDCNSL User manual

Stealthbox

Stealthbox SB-F-EXPDCNSL User manual

Stealthbox Stealthbox SB-T-TACDC/10W1v2 User manual

Stealthbox

Stealthbox Stealthbox SB-T-TACDC/10W1v2 User manual

Popular Subwoofer manuals by other brands

Kicker KM10 user manual

Kicker

Kicker KM10 user manual

Polk Audio DX8 owner's manual

Polk Audio

Polk Audio DX8 owner's manual

Triad OmniSub 8 quick start guide

Triad

Triad OmniSub 8 quick start guide

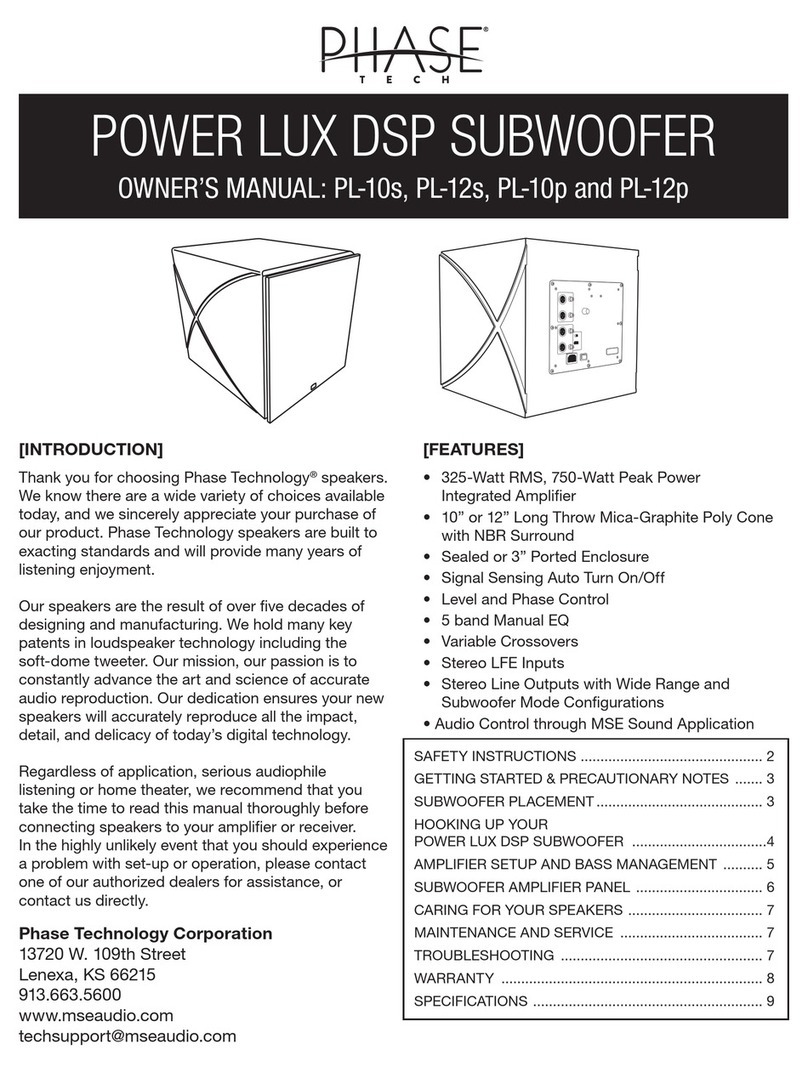

Phase-Tech POWER LUX PL-10s owner's manual
