STERLING FANS SE80P User manual

WARNING
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with the homeowner.
CAUTION
CLEANING & MAINTENANCE
OPERATION
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up.
DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off
power unit.
4. Please read specification label on product for further information and requirements.
For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit
with the dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual
noises, replace the motor with the exact service motor. The impeller should also be replaced.
MODEL:
EXHAUST FAN
a). Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer.
b).
Before servicing or cleaning unit, switch power off at service panel and lock the service disconnect-
ing means to prevent power from being switching on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
c). Installation work and electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction codes and standards.
d). Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
e). When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
f). Ducted fans must always be vented to the outdoors.
g). Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Inter-
rupter) - protected branch circuit (ceiling installation only).
h). This unit must be grounded.
i). Not for Use in Kitchens.
j). To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl spaces, or garages
k). WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any
Solid-State Speed Control Device.
l). The fan must not be installed in a ceiling thermally insulated to a value greater than R40.
Cod: 0060300000-A
SE120P
SEP150
SE110P
SE80P
SE90P
Use an on/off switch to operate this fan. See “CONNECT ELECTRICAL WIRING” for details.

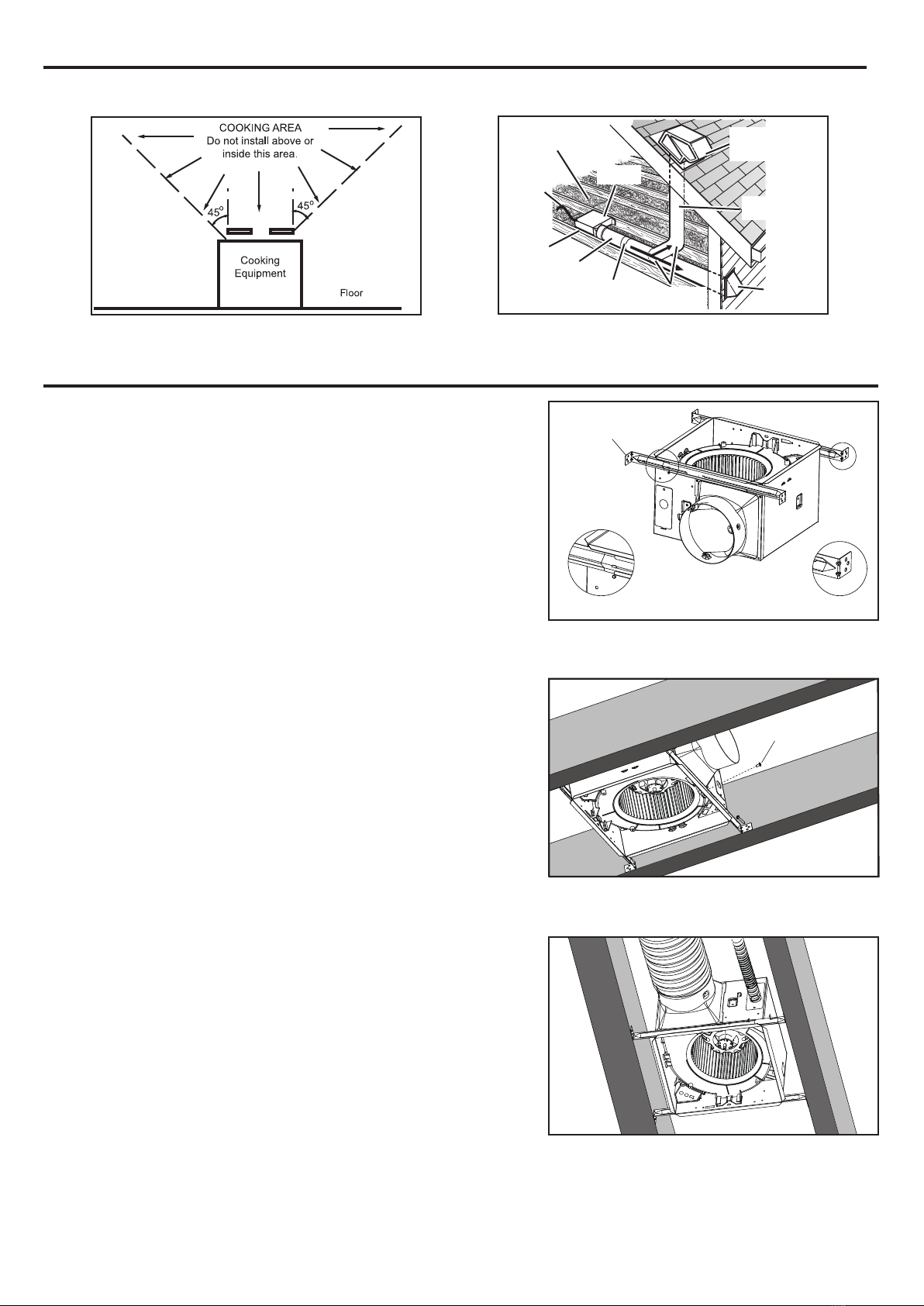

PLAN THE INSTALLATION
1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.
ASSEMBLY INSTRUCTIONS
2
ROOF CAP*
(with built-in
damper)
ROUND
DUCT* WALL CAP*
(with built-in
damper)
*Purchase
separately
POWER
CABLE*
INSULATION*
(Place around and
over Fan Housing.)
Seal gaps
around
Housing.
FAN
HOUSING
ROUND
ELBOW(S) *
Seal duct
joints with
tape.
Keep duct
runs short
1. Sliding hanger bars have been provided, which allow the housing to be positioned
accurately anywhere between the framing. The bars span up to 24 in. and can be used on
all types of framing: I-joist, standard joist, and truss construction. Slide hanger bars onto
housing and adjust as needed to fit between framing.
2. Extend the hanger bars to the width of the framing. Position the ventilator with the bottom
edge of the hanger bar tabs are flush with the bottom edge of the framing, holding the
ventilator in place.Secure hanger bars to framing using one screw on each end of hanger
bar.Select a proper hole and secure the hanger bars together using one screw.
Hanger Bar
screw
3.INSTALL ROUND DUCTWORK
Connect the round ductwork (not included) to the damper/duct connector,and run the
ductwork to a roof or wall cap (not included). Using tape (not included), secure all the
ductwork connections so that they are air tight.
The ducting from this fan to the outside of building has a strong effect on the air flow, noise
and energy use of the fan.
Use the shortest, straightest duct routing possible for best performance, and avoid
installing the fan with smaller ducts than recommended. Insulation around the ducts can
reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not
achieve their rated air flow.

Run 120 V AC house wiring to the location of the fan. Use only UL-approved connectors (not included) to attach the house wiring to the wiring plate. Refer
to the wiring diagram, and connect the wires as shown.
CONNECT ELECTRICAL WIRING
INSTALL GRILLE
3
WIRE
PANEL UNIT
BLACK (BLK)
SWITCH BOX
FAN
SWITCH
POWER SUPPLY
120V AC
GROUND (GRD)
WHITE (WHT)
FAN
RECEPTACLE
FAN
UNIT
SWITCH BOX
LINE
IN
ON/OFF
SWITCH
BLK
BLK
WHT
WHT
GRDGRD
Install ceiling material to complete the ceiling construction.
Then, cut around the fan housing.
Pinch the grille springs on the sides of the grille assembly, and position the grille into the
housing with the grille springs in the appropriate slots.
Push the grille assembly towards the ceiling to secure.

This warranty covers all defects in workmanship or materials for:
The mechanical and electrical parts contained in this product, for a period of 12 months, from the date of purchase. You must keep and
be able to provide your original sales receipt as proof of the date of purchase. This warranty is covered the original retail purchaser of
this product. The manufacturer will repair or replace, in your home, any mechanical or electrical part which proves defective in normal
household use for a period of 12 months.
THIS WARRANTY DOES NOT COVER:
• Damages from improper installation
• Damages from shipping
• Damages from misuse, abuse, accident, alteration, lack of proper care and maintenance
• Damages from service by persons other than an authorized dealer or service center.
• Labor, service, transportation and shipping charges for the removal of defective parts and for installation of a replacement
part, beyond the initial 12-month period.
This warranty does not extend to fluorescent lamp starters and tubes.
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or
consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so this limitation may not
apply to you. Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
WARRANTY
SERVICE PARTS
4
SE120P
SEP150
SE110P
SE80P
SE90P
PART PART NAME Qty.
1
2
7
8
9
10
a
Housing
Wiring plate
Damper / Duct Connector
Screw
1
2
4
1
1
1
11 1
4
bScrew 5
cScrew 3
d
e
Screw
Washer
6
1
Grille Assembly (includes part 2)
3a 1Blower
4a 1Blower Wheel
5a 1Motor Plate
6a 1Motor
3b 1Blower
4b 1Blower Wheel
5b 1Motor Plate
6b 1Motor
Grille Spring
WARNING: Ensure that the fan is switched off from the supply
mains before replacing.
e
Wire Panel / Harness Assemblye
Hanger Bar Kit
* Blower Assembly includes part 3, 4, 5, 6, b, c, e
For
For
1
2
6a 6b
5b
4b
3b
5a
4a
3a
7
8
11
9
d
a
10
c
b
