Homewerks 7130-01-BT User manual

2
www.homewerksww.com
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
FCC COmPLIANCE
SPECIFICATIONS SPECIFICATIONS
Airow: 90CFM Motor power consumption: 34 W
120V, 60Hz Exhaust fan speed: 782 RPM
Duct diameter: 4 in. Weight: 10.6 lbs.
Sound output: 1.5 Sones
Product Specications........................................................................................................................2
FCC Compliance ................................................................................................................................2
Package Contents ..............................................................................................................................3
Hardware Contents.............................................................................................................................3
Safety Information ..............................................................................................................................4
Preparation.........................................................................................................................................4
New Construction Assembly Instructions ...........................................................................................6
Existing Construction Assembly Instructions......................................................................................7
BLUETOOTH®Speaker Fan Grille Installation...................................................................................9
Pairing your BLUETOOTH®Device to the Speaker .........................................................................10
BLUETOOTH®Speaker and Fan Operation ....................................................................................10
Care and Maintenance ..................................................................................................................... 11
Troubleshooting................................................................................................................................13
Warranty ...........................................................................................................................................13
This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment.
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modications or changes
to this equipment. Such modications or changes could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

5
www.homewerksww.com
PREPARATION
Tools Required for Assembly (not included): Hammer, Flathead Screwdriver, Wire Nuts, Nails, Duct Tape,
Phillips Head Screwdriver, Utility Knife
Helpful Tools (not included): Electric Drill, Drill Bits
WARNING: Turn off electricity at breaker box before beginning installation.
Carefully remove unit from carton.
Check area above installation location to be sure that wiring can run to the planned location and that
duct work can be run and the area is sufcient for proper ventilation.
Inspect duct work and wiring before proceeding with installation.
Before installation, provide inspection and future maintenance access at a location that will not interfere
with installation work.
You may need the help of a second person to install this fan; one person on the attic side and one on
the room side.
Note: Installations may vary depending on how the previous bath fan was installed. Supplies necessary
for the installation of your bath fan are not all included; however, most are available at your local
home improvement or hardware store.
DImENSIONS REQUIREmENTS
Ceiling
Opening (L)
Ceiling
Opening (W)
Ceiling
Opening (H)
Housing
Dimension (L)
Housing
Dimension (W)
Housing
Dimension (H)
9.4 in. 9.4 in. 7.4 in. 9.25 in. 9.25 in. 7.3 in.

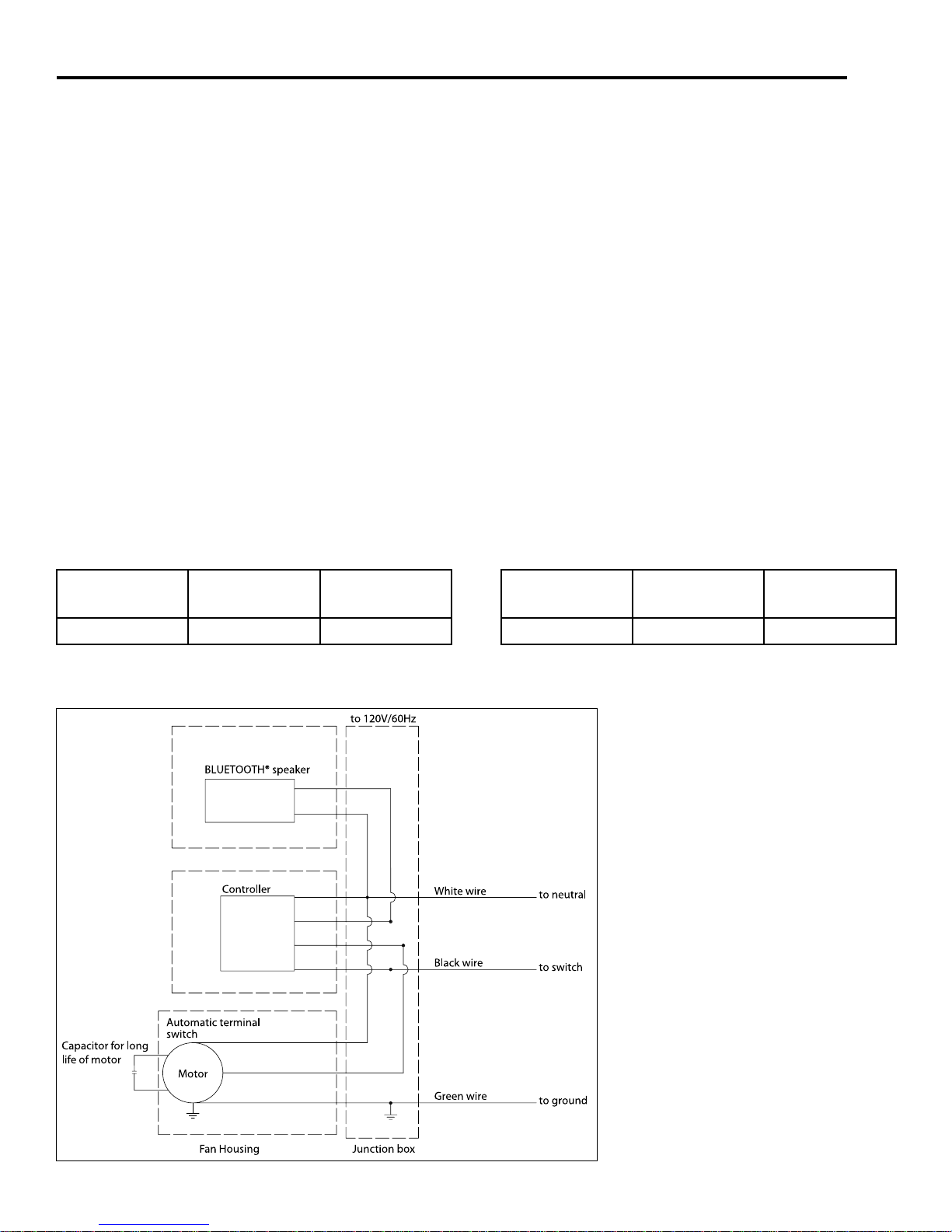

WIRING DIAGRAm

13
www.homewerksww.com
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan seems louder
than it should
CFM too great Be sure the CFM rating on the fan matches
the size of your room.
Damper not working properly or damaged Check damper to ensure it is opening and closing properly. If the damper has become
damaged, please call Customer Service.
Bend in duct too close to fan discharge Be sure you do not have any sharp bends in
duct closer than 18 in. to the fan discharge.
Fan discharge reduced to t smaller duct Use recommended size ducting to reduce fan
noise.
Fan body not securely attached Be sure the fan is securely attached to your
ceiling joists.
The fan is not
clearing the room
Insufcient intake airow within room
Be sure a door or window is slightly ajar or
opened to allow airow. The fan is not able to
draw air out of the room without enough airow
to draw from.
Insufcient CFM
Be sure the CFM rating on the fan matches the
requirements for your room size.
NOTE: Using a tissue is not an accurate
method for determining if the fan is operating
properly. If the fan clears steam from the room
within approximately 15 minutes of completing
your shower, then the fan is operating properly.
FAN – LImITED 3-YEAR WARRANTY
BLUETOOTH® SPEAKER – LImITED 1-YEAR WARRANTY
If the fan fails due to a defect in materials or workmanship at any time during the rst THREE years of ownership, the manufacturer will
replace it free of charge, postage-paid at their option. This warranty does not cover products that have been abused, altered, damaged,
misused, cut or worn. This warranty does not cover use in commercial applications. Use only manufacturer-supplied genuine warranty
repair replacement parts to repair this fan. Use of non-genuine repair parts will void your warranty. The manufacturer DISCLAIMS all
other implied or express warranties including all warranties of merchantability and/or tness for a particular purpose. As some states do
not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives
you specic legal rights, and you may have other rights that vary from state to state.
This warranty is limited to the replacement of defective parts only. Labor charges and/or damage incurred during installation, repair,
replacement as well as incidental and consequential damages connected with the above are excluded. Any damage to this product
as a result of neglect, misuse, accident, improper installation or use other than the purpose SHALL VOID THIS WARRANTY.
Shipping costs for return product as part of a claim on the warranty must be paid for by the customer.
Inquiries regarding warranty claims can be directed to 1-877-319-3757, 8 a.m. - 5 p.m., CST, Monday - Friday.
If the BLUETOOTH® speaker fails due to a defect in materials or workmanship at any time during the rst year of ownership, the
manufacturer will replace it free of charge, postage-paid at their option. This warranty does not cover products that have been abused,
altered, damaged, misused, cut or worn. This warranty does not cover use in commercial applications. Use only manufacturer-supplied
genuine warranty repair replacement parts to repair this fan. Use of non-genuine repair parts will void your warranty. The manufacturer
DISCLAIMS all other implied or express warranties including all warranties of merchantability and/or tness for a particular purpose. As
some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This
warranty gives you specic legal rights, and you may have other rights that vary from state to state.
This warranty is limited to the replacement of defective parts only. Labor charges and/or damage incurred during installation, repair,
replacement as well as incidental and consequential damages connected with the above are excluded. Any damage to this product
as a result of neglect, misuse, accident, improper installation or use other than the purpose SHALL VOID THIS WARRANTY.
Shipping costs for return product as part of a claim on the warranty must be paid for by the customer.
Inquiries regarding warranty claims can be directed to 1-877-319-3757, 8 a.m. - 5 p.m., CST, Monday - Friday.

15
www.homewerksww.com
TABLA DE CONTENIDO
ESPECIFICACIONES DEL PRODUCTO
ESPICIFICACIONES ESPICIFICACIONES
Flujo de aire: 90CFM Consumo eléctrico motor 34 W
120V, 60Hz Velocidad del extractor: 782 RPM
Diámetro del conducto: 7,62 cm Peso: 10.6 lbs.
Potencia de sonido: 1.5 sonios
Especicaciones del producto..........................................................................................................15
FCC Conformidad.............................................................................................................................15
Contenido del paquete .....................................................................................................................16
Aditamentos......................................................................................................................................16
Información de seguridad.................................................................................................................17
Preparación ......................................................................................................................................17
Nuevas instrucciones de montaje de la Asamblea...........................................................................19
Instrucciones de montaje existentes de construcción ......................................................................20
BLUETOOTH®Altavoz Ventilador Reja Instalación..........................................................................22
Sincronización del Dispositivo BLUETOOTH®al Presidente ...........................................................23
Altavoz BLUETOOTH®y el Funcionamiento del Ventilador.............................................................23
Cuidado y mantenimiento.................................................................................................................24
Solución de problemas.....................................................................................................................26
Garantía............................................................................................................................................26
FCC CONFORmIDAD
Este equipo cumple con los límites de exposición de radiación RF
de la FCC establecidos para un entorno no controlado.
Este dispositivo cumple con la parte 15 de las normas FCC. La
operación está sujeta a las siguientes dos condiciones: (1) este
dispositivo no puede causar interferencias perjudiciales y (2) este
dispositivo debe aceptar cualquier interferencia recibida, incluyendo
interferencias que puedan causar un funcionamiento no deseado.
NOTA: El fabricante no es responsable de ninguna interferencia
de radio o televisión ocasionada por modicaciones o cambios no
autorizadosa este equipo. Tales modicaciones o cambios podrían
anular la autoridad del usuario para operar el equipo.
NOTA: Este equipo ha sido probado y cumple con los límites para
un dispositivo digital de Clase B, según la Parte 15 de la normativa
FCC. Estos límites están diseñados para proporcionar una
protección razonable contra las interferencias perjudiciales en
una instalación residencial. Este equipo genera, utiliza y puede
irradiar energía de radiofrecuencia y, si no se instala y utiliza de
acuerdo con las instrucciones, puede causar interferencias perjudi-
ciales en las comunicaciones de radio. Sin embargo, no hay
garantía de que no se produzcan interferencias en una instalación
en particular. Si este equipo causa interferencias perjudiciales en la
recepción de radio o televisión, lo cual puede determinarse apagán-
dolo y encendiéndolo, se recomienda al usuario que intente corregir
la interferencia mediante una o más de las siguientes medidas:
– Reorientar o reubicar la antena receptora.
– Aumentar la separación entre el equipo y el receptor.
– Conectar el equipo a un tomacorriente en un circuito diferente de
aquel al que está conectado el receptor.
– Consulte al distribuidor oa un técnico de radio/televisión para
obtener ayuda.
