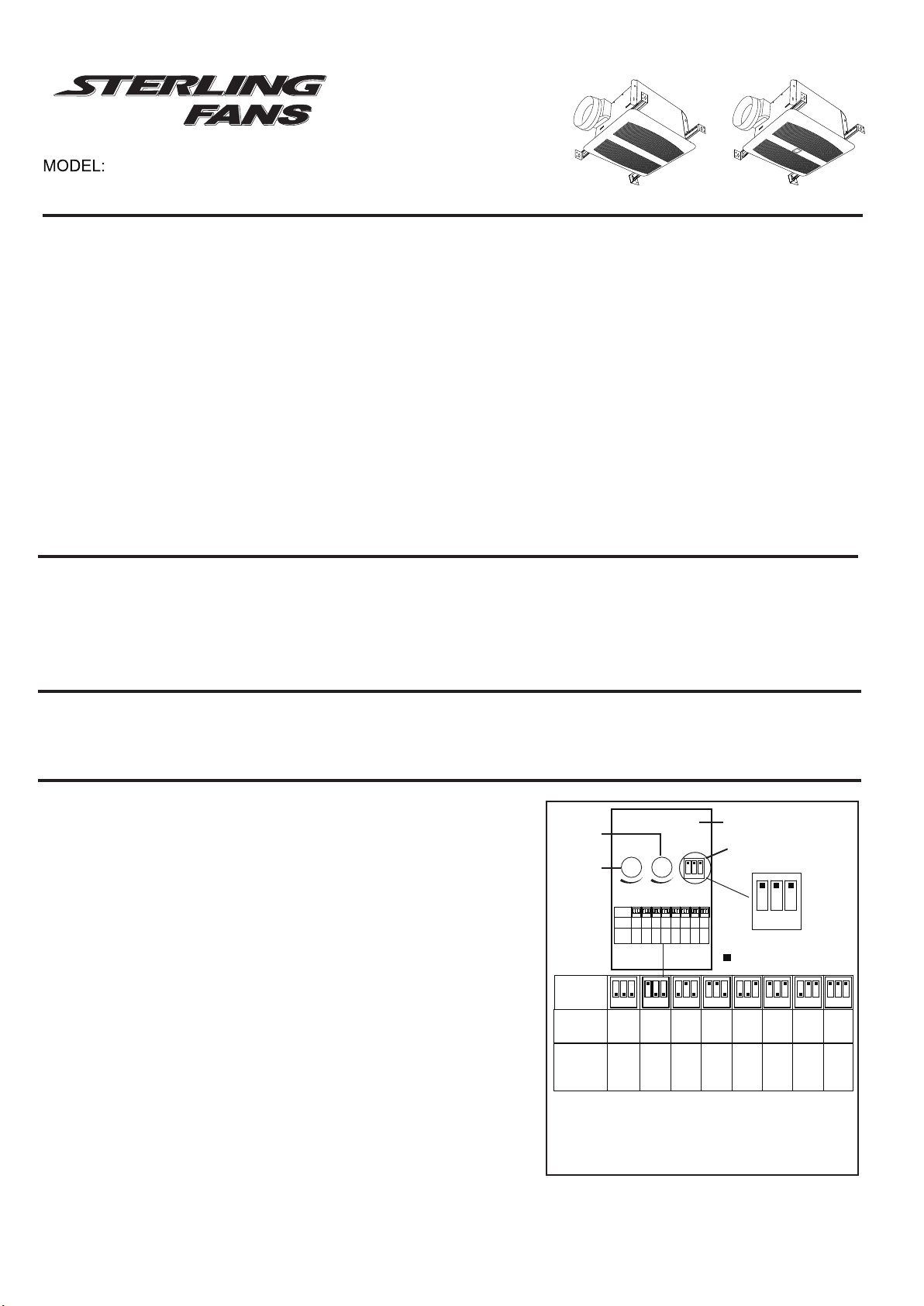

STERLING FANS SED110M User manual

WARNING
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with the homeowner.
CAUTION
CLEANING & MAINTENANCE
OPERATION
For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the
exact service motor. The impeller should also be replaced.
See “Connect Wiring” for details.
EXHAUST FAN
SED110 SED110M
a). Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer
b). Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switching
on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
c). Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated
construction codes and standards.
d). Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
e). When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
f). Ducted fans must always be vented to the outdoors.
g). Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).
h). This unit must be grounded.
i). Not for Use in Kitchens.
j). To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics,
crawl spaces, or garages
k). WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.
l). The fan must not be installed in a ceiling thermally insulated to a value greater R40.
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up. DO NOT MOUNT THIS
PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.
*The manual in electronic format can be download in our company web, or obtained from our dealer.
WARNING -TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
-
+-
+
1 2 3
1 2 3
Toggle switch
Power box
Low airflow
knob
Timer delay
knob
80 90 110 120 90 110 120 140
1 2 31 2 31 2 31 2 31 2 31 2 31 2 31 2 3
6"
Switch
position
Duct
diameter
(inches)
Airflow
(CFM)
6"
6"
6"4"4"4"4"
80 90 110 120 90 110 120 140
1 2 31 2 31 2 31 2 31 2 31 2 31 2 31 2 3
6"
Switch
position
Duct
diameter
(inches)
Air deliver
(CFM)
6"
6"
6"4"4"4"4"
is the position of switch
Other airflow reference performance based on HVI
Procedures 915, 916, and 920.
Factory setting: 110CFM ( )
HVI Certified performance based on HVI Procedures 915,
916, and 920.
The control box, located inside the fan housing, has three separate adjustments:
(1) The low airflow knob adjusts the lower airflow from 30CFM up to
the air flow rate of the high fan speed determined by the toggle switch setting.
(2) The time delay knob is adjustable from 3 to 30 minutes and will switch the fan
to the low speed setting after motion is no longer detected in the room for the set
period of time.
(3) The toggle switch will adjust the upper fan speed setting from 80 to 120 CFM
using a 4" duct, or 90 to 140 CFM using a 6" duct.
with 6" duct
How to work
To Turn Fan ON
Turn the switch I(according to the following “
CONNECT ELECTRICAL WIRING” ) ON.
• Fan will run at the certified airflow rate if the switch II is ON.
• Fan will run at the user-adjustable airflow rate if the switch II is OFF.
To Use Fan Time Delay Airflow Rate Change
1. Turn the switch ION.
2. Turn the switch II ON - fan will run at the certified airflow rate.
3. When the switch II is turned OFF, fan will continue to run at
the certified airflow rate until the user-adjustable time delay has elapsed,
and then will automatically change to the user-adjustable airflow rate.
To Turn Fan OFF
Turn the switch IOFF
For model SED110

Hold the housing so that it is in contact with the bottom of the joist. Attach the housing with four (4) screws to the joist through
the holes in each mounting flange.
1. MOUNT HOUSING TO JOIST OR I-JOIST.
HANGER
BAR
NAIL
2. MOUNT WITH HANGER BARS
2a. Sliding hanger bars have been provided, which allow the housing to be positioned accurately anywhere between the
framing. The bars span up to 24 in. and can be used on all types of framing: I-joist, standard joist, and truss construction.
Slide hanger bars onto housing and adjust as needed to fit between framing.
2b. Extend the hanger bars to the width of the framing. Position the ventilator with the hanger bar tabs wrapped around the
bottom edge of the framing, holding the ventilator in place.
Secure hanger bars to framing using one screw on each end of hanger bar.
Select a proper hole and secure the hanger bars together using flange screws.
OPERATION
TYPES OF TYPICAL INSTALLATIONS
1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.
ASSEMBLY INSTRUCTIONS
1. Housing mounted to I-joists (Start at “ASSEMBLY INSTRUCTIONS 1”)
2. Housing mounted to joists (Start at “ASSEMBLY INSTRUCTIONS 1” )
3. Housing mounted to truss (Start at step “ASSEMBLY INSTRUCTIONS 2”)
SCREW
2
ROOF CAP*
(with built-in
damper)
ROUND
DUCT* WALL CAP*
(with built-in
damper)
*Purchase
separately
POWER
CABLE*
INSULATION*
(Place around and
over Fan Housing.)
Seal gaps
around
Housing.
FAN
HOUSING
ROUND
ELBOW(S) *
Seal duct
joints with
tape.
Keep duct
runs short
The fan, motion sensor and LED light can be operated
separarely.Sensing distance will be impacted of the body’s own
situation (for example, the thinner people wearing the more remote
sensing distance). Turn on the switch sensor system begins working,
the fan run continuously at a pre-set lower level. When enter the
gesture area fan begins working, indicator light begins flashing. When
persons leave, indicator light turn down, the fan remains working until
the delay time has passed, and then the fan transferred to the low-
speed (you set) operation.
7 to 9 feet
7 to 9 feet.
For model SED110M
PLAN THE INSTALLATION

DUCT
3. ATTACH DAMPER/DUCT CONNECTOR
Snap the damper/duct connector onto the fan housing. The connector must be flush with the top of the housing, and the
damper flap should fall closed.
4. INSTALL ROUND DUCTWORK
Connect the round ductwork (not included) to the damper/duct connector, and run the ductwork to a roof or wall cap
(not included). Using tape (not included), secure all the ductwork connections so that they are air tight.
ASSEMBLY INSTRUCTIONS
CONNECT ELECTRICAL WIRING
INSTALL GRILLE
3
Insulated flexible duct is recommended for the quietest possible installation. If rigid duct is used, a short (1-3 feet)
section of insulated flexible duct will ensure quiet operation.
Run 120 V AC house wiring to the location of the fan. Use only UL-approved connectors (not included) to attach the house wiring to the wiring plate. Refer to the wiring
diagram, and connect the wires as shown.
FAN
FAN
LIGHT
SWITCH BOX
BLK
WHT
D
Low CFM
switch
S
elay time
Preset switch
Fan
N
LED
Sensor
and LED
Light
GRD
UNIT
SWITCH
SWITCH
BLK
WHT
LINE
IN
LED NIGHT
CONTROL
CIRCUIT
BRN UNIT
BLACK(BLK)
LED NIGHT
LIGHT
SWITCH BOX
FAN
120V AC LINE IN
GROUND (GRD)
BROWN(BRN)
WHITE (WHT)
WIRE PANEL
RECEPTACLE
For model SED110
For model SED110M
UNIT
BLACK (BLK)
SWITCH BOX
SWITCH I
POWER SUPPLY
120V AC
GROUND (GRD)
WHITE (WHT)
FAN
RECEPTACLE
FAN
WIRE
PANEL
BRN
BLK
SWITCH I
SWITCH II
SWITCH II
BROWN (BRN)
Install ceiling material to complete the ceiling construction. Then, cut around the fan housing.
First insert the sensor plug into the plug base on the power box, and then
install the grille (for model SED110M ).
To attach the grille assembly to the fan housing, pinch the grille springs on the sides of the grille
assembly, and position the grille into the housing with the grille springs in the appropriate slots.
Push the grille assembly towards the ceiling to secure.

This warranty covers all defects in workmanship or materials for:
The mechanical and electrical parts contained in this product, for a period of 12 months, from the date of purchase. You must keep and be able to provide
your original sales receipt as proof of the date of purchase. This warranty is covered the original retail purchaser of this product. The manufacturer will repair
or replace, in your home, any mechanical or electrical part which proves defective in normal household use for a period of 12 months.
THIS WARRANTY DOES NOT COVER:
• Damages from improper installation
• Damages from shipping
• Damages from misuse, abuse, accident, alteration, lack of proper care and maintenance
• Damages from service by persons other than an authorized dealer or service center.
• Labor, service, transportation and shipping charges for the removal of defective parts and for installation of a replacement part, beyond the initial 12-month
period.
This warranty does not extend to fluorescent lamp starters and tubes.
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential
damages. Some states do not allow the exclusion of incidental or consequential damages, so this limitation may not apply to you. Some states do not allow
limitations on how long an implied warranty lasts, so this limitation may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights, which vary from state to state.
WARRANTY
SERVICE PARTS
4
5
6
d
e
a
1b
1a
12
2
3
4
b
c
7
9
8
10
10
11
PART PART NAME Qty.
1a
1b
2
3
4
5
6
7
8
9
10
11
a
b
c
d
e
Housing
Damper / Duct Connector
Wiring plate
Screw
Blower Wheel
Wire Panel / Harness Assembly
Motor
1
1
2
1
1
1
1
1
1
1
4
1
12 Sensor (includes sensor system and LED light) (for model SED110M) 1
4
4
1
4
1
Isolator
Motor Plate
Washer
Nut, Hex Lock
Grille Assembly (includes part 2 & 12) (for model SED110M)
Grille Assembly (includes part 2 ) (for model SED110)
Grille Spring
Hanger Bar Kit
Screw
Power Box
* Blower Assembly includes part 6, 5, d, 4, c, b, a.
Replacement installation:
Remove the screw (part c), then take out the motor plate (part 4) from
the housing (part 9) by pushing down the rib in the plate while pulling
out on the side of the housing. Replace the broken parts.
WARNING: Ensure that the fan is switched off from the supply mains before replacing.
