Please read this user manual first!
Dear Customer,
Thank you for prefering a Beko product. We hope that you get the best results from your product which has
been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user
manual and all other accompanying documents carefully before using the product and keep it as a reference
for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings
and information in the user manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints
about usage.
AWarning for hazardous situations with
regard to life and property.
BWarning for electric shock.
Warning for danger of fire.
Warning for hot surfaces.
This product has been produced in environmentally friendly, modern facilities.
Complies with the WEEE Regulation. Does not contain PCB.
Made in: P.R.C

3 / 13 EN
Hood / User Manual
1 Recommendations and Suggestions4-5
1.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.2 Safety Precaution . . . . . . . . . . . . . . . . . . . . .4
1.3 Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2 Characteristics 6
2.1 Technical Specifications . . . . . . . . . . . . . . . .6
3 Installation Instructions 7
4 Operation 10
5 Use and Maintenance 11
5.1 Carbon filter (not supplied) . . . . . . . . . . . . .12
6 Trouble shooting 13
TABLE OF CONTENTS

4 / 13 EN
Hood / User Manual
1 Recommendations and Suggestions
1.1 General
•Carefullyreadthefollowingim-
portant information regarding
installation safety and mainte-
nance. Keep this information
booklet accessible for further
consultations.
•The appliance has been de-
signed as a exhausting version
(external exhaust) or as a filter
version (inter air recycle) cooker
hood.
1.2 Safety Precaution
•Takecarewhenthecookerhood
is operating simultaneously with
an open fireplace or burner that
depend on the air from the en-
vironment and are supplied by
other than electrical energy, as
the cooker hood removes the
air from the environment which
a burner or fireplace need for
combustion.
•Provide adequate ventilation in
the environment for a safe op-
eration for the cooker hood.
•Followthelocallawsapplicable
for external air evacuation
•Appliance shall only be used
with rated voltage and frequen-
cy.
•Thereisafireriskifcleaningis
not carried out in accordance
with the instruction.
•Thereshallbeadequateventila-
tion of the room when the range
hood is used at the same time
as appliances burning gas or
other fuels. (Not applicable to
appliances that only discharge
the air back into the room).
•Thereisariskoffireifcleaning
is not carried out in accordance
with the instructions.
•Caution: Accessible parts may
become hot when used with a
cooking appliance.
•The appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and knowl-
edge, unless they have been
given supervised or instruction
concerning use of the appliance
by a responsible person for their
safely.
•Youngchildrenshouldbesuper-
vised to ensure that they do not
play with the appliance.

5 / 13 EN
Hood / User Manual
1 Recommendations and Suggestions
•Ifthesupplycordisdamaged,it
must be replaced by the manu-
facturer or its service agent or a
similarly qualified person in or-
der to avoid a hazard.
The instructions must include de-
tails concerning cleaning instruc-
tions and frequencyof cleaning
1.3 Warning
In certain circumstances electri-
cal appliances may be a danger
hazard.
•Do not check the status of the
filters while the cooker hood is
operating.
•Donottouchthelightbulbsafter
appliance use.
•Donotdisconnecttheappliance
with wet hands and without to
force the supply cord..
•Flamecookingisprohibitedun-
derneath cooker hood.
•Avoidfreeflame,asitisdamag-
ing for the filters and a fire haz-
ard.
•Constantly check food frying
to avoid that the overheated oil
may become a fire hazard .
•Disconnect the electrical plug
prior to any maintenance.
•Children don’t recognize the
risks of electrical appliance.
Therefore use or keep the appli-
ance only under supervision of
adults and out of the reach from
children.
•Ifthepowercordisdamaged,it
must be replaced by the manu-
facturer or a qualified service
engineer in order to avoid a har-
zad.
•Keep electrical appliances out
of reach from Children or infirm
persons. Do not let them use the
appliances without supervision.
•Indooruseonly.
•Donotdisposeofelectricalap-
pliances as unsorted municipal
waste, use separate collection
facilities.
•Contact you local government
for information regarding the
collection systems available.
•If electrical appliances are dis-
posed of in landfills or dumps,
hazardous substances can leak
into the groundwater and get
into the food chain, damaging
your health and well-being.
•Whentheapplianceisnotinuse
and before cleaning, unplug the
appliance from the outlet.

6 / 13 EN
Hood / User Manual
2 Characteristics
CTB 6253 X
Width 695 mm
Depth 265 mm
Height 400 mm
Supply voltage 220 - 240 V, 50 Hz
Control 2 positions
Suction power 440 m3/h / 260 m3/h (with CF)
Motor power 200 W
Lamp power 2 x 28W
Total power 256 W
Net weight 8,1kg
Gross weight 9,63 kg
2.1 Technical Specifications
Markings on the product or the values stated in other documents
supplied with the product are values obtained under laboratory
conditions as per relevant standards. These values may vary according
to the usage of the product and ambient conditions.

7 / 13 EN
Hood / User Manual
•The exhaust air must not be discharged into a
flue which is used for exhausting fumes from
other appliances burning gas or other fuels. (Not
applicable for appliances which only discharge
air back into the room)
•The minimum distance between the support-
ing surface for the cooking vessels on the hob
and the lowest part of the range hood: When the
range hood is located above a gas appliance,
this distance shall be 65cm. If the instructions
for installation for the gas hob specify a greater
distance, this must be taken into account. (The
distance of 65cm can be reduced for non com-
bustible parts of range hoods and parts operating
at safety extra low voltage provided these parts
do not give access to live parts. Distance may
bereducedto60cmtoalignwiththeAGAcode.
•Regulations concerning the discharge of air have
to be fulfilled
•Warning: Failure to install the screws or fixing
device in accordance with the instructions may
result in electrical hazards
3 Installation Instructions
The cooker hoods should be placed at a distance
of 65-75cm from the cooking surface for best
effect. (See Pic 1)
65cm
75cm
Pic 1

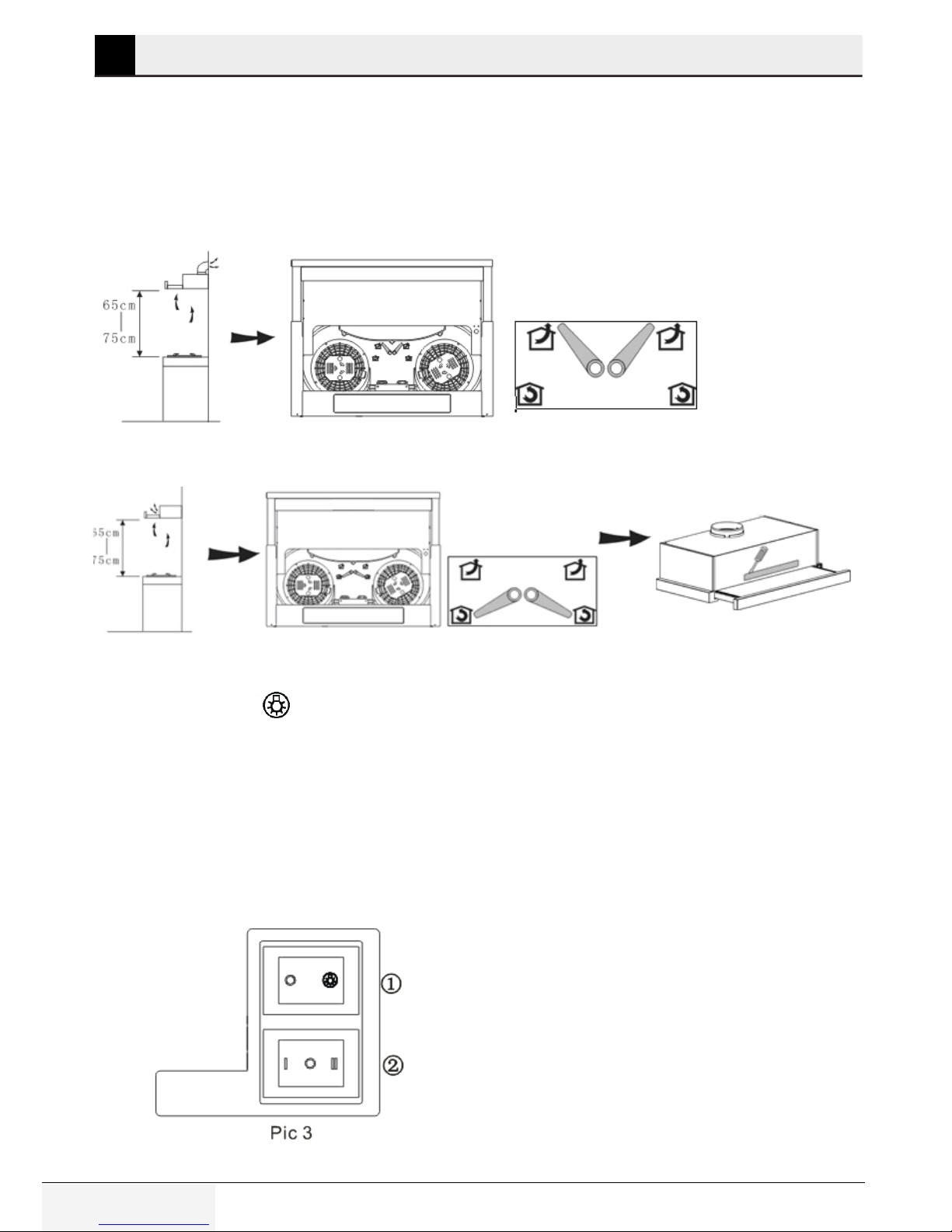

Wayone:(SeePic2A)
•Toinstallontothewalldrill4holesofØ8mm
on a suitable place according with the centre
distance of hole in the back of the cooker hood.
•Insertthewallplugsintotheholes.
•Insertthescrewsintothewallpulgsandtight
the screws.
•Putupthecookerhoodontothefixedscrews.
•Puttheoneairoutletandextensiblepipeonto
the cooker hood. (the extensible pipe is optional
not supplied)


8 / 13 EN
Hood / User Manual

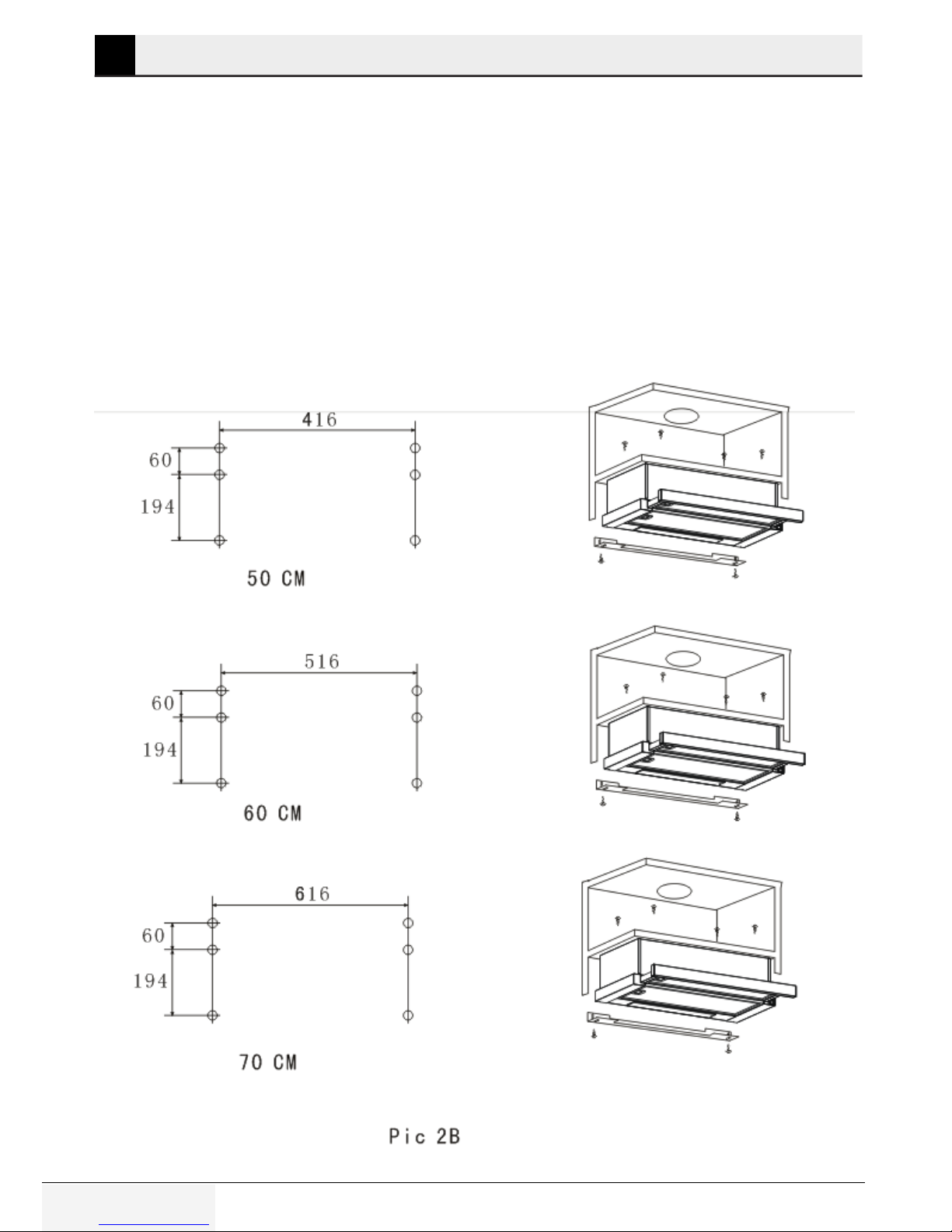

Way two: (See Pic 2B)
•Drill6holesof4mmdiameteratthebottomof
the hanging cupboard
•Puttheairoutletonthecookerhood,thenins-
tall the cooker hood on the bottom of the cup-
board, tighten the hood with enclosed 6 screws.
•Installtheadjustedboardonthebottomofthe
hood in order to keep out the gap between
hood back and cupboard.
3 Installation Instructions


9 / 13 EN
Hood / User Manual
3 Installation Instructions
7 Replacement for the front panel
Replace the front panel (80mm) is as below:
- Side the front panel of the cooker hood.
- Inordertochangefrontpanel,theAlanti-greasefiltershouldbedetachedfirstly.Pressthelockand
pull it downward.
- Remove 4 screws in the back of the front panel (40mm)
- Putthefrontpanel(80mm)onthesliderboard,adjustpositioninordertokeepbalancewiththehood
body, tighten with enclosed 4 screws.
- Repeat the same way if change to 40mm

10 / 13 EN
Hood / User Manual
4 Operation
Connect the plug into the power.
Choose the ducting mode or the recirculation
mode as you need (for Front- re-circulating mo-
dels only):
ducting mode
recirculation mode
Push the switch into “

”, the lamp be on;
push into “0”, the lamp be off.
Push the switch into “I, II”, the motor will be on
“low, high” two speeds, push into “0”, the motor
will be off.
The cooker hood will working at low or high speed
when pull out the front panel.




11 / 13 EN
Hood / User Manual
5 Use and Maintenance
•Itisrecommendedtooperatetheappliance
prior to cooking.
•Thereshallbeadequateventilationoftheroom
when the cooker hood is used at the same time
as appliances burning gas or other fuels(not
applicable to appliances that only discharge the
air back into the room.
•Itisrecommendedtoleavetheappliancein
operation for 15 minutes after cooking is termi-
nated in order to completely eliminate cooking
vapours and odours.
•Iftheapplianceisnotused,pleaseturnoff.
•Don’thaveflameunderthecookerhood.
•Don’tuseorstopuseiftheapplianceisdama-
ged especially the supply cord and the case.
•Ifthesupplycordisdamaged,itmustberep-
laced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a
hazard.
•Don’timmersetheapplianceinliquid.
•Theexhaustairmustnotbedischargeintoa
flue which is used for exhausting fumes from
appliance burning gas or other fuels.
•Regulationsconcerningthedischargeofair
have to be fulfilled.
•Thedetailsconcerningthemethodandfrequ-
ency of cleaning.
•Inordertopreventfirehazard,itisrecommen-
dable to clean the filter at a maximum of 2
months by carrying out the followings:
- Unplug before cleaning, then remove the fil-
ters from the cooker hood and wash them in a
solution of water and neutral liquid detergent,
leaving to soak.
- Rinse thoroughly with warm water and leave
to dry.
- The filters may also be washed in the dish-
washer.
•Thealuminumpanelsmayalterincolorafter
several washes. This is not cause for customer
complaint nor replacement of panels.

•Cleanthesurfaceofthecookerhoodregularly
using cloth moistened with denatured alcohol of
non abrasive liquid detergent. (Remark: There
can not clear the motor and inside part.)
•Replacefiltersapproximatelyevery4months.
•Thereisafireriskifcleaningisnotcarriedout
in accordance with the instruction.
•Replacethelampplsseepic5.

12 / 13 EN Hood / User Manual
5.1 Carbon filter
1.Put the charcoal filter foam on the back of the
outer alu. Filter.
2.Use an iron wire to insert in the side of alu.
Filter and press the charcoal filter foam.
3.Use other three iron wires in the same method
to press the charcoal filter foam
4.The same method to install the charcoal filter
foam for inner alu. Filter, but it is just installed
three iron wires
ANote:
When the activated carbon filter
installed, the suction power will be
lowered.

13 / 13 EN
Hood / User Manual
6 Trouble shooting
Problem Possible cause Solution
The extractor fan cea-
ses to function.
The kitchen hood feed cable is
not connected to the network.
There is no electrical current in
the network.
Connect feed cable to the network.
Check that the network has electrical
current.
Insufficient suction
power.
Did not set to the right speed
and/or air outlet being blocked.
If the kitchen hood is set up for recircula-
tion, check that the charcoal filter is still
effective.
If the kitchen hood is set up for extrac-
tion, check that the ducting and outlets
are not blocked.
The kitchen is adequately vented to allow
the entry of fresh air.
Hood has switched off
during operation.
The safety cut-out device has
been tripped.
Turn off the hood and then wait for the
device to reset.
If the hood has been installed below
the heights indicated in the installation
instructions, the motor will cut-out frequ-
ently which may damage the hood.
The lamps do not light
up.
The lamps are burnt out.
The lamps are loose.
Change the lamps.
Tighten the lamps.
Oil leakage. One-way valve and air ventilati-
on entrance not tightly sealed.
Leakage from the connection of
U-shaped section and cover.
Seal with glue on the one-way valve.
Seal with soap or paint on U-shaped
section.
Hood shakes during
operation.
Leaf is damage.
The body or motor tightly hung.
Replace the leaf as a damaged leaf cau-
ses shaking.
Lock the motor tightly or fix the body
tightly, respectively.

1
Beko Manufacturers Guarantee
Congratulations on purchasing a quality Beko product. Beko automatically
provide you with a 2 year Manufacturers Guarantee, covering parts and
labour for servicing within the geographical limits of Australia and New
Zealand.
General Terms and Conditions
For Australian Consumers
goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a
major failure.
For New Zealand Consumers
Nothing in this guarantee purports to modify or exclude the conditions,
guarantees and undertakings, and other legal rights, under the New Zealand
Consumer Guarantees Act and other laws, except in those circumstances
contemplated by section 43(2) of the New Zealand Consumer Guarantees
Act.
Beko Guarantee
The Beko Manufacturers’ Guarantee provides additional protection for your
claims which will allow for a quick and simple process for all parties, subject
to our terms and conditions below.
To enable us to assist you in the most expedient way please contact us by
phoning the Toll free number (relative to your country of residence) as listed
below. Please ensure you refer to your user manual and in particular the
section headed “Recommended Solutions for the problems” before phoning.
The commencement date of this guarantee starts on the day of purchase
and proof of purchase must be supplied to the Beko Service Centre prior to
commencement of any guarantee work.

1
Beko Manufacturers Guarantee
Congratulations on purchasing a quality Beko product. Beko automatically
provide you with a 2 year Manufacturers Guarantee, covering parts and
labour for servicing within the geographical limits of Australia and New
Zealand.
General Terms and Conditions
For Australian Consumers
goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a
major failure.
For New Zealand Consumers
Nothing in this guarantee purports to modify or exclude the conditions,
guarantees and undertakings, and other legal rights, under the New Zealand
Consumer Guarantees Act and other laws, except in those circumstances
contemplated by section 43(2) of the New Zealand Consumer Guarantees
Act.
Beko Guarantee
The Beko Manufacturers’ Guarantee provides additional protection for your
claims which will allow for a quick and simple process for all parties, subject
to our terms and conditions below.
To enable us to assist you in the most expedient way please contact us by
phoning the Toll free number (relative to your country of residence) as listed
below. Please ensure you refer to your user manual and in particular the
section headed “Recommended Solutions for the problems” before phoning.
The commencement date of this guarantee starts on the day of purchase
and proof of purchase must be supplied to the Beko Service Centre prior to
commencement of any guarantee work.
2
Terms and Conditions
Beko Australia and New Zealand Pty Ltd guarantees to the original purchaser
trap yna rof renwo eht ot egrahc tuohtiw ,ecalper noitpo sti ta ro ,riaper ot
which is not of ‘acceptable quality’ within two years of date of purchase.
“No Lemon Guarantee” * if the product fails more than 2 times during
the Guarantee period due to the same type failure caused by the same part,
we will automatically replace the product with an equivalent product free of
charge.
Food Spoilage*
If your product is a fridge or freezer, we will reimburse you for food which
due to a valid fault as per our guarantee is spoilt; reimburse you as per the
Up to 200 Litre $100.00
>200 Litre - 400 Litre $200.00
>400 Litre - 600 Litre $300.00
>600 litre $350.00
* Subject to a valid claim under the terms and conditions of this Guarantee
To be eligible for this Guarantee the product must be purchased from an
Authorised Reseller in Australia or New Zealand.
What is not covered under this Guarantee
1. Any service calls in which the problem is found not to be caused or
related to any defect in the Product. In this instance, the cost of the
fo )oot detimil ton tub( selpmaxE .uoy ot degrahc eb lliw llac ecivres
no product fault listed below:
a. Correcting the installation, e.g. levelling of product, adjust-
ment of drain crossed or kinked hoses, leakage of hoses if
-
ers), noises due to water hammer and/or power supplies.
b. Replacing fuses or correcting house power wiring or house
plumbing issues.
c. Failure due to incorrect set up or requiring instructions nor-
mally covered in user manual.
d. Blocked pumps, removal of foreign objects/substances from
the washing machine, e.g. socks, bra wires, dirt etc.
e. Normal noise or vibration
f. Infestation of pests, insects or vermin

3
2. This Guarantee does not cover damage caused by:
a. Misuse or abuse of the Beko Product
b. Accidental damage of any kind
c. Rust and Corrosion where the product is located within a cor-
rosive environment
d. Discolouration of burners or trivets on gas cooktops or chrome
surrounds
e. Incorrect operation or not following the operation instructions
as stated in the user manual.
f. Improper installation
g. Failure to clean or improper cleaning
h. Use of incorrect non – compliant electrical or gas connections
i. External sources including but not limited to electrical inter-
j. Any loss caused by civil commotion
k. Any loss caused from extreme events of nature including but
l. Use of non genuine/authorised parts
m. Any repair or other work carried out on the Beko product
other than by an Authorised Beko Service Personnel.
3. This Guarantee does not cover costs associated with replacing and

3
2. This Guarantee does not cover damage caused by:
a. Misuse or abuse of the Beko Product
b. Accidental damage of any kind
c. Rust and Corrosion where the product is located within a cor-
rosive environment
d. Discolouration of burners or trivets on gas cooktops or chrome
surrounds
e. Incorrect operation or not following the operation instructions
as stated in the user manual.
f. Improper installation
g. Failure to clean or improper cleaning
h. Use of incorrect non – compliant electrical or gas connections
i. External sources including but not limited to electrical inter-
j. Any loss caused by civil commotion
k. Any loss caused from extreme events of nature including but
l. Use of non genuine/authorised parts
m. Any repair or other work carried out on the Beko product
other than by an Authorised Beko Service Personnel.
3. This Guarantee does not cover costs associated with replacing and
285.9101.78/R-AA-27092011
4
This Guarantee has been designed for Products used in normal domestic
environment. Our products are not designed for commercial use. Any com-
mercial use may affect this Product’s Guarantee.
Service under this Manufacturer’s Guarantee is provided by the Beko Aus-
tralia and New Zealand Authorised Repairer.
The Guarantee is provided by Beko Australia and New Zealand Pty Ltd (ABN:
49 152 055 162) of 55 Blanck Street, Ormeau, QLD Australia 4208, P O Box
354 Ormeau QLD Australia 4208.
In Australia if you need assistance.... Toll Free 1300 282 356
Email: [e-mail]
In New Zealand if you need assistance.... Toll Free 0800 69 2356
Email: [e-mail]

www.beko.com
