WARNING
Thank you for purchasing a Sirius Range Hood.
Please read all the instructions in this manual before in-
stalling the appliance.
Save these instructions for future reference.
Only use this appliance as an exhaust ventilation system for the removal of coo-
king vapors. DO NOT use to expel ammable substances or any other materials
or vapors.
The installation procedures in this manual are intended for qualied installers, ser-
vice technicians or persons with similar qualied background.
DO NOT attempt to install this appliance yourself.
Ensure that electrical power is turned off at source before commencing installation.
All electrical wiring must be properly installed, insulated and grounded and conform
to all applicable codes and standards.
Make sure all existing duct work is clean of grease build up, or duct work should be
replaced, if necessary, to avoid the possibility of a grease re. Check all joints on
ductwork to ensure proper connection and all joints should be properly taped. Be
careful when cutting through ceilings or walls not to damage any hidden pipes or
electrical wiring. Ensure your kitchen has sufcient air return vents to replace the
exhausted air.
The minimum distance between en the cooker surface and the inferior part of the
cooker hood must be of 650 mm.
Fan ducts should always be vented to the outside of your home and never into
spaces within walls, ceilings, lofts or attics. Only use rigid, smooth steel for ducting.
The exhaust point of the blower requires a 6” round connection.
5

TABLE OF CONTENTS
6
BEFORE YOU BEGIN 7
DUCTING 7
External venting Requirements 7
Duct Run Calculation 8
ELECTRICAL 8
Electrical Supply 8
INSTALLATION 9
Applications 9
Connecting Electricity and Ducting 10
Re-Circulating Requirements 11
OPERATING PROCEDURES 12
General Advice 12
Functions 12
MAINTENANCE 15
Cleaning the Filter 15
Cleaning the Hood 15
Replace led lamp 15
WARRANTY 16

BEFORE YOU BEGIN: It is advisable to test
run the range hood before installation.
BEFORE STARTING – please read this
entire document and ensure you are fully
conversant with the require-ments and li-
mitations. These units weigh approximately
125lbs and therefore require a minimum of
two people to install.
BEFORE YOU BEGIN
The manufacturer declines all responsibility
in the event of failure to observe the instruc-
tions given here for installation, maintenance
and suitable operation of the product. The
manufacturer further declines all responsibi-
lity for injury due to negligence and the war-
ranty of the unit automatically expires due
to improper maintenance and/or installation.
Always fasten connections with sheet metal
screws and tape all joints with certied Sil-
ver Tape or Duct Tape. Do not use screws to
fasten ductwork to the hood, only use tape
as the screws will stop the dampers from
opening and your hood will not work. This
hood re-quires a 6” round duct outlet. You
can increase the duct size of the duct run
but never decrease it. Use the shortest and
most direct route possible. Always, where-
ver possible, reduce the number of transi-
tions and turns with as few sharp angles as
possible. Two staggered 45 degree angles
are better than one 90 degree. Make these
turns as far away from the motor exhaust as
possible, with as much space between each
bend.
DUCTING
(Not applicable if the range hood is used in
re-circulating mode).
WARNING: Do not vent this appliance into
any other ductwork, spaces between walls,
ceilings, attics, garages or any other con-
ned space.
External Venting Requirements.
When planning new ductwork, always look
for the most direct route to the outside. Ven-
ting can be done through the roof or directly

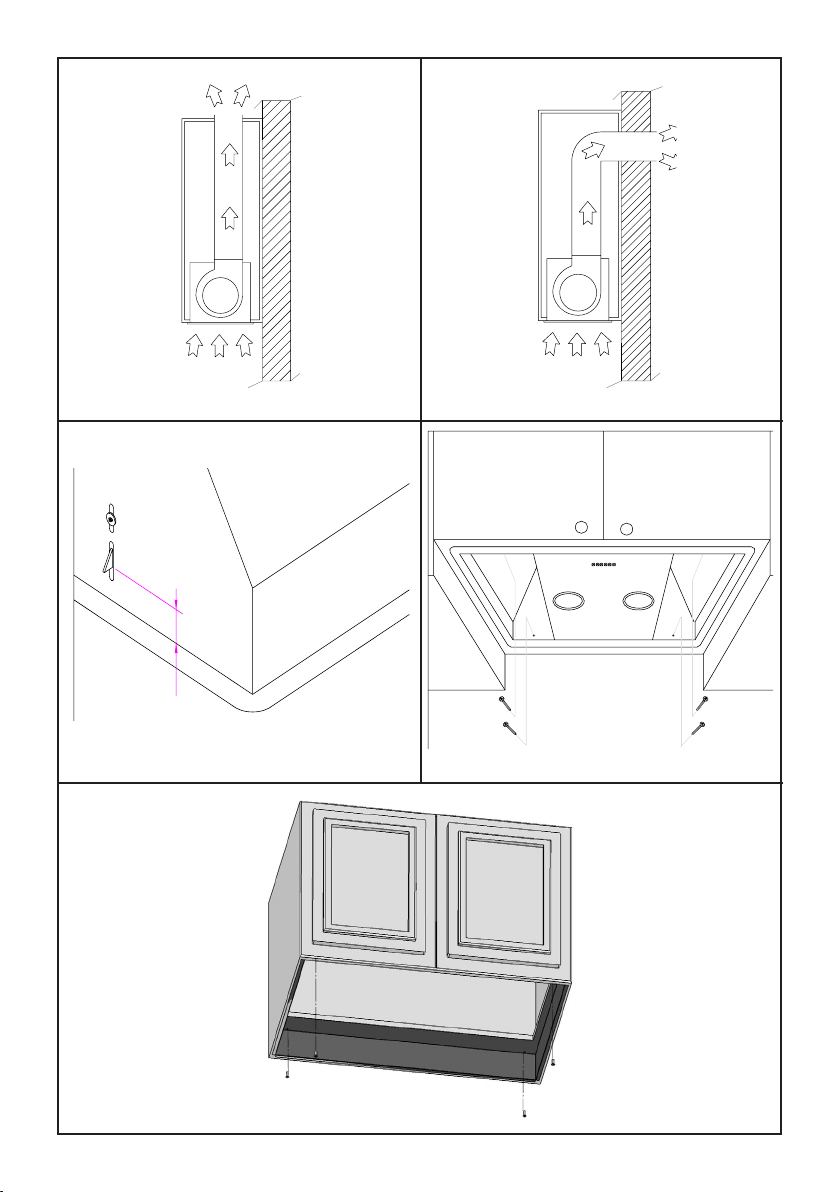

through the back outside wall. (See Figure
1 and 2) Only use rigid type metal ducting
(plastic ducting is generally not permitted by
code). Flexible ducting could restrict airow
by up to 50%.
7

Duct Run Calculation.
The maximum duct run before effecting the
performance of the hood is 100’. Calculate
your duct run by measuring linear feet and
adding the elbows, transitions and caps ba-
sed on the table below.
Maximum Run
6” or 3 1/4 x 10” duct 100 FT
Deduct
Each 90 elbow used 15FT
Each 45 elbow used 9FT
Each 6” or 3 1/4 x 10” duct
Transition used 1FT
Each 3’1/4 x 10” to 6”
Transition used 5FT
Side Wall with damper 30FT
Roof Cap 30FT
Electrical Supply.
This appliance requires 120V/60Hz, 3amp
electrical supply - ensure an appropriately
qualied person completes the electrical ho-
ok-up. The connection point for the electrical
supply is at the top of the unit, therefore the
electrical supply must be run down from the
ceiling alongside the ductwork.
All electrical and venting hook-ups must be in
place before commencing installation of the
hood-fan.
ELECTRICAL
WARNING: All electrical work must be
performed by a qualied electrician.
Please ensure that the appropriate electrical
codes or prevailing local building codes and
ordinances are adhered to.
Ensure that the electricity supply is discon-
nected at source. Do not use an extension
cord or adapter plug with this appliance.
This appliance must be grounded. Connect
to a properly grounded branch circuit, pro-
tected by a 15 amp circuit breaker.
The ducting connection to the hood must be
in line with the central vertical axis of the
range hood 1” away from the back wall on
which the hood is to be mounted.
Range hoods may interrupt the proper ow
of combustion gases from replaces, gas
furnaces and gas water heaters.
To minimize the risk of drawing these lethal
gases back into the home, please follow the
heating equipment manufacturers safety
standards and guidelines carefully.
Refer to NFPA and ASHRAE for additional
information.
8

SU902 10” 25/64 X 26” ½
SU903 27” 9” 15/16 X 25” 9/16
SU903 36” 9” 15/16 X 33” 7/16
SU908 12” 5/8 X 26” 2/2
SU923 - SUE923 20” 19” 7/8 X 10” 5/8
SU923 - SUE923 27” 26” 31/32 X 10” 5/8
If Sch31A or a Pro Liner are being used,
they can be held up under the cabinet and
used as a template.
If Sch31A or a Pro Liner are to be used for
under cabinet application, they should be
installed now.
Installing a SCH31A with SU900 - SUT900
– SUE900. Hold the Sch31A under the ca-
binet and Screw it to the 4 hole locations.
Make sure it lines up with the cut out in
your cabinet. The power pack has pressu-
re springs (to be adjusted) on the front and
back that will “hook” onto the top surface of
the underside of the hood when it is pushed
up into the hole that has been cut out (refer

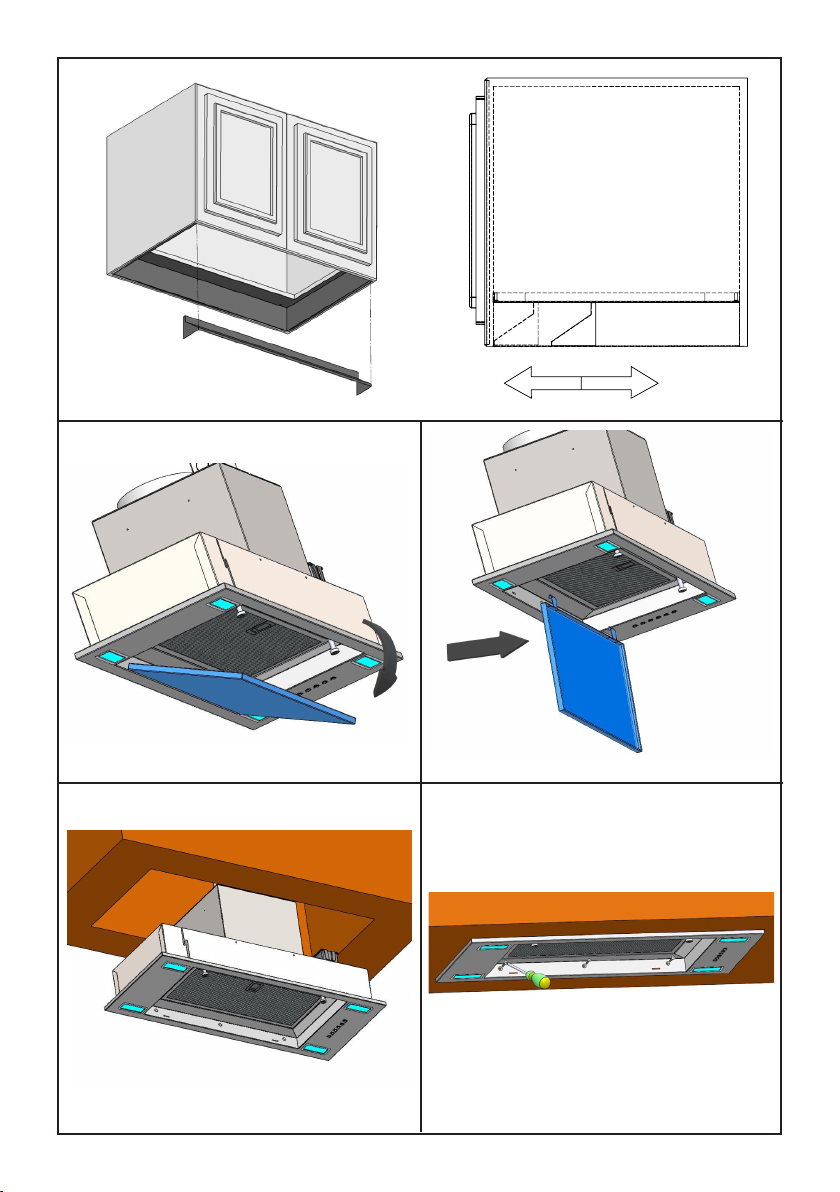

to gure 3).
Installing SU900 - SUT900 – SUE900 wi-
thout a SCH31A. The power pack has pres-
sure springs (to be adjusted) on the front
and back that will “hook” onto the top sur-
face of the underside of the hood when it is
pushed up into the hole that has been cut
out (refer to gure 3).
INSTALLATION
Applications
The SU900 - SUT900 – SUE900 can either
be installed inside a wall cabinet (provided
the inside depth is greater than 11”) or used
in a custom designed wooden hood. Whe-
re installed directly into a wall cabinet, there
are two options:
Directly into the cabinet without any form of
hood. Directly into the cabinet together with
Sch31A where the Sch31A acts as a liner
hood and is attached to either the underside
of the cabinet or into the sides of the cabi-
nets alongside.
The SU901 can either be installed inside a
wall cabinet or used in a custom designed
wooden hood. Where installed directly into
a wall cabinet, there are two options:
Directly into the cabinet or directly into the
cabinet together with the adjustable Pro li-
ners where the adjustable Pro liners act as
a cabinet protection against the heat. The
depth of the adjustable pro liners can vary
from 23.5” to 25.9” )
The SU902 and SU903 can either be instal-
led inside a wall cabinet or used in a custom
designed wooden hood.
Depending on which model is used, prepa-
re a cut-out in the underside of the wooden
hood to allow the powerpack to t up into the
hood using the following dimensions:
SU900 - SUT900 – SUE900 20”
10” 3/8 X 19” 19/32
SU900 - SUT900 – SUE900 27”
10” 3/8 X 26” 11/16
SU901
32” 13/32 X 16” 3/16
9

There are four holes on the inside of the
SUT900 to x the unit into the edge of the

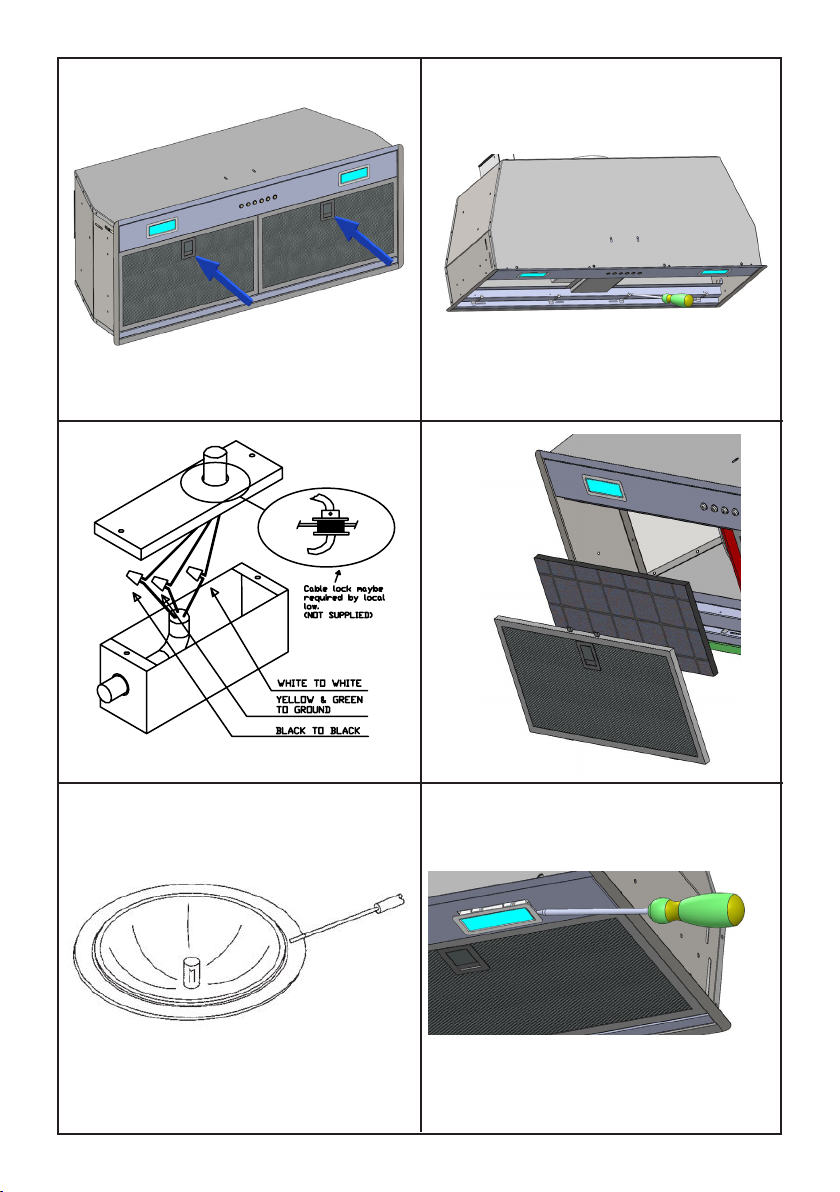

base of the wooden hood (refer to gure 4).
Installing a Adjustable Pro Liner with
SU901. Once the cut out has been done in-
stall the Adjustable Pro Liner and make sure
it lines up with the cut out in your cabinet.
Screw it to the 4 hole locations (refer to -
gure 5).
Install the front part of the liner adjusting it to
the depth of the cabinet. (refer to gure 6).
Screw it to the 3 hole locations.
Attention: be sure the cabinet has a mini-
mum thickness of 0.75” on the 4 sides.
The power pack has pressure springs (to
be adjusted) on the front and back that will
“hook” onto the top surface of the underside
of the hood when it is pushed up into the
hole that has been cut out (refer to gure 3).
Installing SU902. The power pack has
pressure springs (to be adjusted) on the
front and back that will “hook” onto the top
surface of the underside of the hood when it
is pushed up into the hole that has been cut
out (refer to gure 3).
Installing SU903. Before installing the unit,
open the central panel (see gure 7) and re-
move it (see gure 8).
The power pack has pressure springs (to
be adjusted) on the front and back that will
“hook” onto the top surface of the underside
of the hood when it is pushed up into the
hole that has been cut out (refer to gure
9). There are six holes on the inside of the
SU903 to x the unit into the edge of the
base of the wooden cabinet (refer to gure
10).
10
Installing SU908
There are four holes on the inside of the SU908
to x the unit intothe edge of the base of the wo-
oden hood (refer to gure 4).
Installing SU923 - SUE923
Before installing the appliance, remuve the
me tal grase lter. It can be removed by
pushing its special handle toward the back-
side of the cooker hood and turning the lter
downwards so to unfasten it from its slot (re-
fer to gure 11).
The power pack has pressure springs (to
be adjusted) on the front and back that will
“hook” onto the top surface of the underside
of the hood when it is pushed up into the
hole that has been cut out (refer to gure 3).
There are eight holes on the inside of the
SU923 - SUE923 to x the unit into the edge
of the base of the wooden cabinet (refer to
gure 12).
Connecting Electricity and Ducting.
Please refer to the Electrical Supply section
on page 2 for the required location of the
electrical supply.
CAUTION: Make sure the power is turned
off at source. Make electrical connections
(refer to Figure 13). Ensure that the plastic
aps at the exhaust outlet for the fan move
freely and have not become jammed or
stuck.

Connect the appropriate length of ducting to
the fan exhaust point and join up with the
ducting to the exterior.
Do not x the ducting to the range hood
exhaust outlet with screws-use duct
tape. Use duct tape on all joints.
Re-Circulating Requirements.
If the unit is to be used in the recirculating
mode, t the carbon lters after the installa-
tion is complete (refer to Figure 14).
The carbon lter ts in behind the alumi-
nium grease lter. Ensure that the plastic
tabs on the carbon lter are facing outwards
otherwise it will be difcult to remove it later
for replacement.
A short length of ductwork must be con-
nected from the exhaust outlet on the fan
to wherever the air is to be exhausted.
Allow sufcient space to connect the duct-
work to the top of the exhaust outlet on the
fan housing. Do not x the ducting to the
range hood exhaust outlet with screws, use
duct tape. Duct tape should be used on all
joints.
11

FUNCTION
SU900-SU901-SU902-SU903-SU908-
SU923.

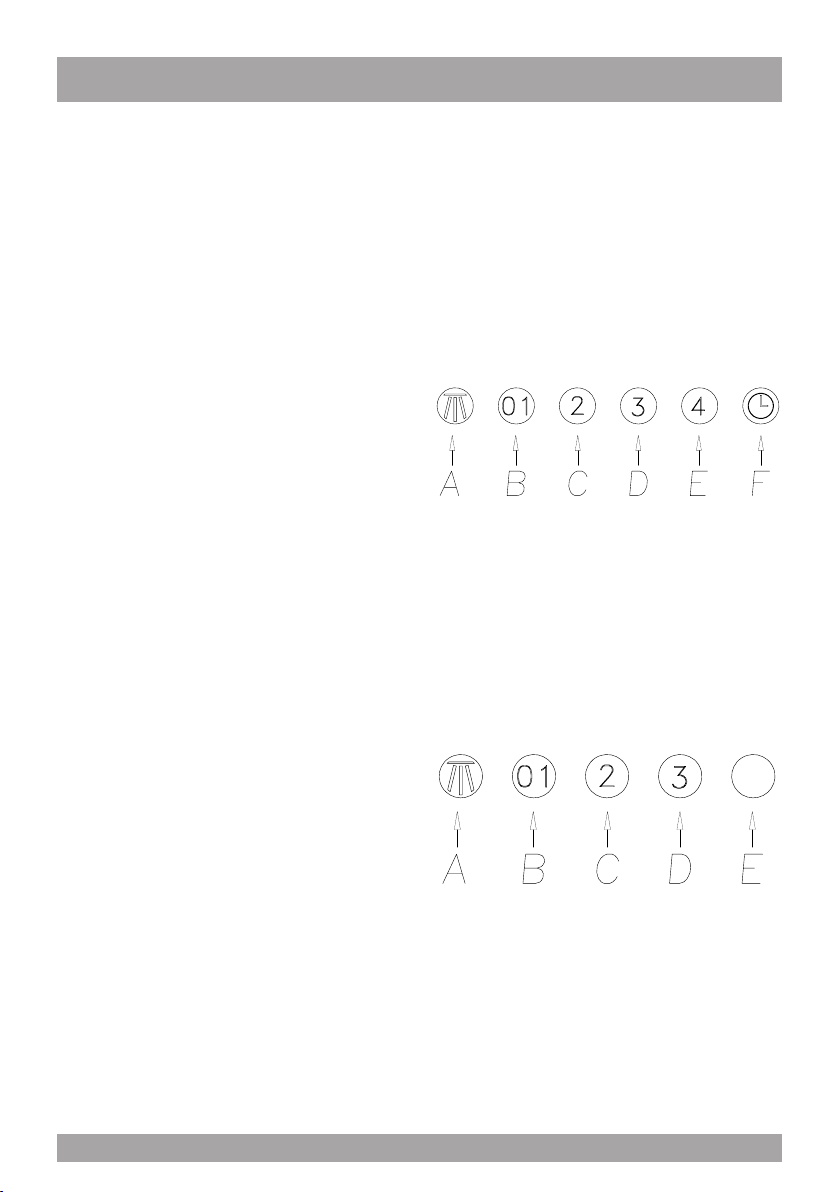

A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Blower Speed 4 (intensive)
F: 10 Minute Timer
OPERATING PROCEDURES
Read all the instructions before operating
the appliance. Save these instructions for
future reference.
General Advice.
Ensure that the grease lters are in place.
Without these components, operating blo-
wers could catch on to hair, ngers and lo-
ose clothing. Keep fan, lters and surfaces
clean of grease and fat. Always turn hood
fan ON when cooking. NEVER leave coo-
king unattended.
NEVER dispose cigarette ashes, ignitable
substances or any foreign objects into blo-
wers.
Cooking that generates ame is not recom-
mended as this hood is equipped with a
thermal overload that will shut down the mo-
tor if it senses excessive heat. When frying,
oil in the pan can easily overheat and igni-
te. Heat oil slowly in an appropriately sized
pot (covering the entire burner) to reduce
the risk of boiling over and burning.
In the event of a range top grease re, ob-
serve the following:
Switch OFF the range hood. Turn off the
cook top then smother ames with a close
tting lid, cookie sheet or other metal tray. If
the ames do not go out immediately.
EVACUATE AND CALL THE FIRE DE-
PARTMENT.
Never pick up a aming pan – you may be
burned. DO NOT USE WATER including
wet dishcloths or towels, as a violent steam
explosion may occur.
SUE900-SUE923
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Hood in operation light
12

SUT900
RC001
RADIO CONTROL

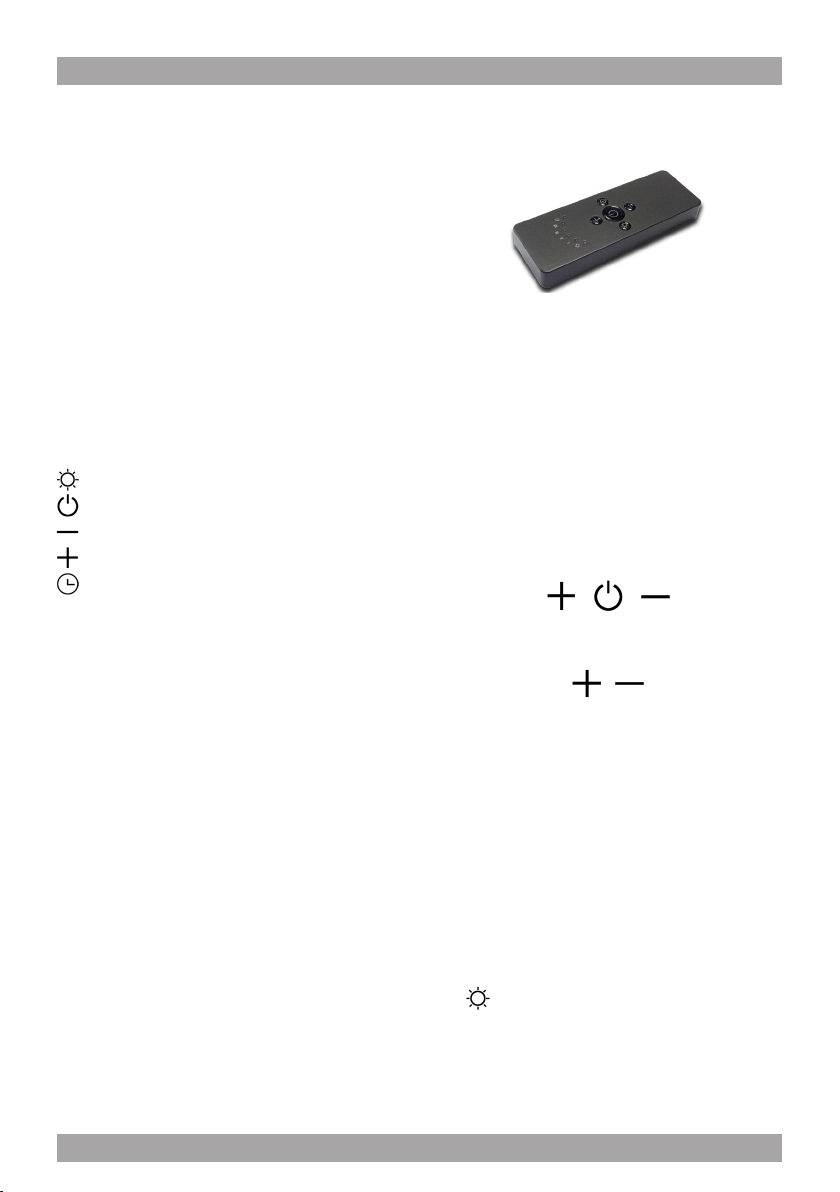

Radio control used for the remote operation of
ducted cooker hoods.
TECHNICAL DATA
- Alkaline battery powered: 12 V mod. 27A
- Operating frequency: 433.92 Mhz
- Combinations: 32.768
- Max. consumption: 25 mA
- Operating temperature: -20 ÷ + 55 °C
- Dimensions: 130x45x15 mm.
OPERATING DESCRIPTION
The transmitter is equipped with 5 buttons for coo-
ker hood management, as specied below:
: Light ON/OFF command.
: Motor ON (speed level 1) / OFF command.
: Reduce speed.
: Increase speed.
: 10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the radio control unit
ready to be used with codes preset in the Factory
OPERATION MODE
Standard conguration:
Standard conguration requires all “cooker hoods
– radio control - system” to be provided with the
same transmission code. In the event two cooker
hoods – radio control system are installed in the
same room or nearby, each system may affect the
operation of the another. Therefore, the code of
one radio control system must be changed.
Generating a new transmission code:
The radio control system is provided with preset
codes. Should new codes be required, proceed
as follows: Press simultaneously buttons:
for two seconds. When Leds light on, press but-
tons:
(within 5 seconds). Leds ashing 3 times indicate
the procedure is completed.
WARNING! This operation deletes permanen-
tly the preset codes.
Learning the new transmission code:
Once the transmission code is changed in the ra-
dio control unit, the electronic central unit of the
cooker hood must be made to set the new code in
the fol- lowing way:
Press the main power-off button of the hood and
then restore power to the electronic control unit.
Within the next 15 seconds, press the Liight But-
ton to synchronise the central unit with the
code.
13

Reset of the Factory conguration:
To restore the Factory conguration, follow the
procedure described below: press simultaneously
buttons:
for 2 seconds. When Leds light on, press buttons:
(within 5 seconds). Leds ashing 6 times indicate
the procedure is completed.
WARNING! This operation deletes permanen-
tly the preset codes.
Emergency button:
In the event that the radio control does not work,
use the emergency button to switch the appliance
off. After any necessary repairs have been perfor-
med, reset the emergency button.
WARNING
The battery should be replaced every year to
guarantee the optimal range of the transmitter.
To replace the exhausted battery, take the pla-
stic lid off, remove the battery and replace it
with a new one, observing the correct battery
polarities.
Used batteries should be discarded in special
collection bins.
The below product:
RC001 Radiio Controll
complies with the specications set out in the
R&TTE Directive 99/5/EC.
WARNING
Any adjustments or modications which have
not been expressly approved by the holder of
the legal conformity certicate may invalidate
the user’s rights relating to the operation of
the device.
Rev. 0 26/08/14
The products are endowed with an electronic de-
vice which allows the automatic switching off after
4 hours working from the last operation.
Warning The battery should be replaced eve-
ry year to guarantee the optimal range of the
transmitter. To replace the exhausted battery,
take the plastic lid off, remove the battery and
replace it with a new one, observing the cor-
rect battery polarities. Used batteries should
be discarded in special collection bins.
Filter requires washing indicator: after 30 hours
of use, all the buttons will light up to remind you
that the grease lter should be cleaned. Follow
the instructions for cleaning lters in this booklet.
Once the grease lters have been cleaned and
replaced, reset by pressing the timer button (F).
Do not rely solely on this indicator. Generally, the
grease lter should be washed on a regular basis
to avoid grease lter res.
The blower should be turned on for approximately
5 minutes before cooking in order to establish air
currents upward through the hood. Use the low
speeds for normal use and the higher speeds for
strong odors and fumes.
14

Replace led lamp SU900–SUT900-
SUE900-SU901–SU902-SU908
To replace the led lamp, remove the lamp
(Fig. 15) inserting a screwdriver or another
sharp tool between the lamp and its chro-
me support and replace it with a lamp of the
same kind.
Replace the led lamp SU903 - SU923 -
SUE923
Before replacing the led lamp switch off the
appliance using appropriate tools and then
remove the led lamp from its slot (Fig. 16).
Take out the led lamp from its connector and
replace it with an another one with similar
characteristics.
To nd the correct led lamp please check on
the replacement part list.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualied person in order
to avoid a hazard.
MAINTENANCE
The hood-fan should provide many years of
trouble free service provided it is maintai-
ned properly.
Cleaning the Filter.
Clean the grease lter either by carefully
hand washing, (so as not to damage the l-
ter design) or, preferably in a dishwasher. De-
pending on use, the lters should be cleaned
at least every two weeks in a dishwasher.
If a carbon lter has been tted this must be
replaced at least every 6 months as a mini-
mum. Depending on cooking style and na-
ture of cooking (greasy foods, fry’s, curries
etc) would probably require more frequent
replacement - if odors start to manifest
themselves when cooking it is time to repla-
ce the carbon lter . We suggest you retain
a spare set. These can be ordered from the
supplier of your range hood.
Cleaning the Hood.
Cleaning of the internal parts should be done
with a clean damp (not excessively wet) cloth
together with regular household detergent.
The external stainless steel elements should
be cleaned with a good quality foaming stain-
less steel cleaner. Read the manufacturers di-
rections. Generally they recommend that the
foam be sprayed onto a clean dry cloth and
then applied to the stainless steel. Allow the
foam to react on the surface for a few minutes
and then wipe with a clean dry cloth.
On the surfaces that are exposed directly
to heat from the cook-top, it is advisable to
clean these on a regular basis to avoid the
marks from becoming baked on.
Do not under any circumstances use an
abrasive type cleaner as this will scratch and
damage the stainless steel nish. Glass com-
ponents should be cleaned with a product
such as Windex.
15

YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT HYPERLINK
“http://www.siriuscappe.com/canada/warranty.htm”
TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN)
ITALY
Register Online! www.siriuscappe.com/canada/warranty.htm
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email ad-dress
stated below or call toll free in Canada 1-800-463-2566 and provide the model number, de-
scription of the fault or defect and original date of purchase. Sirius reserves the right to re-
quest proof of original purchase. Sirius will at its sole option and discre-tion replace products
that arrive damaged through shipping, provided shipping damage is reported as stated above
within 5 business days of receipt of the shipped product or products.
ONE YEAR PARTS & SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or replace, without
charge, any product or part which is found to be defective under normal use and service.
WHO IS COVERED: Sirius Range Hoods warrants to the original consumer purchaser of its products
that such pro-ducts will be free from defects in materials and workmanship for a period of one year from
the original date of purchase. There are no other warranties, express or implied, including, but not limi-
ted to, implied warranties of merchantability or tness for a particular purpose or application.
WHAT IS NOT COVERED: This warranty does not extend to lters, lamps, batteries, ducts and duct-
work components. This warranty does not cover normal maintenance and service or products or parts
which have been subject to misuse, negligence, accident, improper maintenance or repair, faulty instal-
lation or installation contrary to recommended installation instructions. The warranty on glass screens is
limited to manufacturing defects only and expressly excludes cracks and breakages as a result of faulty
installation. Labor and associated costs associated directly with removal and re-installation are expres-
sly excluded.The duration of any implied warranty is limited to the one year period as specied for the
express warranty. Some states and provinces do not allow limitation on how long an implied warranty
lasts, so the above limitation may not apply to you.
For any service request please contact:
Sirius after sale service
Telephone (toll free):1-800-463-2566

INSTRUCTIONS IMPORTANTES POUR
LA SÉCURITÉ
Merci d’avoir choisi une Hotte de Cuisine Sirius.
Veuillez lire attentivement toutes les instructions avant
l’installation et l’utilisation de l’appareil.
Conservez ces instructions afin de pouvoir les consul-
ter au besoin.
Cet appareil est destiné à la ventilation générale seulement. NE L’UTILISEZ PAS
pour évacuer des vapeurs ou des substances dangereuses ou explosives.
Conez l’installation et les réparations uniquement à un professionnel, conformé-
ment aux normes de sécurité en vigueur.
N’ESSAYEZ PAS d’installer cet appareil par vous-même.
Avant l’installation veillez que l’appareil soit hors tension.
Tout le câblage électrique doit être correctement installé, isolé de mise à la terre
conformément aux codes et aux normes applicables.
Assurez-vous que les conduits d’évacuation sont propres et libres d’accumulation
de graisses ou remplacez les conduits pour éviter de provoquer un incendie.
Vériez que tous les joints du conduit sont bien xés et scellés. Faites attention
lors des travaux de maçonnerie de ne pas endommager des tuyaux ou câbles
électriques. Assurez-vous que votre cuisine est équipée de bouches de ventilation
qui évacuent l’air vicié.
La distance minimale entre la surface de cuisson et la partie inférieure de la hotte
doit être de 650 mm.
Le conduit de ventilation doit toujours terminer à l’extérieur et jamais dans des
espaces clos, plafonds ou greniers. Pour le conduit utilisez seulement des élé-
ments rigides en acier lisse.
La sortie de la soufante nécessite d’un conduit rond de 6”.
17

TABLE DES MATIÈRES
AVANT DE COMMENCER 19
CONDUIT 19
Version évacuation extérieure 19
Calcul Longueur Conduit 20
ÉLECTRICITÉ 20
Alimentation Électrique 20
INSTALLATION 21
Montage 21
Branchements Électriques et Conduit 22
Mode Recyclage 22
PROCÉDURES D’UTILISATION 23
Recommandations Générales 23
Fonctions 23
ENTRETIEN 26
Nettoyage des Filtres 26
Nettoyage de la Hotte 26
Remplacer la lampe 26
GARANTIE 28
18

AVANT DE COMMENCER : On conseille de
vérier le fonctionnement de la hotte avant
son installation.
AVANT DE COMMENCER – Lisez attentive-
ment cette notice an d’avoir les connaissan-
ces requises pour utiliser ce produit. Ce produit
pèse env. 125lbs et nécessite donc un mini-
mum de deux personnes pour son installation.
AVANT DE COMMENCER
Le fabricant décline toute responsabilité
en cas de dommages causés par un non
respect des instructions d’installation, d’uti-
lisation et d’entretien contenues dans cette
notice.
Le fabricant décline toute responsabilité
causée par négligence et la garantie cesse
automatiquement en cas de mauvais entre-
tien et/ou installation du produit.
Fixez toujours les raccords avec des vis en tôle
et isolez tous les joints avec du ruban adhésif
métallique (ou pour conduit). N’utilisez jamais
des vis pour xer le conduit à la hotte ; utilisez
uniquement du ruban adhésif, du moment que
les vis peuvent empêcher l’ouverture des cla-
pets anti retour et en ce cas la hotte ne fon-
ctionnera pas. Cette hotte nécessite d’un con-
duit d’évacuation de 6”. Il est possible d’utiliser
un conduit plus grand, mais pas un plus petit.
Optez pour la voie la plus courte et la plus di-
recte. Evitez, si possible, le nombre des rac-
cords et des coudes. Il est préférable d’utiliser
deux coudes de 45° plutôt qu’un coude de 90°.
Positionnez les coudes loin de l’échappement
du moteur et évitez de les positionner trop prêt
les uns des autres.
CONDUIT
(Ne s’applique pas si la hotte est utilisée en
mode Recyclage).
REMARQUE: Ne branchez jamais ce pro-
duit à un autre conduit d’évacuation, des
espaces entre deux parois, plafonds, gre-
niers, garages ou espaces clos.
Version évacuation extérieure.
Lors du montage du conduit d’évacuation,
cherchez la voie la plus directe vers l’ex-
térieur. Le conduit peut évacuer l’air par le
toit ou directement par le mur extérieur. (Voir
g. 1 et 2). Utilisez seulement des tuyaux
rigides en métal (les tuyaux en plastiques
sont interdits par le code). Les conduits e-
xibles limitent le ux d’air du 50%.
19

Calcul Longueur Conduit
La longueur maximale du conduit qui n’inue
pas sur le rendement de la hotte est de 100”.
Calculez la longueur du conduit en mesurant
les pieds linéaires et en ajoutant les coudes,
les raccords et les bouchons selon le schéma
suivant.
Longueur maximale
6” ou 3 1/4 x 10” conduit 100 FT
Deduct
Chaque coude 90 nécessite 15FT
Chaque coude 45 nécessite 9FT
Chaque 6” ou 3 1/4 x 10” conduit
Raccord nécessite 1FT
Chaque 3’1/4 x 10” à 6”
Raccord nécessite 5FT
Paroi latérale avec clapet anti retour 30FT
Sortie toit 30FT
Alimentation Électrique.
Cet appareil nécessite 120V/60Hz, une
alimentation de 3amp – faites effectuer le
branchement électrique par une personne
qualiée. La connexion pour l’alimentation
électrique se trouve au sommet de l’appareil,
par conséquent, le courant doit descendre le
long du conduit.
Avant d’installer la hotte, tous les travaux de
branchement électrique et d’évacuation des
fumées doivent être effectués.
ÉLECTRICITÉ
ATTENTION : Tous les travaux électri-
ques doivent être effectués par un élec-
tricien qualié.
An d’assurer la qualité des travaux de con-
struction et d’électricité observez les nor-
mes en vigueur.
Assurez-vous que l’alimentation électrique
est coupée. Evitez d’utilisez une rallonge ou
un adaptateur pendant cette opération.
Cet appareil doit être mis à la terre et le cir-
cuit doit être protégé par un disjoncteur de
15 amp.
Le raccordement du conduit à la hotte doit
être en ligne avec l’axe centrale verticale de
la hotte de 1” et loin de la paroi postérieure
sur laquelle la hotte sera positionnée.
Les hottes peuvent empêcher la bonne éva-
cuation des fumées des cheminées, des
fours et des chauffe-bains à gaz.
An de minimiser le risque que ces gaz
mortels peuvent retourner dans la maison,
observez les normes de sécurité et les di-
rectives en vigueur.
Consultez les normes NFPA et ASHRAE
pour plus d’informations.
20
