Stihl RMA 765.0 V User manual

RMA 765.0 V
2 - 20 Instruction Manual
20 - 40 Manual de instrucciones
40 - 60 Manual de instruções de serviços

Contents
1 Introduction................................................. 2
2 Guide to Using this Manual.........................2
3 Overview..................................................... 3
4 Safety Precautions......................................4
5 Preparing the Lawn Mower for Operation... 8
6 Assembling the Lawn Mower...................... 9
7 Adjusting the Lawn Mower for the User...... 9
8 Removing and Fitting the Battery................9
9 Inserting and Removing the Activation Key
.................................................................. 10
10 Switching the Lawn Mower On and Off.....10
11 Checking the Lawn Mower........................11
12 Operating the Lawn Mower.......................12
13 After Finishing Work..................................14
14 Transporting..............................................14
15 Storing.......................................................14
16 Cleaning....................................................14
17 Maintenance............................................. 15
18 Repairing...................................................16
19 Troubleshooting........................................ 16
20 Specifications............................................17
21 Spare Parts and Accessories....................18
22 Disposal.................................................... 18
23 Safety Information for Lawn Mowers........ 19
1 Introduction
Dear Customer,
Thank you for choosing STIHL. We develop and
manufacture our quality products to meet our
customers’ requirements. The products are
designed for reliability even under extreme con‐
ditions.
STIHL also stands for premium service quality.
Our dealers guarantee competent advice and
instruction as well as comprehensive service
support.
STIHL expressly commit themselves to a sus‐
tainable and responsible handling of natural
resources. This user manual is intended to help
you use your STIHL product safely and in an
environmentally friendly manner over a long
service life.
We thank you for your confidence in us and hope
you will enjoy working with your STIHL product.
Dr. Nikolas Stihl
IMPORTANT! READ BEFORE USING AND
KEEP IN A SAFE PLACE FOR REFERENCE.
2 Guide to Using this Manual
2.1 Applicable Documents
This instruction manual constitutes original man‐
ufacturer's instructions in the sense of EC Direc‐
tive 2006/42/EC.
Local safety regulations apply.
► In addition to this instruction manual, read,
understand and keep the following documents:
–Instruction manual for the STIHL AR L bat‐
tery
–Instruction manual for the ADA 700
–Instruction manual for the STIHL AL 101,
301, 301-4, 500 chargers
–Safety information for the STIHL AP battery
–Safety information for STIHL batteries and
products with built-in battery:
www.stihl.com/safety-data-sheets
2.2 Warning Notices in Text
DANGER
■ This notice refers to risks which result in seri‐
ous or fatal injury.
► Serious or fatal injuries can be avoided by
taking the precautions mentioned.
WARNING
■ This notice refers to risks which can result in
serious or fatal injury.
► Serious or fatal injuries can be avoided by
taking the precautions mentioned.
NOTICE
■ This notice refers to risks which can result in
damage to property.
► Damage to property can be avoided by tak‐
ing the precautions mentioned.
2.3 Symbols in Text
This symbol refers to a chapter in this
instruction manual.
English
2 0478-131-9838-C
© ANDREAS STIHL AG & Co. KG 2022
0478-131-9838-C. VA0.E22.
Printed on chlorine-free paper Printing inks contain vegetable oils, paper can be recycled.
Translation of Original Instruction Manual 0000008817_012_GB

3 Overview
3.1 Lawn Mower and Battery
1 Operating unit
The operating unit is used to switch the lawn
mower on, activate ECO mode, read off the
battery charge state and adjust the maximum
speed. When using the ADA 700 double-bat‐
tery compartment, the battery in use is dis‐
played.
2 Control bar for mowing
The control bar for mowing switches the
blades on and off together with the ON but‐
ton.
3 Control bar for self-propulsion
The control bar for self-propulsion activates
and deactivates drive system.
4 Grass catcher box
The grass catcher box collects the mown
grass.
5 Discharge flap
The discharge flap closes off the discharge
chute.
6 Lever
The lever is used to set the cutting height of
the rear wheels.
7 Lever
The lever is used to set the cutting height and
to lock and release the front wheels.
8 Flap
The flap covers the battery and the activation
key.
9 Lever
The lever is used to adjust and fold down the
handlebar.
10 Handlebar
The handlebar is used to hold, guide and
transport the lawn mower.
11 Rotary wheel
The rotary wheel is used to set the maximum
speed.
12 ON button
The ON button switches the lawn mower on
and, together with the control lever for mow‐
ing, activates the blades.
13 ECO switch
The ECO switches activates and deactivates
ECO mode.
14 Charge state indicator
The LEDs indicate the charge state and bat‐
tery faults when the ON button is pressed.
15 Warning triangle
The warning triangle indicates faults in the
lawn mower.
16 Indicator for ADA 700 double-battery com‐
partment
The LEDs indicate the battery currently in
use.
17 Activation key
The activation key activates the lawn mower.
# Rating plate with machine number
3.2 Symbols
The symbols can be on the lawn mower or bat‐
tery and have the following meaning:
This symbol identifies the activation
key.
ECO
ECO
This symbol identifies the ECO switch.
L
W
A
Guaranteed sound power level in
accordance with Directive 2000/14/EC
in dB(A) for the purpose of comparing
the sound emissions of products.
Do not dispose of the product with domes‐
tic waste.
Switch the lawn mower on and
set maximum speed.
3 Overview English
0478-131-9838-C 3

Activate the mowing blade.
Engage self-propulsion.
The lever locks the front wheels in this
position.
The front wheels are freely movable when
the lever is in this position.
The cutting height of the front wheels can
be set when the lever is in this position.
The grass catcher box is being
filled.
The grass catcher box is full.
Empty the grass catcher box.
4 Safety Precautions
4.1 Warning Symbols
The warning symbols on the lawn mower have
the following meaning:
Follow the safety instructions and their
measures.
Read, understand and keep the
instruction manual.
Observe the safety instructions on
objects expelled at high speed by the
lawn mower and their measures.
Do not touch a turning blade.
Remove the battery during work stop‐
pages, transport, storage, maintenance
or repair.
Pull out the activation key during work
stoppages, transport, storage, mainte‐
nance or repair.
Maintain a safety distance.
4.2 Intended Use
The STIHL RMA 765.0 V lawn mower is used to
mow grass.
The lawn mower is supplied with energy by a
STIHL AR L battery or a STIHL AP battery
together with the ADA 700 double-battery com‐
partment.
WARNING
■ Batteries not approved by STIHL for the lawn
mower may cause fires and explosions. This
may result in serious or fatal injury to people
and damage to property.
►Use the lawn mower with a STIHL AR L
battery or a STIHL AP battery together with
the ADA 700 double-battery compartment.
■Failure to use the lawn mower or battery as
intended may result in serious or fatal injury to
people and damage to property.
►Use the lawn mower as described in this
instruction manual.
► Use the battery as described in the instruc‐
tion manual for the STIHL AR L battery or
the instruction manual for the ADA 700 dou‐
ble-battery compartment.
4.3 Requirements for the User
WARNING
■Uninstructed users cannot recognise or evalu‐
ate the dangers posed by the lawn mower.
This may result in serious or fatal injury to the
user or other people.
► Read, understand and keep the
instruction manual.
► If passing on the lawn mower to another
person: provide them with the instruction
manual also.
►Make sure that the user meets the following
conditions:
–The user is rested.
–The user is physically, sensorily and
mentally capable of operating the lawn
mower and working with it. If the user is
physically, sensorily or mentally
impaired, the lawn mower must only be
used under supervision or following
instruction by a responsible person.
–The user can recognise and evaluate
the dangers posed by the lawn mower.
–The user is aware that they are respon‐
sible for accidents and damage.
English 4 Safety Precautions
4 0478-131-9838-C

–The user is of legal age or the user is
being trained under supervision in a
profession in accordance with national
regulations.
–The user has received instruction from a
STIHL specialist dealer or a competent
person before using the lawn mower for
the first time.
–The user is not impaired by alcohol,
medicines or drugs.
► If anything is unclear: consult a STIHL spe‐
cialist dealer.
4.4 Clothing and Equipment
WARNING
■ Objects may be thrown up at high velocity
while working. This may result in injury to the
user.
►Wear long trousers made from resistant
material.
■ Dust may be stirred up while working. Breath‐
ing in dust may be harmful to health and
cause allergic reactions.
►If dust is stirred up: wear a dust mask.
■ Unsuitable clothing may get caught on wood,
brambles and in the lawn mower. This may
result in serious injury to the user.
►Wear close-fitting clothing.
► Remove scarves and jewellery.
■ The user may come into contact with the blade
during cleaning, maintenance or transport.
This may result in injury to the user.
►Wear work gloves made from resistant
material.
■ Wearing unsuitable footwear may cause the
user to slip. This may result in injury to the
user.
►Wear sturdy, closed-toed footwear with
high-grip soles.
■ Material particles may be expelled when
sharpening the blade. This may result in injury
to the user.
►Wear close-fitting safety glasses. Suitable
safety glasses are tested in accordance
with EN 166 or national regulations and
available commercially with the correspond‐
ing marking.
►Wear work gloves made from resistant
material.
4.5 Lawn Mower
WARNING
■Bystanding people, children and animals can‐
not recognise or evaluate the dangers posed
by the lawn mower and objects expelled at
high speed by the mower. This may result in
serious injury to bystanding people, children
and animals and damage to property.
► Keep bystanding people, children
and animals out of the work area.
► Maintain a safety distance from objects.
► Do not leave the lawn mower unattended.
► Make sure that children cannot play with
the lawn mower.
■ Working in the rain may cause the user to slip.
This may result in serious or fatal injury to the
user.
►Do not work when it is raining.
■ The lawn mower is not waterproof. Working in
the rain or in a damp environment may result
in electric shock. This may result in injury to
the user and damage to the lawn mower.
►Do not work in the rain or in a damp envi‐
ronment.
► Do not mow wet grass.
■ Electrical components of the lawn mower may
produce sparks. Sparks may cause fires and
explosions in highly flammable or explosive
environments. This may result in serious or
fatal injury to people and damage to property.
►Do not work in a highly flammable or explo‐
sive environment.
4.6 Safe Condition
4.6.1 Lawn Mower
The lawn mower is in safe condition when the
following conditions are met:
–The lawn mower is undamaged.
–The lawn mower is clean.
–The controls are working and have not been
modified.
–If mowing and the mown grass is to be collec‐
ted in the grass catcher box: the grass catcher
box is correctly attached.
–If mowing and the mown grass is to be ejected
to the rear: the grass catcher box is detached
and the discharge flap is closed.
–The blade is correctly attached.
–Genuine STIHL accessories for this lawn
mower are attached.
–The accessories are correctly attached.
WARNING
■If not in safe condition, components may no
longer operate correctly and safety devices
may be disabled. This may result in serous or
fatal injury to people.
4 Safety Precautions English
0478-131-9838-C 5

► Do not use a damaged lawn mower.
► If the lawn mower is dirty: clean the lawn
mower.
► Do not modify the lawn mower.
► If the controls are not working: do not use
the lawn mower.
► If mowing and the mown grass is to be col‐
lected in the grass catcher box: attach the
grass catcher box as described in this
instruction manual.
►Attach genuine STIHL accessories for this
lawn mower.
► Attach the blade as described in this
instruction manual.
► Attach accessories as described in this
instruction manual or in the instruction man‐
ual for the accessories.
►Do not insert objects into the apertures in
the lawn mower.
► Never connect the key receptacle terminals
to metallic objects and cause a short circuit.
► Replace worn or damaged warning signs.
► If anything is unclear: consult a STIHL spe‐
cialist dealer.
4.6.2 Blades
The blades are in safe condition when the follow‐
ing conditions are met:
–The blades and attachments are not dam‐
aged.
–The blades are not deformed.
–The blades are correctly attached.

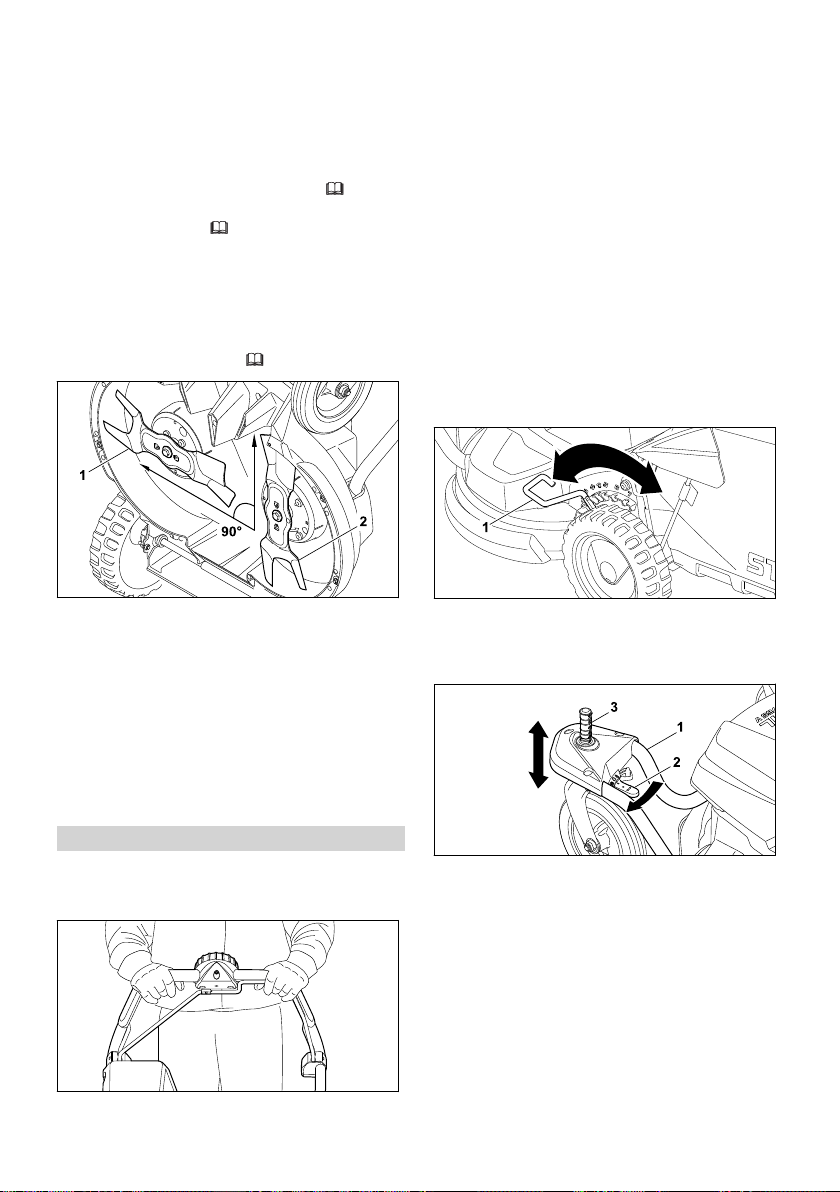

–The blades are at a 90° angle to each other,
11.3.
–The blades are correctly sharpened.
–The blades are burr-free.
–The blades are correctly balanced.
–The minimum thickness and minimum width of
the blades are not fallen below, 20.2.
–The sharpening angle is observed, 20.2.
WARNING
■In unsafe condition, blade parts may come
loose and be expelled. This may result in seri‐
ous injury to people.
►Use undamaged blades and attachments.
► Attach the blades correctly.
► Sharpen the blades correctly.
► If the minimum thickness or minimum width
are fallen below: replace the blades.
► Have the blades balanced by a STIHL spe‐
cialist dealer.
► If anything is unclear: consult a STIHL spe‐
cialist dealer.
4.7 Working
WARNING
■In certain situations, the user may no longer
be able to concentrate on their work. This may
result in the user stumbling, falling and becom‐
ing seriously injured.
►Work calmly and carefully.
► If the light and visibility conditions are poor:
do not use the lawn mower.
► Operate the lawn mower alone.
► Watch out for obstacles.
► Do not tilt the lawn mower.
► Work standing on the ground and maintain
balance.
► If signs of fatigue occur: take a break.
► If mowing on a slope: mow across the
slope.
► Do not mow on steep slopes.
■ The turning blades may cut the user. This may
result in serious injury to the user.
► Do not touch turning blades.
► If the blades are blocked by an
object: switch the lawn mower off,
pull out the activation key and
remove the battery. Only then
remove the object.
■If working without self-propulsion when mow‐
ing, self-propulsion may unintentionally be
engaged and the lawn mower may start mov‐
ing. This may result in serious injury to people
and damage to property.
►Only press the control bar for self-propul‐
sion if self-propulsion is to be engaged.
■ If the lawn mower changes or starts to behave
differently when working, it may not be in safe
condition. This may result in serious injury to
people and damage to property.
►Stop working, pull out the activation key,
remove the battery and consult a STIHL
specialist dealer.
■The lawn mower may cause vibrations when
working.
► Wear gloves.
► Take breaks.
► If signs of a circulatory disturbance occur:
consult a doctor.
■ If the blades hit a foreign object when working,
the foreign object or parts of it may be dam‐
aged or thrown up at high velocity. This may
result in injury to people and damage to prop‐
erty.
►Remove foreign objects from the work area.
■ When the control bar for mowing is released,
the blades continue to turn for a short time.
This may result in serious injury to people.
English 4 Safety Precautions
6 0478-131-9838-C

► Wait until the blades are no longer turning.
■ Sparks may be produced if the turning blades
hit a hard object. Sparks may cause fires in
highly flammable environments. This may
result in serious or fatal injury to people and
damage to property.
►Do not work in a highly flammable environ‐
ment.
■ If the blades hit a foreign object when working,
the blades may be damaged or the blade posi‐
tion may be changed.
►If the blades hit an object, switch the lawn
mower off and check the lawn mower and
blades.
■If the lawn mower is stopped on a sloping sur‐
face, it may unintentionally roll away. This may
result in injury to people and damage to prop‐
erty.
►Only let go of the lawn mower if it is on a
level surface and cannot roll away by itself.
■ If objects are attached to the handlebar, the
additional weight may cause the lawn mower
to tip over. This may result in injury to people
and damage to property.
►Do not attach objects to the handlebar.
DANGER
■ If working near live wires, the blades may
come into contact with the live wires and dam‐
age them. This may result in serious or fatal
injury to the user.
►Do not work near live wires.
■ The user may be struck by lighting if working
during a thunderstorm. This may result in seri‐
ous or fatal injury to the user.
►Do not work during thunderstorms.
■ The self-propulsion disengages in the event of
overload when working on steep slopes. This
causes the user to spontaneously have to
apply a greater pushing force, which may
cause the user to lose control of the lawn
mower. The lawn mower may roll towards the
user due to its own weight. The user may
come into contact with the rotating blades and
be seriously injured.
The slope inclinations refer to the weight of the
lawn mower with empty grass catcher box.
With increasing weight, the slope inclination
on which the lawn mower can be used may be
reduced.
► If a STIHL AP 300, AP 300 S, AP 500 or
AR L battery is used: do not mow on slopes
steeper than 20°.
►If a STIHL AP 100, 200 battery is used: do
not mow on slopes steeper than 12°.
► Mow across the slope. Ensure a secure
footing to maintain control of the lawn
mower at all times.
4.8 Transporting
WARNING
■The lawn mower may tip over or move during
transport. This may result in injury to people
and damage to property.
►Pull out the activation key.
► Remove the battery.
► Secure the lawn mower with lashing straps,
belts or a net so that it cannot tip over and
move.
■If the activation key and battery are inserted
during transport with self-propulsion disen‐
gaged, self-propulsion may unintentionally be
engaged and the lawn mower may start mov‐
ing. This may result in serious injury to people
and damage to property.
►Pull out the activation key.
► Remove the battery.

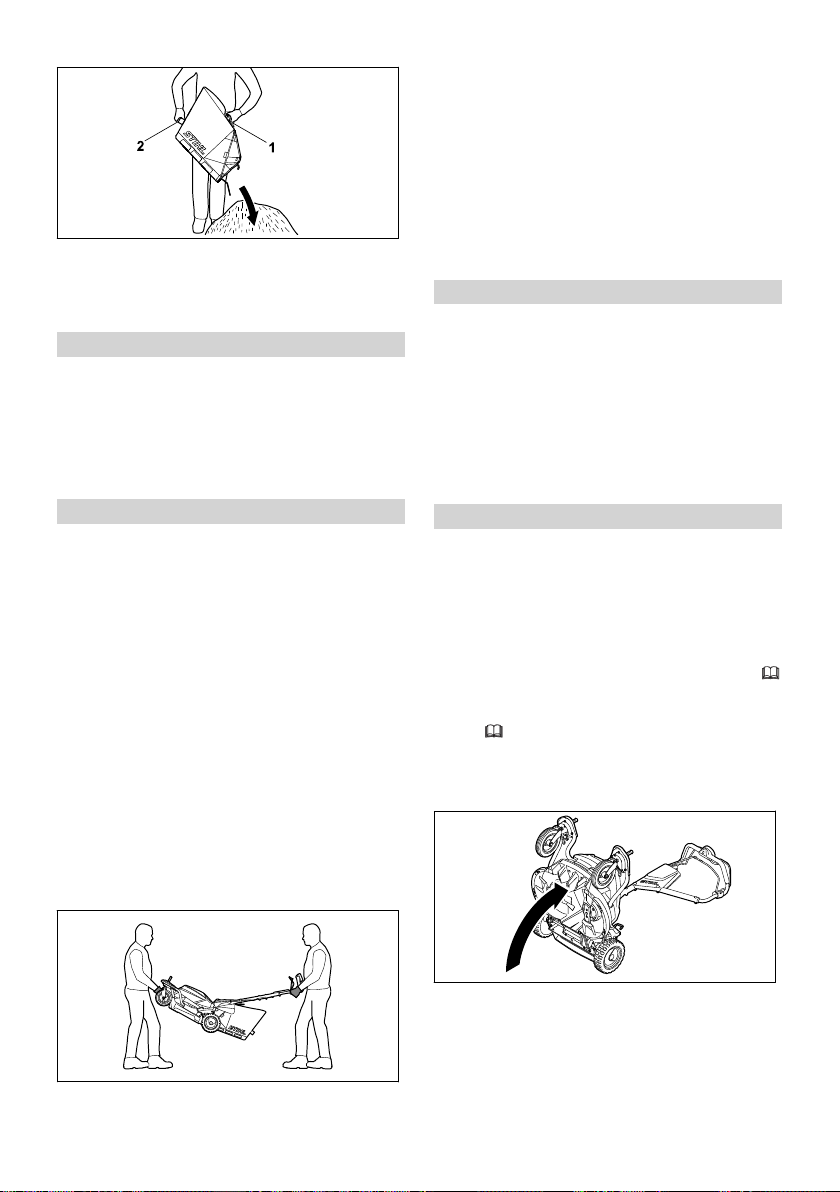

■ The lawn mower is heavy. Attempting to carry
the lawn mower without assistance may result
in injury to the user.
►The lawn mower must be carried by two
people.
4.9 Storage
WARNING
■Children cannot recognise or evaluate the
dangers posed by the lawn mower. This may
result in serious injury to children.
►Pull out the activation key.
► Remove the battery.
► Keep the lawn mower out of the reach of
children.
■ Moisture may cause corrosion of the electrical
contacts on the lawn mower and metal compo‐
nents. This may result in damage to the lawn
mower.
►Pull out the activation key.
► Remove the battery.
► Keep the lawn mower clean and dry.
■ If the activation key and battery are inserted
during storage, self-propulsion may uninten‐
tionally be engaged and the lawn mower may
start moving. This may result in serious injury
to people and damage to property.
►Pull out the activation key.
► Remove the battery.
4 Safety Precautions English
0478-131-9838-C 7

4.10 Cleaning, Maintenance and
Repair
WARNING
■If the activation key and battery are inserted
during cleaning, maintenance or repair, the
blades may unintentionally be activated. This
may result in serious injury to people and
damage to property.
►Pull out the activation key.
► Remove the battery.
■ If the activation key and battery are inserted
during cleaning, maintenance and repair, self-
propulsion may unintentionally be engaged
and the lawn mower may start moving. This
may result in serious injury to people and
damage to property.
►Pull out the activation key.
► Remove the battery.
■ Abrasive cleaning agents, using a water jet for
cleaning or sharp objects may result in dam‐
age to the lawn mower or blades. If the lawn
mower or blades are not cleaned correctly,
components may no longer operate correctly
and safety devices may be disabled. This may
result in serious injury to people.
►Clean the lawn mower and blades as
described in this instruction manual.
■ If the lawn mower or blades are not main‐
tained or repaired correctly, components may
no longer operate correctly and safety devices
may be disabled. This may result in serous or
fatal injury to people.
►Do not maintain or repair the lawn mower
yourself.
► If the lawn mower needs to be maintained
or repaired: consult a STIHL specialist
dealer.
►Maintain the blades as described in this
instruction manual.
■ The blades may move during blade cleaning,
maintenance or repair. The movement of one
blade will cause the second blade to turn. This
may result in injury to the user as a result of
cutting themselves on sharp cutting edges.
►Wear work gloves made from resistant
material.
■ The blades may become hot during sharpen‐
ing. This may result in the user burning them‐
selves.
►Wait until the blades have cooled down.
► Wear work gloves made from resistant
material.
5 Preparing the Lawn Mower
for Operation
5.1 Preparing the Lawn Mower for
Operation
The following steps must be performed before
commencing work:
► Remove packaging material and transport
locks.
► Make sure that the following components are
in safe condition:
–Lawn mower, 4.6.1.
–Blades, 4.6.2.
–Battery, as described in the instruction man‐
ual for the STIHL AR L battery or the
instruction manual for the ADA 700 double-
battery compartment and the safety instruc‐
tions for the STIHL AP battery.
► Check the battery as described in the instruc‐
tion manual for the STIHL AR L battery or the
instruction manual for the ADA 700 double-
battery compartment and the safety instruc‐
tions for the STIHL AP battery.
► Charge the battery fully as described in the
instruction manual for the STIHL AL 101, 301,
301-4, 500 charger.
►Clean the lawn mower, 16.2.
►Check the blades, 11.2.
►Fold up and adjust the handlebar, 7.1.
► If mowing and the mown grass is to be collec‐
ted in the grass catcher box: attach the grass
catcher box, 6.1.2.
► If mowing and the mown grass is to be ejected
to the rear: detach the grass catcher box,
6.1.3.
►Set the cutting height, 12.2.
►Check the controls, 11.1.
► If the steps cannot be performed: do not use
the lawn mower and consult a STIHL special‐
ist dealer.
English 5 Preparing the Lawn Mower for Operation
8 0478-131-9838-C

6 Assembling the Lawn
Mower
6.1 Assembling, Attaching and
Detaching the Grass Catcher
Box
6.1.1 Assembling the Grass Catcher Box
► Pull fabric (1) over frame (2) so that the base
plate is on the bottom and handle (3) is on the
outside of the fabric.
► Press plastic profiles (4) onto the frame.
The plastic profiles engage with a click.
6.1.2 Attaching the Grass Catcher Box
► Switch the lawn mower off.
► Place the lawn mower on a level surface.
► Open discharge flap (1) and hold it open.
► Take hold of grass catcher box (2) by han‐
dle (3) and attach hook (4) to axle (5).
► Set down discharge flap (1) on grass catcher
box (2).
6.1.3 Detaching the Grass Catcher Box
► Switch the lawn mower off.
► Place the lawn mower on a level surface.
► Open the discharge flap and hold it open.
► Remove the grass catcher box upwards by the
handle.
► Close the discharge flap.
7 Adjusting the Lawn Mower
for the User
7.1 Adjusting the Handlebar
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Place the lawn mower on a level surface.
► Hold handlebar (1).
► Press lever (2) downwards and hold.
► Move handlebar (1) into the desired position.
► Release lever(2) and ensure that the handle‐
bar fully engages again.
7.2 Folding the Handlebar
The handlebar can be folded for space-saving
transport or storage.
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Place the lawn mower on a level surface.
► Press and hold the lever.
► Fold down the handlebar forwards.
8 Removing and Fitting the
Battery
8.1 Fitting the Battery
► Pull out the activation key.
► Place the lawn mower on a level surface.
► Open flap (1).
► Fit battery (2) in holder (3).
► Press battery (2) downwards.
Battery (2) engages with a click and is locked
in place.
► Close flap (1).
6 Assembling the Lawn Mower English
0478-131-9838-C 9

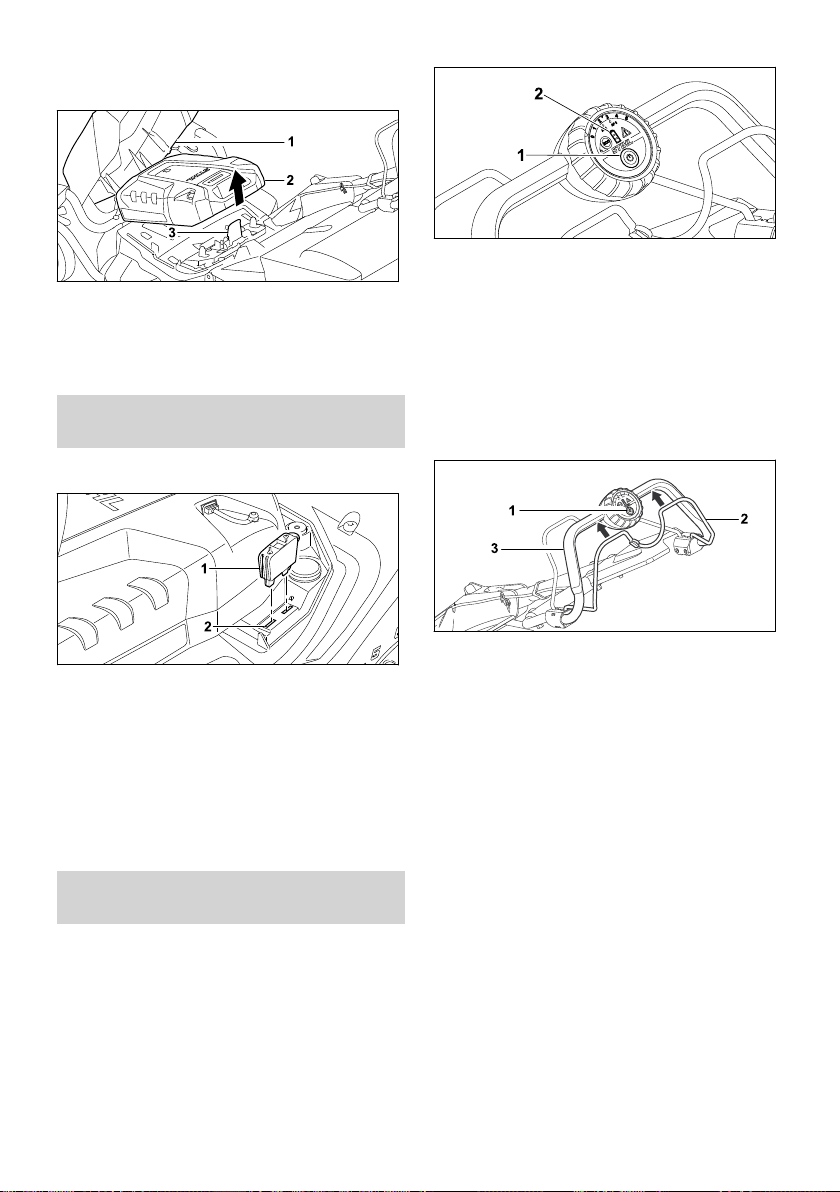

8.2 Removing the Battery
► Place the lawn mower on a level surface.
► Open flap (1).
► Press locking lever (3) and hold.
The battery (2) is released and can be
removed.
► Close flap (1).
9 Inserting and Removing
the Activation Key
9.1 Inserting the Activation Key
► Open the flap.
► Insert activation key (1) in key receptacle (2).
► Close the flap.
9.2 Removing the Activation Key
► Open the flap.
► Pull out the activation key.
► Close the flap.
► Keep the activation key out of the reach of
children.
10 Switching the Lawn Mower
On and Off
10.1 Switching the Lawn Mower On
► Place the lawn mower on a level surface.
► Press ON button (1).
The lawn mower has been switched on.
LEDs (2) indicate the battery charge state.
After five minutes without further activity, the
lawn mower will switch to sleep mode.
10.2 Activating and Deactivating the
Blade
10.2.1 Activating the Blades
► Place the lawn mower on a level surface.
► Press ON button (1) with the left hand and
hold.
► Pull control bar for mowing (2) with the right
hand fully in the direction of handlebar (3) and
hold so the thumb encloses handlebar (3).
The blades turn.
► Release ON button (1).
► Hold handlebar (3) and control bar for mow‐
ing (2) with the right hand so the thumb enclo‐
ses handlebar (3).
10.2.2 Deactivating the Blades
► Release the control bar for mowing.
► Wait until the blades are no longer turning.
► If the blades continue to turn: pull out the acti‐
vation key, remove the battery and consult a
STIHL specialist dealer.
The lawn mower is defective.
10.3 Switching the Drive On and Off
10.3.1 Engaging Self-propulsion
The rotary wheel can be used to set the maxi‐
mum speed in five stages. Level 5 is maximum
speed. Self-propulsion is disengaged in Level 0.
English 9 Inserting and Removing the Activation Key
10 0478-131-9838-C

The control bar for self-propulsion can be used to
infinitely regulate the speed up to the set maxi‐
mum speed. The further the control bar for self-
propulsion is pulled towards the handlebar, the
higher the speed.
The set speed influences the battery life. The
lower the speed, the longer the battery life.
► Place the lawn mower on a level surface.
► Set the desired maximum speed with rotary
wheel (1).
► Pull control bar for self-propulsion (2) with the
left hand in the direction of handlebar (3) and
hold so that the thumb encloses handlebar (3).
The lawn mower starts moving.
10.3.2 Deactivating Drive System
► Release the control bar for self-propulsion.
► Wait until the mower comes to a standstill.
► If the mower does not stop: Pull out the activa‐
tion key, remove the battery and consult a
STIHL specialist dealer for assistance.
There is a malfunction in the mower.
11 Checking the Lawn Mower
11.1 Checking the Controls
Control bar for mowing
► Pull out the activation key.
► Remove the battery.
► Pull the control bar for mowing fully in the
direction of the handlebar and release again.
► If the control bar for mowing is stiff or does not
spring back into the initial position: do not use
the lawn mower and consult a STIHL special‐
ist dealer.
The control bar for mowing is defective.
Control bar for self-propulsion
► Pull out the activation key.
► Remove the battery.
► Pull the control bar for self-propulsion fully in
the direction of the handlebar and release
again.
► If the control bar for self-propulsion is stiff or
does not spring back into the initial position:
do not use the lawn mower and consult a
STIHL specialist dealer.
The control bar for self-propulsion is defective.
Activating the blade
► Insert the activation key.
► Fit the battery.
► Switch the lawn mower on.
► Press the ON button with the left hand and
hold.
► Pull the control bar for mowing with the right
hand fully in the direction of the handlebar and
hold so that the thumb encloses the handle‐
bar.
The blade turns.
► If the blade does not turn: pull out the activa‐
tion key, remove the battery and consult a
STIHL specialist dealer.
There is a fault in the lawn mower.
► Release the ON button and the control bar for
mowing.
The blade stops turning after a short time.
► If the blade continues to turn: pull out the acti‐
vation key, remove the battery and consult a
STIHL specialist dealer.
The lawn mower is defective.
Engaging self-propulsion
► Insert the activation key.
► Fit the battery.
► Switch the lawn mower on.
► Pull the control bar for self-propulsion with the
left hand fully in the direction of the handlebar
and hold so that the thumb encloses the han‐
dlebar.
The lawn mower starts moving.
► Release the control bar for self-propulsion.
The lawn mower comes to a standstill.
► If the lawn mower continues moving: pull out
the activation key, remove the battery and
consult a STIHL specialist dealer.
The lawn mower is defective.
11.2 Checking the Blade
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
►Upend the lawn mower, 16.1.
11 Checking the Lawn Mower English
0478-131-9838-C 11

► Measure the following:
–Thickness a
–Width b
–Width c
–Sharpening angle d
► If the minimum thickness or minimum width
are fallen below: replace the blade, 20.2.
► If the sharpening angle is not observed:
sharpen the blade, 20.2.
► If anything is unclear: consult a STIHL special‐
ist dealer.
11.3 Checking the Blade Position
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
►Upend the lawn mower, 16.1.
► Turn one blade so that it is parallel to the
ground. The second blade turns also.
► Check the blades for correct position relative
to each other
–In the basic position, one blade (1) is paral‐
lel to the ground.
–The second blade (2) is at a 90° angle to
the first blade.
► If the blades are not in the correct position rel‐
ative to each other: cease using the lawn
mower and consult a STIHL specialist dealer.
12 Operating the Lawn Mower
12.1 Holding and Guiding the Lawn
Mower
► Hold the handlebar with both hands so the
thumbs enclose the handlebar.
12.2 Setting the Cutting Height
Eight cutting heights can be set:
–25 mm = position 1
–35 mm = position 2
–45 mm = position 3
–55 mm = position 4
–65 mm = position 5
–75 mm = position 6
–90 mm = position 7
–100 mm = position 8
The positions are indicated on the lawn mower.
The cutting height is set individually at all wheels.
The setting must be the same for all wheels.
Setting the rear cutting height
► Pull lever (1) from the notch and moved to the
desired position.
Setting the front cutting height
► Hold wheel fork (1) with the hand.
The lawn mower cannot drop into the lowest
position under its own weight.
► Press release lever (2) in the direction of the
arrow and hold.
► Move axle (3) into the desired position.
► Release release lever (2).
Axle (3) engages.
12.3 Locking the Front Wheels
The front wheels can be locked for mowing on
slopes.
English 12 Operating the Lawn Mower
12 0478-131-9838-C

► Press button (1).
► Straighten front wheel (2) and allow to
engage.
► Lock the second front wheel too.
Releasing the lock
► Push release lever (1) in the direction of the
arrow.
12.4 Activating and Deactivating
ECO Mode
ECO mode is activated after the lawn mower is
switched on.
When ECO mode is activated, the lawn mower
detects the current working conditions and
adjusts the blade speed automatically.
This may extend the battery life.
Activating ECO mode
► Press button (1).
LED (2) illuminates.
Deactivating ECO mode
► Press button (1).
LED (2) no longer illuminates.
12.5 Mowing
► If working with self-propulsion engaged: drive
the lawn mower forwards in a controlled man‐
ner.
► If working with self-propulsion disengaged:
push the lawn mower forwards slowly and in a
controlled manner.
12.6 Emptying the Grass Catcher
Box
The flow of air generated by the blade raises
level indicator (1). The flow of air stops when the
grass catcher box is full. If the flow of air is too
low, level indicator (2) returns to its resting state.
This is a prompt to empty the grass catcher box.
The functionality of the level indicator is restric‐
ted if the flow of air is impaired. External influen‐
ces such as wet, dense or high grass, low cutting
levels, contamination or the like can impair the
flow of air and the functionality of the level indica‐
tor.
► If the level indicator drops to its resting state:
empty the grass catcher box.
12 Operating the Lawn Mower English
0478-131-9838-C 13

► Remove the grass catcher box upwards by
handle (1).
► Hold rear handle (2) with the second hand.
► Empty the grass catcher box.
13 After Finishing Work
13.1 After Finishing Work
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► If the lawn mower is wet: allow the lawn
mower to dry.
► Clean the lawn mower.
14 Transporting
14.1 Transporting the Lawn Mower
► Switch the lawn mower off.
The blades must not be turning.
Using self-propulsion
► Engage self-propulsion.
► Drive the lawn mower forwards in a controlled
manner.
Pushing the lawn mower
► Pull out the activation key and remove the bat‐
tery.
► Push the lawn mower forwards slowly and in a
controlled manner.
Carrying the lawn mower
► Wear work gloves made from resistant mate‐
rial.
► Pull out the activation key and remove the bat‐
tery.
► One person holds the lawn mower by the
wheel forks using both hands and another per‐
son holds the handlebar using both hands.
► The lawn mower must be lifted and carried by
two people.
Transporting the lawn mower in a vehicle
► Pull out the activation key and remove the bat‐
tery.
► Secure the lawn mower upright so it does not
tip over and cannot move.
15 Storing
15.1 Storing the Lawn Mower
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Store the lawn mower in accordance with the
following conditions:
–The lawn mower is out of reach of children.
–The lawn mower is clean and dry.
–The lawn mower cannot tip over.
–The lawn mower cannot roll away.
16 Cleaning
16.1 Placing the Lawn Mower in the
Cleaning Position
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Place the lawn mower on a level surface.
► Detach the grass catcher box.
►Set the cutting height to the highest setting.
12.2
► Move the upper handlebar to the lowest posi‐
tion, 7.1.
The upper handlebar is released.
► Press the lever downwards with the left hand
and hold.
► Hold the lawn mower at the wheel fork with the
right hand and upend.
16.2 Cleaning the Lawn Mower
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Clean the lawn mower with a damp cloth.
English 13 After Finishing Work
14 0478-131-9838-C

► Clean the discharge chute with a soft brush or
a damp cloth.
► Clean the electrical contacts on the lawn
mower with a paintbrush or a soft brush.
► Clean the ventilation slots with a paintbrush.
► Upend the lawn mower.
► Clean the area around the blade and the blade
with a stick, a soft brush or a damp cloth.
17 Maintenance
17.1 Removing and Attaching the
Blade
17.1.1 Removing the Blade
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Upend the lawn mower.
► Block blade (1) using a piece of wood (2).
► Unscrew bolt (3) in the direction of the arrow
and remove together with the washer.
► Remove blade (4).
► Unscrew bolt (5) in the direction of the arrow
and remove together with the washer.
► Remove blade (1).
► Discard bolts (3 and 5) and the washers.
Use new bolts and washers to attach
blades (1 and 4).
17.1.2 Attaching the Blades
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Upend the lawn mower.
► Place new washer (2) on new screw (1).
► Apply Loctite 243 thread locker to the thread
of screw (1).
► Position blade (3) so that the raised areas on
contact area (4) engage in the notches in
blade (3).
► Screw in screw (1) together with washer (2).
► Block blade (3) using a piece of wood (5).
► Tighten screw (1) to 30 Nm +/- 3 Nm.
► Install the second blade.
17.2 Sharpening and Balancing the
Blades
Sharpening and balancing the blades correctly
requires a lot of practice.
STIHL recommends having the blades sharp‐
ened and balanced by a STIHL specialist dealer.
WARNING
■ The cutting edges of the blades are sharp.
This may result in the user cutting themselves.
► Wear work gloves made from resistant
material.
► Switch the lawn mower off, pull out the activa‐
tion key and remove the battery.
► Upend the lawn mower.
► Remove the blades.
► Sharpen the blades. Observe the sharpening
angle and cool the blades, 20.2.
Bluing of the blades during sharpening is not
permitted.
► Attach the blades.
► If anything is unclear: consult a STIHL special‐
ist dealer.
17.3 Checking the Belt Tension of
the Blade Drive
Have the belt tension of the blade drive checked
by a STIHL specialist dealer once a year.
17 Maintenance English
0478-131-9838-C 15

18 Repairing
18.1 Repairing the Lawn Mower
The user should not repair the lawn mower or
blades themselves.
► If the lawn mower or blades are damaged: do
not use the lawn mower or blades and consult
a STIHL specialist dealer.
► If warning signs are illegible or damaged: have
the warning signs replaced by a STIHL spe‐
cialist dealer.
19 Troubleshooting
19.1 Remedying Lawn Mower or Battery Faults
Fault LEDs on the
operating unit LEDs on the battery Cause Remedy
The lawn
mower does
not start when
switched on.
1 LED on the
charge state indi‐
cator flashes
green.
1 LED
flashes
green.
The battery
charge state is
too low.
► Charge the battery.
1 LED on the
charge state indi‐
cator illuminates
red.
1 LED illumi‐
nates red. The battery is too warm or too cold. ► Pull out the activation key. ► Remove the battery.
► Allow the battery to cool down
or warm up.
Warning triangle
flashes red. 3 LEDs flash red. There is a fault in the lawn mower. ► Pull out the activation key. ► Remove the battery.
► Clean the electrical contacts
on the lawn mower.
► Fit the battery.
► Switch the lawn mower on.
► If the fault persists: do not use
the lawn mower and consult a
STIHL specialist dealer.
Warning triangle
illuminates red. 3 LEDs illu‐ minate red. The lawn mower is too warm. ► Pull out the activation key. ► Remove the battery.
► Allow the lawn mower to cool
down.
3 LEDs on the
charge state indi‐
cator illuminate
red.
4 LEDs flash
red. There is a fault in the battery. ► Remove the battery and fit it again.
► Switch the lawn mower on.
► If the fault persists: do not use
the battery and consult a
STIHL specialist dealer.
The electrical
connection
between the lawn
mower and bat‐
tery has been
interrupted.
► Pull out the activation key.
► Remove the battery.
► Clean the electrical contacts
on the lawn mower.
► Insert the activation key.
► Fit the battery.
All LEDs on the
operating unit
flash.
Communication
with the operating
unit has been
interrupted.
► Pull out the activation key.
► Remove the battery.
► Do not use the lawn mower
and consult a STIHL specialist
dealer.
The lawn mower
or battery is
damp.
► Pull out the activation key.
► Remove the battery.
► Clean the lawn mower.
► Allow the lawn mower or bat‐
tery to dry.
English 18 Repairing
16 0478-131-9838-C

Fault LEDs on the
operating unit LEDs on the battery Cause Remedy
The resistance at
the blades is too
great.
► Set a higher cutting height.
► Switch the lawn mower on in
lower grass.
Self-propul‐
sion is not
working.
There is a fault in
the self-propul‐
sion mechanism.
► Remove the battery and fit it
again.
► Engage self-propulsion.
► If the self-propulsion fault per‐
sists: consult a STIHL special‐
ist dealer.
The lawn
mower stops
during opera‐
tion.
Warning triangle
illuminates red. 3 LEDs illu‐ minate red. The lawn mower is too warm. ► Pull out the activation key. ► Remove the battery.
► Allow the lawn mower to cool
down.
► Clean the lawn mower.
► Do not switch the lawn mower
on too frequently within a short
time.
► If working with self-propulsion
engaged: set a lower speed.
► If working with self-propulsion
disengaged: go forwards
slower.
► Set a higher cutting height.
► Mow shorter grass.
The blades are
blocked. ► Pull out the activation key. ► Remove the battery.
► Clean the lawn mower.
There is an elec‐
trical fault. ► Remove the battery and fit it again.
► Switch the lawn mower on.
Warning triangle
illuminates red. The self-propul‐ sion and the
blades disengage
in the event of
overload when
working on steep
slopes.
► Do not mow on steep slopes.
► Release the control bar for
self-propulsion.
► Place the lawn mower on a
level surface.
► Activate the blades.
► Engage self-propulsion.
The lawn
mower oper‐
ating time is
too short.
The battery is not
fully charged. ► Fully charge the battery.
The battery serv‐
ice life has been
exceeded.
► Replace the battery.
20 Specifications
20.1 Lawn Mower STIHL
RMA 765.0 V
–Permitted batteries:
–STIHL AR L
–STIHL AP together with ADA 700 double-
battery compartment
–Weight without battery: 44 kg
–Maximum grass catcher box capacity: 80 l
–Cutting width: 63 cm
–Speed: 3300 rpm
–Speed in ECO mode: 2800 rpm
For information on the battery life see
www.stihl.com/battery-life.
20 Specifications English
0478-131-9838-C 17

20.2 Blades
–Minimum thickness a: 2.2 mm
–Minimum width b: 30 mm
–Minimum width c: 26 mm
–Sharpening angle d: 30°
20.3 Sound Values and Vibration
Values
The K value for the sound pressure level is
3 dB(A). The K value for the sound power level is
1.2 dB(A). The K value for the vibration value is
0.7 m/s².
–Sound pressure level LpA measured in accord‐
ance with EN 60335-2-77: 84 dB(A)
–Guaranteed sound power level LWAd meas‐
ured in accordance with 2000/14/
EC / S.I. 2001/1701: 93 dB(A)
–Vibration value ahv measured in accordance
with EN 20643, EN 60335-2-77, handlebar:
1.4 m/s²
The indicated vibration values were measured in
accordance with a standardised test method and
can be used for the purpose of comparing electri‐
cal appliances. The actual vibration values that
occur may deviate from the indicated values,
depending on the type of application. The indica‐
ted vibration values can be used for an initial
assessment of the vibration load. The actual
vibration load must be assessed. Times during
which the electrical appliance is switched off,
along with times during which it is switched on
but running without load, can also be taken into
consideration.
For information on compliance with Employers'
Vibration Directive 2002/44/EC and
S.I. 2005/1093, see www.stihl.com/vib.
20.4 Normative Information
STIHL Tirol GmbH
Hans Peter Stihl-Strasse 5
6336 Langkampfen
Austria
confirms that the machine complies with the reg‐
ulations in implementation of the following stand‐
ards IEC 60335‑1 and IEC 60335‑2‑77.
20.5 REACH
REACH is an EC regulation and stands for the
Registration, Evaluation, Authorisation and
Restriction of Chemical substances.
For information on compliance with the REACH
regulation see www.stihl.com/reach.
21 Spare Parts and Accesso‐
ries
21.1 Spare parts and accessories
These symbols indicate original STIHL
spare parts and original STIHL acces‐
sories.
STIHL recommends the use of original STIHL
spare parts and accessories.
Despite ongoing market observation, STIHL is
unable to judge the reliability, safety and suitabil‐
ity of other manufacturers' spare parts and
accessories; accordingly, STIHL cannot warrant
for the use of those parts.
Original STIHL spare parts and original STIHL
accessories are available from STIHL dealers.
21.2 Essential Spare Parts
–Left blade: 6392 702 0100
–Right blade: 6392 702 0105
–Left blade fastening screw: 9008 348 1800
–Right blade fastening screw: 9008 348 1801
–Washer: 9307 021 0180
22 Disposal
22.1 Disposing of the Lawn Mower
Information on disposal is available from your
local authority or from a STIHL dealer.
Improper disposal may be harmful to health and
pollute the environment.
► Take STIHL products including packaging to a
suitable collection point for recycling in accord‐
ance with local regulations.
► Do not dispose of the product with domestic
waste.
English 21 Spare Parts and Accessories
18 0478-131-9838-C

23 Safety Information for
Lawn Mowers
23.1 Introduction
This chapter describes the general safety
instructions preformulated in the standard EN
60335-2-77, Annex EE, for electrically operated
lawn mowers.
WARNING
■Read all the safety instructions, instructions,
illustrations and technical data provided with
the lawn mower. Failure to comply with the fol‐
lowing instructions may cause electrical shock,
fire and/or serious injury. Keep all safety
instructions and instructions for the future.
23.2 Training
a)Read the instruction manual carefully.
Ensure that you are familiar with the controls
and the correct use of the machine;
b)Never allow children or other persons who
are not familiar with the instructions for use
to use the lawn mower. Local regulations
may specify a minimum age for users;
c)Never mow in the vicinity of other persons,
particularly children or animals;
d)Be aware that the person operating the
machine or the user is responsible for acci‐
dents involving third parties or their property.
23.3 Preparatory Measures
a)Always wear sturdy shoes and long trousers
when operating the machine. Never operate
the machine barefoot or in lightweight san‐
dals. Avoid wearing loose clothing or clothing
with hanging cords or belts.
b)Inspect the area on which the machine is to
be used and remove any objects that could
be taken in and thrown up by the machine.
c)Before using the machine, always visually
inspect the cutting blade, the retaining pins
and the entire cutting unit for wear or dam‐
age. To avoid imbalance, worn or damaged
cutting blades and retaining pins must be
replaced in pairs. Worn or damaged warning
signs must be replaced.
23.4 Handling
a)Only mow during the day or with good artifi‐
cial light.
b)If possible, avoid using the machine when
the grass is wet.
c)Always ensure good stability on slopes.
d)Operate the machine only at walking pace.
e)Only mow across and never up or down the
slope.
f)Be particularly careful when changing direc‐
tion on a slope.
g)Do not mow on excessively steep slopes.
h)Be particularly careful when turning the lawn
mower around or pulling it towards you.
i)Stop the cutting blade(s) when the machine
needs to be tilted for transportation over sur‐
faces other than grass and when moving the
lawn mower from and to the area to be
mown.
j)Never use the lawn mower with damaged
safety devices or protective grilles or without
attached safety devices, e.g. deflectors
and/or grass-catching units.
k)Exercise care when starting or pressing the
starting switch and observe the manufactur‐
er's instructions. Ensure that you keep your
feet far enough away from the cutting
blade(s).
l)The lawn mower must not be tilted when
starting it, unless the lawn mower needs to
be lifted during the process. In this case, only
tilt it as far as is absolutely necessary and
only raise the side facing away from the
user.
m)Do not start the motor when you are standing
in front of the discharge chute.
n)Never put hands or feet on or underneath
rotating parts. Always keep away from the
discharge opening.
o)Never lift or carry a lawn mower with the
motor running.
p)Stop the motor and pull out the starting key.
Ensure that all moving parts have come to a
complete stop:
–whenever you leave the lawn mower;
–before remedying blockages, including
those in the discharge chute;
–before checking, cleaning or working on
the lawn mower;
–after hitting a foreign object. Inspect the
lawn mower for damage and perform the
necessary repairs before re-starting and
using the lawn mower.
23 Safety Information for Lawn Mowers English
0478-131-9838-C 19

If the lawn mower begins to vibrate exces‐
sively, it must be checked immediately.
–Check for damage;
–make the necessary repairs to damaged
parts;
–ensure that all screws, pins and bolts are
tightly fastened.
23.5 Maintenance and Storage
a)Ensure that all nuts, pins and bolts are tightly
fastened and that the machine is in a safe
working condition.
b)Check the grass-catching unit regularly for
wear or loss of functionality.
c)In the interests of safety, replace all worn or
damaged parts.
d)Be aware that on machines with more than
one cutting blade, the movement of one cut‐
ting blade can cause the other cutting blade
to turn.
e)Ensure when adjusting the machine that your
fingers do not become pinched between
moving cutting blades and stationary parts of
the machine.
f)Allow the motor to cool down before storing
the machine.
g)Note when maintaining the cutting blades
that the cutting blades can be moved even if
the power source is switched off.
h)In the interests of safety, replace all worn or
damaged parts. Only use genuine spare
parts and accessories.
Índice
1Prólogo......................................................20
2 Informaciones relativas a estas instruc‐
ciones para la reparación..........................20
3 Sinopsis.................................................... 21
4 Indicaciones relativas a la seguridad........ 22
5 Preparar el cortacésped para el trabajo....27
6 Ensamblar el cortacésped........................ 28
7 Ajustar el cortacésped para el usuario......28
8 Colocar y sacar el acumulador................. 28
9 Insertar la llave de seguridad y retirarla....29
10 Conectar y desconectar el cortacésped....29
11 Comprobar el cortacésped........................30
12 Trabajar con el cortacésped..................... 31
13 Después del trabajo.................................. 33
14 Transporte.................................................33
15 Almacenamiento....................................... 34
16 Limpiar...................................................... 34
17 Mantenimiento.......................................... 34
18 Reparación................................................35
19 Subsanar las perturbaciones.................... 35
20 Datos técnicos.......................................... 37
21 Piezas de repuesto y accesorios.............. 38
22 Gestión de residuos.................................. 38
23 Indicaciones técnicas de seguridad para
cortacéspedes...........................................38
1 Prólogo
Distinguidos clientes,
Nos alegramos de que se hayan decidido
por STIHL. Desarrollamos y confeccionamos
nuestros productos en primera calidad y con
arreglo a las necesidades de nuestros clientes.
De esta manera conseguimos elaborar produc‐
tos altamente fiables incluso en condiciones de
esfuerzo extremas.
STIHL también presta un Servicio Postventa de
primera calidad. Nuestros comercios especializa‐
dos garantizan un asesoramiento e instrucciones
competentes así como un amplio asesoramiento
técnico.
STIHL se declara expresamente a favor de tratar
la naturaleza de forma sostenible y responsable.
Estas instrucciones de servicio pretenden asis‐
tirle para hacer un uso ecológico y seguro de su
producto STIHL durante toda su vida útil.
Le agradecemos su confianza y le deseamos
que disfrute de su producto STIHL.
Dr. Nikolas Stihl
IMPORTANTE: LEER ANTES DE USAR Y
GUARDAR.
2 Informaciones relativas a
estas instrucciones para la
reparación
2.1 Documentación aplicable
Este manual de instrucciones es un manual ori‐
ginal del fabricante en conformidad con la direc‐
tiva 2006/42/EC de la UE.
Son aplicables las normas de seguridad locales.
español
20 0478-131-9838-C
© ANDREAS STIHL AG & Co. KG 2022
0478-131-9838-C. VA0.E22.
Impreso en papel blanqueado sin cloro. Los colores de la impresión contienen aceites vegetales, por lo que el papel es reciclable.
Traducción del manual de instrucciones original
0000008817_012_E
