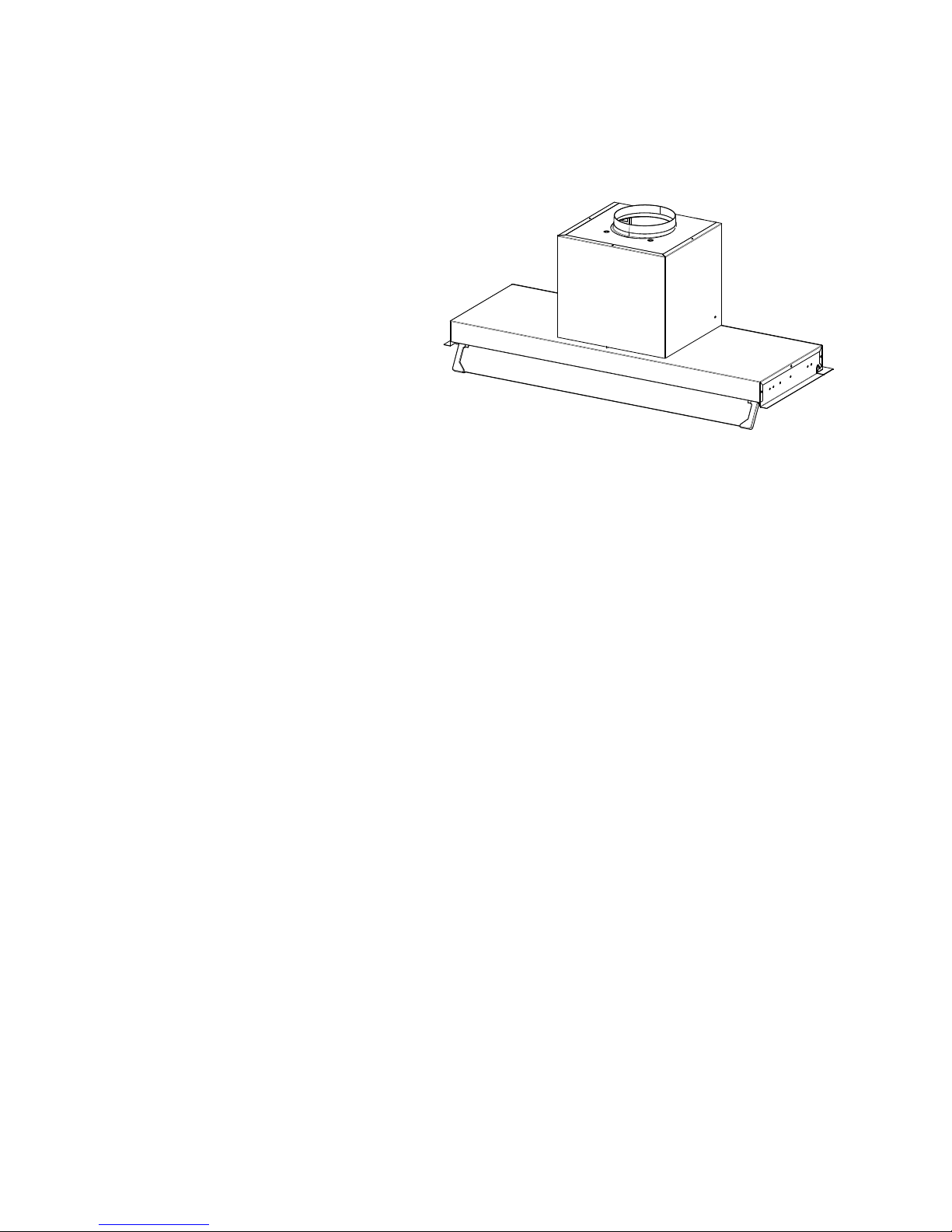

Stilnovo Lux RB User manual

Libretto di Istruzioni
Instructions Manual
Manuel d’Instructions
Bedienungsanleitung
Manual de instrucciones
ǽȗȥıțȢȔİțȡ ȡİșȗțȬȟ
ɋɮɥɩɝɩɟɬɭɝɩ ɪɩ ɸɥɬɪɦɮɛɭɛɱɣɣ
Instrukcja Obsâugi
Käyttöohje

EN 1
14
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
! The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
! The minimum safety distance between the cooker top and the extractor hood
is 650 mm (some models can be installed at a lower height, please refer to
the paragraphs on working dimensions and installation).
! Check that the mains voltage corresponds to that indicated on the rating
plate fixed to the inside of the hood.
! For Class I appliances, check that the domestic power supply guarantees
adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
! Do not connect the extractor hood to exhaust ducts
carrying combustion fumes (boilers, fireplaces, etc.).
! If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient
degree of aeration must be guaranteed in the room in
order to prevent the backflow of exhaust gas. The
kitchen must have an opening communicating directly
with the open air in order to guarantee the entry of clean air. When the
cooker hood is used in conjunction with appliances supplied with energy
other than electric, the negative pressure in the room must not exceed 0,04
mbar to prevent fumes being drawn back into the room by the cooker hood.
! The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels (not applicable to appliances that only discharge the
air back into the room).
! In the event of damage to the power cable, it must be
replaced by the manufacturer or by the technical service
department, in order to prevent any risks.
2°

EN 1
15
• If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.

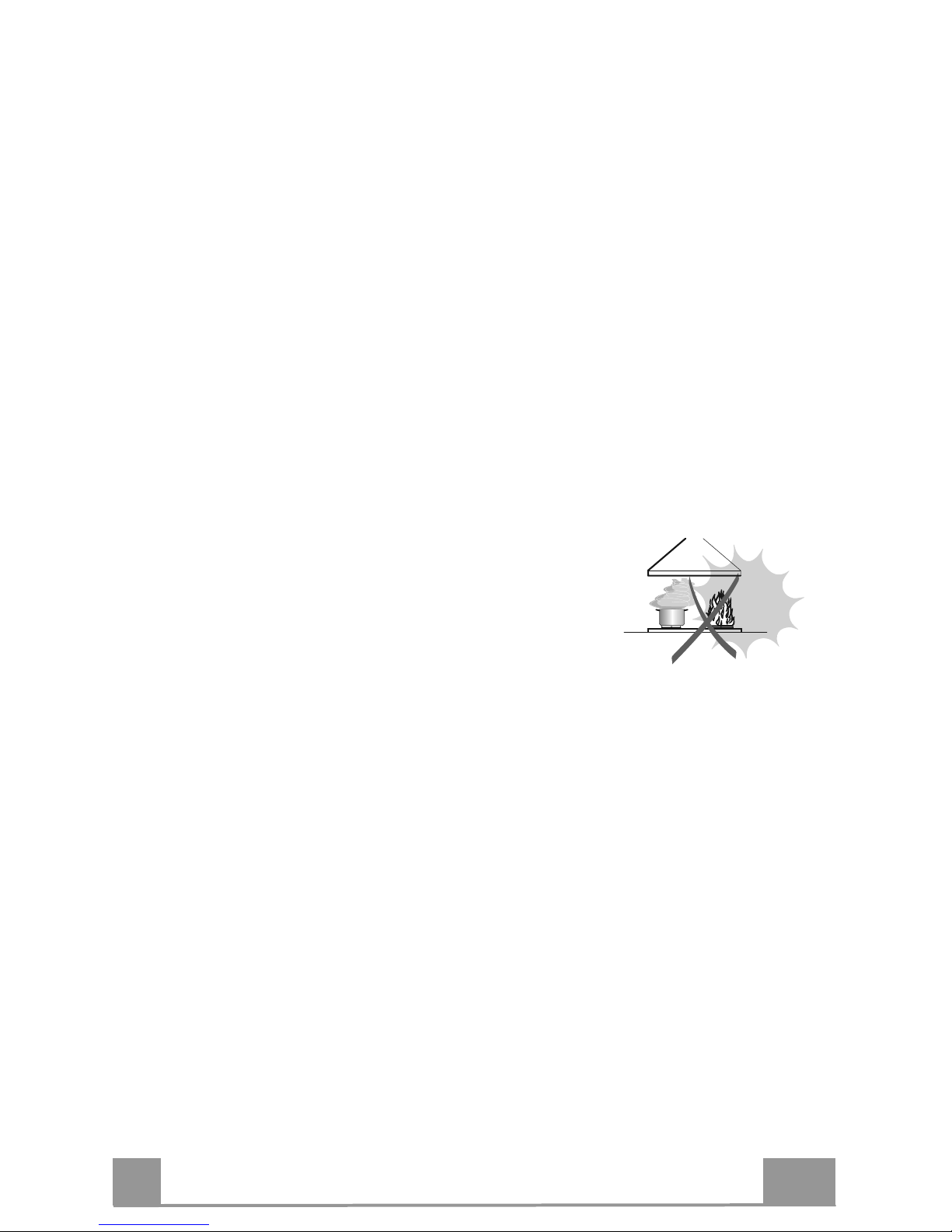

• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

EN 1
16
• •CAUTION: Accessible parts may become hot when used with cooking
appliances.”
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.

EN 1
17

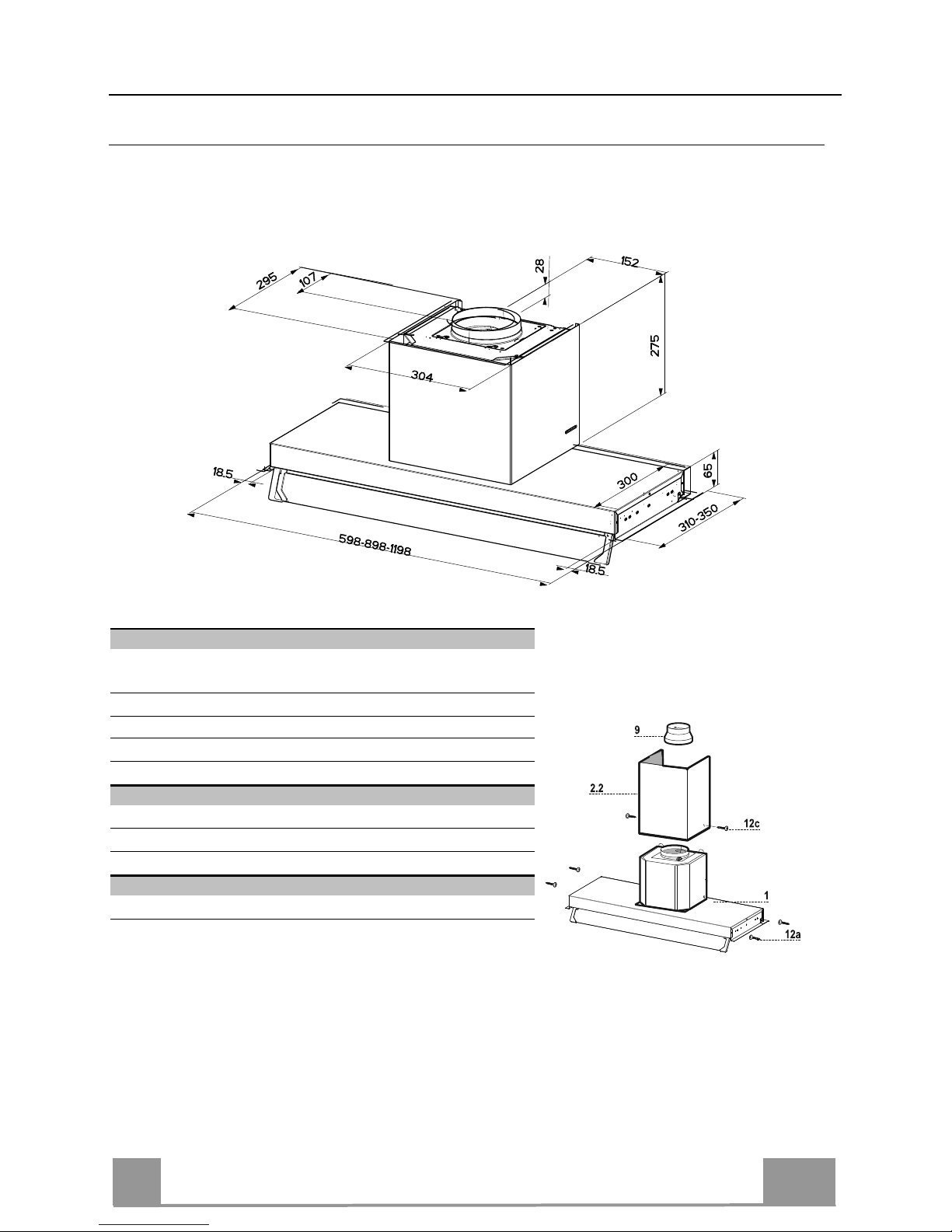

CHARACTERISTICS
Dimensions
Components
Ref. Q.ty Product Components
11 Hood Canopy complete with: Controls, Light, Fan unit,
Filters
21 Telescopic chimney, made up of:
2.1 1 Upper chimney
2.2 1 Lower chimney
91 Reduction Flange ø 150-120 mm
Ref. Q.ty Installation Components
7.2.1 1 Upper chimney fixing brackets
12a 6 Screws 3.9 x 13
12c 4 Screws 2.9 x 9.5
Q.ty Documentation
1 Instruction Manual

EN 1
18
12a
INSTALLATION

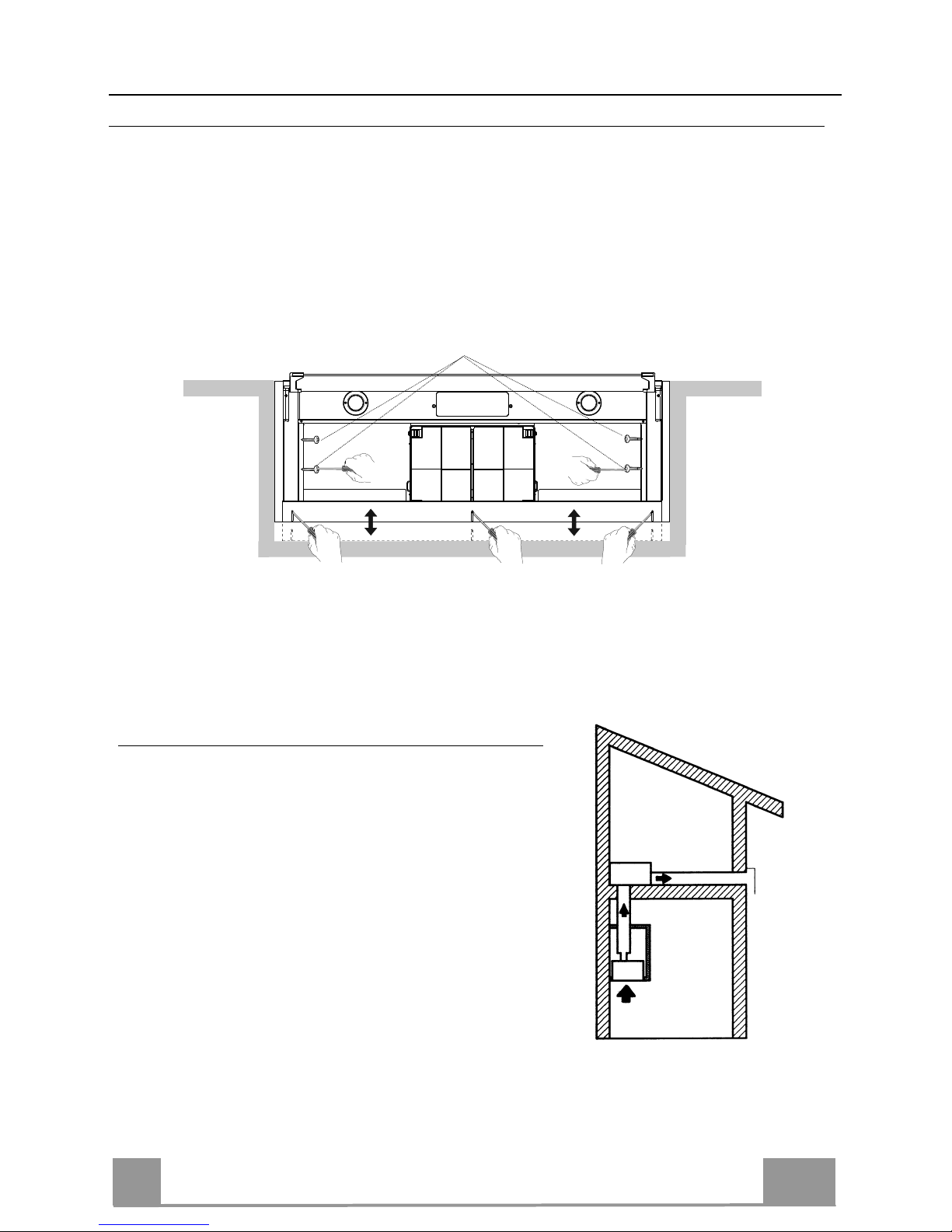

Fixing the Hood
! Insert the Hood Canopy into the overhead unit.
! Align the hood canopy with the front bottom edge of the unit (excluding any doors).
! Remove grease filters.
! Screw the hood canopy to the unit from the inside, using the screws 12a (3.9 x 13) provided.
! Loosen the screws fixing the spacer and adjust it to the correct position before fastening
completely.
WARNING: The Hood Canopy must be fitted into the Unit before it is fixed to the wall.
DUCTING TO THE REMOTE BLOWER
! The hood must be ducted to the remote blower using
either a flexible or rigid pipe ø 120 mm.

EN 1
19
L2
L1
L2
a
b
L1
L1 L1
L2
L2
L2
L1
L2
ab
L1
1
2 3
L2
L1
L2
2 3
L1
1

EN 2
20

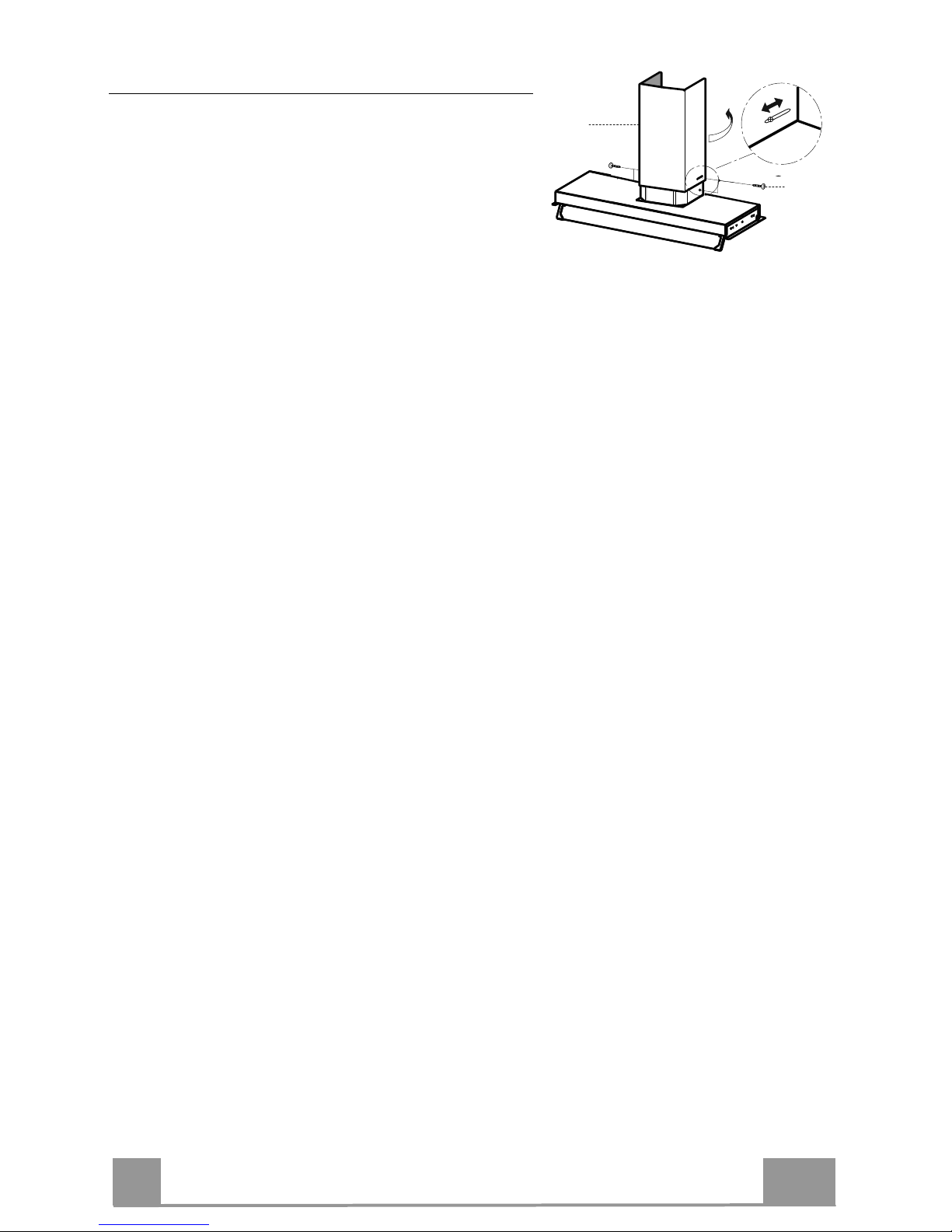

Fitting the Chimney
Lower chimney
• Open the two side pieces of the Chimney out slightly,
insert them over the hood canopy and bring them
back together again until they are in contact.
• Fasten the Chimney to the sides of the Hood canopy
using 2 Screws 12c (2.9 x 9.5), provided, without
tightening completely.
• Before tightening the screws it is possible to make
slight adjustments to the depth, using the chimney
slot.
12c
2.2

EN 2
21
L
T1
T2
T3
T4
S1
L
S1
T1 T2 T3 T4
LT3
S1
T2
T1 T4
USE
Control panel
Button Led Function
L- Turns the lights on/off at maximum strength.
T1 Fixed Turns the motor on/off at speed one.
T2 Fixed Turns the Motor on at speed two.
Press and hold the button for approximately 3 seconds, with all the loads turned
off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. The
relevant LED flashes twice to confirm.
To turn the alarm off, press the button again and hold for at least 3 seconds. The
relevant LED flashes once.
T3 Fixed Turns the Motor on at speed three.
Press and hold the button for approximately 3 seconds, with all the loads turned
off (Motor and Lights), to perform a reset of Filter saturation alarm. The LED S1
flashes three times.
T4 Fixed Turns the Motor on at INTENSIVE Speed.
This speed is timed to run for 6 minutes. At the end of this time, the system
returns automatically to the speed that was set before. If it is activated with the
motor turned off, the hood will switch to OFF at the end of the time.
Press and hold for 3 seconds to enable the remote control, indicated by the LED
flashing twice.
Press and hold for 3 seconds to disable the remote control, indicated by the LED
flashing just once.
S1 Fixed Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to
wash the filters. The alarm is triggered after the Hood has been in operation for
100 working hours. (Reset see the parag. Maintenance)
Flashing When this is activated, it signals the Activated Charcoal Filter saturation alarm,
indicating that the filter must be changed; the Metal Grease Filters must also be
washed. The Activated Charcoal Filter saturation alarm comes
into operation after the Hood has been working for 200 hours. (Activation and
Reset see the parag. Maintenance)

EN 2
22
MAINTENANCE

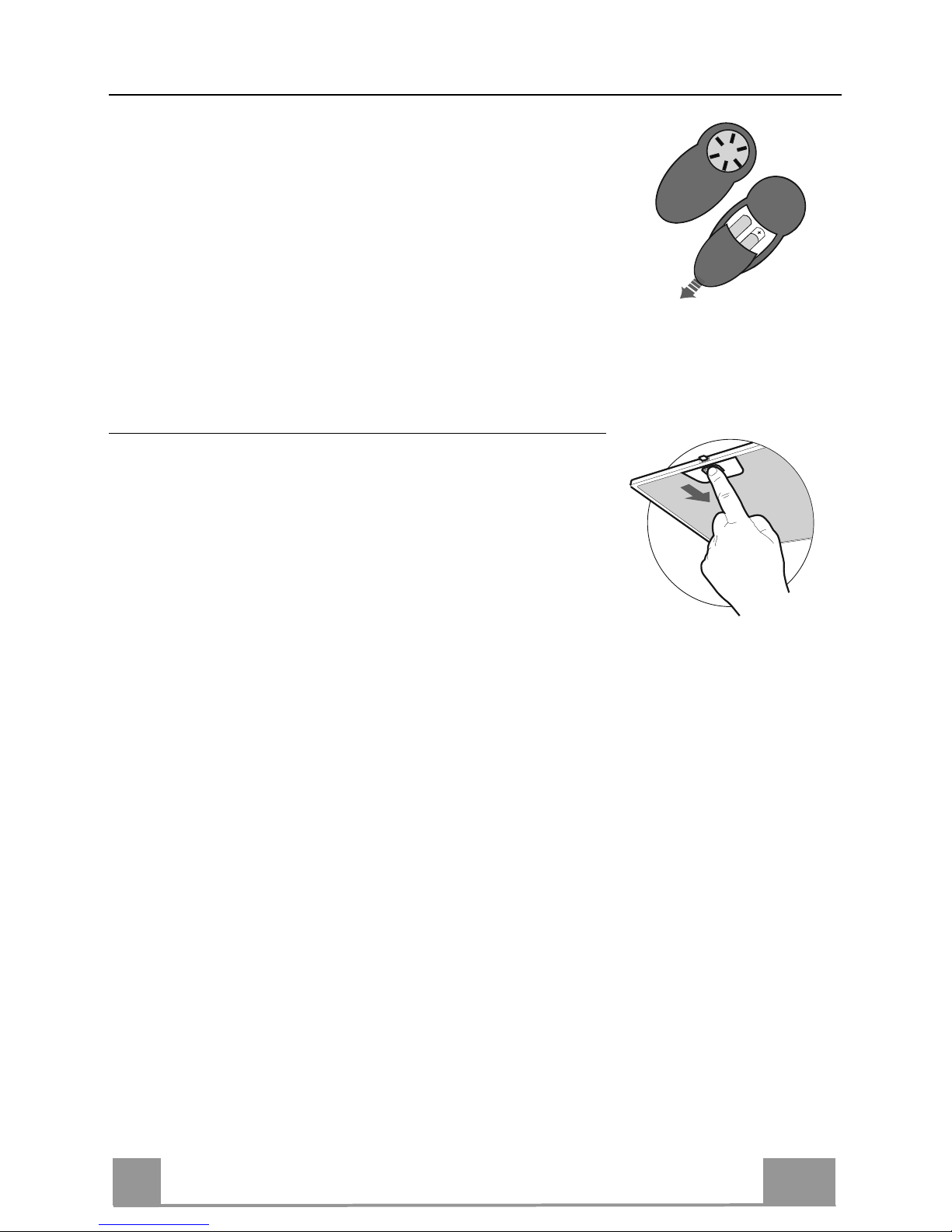

REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control powered
by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-
AAA type (not included).
! Do not place the remote control near to heat sources.
! Used batteries must be disposed of in the proper manner.
Metal grease filters
These can be washed in the dishwasher, and need to be cleaned
whenever the S1 Led comes on or at least once every 2 months
use, or more frequently if use is particularly intensive.
CLEANING THE FILTERS
Resetting the alarm signal
! Turn the Lights and the Suction Motor off.
! Press T3 and hold for at least 3 seconds, until LED flashes
three times in confirmation.

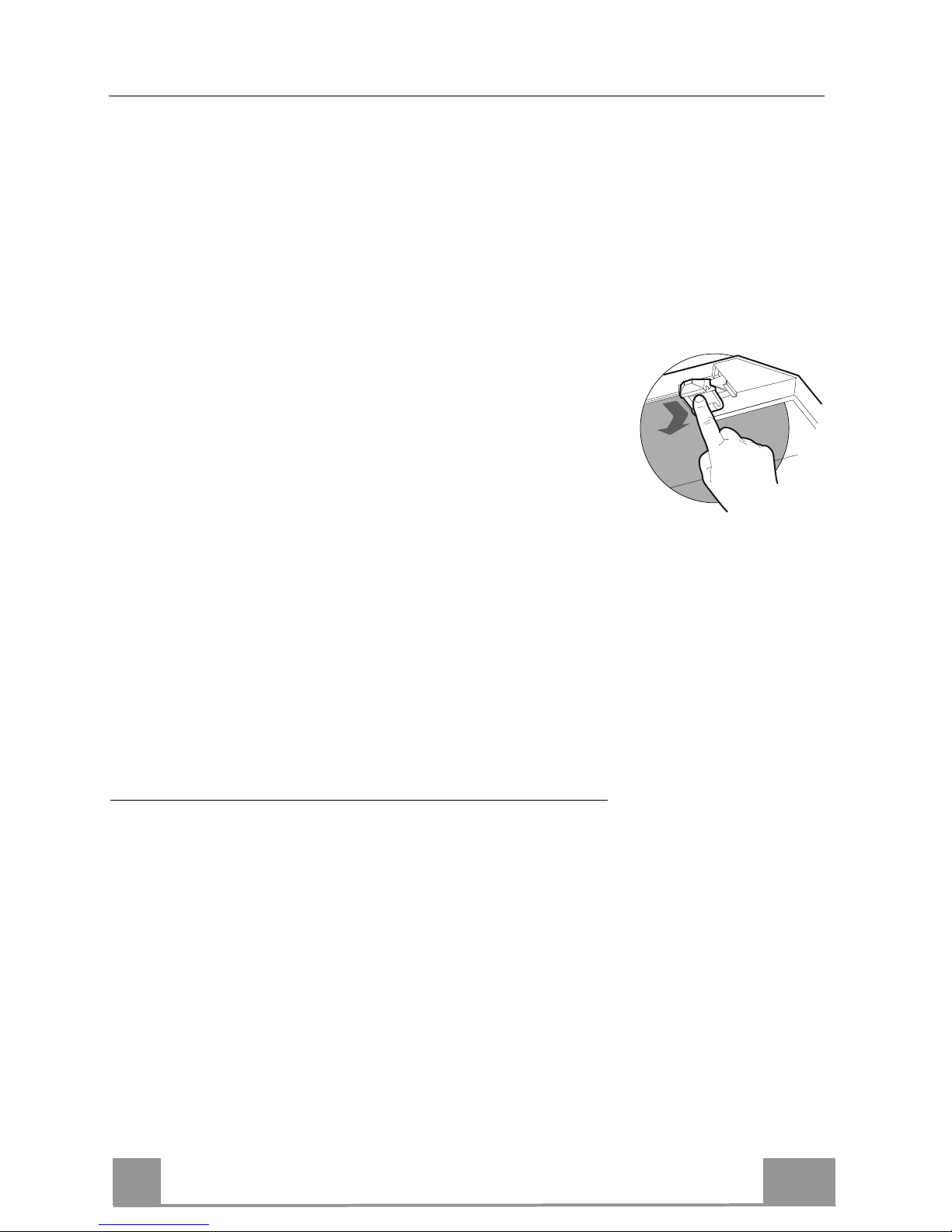

Cleaning the Filters
! Remove the Filter, pushing it towards the back of the unit and
at the same time pulling downward.
! Wash the filter without bending it, and leave it to dry thor-
oughly before replacing (if the surface of the filter changes
colour over time, this will have absolutely no effect on its effi-
ciency).
! Replace, taking care to ensure that the handle faces forwards.

EN 2
23
Activated Charcoal Filter (Recirculation Version)
This cannot be washed or regenerated, and must be changed when led S1 starts to flash, or at
least once every 4 months. The Alarm signal, if it has been activated, only appears when the
Suction motor is turned on.
Activating the alarm signal
! In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installa-
tion or at a later date.
! Turn the Lights and the Suction Motor off.
! Press button T2 and hold it for 5 seconds until the LED flashes twice in confirmation:
CHANGING
Resetting the alarm signal
! Turn the Lights and the Suction Motor off.
! Press T3 and hold for at least 3 seconds, until LED flashes
three times in confirmation.
Changing the Filter
! Remove the Metal Grease Filter
! Remove the saturated Activated charcoal filter, using the hooks
provided.
! Fit the new Filter, hooking it into place.
! Fit the Grease filter.
Lighting unit
! For replacement contact technical support ("To purchase
contact technical support").
