Mounting instructions for wendy house „silva villa“
Item No. 51 5530 601

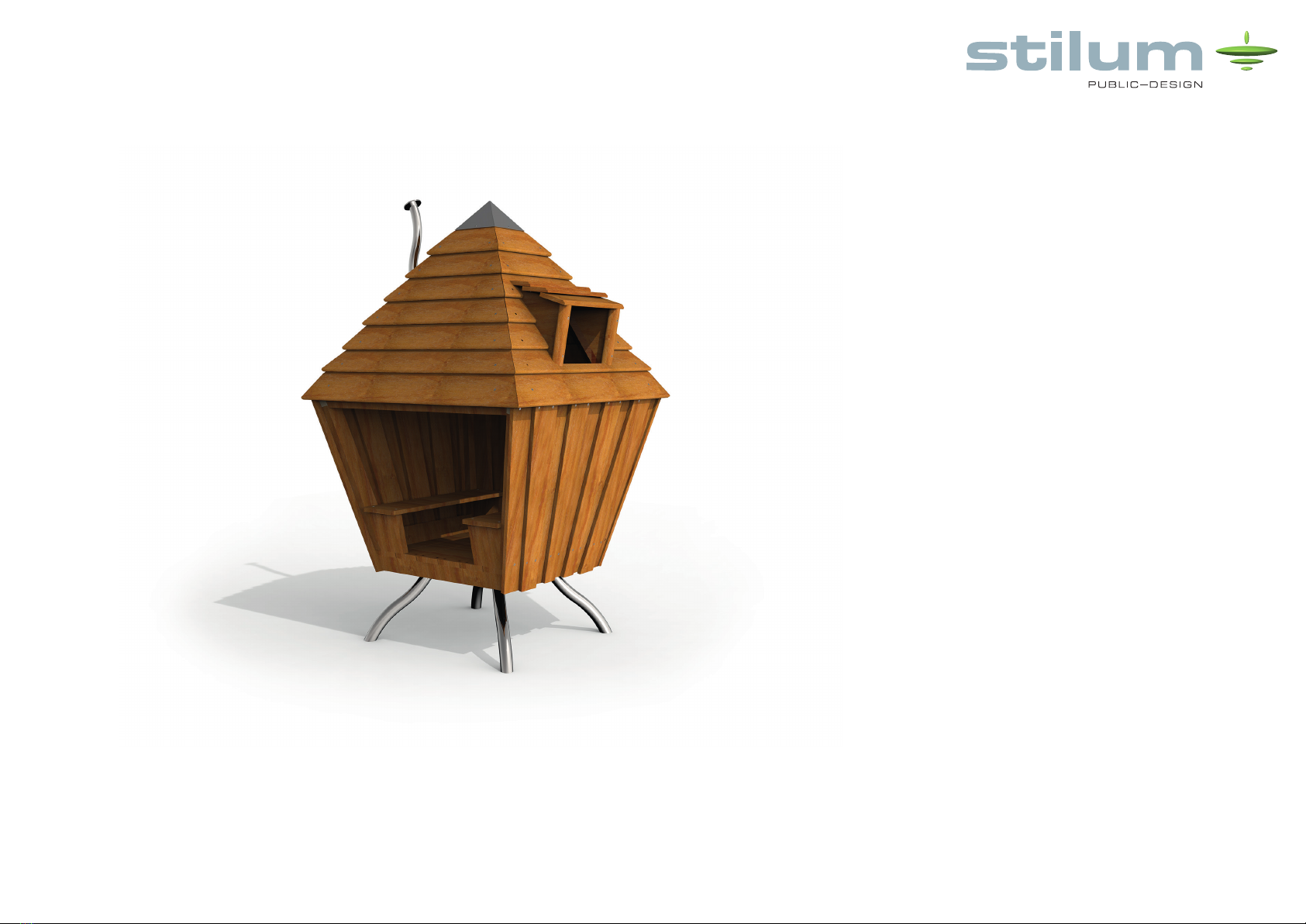

Diagram 1: Overall view of play equipment
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • Alle Rechte und Produktmodikationen vorbehalten Stand: 27.06.17 · S. 2
Mounting instructions for wendy house „silva villa“
Item No. 51 5530 601
1. Select the play equipment location in consideration of the required safety
area (see Diagram 3: 4300mm x 4300mm).
2. Carry out excavation work for four foundations as shown in Diagram 2. After
excavation, compress the foundation oor.
Note: The wendyhouse is built in on the play level. Pay attention to items
marked „game level” of play equipment!
3. Set up the four concrete foundations (LxWxH 600 x 600 x 400 mm) acc. to
the dimensions indicated in diagram 2 in the quality class C 20/25.
4. After a setting period of 10-14 days, depending on weather conditions and
foundation size - clean the surface of the foundations and start with the instal-
lation of the playground equipment. Drill holes into all foundations and screw
the play equipment into the foundations with the included heavy-duty dowels.

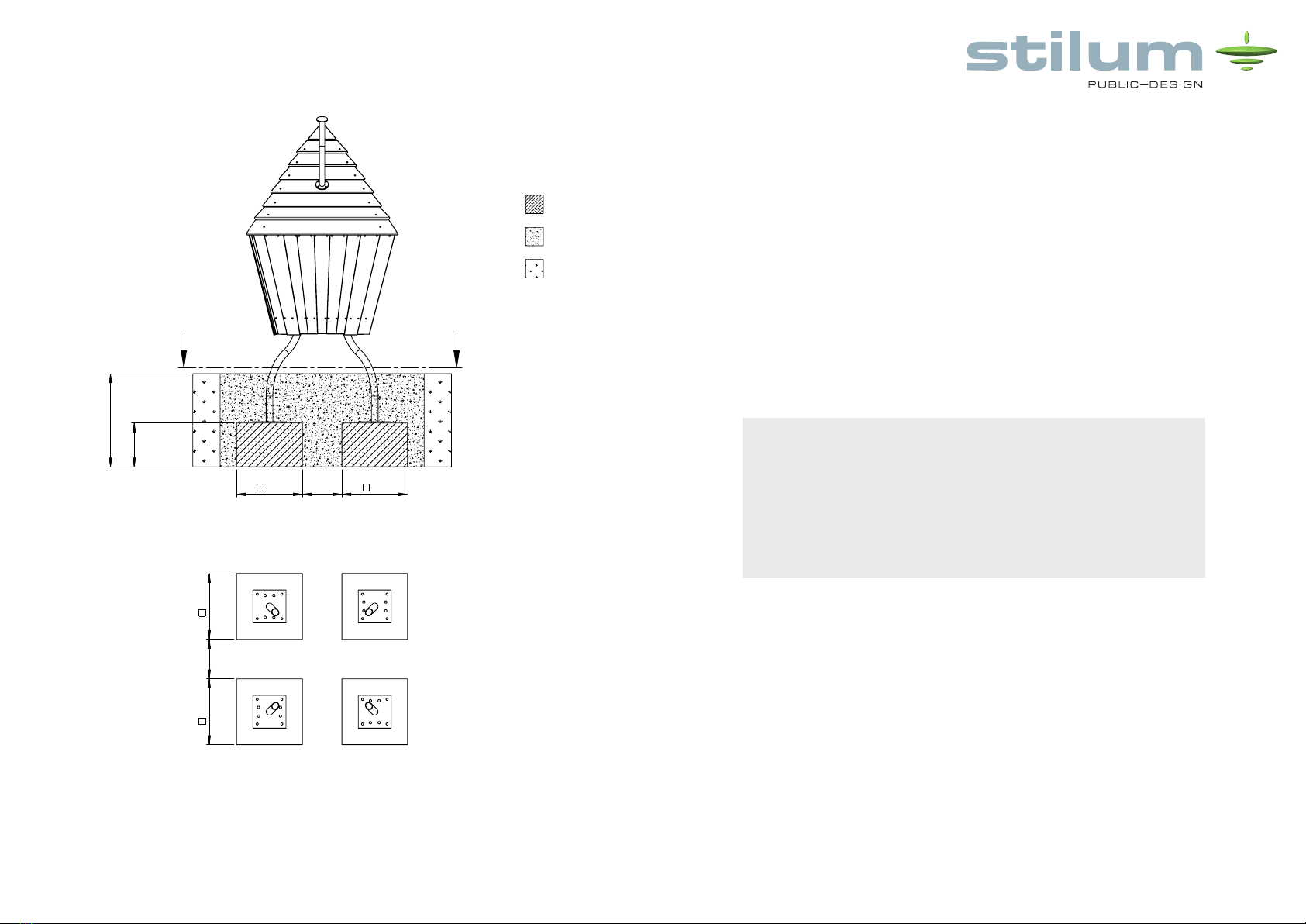

Diagram 2: Foundation plan with dimension details „silva villa“
Reinforcement plan: Concrete foundation with reinforcement
Main foundation: BSt 500S
Ever 4 stirrups Ø 8 mm lengthwise and cross
Concrete cover h´= 3 cm
Concrete quality class C 20/25
400
600 600360
850
A A
600360600
A-A
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
Oberflächen nach
DIN ISO 1302
Reihe 2
Zul. Abweichung
DIN 2768 - mH
1
silva villa
Benennung
Gepr.
Werkstoff
Blatt
Datum
Projekt
Gez.
Zuschnitt
Zeichnungsnummer
Rev Änderung Datum
1:25
A3
Gewicht
Name
Name
Fundamentplan
0805-00-00
922.4
Maßstab
Schramm 07.04.17
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Beton
Concrete
Füllmaterial
Filling
Erde
Ground
Legende
400
600 600360
850
A A
600360600
A-A
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
Oberflächen nach
DIN ISO 1302
Reihe 2
Zul. Abweichung
DIN 2768 - mH
1
silva villa
Benennung
Gepr.
Werkstoff
Blatt
Datum
Projekt
Gez.
Zuschnitt
Zeichnungsnummer
Rev Änderung Datum
1:25
A3
Gewicht
Name
Name
Fundamentplan
0805-00-00
922.4
Maßstab
Schramm
07.04.17
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Beton
Concrete
Füllmaterial
Filling
Erde
Ground
Legende
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • Alle Rechte und Produktmodikationen vorbehalten Stand: 27.06.17 · S. 3
Mounting instructions for wendy house „silva villa“
Item No. 51 5530 601
5. Fill up and compress the holes between the foundation and the foundation
hole with the excavation.
Seal the foundation with the safety cover required for the height of fall
indicated.
Critical drop height: 400 mm.
Recommended surface material: optional
Note: The ground should be smooth and free of edges.
6. Do not allow children to use the equipment before the installation has been
nished.
Attention: If the play equipment has been incompletely installed or partly dis-
mantled when carrying out maintenance and repair work, this may lead to
particular risks of injury for the user. For this reason, make clearly visible that the
equipment shall not be used in such cases.
NOTE: Play equipment, which contain components made of stainless steel
should not come with „normal“ steel parts in contact. Those steel parts may rub
off and leave small steel particles in combination with moisture brown rust stains.
If such corrosion occur on stainless steel parts, they are ne to remove with an
abrasive (240 grit).
Please take care when transporting and setting up the fact that the components
are made of stainless steel with no „normal“ steel parts in contact.

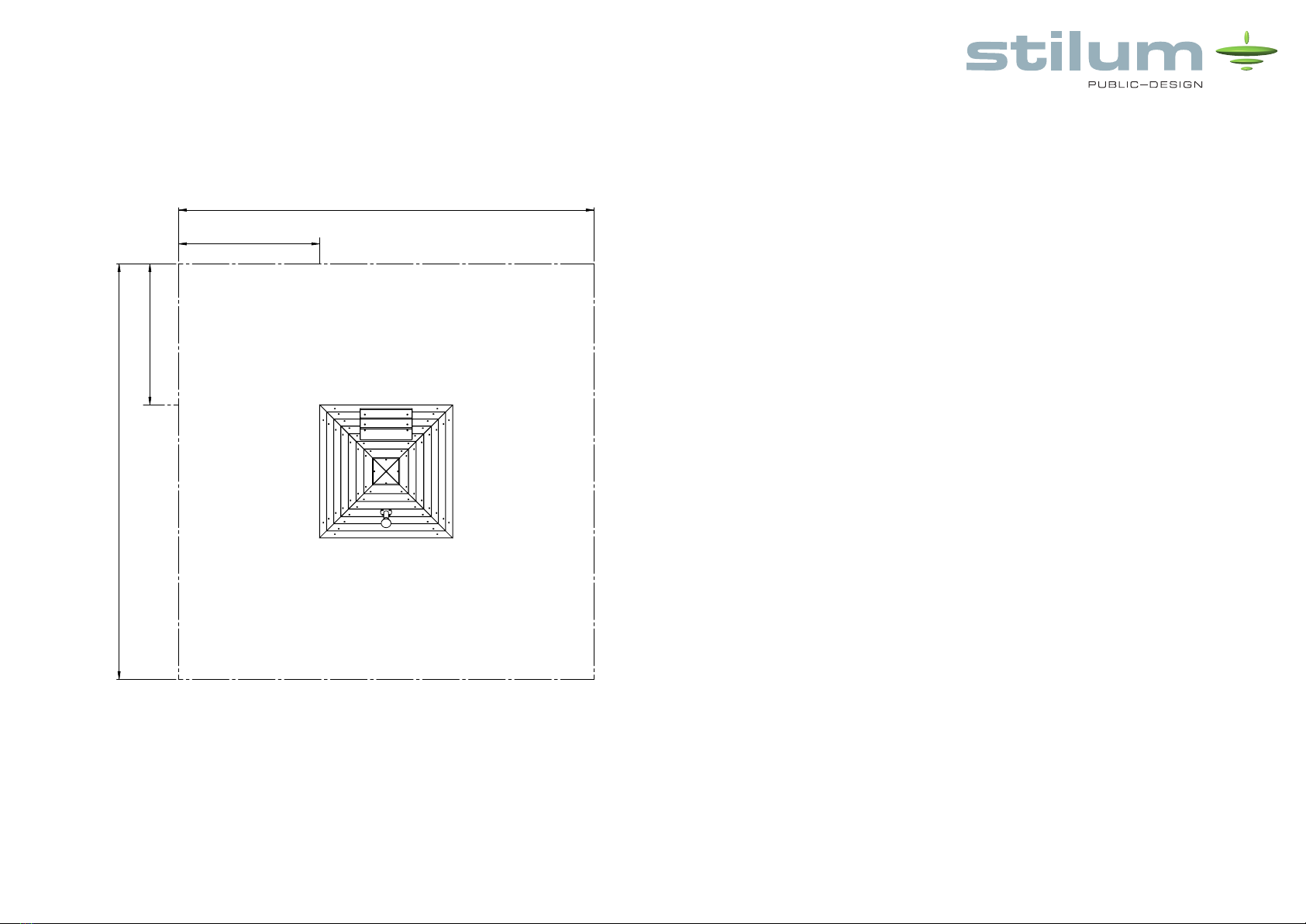

Diagram 3: safety zone
4300
4300
1460
1460
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
Oberflächen nach
DIN ISO 1302
Reihe 2
Zul. Abweichung
DIN 2768 - mH
1
silva villa
Benennung
Gepr.
Werkstoff
Blatt
Datum
Projekt
Gez.
Zuschnitt
Zeichnungsnummer
Rev Änderung Datum
1:25
A3
Gewicht
Name
Name
Draufsicht
0805-00-00
293.4
Maßstab
Schramm 07.04.17
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
