StorCentric Nexsan UNITY3300 User manual

HYPER-UNIFIED STORAGE
Nexsan Unity
Storage Expansion Reference Guide
Unity v. 7.0
NEXSAN | 1289 Anvilwood Avenue | Sunnyvale, CA 94089 USA
Printed May 4, 2022 | www.nexsan.com

Copyright © 2010—2022 Nexsan Technologies, Inc. All rights reserved.
Regulatory Compliance
United States Statement for FCC: Nexsan equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3-3, CISPR 22 Class A, ICES-003
Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN61000-4-8,
EN61000-4-11)
Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe)
RoHS: RoHS2 (Global)
Other international regulatory compliance: VCC(Japan)
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR
(Manganese Dioxide) Lithium coin cells. Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Trademarks
Nexsan® is a trademark or registered trademark of Nexsan Technologies, Inc. The Nexsan logo is a registered trademark of Nexsan Technologies, Inc.
All other trademarks and registered trademarks are the property of their respective owners.
Patents
This product is protected by one or more of the following patents, and other pending patent applications worldwide:
United States patents US8,191,841, US8,120,922;
United Kingdom patents GB2466535B, GB2467622B, GB2467404B, GB2296798B, GB2297636B
Unauthorized use, duplication, or modification of this document in whole or in part without the written consent of Nexsan Technologies, Inc. is
strictly prohibited.
Nexsan Technologies, Inc. reserves the right to make changes to this manual, as well as the equipment and software described in this manual, at
any time without notice. This manual may contain links to Web sites that were current at the time of publication, but have since been moved or
become inactive. It may also contain links to sites owned and operated by third parties. Nexsan is not responsible for the content of any such
third-party site.

About this document 5
Audience 5
Conventions 6
Contacting Nexsan 6
Notes, Tips, Cautions, and Warnings 7
Related documentation 7
Safety notices 8
Chapter 1: Overview 9
Storage capacities by Unity Storage System 10
Connection and configuration options 11
Components and features 12
Front and top views 13
Rear views 15
Unity Storage Expansions 18
About the SAS I/O controllers 22
Making SAS connections 22
About the power supply units (PSUs) 22
About the disk drives and drive carriers 22
Disk drive specifications 24
US316 Expansion 24
UNITY7900, and US224 Expansion 24
UNITY NV10000 25
U2G460 Expansion 25
Cable specifications 25
Chapter 2: Installing Unity Storage Systems 27
Preparing for the installation 28
Package contents 28
UNITY3300 Storage System 28
UNITY7900 Storage System 29
UNITY NV10000 Storage System 29
US224 Expansion 30
US316 Expansion 31
U2G460 Expansion 31
Table of Contents
Nexsan Unity www.nexsan.com 3

Components not included in your package 32
Installing a UNITY3300 or US316 Expansion in a rack 33
Installing a UNITY7900, UNITY NV10000, or US224 Expansion in a rack 37
Installing a U2G460 Expansion in a rack 41
Installing disk drives in the UNITY3300 and US316 Expansion 50
Installing disk drives in the US224 Expansion and UNITY7900 52
Installing disk drives in the UNITY NV10000 53
Installing disk drives in the U2G460 Expansion 54
Chapter 3: Connecting and powering on 55
Connecting a US224 Expansion to a UNITY7900 56
Connecting a US316 Expansion to a UNITY3300 57
Connecting a U2G460 Expansion to a UNITY7900 58
Connecting a U2G460 Expansion to a UNITY NV10000 60
Cascade configurations 62
Cascading the UNITY NV10000 Storage System 63
Connecting the power cords 65
Powering on 66
Powering on the U2G460 Expansion 66
Powering on all other Unity 2.0 enclosures 66
Chapter 4: Monitoring 67
Monitoring power supply units 68
Monitoring enclosures 70
Monitoring controllers 72
Monitoring disk drives 74
Chapter 5: Solving problems 77
General troubleshooting tips 78
If you need to power down your equipment 78
Powering down 79
Replacing a controller 79
Removing a disk drive 80
Replacing a PSU 81
Removing a Unity Storage Expansion 82
Deleting a storage pool 82
Removing a Unity Storage System 84
Appendix A: Technical specifications 87
US224 Expansion general specifications 88
US316 Expansion general specifications 89
U2G460 Expansion general specifications 90
Appendix B: Regulatory compliance 91
Regulatory compliance statements 92
Regulatory agency compliance 93
.
Contents
Nexsan Unity Storage Expansion Reference Guide v. 7.0 Unity 4

About this document
This Unity Storage Expansion Reference Guide provides information and steps for installing and
connecting the following Nexsan Unity Storage Systems:
Nexsan UNITY3300™ Storage System
Nexsan UNITY7900™ Storage System
Nexsan Unity NV10000™ Storage System
Nexsan Unity Storage US224™ Expansion
Nexsan Unity Storage US316™ Expansion
Nexsan Unity Storage U2G460™ Expansion
This Reference Guide assumes that you are familiar with Serial Attached SCSI (SAS) technology, computer
hardware, data storage and network administration terminology and tasks.
Because this guide provides information that can be used to manage one or more Nexsan Unity Storage
Expansions, the generic term “storage system” is used to refer to the controller, disk drives, and expansions
being used together for data storage.
Many of the terms and concepts referred to in this Reference Guide are known to computer users by
multiple names. This terminology is used:
I/O Controller (also known as an I/O module, controller or controller node)
Disk drive (also known as hard disk drive (HDD) or hard disk, and solid state disk drive (SSD)
HBA (also known as Host Bus Adapter or SAS Adapter)
Audience
This guide has been prepared for the following audience:
IT system administrators
Engineers
Technicians
Any qualified NST/Unityadministrator.
Contents
Nexsan Unity www.nexsan.com 5

Conventions
Here is a list of text conventions used in this document:
Convention Description
underline blue Cross-references, hyperlinks, URLs, and email addresses.
boldface Text that refers to labels on the physical unit or interactive items in the graphical user
interface (GUI).
monospace Text that is displayed in the command-line interface (CLI) or text that refers to file or
directory names.
monospace
bold
Text strings that must be entered by the user in the command-line interface or in text
fields in the graphical user interface (GUI).
italics System messages and non-interactive items in the graphical user interface (GUI)
References to Software User Guides
(arrow icon)
A visual cue to indicate an action carried out by the user to accomplish a given task, or
to draw attention to key information. Also used to indicate the beginning of, a step
within, or what's next after a procedure.
Contacting Nexsan
For questions about Nexsan products, please visit the Nexsan support Web page, and the Nexsan Unity
Documents and Downloads page. If you are unable to find the answer to your question there, please see
our contact information below.
Service and support
Nexsan's Technical Services Group provides worldwide assistance with installation, configuration, software
support, warranty, and repair for all Nexsan products. A variety of service and support programs are
available to provide you with the level of coverage and availability your operation requires.
Nexsan Unity Documents & Downloads page:
https://helper.nexsansupport.com/unt_
downloads.html
Contact Nexsan Unity support:
https://helper.nexsansupport.com/unt_support
Worldwide Web site: www.nexsan.com
Contents
Nexsan Unity Storage Expansion Reference Guide v. 7.0 Unity 6

Notes, Tips, Cautions, and Warnings
Note Notes contain important information, present alternative procedures, or call attention to certain items.
Tip Tips contain handy information for end-users, such as other ways to perform an action.
CAUTION: In hardware manuals, cautions alert the user to items or situations which may cause
damage to the unit or result in mild injury to the user, or both. In software manuals, cautions alert
the user to situations which may cause data corruption or data loss.
WARNING: Warnings alert the user to items or situations which may result in severe
injury or death to the user.
Related documentation
The following Nexsan product manuals contain related information:
Nexsan Unity Online Help
NexsanUnity Hardware Reference Guide
NexsanUnityHardware Maintenance Guide, Unity Next Generation
NexsanUnity Software User Guide
NexsanUnity nxadmin Command-line Interface Reference Guide
NexsanUnity nxcmd Command-line Interface Reference Guide
NexsanUnity Snapshots and Replication Guide
NexsanUnity Storage Expansion Reference Guide
NexsanUnity VMware Best Practices Guide
NexsanUnity NFS Interoperability
NexsanUnity Networking Best Practices Guide
NexsanUnity Performance Best Practices Guide
NexsanUnity Microsoft Best Practices Guide
Contents
Nexsan Unity www.nexsan.com 7

Safety notices
Always observe the following precautions to reduce the risk of injury and equipment damage:
Computer components and disk drives are sensitive to static discharge. Take precautions to discharge
any electrostatic charge from your person before and while handling components with your hands or any
tools. Use an anti-static wrist-strap.
The system only be installed in a clean, dry environment. The operating temperature is 10º to 35º C (50º
to 95º F), with operating relative humidity at 20 to 95%, non-condensing.
Do not install hardware in an enclosed cabinet or other small area without ventilation.
Ensure correct lifting methods are used when handling hardware. Special care should be taken when
removing hardware from its packaging and positioning it into its required location. When lifting hardware,
two people at either end should lift slowly with their feet spread out to distribute the weight. Always keep
your back straight and lift with your legs.
When installing the system as a rack-mounted component, ensure that all Nexsan-supplied mounting
fixtures are secure. All bolts and screws should be fully tightened. Failure to comply with this may result
in the unit not being fully supported in the rack and could lead to the product falling from the rack causing
personal injury or falling onto other rack components.
Ensure that the rack is sufficiently stable by having wall anchors and/or stabilizing legs, and that the floor
supporting the rack has sufficient strength for the overall weight loading.
Only a fully-trained Service Engineer is authorized to disassemble any other part of the hardware, and
then only when the hardware is powered off.
The system has multiple power connections; as a result, you must remove all power leads to completely
isolate the power and always use the IEC power cords which are supplied with the system.
CAUTION: All NexsanUnity Storage Systems are hot-pluggable. However, new expansions must
be powered on AFTER you connect it to the existing system.
Contents
Nexsan Unity Storage Expansion Reference Guide v. 7.0 Unity 8

Chapter 1
Chapter 1:Overview
This document describes and explains how to install and monitor the Nexsan Unity Storage Systems:
Nexsan UNITY3300™ Storage System
Nexsan UNITY7900™ Storage System
Nexsan Unity NV10000™ Storage System
Nexsan Unity Storage US224™ Expansion
Nexsan Unity Storage US316™ Expansion
Nexsan Unity Storage U2G460™ Expansion
This section includes these topics:
Storage capacities by Unity Storage System 10
Connection and configuration options 11
Components and features 12
Nexsan Unity www.nexsan.com 9
1

Storage capacities by Unity Storage System
Here is a brief listing of maximum storage capacities by Unity Storage System.
Unity
Storage
System
System capacity
Description
Maximum
storage capacity
with SSDs
Maximum
storage capacity
with HDDs
UNITY3300 983 TB 2.16 PB The UNITY3300 storage system can be
used standalone as well.
UNITY7900 3.31 PB 8.64 PB Advanced system
Cascade and daisy chain support: One
storage system with up to eight storage
expansions.
UNITY
NV10000
3.31 PB 8.64 PB Advanced system, All-Flash NVMe
Cascade and daisy chain support: One
storage system with up to eight storage
expansions.
Storage capacities by Unity Storage System
1
Nexsan Unity Storage Expansion Reference Guide v. 7.0 Unity 10

Connection and configuration options
This table lists the Unity Storage Systems and their supported Unity Storage Expansions.
Nexsan Unity Storage Systems
US224
Expansion
US316
Expansion
U2G460
Expansion
UNITY3300 Upto2 of any
combined
Storage
Expansions,
plus the front
bay
Upto2 of any
combined
Storage
Expansions,
plus the front
bay
Upto2 of any
combined
Storage
Expansions,
plus the front
bay
UNITY7900 Upto 8 of any
combined
Storage
Expansions,
plus the front
bay
not supported Upto 8 of any
combined
Storage
Expansions,
plus the front
bay
UNITY NV10000 Upto 8 of any
combined
Storage
Expansions,
plus the front
bay
not supported Upto 8 of any
combined
Storage
Expansions,
plus the front
bay
►What's next
Basic configurations on page1
Cascade configurations on page62
Chapter 1: Overview
1
Nexsan Unity www.nexsan.com 11

Components and features
This section shows the main components and capacities available in Unity Storage Systems.
Front and top views 13
Rear views 15
About the SAS I/O controllers 22
About the power supply units (PSUs) 22
About the disk drives and drive carriers 22
Disk drive specifications 24
Cable specifications 25
Components and features
1
Nexsan Unity Storage Expansion Reference Guide v. 7.0 Unity 12

Front and top views
This section shows the Unity Storage Expansion front views with bezels removed, and the top view of the
U2G460 Expansion.
Figure 1-1: UNITY3300
Figure 1-2: UNITY7900, and US224 Expansion
Figure 1-3: UNITY NV10000
Chapter 1: Overview
1
Nexsan Unity www.nexsan.com 13

Figure 1-4: US316 Expansion
Figure 1-5: U2G460 Expansion top view
Components and features
1
Nexsan Unity Storage Expansion Reference Guide v. 7.0 Unity 14

Rear views
This section shows the Unity rear views.
Figure 1-6: UNITY3300
Item Name Description
1 Power supply unit 1,200W redundant power supplies with PMBus
2 Fan assembly 4x 80mm and 4x 40mm PWM cooling fans
Redundant cooling
3 On-board 10GigE LAN ports
(2 per controller)
Right port: Primary data network interface (nx0 - optional)
Left port: Management Interface (nx99) and IPMI interface
4 KVM connections USB, VGA and Serial connections for remote console access
to the UNITY3300
5 Storage connectivity Dual-port SAS PCIe to HD Mini-SAS HBA
6 Optional connectivity to Fibre
Channel hosts:
You can use these slots for additional network cards, which
can be any of these supported NICs:
Single and dual port 100GbE NIC
Pair of 40GbE NIC with dual QSFP connectivity
Pair of 10GbE NIC with dual RJ-45
Pair of 10GbE NIC with dual SFP+
Pair of 1GigE, Quad-port NIC, RJ-45
Pair of 1GigE, Dual-port NIC, RJ-45
Pair of 32Gb Fibre Channel - dual-port
Pair of 16Gb Fibre Channel - dual-port
Pair of 8Gb Fibre Channel - dual-port
Chapter 1: Overview
1
Nexsan Unity www.nexsan.com 15

Figure 1-7: UNITY7900
Item Name Description
1 Power supply unit 1,200W redundant power supplies with PMBus
2 Fan assembly 4x 80mm and 4x 40mm PWM cooling fans
Redundant cooling
3 On-board 10GigE LAN ports
(2 per controller)
Right port: Primary data network interface (nx0 - optional)
Left port: Management Interface (nx99) and IPMI interface
4 KVM connections USB, VGA, and Serial connections for remote console access
to the UNITY3300
5 Storage connectivity Quad-port SAS PCIe to HD Mini-SAS HBA
6 Optional connectivity to Fibre
Channel hosts
You can use these slots for additional network cards, which
can be any of these supported NICs:
Single and dual port 100GbE NIC
Pair of 40GbE NIC with dual QSFP connectivity
Pair of 10GbE NIC with dual RJ-45
Pair of 10GbE NIC with dual SFP+
Pair of 1GigE, Quad-port NIC, RJ-45
Pair of 1GigE, Dual-port NIC, RJ-45
Pair of 32Gb Fibre Channel - dual-port
Pair of 16Gb Fibre Channel - dual-port
Pair of 8Gb Fibre Channel - dual-port
Components and features
1
Nexsan Unity Storage Expansion Reference Guide v. 7.0 Unity 16

Figure 1-8: UNITY NV10000
Item Name Description
1 Power supply unit 2,000W Titanium level power supply (redundant in device)
2 Fan assembly Five 8-cm mid-mounted cooling fans and four 4-cm exhaust fans
3 Dedicated IPMI LAN port Intelligent Platform Management Interface, for remote access,
monitoring, and management
4 USB 3.0 ports (2) Can support USB-enabled devices such as keyboard, mouse,
USB/SATA DVD drive, or flash drive
5 VGA port For VGA display or monitor
6 Storage connectivity Quad-port SAS-3 controller with HD Mini-SAS connectors
7 Internal cooling fan vents
(2)
Positioned over rear chassis for optimal cooling
8 Serial port For configuration, diagnostics, and emergency maintenance
access
9 Dual RJ45 10GbE LAN
ports
Left port: Management Interface (nx99)
Right port: Primary data network interface (nx0) (If additional
NIC HBA is available, both interfaces are nx99)
10 PCIE 3.0x16 slots (2),
Optional host connectivity
Can be used to support the following Network Interface Card
(NIC) and Fibre Channel (FC) connections:
Dual port 16G/32G FC
Dual port 40G NIC
Single and Dual port 100G NIC
Chapter 1: Overview
1
Nexsan Unity www.nexsan.com 17

Unity Storage Expansions
This section illustrates Unity Storage Expansions.

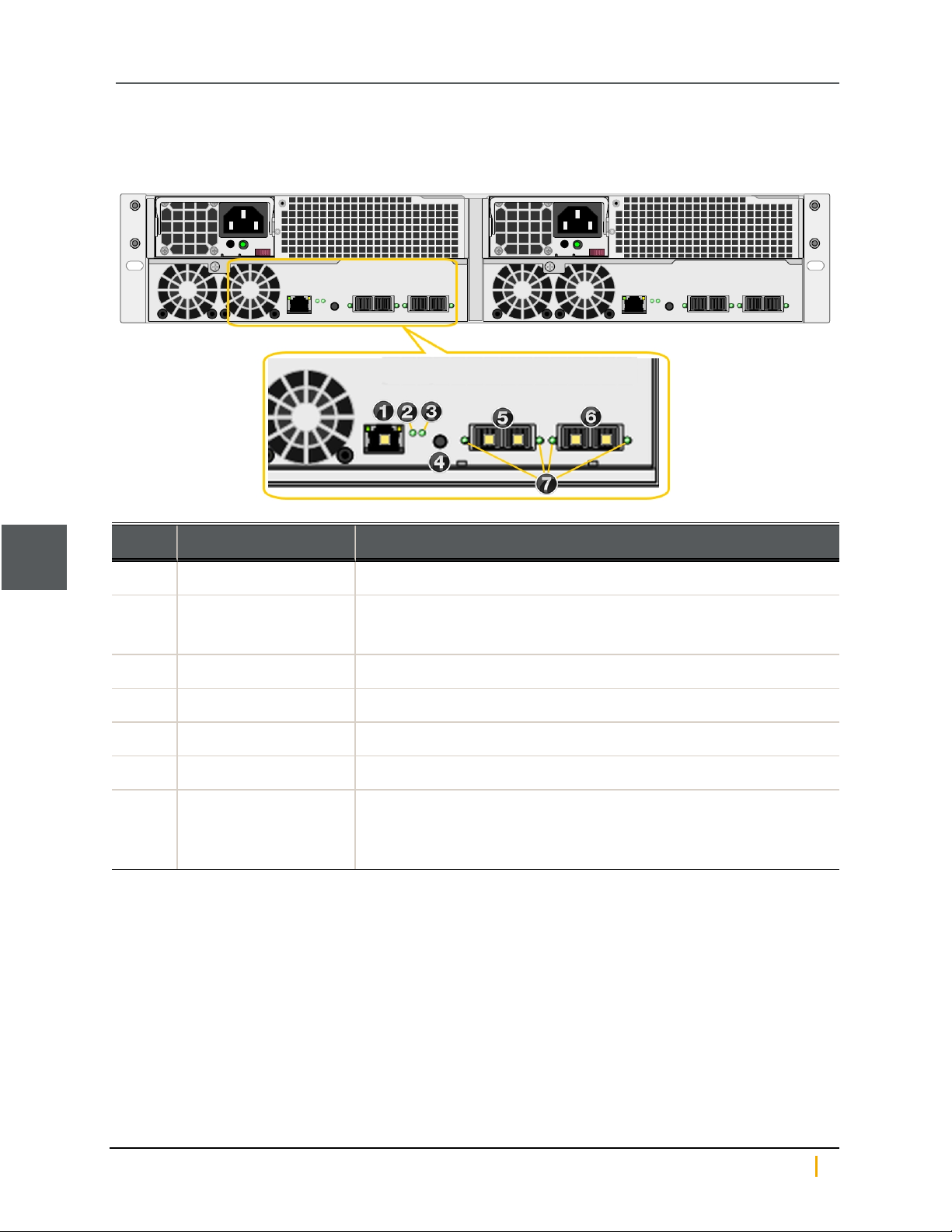

Figure 1-9: US224 Expansion
Item Name Description
1 LAN Port Not used
2 Storage unit status
LED
Green: Initialization successful
Red: Initialization failure
3 Unit ID status LED On/Off
4 BMC Reset button Resets the base management controller
5 SAS IN ports Serial Attached SCSI IN ports from the Storage System
6 SAS OUT ports SAS OUT ports to another storage unit
7 SAS link status LEDs
(2IN, 2 OUT)
Green: All four physical layers (PHY) of each port connected with
consistent link speed (12 G or 6G)
Red: Single PHY degraded link speed or disconnected
Components and features
1
Nexsan Unity Storage Expansion Reference Guide v. 7.0 Unity 18

Figure 1-10: US316 Expansion
Item Name Description
1 LAN Port Not used
2 Storage unit status
LED
Green: Initialization successful
Red: Initialization failure
3 Unit ID status LED On/Off
4 BMC Reset button Resets the base management controller
5 SAS IN ports Serial Attached SCSI IN ports from the Storage System
6 SAS OUT ports SAS OUT ports to another storage unit
7 SAS link status LEDs
(2IN, 2 OUT)
Green: All four physical layers (PHY) of each port connected with
consistent link speed (12 G or 6G)
Red: Single PHY degraded link speed or disconnected
Chapter 1: Overview
1
Nexsan Unity www.nexsan.com 19

Figure 1-11: U2G460 Expansion
Item Name Description
1 Power supply
units
Two 1,600W PSUs, hot swappable and redundant
AC Input voltage:200-240V
2 Fan
assemblies
Rear fan:
Top and bottom latch releases
Internal power and I/O connector
Hot swappable
Toolless release
IOM fan (installed in central chassis):
Cools the enclosure IOM
Toolless release
3 LEDs LEDs for SAS link and fault states, ID, controller fault, power, Ethernet
activity, and Ethernet connector. See U2G460 Expansion Front panel LEDs
on page1
4 I/O module
(IOM) ports
6 HD Mini-SAS ports.
The U2G460 can use passive cables (limited to 3m or less) or active cables
(any length). Active cables must be used for U2G460 Data60 daisy chaining
connections.
5 Management
ports
All SES (SCSIEnclosure Services) enclosure information can be obtained
through the out-of-band management port. Used to obtain storage
subsystem health information, to locate enclosure components using the
IDENT LEDs, and to update firmware.
Components and features
1
