STOVES ST BI45 COMW User manual

MADE BETTER
USER GUIDE
STOVES BI45COMW COMPACT
COMBINATION MICROWAVE OVEN

2
To contact Stoves about your appliance, please call:
Customer Care Helpline
0344 815 3740
In case of difficulty within the UK
Spares Store
0344 815 3745
To contact us by email:
gdhainfo@gdha.com
Warranty Registration
0800 952 1065
*Please call our Customer Care team for extended
warranty
To register your appliance online:
www.stoves.co.uk
To register your appliance by mail:
Please complete the warranty
card and return to the address
supplied
Alternatively general, spares and service information is available from
our website at: www.stoves.co.uk
Calls are charged at the basic rate, please check with your telephone service provider for exact charges
Your new appliance comes with our 12-month guarantee, protecting you against electrical and
mechanical breakdown. To register, please complete the registration form included, register online
or by phone. For full terms & conditions of the manufacturer’s guarantee, please refer to the web-
site above.In addition, you may wish to purchase an extended warranty. A leaflet explaining how
to do this is included with your appliance.
Our policy is one of constant development and improvement, therefore we cannot guarantee the
strict accuracy of all of our illustrations and specifications. Changes may have been made
subsequent to publishing
Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW

3
INTRODUCTION
ACKNOWLEDGEMENT
Thank you for purchasing our product. We hope you enjoy using the many features and benefits it
provides.
This user guide book is designed to help you through each step of owning your new product.
Please read it carefully before you start using your appliance, as we have endeavoured to answer
as many questions as possible, and provide you with as much support as we can.
General information, spares and service information is available from our website.
Ensure that other people using the product are familiar with these instructions as well.
If you should find something missing from your product or have any questions that are not covered
in this user guide, please contact us (see contact information inside the front cover).
European Directives
This appliance is marked according to the European directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in
accordance with local environmental regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product
This appliance conforms to European Directives regarding Eco design requirements for energy-
related products.
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged in any way.
If you have any doubts at all, do not use it: contact a professionally qualified person.
Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of
children because these are dangerous to children.

4
SAFETY
WARNING
• During use the appliance becomes hot. Care should be taken to avoid touching
heating elements.
• Children less than 8 years of age shall be kept away unless continuously
supervised. This appliance can be used by children aged from 8 years and above
and persons with reduced physical sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass since they can scratch the surface, which may result in shattering of
the glass.
• Do not use a steam cleaner on any range cooker, hob or oven appliance.
• Ensure that the appliance is switched off before replacing the lamp to avoid electric
shock.
• When the oven is first switched on, it may give off an unpleasant smell. Please use
the fanned cooking function to 180°C for about 30 minutes to clean oil impurities
inside the cavity. Ensure that the room is well ventilated during this process.
• Do not allow children to go near the oven when it is operating, especially when
the grill is on.
• The means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring specifications.
• An all-pole disconnection means must be incorporated in the fixed wiring in
accordance with the wiring rules in force.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• This appliance must be fitted to a switch providing all pole
disconnection with a minimum contact separation of 3mm.
• Connection should be made with a suitable flexible cable with a minimum
temperature rating of 70°C.
• Although every care has been taken to ensure this appliance has no sharp edges,
we recommend that you wear protective gloves when installing and moving this
appliance. This will prevent injury.
• Always switch off your appliance and allow it to cool down before you clean any
part of it.

5
CAUTION
•This appliance must not be installed behind a decorative door in order to avoid
overheating.
•The cooking process has to be supervised. A short term cooking process has to
be supervised continuously.
•Ensure turntable, baking tray and grill rack are positioned correctly.
•Fire Safety Advice
If you do have a fire in the kitchen, don’t take any risks - get everyone out of your
home and call the Fire Brigade.
If you have an electrical fire in the kitchen:
•Switch off at the cooker point, or switch off the power at the fuse box - this may be
enough to stop the fire immediately.
•Smother the fire with a fire blanket, or use a dry powder or carbon dioxide
extinguisher.
•Remember: never use water on an electrical or cooking oil fire.
•Other Safety Advice
•Servicing should be carried out only by authorised personnel.
•Do not operate the appliance if the door is damaged or not closing correctly.
•There is a risk of electric shock, so always make sure you have turned off and
switched off your appliance at the wall before starting any cleaning or
maintenance. Always allow the product to cool down before you change a bulb.
•Do not modify the outer panels of this appliance in any way.
•This appliance must be earthed.
•The appliance must never be disconnected from the mains supply during use, as this
will seriously affect the safety and performance, particularly in relation to surface
temperatures becoming hot. The cooling fan (if fitted) is designed to run on after the
cooking process has been completed.
1. TECHNICAL SPECIFICATION
MODEL
ST BI45 COMW
USABLE CAPACITY
(
L
)
35
VOLTAGE
(
V
)
/ FREQUENCY
(
Hz
)
220-240 / 50
DISTRIBUTION LINE FUSE
(
A
)
/ CIRCUIT
BREAKER
(
A
)
13
MICROWAVE INPUT POWER
(
W
)
1500-1650
MICROWAVE OUTPUT POWER
(
W
)
1000
MICROWAVE WORKING
FREQUENCY(MHz)
2450

6
GRILLING POWER
(
W
)
1400-1650
CONVECTION POWER
(
W
)
1350-1500
PRODUCT DIMENSION
(
W x D x H mm
)
594 × 536 × 455
PACKAGE SIZE
(
W x D x H mm
)
675 × 666 × 525
DIAMETER OF ROTATING PLATE
(
mm
)
315
GROSS/NET WEIGHT
(
Kg
)
38.0/34.3
1. SAFETY PRECAUTIONS
Please refer to the installation instructions for the safety regulations for electric or gas
appliance and ventilation requirements.
After installation, carry out a quick test on the oven referring to the instructions; if the
appliance fails to operate, disconnect it and contact the service department.
• WARNING: If the door or door seals are damaged, the oven must not be operated
until it has been repaired by a competent person.
• WARNING: It is hazardous for anyone other than a competent person to carry out
any service or repair operation that involves the removal of a cover which gives
protection against exposure to microwave energy.
• WARNING: Liquids and other foods must not be heated in sealed containers since
they are liable to explode. Accessible parts may become hot during use. Young
children should be kept away.
• WARNING: Only allow children to use the oven without supervision when adequate
instructions have been given so that the child is able to use the oven in a safe way
and understands the hazards of improper use.
• There must be a gap of at least 4mm between the top of the appliance and the top of
the housing unit cavity.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to
the possibility of ignition.
• If smoke is observed, switch off the appliance at the wall and keep the door closed in
order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave
ovens since they may explode, even after microwave heating has ended.
• The oven should be cleaned regularly and any food deposits removed.

7
Failure to maintain the oven in a clean condition could lead to deterioration of the
surface that could adversely affect the life of the appliance and possibly result in a
hazardous situation.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
Warning: When the appliance is operated in the combination mode, children should
only use the oven under adult supervision due to the high temperatures generated.
• Avoid damage to the oven or other dangerous situations by following these
instructions:
• Do not cover or obstruct the ventilation openings.
• Do not keep any inflammable objects inside the oven as they may ignite if the oven is
switched on accidentally.
• Do not store food inside the oven and do not leave cooked food inside the oven to
keep warm after the cooking process has been completed.
• Do not pour spirits (e.g. brandy, whisky, schnapps, etc.) over hot food inside the oven.
Danger of explosion!
• Accessories such as wire racks and trays, etc. get hot in the cooking space. Always
wear protective oven gloves.
• To avoid being burnt, always use oven gloves for handling dishes and containers and
opening the oven door.
• Do not lean on the opened oven door. This may damage the oven, especially in the
hinge area. The door can bear a maximum weight of 8 kg.
• The turntable, baking tray and grill racks can bear a maximum load of 8 kg. To avoid
damaging the oven, do not exceed this load.

8
USING YOUR APPLIANCE
Getting to know your product
3. BEFORE INSTALLATION
The inside of the appliance should be cleaned to remove all manufacturing residues. For
further information about cleaning, see the ‘Cleaning and Maintenance’ section.
4. DESCRIPTION OF FRONT PANEL CONTROL

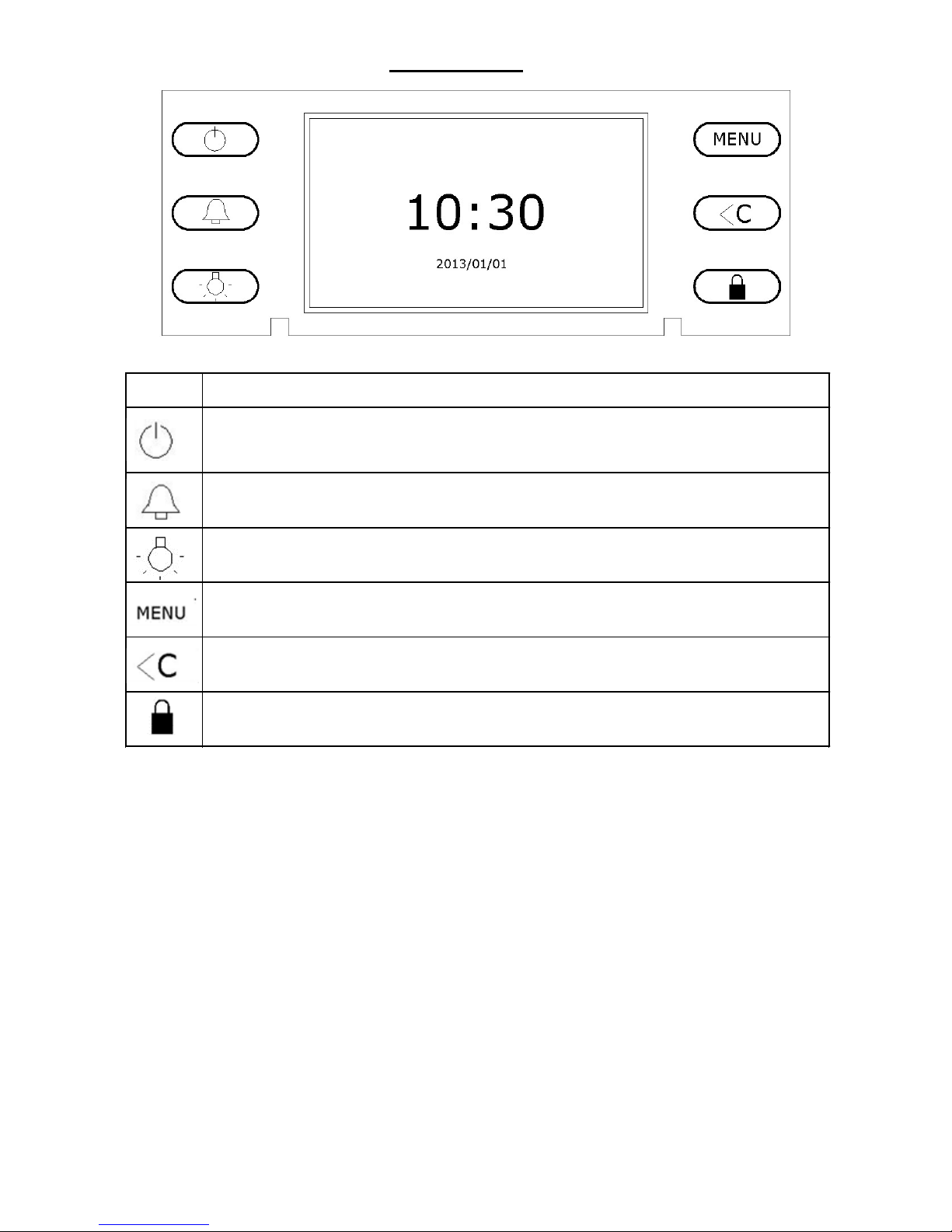

The appliance’s control sensors and display screen are placed together on the control
panel. The table on the following page displays the meaning of the icons.

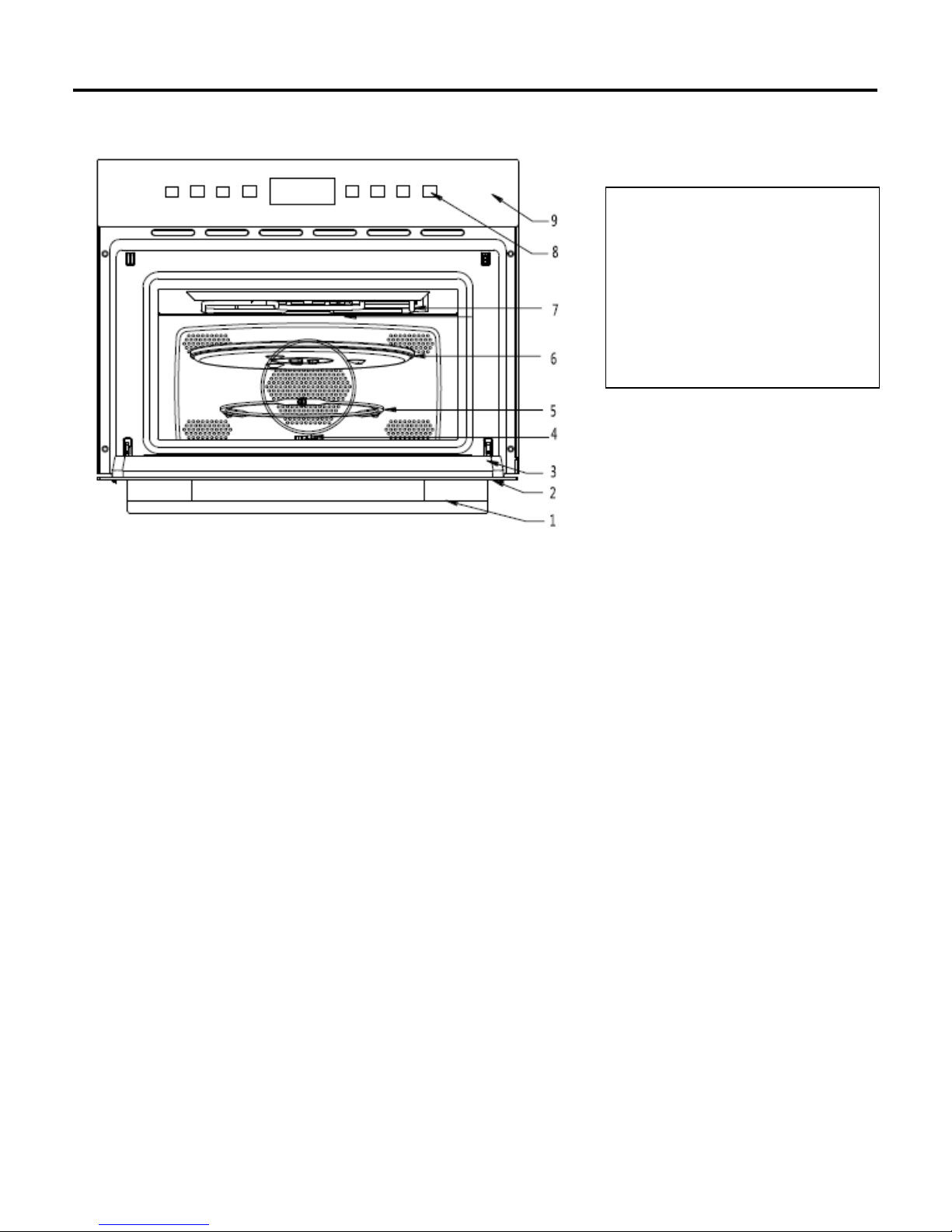

1) Door Handle
2) Door
3) Door seal
4) Drive shaft
5) Turntable ring
6) Glass turntable
7) Grill element
8) Touch control sensors
9) Control panel

9
Control Panel

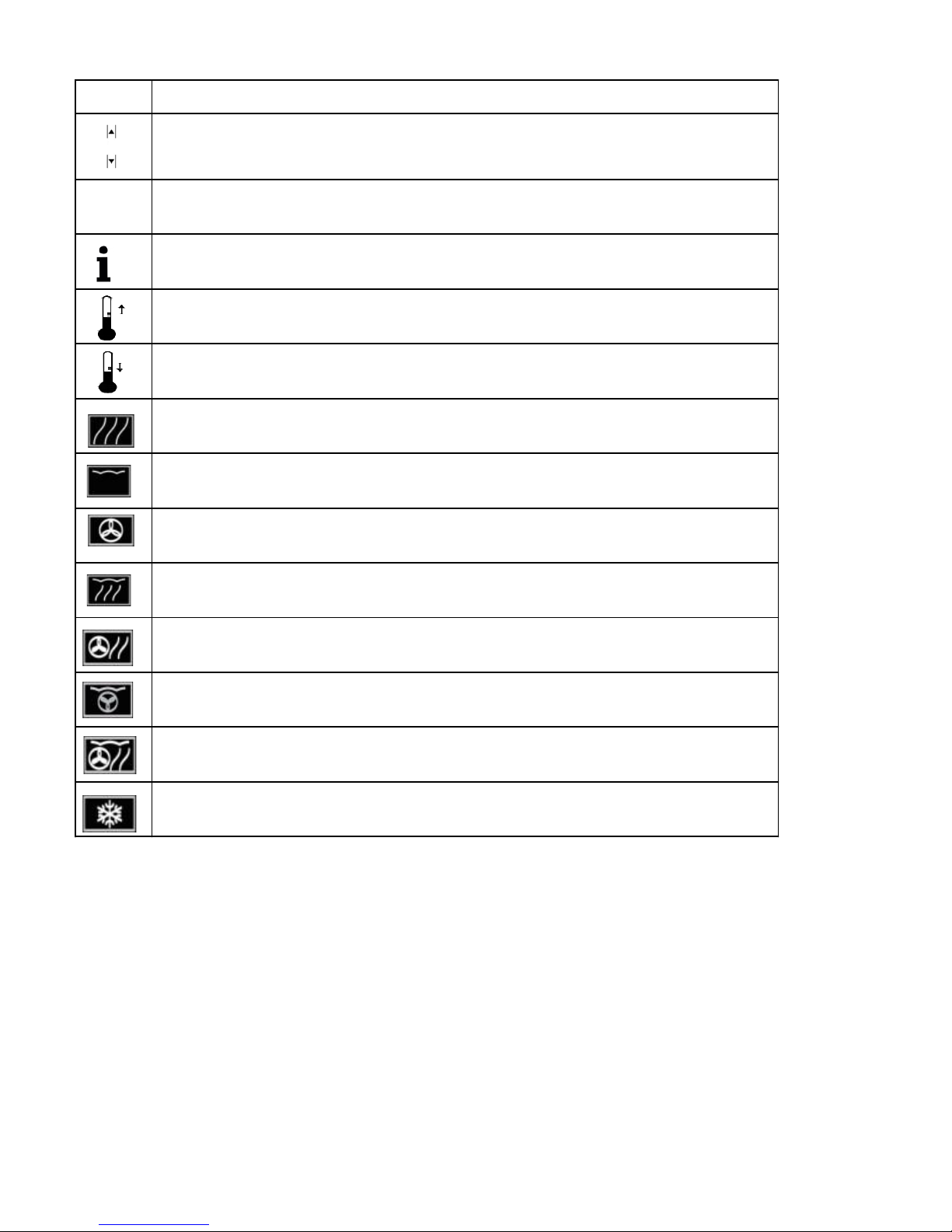

Symbol Description
On / Off button
Minute minder, to set an alarm without switching the oven off automatically
To turn the light on without the oven heating; useful when wiping the cavity clean.
Accesses the menus.
To cancel out of the current menu and return to the previous menu
Child lock

10
Oven Functions
Symbol Description
A maximum of 4 options can be shown in the display. These arrows indicate if more than
four options are available.
You can scroll up or down the list by touching the appropriate sensor.
The tick symbol will appear next to the option which is currently selected
Information message
Heating up
Cooling phase
Microwave
Grill
Fan Oven
Microwave & Grill
Microwave and Fan oven
Fan oven & Grill
Microwave, Grill & Convection
Defrost

11
Setting up the oven for first-time use.
When using the oven for the first time it should be heated empty in fan convection
mode at 180°C for 30 minutes to burn off any oily residues left on during the
manufacturing process which may contaminate foods with unpleasant smells.
Setting the Time / Date
Touch the ‘on/off’ sensor to switch the oven on. Touch the ‘menu’ senor.
From the main menu, touch ‘settings’ and then ‘date’.
Enter today’s date in the format YYYY MM DD and touch ‘OK’ to confirm.

12
From the main menu, touch ‘settings’ and then ‘time’.
Enter the current time of day, initially using the 12 hour clock, and touch ‘OK’ to
confirm.
You can display the clock in either 12 hour or 24 hour format. From the main
menu, select ‘settings’ and then ‘clock format’. Touch either ’12 hour’ or ’24 hour’
and touch ‘OK’ to confirm.

13

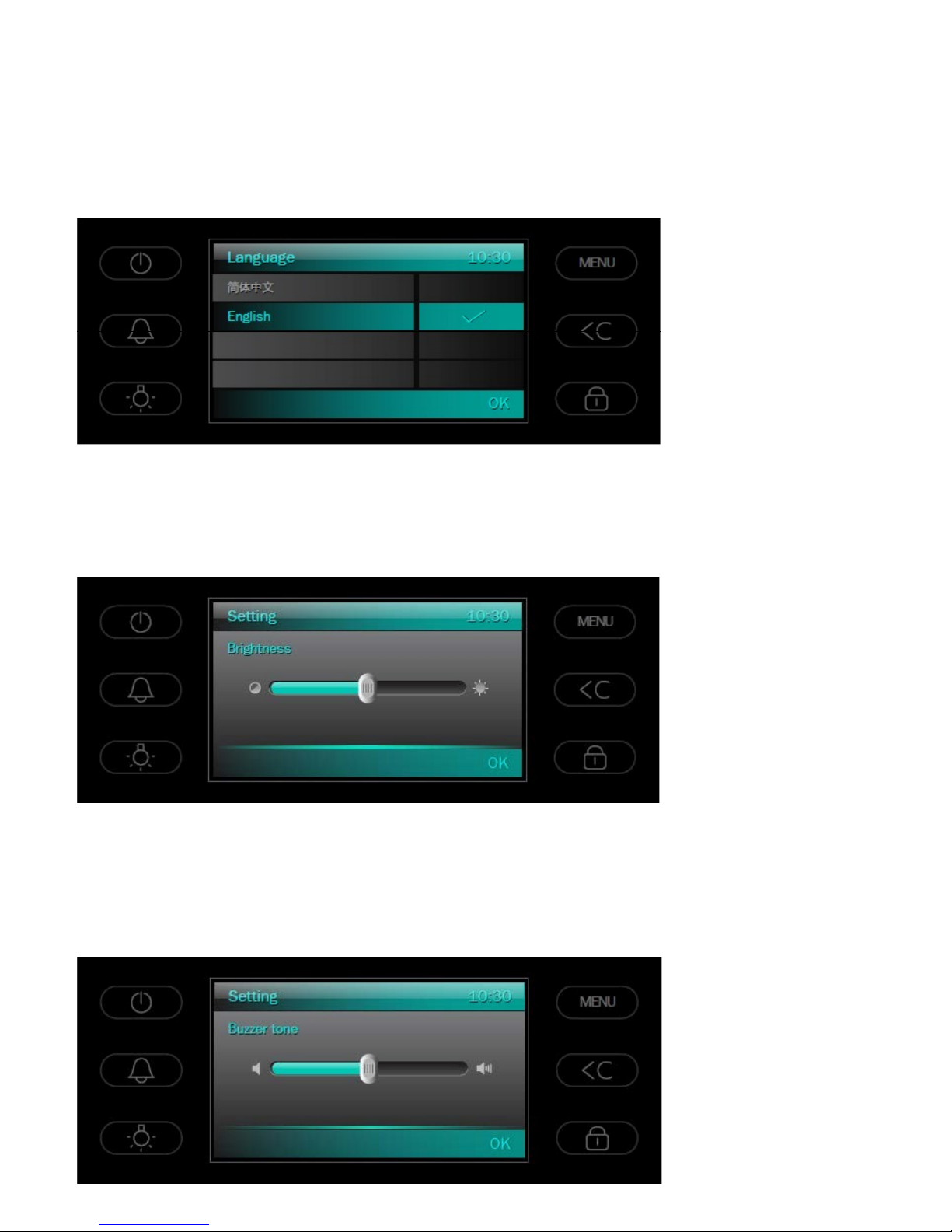

Set the language
From the main menu, select ‘settings’ and then ‘language’. Touch the required
language and touch ‘OK’ to confirm.
Set the brightness
To adjust the brightness, from the main menu select ‘settings’ and then
‘brightness’. Use the slider to adjust the brightness and touch ‘OK’ to confirm.
Set the buzzer tone
To adjust the buzzer tone, from the main menu select ‘settings’, then ‘buzzer
tone’. Use the slider to adjust the buzzer tone to the required setting and then
touch ‘OK’ to confirm.

14

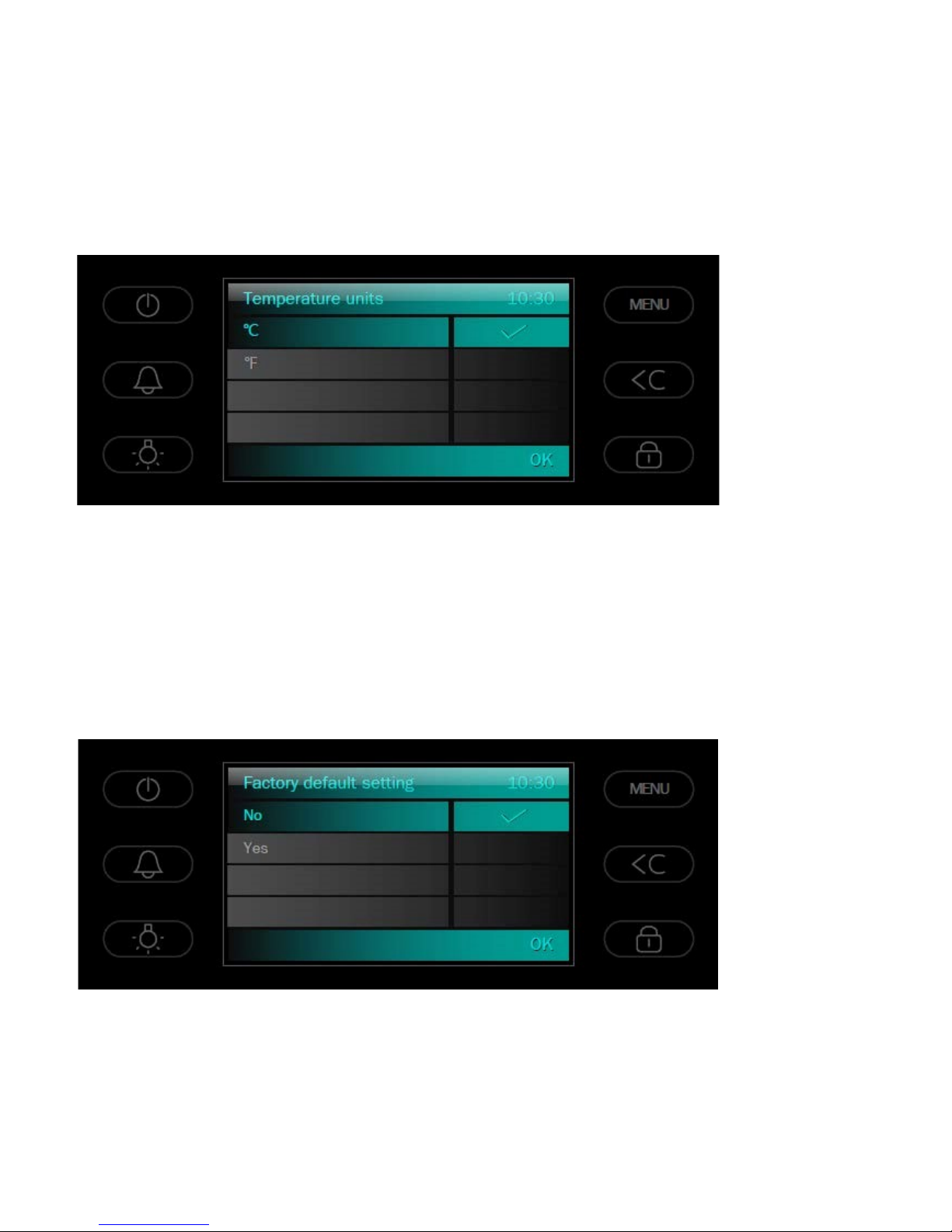

Set the display temperature
The oven temperature can be displayed in Celsius or Fahrenheit. From the main
menu select ‘settings’ and then ‘temperature units’. Select either °C or °F and
touch ‘OK’ to confirm.
Reset to factory default settings
Warning – this function will erase all personal settings and restore all
settings to the factory default settings. To reset the oven back to factory
default settings touch ‘settings’ from the main menu and then select ‘factory
default setting’. Select ‘yes’ and then touch ‘ok’ to confirm.

15
Setting a display theme.
The screen display can be in a blue (cyan) or an orange colour. To select a
display theme touch ‘settings’ from the main menu and then ‘theme’, select
preferred colour theme and touch ‘ok’ to confirm.
Selecting a cooking function
To select a function touch the on / off key or simply touch the screen while it
is in standby mode. Touch the menu key to see the full list of cooking functions.
You can scroll up or down the list by touching the appropriate up or down arrow
sensor.
.

16

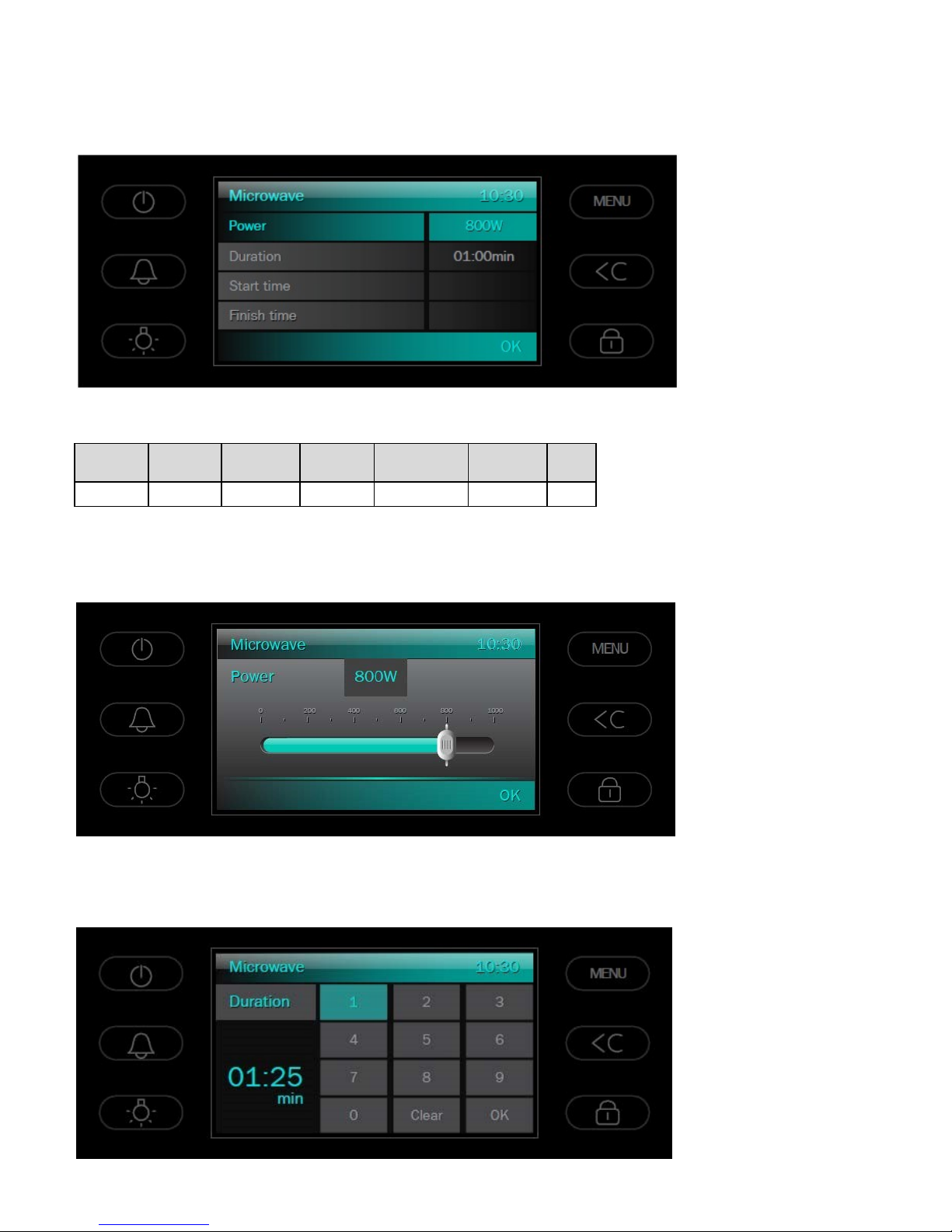

Microwave functions.
Select ‘microwave’ from the main menu and then ‘power’.
Microwave power table:
Display High
Medium-
high
Medium
Medium
-low
Low Cool
Power
1000W
800W
600W
400W
200W
0W
To adjust the power level, touch the slider to select the required power level and touch
‘OK’ to confirm.
Then touch ‘duration’ and input the required cooking time using the numeric keypad
and touch ‘OK’ to confirm.

17
If you want cooking to start immediately and don’t require cooking to start and finish
automatically later on, then you don’t need to set a start time or finish time at this
stage. Simply touch ‘OK’ and cooking will start immediately.
Setting the delayed start (Fully Automatic Cooking)
You can arrange for the oven to start and finish automatically at set times for your
convenience. After selecting a power level or temperature, touch ‘start time’ and enter
the required start time and touch ‘OK’ to confirm.
Then touch ‘finish time’ and enter the required finish time and touch ‘OK’ to confirm.

18
Once you have entered the start time and the finish time, the cooking duration will be
calculated automatically. Touch ‘OK’ to confirm the delayed start function.
Grill & Convection modes
From the main menu, select ‘grill’ or ‘convection’ as required. Then touch
‘temperature’.
To adjust the grill or convection oven temperature, touch the slider to select the
required temperature and touch ‘OK’ to confirm.

19
Touch ‘duration’ to input the required cooking duration time, using the numeric keypad,
and touch ‘OK’ to confirm.
If you want cooking to start immediately and don’t require cooking to start and finish
automatically later on, then you don’t need to set a start time or finish time at this
stage. Simply touch ‘OK’ and cooking will start immediately.
Please note, during cooking, the display screen will show the word ‘change’. You can
touch ‘change’ at any time to adjust parameters like the temperature of cooking
duration time.

20
The Combination Cooking Modes (Microwave & Grill, Microwave & Convection,
Microwave & Grill & Convection).
From the main menu, select the relevant combination cooking mode (microwave+grill,
microwave+convection, microwave+grill+convection).
Touch ‘power’ and select the microwave power level using the slider. Touch ‘OK’ to
confirm. Please note that only lower microwave power levels are available to select in
combination mode, and this is normal.
Touch ‘temperature’ and select the required temperature for the grill/convection fan
oven using the slider. Touch ‘OK’ to confirm.
Touch ‘duration’ to enter the required cooking duration time, if you wish cooking to start
immediately; or touch ‘start time’ and then ‘finish time’ to enter the required start and
finish times if you require cooking to start and finish automatically later on. Touch ‘OK’
to confirm.
Defrost
From the main menu, select ‘defrost’.
Touch ‘duration’ to enter the required defrost duration time, if you wish defrosting to
start immediately; or touch ‘start time’ and then ‘finish time’ to enter the required start
and finish times if you require defrosting to start and finish automatically later on.
Touch ‘OK’ to confirm.
Table of contents
Other STOVES Microwave Oven manuals
