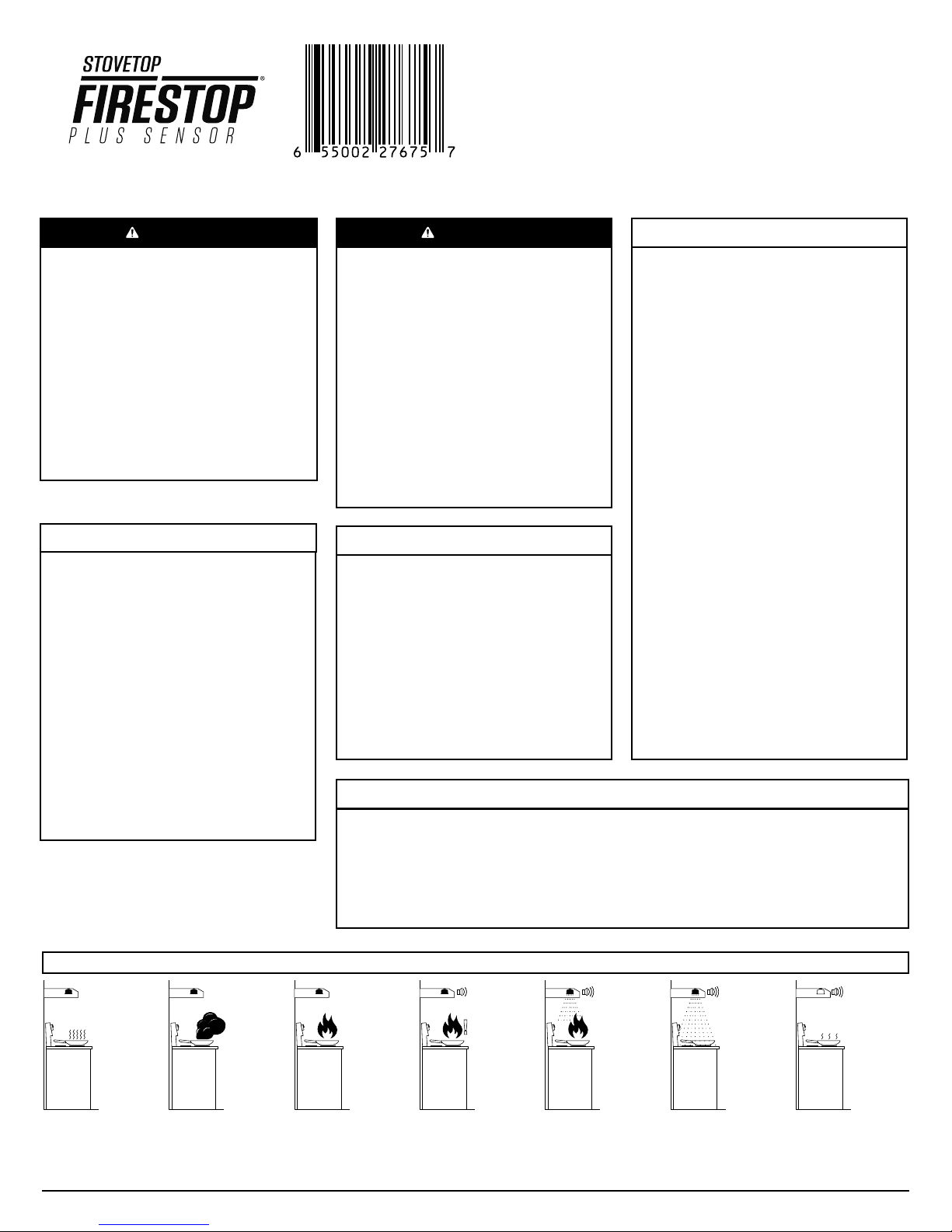

Stovetop Firestop Plus Sensor User manual

1
FIRE SAFETY MANUFACTURER’S INFO
WARNING CAUTION
Designed & Manufactured
by WilliamsRDM in Texas, USA
Designed solely for suppressing
stove top grease fires in
indoor residential kitchens using no more
than 1” of oil before food is added.
Contents: Potassium Bicarbonate
For storage and disposal information,
or to learn more about StoveTop FireStop,
please visit our website at www.STFS.com,
or call 1-888-616-7976.
• Keep away from children.
• Avoid exposure to suppressing powder if you
wear contacts, or have a respiratory illness or
skin allergies.
• Contents may be harmful if swallowed.
• Suppressing powder is non-toxic but could
cause skin irritation. In case of contact with
powder, flush from affected area with water.
• If irritation persists, contact a physician
immediately.
• Discard product after activation.
• Discard product if dropped or damaged.
• Do not clean unit.
679-S-35 Rev A 05/2018
AUTOMATIC FIRE SUPPRESSION FOR GREASE FIRES
ON INDOOR RESIDENTIAL STOVE TOPS
(CLASS K)
www.STFS.com
• Not intended for cooking with more than 1” oil
depth before food is added.
• Not recommended for gas stoves; powder may
extinguish burner flame on a gas stove top
• If safe, turn burner OFF immediately after
activation.
• Reignition is possible.
• When suppressing powder comes in contact
with fire, it may briefly flare and/or cause
grease to splash. This is a normal and
temporary reaction.
• This product may not suppress all stove top
fires.
Read this user manual carefully prior to installation
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
HOW IT WORKS
NOTICE
• Failure to remove or replace by the “remove
or replace before” date, as shown on the
product label, could diminish the effective-
ness of the product.
• Primary activation method is through
electronic sensors.
• At time of activation (deployment), a loud
“POP” will occur, followed by 3 long,
repeating tones. This is normal and meant
to alert occupants, if present.
• Device is equipped with a fuse that works
as a secondary activation method in case
of dead batteries.
• Replace batteries as required to ensure
optimum performance. Do not mix old and
new batteries. It is recommended that you
not mix brands.
• When testing the unit, do not expose
bottom of the canister toward bright lights
while testing the device.
• A self-test should be manually performed
once every month for the life of the product.
• Unattended cooking is the leading cause of
fires in the kitchen. Many injuries occur when
occupants attempt to fight the fire themselves.
• Never leave anything cooking on the stove top
unattended! If you have to leave the kitchen
—even for a short time— turn off the stove.
• Never leave home or fall asleep while you are
cooking.
• Never pick up a flaming pan. You may be
burned, or if the pan is dropped, flames may
quickly spread to other flammable areas.
• Never use water to fight a grease fire! A violent
explosion may result. Wet dishcloths or towels
are also dangerous.
• Always follow National Fire Protection
Association (NFPA) guidelines for proper
cooking safety. Visit www.nfpa.org.
USER MANUAL
The Next Evolution in StoveTop FireStop®
Burner on. Cooking surface
and pan left unattended.
Smoke first visble at 18-25
minutes* after stove has
been turned on.
Heavy smoke starts about
28-35 minutes* after stove
has been turned on.
Fire starts at XXXºF (XXX
C)*, or approximately 43
minutes after stove has
been turned on.
STFS Plus S detects
fire conditions. Sounds
warning for 30 seconds
until conditions are safe or
deployment.
STFS Plus S deploys
powder onto cooking
surface, and emits 3 long,
loud tones.
Once STFS Plus S has
deployed powder, the fire
should be suppressed.
An alert will sound until
batteries run out or unit
is silenced. Stove must
be turned off to prevent
reflash.

2

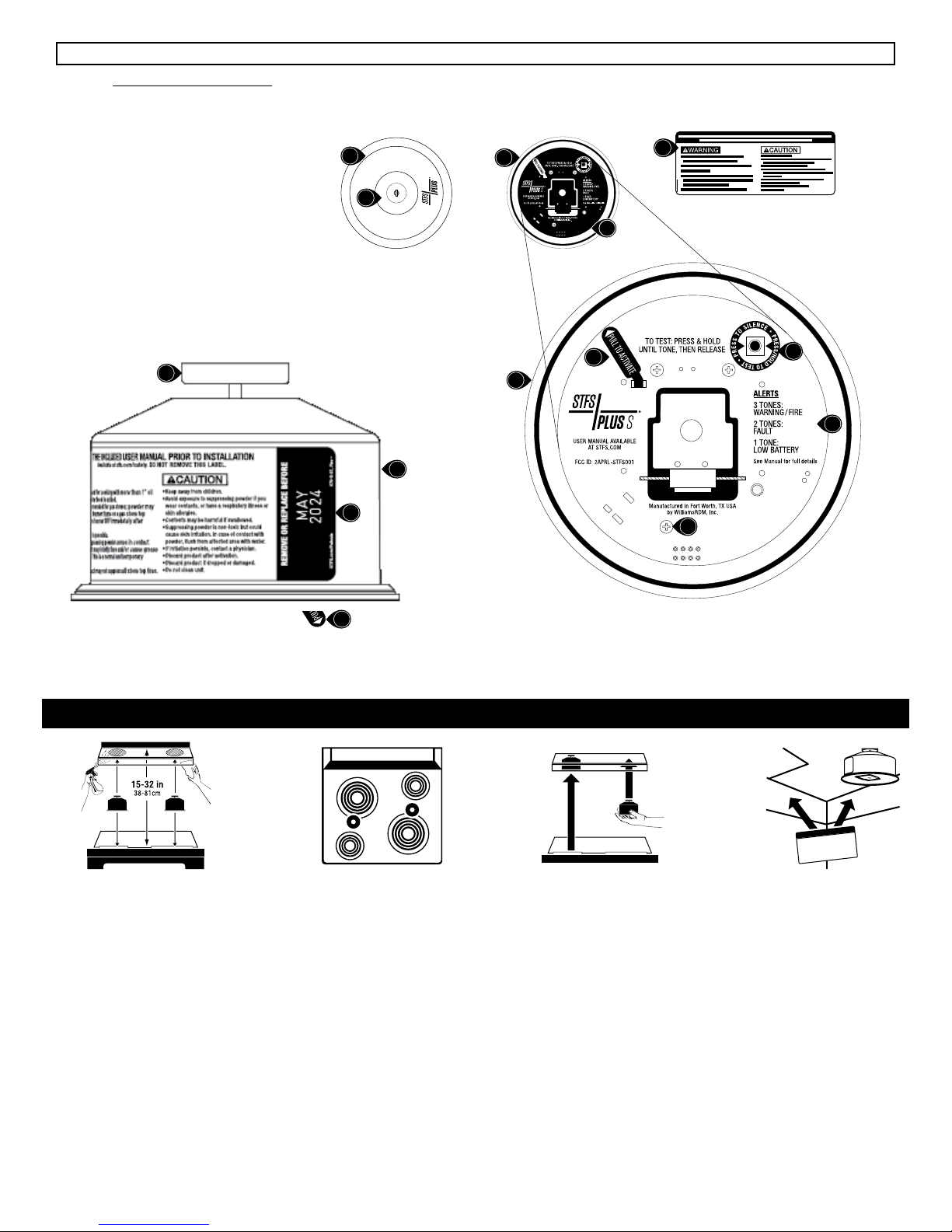

(not drawn to scale) IN THE BOX (not drawn to scale)
STFS PLUS SENSOR CANNISTERS ONE ASSEMBLED PAIR FOR EACH 4-BURNERS
STFS PLUS SENSOR CANISTERS
WHAT’S IN THE BOX
Bottom View
Sensor Board Detail ViewSide View
Top View
H
G
A
A
A
B
B
STFS PLUS S MECHANICAL INSTALLATION
(3)
(2)
1) Must have 15-32” (38-81 cm) between surface of cooktop and mounting point in range hood. Clean and dry areas in range hood where both
magnets will attach.
2) Position canisters in range hood at the midpoint between the center of front and back burners on each side.
3) Raise canisters to the spot directly above in range hood.
4) Place the enclosed decal where it can be seen in the ventilation hood.
If the magnet does not attach, go to www.STFS.com to order an alternative mounting kit.
(4)
(1)
A. STFS Plus Sensor Canister
B. Magnet
C. Sensor Board
D. Test / Reset Button
E. Board Screws (3 per canister)
F. Pull Tab
G. Decal, 1 per pair
H. Expiration Date (on Label)
E
C
D
C
F
A
F

3

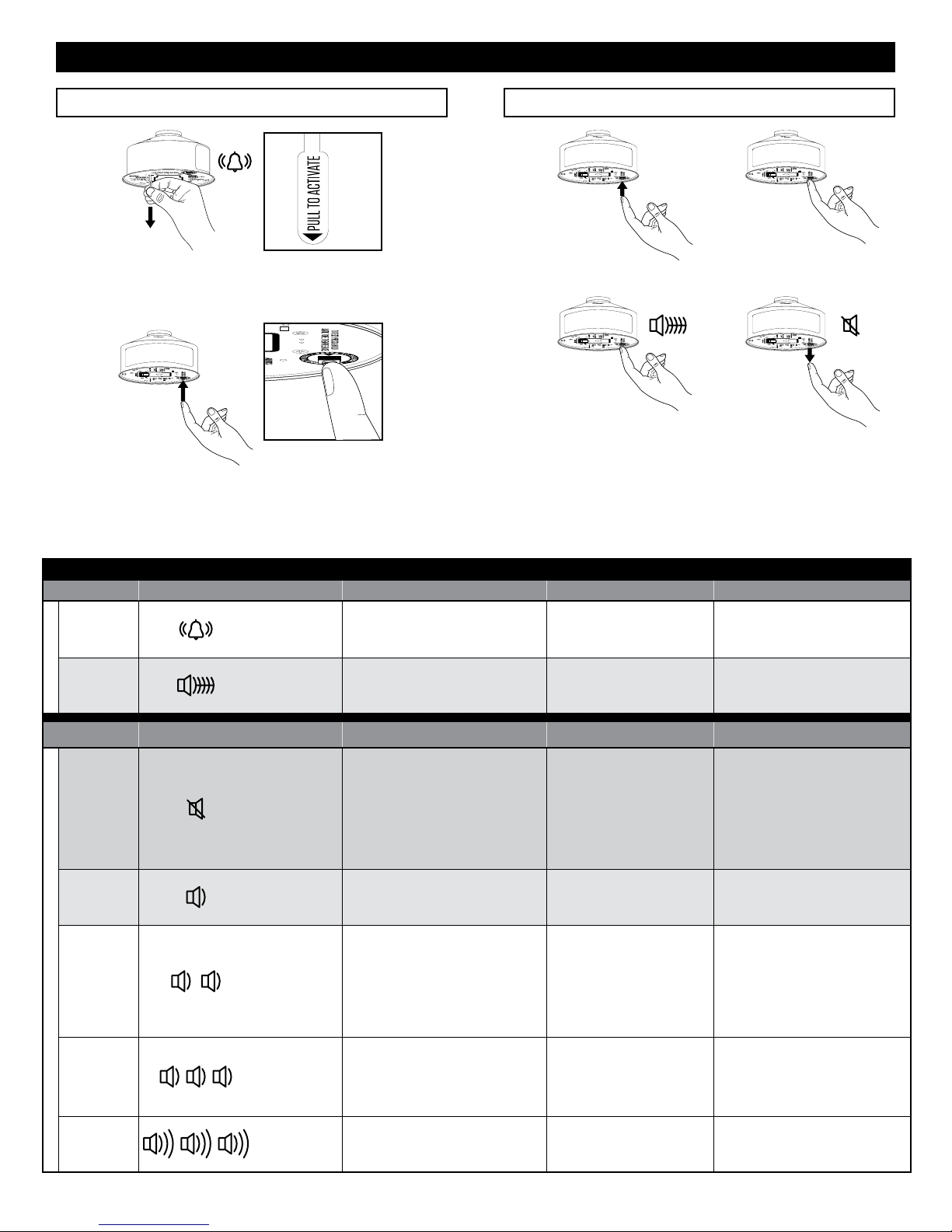

STFS PLUS S ACTIVATION & TEST
INITIAL ACTIVATION
1) Pull out the red tab to activate the product. The product should
emit an ‘activation jingle’, one time.
(2)
(1)
TESTING
1) To test the device, hold Test button for more than 3 seconds until
a tone is heard.
2) When the button is released, or has been held down for 5
continuous seconds, the tone will stop.
Do not point the sensors at bright lights when performing a self test.
If no sound is heard, Test was successful.
(1)
(2)
TROUBLESHOOTING
CONDITION SOUND ACTION CYCLE MEANING
TESTING
Power On Activation
jingle
Initial activation by pulling tab,
or batteries have been replaced
Only once when tab is
pulled, OR when batteries
are replaced.
Device is powered on and
working properly
Self Test Continuous
tone
Press and Hold self-test button
until tone sounds (approximately
3 seconds)
Tone sounds for a
duration of 5 seconds or
until button is released
Device has initiated a self-test.
See below for results.
CONDITION SOUND MEANING CYCLE REMEDY
ALERTS
No Power No tone Batteries contact impeded, or
battery life expired None
Remove then reinstall existing
batteries, clearing any debris
preventing battery contact.
Retest. If no sound, replace
with new batteries. Retest.
If still no sound, contact
manufacturer immediately.
Low Battery 1 tone Low Battery
Repeats every 60 seconds
until batteries run out or
are replaced, or unit is
silenced.*
Replace old batteries with
two (2) new, 1.5V alkaline,
N-cell batteries
Fault 2 tones An error has been detected
within the sensor board
Repeats every 60 seconds
until batteries run out, or
unit is silenced.*
Go to STFS Plus Sensor
Troubleshooting Section
at www.STFS.com. Do not
dismount canisters. The unit
will still function if flames from
a cooking fire come in direct,
sustained contact with the fuse.
Warning 3 tones
The conditions for a fire to
start have been detected.
Action needed to prevent fire or
deployment.
Repeats every 2 seconds
for 30 seconds until
conditions improve, or
unit is silenced.*
If safe to do so, turn off stove.
Do not reach across the pan.
Press button to silence alarm.
If nothing changes, unit will
deploy powder onto stove top.
Deploy
3 LOUD
tones
A fire has been detected, and
deployed suppression powder
Repeats every 1.5
seconds until batteries
run out or are removed, or
unit is silenced.*
Leave dwelling immediately,
then call 911. Once powder has
been deployed, the unit must
be replaced.
* Alarms can be silenced by pressing the TEST/SILENCE button on the bottom of the unit. This will only silence the alarm for about one day. Specific
action must be taken to permanently silence any of the alarms.
2) If no sound is heard, proceed to TESTING section and/or BATTERY
REPLACEMENT sections.
See chart below for explanation of additional alerts.
3 secs
5+ secs

4
Manufactured by WilliamsRDM
200 Greenleaf Street
Fort Worth, TX 76107
817 872-1500 tel
888 616-7976 toll free
[email protected]
STFS.com

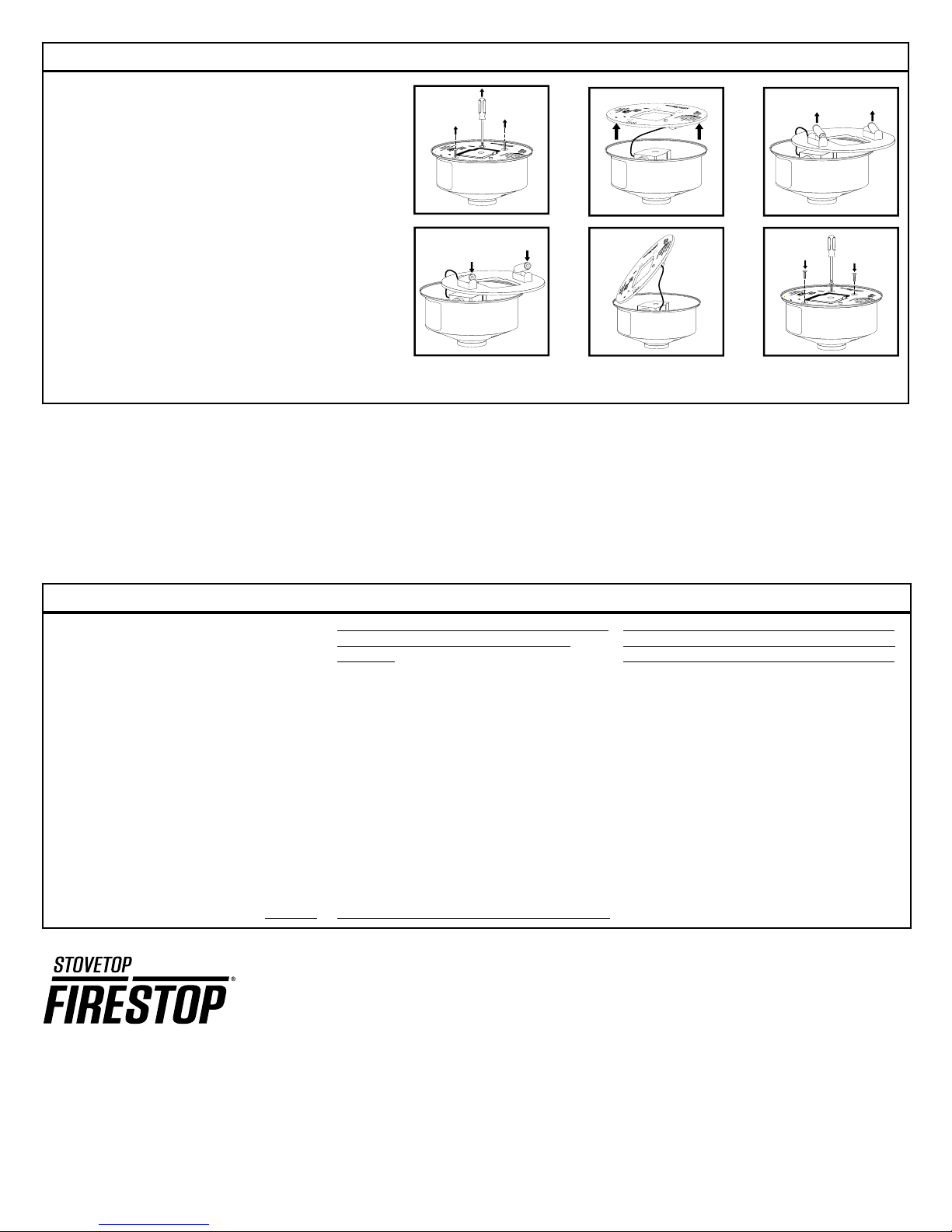

BATTERY REPLACEMENT
1) Use #2 Phillips head screw driver to unscrew the
three (3) small screws from the sensor board.
2) Remove the sensor board, taking care not to
damage or disconnect the wires.
3) Properly dispose of the existing batteries. Check for
any debris in the battery compartment that would
interfere with battery contact.
4) Replace with two (2) new, 1.5V alkaline N-cell,
batteries. Do not mix new and old batteries.
5) Fold the wires back into place, taking care
not to damage the wires.
6) Reattach the sensor board with the three (3) small
screws, and reinstall per installation instructions.
Do not tamper with any sensors, or any other
parts of the product or you risk device malfunction
and voiding manufacturer’s warranty.
(5)
(2)
(1) (3)
(6)
(4)
© 2018 WilliamsRDM, Inc. All rights reserved. StoveTop FireStop, the StoveTop FireStop logo, STFS, the STFS Plus logo and design graphics are either registered
trademarks or trademarks of WilliamsRDM, Inc. in the United States, and/or other countries. Model No. 679-S-3A. Patent info at www.STFS.com/patents.
WilliamsRDM, Inc. (“WRDM”) warrants this StoveTop FireStop®
product against defects in material or workmanship for the time
periods and under the terms set forth below. Pursuant to this
Limited Warranty, WRDM will, at its option, (i) repair the product
using new or refurbished parts or (ii) replace the product with a
new or refurbished product. For purposes of this Limited Warranty,
“refurbished” means a product or part that has been returned to its
original specifications. In the event of a defect, these are your
exclusive remedies.
WRDM warrants to the original retail purchaser all WRDM products
for a period of one (1) year against defective material and faulty
workmanship. Any unit found to be defective during the warranty
period will be repaired if possible, or replaced free of charge upon
the buyer’s prepaid return of the defective unit—only after receipt
of an official Return Material Authorization (RMA) number. Proof of
retail purchase is required. This warranty gives the buyer specific
legal rights which may vary by state (or country.)
THE FORGOING WARRANTY IS MADE IN LIEU OF ALL OTHER
WARRANTIES WITH RESPECT TO THIS PRODUCT, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE—WHICH ARE HEREBY
DISCLAIMED. THERE ARE NO IMPLIED WARRANTIES WHICH
EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. NO
PERSON IS AUTHORIZED TO GIVE ANY OTHER WARRANTY, OR
TO ASSUME FOR WRDM ANY OTHER LIABILITY IN CONNECTION
WITH THE SALE OR INSTALLATION OF ITS PRODUCTS.
REPLACEMENT OF THE PRODUCT WILL BE THE SOLE REMEDY
WITH RESPECT TO ANY LOSS OR DAMAGE TO PROPERTY.
BUYER IS NOT RELYING ON SELLER’S JUDGMENT REGARDING
BUYER’S PARTICULAR REQUIREMENTS AND BUYER HAS HAD
AN OPPORTUNITY TO INSPECT THE PRODUCT TO BUYER’S
SATISFACTION. UNAUTHORIZED SERVICE OF ANY KIND
INVALIDATES ALL WARRANTY PROVISIONS.
This Limited Warranty covers only the hardware components
packaged with this product. It does not cover technical assistance
for hardware. Any parts or product replaced under this Limited
Warranty will become the property of WRDM.
LIMITATION ON DAMAGES: WRDM SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING
BUT NOT LIMITED TO ANY SUCH DAMAGES FOR ANY BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT.
Instructions: To obtain warranty service, you must deliver the
product, freight prepaid, in either its original packaging, or
packaging affording an equal degree of protection, to WRDM’s
specified manufacturing facility.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use; it does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
misuse, limitations of technology, or modification of or to any part
of the WRDM product. This Limited Warranty is invalid if either the
factory-applied work order number or date code has been altered
or removed from the product. This Limited Warranty is valid only in
the United States.
For StoveTop FireStop customer service:
go to www.STFS.com or call 1-888-616-7976.
LIMITED WARRANTY
