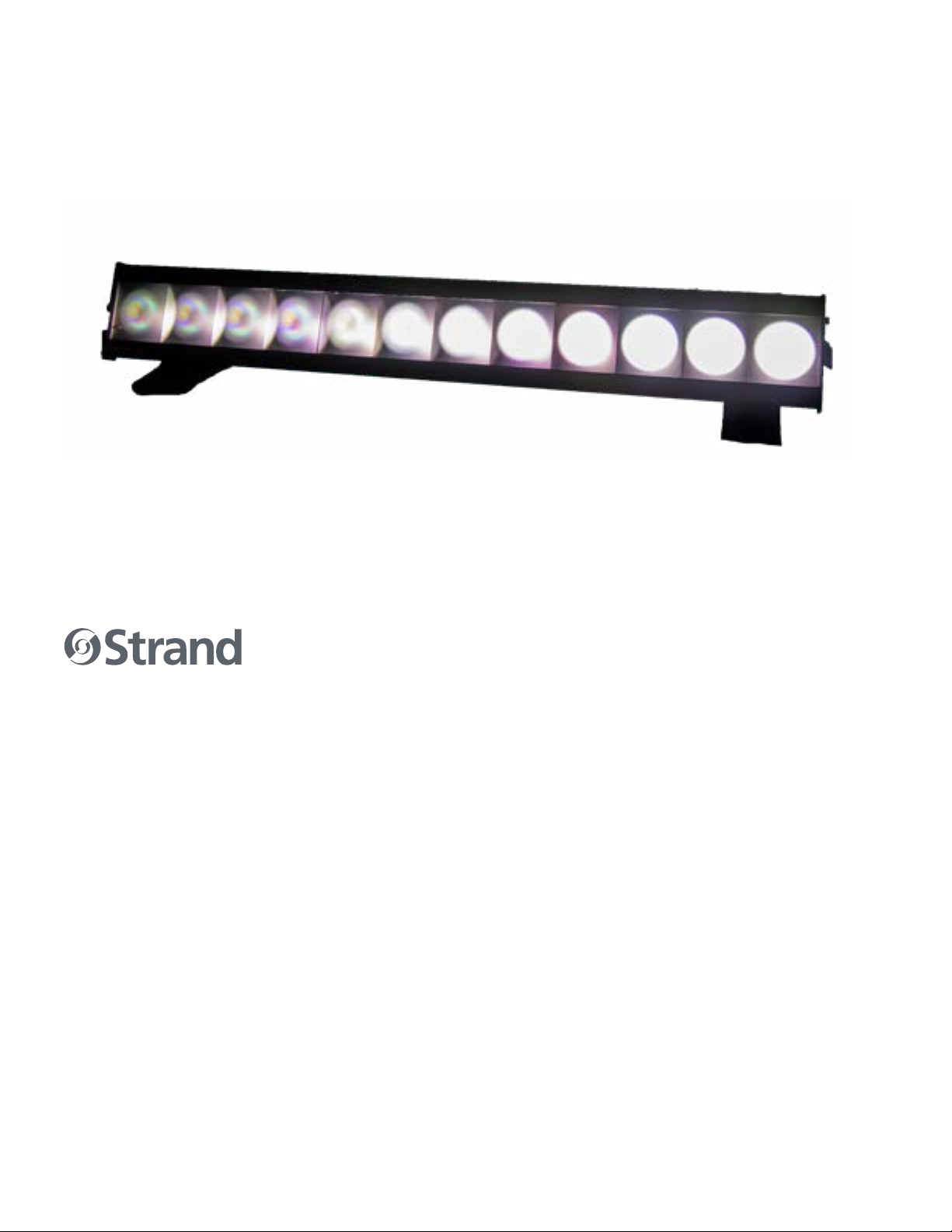

Strand Aurora LED Strip User manual

AurorA LED Strip
12 CELL
USER MANUAL

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
2
1 DESCRIPTION
FEATURES
AurorA LED Strip
FEATURES AND BENEFITS
• High output LED Strip with 4- and 12-cell versions - modern theatrical
strip with quality you can trust.
• High CRI RGBALC Color System with SmartColor Control - wide range
of vivid color options that can be programmed using CYM
• Independent color mixing and temperature controls - match color
pallet to color temperature without manual adjustment for simpler
programming
• Pixel control of each cell - easily create split colors or gradients
• Fanless design - perfect for use in quiet environments
• Adjustable frequency to exceed camera frame rates - camera friendly
 xtures for IMAG, event recordings, or TV and  lm applications
• Adjustable beam angle - optional lens accessory kit offers wider and
shaped beams
LIMITED WARRANTY
Every Strand product is backed by a minimum 2-year limited warranty against manufacturing
defects and workmanship. Refer to the Strand Limited Warranty Card available at
www.strandlighting.com/global/support/warranty for more details.
Download the product datasheet from the Strand website at www.strandlighting.com for the full technical
specifications.
COMPONENTS
The document provides installation and operation instructions for the following products:
• Strand Aurora LED Strip 12 Cell
Read all instructions before installing or using this product. Retain this manual for future reference. Additional
product information and descriptions may be found on the product specification sheet.
INCLUDED ITEMS
Each Strand Aurora LED Strip luminaire includes the following items:
• Strand Aurora LED Strip 12 Cell
• Quick Start Guide

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
3
MOUNTING
The unit should be mounted via its screw holes on the bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating. When installing the
fixture, always use a safety cable that is certified to hold up to 12 times the fixture’s own
weight.
The luminaire must be installed by qualified professionals.
SET UP
CONTROL PANEL
MAIN FUNCTIONS
Press the MENU button to Choose any functions, until the required function is shown in the display. Choose the
desired function by pressing ENTER, which will cause the display to blink. Use the UP and DOWN button to
change the mode. Once the required mode has been Selected, press the ENTER button to accept the Selection,
otherwise after a period of one minute wait, the the menu will return automatically to the main functions, with-
out any changes having been made. Return to the main functions without making any changes by pressing the
MENU button. The main functions are shown in TABLE 1.
LCD DISPLAY. Shows the menu and
selected function buttons.
7
1
2BUTTONS.
Menu. To select programming functions.
Down. To go backward in the selected
functions.
Up. To go forward in the selected
functions.
Enter. To confirm the selected functions.
1
2
4
3
DMX IN. 5-pin XLR cable to link DMX
console.
3
DMX OUT. 5-pin XLR cable to to the next unit.
4
POWER IN. Connects to power supply.
5
POWER OUT. Connects to next fixture.
6
Artnet/sACN. RJ45 connector to link
Artnet/sACN from source.
7
5
6
2
INSTALLATION

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
4
TABLE 1. MENU FUNCTIONS
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT
Address 001~512 (Default 001)
Congure
LED
LED Hours XXXXXX h
Reset LED Hour Are you sure?
Dimming Curve
Square Curve (Default)
S Curve
Linear Curve
Tungsten Fade On
Off (Default
Dim Snap On (Fast)
Off (Slow) (Default)
LED Frequency
1200Hz (Default)
2500Hz
5000Hz
10000Hz
20000Hz
25000Hz
White Balance
Red 125 - 255 Default 255
Green 125 - 255 Default 255
Blue 125 - 255 Default 255
Amber 125 - 255 Default 255
Lime 125 - 255 Default 255
Cyan 125 - 255 Default 255
Reset YES/NO
Color Cal On
Off (Default)
Disp Timeout
30 Sec (Default)
5 Min
10 Min
On
Reset to Factory
Defaults
Choose Signal
DMX Only
Art-Net
SACN
Set Artnet/
SACN
Set Universe 000~255 (Default 000)
Ethernet IP XXX. XXX. XXX. XXX
Ether Mask IP XXX. XXX. XXX. XXX

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
5
TABLE 1. MENU FUNCTIONS
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT
DMX
Address 001~512
DMX Mode
SSCC (Default)
SQCC
SOCC
Pixel Group
Group 1 (Default)
Group 3
Group 12
Cell Direction Normal (Default)
Flipped
Data
Ch 1 - Intensity
XXX (Value)
Ch 2 - Intensity
Fine XXX (Value)
……All functions
Fixture
UID Number RDM UID number
Status
(No Errors... or
displays a list of
errors)
Reboot Fixture Are you sure?
Version VXXX MM/DD/YY HH:MM
Fixture Hours XXXXXX h
Crossload
(Software) Send
Service Diagnostics Board Check
Manual Control
Red 0 - 255 (Default 0)
Green 0 - 255 (Default 0)
Blue 0 - 255 (Default 0)
Amber 0 - 255 (Default 0)
Lime 0 - 255 (Default 0)
Cyan 0 - 255 (Default 0)
Color Preset
Preset Run Choose preset 1 to 20
Intensity 0 - 255
Edit Programs
Intensity* 0 - 255
Red 0 - 255
Green 0 - 255
Blue 0 - 255
Amber 0 - 255
Lime 0 - 255
Cyan 0 - 255
Store YES/NO
Clear YES/NO

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
6
ADDRESS MENU
Address — Choose DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the
address from 001 to max, press the ENTER button to store. Press the MENU button to return to previous menu
or let the unit idle one minute to exit menu mode.
CONFIGURE MENU
Choose Configure, press the ENTER button to confirm, use the UP/DOWN button to Choose LED, Color Cal,
Disp Timeout, Choose Signal and Set Artnet / SACN.
LED
Choose LED, press the ENTER button to confirm. Use the UP/DOWN button to Choose LED Hours, Reset LED
Hour, Dimming Curve, Tungsten Fade, Dim Snap, LED Frequency and White Balance. Press the ENTER button to
store. Press the MENU button to return to previous menu or let the unit idle one minute to exit menu mode.
LED Hours —Choose LED Hours, press the ENTER button to confirm, LED Hours will show on the displayPress
the MENU button to return to previous menu.
Reset LED Hours — Choose Reset LED Hours, press the ENTER button to confirm, “Are you sure” will show on
the display. Press the MENU button to return to previous menu.
Dimming Curve — To Choose Dimming Curve, press the ENTER button to confirm. Use the UP/DOWN button to
Choose Square Law Curve, S Law Curve or Linear Law Curve, press the ENTER button to store. Press the MENU
button to return to previous menu or let the unit idle one minute to exit menu mode.
Tungsten Fade — Choose Tungsten Fade, press the ENTER button to confirm, Use the UP/DOWN button to
Choose ON or OFF; press ENTER to store. Press the MENU button to return to previous menu.
Dim Snap — Choose Dim Snap, press the ENTER button to confirm, Use the UP/DOWN button to Choose ON or
OFF. Press the MENU button to return to previous menu.
LED Frequency — Choose LED Frequency, press the ENTER button to confirm. Use the UP/DOWN button to
Choose 1200Hz, 2500Hz, 5000Hz, 10000Hz, 20000Hz , 25000Hz, press the ENTER button to store. Press the
MENU button to return to previous menu or let the unit idle one minute to exit menu mode.
White Balance — Choose White Balance; press the ENTER button to confirm. Use the UP/DOWN button to
select Red, Green, Blue, Amber, Lime, Cyan and RESET; press the ENTER button to store. Press the MENU button
to return to previous menu or let the unit idle one minute to exit menu mode.
Color Cal
Choose Color Cal, press the ENTER button to confirm. Use the UP/DOWN button to Choose ON or OFF. Press
the MENU button to return to previous menu.
Disp Timeout
Choose Disp TImeout, press the ENTER button to confirm. Use the UP/DOWN button to Choose 30 Sec, 5min,
10 min or ONPress the MENU button to return to previous menu.
Choose Signal
Choose Signal, press the ENTER button to confirm. Use the UP/DOWN button to Choose DMX Only, ArtNet or
sACN. Press the MENU button to return to previous menu.
DMX MENU
Choose DMX, press the ENTER button to confirm, use the UP/DOWN button to Choose Address, DMX Mode,
Pixel Group, Cell Direction or Data.
Address — Choose Address, press the ENTER button to confirm. Use the UP/DOWN button to Choose from 001
to 512. press the ENTER button to store. Press the MENU button to return to previous menu or let the unit idle
one minute to exit menu mode.
DMX Mode — Choose DMX Mode, press the ENTER button to confirm. Use the UP/DOWN button to Choose
SSCC, SQCC or SOCC, press the ENTER button to store. Press the MENU button to return to previous menu or
let the unit idle one minute to exit menu mode.
Pixel Group — Choose Pixel Group, press the ENTER button to confirm. Use the UP/DOWN button to Choose
Group 1, 4, or 12, press the ENTER button to store. Press the MENU button to return to previous menu or let the
unit idle one minute to exit menu mode.
Cell Direction — Choose Cell Direction, press the ENTER button to confirm. Use the UP/DOWN button to
Choose Normal or Flipped, press the ENTER button to store. Press the MENU button to return to previous menu
or let the unit idle one minute to exit menu mode.

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
7
Data — Choose Data, press the ENTER button to confirm. Use the UP/DOWN button to Choose Ch1 – Intensity
xxx(value), Ch2 – Intensity Fine xxx(Value), …. All functions, press the ENTER button to store. Press the MENU
button to return to previous menu or let the unit idle one minute to exit menu mode.
FIXTURE MENU
Choose Fixture, press the ENTER button to confirm, use the UP/DOWN button to Choose Status, Reboot fixture,
Version, Fixture Hours, Crossload (Software), Service. Press the ENTER button to select.
Status
Choose Status, press the ENTER button to confirm, Status will show on the displayPress the MENU button to
return to previous menu.
Reboot Fixture
Choose Reboot Fixture, press the ENTER button to confirm, Are you sure? will show on the display, press the
ENTER button to confirm.
Version
Choose Version, press the ENTER button to confirm, Version will show on the display. Press the MENU button to
return to previous menu or let the unit idle one minute to exit menu mode.
Fixture Hours
Choose Fixture Hours, press the ENTER button to confirm, Fixture Hours will show on the display. Press the
MENU button to return to previous menu or let the unit idle one minute to exit menu mode.
Crossload (Software)
Choose Crossload (Software), press the ENTER button to confirm, Send will show on the display. Press the
MENU button to return to previous menu or let the unit idle one minute to exit menu mode.
NOTE: Incoming DMX must be removed from the fixture or software crossload will not be activated.
Service
Choose Service, press the ENTER button to confirm. Press the MENU button to return to previous menu or let
the unit idle one minute to exit menu mode.
Diagnostics — Choose Diagnostics, press the ENTER button to confirm. Use the UP/DOWN button to Choose
Board Check. Press the ENTER button to store. Press the MENU button to return to previous menu or let the unit
idle one minute to exit menu mode.
MANUAL CONTROL MENU
Choose Manual Control, press the ENTER button to confirm, use the UP/DOWN button to Choose Red, Green,
Blue, Amber, Lime and Cyan. Use the UP/DOWN button to adjust the value from 0 to 255, press the ENTER
button to store. Press the MENU button to return to previous menu or let the unit idle one minute to exit menu
mode.
COLOR PRESET MENU
Preset Run
Enter Color Preset mode, Choose Preset Run, press the ENTER button to confirm, use the UP/DOWN button to
Choose “Choose Preset” or Intensity.
Edit Programs
Enter menu mode, choose Edit Programs, press the ENTER button to confirm, MODE will show up, use the UP/
DOWN button to Choose Intensity, Red, Green, Blue, Amber, Lime, Cyan, Store or Clear. Use the UP/DOWN but-
ton to adjust the value from 0 to 100%. Press the ENTER button to confirm. Press the MENU button back to the
last menu or let the unit idle one minute to exit.

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
8
The fixture can be operated by a DMX controller. The following tables assumes a DMX start address of 1. When
a dierent starting address is used, this address assumes the channel 1 function and other functions follow in
sequence.
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1Intensity (High)
00 - 65535
16-bit Intensity (Dimmer) Control
0 - 100% Output
Cell 1 in multi cell groups
2Intensity (Low)
3Strobe 0
0 - 255 Strobe Control
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4Color Preset 0
0 - 255 Calibrated color presets 01 to 33
User denable color preset 01 to 20
0 - 10 Channel OFF Color Mixing takes priority
11 - 14 Moroccan Pink
15 - 18 Pink
19 - 22 Flesh Pink
23 - 26 Bright Rose
27 - 30 Follies Pink
31 - 34 Fuchsia Pink
35 - 38 Surprise Pink
39 - 42 Congo Blue
43 - 46 Blue
47 - 50 Virgin Blue
51 - 54 Midnight Maya
55 - 58 Double C.T Blue
59 - 62 Slate Blue
63 - 66 Regal Blue
67 - 70 Full C.T Blue
71 - 74 Steel Blue
75 - 78 Lighter Blue
79 - 82 Cyan
83 - 86 Marine Blue
87 - 90 Soft Green
91 - 94 Moss Green
95 - 98 Green
99 - 102 Fem Green
103 - 106 JAS Green
107 - 110 Pale Green
111 - 114 Spring Yellow
115 - 118 Yellow
3 DMX MAPPING

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
9
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
4Color Preset
continued 0
119 - 122 Deep Amber
123 - 126 Chrome Orange
127 - 130 Orange
131 - 134 Magenta
135 - 138 Flame Red
139 - 142 Purple
143 - 146 User Preset 1
147 - 150 User Preset 2
151 - 154 User Preset 3
155 - 158 User Preset 4
159 - 162 User Preset 5
163 - 166 User Preset 6
167 - 170 User Preset 7
171 - 174 User Preset 8
175 - 178 User Preset 9
179 - 182 User Preset 10
183 - 186 User Preset 11
187 - 190 User Preset 12
191 - 194 User Preset 13
195 - 198 User Preset 14
199 - 202 User Preset 15
203 - 206 User Preset 16
207 - 210 User Preset 17
211 - 214 User Preset 18
215 - 218 User Preset 19
219 - 222 User Preset 20
223 - 255 Channel OFF Color Mixing takes priority
5Control Channel 0
0 - 255
Control Channel used for full xture settings, lamp controls,
and miscellaneous modes. Set discrete value of desired effect,
wait >3 seconds, then set value to 0 (Idle).
**Function does not require 3 Second rule to active, setting
output to value will automatically activate function
0Idle (Default)
6 - 10 Full Luminaire ReCal - Also used to wake the xture up from
shutdown.
11 - 15 Fixture Shutdown
16 - 20 Reserved Values
21 - 25 Display - Menu ON
26 - 30 Display - Menu OFF
31 - 35 Tungsten Dimming On**
36 - 40 Tungsten Dimming Off (Default)**
41 - 45 Dimming Curve Linear**
46 - 50 Dimming Curve S-Curve**
51 - 55 Dimming Curve Square Law (Default)**
56 - 60 Reserved
61 - 65 Dimmer Snap On**
66 - 70 Dimmer Snap Off (Default)**
71 - 90 Reserved

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
10
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
5Control Channel
(continued) 0
91 - 95 Color Calibration on
96 - 100 Color Calibration off (Default)
101 - 150 Reserved Values
151 - 155 Record User Color Preset**
156 - 160 Cell Normal
161 - 165 Cell Flipped
166 - 170 Reserved
171 - 175 Reset xture to default
176 - 255 Reserved
6Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
7Cyan (Low)
8Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
9Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
10 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
11 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum
12 CTO 75
0 - 250
Variable color temperature control channel. The channel
works independently of the color mixing channel and will
adjust all mixed color from the selected color temperature
level. Values stated below are for guidance only. the channel
should be mapped in such a way that the channel runs are
variable from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
SSCC Mode - 4 Cell Selected (4 Groups of 3) - Additional Channels Added
6Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
7Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
8Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
9Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
10 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
11 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
11
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
12 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 2
13 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
0 - 100% Output
14 Intensity (Low)
15 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
16 Cyan (Low)
17 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
18 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
19 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
20 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum
21 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
21 CTO continued 0
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
12
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
Cell 3
22 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
0 - 100% Output
23 Intensity (Low)
24 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
25 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
26 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
27 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
28 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
29 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum
30 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 4
31 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
32 Intensity (Low) 0 - 100% Output
33 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
34 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
35 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
36 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
37 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
38 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum
39 CTO 75
0 - 250
Variable color temperature control channel. The channel
works independently of the color mixing channel and will
adjust all mixed color from the selected color temperature
level. Values stated below are for guidance only. The channel
should be mapped in such a way, that the channel level runs
are variable from 0 - 250
01800K
25 2700K
50 3000K
75 3200K (Default)

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
13
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
39 CTO (continued) 75
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
SSCC Mode - 12 Cell Selected - Additional Channels Added
6Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
7Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum.
8Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
9Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum.
10 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
11 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum.
12 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 2
13 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
14 Intensity (Low) 0 - 100% Output
15 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
16 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum.
17 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
18 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum.
19 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
20 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum.

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
14
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
21 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 3
22 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
23 Intensity (Low) 0 - 100% Output
24 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
25 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum.
26 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
27 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum.
28 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
29 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum.
30 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
30 CTO 75 150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 4
31 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
32 Intensity (Low) 0 - 100% Output

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
15
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
33 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
34 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum.
35 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
36 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum.
37 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
38 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum.
39 CTO 75 0 - 250 Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 5
40 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
41 Intensity (Low) 0 - 100% Output
42 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
43 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum.
44 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
45 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum.
46 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
47 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum.
48 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
16
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
48 CTO (continued) 75
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 6
49 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
50 Intensity (Low) 0 - 100% Output
51 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
52 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum.
53 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
54 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum.
55 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
56 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum.
57 CTO 75 0 - 250 Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 7
58 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
59 Intensity (Low) 0 - 100% Output
60 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
61 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
61 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
63 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
64 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
65 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available spectrum

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
17
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
66 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 8
67 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
68 Intensity (Low) 0 - 100% Output
69 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
70 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available spectrum
71 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
72 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available spectrum
73 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
74 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available spectrum
75 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 9
76 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
77 Intensity (Low) 0 - 100% Output

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
18
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
78 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
79 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
80 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
81 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
82 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
83 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum
84 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 10
85 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
86 Intensity (Low) 0 - 100% Output
87 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
88 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
89 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
90 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
91 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
92 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum
93 CTO 75
0 - 250
Variable color temperature control channel. The channel
works independently of the color mixing channel and will
adjust all mixed color from the selected color temperature
level. Values stated below are for guidance only. The channel
should be mapped in such a way, that the channel level runs
are variable from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
19
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
93 CTO (continued) 75
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 11
94 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
95 Intensity (Low) 0 - 100% Output
96 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
97 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
98 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
99 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
100 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
101 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum
102 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
Cell 12
103 Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
104 Intensity (Low) 0 - 100% Output
105 Cyan (High)
00 - 65535
Cyan Color Level Control 0 - 100% Saturation
106 Cyan (Low) The 6 color LED array auto-adjusts to meet Cyan / mixed color
points of fully available color spectrum
107 Yellow (High)
00 - 65535
Yellow Color Level Control 0 - 100% Saturation
108 Yellow (Low) The 6 color LED array auto-adjusts to meet Yellow / mixed
color points of fully available color spectrum
109 Magenta (High)
00 - 65535
Magenta Color Level Control 0 - 100% Saturation
110 Magenta (Low The 6 color LED array auto-adjusts to meet Magenta / mixed
color points of fully available color spectrum

uSEr MAnuAL
www.StrAnDLighting.CoM
AurorA LED Strip 12 CELL
20
TABLE 2. SSCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
111 CTO 75
0 - 250
Variable color temperature control channel. The channel works
independently of the color mixing channel and will adjust all
mixed color from the selected color temperature level. Values
stated below are for guidance only. The channel should be
mapped in such a way, that the channel level runs are variable
from 0 - 250.
01800K
25 2700K
50 3000K
75 3200K (Default)
100 4000K
125 4500K
150 5000K
175 5600K
200 6500K
225 8000K
250 10000K
250 - 255 Reserved Hold 10000K
TABLE 3. SQCC MODE
DMX
CHANNEL PARAMETER DEFAULTS RANGE DMX DESCRIPTION
1Intensity (High) 00 - 65535 16-bit Intensity (Dimmer) Control
2Intensity (Low) 0 - 100% Output
3Strobe 0
0 - 255 Strobe Control
0 - 9 No Strobe Function - Shutter open
10 - 99 Strobe S>>>>>F
100 - 109 No Strobe Function - Shutter open
110 - 179 Lighting Strobe S>>>>>F
180 - 189 No Strobe Function - Shutter open
190 - 255 Random Strobe S>>>>>F
4Color Preset 0
0 - 255 Calibrated color presets 01 to 33
User denable color preset 01 to 20
0 - 10 Channel OFF Color Mixing takes priority
11 - 14 Moroccan Pink
15 - 18 Pink
19 - 22 Flesh Pink
23 - 26 Bright Rose
27 - 30 Follies Pink
31 - 34 Fuchsia Pink
35 - 38 Surprise Pink
39 - 42 Congo Blue
43 - 46 Blue
47 - 50 Virgin Blue
51 - 54 Midnight Maya
55 - 58 Double C.T Blue
59 - 62 Slate Blue
63 - 66 Regal Blue
67 - 70 Full C.T Blue
