Strebel S-AF XL User manual

STREBEL
S-AF XL
Floor standing high efficiency boiler
User Manual
2015-06-15 v1.0

The appliance must be installed by qualified personnel in conformity with current Technical Standards and
national and/or local legislation.
All safety, installation and maintenance instructions must also be strictly observed, as stated in this manual.
Dear Client,
Thank you for purchasing this condensing appliance, a technically advanced and high quality product, offering high
efficiency and extremely low pollutant emissions and therefore complete respect of the environment, designed to meet all
your needs for comfort at low operating costs.
Please read this manual with care before using the appliance, and observe in particular all WARNINGS and SAFETY
REGULATIONS.
We also recommend that the appliance is inspected by Technical Service personnel, specially trained in servicing this type
of appliance using exclusively original spare parts when necessary.
This manual is an integral part of the appliance and as such must be conserved with care for future consultation or transfer
to another Owner or User.
Kind regards,
Company Management
The S - AF XL appliances comply with the following:
• Gas directive 2009/142/EC
• Efficiency Directive 92/42/EEC
• Low voltage directive 2006/95/EC
• Electromagnetic compatibility directive 2004/108/EC
• Energy Efficiency ✫✫✫✫
• "Condensing" classification
• NOx Class 5 (< 70 mg/kWh)
For the serial number and year of manufacturer, refer to the technical data plate.
S - AF XL appliances are covered by a SPECIAL WARRANTY as of the date of authorisation by the Technical Services
departments, a list of which is available on the website www.bongioannicaldaie.it.
On delivery, the adhesive labels with bar codes supplied in the document envelope should be attached to the specific
certificates.
WARRANTY
CONFORMITY
Company Management
- 2 -
USE - SYSTEM SUPERVISOR

INDEX
SAFETY WARNINGS AND REGULATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PROHIBITED ACTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
DEVICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CONTROL PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
IGNITION AND SHUTDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
MENU NAVIGATION TREES AND PROCEDURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SCHEDULER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
TEMPORARY SHUTDOWN OR HOLIDAY SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ROUTINE CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
- 3 -
USE - SYSTEM SUPERVISOR

•After unpacking the appliance, ensure that all parts are intact and complete as per the supply specifications, and if any
non-conformities are found, contact the Representative that sold the appliance.
•The appliance must be installed by professionally qualified personnel, in conformity with current national and local
standards and the instructions in the manual supplied with the product.
•The appliance must only be used as envisaged in the design. The manufacturer declines all liability for physical injury
or damage to animals or objects caused by errors in installation, adjustments, maintenance or improper use of the
appliance.
•In the event of water leakage, disconnect the appliance from the electric power mains, shut off the water supply and
promptly notify the Technical Services department or other professionally qualified personnel.
•Periodically check that the hydraulic system operating pressure, in cool conditions, is approx. 2 bar. Otherwise contact
the Technical Services department or other professionally qualified personnel.
•In the event of prolonged disuse of the appliance, the following procedure must be observed:
- Set the appliance main switch and the main system switch to "OFF".
- Shut off the fuel and mains water valves.
•This manual is an integral part of the appliance and consequently must ALWAYS accompany the appliance, also in the
event of sale to another Owner or User or transfer to another system. The manual must be kept with care and in the
event of damage or loss, another copy may be requested from the Technical Services department.
•It is recommended to service the appliance at least once a year.
SAFETY WARNINGS AND REGULATIONS
b
•IT IS STRICTLY PROHIBITED to allow children or disabled persons to change settings on the appliance without assistance.
•IT IS STRICTLY PROHIBITED to activate electrical devices or equipment such as switches, telephones, household
appliances etc. if smells of fuel or uncombusted fuel are detected. In this case:
- Open doors and windows to ventilate the room.
- Close the fuel shut-off valve.
- Arrange for prompt intervention of the Technical
Services or other professionally qualified personnel.
•IT IS STRICTLY PROHIBITED to touch the appliance with bare feet or wet parts of the body.
•IT IS STRICTLY PROHIBITED to perform technical interventions or cleaning before disconnecting the appliance from
the electrical power mains and setting the main system switch and main appliance switch to "OFF".
•IT IS STRICTLY PROHIBITED to modify safety devices or control devices without prior authorisation and instructions
from the appliance manufacturer.
•IT IS STRICTLY PROHIBITED to pull, detach, or twist cables coming out of the appliance, even when disconnected
from the electrical power mains.
•IT IS STRICTLY PROHIBITED to seal off or partially obstruct the ventilation outlets of the installation room and the
appliance (if present). The ventilation outlets are essential to ensure efficient combustion.
•IT IS STRICTLY PROHIBITED to obstruct the condensate drain outlet.
•IT IS STRICTLY PROHIBITED to leave containers of flammable substances in the same room as the appliance.
•IT IS STRICTLY PROHIBITED to dispose of packaging into the environment as this constitutes a potential source of
danger. It must therefore be disposed of in accordance with current legislation in the place of use.
PROHIBITED ACTIONS
a
- 4 -
USE - SYSTEM SUPERVISOR

The aluminium heating units in the range S - AF XL are condensing heat generators, designed to heat rooms, and in
combination with a storage tank, for the production of domestic hot water.
They comprise:
- an aluminium heat exchanger, with low water content and generously sized exchange surface to optimise energy
efficiency and heating output;
- a full pre-mix microflame burner in stainless steel, to guarantee high modulation ratios, combustion stability and low
pollutant emissions (NOx Class = 5);
- a variable speed blower, required for air/gas modulation and mixing;
- a combustion circuit, which can be “type C” (room-sealed) or “type B” (open-flued), with respect to the installation
environment, and on the basis of the flue exhaust configuration on site;
- command-control electronics, which if equipped with outside sensor enables adjustment of the supply temperature on
the basis of the outside temperature. The appliance thus only provides the heat effectively needed by the utility, avoiding
energy waste. The unit is fitted with self-diagnostics with a display of the error codes and operating parameters at the
time of the fault, thereby simplifying tasks for the Technical Services department.
Also, during periods of prolonged disuse or holidays, the appliance remains protected by the Anti-freeze Function, which is
activated automatically when the supply temperature falls to 5°C and shuts off when it returns to 15°C. Obviously the gas
and electrical mains supplies must be active during these periods.
The design phase adopted specific solutions to:
- obtain a constantly optimal air/gas mix;
- minimise dispersions;
- reduce noise levels to a minimum.
The S - AF XL heating units are designed for connection to 0-10 V DC controls and for operation in cascade, in sets of up
to 6 units, and can be equipped with various system accessories, such as the mix bottle or water shut-off valve, and the
ISPESL unit, which all simplify the work of the installer and comply with compulsory italian legal requirements.
DESCRIPTION
S - AF XL appliances are equipped with the following safety, control and adjustment devices:
- Sensor on the appliance heat exchanger, to ensure thermal cut-out when the temperature reading exceeds the maximum
admissible value. This is reset manually via the DSP keypad.
- Water pressure sensor: this intervenes when the hydraulic circuit pressure falls below 0.8 bar.
- Pressure switch: this intervenes when the pressure difference between the flue outlet and air intake exceeds 3 mbar.
- Flue safety sensor: this intervenes when the flue temperature is too high.
- Gas pressure switch: this intervenes if the supply gas pressure falls below 14 mbar.
- Hydraulic circuit diagnostics to protect the heating unit against:
 - temperatureoverload,bycheckingthedifferenceintemperaturesonsupplyandreturn(ΔT);
- inadequate water circulation in the heat exchanger, checking the difference in temperatures between the heat
exchanger sensor and supply sensor.
bWARNING
•If a safety devices trips, this means that there is a potentially hazardous appliance malfunction. In this case contact
Technical Services as soon as possible for assistance.
DEVICES
- 5 -
USE - SYSTEM SUPERVISOR

CONTROL PANEL
DSP
eco
esc
menu
ok
Monday, 24. September 2012
09.37
DESCRIPTION OF SYMBOLS ON DISPLAY
Monday, 24. September 2012
OUTSIDE
5
o
C
80
o
0.0
ON ON
09.37
HEATING
D.H.W.
SET DATE
SUPPLY
TEMPERATURE READING
DOMESTIC
HOT WATER
REQUEST ACTIVE
OUTSIDE SENSOR
TEMPERATURE READING
OPERATING MODE
INITIAL SCREEN
SET TIME
BOILER
WATER PRESSURE
HEATING
REQUEST ACTIVE
Sbs Block indicator light due to intervention of safety devices
DSP User interface with display
Ip Main switch with indicator light
Fu Main fuse (10A)
Vf Flame screen
Sbs FuIpVf DSP
- 6 -
USE - SYSTEM SUPERVISOR

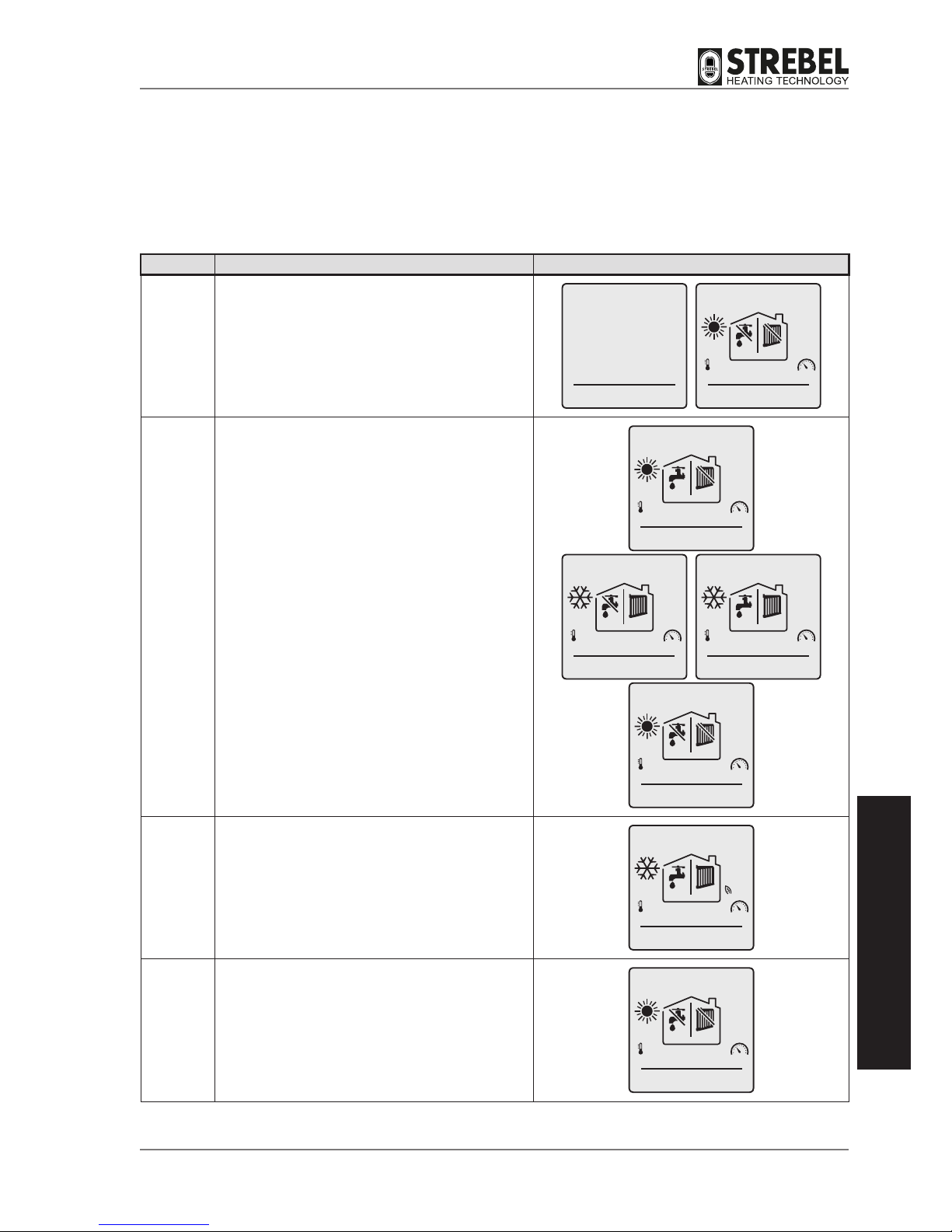

Key Description offunction Display
HON/STAND-BY
STAND-BY: This shuts down the appliance,
inhibiting the use of DSP keys
ON: This enables start-up of the appliance, enabling
use of DSP keys
date
time
date
OUTSIDE
7oC
69o
0.0
OFF OFF
time
IOPERATING MODES
SUMMER: DHW production only
WINTER: heating only or heating and DHW
NONE: no heating or DHW Anti-freeze or “Manual
Test” function active
Monday, 24. September 2012
OUTSIDE
7oC
69o
0.0
ON OFF
09.37
Monday, 24. September 2012
OUTSIDE
7oC
69o
0.0
OFF
09.37
ON
Monday, 24. September 2012
OUTSIDE
7oC
69o
0.0
ON ON
09.37
date
OUTSIDE
7oC
69o
0.0
OFF OFF
time
JECO - Manual
This reduces, by the set value, the temperature of
domestic water supply and heating water (energy
saving mode)
Monday, 24. September 2012
OUTSIDE
7oC
69o
0.0
ECO ECO
09.37
eco
EESC
Interrupts the current action and returns to the initial
screen
date
OUTSIDE
7oC
69o
0.0
OFF OFF
time
- 7 -
USE - SYSTEM SUPERVISOR

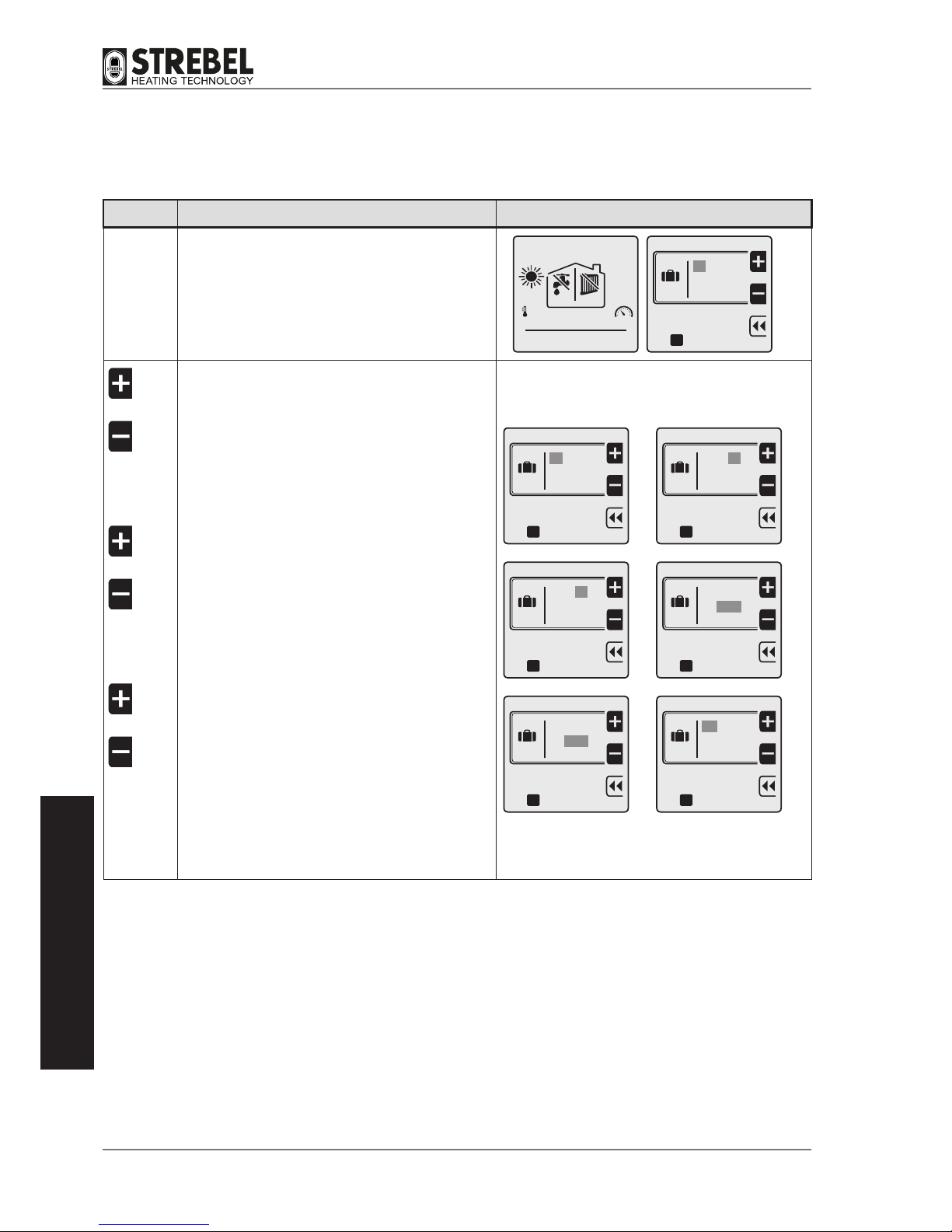

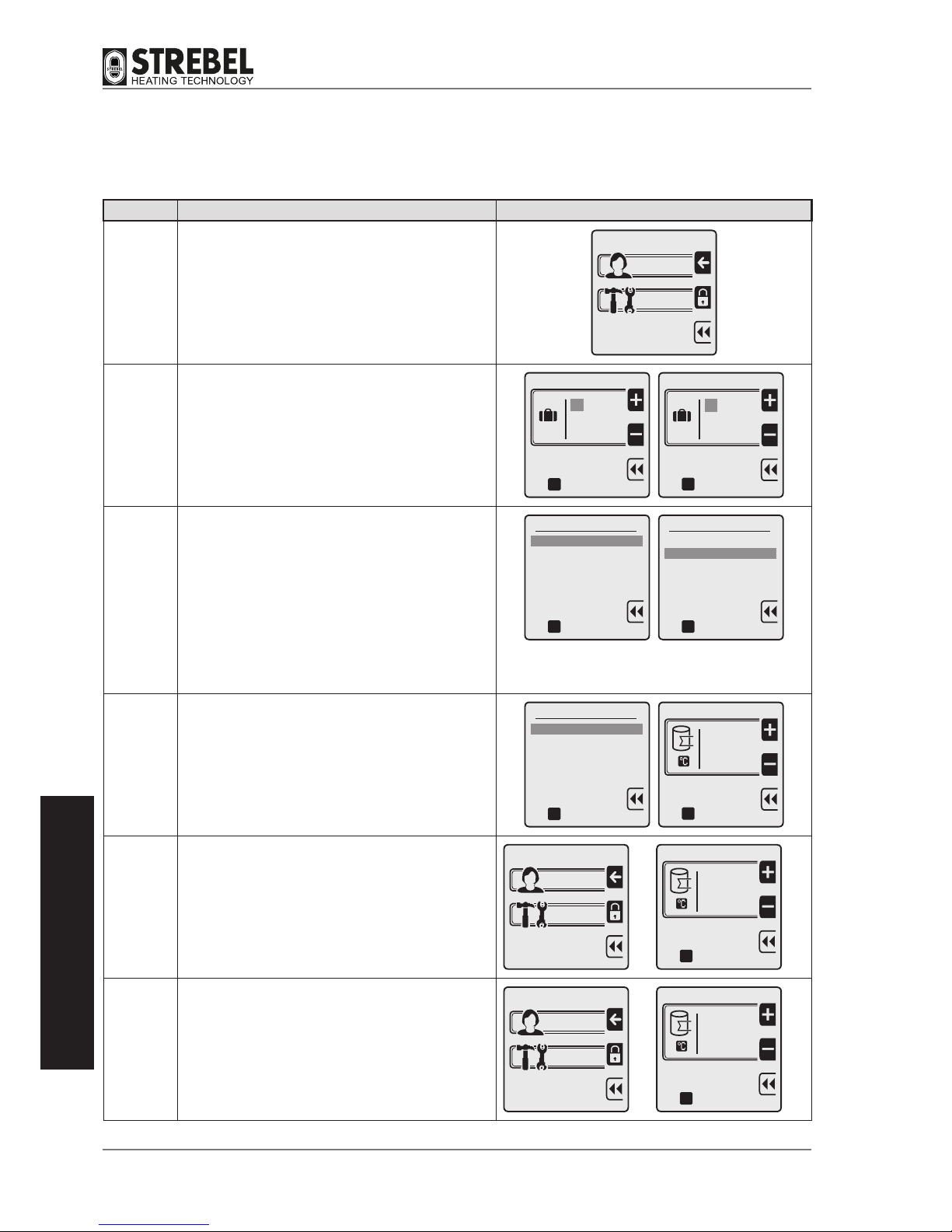

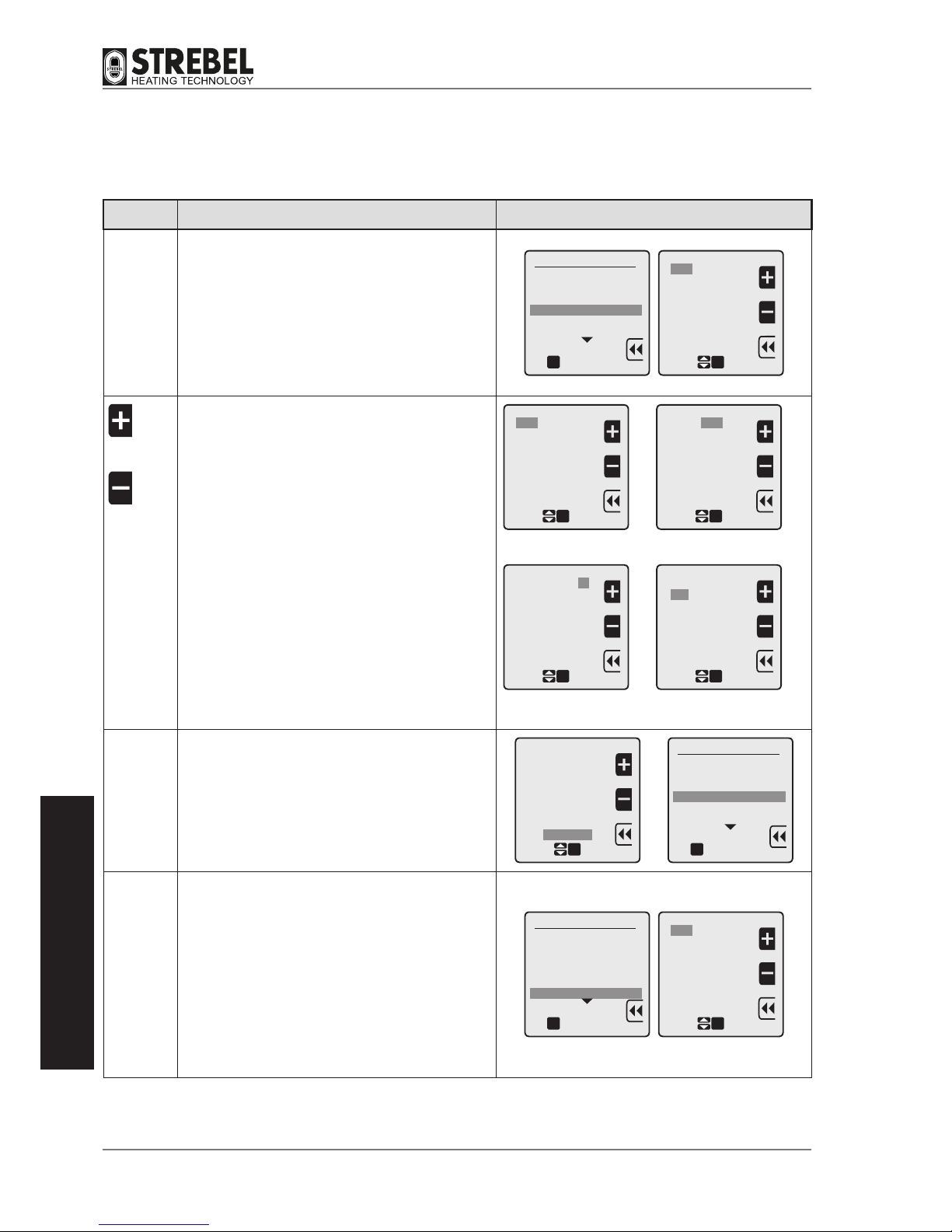

Key Description offunction Display
FMENU
Enables display of the page for menu selection
(USER or TECHNICIAN)
MENU
USER
TECHNICIAN
GHOLIDAY
This enables entry of the holiday dates (start/end)
and values for the supply of domestic hot water and
heating water during this period
Holiday start
20 / 10
2012
oK to confirm
Holiday end
2012
to confirm
oK
30 / 10
B
D
UP
Enables the user to scroll up through the lines on
screen
DOWN
Enables the user to scroll down through the lines on
screen
Keep pressed to speed up the scrolling action.
oK
User menu
1. HEATING
2. DOMESTIC HOT WATER
3. HOLIDAY
4. MAINTENANCE
5. SETTINGS
6. DIAGNOSTICS
to confirm
oK
User menu
1. HEATING
2. DOMESTIC HOT WATER
3. HOLIDAY
4. MAINTENANCE
5. SETTINGS
6. DIAGNOSTICS
to confirm
COK
Enables:
- access to the selected line of the menu or sub-menu
- confirmation of a newly modified value
DHW settings
1. DHW setpoint
2. ECO setpoint reduction
3. Scheduler set
oK to confirm
DHW setpoint
60
oK to confirm
ARED (at top)
Enables:
- access to the USER menu
- increases to the value to be modified
Keep pressed to speed up the action.
MENU
USER
TECHNICIAN
a
A
A
DHW setpoint
70
oK to confirm
a
A
A
ARED (intermediate)
Enables:
- access to the TECHNICIAN menu
- decreases to the value to be modified
Keep pressed to speed up the action.
MENU
USER
TECHNICIAN
A
a
A
DHW setpoint
50
oK to confirm
A
a
A
- 8 -
USE - SYSTEM SUPERVISOR

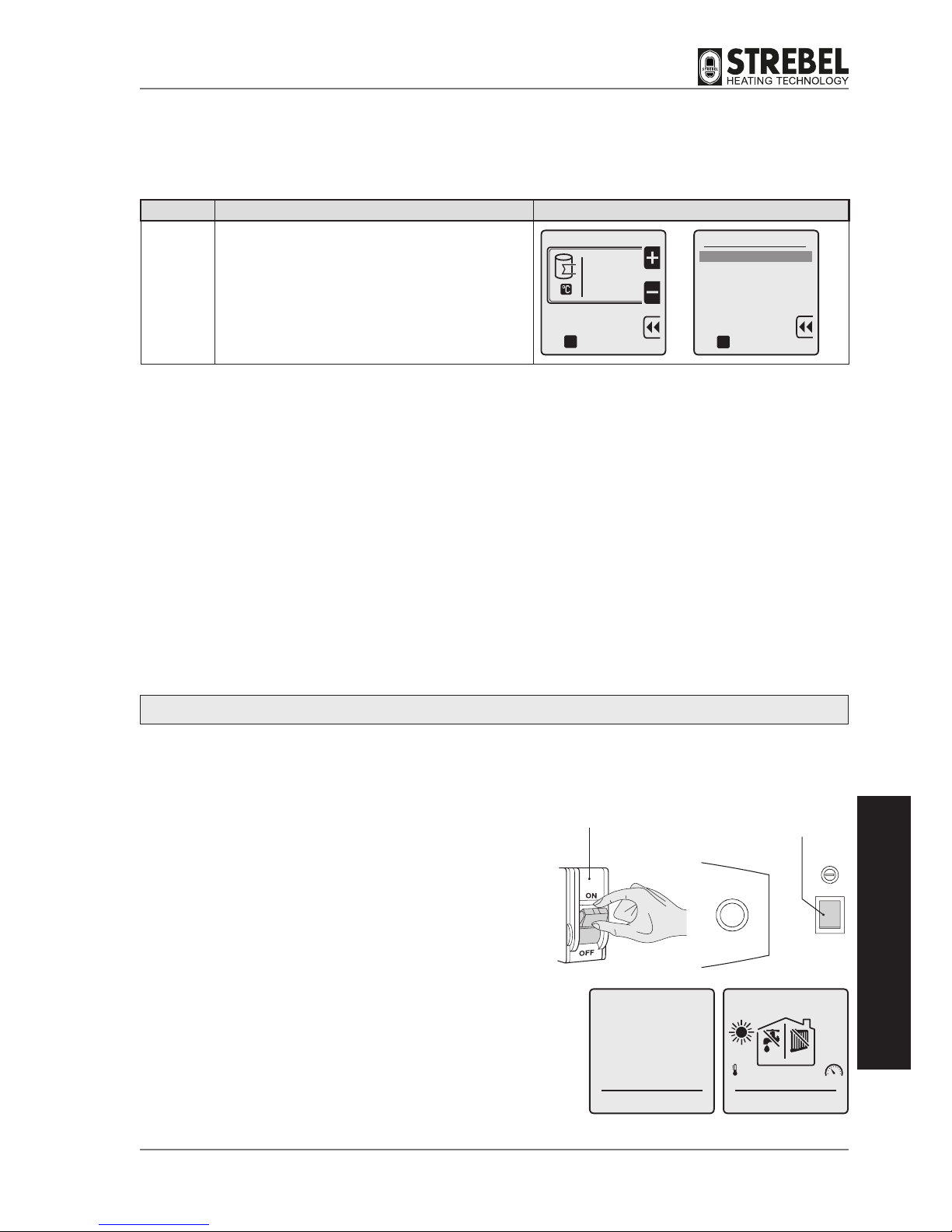

The initial commissioning of the appliance must be performed by the Technical Services, after which the appliance can
operate automatically.
The system supervisor can turn the appliance on and off as follows:
IGNITION AND SHUTDOWN
- Turn on the heating unit by setting the main system switch (IG) and
the main appliance switch (Ip) to “ON”.
- The display returns to the stand-by screen.
- Press Hto activate the keypad for the DSP.
date
time
date
OUTSIDE
7oC
69o
0.0
OFF OFF
time
Key Description offunction Display
ARED (at bottom)
Enables return to the selected line without saving/
storing the modified data.
Keep pressed to speed up the action.
DHW setpoint
50
oK to confirm
A
A
a
DHW settings
1. DHW setpoint
2. ECO setpoint reduction
3. Scheduler set
oK to confirm
A
A
a
Ip
Vf
IG
- 9 -
USE - SYSTEM SUPERVISOR

MENU NAVIGATION TREES AND PROCEDURE
date
time
date
OUTSIDE
7
o
C
69
o
0.0
OFF OFF
time
MENU
H
A
F
A
oK
A
oK
A
DB
C
C
User menu
1. HEATING
2. DOMESTIC HOT WATER
3. HOLIDAY
4. MAINTENANCE
5. SETTINGS
6. DIAGNOSTICS
to conrm
User menu
1. HEATING
2. DOMESTIC HOT WATER
3. HOLIDAY
4. MAINTENANCE
5. SETTINGS
6. DIAGNOSTICS
to conrm
USER
TECHNICIAN
See
NAVIGATION
TREE
STAND-BY
screen
INITIAL
screen
See
NAVIGATION
TREE

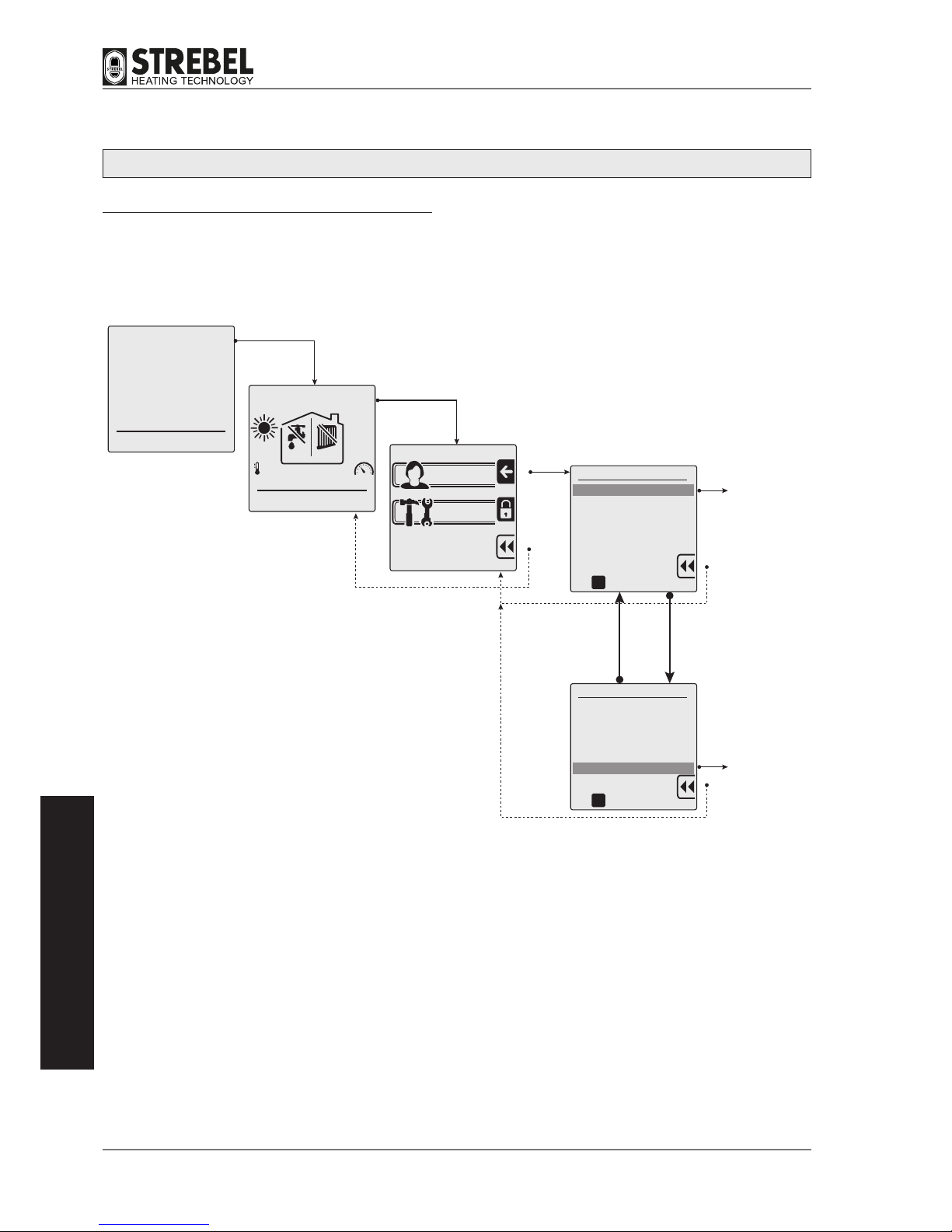

USER menu navigation tree and procedure
The appliance is supplied in the configuration STAND-BY.
To scroll through the screen menus, use the keys shown in the diagram below.
- 10 -
USE - SYSTEM SUPERVISOR

USER MENU Keys Sub-menu Keys Lines Keys Factory
settings Field
1. HEATING
C1. CH temperature/OTC Set
C1. CH temperature C75°C 20 - max.
absolute T. (*)
DB
D2. Outside temperature for
CH off COFF OFF /
7 - 30°C
D2. ECO setpoint reduction C---> ---> 50°C 0 - 50°C
D3. Scheduler set
C1. Enable/disable scheduler CEnabled Enabled/
disabled
D2. Scheduler settings CMonday week days
2. DOMESTIC HOT
WATER C1. DHW setpoint C---> ---> 80°C (**) 35 - 85°C
DB
D2. ECO setpoint reduction C---> ---> 20°C 0 - 50°C
D3. Scheduler set
C1. Enable/disable scheduler CEnabled Enabled/
disabled
D2. Scheduler settings CMonday week days
3. HOLIDAY C1. CH holiday setpoint C---> ---> 20°C 20 - max.
absolute T. (*)
DB D 2. DHW holiday setpoint C---> ---> 80°C (**) 30 - 85°C
4. MAINTENANCE C1. Service information C---> ---> read only
DB D 2. Service due date C---> ---> read only
5. SETTINGS C1. Select Language CEnglish / Italiano CItaliano English/
Italiano
DB
D2. Select Units CFahrenheit / Celsius CCelsius Fahrenheit/
Celsius
D3. Set date C---> ---> day / month / year
D4. Set time C24 hour / 12 hour Chours : minutes
D5. Restore factory settings C---> ---> OK to reset
6. DIAGNOSTICS C1. Boiler information Cread-only display of set parameters and values
D2. Lockout history Cread-only display of lockout/fault history
(*) Maximum absolute temperature set at point “1.2.1“ of the technician menu.
(**) - If “2.5 TYPE OF REQUEST“ of the Technician menu = “Contact” then “Factory setting” = 80°C with “Field” = 30 - 85°C.
- If “2.5 TYPE OF REQUEST“ of the Technician menu = “Sensor” then “Factory setting” = 60°C with “Field” = 10 - 65°C.
- 11 -
USE - SYSTEM SUPERVISOR

KEY TO THE USER MENU LINES
Ref. menu
line Line title Meaning
1. HEATING
1.1.1 CH temperature Entry of setpoint of supply temperature (heating)
1.1.2 OTC set Entry of setpoint of outside temperature for automatic switchover to "Summer mode"
1.2 ECO setpoint reduction Entry of value to reduce temperature on supply in "energy saving" mode
(day or night time)
1.3.1 Enable/disable on board
scheduler Enable or Disable implementation of the "heating time bands" set for the various week days
1.3.2 Scheduler set Settings of the "heating time bands" applied for the various week days
2. DOMESTIC HOT WATER
2.1 DHW setpoint Entry of the setpoint for DHW temperature
2.2 ECO setpoint reduction Entry of value to reduce temperature of DHW in "energy saving" mode
(day or night time)
2.3.1 Enable/disable on board
scheduler Enable or Disable implementation of the "DHW production time bands" set for the various week days
2.3.2 Scheduler set" Settings of the "DHW production time bands" applied for the various week days
3. HOLIDAY
3.1 CH holiday setpoint" Entry of the setpoint for supply temperature during the holiday period.
3.2 Instant DHW setpoint Entry of the setpoint for DHW during the holiday period.
4. MAINTENANCE
4.1 Contact info Display of services contact phone number
4.2 Service due date Display of date for next maintenance due
5. SETTINGS
5.1 Select Language Selection of language (English or Italian)
5.2 Select Units Selection of units of measurement (Celsius or Fahrenheit)
5.3 Set date Entry or modification of current date
5.4 Set time Selection of 12 or 24 hour format - Entry or modification of current time
5.5 Restore factory settings Restores factory settings
6. DIAGNOSTICS
6.1 Boiler information
Display of boiler status and temperature readings
To display, selectthe message, press Cand view the values, scrolling through items by
means of the arrows DB
6.2 Lockout history Display of the error list.
- 12 -
USE - SYSTEM SUPERVISOR

The system also envisages the option of setting time bands during which the heating unit is set to operate, if there is a
demand for heat, and those during which it remains off, or in ECO mode when fitted with an outside sensor.
There is a maximum of 6 programmable time bands within 24 hours, each of which must be identified by a start time (ON),
and end time (OFF). The minimum interval between each time is half an hour.

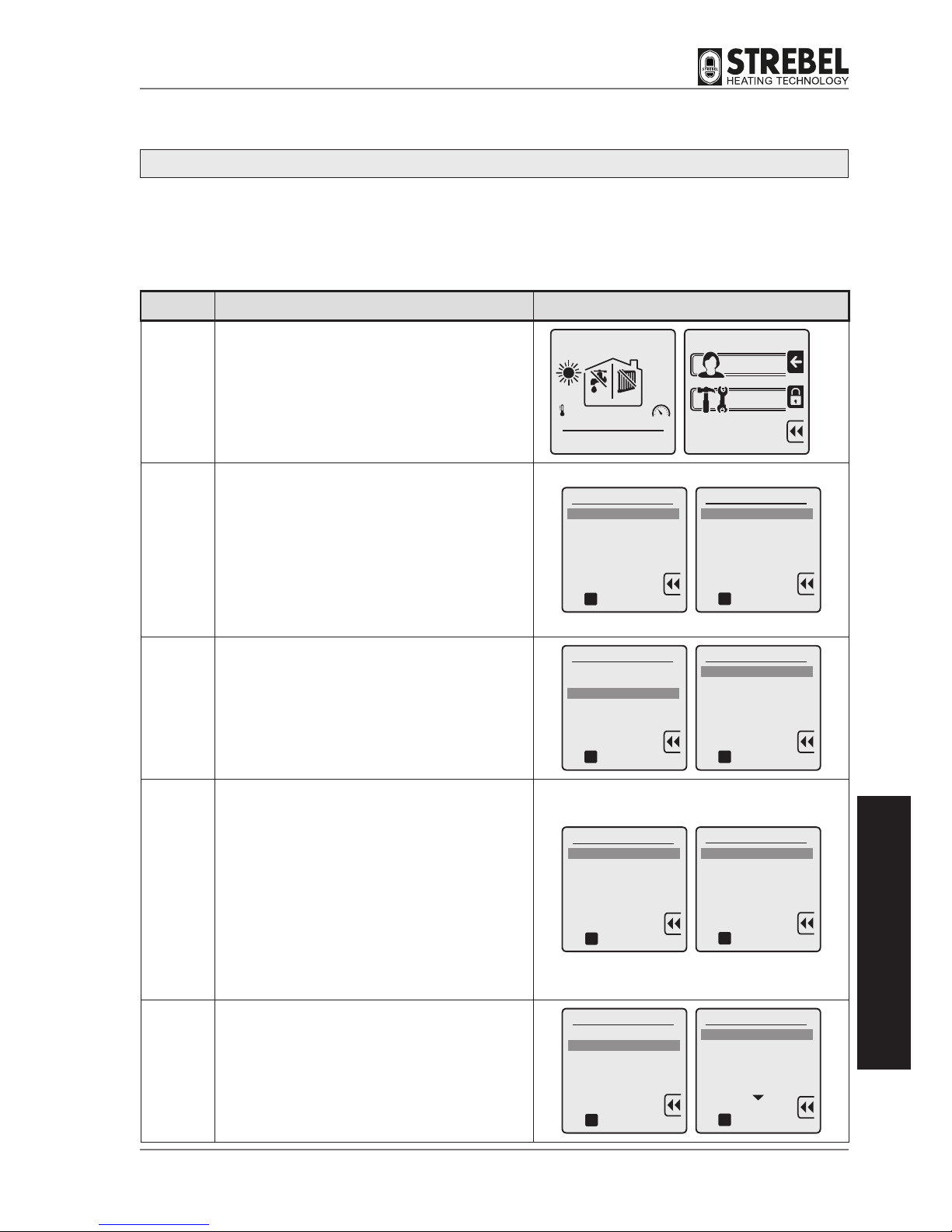

SCHEDULER SETTINGS
Key to
press Description Display
F
A
to display the MENU screens
to enter the USER MENU
date
OUTSIDE
7oC
69o
0.0
OFF OFF
time
MENU
USER
TECHNICIAN
a
A
A
C
D
C
to select "1. HEATING"
or
to select "2. DOMESTIC HOT WATER"
NOTE: the scheduler setting procedure is the same
for both functions.
oK
User menu
1. HEATING
2. DOMESTIC HOT WATER
3. HOLIDAY
4. MAINTENANCE
5. SETTINGS
6. DIAGNOSTICS
to confirm
Heating settings
1. CH temperature/OTC set
2. ECO setpoint reduction
3. Scheduler set
oK
to confirm
D
TWICE
C
to select "3. Scheduler set"
to confirm and access the selected line
oK
Heating settings
1. CH temperature/OTC set
2. ECO setpoint reduction
3. Scheduler set
to confirm
oK
Scheduler set
1. Enable/disable on board scheduler
2. Scheduler set
to confirm
B
D
C
to select Enabled or Disabled
to confirm the selection and return to line “1. Enable/
disable on board scheduler"
CAUTION: if the selection is DISABLED, the
scheduler settings are memorised but not
enabled.
Enable/disable on board scheduler
Disabled
Enabled
oK
to confirm
oK
Scheduler set
1. Enable/disable on board scheduler
2. Scheduler set
to confirm
D
C
to select "2. Scheduler set"
to confirm and access the selected line
Scheduler set
1. Enable/disable on board scheduler
2. Scheduler set
oK
to confirm
Scheduler set
1. Monday
2. Tuesday
3. Wednesday
4. Thursday
5. Friday
6. Saturday
oK
to confirm
- 13 -
USE - SYSTEM SUPERVISOR

Key to
press Description Display
B
D
C
to select the single day or group of days in the week
to confirm and access the selected line
oK
Scheduler set
5. Friday
6. Saturday
7. Sunday
8. Monday-Friday
9. Monday-Sunday
10.Saturday-Sunday
to confirm
oK
1. --:-- - --:-- --
2. --:-- - --:-- --
3. --:-- - --:-- --
4. --:-- - --:-- --
5. --:-- - --:-- --
6. --:-- - --:-- --
Monday-Friday
to confirm
to select
Save & Exit
A
OR
A
D
D
D
to set the “start” time of the first band
to set the “end” time of the first band
to select the operating mode of the first time band,
from ON, ECO or -- (boiler OFF)
to go to the second time band
To enter the settings, proceed in the same way as
with the first band.
NOTE: the time entry procedure is the same for all
selected time bands.
Monday-Friday
to confirm
to select
Save & Exit
oK
1. 05:30 - 24:00 ON
2. --:-- - --:-- --
3. --:-- - --:-- --
4. --:-- - --:-- --
5. --:-- - --:-- --
6. --:-- - --:-- --
a
a
A
oK
1. 05:30 - 08:00 ON
2. --:-- - --:-- --
3. --:-- - --:-- --
4. --:-- - --:-- --
5. --:-- - --:-- --
6. --:-- - --:-- --
Monday-Friday
to select
Save & Exit
to confirm
a
a
A
oK
1. 05:30 - 08:00 ON
2. --:-- - --:-- --
3. --:-- - --:-- --
4. --:-- - --:-- --
5. --:-- - --:-- --
6. --:-- - --:-- --
Monday-Friday
to confirm
to select
Save & Exit
a
a
A
oK
1. 05:30 - 08:00 ON
2. --:-- - --:-- --
3. --:-- - --:-- --
4. --:-- - --:-- --
5. --:-- - --:-- --
6. --:-- - --:-- --
Monday-Friday
to confirm
to select
Save & Exit
a
a
A
D
C
to select “Save and exit” or “Copy to the Next Day”
(if the user wishes to copy the current settings to the
next day)
to save the settings made and return to the line
of the single day or group of week days selected
previously
Copy to the Next Day
oK
1. 05:30 - 08:00 ON
2. 08:00 - 11:30 ECO
3. 11:30 - 14:00 ON
4. 14:00 - 18:00 --
5. 18:00 - 22:30 ON
6. 22:30 - 05:30 ECO
Monday-Friday
to confirm
to select
Save & Exit
a
a
A
oK
Scheduler set
5. Friday
6. Saturday
7. Sunday
8. Monday-Friday
9. Monday-Sunday
10.Saturday-Sunday
to confirm
B
D
C
to select the day or days remaining and set the
required time bands
to confirm and access the selected line
NOTE: the time entry procedure is the same for all
selected time bands.
Scheduler set
5. Friday
6. Saturday
7. Sunday
8. Lunedì-Venerdì
9. Monday-Sunday
10.Saturday-Sunday
to confirm
oK
oK
1. --:-- - --:-- --
2. --:-- - --:-- --
3. --:-- - --:-- --
4. --:-- - --:-- --
5. --:-- - --:-- --
6. --:-- - --:-- --
Monday-Friday
to confirm
to select
Save & Exit
- 14 -
USE - SYSTEM SUPERVISOR

TEMPORARY SHUTDOWN OR HOLIDAY SCHEDULE
This function enables a reduction in the operating regime of the heating unit in the case of temporary absences, weekends,
holidays and above all automatic restart after the set time interval.
bWARNINGS
•During the holiday period, it is essential to leave the electrical and gas mains supplies to the appliance powered, to
ensure correct operation.
The supply temperatures for the heating system and/or production of domestic hot water, must be set as described below:
Key to
press Description Display
F
A
to display the MENU screens
to enter the USER menu
date
OUTSIDE
7
o
C
69
o
0.0
OFF OFF
time
MENU
USER
TECHNICIAN
a
A
A
D
TWICE
C
to select "3. HOLIDAY"
to confirm and access the selected line
oK
User menu
1. HEATING
2. DOMESTIC HOT WATER
3. HOLIDAY
4. MAINTENANCE
5. SETTINGS
6. DIAGNOSTICS
to confirm
oK
Holiday
1. CH holiday setpoint
2. DHW holiday setpoint
to confirm
C
A
OR
A
C
to select "1. CH holiday setpoint"
to set the required value
to confirm the settings and return to line “1. CH
holiday setpoint"
CH holiday setpoint
50
oK
to confirm
oK
Holiday
1. CH holiday setpoint
2. DHW holiday setpoint
to confirm
D
C
A
OR
A
C
to select "2. DHW holiday setpoint"
to confirm and access the selected line
to set the required value (only in the case of storage
tanks with sensor) (*)
to confirm the settings and return to line “2. DHW
holiday setpoint"
Holiday
1. CH holiday setpoint
2. DHW holiday setpoint
oK
to confirm
DHW holiday setpoint
30
oK
to confirm
(*) In the case of storage tanks with thermostat, take care not to set an excessively low value, as this could cause
continuous requests for domestic hot water.
- 15 -
USE - SYSTEM SUPERVISOR

Key to
press Description Display
E
G
to return to the initial screen
to display the “Holiday start” date
date
OUTSIDE
7
o
C
69
o
0.0
OFF OFF
time
Holiday start
20 / 10
2012
oK
to confirm
a
a
A
A
OR
A
D
A
OR
A
D
A
OR
A
C
to set the holiday start day
to select the month
to set the month
to select the year
to set the year
to confirm the settings made and enter the "Holiday
end" screen.
NOTE: to make the settings for the day, month and
year of the holiday end, follow the same procedure
as described for “Holiday start”.
Holiday start
30 / 10
2012
oK
to confirm
a
a
A
Holiday start
30 / 10
2012
oK
to confirm
a
a
A
Holiday start
30 / 12
2012
to confirm
oK
a
a
A
Holiday start
30 / 12
2012
oK
to confirm
a
a
A
Holiday start
30 / 12
2012
oK
to confirm
a
a
A
Holiday end
01 / 12
2012
to confirm
oK
a
a
A
- 16 -
USE - SYSTEM SUPERVISOR

ROUTINE CLEANING
Internal cleaning of the appliance and removal of combustion residue from the exchange surfaces are operations required
at least once a year, to be performed by professionally qualified personnel.
This is an essential condition to reduce consumption, pollutant emissions and to keep the stated efficiency and reliability
of the boiler over time.
Before cleaning:
- Set the main switch (IG) of the system and the main
appliance switch (Ip) to “OFF”
- Close the fuel shut-off valves.
EXTERNAL CLEANING
The outer casing should be cleaned with cloths dampened
with water and detergent. In the case of stubborn stains,
dampen a cloth with a mix of 50% water and denatured
alcohol or with special products.
After cleaning, dry the appliance thoroughly.
WARNINGS
•Never use abrasive products, benzene or trichloroethane.
MAINTENANCE
Note that it is a COMPULSORY LEGAL REQUIREMENT THAT THE BOILER SUPERVISOR must arrange for PERIODIC
MAINTENANCE and COMBUSTION EFFICIENCY MEASUREMENTS to be performed by PROFESSIONALLY
QUALIFIED PERSONNEL.
The Technical Services department can fulfil this legal requirement when necessary.
PERIODIC MAINTENANCE guarantees:
- Increased safety
- Reduced operating costs
- Extended lifetime of the boiler
- The reassurance of not receiving considerable penalties in the event of inspections.
IG
Ip
Vf
- 17 -
USE - SYSTEM SUPERVISOR

NOTES
- 18 -
USE - SYSTEM SUPERVISOR

Strebel Ltd
1f Albany Park Industrial Estate,
Frimley Road, Camberley,
Surrey, GU16 7PB
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.strebel.co.uk
Further information on our complete product range is available from our website.
CAST IRON –CONDENSING –STEEL SHELL –WATER HEATERS –RENEWABLES
FLUES –ACCESSORIES –RADIATORS
008074132
