Streetwize SWTOOL8 User manual

Professional Solutions

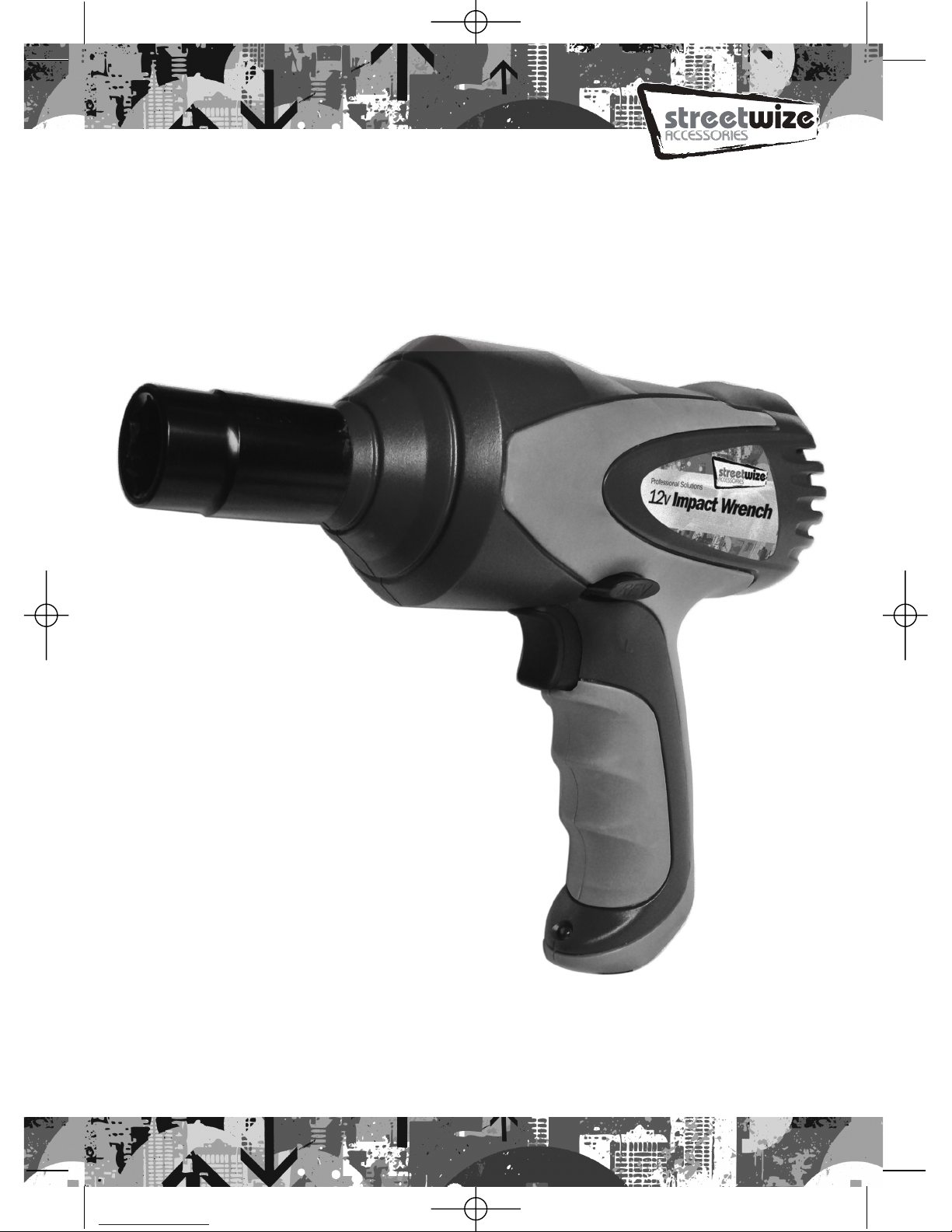

12v Impact Wrench
Instruction Manual
SWTOOL8
Streetwize Accessories thoroughly recommends reading these instructions before using the impact
wrench, even if you have used an impact wrench on a vehicle before. Reading these instructions
carefully and understanding them fully will enable you to remove a wheel correctly and will prevent
injury to yourself or someone else as well as prevent damage to the vehicle and equipment.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE!
SWTOOL8 Manual AW:Layout 1 5/8/13 12:00 Page 2

1 2
4
3
5
6
8
7
1. Socket Wrench (with Square
retaining lug).
2. Spirit Level.
3. Power On/Off switch.
4. Clockwise/Anti-clockwise switch.
5. LED work Light.
6. Spare 15A fuses.
7. 2 Double Ended Socket Wrenches:
11/16” (17mm), 3/4” (19mm) 13/16”
(21mm), 7/8” (23mm).
8. Plastic Case.
SWTOOL8 Manual AW:Layout 1 5/8/13 12:00 Page 3

With normal care and proper treatment it will provide years of
reliable service. Please read all operating instructions carefully
before use. Save this manual for future reference.
Intended Usage
The SW Impact Wrench is designed to loosen or tighten vehicle lug
nuts for tires.
It is intended for occasional intermittent use, not commercial
purposes.
Caution: This 12v SW Impact Wrench can only be used on
small/midsize cars & 4x4’s! It CANNOT be used on trucks.
Caution
Warning: Read all safety warnings and instructions. Use the
Impact Wrench in accordance with these instructions, taking
into account the working conditions and the work to be
performed. Use of the power tool for operations different
then those intended could result in a hazardous situation and
serious injury.
• Keep children and bystanders away while operating a power tool.
Distractions can cause the operator to lose control.
• Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts that they can
get caught on.
• Screws, nuts and bolts that have been tightened to a specific
torque should be tightened with a torque wrench once the
vehicle has been fitted in place. If you are in doubt as to the
correct torque stipulated for your vehicle, consult your car
manufacturer. The nuts should be tightened once more after
driving a distance of approximately 50 kilometers.
SWTOOL8 Manual AW:Layout 1 5/8/13 12:00 Page 4

Safety Warnings
• Do not use the power tool if the switch does not turn off. Any power
tool that cannot be controlled with the switch is dangerous and must
be repaired.
• Do not operate the tool if the SW Impact Wrench or the power cord
shows visible signs of damage.
• Only connect the tool to a correctly installed cigarette lighter adapter
with 12v power.
• Do not let the tool or power cord get wet. Never use the tool in the
rain. Water penetrating an electrical device increases the risk or
electrical shock.
• Do not use the tool in potentially explosive environments containing
combustible liquids, gases or dust. Electrical tools generate sparks
that can ignite the dust or vapors. Do not throw the tool into an
open fire or water.
• Do not overload the tool. Do not apply excessive pressure to the
SW Impact Wrench. If the screws cannot be moved and the wrench
freezes, stop operation. Either use a more powerful tool or continue
with a manual wrench. Do not attempt to continue to turn the screw
manually with the SW Impact Wrench.
• Do not operate the tool without a load at full speed for any length of
time.
Operation - Please Note: To prevent powering on the tool by
accident: ensure the switch is in the OFF position before
connecting to the power source, and picking up or carrying the tool.
1. Plug the 12 volt power adapter plug into the vehicle cigarette lighter
socket.
2. The LED light will turn on when the wrench is powered, indicating
the wrench is running and also functioning as a small work light.
3. Thread a screw/nut on by hand. Note: always thread a screw or nut
by hand to start it before tightening with the SW Impact Wrench.
4. Attach an appropriately sized socket wrench on the square retainer.
The 2 socket wrenches can be flipped to use 4 different diameters.
SWTOOL8 Manual AW:Layout 1 5/8/13 12:00 Page 5

5. Set the rotation selector to FWD for clockwise or REV for
counter-clockwise rotation.
6. Pull the ON/OFF trigger switch to turn the tool on. Release the
trigger switch to turn the tool off.
7. Do not operate the tool for longer than 10 minutes without
interruption. Afterwards, take 10 minutes to allow the wrench to
cool down.
8. After tightening, check the screw connections for visible signs of
damage.
Product Care
• Handle the tool and accessories with care and keep them clean to
ensure a long service life.
• Do not make any modifications to the tool. Repairs to the tool or
power cord should be carried out by an authorized service
technician.
• Disconnect the plug from the cigarette lighter before cleaning parts
of the tool, or if there is a problem with the tool.
• Do not use caustic, abrasive or solvent-based products for
cleaning.
• Use a soft, dry cloth to wipe the tool clean.
• Prevent oil or oil products from entering the plastic casing. The
chemicals they contain could corrode or damage the plastic.
Grease and oil-based grime must be immediately wiped off the
tool and accessories with a slightly damp cloth.
• Store idle power tools out of reach of children and do not allow
people unfamiliar with the power tool or these instructions operate
it. Power tools are dangerous in the hands of untrained users.
• Disposal of this product should only be done in accordance with
the current regulations.
SWTOOL8 Manual AW:Layout 1 5/8/13 12:00 Page 6

Replacing the Fuse in the 12v Adapter
1. Twist off the upper cover of the 12V adapter tip.
2. Remove the faulty fuse.
3. Insert a new fuse of the same type (spare fuses are included in the
case)
4. Twist the cover back onto the Adapter.
Troubleshooting
Specifications
Problem Possible Solution
The Impact Wrench will
not start
Check if the vehicle battery is dead
Check if the 12V socket is faulty
Check the fuse in the 12V Adapter of the wrench
A wheel nut cannot be
unscrewed or tightened
Check that the correct rotation direction has been
selected
Voltage 12v DC
Power Draw 8 Amp
No Load Speed 5000 RPM max
Max Torque 271 ft-lb
Fuse Rating 15A, 250V
Square retainer diameter 1/2” (12.7 mm)
Included Socket
Diameters
11/16”, 3/4”, 13/16”, 7/8”
(17 - 19 mm, 21 - 23 mm)
SWTOOL8 Manual AW:Layout 1 5/8/13 12:00 Page 7

The WEEE symbol on this product means that this product should be
ethically dismantled or recycled to minimise environmental impact.
Please check with your local authority for more information.
IMPORTANT: ADDITIONAL SAFETY INFORMATION
This Impact Wrench is NOT intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they are supervised or have been given instruction
concerning use of the Impact Wrench by a person responsible for their safety.
EC Declaration of Conformity
In accordance with EN ISO 17050 1:2004
We; The Ace Supply Co Ltd., T/A Streetwize Accessories
Of; Unit 9, Warth Rd Ind Estate, Warth Road, Bury,Lancashire BL9 9NB
This is an important document and should be retained.
We hereby declare that this product complies with the following Directive(s):
2004/108EC EMC Directive
2006/42/EC Machinery Directive
The following standards have been applied to this product
EN55014-1:2006, EN55014-2:1997/+A1:2001/+A2:2008
EN60745-1:2009 EN60745-2-2:2003+A11:2007+A1:2009+A12:2009
Product Description: Impact Wrench
Model Number: SWTOOL8
Date of Issue: 02/08/2013
Signed by:
Name: Tony Collier QC Manager
