Studiomaster Professional XVP 1810 User manual

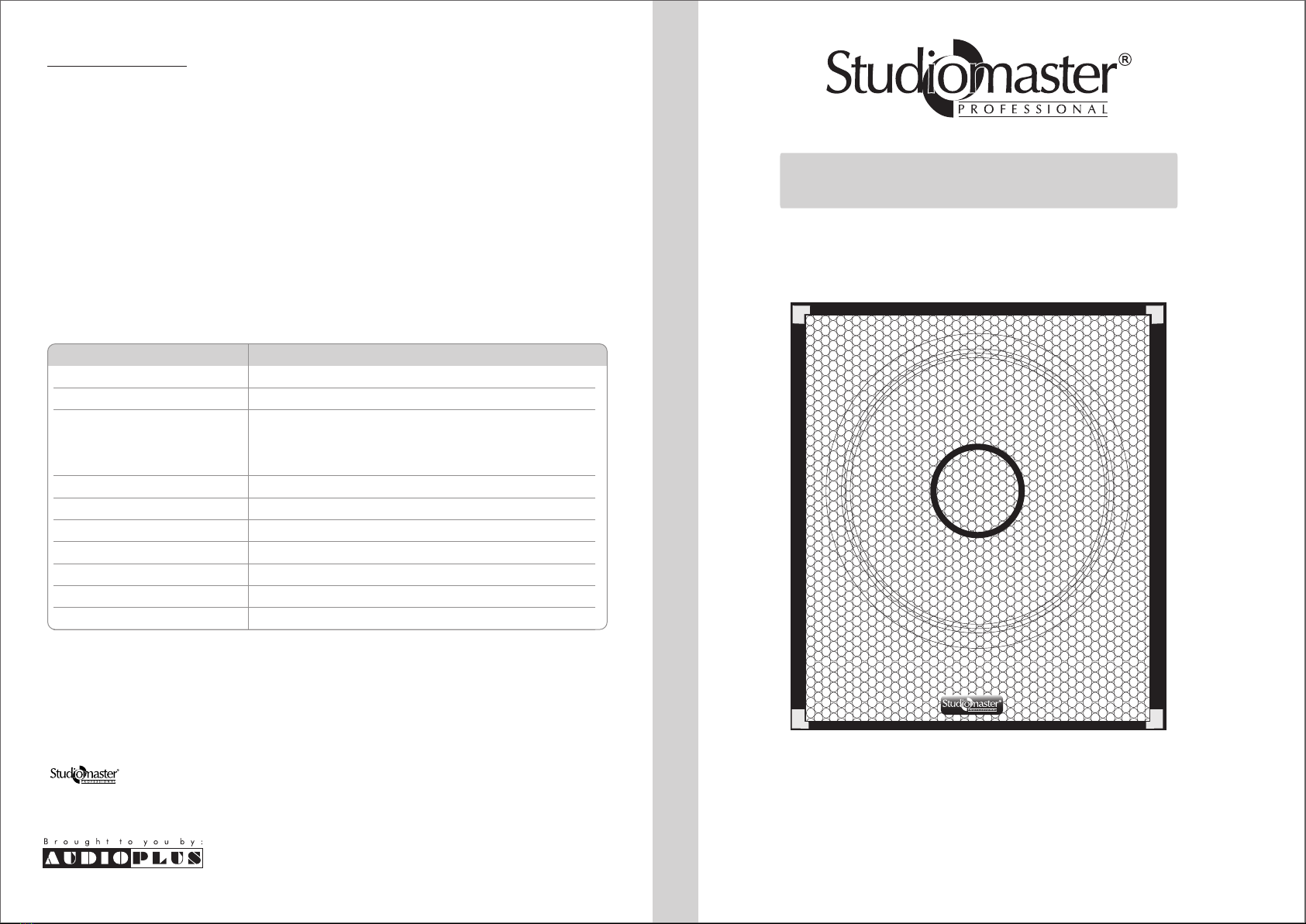

I N S T R U C T I O N M A N U A L
XVP 1810
Professional 1000W Sub-Woofer
6. Specifications:
To protect your system
a) Use adequate clean power to drive the system to required levels. Avoid clipping or overloading your
power amplifier.
b) Recognize and respect the known limits of your equipment.
c) Consider adding a peak limiter, such as the compressor/limiter to your system to electronically limit
potentially damping.
d) To get the best performance from a loudspeaker, the amplifier should be rated higher in terms of
watts. It wouldn't be unreasonable to connect a 200 W amplifier to a 100 W speaker, and it won't
blow the drive units unless you push the level too high.
Model Name
Type
Frequency Response
Power Handling (watts)
RMS
Peak
Sensitivity 1w/1m
System Impedance
Driver Size (inch)
Max SPL
Input Connector
Dimension (W X D X H) mm
Weight (kg/lbs)
XVP 1810
Sub-Woofer
32Hz - 150Hz (-10dB)
1000W
2000W
98.6dB SPL
8 Ω
18”
128.6dB
2 x Speakon
630 x 615 x 710 mm
65 kgs
is a registered trademark of Audioplus in India. © Copyright Audioplus, 2008. All rights reserved.
Any unauthorised reproduction or use of logos, images or design elements is strictly prohibited by law. No part of
the compilation may be reproduced in any manner or translated without written permission.
Rev01/SMXVP1810/Nov 2016
* Design and specification are subject to change without notice.
A1/A2, Giriraj Industrial Estate, Mahakali Caves Road, Andheri (East), Mumbai - 400 093.
Tel.: 022 - 42869000 / 01, 26870268 Fax: 022-26871453.
Whats App:091-8888887049 (Marketing Enquiries only)E [email protected]
W www.audioplus-india.com / www.studiomasterprofessional.com.
• 18” Sub-Woofer.
• Power handling: 1000 Watts.
• Parallel input connectors allow linking of additional loudspeakers.
• Precise reproduction of Ultra low frequencies with a clear, powerful punch.
• Easy Carry handle & Attractive Carpet Finish.
• Rugged steel grille for optimal speaker protection.
Unpacking
As part of our system of quality control, every Studiomaster Professional product is carefully inspected
before leaving the factory to ensure flawless appearance. After unpacking, please inspect for any
physical damage. In the event that damage has occurred, immediately notify your dealer
The XVP series are specifically designed for touring professional and high quality installs. They are very
reliable and use premium quality componets.
2. Introduction
1. Warranty Information
23
3. Standard Features
5. CONNECTION
The Studiomaster Professional XVP Series are equipped with high quality speakon connectors. Two
connectors are installed in parallel allowing an additional speaker set to be installed.
The pin arrangement of speakon connector for full range:
1+ = In (+)
1- = In (-)
2+ = Not used
2- = Not used
Index:
1............................................................................................................Warranty Information
2............................................................................................................Introduction
3............................................................................................................Standard Features
4............................................................................................................Application
5............................................................................................................Connection
6............................................................................................................Technical Specifications
4. Application
- Main PA - Night Clubs - House of Worship. - DJ applications.
Note
Each speaker connected in parallel increases the load on the amplifier and can add up to a total load
that may exceed the amplifier's capabilities, leading to possible damage.
1) Wire size:
Please use cable of the correct guage in order to obtain optimum performance from your speaker
system. We recommend that your cable should be no smaller than 14 gauge. For cable of 100 ft to
250 ft, use cable no smaller than 12 gauge.
APPLICATION GUIDELINES:
2) Matching amplifier
To get the maximum performance from your XVP series Loudspeaker, Studiomaster Professional
recommends the following guidelines.
Carefully Monitored Application:
For carefully monitored applications, where the peak transient capability must be maintained, the
amplifier should be capable of delivering twice continuous power rating of the speaker. As an
example, a speaker rated at 1000 continuous watts can be safely driven by an amplifier capable of
2000 watts power output.
Routine application:
For routine application where high continuous, but non-distorted output is likely to encountered, the
amplifier power rating should match the continuous power rating of the speaker.
• Two 8 Ω loud speakers in parallel make 4 Ω total load.
• Four 8 Ω parallel connected loud speakers make a total load of 2 Ω , which is not suitable for
many amplifiers to handle.
Thank you for purchasing the Studiomaster Professional XVP Series Professional Loud Speakers.
To ensure maximum performance and safety, please follow this instruction manual carefully.
Please retain this manual for future reference.
For any complaint, feedback or testimonials please contact our Distributor / dealer.
Speakon Wiring Guide
Not Connected
2+ 2-
1- 1+
+
-
