Sub-zero Built-in refrigeration User manual

INSTALLATION GUIDE

Built-In Refrigeration

Important Note

To ensure the safe and efficient installation of Sub-Zero

equipment, please take note of the following types of

highlighted information throughout this guide:

I PORTANT NOTE highlights information that is

especially relevant to a problem-free installation.

CAUTION signals a situation where minor injury or

product damage may occur if instructions are not

followed.

WARNING states a hazard that may cause serious injury

or death if precautions are not followed.

Contents

Built-In Refrigeration .......................... 3

Installation Preparation ........................ 4

Overall Dimensions ........................... 6

Opening Dimensions .......................... 8

Electrical Requirements ....................... 12

Plumbing Requirements ...................... 13

Door Clearance ............................. 14

Built-In Installation ........................... 15

Panel Installation ............................ 23

Dual Installations ............................ 37

Side Panel Installation ........................ 40

Installation Checklist ......................... 41

Service Information .......................... 42

Features and specifications in this guide and on the website

are subject to change at any time without notice. Check our

website, subzero.com, for the most up-to-date specifications.

Built-In Refrigeration 3

subzero.com

Introducing New Built-In Refrigeration

The importance of the installation of the Sub-Zero built-in

unit cannot be overemphasized. Installation should be

done by a qualified installer.

Before you begin the installation process, it is recom-

mended that you read this entire installation guide. There

are key details that you should take special care to

observe during the installation. By reading these instruc-

tions carefully, you will make the installation process

easier, problem-free and, most importantly, safe.

Any questions or problems regarding the installation

should be directed to your Sub-Zero dealer or Sub-Zero

customer service at 800-222-7820. You may also check

the contact & support sectionofour website, subzero.com.

Important product information, including the model and

serial number of your unit are listed on the product rating

plate. The rating plate is located at the top frame of the

unit inside the door. Refer to the illustration.

I PORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specified.

Location of rating plate.

RATIN

PLATE

Installation Preparation 4

Installation Preparation

Make sure that the actual equipment that was shipped to

you matches the design you are expecting to install. The

Sub-Zero built-in line offers the following design alterna-

tives: framed, overlay, flush inset and stainless steel

models. The overlay model has two design applications,

overlay and flush inset.

Each of these design options has specific installation

requirements, which means it is vital that the unit match

your planning and space needs. Before you begin the

installation process, check the exact model number you

need against the model number on the shipping carton.

If the unit you receive does not match your requirements,

contact your Sub-Zero dealer.

TOOLS AND ATERIALS REQUIRED:

•Phillips screwdriver set

•Slotted screwdriver set

•Torx drive screwdriver set

•4' (1.2 m) of 1/4" copper tubing and saddle valve for the

water line (4200880)—do not use self-piercing valves

•Copper tubing cutter

•Level—2' (.6 m) and 4' (1.2 m) recommended

•Appliance dolly able to support 700 lbs (317 kg) and

adequate manpower to handle the weight of the unit

•Various sized pliers

•Wrench set

•Allen wrench set

•3/8" hex bolt nut driver

•Crescent wrenches

•Cordless drill and assorted drill bits

•Masonite, plywood, 1/8" pressed fiberboard, cardboard

or other suitable material to protect finished flooring

•Appropriate materials to cover and protect the home

and its furnishings during installation

Installation Preparation 5

subzero.com

Site Preparation

Make sure that the finished rough opening where the

built-in unit is being installed is properly prepared. Refer to

the overall dimensions and installation specifications for

your specific model on the following pages. These specifi-

cations are identical for the framed, overlay and stainless

steel applications. Installation specifications are different

for the flush inset application, whether you are using

custom panels or Sub-Zero accessory flush inset panels.

Make sure that the rough opening dimensions, door swing

clearance, electrical service and plumbing are correct for

the model you are about to install.

If you are installing two built-in units side by side in the

framed, overlay, flush inset or stainless steel application, a

separating filler strip is recommended. Add the filler strip

width to the finished rough opening dimension.

For installation of two built-in units side by side without a

filler strip, a dual installation kit will be necessary.

I PORTANT NOTE: To operate properly, the door must

open a minimum of 90°. Use a minimum 3" (76) filler in

corner installations to assure a 90° door opening. Allow

enough clearance in front of the unit for full door swing.

I PORTANT NOTE: Make sure the floor under the unit is

level with the surrounding finished floor.

Overall Dimensions 6

Model BI-36F

ALL FREEZER

36"

(914)

36"

(914)

30"

(762)

30"

(762)

36"

(914)

36"

(914)

84"

(2134)

24"

(610)

36"

(914)

84"

(2134)

24"

(610)

Model BI-36R

ALL REFRI ERATOR

LASS DOOR

Model BI-36R

ALL REFRI ERATOR

Model BI-30U

WITH LASS DOOR

Model BI-30U Model BI-36U

WITH LASS DOOR

Model BI-36U

All Refrigerator / All Freezer Models

Over-and-Under Models

SIDE VIEW

I PORTANT NOTE:

The heights of the all

refrigerator / all freezer

models have increased

from 73" (1854) to 84"

(2134).

Overall Dimensions 7

subzero.com

36"

(914)

42"

(1067)

48"

(1219)

42"

(1067)

84"

(2134)

24"

(610)

48"

(1219)

84"

(2134)

24"

(610)

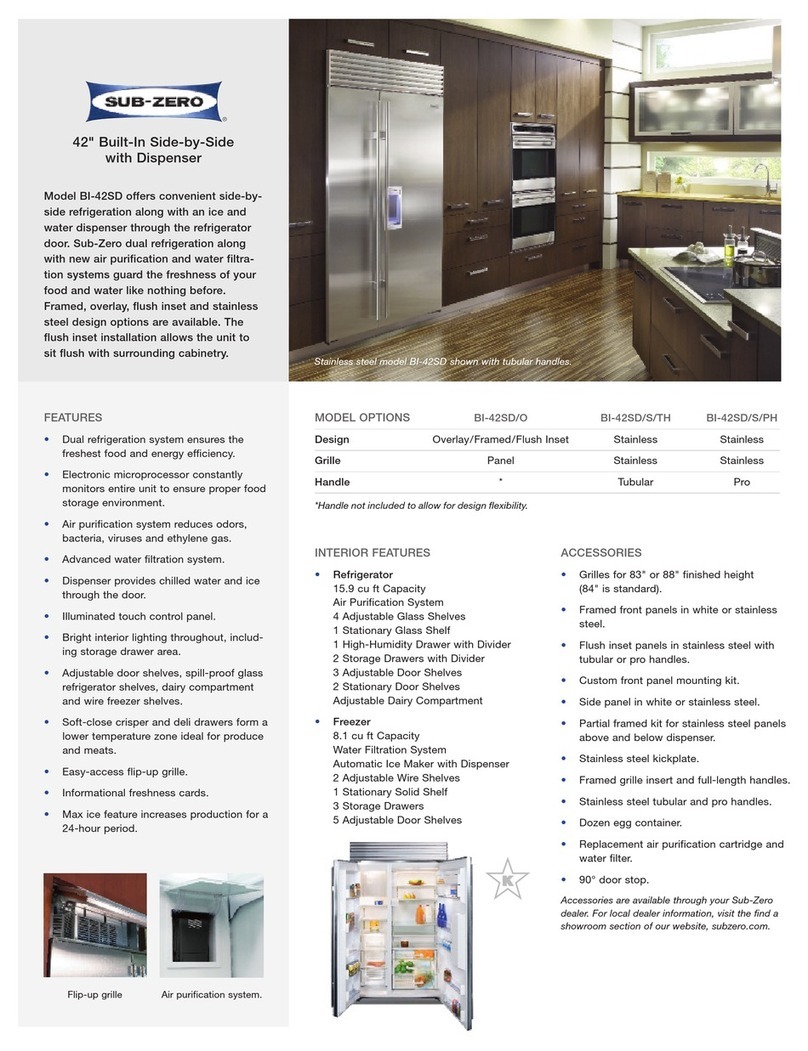

Model BI-42SD

WITH DISPENSER

Model BI-42SModel BI-36S

Model BI-48SD

WITH DISPENSER

Model BI-48S

Side-by-Side Models

Models are shown in the stainless

steel design.

I PORTANT NOTE: Throughout this

guide, dimensions in parentheses

are millimeters unless otherwise

specified.

SIDE VIEW

Opening Dimensions 8

Standard Installation Opening Dimensions

Framed, Overlay and Classic Stainless Steel odels

Opening Width A

BI-36R, BI-36R and BI-36F 351/2"(902)

BI-30U and BI-30U 291/2"(746)

BI-36U and BI-36U 351/2"(902)

BI-36S 351/2"(902)

BI-42S and BI-42SD 411/2"(1054)

BI-48S and BI-48SD 471/2"(1206)

I PORTANT NOTE: If two units are installed side by side,

refer to page 10 for dual standard installations.

Classic stainless steel models are ready to install out of the

box.

SIDE VIEW

24" (610)

OPENING DEPTH

833/4"

(2127)

OPENING

HEIGHT

83" min

(2108)

24" (610)

OPENING

DEPTH

FRONT VIEW

TOP VIEW

OPENING WIDTH

OUTLINE

OF UNIT WITH

3/4"(19) PANEL

Opening Dimensions 9

subzero.com

Flush Inset Installation Opening Dimensions

Flush Inset Opening Widths AB

BI-36R, BI-36R and BI-36F 351/2"(902) 38" (965)

BI-30U and BI-30U 291/2"(746) 32" (813)

BI-36U and BI-36U 351/2"(902) 38" (965)

BI-36S 351/2"(902) 38" (965)

BI-42S and BI-42SD 411/2"(1054) 44" (1118)

BI-48S and BI-48SD 471/2"(1206) 50" (1270)

I PORTANT NOTE: Dimensions assume a 3/4" (19) panel

thickness.

I PORTANT NOTE: If two units are installed side by side,

refer to page 11 for dual flush inset installations.

OUTLINE

OF UNIT WITH

3/4"(19) PANEL

DETAIL A

DETAIL B

FRONT VIEW

WIDTH TO CLEAT

FLUSH INSET WIDTH

11/4"

(32)

11/4"

(32)

SIDE VIEW

84"

(2134)

FLUSH

INSET

HEIGHT

1/4"

(6)

24" (610)

DEPTH TO CLEAT

263/16"(665)

FLUSH INSET DEPTH

23/16"

(56)

833/4"

(2127)

HEIGHT

TO CLEAT

83" min

(2108)

24" (610)

DEPTH

TO CLEAT

263/16"

(665)

FLUSH

INSET

DEPTH

TOP VIEW

23/16"

(56)

11/4"

(32) CLEAT

CLEAT

Detail A

Detail B

11/4"

(32)

24" (610)

OPENING

DEPTH

TOCLEAT CLEAT

TOP VIEW

263/16"

(665)

FLUSH

INSET

DEPTH

23/16"(56)

3" (76)

typical

24" (610)

OPENING

DEPTH TO

CLEAT

11/4"

(32)

23/16"(56)

CLEAT

SHADED

AREA

MUST BE

FINISHED

3" typical

(76)

4" (102)

Opening Dimensions 10

Opening Widths A

Two 30" (762) Models 593/4"(1518)

Two 36" (914) Models 713/4"(1822)

I PORTANT NOTE: A dual installation kit will be required for

this installation.

Classic stainless steel models are ready to install out of the

box.

Dual Standard Installation Opening Dimensions

Framed, Overlay and Classic Stainless Steel odels

24" (610)

OPENING

DEPTH

FRONT VIEWSIDE VIEW

TOP VIEW

833/4"

(2127)

OPENING

HEIGHT

83" min

(2108)

OPENING WIDTH

24" (610)

OPENING DEPTH

OUTLINE

OF TWO UNITS WITH

3/4"(19) PANEL

Other manuals for Built-In Refrigeration

This manual suits for next models

Table of contents

Other Sub-Zero Refrigerator manuals

Sub-Zero

Sub-Zero 200 Series User manual

Sub-Zero

Sub-Zero 611G Instructions for use

Sub-Zero

Sub-Zero 736TCI User manual

Sub-Zero

Sub-Zero BI-30U Assembly instructions

Sub-Zero

Sub-Zero Designer Series User manual

Sub-Zero

Sub-Zero UC-24BG/S/TH-RH User manual

Sub-Zero

Sub-Zero 200 Series User manual

Sub-Zero

Sub-Zero 600 Series Operating manual

Sub-Zero

Sub-Zero BI-30U User manual

Sub-Zero

Sub-Zero 700BC-3 Operating manual

Sub-Zero

Sub-Zero Uc24crh User manual

Sub-Zero

Sub-Zero BI-42S User manual

Sub-Zero

Sub-Zero 700BC User manual

Sub-Zero

Sub-Zero ID-27R User manual

Sub-Zero

Sub-Zero 601R User manual

Sub-Zero

Sub-Zero PRO 48 User manual

Sub-Zero

Sub-Zero 648PRO User manual

Sub-Zero

Sub-Zero ID-24RO User manual

Sub-Zero

Sub-Zero BI-42SD Assembly instructions

Sub-Zero

Sub-Zero PRO 48 User manual

Sub-Zero

Sub-Zero UC-24RO User manual

Sub-Zero

Sub-Zero UC-24R User manual

Sub-Zero

Sub-Zero UC-24BG User manual

Sub-Zero

Sub-Zero IC-27R User manual

Popular Refrigerator manuals by other brands

Frigidaire

Frigidaire FRS26TS7DW2 Use & care manual

Fisher Scientific

Fisher Scientific 10ECEEFSA manual

Summit

Summit FF22BDRSS user manual

Frigidaire

Frigidaire FFRU17B2QWE use & care

Hotpoint

Hotpoint ENBGH 19xxx FW operating instructions

Hitachi

Hitachi R-SG28KPH instruction manual

Dometic

Dometic RMH 7390 L operating instructions

AEG

AEG S71700TSW0 user manual

Electrolux

Electrolux ENB3669 Instruction book

Electrolux

Electrolux ERN 2930 Instruction book

Beko

Beko GNE 60520 X user manual

Jenn-Air

Jenn-Air JUR248LBES00 Use & care guide

Dometic

Dometic RGE 4000 Installation and operating manual

Dometic

Dometic L-0191B Brochure & specs

LG LRBP1031W - 10 Cu. Ft. Cabinet Depth Bottom Freezer... owner's guide

Daewoo

Daewoo RN-33 Series user manual

Haier

Haier RF-8888-174 Service manual

Blaupunkt

Blaupunkt 5CK2 Series user manual

Sub-Zero Built-In Refrigeration User manual

Popular Refrigerator manuals by other brands
