2001 IMPREZA SERVICE MANUAL QUICK REFERENCE INDEX
BODY SECTION
This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair
of SUBARU vehicles.
This manual includes the procedures
for maintenance, disassembling, reas-
sembling, inspection and adjustment of
components and diagnostics for guid-
ance of experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping
their vehicle in optimum condition.
When replacement of parts during
repair work is needed, be sure to use
SUBARU genuine parts.
All information, illustration and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication
approval.
HVAC SYSTEM
(HEATER, VENTILATOR AND A/C) AC
HVAC SYSTEM (AUTO A/C)
(DIAGNOSTICS) AC
AIRBAG SYSTEM AB
AIRBAG SYSTEM (DIAGNOSTICS) AB
SEAT BELT SYSTEM SB
LIGHTING SYSTEM LI
WIPER AND WASHER SYSTEMS WW
ENTERTAINMENT ET
COMMUNICATION SYSTEM COM
GLASS/WINDOWS/MIRRORS GW
BODY STRUCTURE BS
INSTRUMENTATION/DRIVER INFO IDI
SEATS SE
SECURITY AND LOCKS SL
IMMOBILIZER (DIAGNOSTICS) IM
SUNROOF/T-TOP/CONVERTIBLE TOP
(SUNROOF) SR
EXTERIOR/INTERIOR TRIM EI

2001 IMPREZA SERVICE MANUAL QUICK REFERENCE INDEX
BODY SECTION
G1830GE6
EXTERIOR BODY PANELS EB
CRUISE CONTROL SYSTEM CC
CRUISE CONTROL SYSTEM
(DIAGNOSTICS) CC

WIPER AND WASHER SYSTEMS WW
Page
1. General Description ....................................................................................2
2. Wiper and Washer System .........................................................................5
3. Combination Switch (Wiper)......................................................................11
4. Wiper Blade...............................................................................................13
5. Washer Tank and Motor............................................................................15
6. Front Wiper Arm........................................................................................16
7. Front Wiper Motor and Link.......................................................................17
8. Front Washer ............................................................................................18
9. Rear Wiper Arm ........................................................................................20
10. Rear Wiper Motor......................................................................................21
11. Rear Washer.............................................................................................22
12. Wiper Control Relay..................................................................................24

WW-2
WIPER AND WASHER SYSTEMS GENERAL DESCRIPTION
1. General Description
A: SPECIFICATIONS
B: COMPONENT
1. FRONT WIPER
Front wiper motor Input 12 V —72 W or less
Rear wiper motor Input 12 V —42 W or less
Front washer motor Pump type Centrifugal
Input 12 V —36 W or less
Rear washer motor Pump type Centrifugal
Input 12 V —36 W or less
BO0272
(1) Wiper rubber (5) Wiper motor Tightening torque: N·m (kgf-m, ft-lb)
(2) Wiper blade ASSY T1: 6.0 (0.61, 4.4)
(3) Wiper arm T2: 20 (2.0, 14.5)

WW-3
WIPER AND WASHER SYSTEMS
GENERAL DESCRIPTION

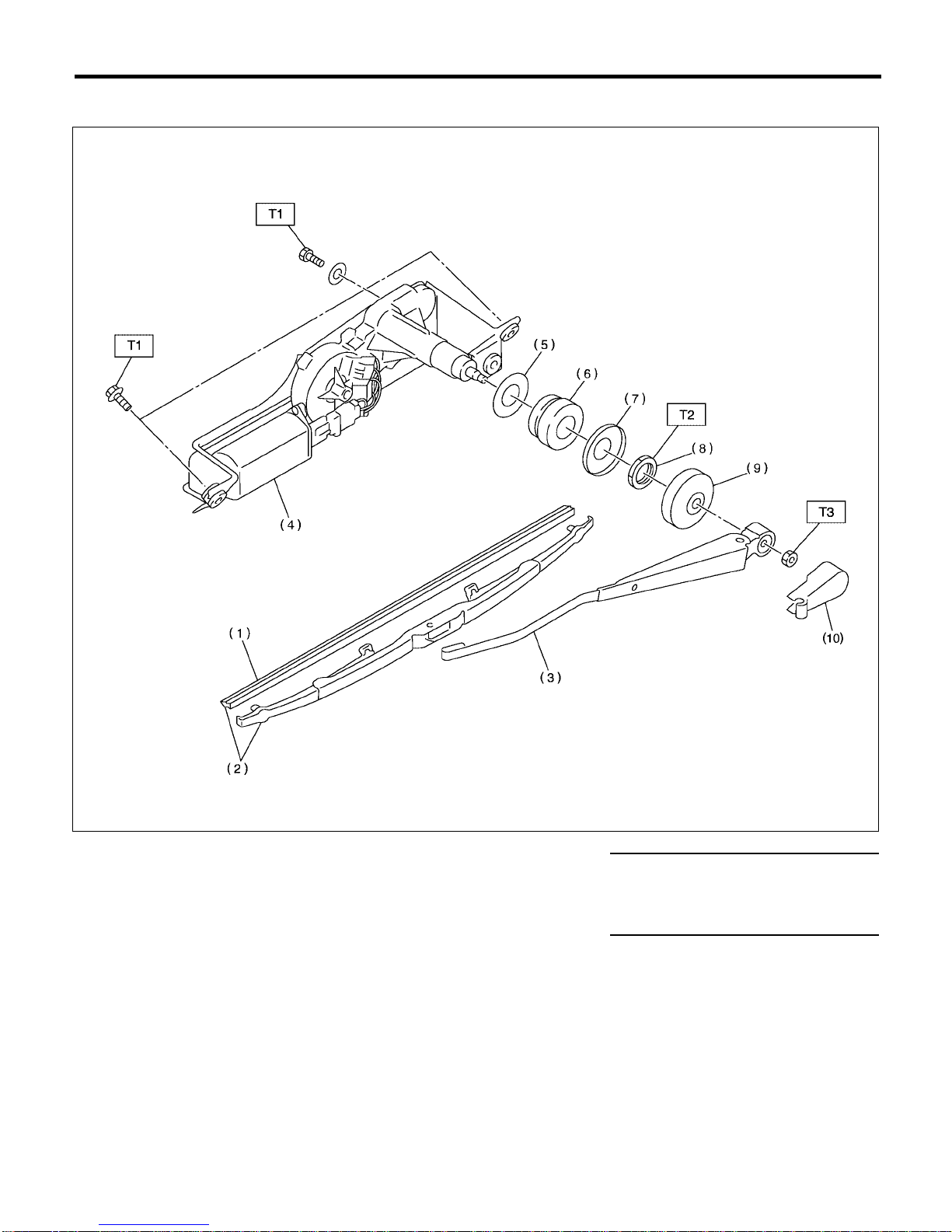

2. REAR WIPER
B6M1463B
(1) Wiper rubber (7) Spacer B Tightening torque: N·m (kgf-m, ft-lb)
(2) Wiper blade ASSY (8) Nut T1: 5.9 (0.6, 4.3)
(3) Wiper arm (9) Cap T2: 7.4 (0.75, 5.4)
(4) Wiper motor (10) Wiper arm cover T3: 7.8 (0.8, 5.6)
(5) Spacer A
(6) Cushion

WW-4
WIPER AND WASHER SYSTEMS GENERAL DESCRIPTION

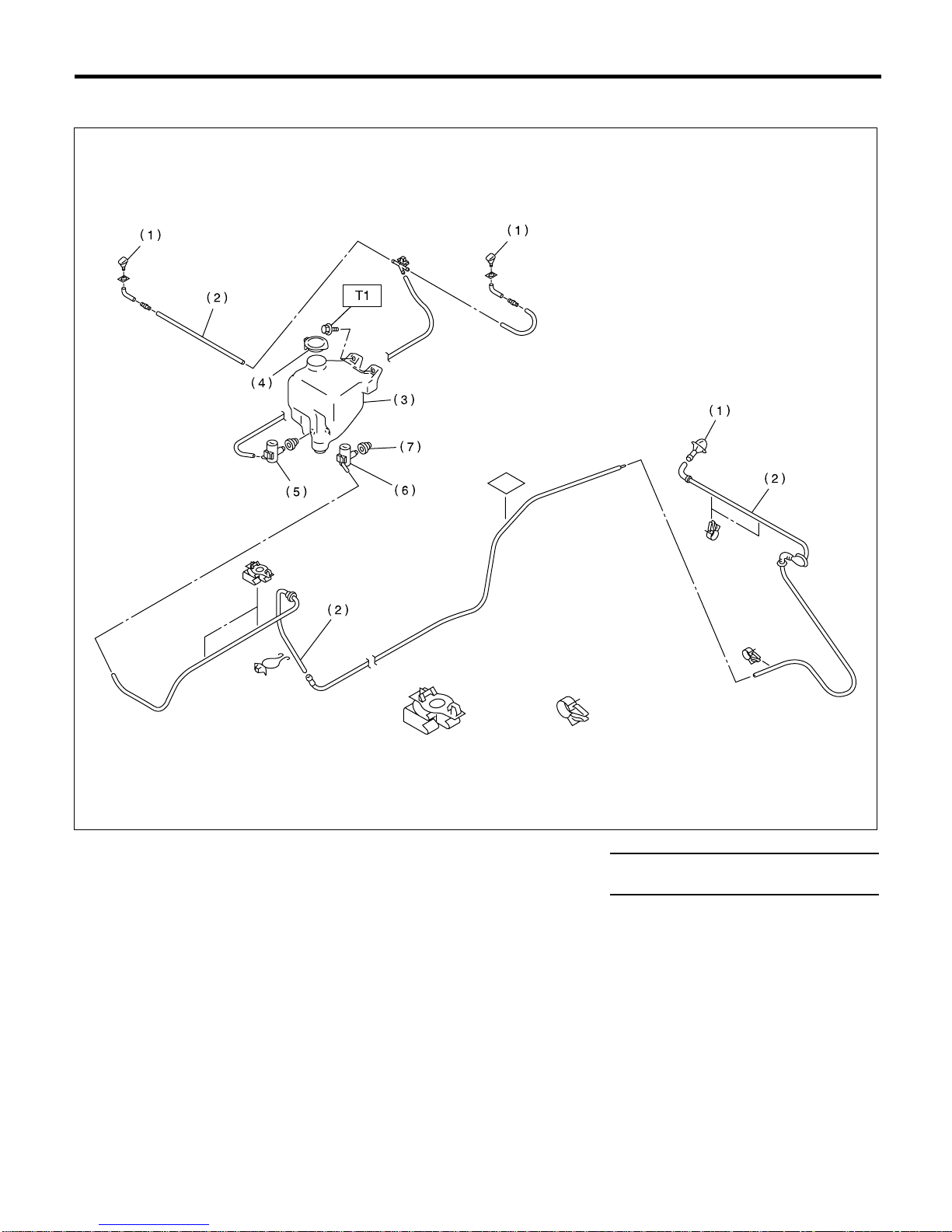

3. WASHER TANK
C: CAUTION
•Reconnect connectors and hoses securely.
After reconnecting, confirm that each function operates normally.
•Be careful that wire harnesses of airbag system pass near electrical parts and switches.
•Wire harnesses and connectors of all airbag system are yellow color. Do not use a tester on these circuits.
•Care must be taken when installing the piping hose so that no bending, jamming, etc. are caused.
•If even a little oil or grease such as silicon oil gets in the tank and washer passages, an oil filmeasily forms
on the glass, causing the wiper to chatter and judder. Therefore, be careful not to let this happen.
BO0273
(1) Washer nozzle (5) Front washer motor Tightening torque: N·m (kgf-m, ft-lb)
(2) Washer hose (6) Rear washer motor T: 6.0 (0.61, 4.4)
(3) Washer tank (7) Grommet
(4) Washer tank cap

WW-5
WIPER AND WASHER SYSTEMS
WIPER AND WASHER SYSTEM
2. Wiper and Washer System
A: SCHEMATIC

WW-6
WIPER AND WASHER SYSTEMS WIPER AND WASHER SYSTEM
1. WIPER AND WASHER (FRONT) LHD MODEL
GL50-20
F/W(L)-01 F/W(L)-01
FB-26
F/B FUSE NO. 15
(ACC)
FRONTWASHER
MOTOR
TO POWER SUPPLY ROUTING
FRONTWIPER MOTOR
YB
YB 2
LgR 1
YB 7 YB
YB
5
GY
1
BL
3
2RL
B
4
REF.TO GND-02
YB 17
LgR 11
GY 16
BL
RL 8
B2
7
B70B8
F32
F44B61
LgR 18 LgR
F45B62
F32
1
2
B70
236
457
189
11 12 15
13 14 16
10 17 18
FRONTWIPER SWITCH
INTER-
MITTENT
WIPER
MODULE
INTVOLUME
WASHER
SWITCH
COMBINATION SWITCH
ON OFF
EW
W
OFF
OFF INT LO HI
OFF
ACC
S1
S2
S3
MISTMIST OFF MIST MIST OFF
INT1
INT2
B
REF.TO GND-02
B
B8
(GREEN)
132
4 5
F45
34
12 89
10 11
12 13 14 15 16 17 18 19 20 21 22 23 24
567
1234
5 6 7 8
F44

WW-7
WIPER AND WASHER SYSTEMS
WIPER AND WASHER SYSTEM
2. WIPER AND WASHER (FRONT) RHD MODEL
GR50-20
F/W(R)-01 F/W(R)-01
FB-26
F/B FUSE NO. 15
(ACC)
FRONTWASHER
MOTOR
TO POWER SUPPLY ROUTING
FRONTWIPER MOTOR
YB
YB 2
LgR 1
YB
5
GY
1
BL
3
2RL
B
4
REF.TO GND-02
YB 11
LgR 17
GY 12
BL
RL 2
B8
3
17
11 OTEC
16
8
2
7
B70B8
B146
B146
1
2
B70
236
457
189
11 12 15
13 14 16
10 17 18
FRONTWIPER SWITCH
INTER-
MITTENT
WIPER
MODULE
INTVOLUME
WASHER
SWITCH
COMBINATION SWITCH
ON OFF
EW
W
OFF
OFF INT LO HI
OFF
ACC
S1
S2
S3
MISTMIST OFF MIST MIST OFF
INT1
INT2
B
REF.TO GND-02
B
B8
(GREEN)
132
4 5
: EUROPE MODEL
: OTHER MODEL
EC
OT

WW-8
WIPER AND WASHER SYSTEMS WIPER AND WASHER SYSTEM

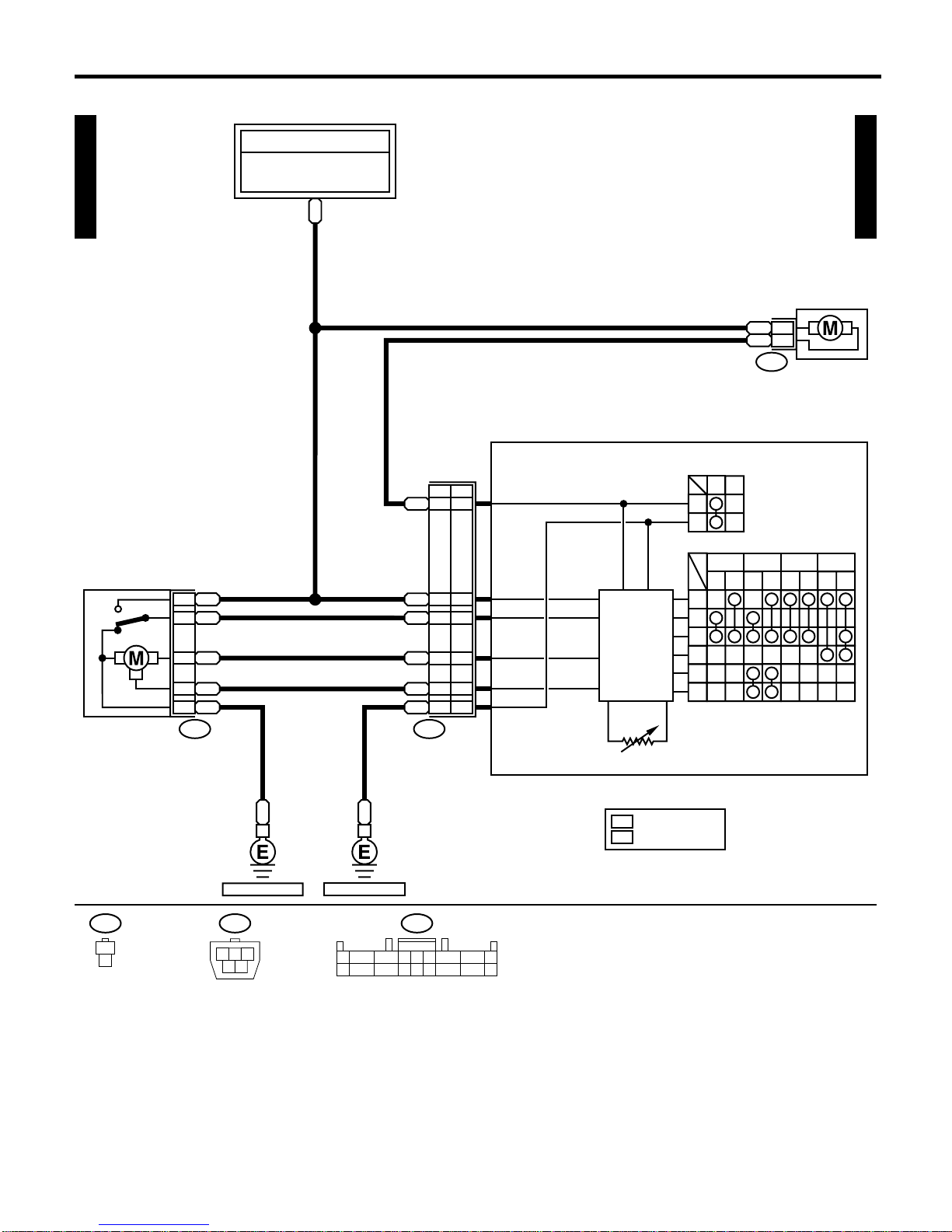

3. WIPER AND WASHER (REAR) LHD MODEL
GL51-20
R/W(L)-01 R/W(L)-01
REARWASHER
MOTOR
REARWIPER
INTERMITTENT
MODULE
REARWIPER MOTOR
B2
YB 8
LG 7
LW 3
GR 6
LB 5
REARWIPER &
WASHER SWITCH
OFF ON WASHWASH
LB 12
GR 10
B2
WG 1
LB 2
WG
WL
LB 7
YB YB
LG
LW
1
LG
4
LW2
B
3
B
REF.TO GND-05
B
REF.TO GND-02
B
B3
YB 1
LG 2
LW 3
D34
D35
D43
R39
R38
R116
R3 B99
R1 B97
B70
F33F45B62
YB
LB
GR
1
LB
14
GR
12
D43
34
12
F33
1
21234
5 6 7 8
R116
D35 B97 B70
2364 5 7
189
11 12 15
13 14 16
10 17 18
FB-25
F/B FUSE NO. 14
(ACC)
FB-24
F/B FUSE NO. 14
(ACC)
TO POWER SUPPLY ROUTING
WL
B99
F45
3412 89
10 11
12 13 14 15 16 17 18 19 20 21 22 23 24
567
D34
13
456
2

WW-9
WIPER AND WASHER SYSTEMS
WIPER AND WASHER SYSTEM
4. WIPER AND WASHER (REAR) RHD MODEL
GR51-20
R/W(R)-01 R/W(R)-01
REARWASHER
MOTOR
REARWIPER
INTERMITTENT
MODULE
REARWIPER MOTOR
B2
YL 8
LG 7
LW 3
GR 6
LB 5
REARWIPER &
WASHER SWITCH
OFF ON WASHWASH
LB 12
EC
GR 10
B2
16
OT
18
8
YL 1
LB 2
YB YL
LG
LW
1
LG
4
LW
2
B
3
B
REF.TO GND-05
B
REF.TO GND-02
B
B3
YB 1
LG 2
LW 3
D34
D35
D43
R39
R38
R116
R3 B99
R1 B97
B70
B147
YL YL
LB
GR
6
LB
7
GR
3
D43
34
12
B147
1
21234
567 8
R116
D35 B97 B70
236
457
189
11 12 15
13 14 16
10 17 18
: EUROPE MODEL
: OTHER MODEL
D34
13
456
2
FB-25
F/B FUSE NO. 14
(ACC)
TO POWER SUPPLY ROUTING
YL
B99
12345 6789
10
11 12 19 20 21
13 14 15 16 17 18 22
EC
OT

WW-10
WIPER AND WASHER SYSTEMS WIPER AND WASHER SYSTEM
B: INSPECTION
Symptom Repair order
Wiper and washers do not operate. (1) Wiper fuse (F/B No. 14, 15)
(2) Combination switch
(3) Wiper motor
(4) Wire harness
Wipers do not operate in LO or HI. (1) Combination switch
(2) Wiper motor
(3) Wire harness
Wipers do not operate in INT. (1) Combination switch
(2) Wiper motor
(3) Wire harness
Washer motor does not operate. (1) Washer switch
(2) Washer motor
(3) Wire harness
Wipers do not operate when washer switch is ON. (1) Washer motor
(2) Wire harness
Washer fluid spray does not operate. (1) Washer hose and nozzle

WW-11
WIPER AND WASHER SYSTEMS
COMBINATION SWITCH (WIPER)
3. Combination Switch (Wiper)
A: REMOVAL
1) Loosen screw to remove a steering column cov-
er.
2) Disconnect connectors from combination switch-
es.
3) Loosen screw to remove combination switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
•Inspect the continuity between each connector
terminal.
LHD model and RHD model (Europe model):
If continuity is not as specified, replace the switch.
RHD model (Except Europe model):
If continuity is not as specified, replace the switch.
B6M1184
B6M1499 Switch position Test
connection Specified condition
FRONT
OFF 7 —16 Continuity
INT 7 —16 Continuity
LO 7 —17 Continuity
HI 8 —17 Continuity
Washer ON 2 —11 Continuity
REAR
Washer ON 2 —10 —12 Continuity
OFF —No continuity
ON 2 —10 Continuity
Washer ON 2 —10 —12 Continuity
Switch position Test
connection Specified condition
FRONT
OFF 3 —12 Continuity
INT 3 —12 Continuity
LO 3 —11 Continuity
HI 2 —11 Continuity
Washer ON 8 —17 Continuity
REAR
Washer ON 8 —16 —18 Continuity
OFF —No continuity
ON 8 —18 Continuity
Washer ON 8 —16 —18 Continuity
S6M0137

WW-12
WIPER AND WASHER SYSTEMS
COMBINATION SWITCH (WIPER)
•Intermittent operation inspection
1) Turn the wiper switch to INT.
2) Adjust the intermittent control switch to MAX.
3) Apply battery voltage to switch terminals 16 and 2, and inspect the voltage of terminals 7 and 2. (Measure
the voltage from after the second time the wiper stops.)
If operation is not as specified, replace the switch. B6M1465A

WW-13
WIPER AND WASHER SYSTEMS
WIPER BLADE

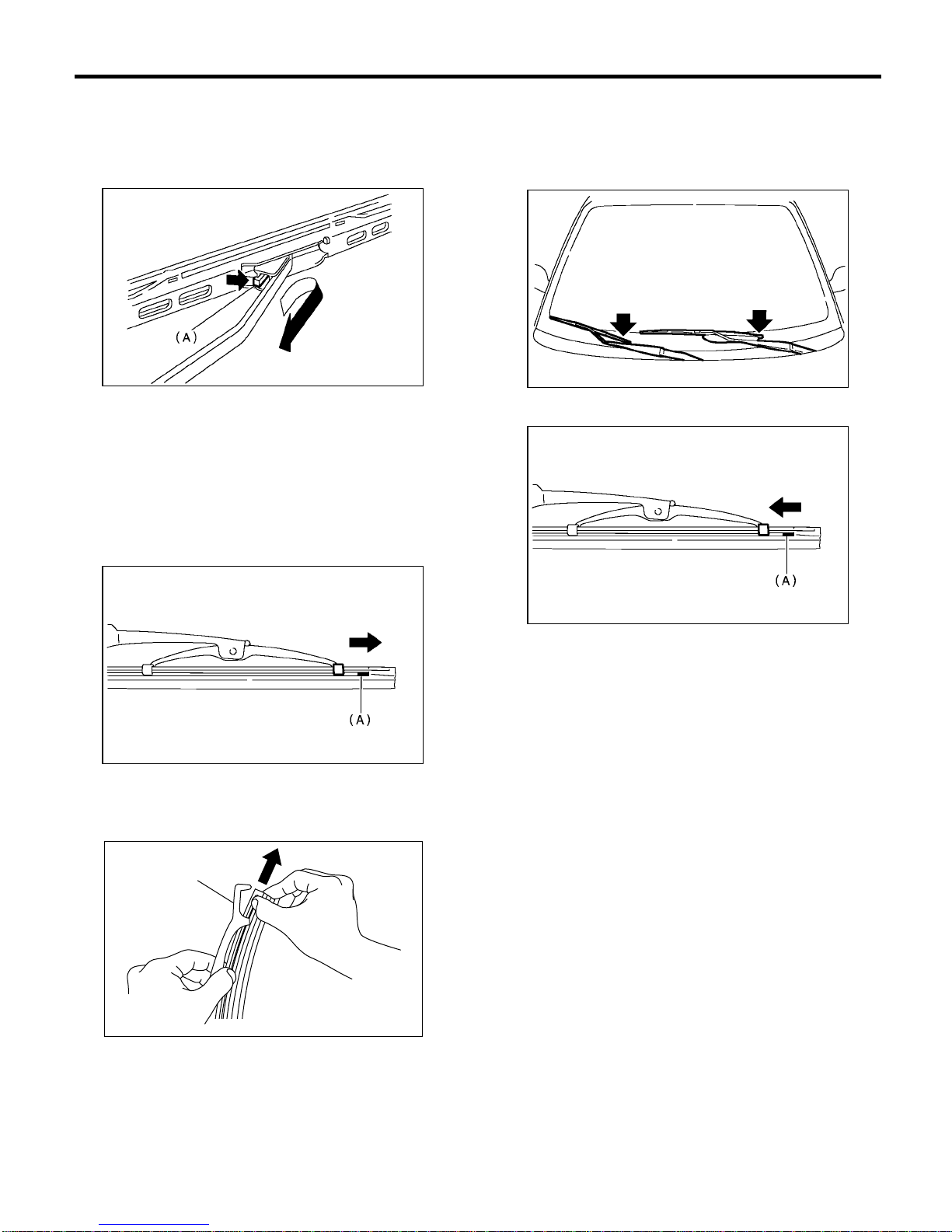

4. Wiper Blade
A: REMOVAL
While pushing locking clip (A) up, pull out blade
from arm to arrow direction.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Confirm that clip was locked securely.
C: DISASSEMBLY
1. METAL TYPE
Pull on side (A) of the wiper rubber stopper and re-
move the rubber from the blade assembly.
2. RESIN TYPE
Pull the wiper rubber top slightly from the stopper
and pull out fully.
D: ASSEMBLY
1. METAL TYPE
1) Insert the wiper rubber onto the blade so that the
stopper is in the position shown.
2) Make sure the wiper rubber is securely fastened
to the pull stopper (A).
B6M1570A
B6M1496A
Stopper
BO0196
B6M1497
B6M1498A

WW-14
WIPER AND WASHER SYSTEMS WIPER BLADE
2. RESIN TYPE
1) Insert the wiper rubber through the claw (B).
2) Insert the wiper rubber top until it protrudes
about 20mm (0.79 in) from the stopper (D).
3) Insert the wiper rubber into the claw (A).
E: INSPECTION
1) When the wiper does not perform well, inspect
the following:
•Make sure the movable part of the blade assem-
bly moves smoothly.
•Make sure the wiper rubber is not deformed or
damaged.
2) Replace with a new part if damage is found.
A D
BC
BO0197
A
B
BO0198
D
20mm ( 0.79 in. )
BO0199
A
BO0200

WW-15
WIPER AND WASHER SYSTEMS
WASHER TANK AND MOTOR
5. Washer Tank and Motor
A: REMOVAL
1) Open hood.
2) Remove the 2 bolts, hose and connector and
then remove the tank.
B: INSTALLATION
Install in the reverse order of removal.
C: DISASSEMBLY
Pull out washer motor from tank.
D: ASSEMBLY
1) Assemble in the reverse order of disassembly.
2) Confirm that water does not leak frominstallation
area of motor.
E: INSPECTION
Apply battery voltage to the connector terminal of
the washer motor and make sure the motor oper-
ates.
B5M1464
B5M1465
B6M1567

WW-16

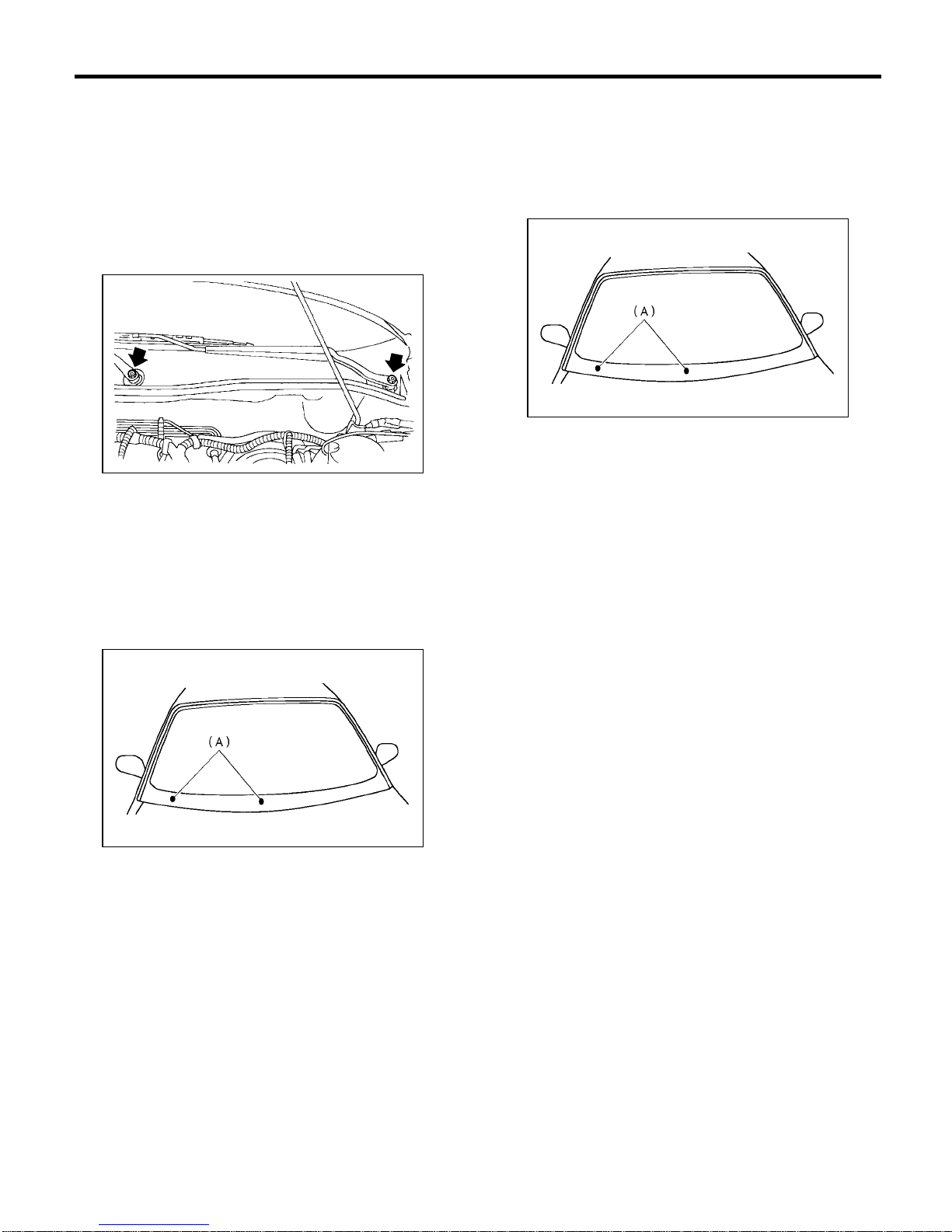

WIPER AND WASHER SYSTEMS FRONT WIPER ARM
6. Front Wiper Arm
A: REMOVAL
NOTE:
The positions for RHD model are symmetrically op-
posite.
1) Open hood.
2) Remove cap.
3) Loosen nut to remove arm.
B: INSTALLATION
NOTE:
The positions for RHD model are symmetrically op-
posite.
1) Install in the reverse order of removal.
2) Operate wiper once.
3) Align wiper blade to ceramic print point mark (A)
of front window pane.
C: ADJUSTMENT
NOTE:
The positions for RHD model are symmetrically op-
posite.
Operate wiper once. Align wiper blade to ceramic
print point mark (A) of front window pane.
S6M0050
B6M1193A
B6M1193A

WW-17
WIPER AND WASHER SYSTEMS
FRONT WIPER MOTOR AND LINK
7. Front Wiper Motor and Link
A: REMOVAL
NOTE:
The positions for RHD model are symmetrically op-
posite.
1) Remove cowl panel. <Ref. to EI-17, REMOVAL,
Cowl Panel.>
2) Disconnect connector of motor.
3) Loosen bolts and nuts to remove wiper link.
4) Loosen bolts and nuts to remove motor.
B: INSTALLATION
1) Tighten the nut where rod (A) and link plate (B) is
aligned in straight line.
2) Install in the reverse order of removal.
C: INSPECTION
1) When battery is connected to terminal of con-
nectors, confirm that motor operates at low speed.
2) When battery is connected to terminal of con-
nectors, confirm that motor operates at high speed.
3) Connect battery to terminals of connector, and
remove terminal connection with motor rotated at
low speed, and stop wiper motorthrough operation.
4) Connect battery and confirm that motor stops at
automatic stop position after motor operates at low
speed again.
B5M1466
B5M1467
BO0274
3 2
5 41
BO0201
3 2
5 41
BO0202
3 2
5 41
BO0203
3 2
5 41
BO0204

WW-18
WIPER AND WASHER SYSTEMS FRONT WASHER
8. Front Washer
A: LOCATION
B: REMOVAL
1. NOZZLE
1) Remove the washer hose from the washer noz-
zle.
2) Open the clips on the underside of the hood with
a thin screwdriver or other tool, and remove the
washer nozzle.
C: INSTALLATION
1. NOZZLE
1) Install in the reverse order of removal.
2) Adjust the position of the washer liquid sprayer.
<Ref. to WW-19, ADJUSTMENT, Front Washer.>
D: INSPECTION
•Make sure the nozzle and hose are not clogged.
•Make sure the hose is not bent.
BO0205
B6M1505
