PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
114
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
QUICK REFERENCE
The phone top screen can be used to make a phone call. To
display the hands-free operation screen, select and
then select
PHONE
(PHONE), select *, or press
the switch on the steering wheel.
Several functions are available to operate on each screen
that is displayed by selecting the 4 tabs.
*: Without navigation function
Function Page
Phone
operation
Registering/connecting Bluetooth phone 174
Calling on the Bluetooth phone 118
Receiving on the Bluetooth phone 124
Talking on the Bluetooth phone 125
Message
function
Using the Bluetooth phone message
function 127
Setting up
a phone
Phone settings 133
Bluetooth settings 179
docstructure.indb 114 2016/03/30 11:15:52

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
115
PHONE
4
SOME BASICS
The hands-free system enables calls to be made and
received without having to take your hands off the steering
wheel.
This system supports Bluetooth. Bluetooth is a wireless
data system that enables cellular phones to be used without
being connected by a cable or placed in a cradle.
The operating procedure of the phone is explained here.
WARNING
lWhile driving, do not use a cellular phone or connect the
Bluetooth phone.
lYour audio unit is tted with Bluetooth antennas. People with
implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter debrillators
should maintain a reasonable distance between themselves
and the Bluetooth antennas. The radio waves may affect the
operation of such devices.
lBefore using Bluetooth devices, users of any electrical
medical device other than implantable cardiac pacemakers,
cardiac resynchronization therapy-pacemakers or implantable
cardioverter debrillators should consult the manufacturer
of the device for information about its operation under the
inuence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
CAUTION
lDo not leave your cellular phone in the vehicle. The
temperature inside may rise to a level that could damage the
phone.
NOTE
lIf your cellular phone does not support Bluetooth, this system
cannot function. Certain functions may not be available
depending on the type of cellular phone.
lIn the following conditions, the system may not function:
• The cellular phone is turned off.
• The current position is outside the communication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
lWhen using the hands-free function and other Bluetooth
functions at the same time, the following problems may occur:
• The Bluetooth connection may be cut.
• Noise may be heard when playing back voice with the
Bluetooth function.
lThe other party’s voice will be heard from the front speakers.
The audio/visual system will be muted during phone calls or
when hands-free voice commands are used.
lTalk alternately with the other party on the phone. If both parties
speak at the same time, the other party may not hear what has
been said. (This is not a malfunction.)
docstructure.indb 115 2016/03/30 11:15:52

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
116
NOTE
lKeep call volume down. Otherwise, the other party’s voice
may be audible outside the vehicle and voice echo may
increase. When talking on the phone, speak clearly towards the
microphone.
lThe other party may not hear you clearly when:
• Driving on an unpaved road. (Making excessive trafc noise.)
• Driving at high speeds.
• Driving with a window open.
• When air from the ventilator blows directly toward the
microphone.
• The sound of the air conditioning fan is loud.
• There is a negative effect on sound quality due to the phone
and/or network being used.
REGISTERING/CONNECTING A Bluetooth
PHONE
To use the hands-free system for cellular phones, it is
necessary to register a cellular phone with the system.
(→P.174)
Bluetooth PHONE CONDITION DISPLAY
The condition of the Bluetooth phone appears on the upper
right side of the screen. (→P.26)
USING THE PHONE SWITCH/MICROPHONE
XSteering switch
By pressing the phone switch, a call can be received or
ended without taking your hands off the steering wheel.
Volume control switch
●Press the “+” side to increase the volume.
●Press the “-” side to decrease the volume.
Off hook switch
On hook switch
docstructure.indb 116 2016/03/30 11:15:53

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
117
PHONE
4
XMicrophone
The microphone is used when talking on the phone.
VOICE RECOGNITION SYSTEM
Press this switch to operate the voice recognition system.
●The voice recognition system and its list of
commands can be operated. (→P.256)
ABOUT THE CONTACTS IN THE CONTACT
LIST
●The following data is stored for every registered
phone. When another phone is connected, the
following registered data cannot be read:
• Contact data
• Call history data
• Speed dial data
• Image data
• All phone settings
• Message settings
NOTE
lWhen a phone’s registration is deleted, the above-mentioned
data is also deleted.
docstructure.indb 117 2016/03/30 11:15:53

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
118
WHEN SELLING OR DISPOSING OF THE
VEHICLE
A lot of personal data is registered when the hands-free
system is used. When selling or disposing of the vehicle,
initialize the data. (→P.192)
●The following data in the system can be initialized:
• Contact data
• Call history data
• Speed dial data
• Image data
• All phone settings
• Message settings
NOTE
lOnce initialized, the data and settings will be erased. Pay close
attention when initializing the data.
CALLING ON THE Bluetooth
PHONE
After a Bluetooth phone has been registered, a call can
be made using the hands-free system. There are several
methods by which a call can be made, as described below.
XWithout navigation function
1. Select .
2. Select the desired tab to call from.
docstructure.indb 118 2016/03/30 11:15:53

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
119
PHONE
4
XWith navigation function
1. Select .
2. Select
PHONE
(PHONE).
3. Select the desired tab to call from.
●The phone top screen can be displayed by pressing
the switch on the steering wheel.
How to make a call list Page
By speed dial list 120
By call history 120
By contacts list 121
By dial pad*1122
By e-mail/SMS/MMS 131
By POI call*2201
By off hook switch 123
By voice recognition system 258
By split screen 123
*1: The operation cannot be performed while driving.
*2: With navigation function
docstructure.indb 119 2016/03/30 11:15:53

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
120
BY SPEED DIAL LIST
Calls can be made using registered contacts which can be
selected from a contact list. (→P.140)
1. Display the phone top screen. (→P.118)
2. Select the
Speed Dial
(Speed Dial) tab and then
select the desired contact.
3. Select the desired number.
4. Check that the “Call (Call)” screen is displayed.
BY CALL HISTORY
Up to 30 of the latest call history items (missed, incoming
and outgoing) can be selected from the
Call History
(Call
History) tab.
1. Display the phone top screen. (→P.118)
2. Select the
Call History
(Call History) tab and then
select or the desired contact.
●The icons of call type are displayed.
• : Missed call
• : Incoming call
• : Outgoing call
docstructure.indb 120 2016/03/30 11:15:54

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
121
PHONE
4
XWhen is selected
3. Check that the “Call (Call)” screen is displayed.
XWhen the desired contact is selected
3. Select corresponding to the desired number to call.
4. Check that the “Call (Call)” screen is displayed.
NOTE
lWhen making a call to the same number continuously, only the
most recent call is listed in call history.
lWhen a phone number registered in the contact list is received,
the name is displayed.
lInternational phone calls may not be made depending on the
type of cellular phone you have.
lThe list should group together consecutive entries with the same
phone number and same call type. For example, two calls from
Kay Rowles’s mobile would be displayed as follows: Kay Rowles
(2)
BY CONTACTS LIST
Calls can be made by using contact data which is
transferred from a registered cellular phone. (→P.122)
Up to 2500 contacts (maximum of 4 phone numbers and
e-mail addresses per contact) can be registered in the
contact list.
1. Display the phone top screen. (→P.118)
2. Select the
Contacts
(Contacts) tab and then select the
desired contact.
3. Select the desired number.
4. Check that the “Call (Call)” screen is displayed.
docstructure.indb 121 2016/03/30 11:15:55

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
122
WHEN THE CONTACT IS EMPTY
nFOR PBAP COMPATIBLE Bluetooth PHONES
When “Automatic Contact/History Transfer (Automatic
Contact/History Transfer)” is set to on, contacts are
transferred automatically. (→P.135)
nFOR OPP COMPATIBLE Bluetooth PHONES
Contacts can be transferred or added manually.
To transfer, select
Update Contacts from Phone
(Update
Contacts from Phone) at the “Contact/Call History Settings
(Contact/Call History Settings)” screen. (→P.137)
To add, select
New Contact
(New Contact) at the
“Contact/Call History Settings (Contact/Call History
Settings)” screen. (→P.137)
BY DIAL PAD
1. Display the phone top screen. (→P.118)
2. Select the
Dial Pad
(Dial Pad) tab and enter the phone
number.
3. Select or press the switch on the steering
wheel.
4. Check that the “Call (Call)” screen is displayed.
NOTE
lDepending on the type of Bluetooth phone being connected, it
may be necessary to perform additional steps on the phone.
docstructure.indb 122 2016/03/30 11:15:56

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
123
PHONE
4
BY OFF HOOK SWITCH
Calls can be made using the latest call history item.
1. Press the switch on the steering wheel to display
the phone top screen.
2. Press the switch on the steering wheel to display
the “Call History (Call History)” screen.
3. Press the switch on the steering wheel to call the
latest history item.
4. Check that the “Call (Call)” screen is displayed.
BY SPLIT SCREEN
1. Display the split screen. (→P.47)
2. Select the desired contact.
REGISTERING A NEW CONTACT
1. Select and hold the screen button to add a contact.
2. Select the desired contact.
3. Select the desired number.
docstructure.indb 123 2016/03/30 11:15:56

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
124
RECEIVING ON THE Bluetooth
PHONE

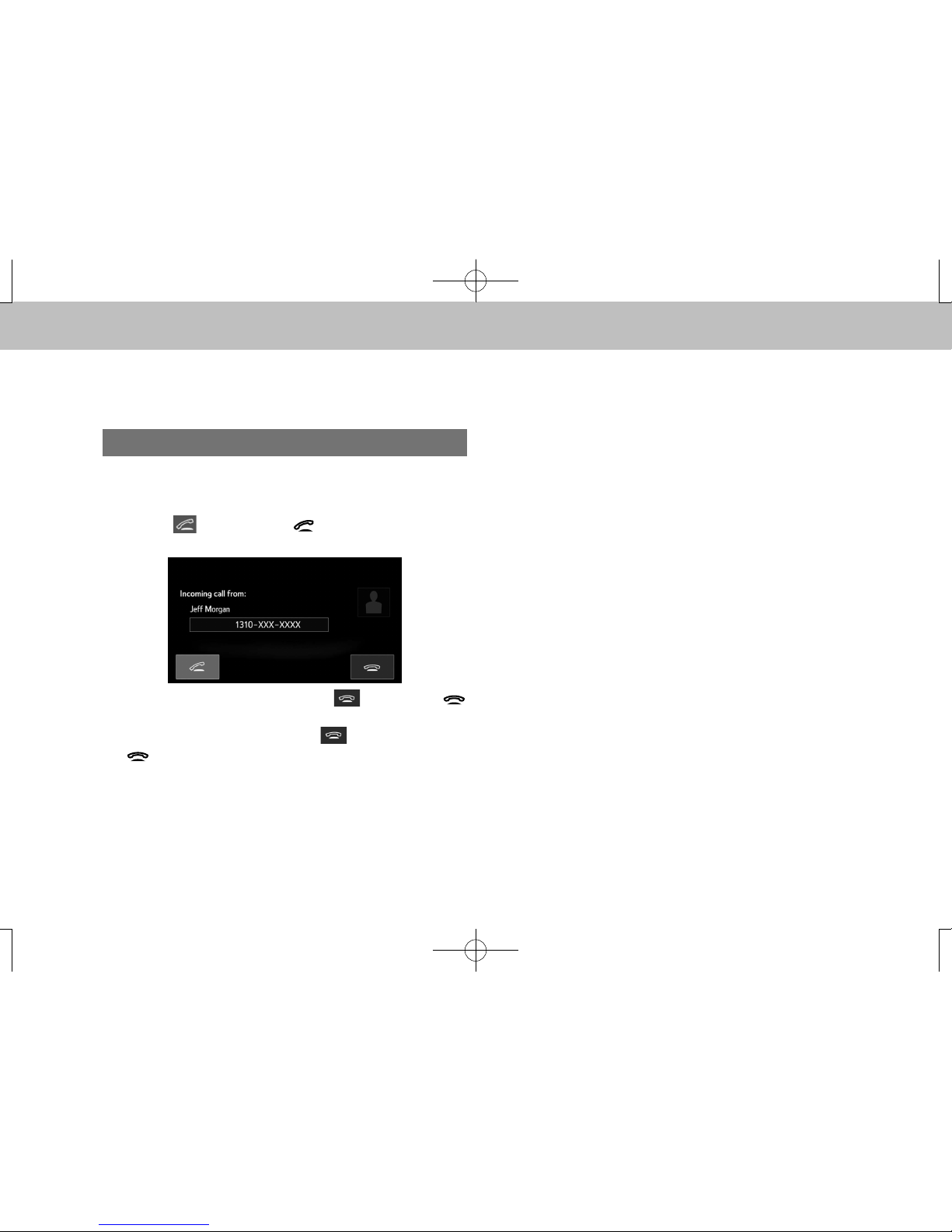

INCOMING CALLS
When a call is received, the incoming call screen is
displayed with a sound.
1. Select or press the switch on the steering
wheel to talk on the phone.
To refuse to receive the call: Select or press the
switch on the steering wheel.
To put on hold: Select and hold , or press and hold
the switch on the steering wheel.
To adjust the volume of a received call: Turn the
“POWER/VOLUME” knob, or use the volume control switch
on the steering wheel.
NOTE
lDuring international phone calls, the other party’s name or
number may not be displayed correctly depending on the type of
cellular phone you have.
lThe incoming call display mode can be set. (→P.143)
lThe ringtone that has been set in the “Sound Settings (Sound
Settings)” screen sounds when there is an incoming call.
Depending on the type of Bluetooth phone, both the system and
Bluetooth phone may sound simultaneously when there is an
incoming call. (→P.134)
docstructure.indb 124 2016/03/30 11:15:57

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
125
PHONE
4
TALKING ON THE Bluetooth PHONE
While talking on the phone, this screen is displayed. The
operations outlined below can be performed on this screen.
No. Function Page
Select to display the dial pad to send tones. 122
Select to mute your voice to the other party. -
Select to change handset modes between
hands-free and cellular phone. -
Select to adjust your voice volume that the
other party hears from their speaker. 126
No. Function Page
Select to send tones. This button only appears
when a number that contains a (w) is dialed in
hands-free mode.
126
Select to hang up the phone. -
Select or to adjust the volume of the
other party’s voice.
-
Select to start talking with the other party. 127
NOTE
lWhen cellular phone call is changed to hands-free call, the
hands-free screen will be displayed and its functions can be
operated on the screen.
lChanging between cellular phone call and hands-free call can be
performed by operating the cellular phone directly.
lTransferring methods and operations will be different depending
on the type of cellular phone you have.
lFor the operation of the cellular phone, see the manual that
comes with it.
lTurn the “POWER/VOLUME” knob, or use the volume control
switch on the steering wheel to adjust the volume of the other
party's voice.
docstructure.indb 125 2016/03/30 11:15:58

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
126

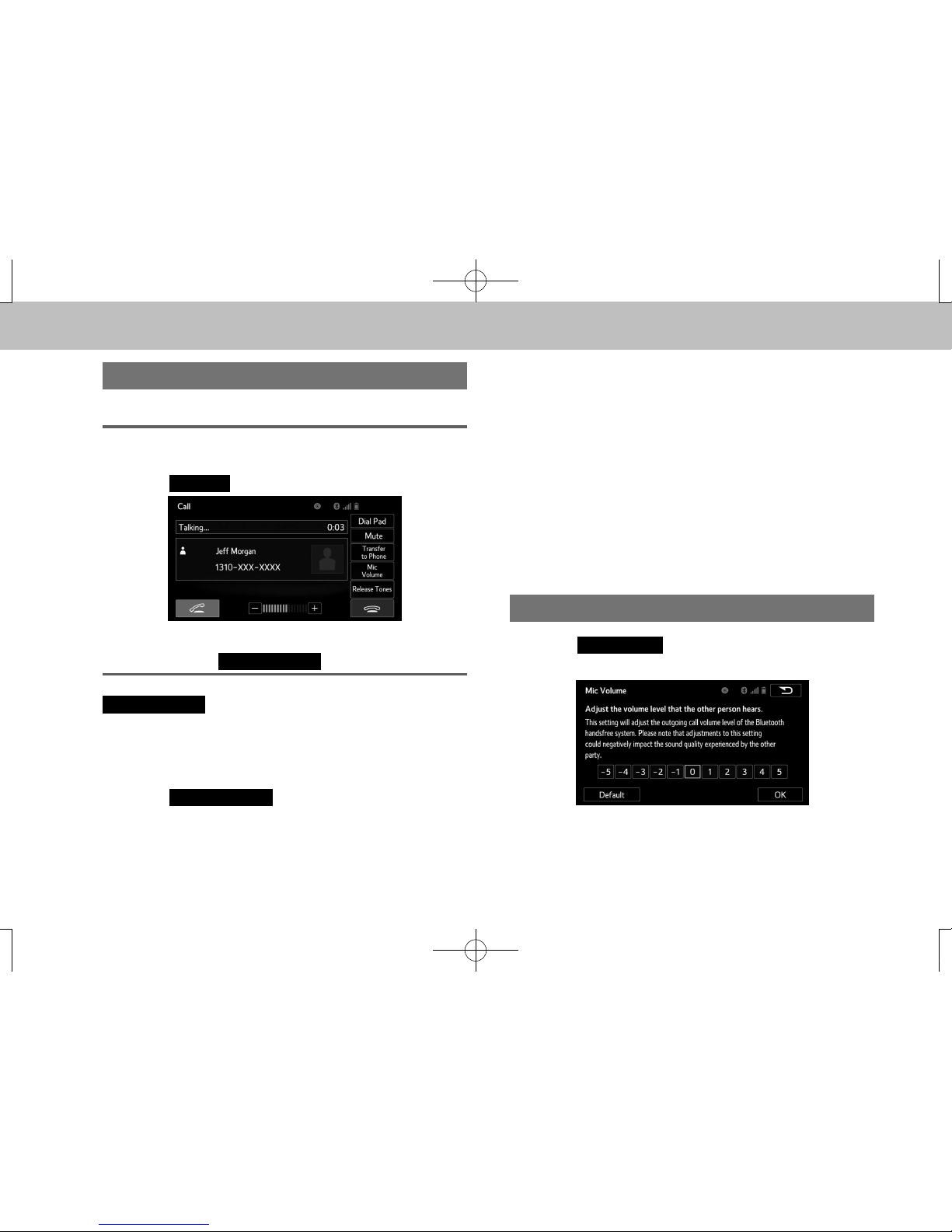

SENDING TONES
BY DIAL PAD
This operation cannot be performed while driving.
1. Select
Dial Pad
(Dial Pad).
2. Enter the desired number.
BY SELECTING
Release Tones
(Release Tones)
Release Tones
(Release Tones) appears when a
continuous tone signal(s) containing a (w) is registered in
the contact list.
This operation can be performed while driving.
1. Select
Release Tones
(Release Tones).
NOTE
lA continuous tone signal is a character string that consists of
numbers and the characters “p” or “w”. (e.g. 056133w0123p#1Û)
lWhen the “p” pause tone is used, the tone data up until the
next pause tone will be automatically sent after 2 seconds have
elapsed. When the “w” pause tone is used, the tone data up
until the next pause tone will be automatically sent after a user
operation is performed.
lRelease tones can be used when automated operation of a
phone based service such as an answering machine or bank
phone service is desired. A phone number with continuous tone
signals can be registered in the contact list.
lTone data after a “w” pause tone can be operated on voice
command during a call.
TRANSMIT VOLUME SETTING
1. Select
Mic Volume
(Mic Volume).
2. Select the desired level for the transmit volume.
docstructure.indb 126 2016/03/30 11:15:58

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
127
PHONE
4
3. Select
OK
(OK).
NOTE
lThe sound quality of the voice heard from the other party’s
speaker may be negatively impacted.
lTo reset the transmit volume, select
Default
(Default).
lThe volume cannot be adjusted while muted.
INCOMING CALL WAITING
When a call is interrupted by a third party while talking, this
screen is displayed.
1. Select or press the switch on the steering
wheel to start talking with the other party.
To refuse to receive the call: Select or press the
switch on the steering wheel.
●Select or press the switch on the steering
wheel to end the current call and return to the
conversation with the party on hold.
Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
XWithout navigation function
1. Select .
2. Select .
●The phone top screen can be displayed by pressing
the switch on the steering wheel.
docstructure.indb 127 2016/03/30 11:15:59

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
128
3. Check that the message inbox screen is displayed.
XWith navigation function
1. Select .
2. Select
PHONE
(PHONE).
3. Select .
●The phone top screen can be displayed by pressing
the switch on the steering wheel.
4. Check that the message inbox screen is displayed.
●: Select to change to phone mode.
Function Page
Receiving a message 129
Checking messages 129
Replying to a message (quick reply) 130
Calling the message sender 131
Message settings 142
docstructure.indb 128 2016/03/30 11:15:59

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
129
PHONE
4
RECEIVING A MESSAGE
When an e-mail/SMS/MMS is received, the incoming
message screen pops up with sound and is ready to be
operated on the screen.
No. Function
Select to check the message.
Select to not open the message.
Select to call the message sender.
NOTE
lDepending on the cellular phone used for receiving messages,
or its registration status with the system, some information may
not be displayed.
lThe pop up screen is separately available for incoming e-mail
and SMS/MMS messages under the following conditions:
• “Incoming E-mail Display (Incoming E-mail Display)” is set to
“Full Screen (Full Screen)”. (→P.142)
• “E-mail Notication Popup (E-mail Notication Popup)” is set
to on. (→P.142)
• “Incoming SMS/MMS Display (Incoming SMS/MMS Display)”
is set to “Full Screen (Full Screen)”. (→P.142)
• “SMS/MMS Notication Popup (SMS/MMS Notication
Popup)” is set to on. (→P.142)
CHECKING MESSAGES
1. Display the message inbox screen. (→P.127)
2. Select the desired message from the list.
docstructure.indb 129 2016/03/30 11:16:00

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
130
3. Check that the message is displayed.
No. Function
*
Select
Mark Unread
(Mark Unread) or
Mark Read
(Mark Read) to mark mail unread or read on the
message inbox screen.
This function is available when “Update Message Read
Status on Phone (Update Message Read Status on
Phone)” is set to on. (→P.142)
Select to reply the message. (→P.130)
Select to display the previous or next message.
Select to have messages read out.
To cancel this function, select
Stop
(Stop).
When “Automatic Message Readout (Automatic
Message Readout)” is set to on, messages will be
automatically read out. (→P.142)
Select to make a call to the sender.
*: E-mail only
NOTE
lDepending on the type of Bluetooth phone being connected, it
may be necessary to perform additional steps on the phone.
lMessages are displayed in the appropriate connected Bluetooth
phone’s registered mail address folder. Select the tab of the
desired folder to be displayed.
lOnly received messages on the connected Bluetooth phone can
be displayed.
lThe text of the message is not displayed while driving.
lTurn the “POWER/VOLUME” knob, or use the volume control
switch on the steering wheel to adjust the message readout
volume.
REPLYING TO A MESSAGE (QUICK REPLY)
15 messages have already been stored.
1. Display the message inbox screen. (→P.127)
2. Select the desired message from the list.
3. Select
Quick Message
(Quick Message).
docstructure.indb 130 2016/03/30 11:16:02

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
131
PHONE
4
4. Select the desired message.
5. Select
Send
(Send).
●While the message is being sent, a sending message
screen is displayed.
EDITING QUICK REPLY MESSAGES
This operation cannot be performed while driving.
1. Select
Quick Message
(Quick Message).
2. Select corresponding to the desired message to
edit.
3. Select
OK
(OK) when editing is completed.
NOTE
lTo reset the editquick reply messages, select
Default
(Default).
l“Quick Message 1” (
I'm driving right now. I will call you back later.
(I'm driving right now. I will call you back later.)*1or
I am driving and will arrive in approximately [ETA] minutes.
(I am
driving and will arrive in approximately [ETA] minutes.)*2)
cannot be edited. [ETA] will automatically be replaced with the
estimated time of arrival on the conrm message screen.
If there are waypoints set, [ETA] to the next waypoint will be
shown.
If there is no route currently set in the navigation system, “Quick
Message 1” cannot be selected.
*1: Without navigation function
*2: With navigation function
CALLING THE MESSAGE SENDER
Calls can be made to an e-mail/SMS/MMS message
sender’s phone number.
This operation can be performed while driving.
docstructure.indb 131 2016/03/30 11:16:03

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
132
CALLING FROM E-MAIL/SMS/MMS MESSAGE
DISPLAY
1. Display the message inbox screen. (→P.127)
2. Select the desired message.
3. Select .
●If there are 2 or more phone numbers, select the
desired number.
4. Check that the “Call (Call)” screen is displayed.
CALLING FROM A NUMBER WITHIN A MESSAGE
Calls can be made to a number identied in a message’s
text area.
This operation cannot be performed while driving.
1. Display the message inbox screen. (→P.127)
2. Select the desired message.
3. Select the text area.
4. Select corresponding to the desired number to call.
● Identied phone numbers contained in the message
are displayed.
5. Check that the “Call (Call)” screen is displayed.
NOTE
lA series of numbers may be recognized as a phone number.
Additionally, some phone numbers may not be recognized, such
as those for other countries.
CALLING FROM THE INCOMING MESSAGE
SCREEN
→P.129
docstructure.indb 132 2016/03/30 11:16:03
