Summit Commercial SCR615TD User manual

BEVERAGE MERCHANDISERS
Model Nos.: SCR615TD / LCR625 / FF616TD
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
Write Serial No. (on lower left corner of
inside cabinet) here:
____________________________________________

2
TABLE OF CONTENTS
Appliance Safety 3
Important Safeguards 3-4
Location of Parts 5
Installation Instructions 6-8
Before Using your Appliance 6
Installing your Appliance 6
Electrical Connection 7
Extension Cord 7
Reversing the Door Swing of your Appliance 8
Installing the Stainless Steel Handle 8
Operating your Appliance 9-11
Control Panel 9-10
Sabbath Mode 10
Temperature Memory Function 10
Temperature Alarm/Door Alarm 10
Door Lock 10
Defrosting 11
Bottle Storage and Accessory Capacity 11
Care and Maintenance 12-12
Cleaning your Beverage Merchandiser 12
Power Failure 12
Vacation Time 12
Moving your Appliance 12
Energy-Saving Tips 12
Troubleshooting 13-14
Limited Warranty 16

3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING".
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.
All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit serving only your appliance be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is
disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technician.
This appliance is CFC- and HFC-free and contains a small quantity of Isobutane (R600a) which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect. Care must be taken during transportation and setting up of the appliance that no

4
parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.
In the event of any damage:
- Avoid open flames and anything that creates a spark,
- Disconnect from the electrical power line,
- Air the room in which the appliance is located for several minutes and
- Contact the Service Department for advice.
The more coolant there is in an appliance, the larger the room it should be installed in. In the event of
a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
For every ounce of coolant at least 325 cubic feet of room space is required. The amount of coolant in
the appliance is stated on the data plate inside the appliance. It is hazardous for anyone other than an
Authorized Service Person to carry out servicing or repairs to this appliance.
Take serious care when handling, moving, and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
Replacing component parts and servicing shall be done by factory authorized service personnel so as
to minimize the risk of possible ignition due to incorrect parts or improper service.
FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit
must be installed in an area protected from the elements, such as wind, rain, water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the appliance.
The size of the fuse (or circuit breaker) should be 15 amperes.
It is important that the appliance be leveled in order to work properly. You may need to make several
adjustments to level it.
All installations must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched, kinked or damaged during installation.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the appliance.
Although the unit has been tested at the factory, due to long-term transit and storage, the first batch
of cubes must be discarded.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
or discolor the interior.
Use this appliance only for its intended purpose as described in this Owner’s Manual.
Keep fingers out of the “pinch point” areas. Clearances between the doors and between the doors
and cabinet are necessarily small. Be careful closing doors when children are in the area.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are
still dangerous, even if they will “just sit in the garage a few days”.
Before discarding your old refrigerator:
Take off the doors
Leave the shelves in place so that children may not easily climb inside.
- SAVE THESE INSTRUCTIONS -

5
LOCATION OF PARTS

6
INSTALLATION INSTRUCTIONS
Before Using your Appliance
Remove the exterior and interior packing.
CAUTION: After unpacking you MUST allow your appliance to stand upright for at least 2 hours to
allow the lubricant and refrigerant to drain back into the compressor and stabilize. Failure
to do so may adversely affect performance and the lifetime of the unit.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the door. (See page 8.)
Installation of your Appliance
The appliances are designed for either built-in or free-standing installation. DO NOT store or
install the appliance outdoors.
CAUTION: This appliance is designed for storing and cooling beverages and drinks. Do not store
perishable food, medicine or other medical products.
Place your Beverage Merchandiser on a floor that is strong enough to support it when it is fully
loaded. To level the unit, adjust the front leveling legs.
For freestanding installation, 5 inches (127 mm) of space between the back and sides of the unit
are suggested, which allows the proper air circulation to cool the compressor and condenser for
energy saving. Even for built-in installation, it is a must to keep 2 to 3 mm of space (about 1/10")
on each side and at the top, and 2 inches (51 mm) at the back, to ensure proper service access
and ventilation. And the air vent at the front of the appliance must never be covered or blocked in
any way.
NOTE: It is recommended that you do not install the appliance near an oven, radiator or other
heating source. Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption. Don’t install in a location where the temperature will fall below 60°F
(16°C). For best performance, do not install the appliance behind a cabinet door or block the
base grille.
Avoid locating the unit in moist areas.
Plug the Beverage Merchandiser into an exclusive, properly grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center.

7
Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third (ground) prong from the power cord
supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical outlet.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed
or dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevents overloading house wiring circuits that could cause a fire hazard from overheating. Never
unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out
from the receptacle. Repair or replace immediately all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end. When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord
is damaged, have it replaced by a qualified electrician or an authorized service center.

8
Reversing the Lower Door Swing of your Appliance
This unit has the capability of the door opening from either the left or right side. The unit is delivered
to you with the door opening from the left side. Should you desire to reverse the opening direction,
please follow the reversal instructions shown below.
NOTE: All parts removed must be saved to allow the door swing to be reversed.
1. Remove the bottom hinge 2by unscrewing the four lock screws 1. Be careful to hold the door
firmly after removing the screws. (Fig. 1)
2. Gently pull down to remove the door from the right top hinge and place it on a padded surface to
avoid the risk of damage. Then remove the right top hinge 7. (Figs. 2 & 3)
3. Unscrew and transfer pins 4and 3of the hinge plate to the opposite side. (Fig. 1)
4. Pop out the cover caps on the left side of cabinet and use them to cover the screw holes on the
right hand side.
5. Screw the alternative left top hinge 8, included in the fittings, on the left hand side of cabinet.
(Fig. 3)
6. Relocate the door to the designated position. Then screw the bottom hinge assembly on the left
designated position and tighten it after the door is leveled. (Fig. 1)
Installing the Stainless Steel Handles
This appliance includes two stainless steel handles
that are not required to operate the unit. To install the
handles, follow the instructions below:
1. Remove the door gasket.
2. Install the handle with the screws provided. (DO
NOT over-tighten as this will cause damage to the
stainless steel door surface.)
3. Replace the door gasket.
Handle Screw
Drawer Door

9
OPERATING YOUR APPLIANCE
It is recommended that you install the appliance in a place where the ambient temperature is
between 72º and 78ºF (23º-26ºC). If the ambient temperature is above or below the recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in
extremely cold or hot conditions may cause interior temperatures to fluctuate. The range of 36º-43ºF
(2º-6ºC) may not be reached.
Control Panel
ON/OFF Power
To turn the appliance off, press and hold the key for 5 seconds until the temperature display
goes off.
To turn the appliance on, press and hold the key for 1 second until the temperature display
lights up.
NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on.
Up
Used to increase (warm) the set temperature by 1°C/1ºF.
Down
Used to decrease (cool) the set temperature by 1°C/1ºF.
Light
The interior light makes it easy to view your items. Pressing the LIGHT symbol toggles between 2
modes of operation for the internal lights: functional (default) mode and showcase mode. If you are
in functional (default) mode, the lights will turn on only when the door is open. If you are in showcase
mode, the lights will be on whether or not the door is open.
ºF/ºC Selector
Select the temperature display in Fahrenheit or Celsius degrees. To change the temperature from
Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the LIGHT key for 5 seconds.
Setting the Temperature Control
You can set the temperature by touching the UP and DOWN symbols. When you press either of
the two buttons for the first time, the LED readout will show the original temperature set
previously. (The temperature preset at the factory is 38°F/3°C).

10
The temperature you are setting will increase by one degree each time you press the UP
symbol, and will decrease by one degree each time you press the DOWN symbol.
The range of the temperature control is from 36°F/2°C to 43°F/6°C.
To view the set temperature at any time, press the UP or DOWN symbol. The set temperature
will flash in the display window for 5 seconds. After 5 seconds, the temperature inside the unit
will reappear in the display window.
Sabbath Mode
Sabbath mode is available for the observance of certain religious holidays. This mode turns off the
displays, interior light and audible alarms and prevents them from turning on again. Normal cooling
operations will still take place.
To initiate Sabbath mode, press the POWER and LIGHT keys at the same time for at least 5
seconds. The indicator light will flash four times and confirm the Sabbath mode is ON.
Sabbath mode can be canceled by repeating the above process. The Sabbath Mode will
automatically turn off after 48 hours.
Temperature Memory Function
In the event of a power interruption (power surge, breaker switch, etc.), the unit can remember the
previous temperature settings. When power is recovered, the cabinet will return to the same set
temperature as before the power went off.
Temperature Alarm/Door Alarm
An audible alarm sounds if the storage temperature is not cold enough. The temperature display
flashes at the same time.
The cause of the temperature being too high may be:
- Warm items were placed inside
- Too much warm ambient air flowed in when rearranging and removing contents
- Power failure for some time
- The appliance is faulty.
The audible alarm is automatically silenced and the temperature display stops flashing when the
temperature is sufficiently cold again.
If the door has been left open for more than 60 seconds, the alarm will sound. Pressing the
POWER key once can switch off the audible alarm.
Door Lock
Your unit is provided with a lock and key combination, located inside the plastic bag that contains
the Instruction Manual. When not locking or unlocking the unit, keep the keys in a safe place.
Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door, do
the reverse operation, making sure the metal pin is engaged completely.
NOTE:
If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the unit will not start.
When you use the unit for the first time or restart the unit after it has been shut off for a
long time, there could be a few degrees variance between the temperature you select and
the one indicated on the LED readout. This is normal and is due to the length of the
activation time. There should not be a problem once the unit has been running for a few
hours.

11
Defrosting
The unit defrosts automatically during normal operating conditions.
The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in
the drainage channel behind the rear wall of the unit, and flows through the drainage hole into the
drip tray by the compressor where it evaporates.
However, frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or
high humidity location. If this frost pattern does not clear within 24 hours, your unit will require
manual defrosting.
Bottle Storage and Accessory Capacity

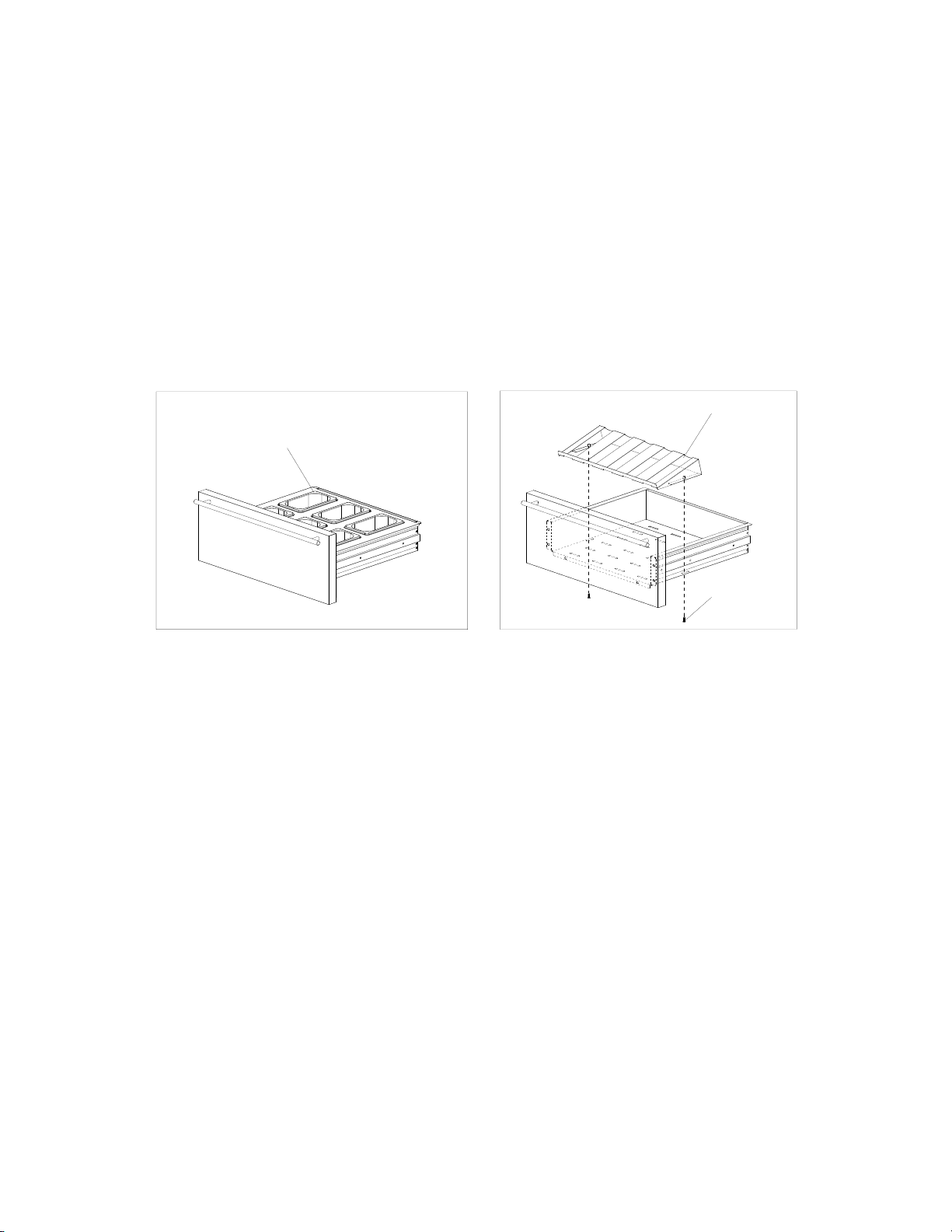

This unit comes with two accessory inserts for the upper drawer. One insert can accommodate a full
set of restaurant pans, and the other insert is a wine rack, which can accommodate 5 bottles of wine.
Wine bottles can vary in size and shape, and the stated capacity may not apply to every varietal.
Restaurant Pans
(6Pcs)
Wine Rack
Screw

12
CARE AND MAINTENANCE
Cleaning your Beverage Merchandiser
Turn off the power, unplug the appliance, and remove all items, including shelves.
Wash the inside and outside surfaces as well as the shelves with warm water and mild liquid
detergent. Rinse well and wipe dry with a clean soft cloth.
Wring excess water out of the sponge or cloth when cleaning the area where the controls are
located, or any electrical parts.
Do not use steel wool or a steel brush on the stainless steel.
CAUTION: Failure to unplug the appliance during cleaning could result in electrical shock or other
personal injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect the contents.
Vacation Time
Short vacations: Leave the appliance operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn
off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door open slightly, blocking it open if necessary.
Moving your Appliance
1. Remove contents.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also, protect
the outside of the appliance with a blanket or similar item.
Energy-Saving Tips
The appliance should be located in the coolest area of the room, away from heat-producing
appliances and out of direct sunlight.
Ensure that the unit is adequately ventilated. Never cover air vents.
Do not keep the door open any longer than necessary.

13
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling the servicer.
Troubleshooting Guide
PROBLEM
POSSIBLE CAUSE
REMEDY
The appliance
does not
operate.
Appliance is not connected to a power
source.
The appliance is turned off.
Tripped circuit breaker or a blown
fuse.
Connect the appliance.
Switch on the appliance.
Switch on circuit breaker or replace
fuse.
The appliance
is not cold
enough.
The temperature is not set correctly.
The ambient temperature could
require a higher thermostat setting.
The door was opened too often.
The door was not closed completely.
Door is not hermetically-sealed.
The condenser is too dirty.
The ventilation opening is blocked or
too dusty.
Check the set temperature.
Raise the setting of the thermostat.
Do not open the door more often
than necessary.
Close door properly.
Check the door seal and clean or
replace.
Clean the condenser when
necessary.
Clear the obstructions and clean off
the dust.
The appliance
turns itself on
and off
frequently.
The room temperature is higher than
average.
A large number of bottles has been
added to the unit.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal
properly.
Put the appliance in a cooler place.
Let appliance to work for a while
until the set temperature has been
reached.
Do not open the door more often
than necessary.
Close door properly.
Check the door seal and clean or
replace.
The light does
not work.
The appliance is not connected to a
power supply.
Tripped circuit breaker or a blown
fuse.
The light was switched off on the
control panel.
Connect the appliance.
Switch on circuit breaker or replace
fuse.
Switch on the light.
Vibrations
The appliance is not properly level.
Level the appliance with the
adjustable feet.
The appliance
seems to
make too
much noise.
The rattling noise may come from the flow of the refrigerant, which is normal. As
each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant
in your appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls

14
may cause popping and crackling noises.
The appliance is not properly level.
Level the appliance with the
adjustable feet.
The door will
not close
properly.
The appliance is not properly level.
The door was reversed and not
properly installed.
The gasket is dirty.
The shelves are out of position.
Level the appliance with the
adjustable feet.
Check the door hinge and
reassemble correctly.
Clean the door gasket.
Check the shelves and refit
correctly.
Display “E0”,
“E1”. “E2”,
“E3”, “E4”,
“E5”or “E7”.
“E0”indicates a communication error
for 3 zone models.
“E1”or “E2”indicates that the air
temperature sensor has failed.
“E3”or “E4”indicates that the defrost
sensor in the evaporator has failed.
“E5”indicates defrost heater failure.
“E7”indicates door switch failure.
Call for service.
The alarm
sounds and
the
temperature
display
flashes.
Has the appliance door been open for
longer than 60 seconds? If not, then
the temperature has risen higher or
fallen lower than the temperature that
has been set. This could be due to:
The appliance door being opened too
often.
The ventilation opening being covered
or too dusty.
A lengthy interruption to the power
supply.
A large number of bottles has been
added to the unit.
If yes, close the door.
Do not open the door more often
than necessary.
Clear the obstructions and clean the
dust.
Leave the appliance to work for a
while until the set temperature has
been reached.
The icon “--”
is lit up and
flashing in the
temperature
display.
The display temperature is out of
range.
Only temperatures within the range
0~99°F/-9~37°C can be displayed. If
the temperature is not within this
range, the icon “--” will be displayed
instead. That is normal.

15
NOTES

16
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, warrantor will
pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service
must be provided by a designated service company. Outside the 48 states, all parts are warranted for
one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be
manufactured to commercially acceptable standards, and are not covered from damage during handling
or breakage. 5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as
filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES;LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE.
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: [phone]
Fax: [phone]
www.summitappliance.com
Printed in China
