Summit FF1513SS User manual

Write Model and Serial Numbers here:
Model _________________________
Serial No. ______________________
Refrigerator
User Manual
Réfrigérateur
Manuel d’utilisation
Refrigerador
Manual del usuario
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY
RULES AND OPERATING INSTRUCTIONS
FF1513SS/FF1514SSIM/FF1515W
EN / FR / ES
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com

Please read this user manual
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documentsthat comes withtheproduct.
Remember that this user manual is also applicable to several other models. Differences
between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips. Warning
against dangerousconditionsforlife and
property.
Warning against electric voltage.
Warning: risk of fire / flammable materials
CONTENTS
1. Your Refrigerator
1
4. Preparation
6
2.
Important Safety Warnings
1
5.
Using Your Refrigerator
6
Intended use ..........................................................................1
General safety .......................................................................1
For products with a water dispenser .......................................... 2
Child safety ........................................................................... 2
Package information..............................................................3
HC warning...........................................................................3
Recommendations for the fresh food Compartment ........ 3
Things to be done for energy saving ........................................3
3. Installation 3
Points to be paid attention to when the
Relocation of the refrigerator. ...................................................3
Disposing of the packaging .....................................................4
Disposing of your old refrigerator ............................................4
Placing and Installation. ..........................................................4
Door Open Warning ...............................................................4
Appropriate installation location ................................................4
Adjusting the legs. ..................................................................4
Connecting the water hose to the refrigerator. ............................5
Connecting the water line to the water supply .............................5
Package information..............................................................5
Changing the illumination lamp. ..............................................5
Electrical connection ...............................................................5
Indicator panel (Internal).........................................................6
Freezing fresh food. .................................................................7
Recommendations for the preservation of frozen food ...............7
Placing the food .......................................................................7
Deep-freeze information ...........................................................7
Fan........................................................................................8
Description and cleaning of odor filter .......................................8
Chiller compartment ...............................................................8
Crisper. .................................................................................8
Reversing the doors ................................................................9
6. Maintenance and Cleaning 10
Protection of plastic surfaces ................................................... 10
7.
Troubleshooting 11

1
*14
12
*13
*14
*1
*9
12
11
*2
4
*3
*10
*9
*8
*5
*7
6
6
Your Refrigerator
1
1. Freezer - compartment door shelf
2. Temperature setting button
3. Sliding door shelf
4. Egg section
5. Bottle shelf
6. Adjustable feet
7. Crisper
8. Chiller compartment
9. Lock and key
16
10.Bottle shelf
11. Refrigerator - compartment glass shelf
12. Fan
13. Freezer compartment shelf
14. Ice-making compartment
15. Freezer compartment
16. Refrigerator compartment
*Optional
Figures that are in this instruction manual are schematics and may not correspond exactly with your product. If the
subject parts are not included in the product you have purchased, then it is meant for other models.
ImportantSafety Warnings
Please review the following information. Failure to
observe this information may cause injuries or
material damage. Otherwise, all warranty and
reliability commitments will become invalid.
Appliance should not be used outdoors
This appliance is intended to be used in household and
similar applications such as
• staff kitchen areas in shops, offices, and other working
environments:
• farmhouses and by clients in hotels, motels, and
other residential type environments:
• bed and breakfast type environment,
• catering and similar non-retail applications
General safety
• Whenyouwantto dispose of/scrapthe product, we
recommend you consult an authorized service to
learn the
required information and authorized bodies.
• Consult your authorized service for all your questions
and problems related tothe refrigerator. Donot repair or let
someone repair the refrigerator without notifying
authorized services.
• For products witha freezercompartment, do not put
bottled and canned liquid beverages in the freezer
compartment. Otherwise, they may burst.
• Donottouch frozen food by hand; it may stick to
your hand.
• Unplug your refrigerator before cleaning or defrosting.
Vapor and vaporized cleaning materials should never be used in
your refrigerator's cleaning and defrosting processes. In such
cases, the vapor may get in contact with the electrical parts and
cause a short circuit or electric shock.
• Never use the parts on yourrefrigerator such as thedooras
a means of support or step.
• Do not use electrical devices inside the refrigerator.
• Donot damage the parts that aid in the circulation of the
refrigerant,
with drillingorcutting thegas channels ofthe
evaporator, pipe extensions or surface, as it can
cause
skin irritation and eye injuries.
• Electrical devices must be repaired by only authorized
persons. Repairs performed by inexperienced persons
create a risk for the user.
• Do not cover or block the ventilation holes on your
refrigerator with any material.
• In case of any failure during maintenance or repair
work, disconnect yourrefrigerator’s mains supply by
eitherturning offtherelevantfuse orunplugging
your appliance.
• Donot pull by the cable when unplugging the unit.
• Ensure highly alcoholic beverages are stored securely
with the lid fastened and placed upright.
• Donot store explosive substances such as aerosol
cans
with a flammable propellant in this appliance.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer
.
• This appliance isnot intendedfor use by persons
(including children) with reduced physical, sensory, or
mental capabilities, or lack of experienceand knowledge
unless they havebeengivensupervisionorinstruction
concerningtheuseoftheappliance by aperson
responsible
for their safety.
2
1

2
WARNING:
Keep ventilation
openings, in the appliance enclosure
or in the built-in structure, clear of
obstruction.
WARNING:
Do not use
mechanical
devices or othermeansto
accelerate
the defrosting process, other than those
recommended by the manufacturer.
WARNING:
Do not use electrical
appliances inside the food storage
compartments of the appliance,
unless they are of the type
recommended by the
manufacturer.
1
WARNING: Do not damage the
refrigerant circuit.
• Do not operate a damaged refrigerator. Consult the
service agent if you have any concerns.
• Electricalsafety of your refrigerator shall be guaranteed
only if the electrical systemin your house complies
with standards.
• If the SUPPLY CORD is damaged, it must be
replaced by the manufacturer, its service agent, or a
similarly qualified
person to avoid a hazard.
• Never plug the refrigerator into the wall outlet during
installation. Otherwise, risk of death or serious injury
may arise.
• This refrigerator is intended for only storing food items. It
must not be used for any other purpose.
• Label with technical specifications islocated on the left
wall inside the refrigerator.
• Never connect your refrigerator to electricity saving
systems;they may damage the refrigerator.
• If there is a blue light on the refrigerator, do not
look at the blue light with optical tools.
• For manually controlled refrigerators, wait for at least 5
minutes to start the refrigerator after power failure.
• This operation manual shouldbe handedin to the
new owner of the product when it is given to others.
• Avoid causing damage on power cable when
transporting the refrigerator. Bending cable may cause
fire. Never place heavy objects onpowercable.
• Do not touch the plug with wet hands when plugging
in the product.
• Do not plug the refrigerator if the wall outlet is loose.
• Water should not be sprayed on inner or outer parts of
the product for safety purposes.
• Do not spray substances containing inflammable gases
such as propane
gas near the refrigerator to avoid fire
and explosion risk.
• Never place containers filled with water on top of the
refrigerator; in the event of spillages, this may cause
electric shock or fire.
• Do not overload the refrigerator with food. If overloaded,
the food items may fall and hurt you and damage the
refrigerator when you open the door.
• Never place objects on top of the refrigerator. Otherwise,
these objects may fall when you open or close the
refrigerator door.
• As they require a precise temperature,
vaccines, heat-sensitive medicine, and
scientific materials, etc. should not be kept in
the refrigerator.
• If not to be used for a long time, the refrigerator
should be unplugged. An issue with the power cable
may
cause a fire.
• The plug’s tip should be cleaned regularly with a dry
cloth; otherwise, it may cause a fire.
• Refrigerator may move if adjustable legs are not
properly secured on the floor. Properly securing
adjustable legs on the floor can prevent the refrigerator to
move.
• When carrying the refrigerator, do not hold it from
the
doorhandle. Otherwise, it may snap off.
• If you must place your product next to another
refrigerator or freezer, the distance between devices
should be at least 8 cm. Otherwise, adjacent side walls
may be humidified.
The product shall never be used while the compartment
which is located at the top or back of your product and
in
which electronic boards are available (electronic board
box cover) (1) is open.
For products with a water dispenser .
• Pressure for cold water inlet shall be maximum 90 psi (6.2
bar). Ifyour water pressureexceeds 80psi (5.5bar), usea
pressurelimitingvalve inyour mains system.If you do not know
how to check your water pressure, ask for the
help of a
professional plumber.
• If there is a risk of water hammer effect in
your
installation, always use water hammer
prevention equipment in your installation. Consult a
professional
plumber if you are not sure that there
is no water
hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions
against of the risk of freezing of the hoses. The
water
temperature operating interval shall be 33°F
(0.6°C)
minimum and 100°F (38°C) maximum.
• Use only potable water.
Child safety
• If the door has a lock, the key should be kept away from
the
reach of children.
• Children should be supervised to ensure that they do
not play with the appliance.

3
Package information
Packaging materials of the product are manufactured
from recyclable materials in accordance with our
National Environment Regulations. Do not dispose
of the packaging materials together with the domestic or
other wastes. Take them to the packaging material
collection points designated by the local authorities.
Do not forget:
If you want to contribute to the re-evaluation of the
packaging materials, you can consult environmentalist
organizations
or your local municipality.

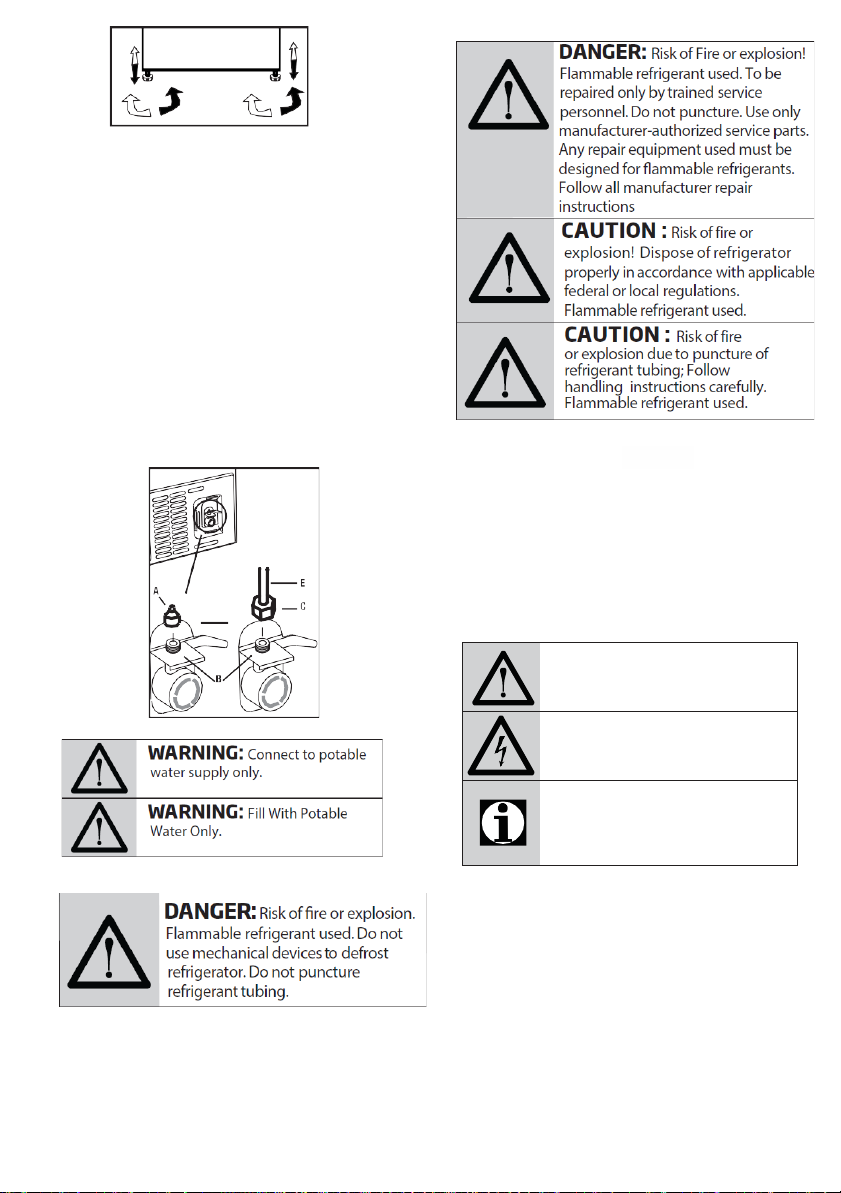

HC warning
If your product's cooling system contains
R600a:
This gas is flammable. Therefore, pay attention to
not damaging the cooling system and piping during
usage and transportation. In the event of damage,
usage, and transportation. In the event of damage,
keep your product away from potential fire sources
that can cause the product to catch fire and
ventilate the room in which the unit is placed.
Ignore this warning if your product's cooling
system
contains R134a.
The type of gas used in the product is stated on
the rating label which is on the left wall inside the
refrigerator.
Never throw the product in an
incinerator for disposal.
3 Installation
If the steps and information in this
user manual are not followed and
considered, the manufacturer is not
liable for damages.
Things to pay attention to when
relocating the refrigerator:
1. Your refrigerator should be unplugged. Before
the transportation of your refrigerator, it should be
emptied and cleaned.
2. Before it is re-packaged; the shelves, accessories, crisper,
and other loose items
inside your refrigerator should be
fixed with adhesive
tape and be secured against
impacts. The package should
be bound with thick
tape or strong ropes and the
transportation rules
on the package should be strictly observed.
3. Original packaging and foam materials should be
kept for future transportation or moving.
Check the following before you start to use your
Things to be done for energy saving
• Do not leave the doors of your refrigerator open for a long time.
• Donot puthot foodordrinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation
inside of it is not prevented.
• Do not install your refrigerator under direct sunlight
or near heat-emitting appliances such as ovens,
dishwashers, or radiators. Keep your refrigerator at
least 30cm away from heat-emitting sources and at
least 5cm from electrical ovens.
• Keep your food in closed containers.
• For units with a freezer compartment: You can
store a larger amount of food items in the freezer
when you
remove the shelf or drawer of the
freezer. Energy
consumption value stated for your
refrigerator has been
determined by removing the
freezer shelf or drawer and under maximum load.
• Thawing frozen food in the refrigerator
compartment will save
energy and preserve the
food quality.
Before you start the refrigerator,
1. Clean the interior of the refrigerator as recommended in the
“Maintenance and cleaning” section.
2. Connect the plug of the refrigerator to the wall socket. When
the refrigerator door is opened, the refrigerator’s internal
lamp will turn on.
3. When the compressor starts to operate, a sound will be
heard. The liquid and gases sealed within the refrigeration
system cause noise when running, even if the compressor is
not
running and this is quite normal.
4. Front edges and both sides of the refrigerator may feel warm.
This is normal. These areas
are designed to be warm to avoid
condensation.
Important:
The connection must follow national and local electrical regulations.
• The power plug must be easily accessible after installation.
• Electrical safety of yourrefrigerator shall beguaranteedonly if
the earth systemin your housecomplies with standards.
• Thevoltagestated onthelabel located on the leftinner
side of your product should be equal to your
network
voltage.
• Extension cables and multi-plugs must not be used.
