SAFETY PRECAUTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including
the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in
the installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the
connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting
your refrigerator.
7) If your old refrigerator is not being used, we recommend that you
remove the doors and leave the shelves in place. This will reduce the
possibility of danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces
in the freezer compartment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
9) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: “…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold-below 40˚F.
“…Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat.
“…Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can.”
21
English

Thank you for using our Summit
product. This easy-to-use manual
will guide you in getting the best
use of your refrigerator.
Remember to record the model and
serial number. They are on a label
in the rear of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
10) This refrigerator should not be recessed or built-in an enclosed cabinet.
It is designed for freestanding installation only.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
For Future Reference Please
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
21
English

Table Of Contents
PAGE
Safety Precautions......................................................................1
Parts And Features .....................................................................4
Installing Your Refrigerator.......................................................5
Unpacking Your Refrigerator .............................................................5
Leveling Your Refrigerator .................................................................5
Proper Air Circulation.......................................................................5
Electrical Requirements .....................................................................6
Door Alignment ...............................................................................7
Door Reversal..................................................................................8
Refrigerator Features And Use..................................................... 10
General Features ...........................................................................10
Refrigerator Interior Shelves.............................................................10
Dispense-A-Can™ ..........................................................................11
Defrosting .....................................................................................11
Food Storage Information ...............................................................12
Normal Operating Sounds..............................................................12
Proper Refrigerator Care and Cleaning .................................13
Cleaning and Maintenance.............................................................13
Power Interruptions.........................................................................13
Vacation and Moving Care.............................................................13
Troubleshooting ........................................................................14
Warranty Information..............................................................15
3
English

4
1. Freezer Compartment
2. Ice Cube Tray
3. Drip Tray
4. Adjustable Temperature Control
5. Slide-Out Shelves
6. Retainer Bar
7. Adjustable Front Leveling Leg
(not shown)
8. “Dispense-A-Can™” Can Storage
9. Fixed Door Shelf
2
3
4
5
6
7
8
9
1
English
Parts And Features

1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials
before powering on the refrigerator.
• Your refrigerator has two leveling legs which are located in the front
bottom corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
• Leveling legs can be adjusted by turning them clockwise to raise
your refrigerator or by turning them counterclockwise to lower your
refrigerator. The refrigerator door will close easier when the leveling
legs are extended.
• To assure your refrigerator works at the maximum efficiency it was
designed for, you should install it in a location where there is proper
air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………3/4" (19mm)
Top....................2" (50mm)
Back..................2" (50mm)
Installing Your Refrigerator
Unpacking Your Refrigerator
Proper Air Circulation
Leveling Your Refrigerator
5
English

Electrical Requirement
• Make sure there is a suitable power outlet (115 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
• Avoid the use of three prong adapters or cutting off the third
grounding prong in order to accommodate a two prong outlet. This is
a dangerous practice since it provides no effective grounding for the
refrigerator and may result in shock hazard.
• Avoid the use of an extension cord because of potential safety
hazards under certain conditions. If it is necessary to use an extension
cord, use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot outlet that will accept the plug. The marked rating
of the extension cord must be equal to or greater than the electrical
rating of the appliance.
• Do not install your refrigerator in any location not properly insulated
or heated, e.g. garage, etc. Your refrigerator was not designed to
operate in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface
away from direct sunlight or heat source, e.g. radiators, baseboard
heaters, cooking appliances, etc. Any floor unevenness should be
corrected with the leveling legs located on the front bottom corners of
the refrigerator.
Install Limitations
6
English
Use of Extension Cords

1. Remove the top hinge cover.
2. Loosen the top hinge screws using a phillips head screwdriver.
3. Adjust the door or put a spacer in between and then tighten
the screws.
4. Replace the top hinge cover.

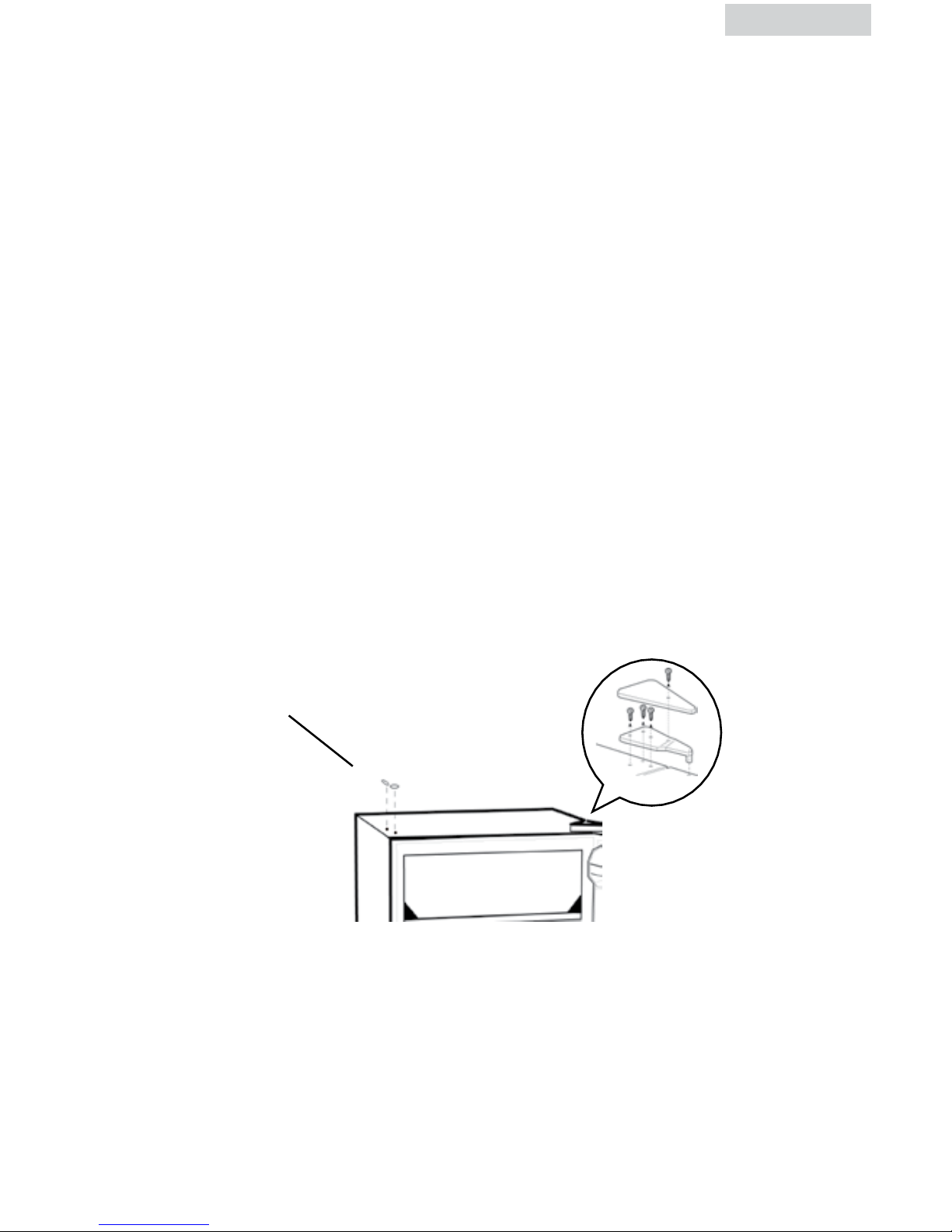

Door Alignment (see fig. # 1)
fig. # 1
English
7

Reversing the Door Hinge
1. Remove the top hinge cover. (see fig. # 1)
2. Using a phillips pead screwdriver, loosen and remove the screws
holding the top hinge in place. (see fig. # 1)
3. Remove the top hinge and carefully lift off the door.
4. Remove the screw hole plug from the opposite side and insert the
plug in the screw hole openings of the just removed screws.
(see fig. # 2)
5. Remove the door pin from the bracket of the lower hinge by turning
counter clockwise. Move the pin to the opposite hole and tighten.
(see fig. # 3)
6. Loosen the screws holding the lower hinge bracket and remove the
hinge. (see fig. # 3)
7. Align the holes in the lower hinge bracket to the corresponding
holes in the opposite side of the cabinet. Insert and tighten the
screws. (see fig. # 3)
8. Align the bottom hole on the left side of the door with the pin of the
lower hinge and slide into place.

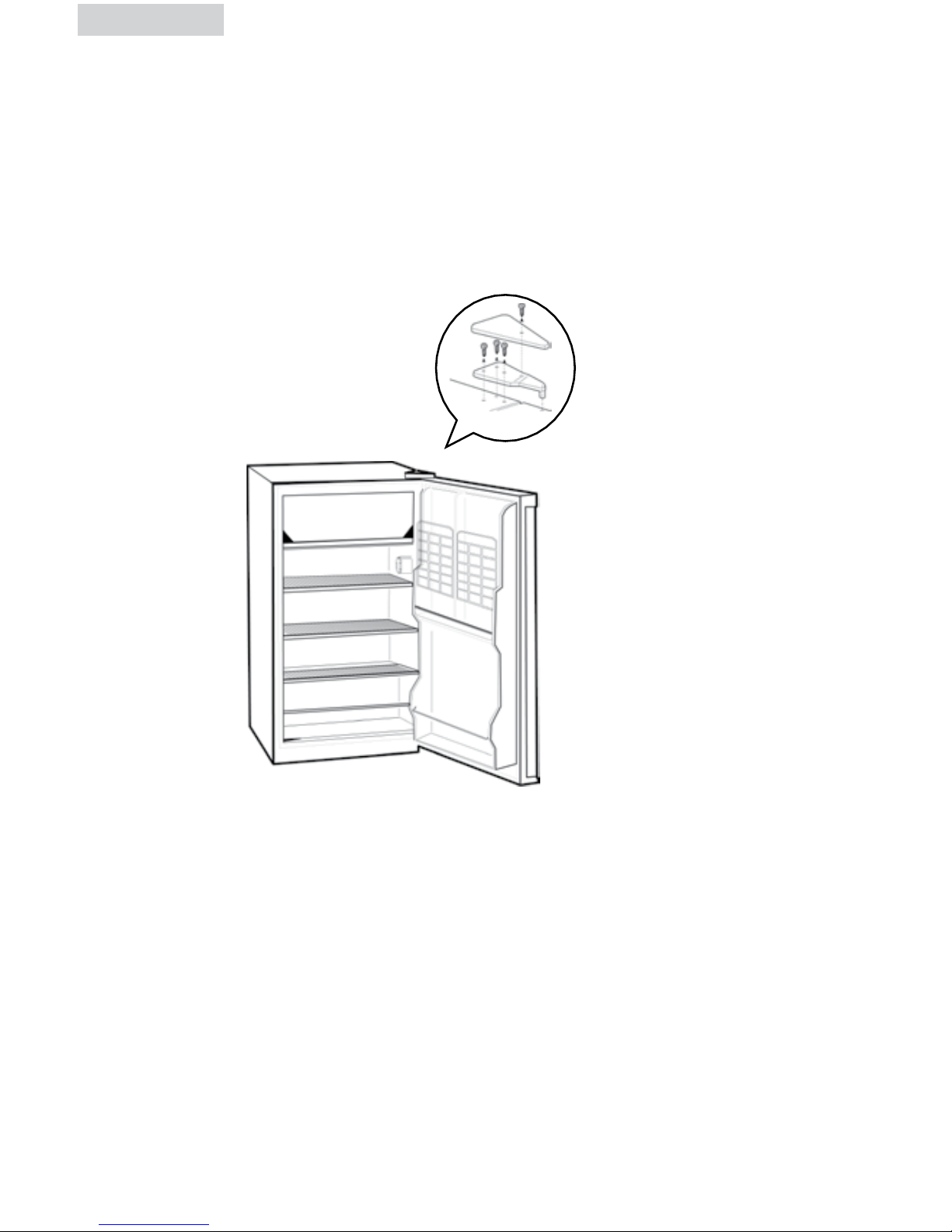

fig. # 2
screw hole plugs
English
8

9. Align the pin of the top hinge with top hole on the left side of the
door and push into place. Replace the screws in the upper hinge
bracket but do not tighten all the way. (see fig. # 2)
10. Make sure the door closes easily but forms a tight seal. Adjust the
door as needed. Once you are satisfied with the door alignment,
completely tighten the upper door hinge screws.
11. Replace the hinge cover. (see fig. # 2)
12. If the door does not close properly, refer to the section titled
“Door Alignment”.
NOTE: As the door gets pressed-in during shipping, after reversing
the door, the gasket may have to be reset. This is done to
prevent the cool refrigerated air from escaping. If there is a
gap between the door gasket and the cbainet, set the gasket by
gently pulling it out to seal the gap.
fig. # 3
door pin
lower hinge bracket
screw hole plug
English
9

Refrigerator Features And Use

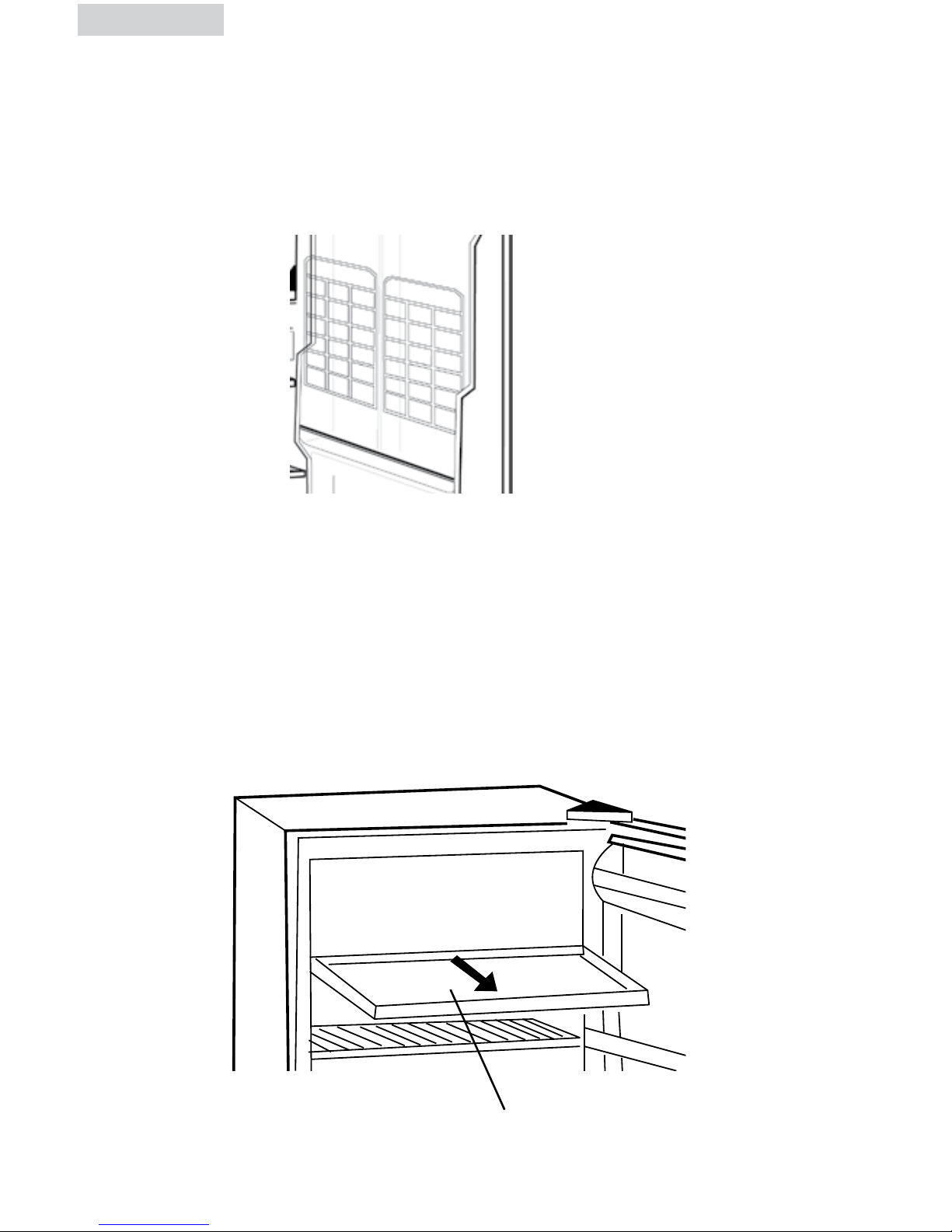

To remove or replace a full-width slide-out shelf:
(see fig. # 4)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the shelf back.
General Features
Adjustable temperature dial:
Your refrigerator will automatically
maintain the temperature level you
select. The temperature control dial
has 7 settings plus OFF. 1 is the
warmest. 7 is the coldest. Turning the
dial to OFF stops cooling in both the
refrigeration and freezer sections. At
first, set the dial to 4 and allow 24
hours to pass before adjusting the
temperature to your needs.
(Note: If the refrigerator has
been placed in a horizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
Refrigerator Interior Shelves
fig. # 4
English
10

fig. # 6
drip tray
Using the Dispense-A-Can™
Defrosting Your Refrigerator (see Fig. # 6)
• Your refrigerator is equipped with the convenient
“Dispense-A-Can™” compartment. Each compartment will hold up
to four cans. Simply load the cans from the top. To dispense a can,
simply draw one out from the bottom. It is that easy.
• To set the timer to the defrost cycle, follow the instructions on the timer
which is located on the back of the unit. Make sure the drip tray is
under the freezer section. Defrosting may take a few hours.
• The drip tray on your refrigerator is designed to drain away the
defrosted water to the drip pan on the compressor. Here the water
will evaporate.
fig. # 5
English
11

English
12
Fresh Food
• When storing fresh food, which is not prepackaged, be sure to wrap
or store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of
odors and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
• Fruit should be washed and dried, then stored in sealed plastic bags
before storing in the refrigerator.
• Vegetables with skins should be stored in plastic bags or containers.
• Leafy vegetables should be washed and drained and then stored in
plastic bags or containers.
• Hot food should be allowed to cool before storing in the refrigeration.
This will prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
• Chicken 1-2 Days
• Ground Beef 1-2 Days
• Cold Cuts 3-5 Days
• Steaks/Roasts 3-5 Days
• Smoked/Cured Meats 7-10 Days
• All others 1-2 Days
Food Storage Information
• Boiling water, gurgling sounds or slight vibrations that are the result
of the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
Normal Operating Sounds You May Hear

• Occasionally there may be power interruptions due to thunderstorms
or other causes. Remove the power cord from AC outlet when a
power outage occurs. When power has been restored, replug power
cord to AC outlet. If outage is for a prolonged period, inspect and
discard spoiled or thawed food in freezer and refrigerator. Clean
refrigerator before reusing.
• For long vacations or absences, empty food from refrigerator and
freezer, move the temperature dial to the OFF position and clean
the refrigerator and door gaskets according to “General Cleaning”
section. Prop doors open, so air can circulate inside.When moving,
always move the refrigerator vertically. Do not move with the unit
lying down. Possible damage to the sealed system could occur.
Power Interruptions
Vacation and Moving Care
Warning: To avoid electric shock, always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury.
Caution: Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
General:
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft
cloth.
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. Some of these chemicals may
dissolve, damage and/or discolor your refrigerator.
• Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of
gaskets will keep the gasket pliable and assure a
good seal.
Proper Refrigerator Care and Cleaning
Cleaning and Maintenance
Door Gaskets:
EnglishEnglish
13

EnglishEnglish
14
Refrigerator does not operate
• Check if thermostat control is not in the “OFF” position.
• Check if refrigerator is plugged in.
• Check if there is power at the AC outlet, by checking the
circuit breaker.
Food temperature appears too warm
• Frequent door openings.
• Allow time for recently added warm food to reach fresh food or
freezer temperature.
• Check gaskets for proper seal.
• Clean condenser coils.
• Adjust temperature control to colder setting.
Food temperature is too cold
• If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Refrigerator runs too frequently
• This may be normal to maintain constant temperature during high
temperature and humid days.
• Doors may have been opened frequently or for an extended period
of time.
• Clean condenser coils.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior
of the refrigerator:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator door does not shut properly:
• Level the refrigerator.
• Re-align refrigerator door.
• Check for blockages, e.g. food containers, crisper cover,
shelves, bins, etc.
TroubleShooting

15
Summit Model Number Serial
Customer’s Name Date of Delivery
Address Apt. No.
City State Zip
Dealer’s Name City State
Is this unit for: Private Home Apartment Office Other
Reasons for selecting this unit: Dealer Recommendation
Size Price Other
SUMMIT LIMITED WARRANTY
Summit Appliances warrants this product to be free from defects in materials
and workmanship for a period of one year from the date of original purchase
or delivery. Any parts determined to be defective will be replaced by SUMMIT
at no charge to you. Plastic parts, liners and outer cabinets are warranted to be
manufactured to commercially acceptable standards and free from defects at the
time of delivery.
This limited warranty does not apply to:
1. Improper installation
2. Customer misuse, negligence or damage
3. Incorrect electrical current
4. Products with the serial number altered or removed
5. Products sold or used outside the fifty United States or the District of
Columbia
6. Commercial or Industrial Users
7. Damage to this product from accidents, alterations, failure to follow
instructions, fire, floods, earthquakes, war, civil disturbance or Acts of
God.
SUMMIT is not liable for consequential or incidental damage.
FELIX STORCH, INC.
770 GARRISON AVENUE BRONX, NY 10474
SUMMIT APPLIANCE DIV.
FELIX STORCH, INC.
770 GARRISON AVENUE
BRONX, NY 10474
FACTORY REGISTRATION CARD
THANK YOU FOR PURCHASING A QUALITY SUMMIT® APPLIANCE
English

Français
MESURES DE SECURITE
Lire l’ensemble des instructions avant d’utiliser l’appareil. Lors de
l’utilisation de cet appareil, prendre toutes les mesures de sécurité de
base, y compris les suivantes:
1) N’utiliser cet appareil que pour l’usage pour lequel il est prévu, tel qu’il
est indiqué dans le guide d’utilisation et d’entretien.
2) Ce réfrigérateur doit être correctement installé conformément aux
instructions d’installation avant d’être utilisé. Consulter les instructions
de mise à la terre du chapitre Installation.
3) Ne jamais tirer sur le cordon d’alimentation pour débrancher le
réfrigérateur. Toujours saisir fermement la fiche et la retirer
complètement de la prise.
4) Réparer ou remplacer immédiatement tout cordon électrique effiloché
ou endommagé d’une quelconque manière. Ne pas utiliser un cordon
fissuré, abrasé ou dont la prise ou le connecteur est endommagé.
5) Débrancher le réfrigérateur avant de le nettoyer ou d’effectuer des
réparations. Remarque: Si ce produit doit faire l’objet d’une
maintenance pour quelque raison que ce soit, il est vivement
recommandé de confier cette tâche à un technicien agréé.
6) Ne pas utiliser d’appareils électriques ou d’objets pointus pour dégivrer
le réfrigérateur.
7) Si vous n’avez plus l’usage de votre ancien réfrigérateur, nous vous
conseillons d’en retirer les portes. Ceci permet d’éviter tout danger
potentiel pour les enfants.
8) Une fois le réfrigérateur en fonctionnement, ne pas toucher les surfaces
froides du compartiment de congélation, en particulier avec des mains
mouillées ou humides. La peau risquerait d’adhérer à ces surfaces
extrêmement froides.
9) Ne pas recongeler les aliments qui ont été complètement décongelés. Le
bulletin Maisons et Jardins du Ministère de l’Agriculture des États-Unis
n° 69 stipule que: « ...Les aliments congelés peuvent être recongelés en
toute sécurité s’ils contiennent toujours des cristaux de glace ou si leur
température reste inférieure à 4,5°C. »
« …Les viandes hachées, la volaille et le poisson présentant une odeur
désagréable ou une couleur suspecte ne doivent ni être recongelés, ni
être consommés. La crème glacée dégelée doit être jetée. Tout aliment
présentant une odeur ou couleur douteuse doit être jeté. L’ingestion d’un
aliment de ce type peut s’avérer dangereuse. »
16

Français
Français
« …La décongélation ou la recongélation, même partielle, fait
diminuer les qualités gustatives des aliments, en particulier des fruits,
légumes et plats préparés. La qualité gustative des viandes rouges est
affectée à un bien moindre degré que celle de nombreux autres aliments.
Utiliser les aliments recongelés dès que possible, afin de conserver la
majeure partie de leurs
qualités gustatives. »
10) Ce réfrigérateur ne doit être ni encastré, ni enclos dans un placard. Il a été
conçu pour être installé tel qu’il se présente.
11) Ne pas faire marcher le congélateur en présence de fumées pouvant
entraîner une explosion.
VEUILLEZ CONSERVER CES
INSTRUCTIONS
17

Français
Français
18
DANGER
Les enfants pourraient se retrouver coincés dans votre
réfrigérateur ou congélateur usagé avant que vous ne
puissiez vous en débarrasser. Retirer les portes. Laisser les
étagères en place de manière à ce que les enfants ne
puissent pas grimper facilement à l’intérieur.
Nous vous remercions d’avoir
choisi ce produit Summit. Ce guide
d’utilisation facile d’emploi permet
une utilisation optimum du
réfrigérateur. Ne pas oublier de
prendre note du numéro de modèle
et de série. Ils sont inscrits sur une
plaquette apposée sur à l’intérieur
de réfrigérateur.
Numéro de modèle
Numéro de série
Date d’achat
Agrafer le ticket de caisse au guide. Il devra être présenté pour tout
service après-vente sous garantie.

Sommaire
PAGE
Mesures de Sécurité................................................................... 16
Pièces et Caractéristiques.......................................................... 20
Installation du Réfrigérateur .................................................... 21
Désemballage du Réfrigérateur......................................................... 21
Mise à Niveau du Réfrigérateur........................................................ 21
Circulation d’Air Adéquate .............................................................. 21
Caractéristiques Electriques.............................................................. 22
Alignement de la Porte .................................................................... 23
Placer la Charnière de Porte sur le Côté Opposé du Réfrigérateur........ 24
Caractéristiques du réfrigérateur et utilisation....................... 26
Caractéristiques Générales .............................................................. 26
Clayettes Intérieures de Rangement................................................... 26
Distributeur de Boîtes Dispense-A-Can™ ............................................ 27
Utilisation du Verrou de Sécurité....................................................... 27
Dégivrage...................................................................................... 28
Informations sur le Rangement des Aliments ....................................... 28
Bruits de Fonctionnement lors d’une Exploitation Normale ................... 28
Entretien et Nettoyage du Réfrigérateur................................. 29
Nettoyage et Maintenance............................................................... 29
Coupures de Courant ...................................................................... 29
Entretien lors des Vacances ou d’un Déménagement........................... 29
Guide de Dépannage ................................................................ 30
Garantie...................................................................................... 31
19
Français
Français
