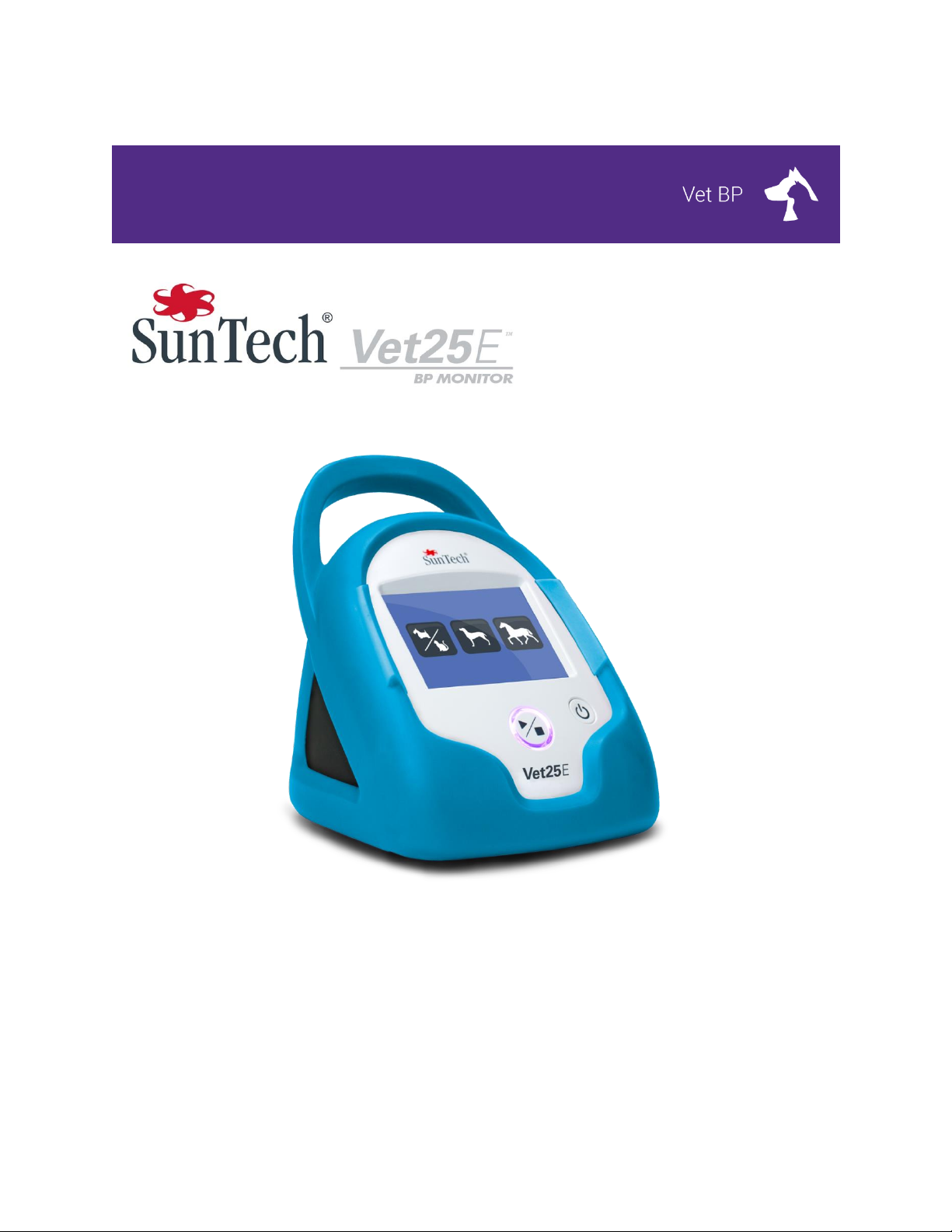

Sun-Tech Vet25E User manual

Spot-Check and Continuous BP
Monitor for Animals
User Manual

Changes
This manual is identified as part number: 80-0083-00-RevB. This manual is for use with Vet25E model M25E. An
updated version may be available for download from the SunTech Medical website. Should you notice errors or
omissions in this manual, please notify us at:
SunTech Medical, Inc.
507 Airport Boulevard, Suite 117
Morrisville, NC 27560 USA
Tel: [phone]
919.654.2300
Fax: [phone]
Email: CustomerSup[email protected]
Web: www.SunTechMed.com
Copyright Information
All content in this manual is the proprietary information of SunTech Medical and is provided solely for purposes of
operation of the SunTech Vet25E. This manual and the Vet25E described in it are protected under copyright law under
which they may not be copied, in whole or in part, without written consent of SunTech Medical.
The information in this manual is furnished for guidance only, is subject to change without notice, and should not be
construed as a commitment by SunTech Medical. SunTech Medical assumes no liability for errors or inaccuracies
that may appear in this manual.
© 2019 SunTech Medical. All rights reserved.
Other office location:
SunTech Medical, Inc.
507 Airport Blvd, #117
Morrisville, NC 27560-8200
Phone: [phone]
1-800-421-8626
Fax: [phone]
SunTech Medical, Ltd.
Oakfield Industrial Estate
Stanton Harcourt Road
Eynsham, Oxfordshire OX29 4TS
England
Phone: + 44 (0) 1865-884-234
Fax: + 44 (0) 1865-884-235
SunTech Medical (Shenzhen) Co., Ltd.
105 HuanGuan South Road, Suite 15 2~3/F
DaHe Community Guanlan,
LongHua District, Shenzhen
GuangDong PRC 518110
Tel: + 86-755-29588810
+ 86-755-29588986 (Sales)
+ 86-755-29588665 (Service)
Fax: + 86-755-29588829

Welcome to the SunTech Vet25E
Thank you for choosing the Vet25E vital signs monitor! For over 30 years, SunTech Medical has been the preeminent
supplier of leading edge technology and innovative products to obtain blood pressure (BP) measurements.
Developed specifically for the veterinary care environment, the Vet25E can perform automatic BP measurements for
veterinary professionals.
For measuring BP, a BP cuff is placed around the patient’s forelimb or tail. The cuff is inflated automatically and
blood pressure is determined by the oscillometric method, which senses pressure waves in the artery when occluded
by pressure in the cuff. Measurement of the frequency of the pressure waves enables heart rate to also be measured.
The Vet25E is a portable device, weighing approximately 2.1 lb (952 g). Control buttons allow the user to turn on or
off the device and stop/start a BP measurement. The touchscreen display shows the device status and measurement
information, and allows for selection of settings. The device uses a microprocessor with software, which is not
accessible to the user. The unit is powered by a single rechargeable lithium-ion battery at the bottom of the device.
Bluetooth can be used to wirelessly connect and send data to a PC application, which may be downloaded from the
SunTech website at: https://www.suntechmed.com/Vet25E-data-capture.Upper and lower alarm limits can be set for
all parameters.
Intended Use
The SunTech Vet25E and Vet30E monitors are clinical grade automated blood pressure measurement devices that
provide oscillometric non-invasive blood pressure. The Vet30E provides additional pulse oximetry and temperature
measurement capabilities. These portable devices are for use in the veterinary clinic on companion animals (cats and
dogs) and horses. The devices can be used for spot-check or continuous monitoring activities. They are not intended
for human use.
The devices are contraindicated for use on humans or any species other than those described above.
Vet25E Essential Performance
The Essential Performance of the Vet25E is designed to measure, record, and display a patient’s blood pressure
within a blood pressure accuracy range of +/- 5 mmHg mean error & 8mm Hg standard deviation (max inflate 280
mmHg).
User Responsibility
The Vet25E is designed to perform in conformity with the description thereof contained in this operation manual
when operated. This operation manual is for use with Vet25E model M25E. The user of this monitor shall have the
sole responsibility for any malfunction which results from improper use, faulty maintenance, improper repair, damage
or alteration by anyone other than SunTech Medical or their authorized service personnel. The Vet25E is for use only
by or on the direction of a licensed veterinarian.
Use of Vet25E
Use only veterinary BP cuffs supplied by SunTech Medical. Observe the patient carefully during the measurement.
Accuracy of any BP reading measurement may be affected by the position of the patient, their physical condition and
use outside of the operating instructions detailed in this guide. The interpretation of BP measurements should only
be made by a veterinarian.

80-0083-00-RevB SunTech Vet25E User Manual | 4
2019-12-04
Table of Contents
Changes.................................................................... 2
Copyright Information.............................................. 2
Welcome to the SunTech Vet25E............................ 3
Intended Use ............................................................ 3
1. Warnings and Precautions .................................. 5
2. Icons and Symbols ............................................. 6
3. Getting to Know SunTech Vet25E........................ 8
3.1 Applied Parts...................................................... 8
3.2 Device Placement .............................................. 9
3.3 Front Panel ......................................................... 9
3.4 Connect Power, Hose, and Sensors .................. 9
3.5 Display .............................................................. 10
3.6 Start/Stop Button ............................................. 12
4. Selecting Your Settings .....................................12
4.1 Animal Mode .................................................... 12
4.2 Volume ............................................................. 12
4.3 Settings............................................................. 12
5. Blood Pressure Measurement............................16
5.1 Cuff Sizing ........................................................ 16
5.2 Applying the Cuff and Taking a BP
Measurement on Small Animals ........................... 17
5.3 Applying the Cuff and Taking a BP
Measurement on Horses ....................................... 17
5.4 Interval BP Mode.............................................. 18
5.5 STAT Mode....................................................... 18
5.6 Interrupting/Stopping a Measurement ........... 19
6. Reviewing and Transferring Data .......................19
6.1 Viewing Stored Measurements ....................... 19
6.2 Averaging Measurements ............................... 19
6.3 Bluetooth Connection ...................................... 20
6.4 Data Transfer ................................................... 21
6.5 Reviewing Data and Creating Reports............. 21
7. Alarms .............................................................. 23
7.1 Technical Alarms ............................................. 23
7.2 Clinical Alarms ................................................. 23
8. Taking Care of the SunTech Vet25E .................. 24
8.1 Battery .............................................................. 24
8.2 Cleaning............................................................ 24
8.3 Preventative Maintenance............................... 24
8.4 System Components ....................................... 25
8.5 Accessories & Replacement Parts.................. 26
8.6 Status Messages ............................................. 26
9. Frequently Asked Questions.............................. 28
10. Limited Warranty............................................. 28
11. Technical Information ..................................... 29
11.1 Monitor Model Numbers ............................... 29
11.2 Factory Default Settings ................................ 29
11.3 Performance Specifications.......................... 30
11.4 Radio Frequency Compliance Requirements 31
11.5 Electromagnetic Compatibility (EMC)........... 31
Appendix A: Service Screens................................. 36
Service Information................................................ 36
Calibration Check................................................... 36
Air Leak Check........................................................ 37
Restore Factory Defaults ....................................... 38
Software Update .................................................... 39

80-0083-00-RevB SunTech Vet25E User Manual | 5
2019-12-04
1. Warnings and Precautions
General warnings and cautions are listed here and repeated where relevant throughout this guide.
A WARNING indicates a situation which, if not avoided, could result in serious injury or death.
WARNING: DO NOT connect patient hose or monitor to any other devices or connections, especially intravenous (IV)
tubes as there is potential for air to be pumped into a blood vessel which could cause serious injury.
WARNING: DO NOT use in the presence of flammable anesthetics; this could cause an explosion. This device is not
suitable for use in an oxygen enriched environment.
WARNING: This monitor is intended for use by healthcare professionals only. This monitor may cause radio
interference or may disrupt the operation of nearby equipment. It may be necessary to take mitigation measures such
as re-orienting, relocating or shielding the location.
WARNING: The cuff should not be applied over a wound as this can cause further injury.
WARNING: DO NOT use a defibrillator or ultrasonic device on the patient at the same time as it may affect the
operation and/or safety of the patient due to interactions.
WARNING: DO NOT immerse the monitor in any fluid or attempt to clean the unit with liquid detergents, cleaning
agents, or solvents. This may cause an electrical hazard. Do not use the monitor if accidental wetting occurs. Refer to
the cleaning section of this guide for instructions on cleaning.
WARNING: Check the limb frequently to ensure that operation of the monitor does not result in prolonged
impairment of the circulation of the patient.
WARNING: DO NOT apply the BP cuff to a limb being used for IV infusions or any other intravascular access, therapy,
or an arteriovenous (A-V) shunt as the cuff inflation can temporarily block the infusion, potentially causing harm to
the patient.
WARNING: Pressurization of the cuff can temporarily cause loss of functionality of SpO2if simultaneously using
device on the same limb.
WARNING: DO NOT use if device is dropped and/or is damaged. Have a qualified service representative check the
unit before using again. Repairs should only be conducted by an authorized SunTech Medical service representative.
WARNING: Before performing a procedure when device is not plugged into main power, ensure there is sufficient
battery charge. If battery loses charge, device must be plugged into power supply to function.
WARNING: The USB port is only a service port and cannot be used to download data or interface with the monitor.
When updating the software, the monitor cannot be in use and the accessories should not be contacting the patient.
WARNING: The monitor may not be used during electrocautery.
A CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to
the user, patient or damage to the equipment or other property.
CAUTION: For use only by or on the direction of a licensed veterinarian. NOT for use on humans.
CAUTION: DO NOT use the monitor for any purpose other than specified in this manual without written consent and
approval from SunTech Medical.
CAUTION: DO NOT use this monitor when oscillometric pulses may be altered by other devices or techniques.

80-0083-00-RevB SunTech Vet25E User Manual | 6
2019-12-04
CAUTION: DO NOT remove unit covers. Doing so may increase the risk of electrical shock. This monitor does not
contain any user serviceable parts. Substitution of a component or accessory different from that supplied may result
in measurement error. Repairs should be undertaken only by personnel trained or authorized by SunTech Medical.
CAUTION: DO NOT gas sterilize or autoclave this monitor.
CAUTION: Too frequent measurements may cause injury to the patient due to blood flow interference.
CAUTION: At the end of product life, the monitor, accessories, components and other consumable goods may
become contaminated from normal use. Consult local codes and ordinances for proper disposal of equipment and
other consumable goods.
CAUTION: This device contains a lithium ion battery that contains materials which may be hazardous to human
health. DO NOT dispose of battery in domestic waste! Instead, please dispose of in an environmentally responsible
way, or return the battery to SunTech Medical. A prepaid return label can be obtained. Please see our website for
more information about our environmental policy at http://www.suntechmed.com/about-suntech/environmental-
policy.
CAUTION: Accuracy of any blood pressure measurement may be affected by the position of the subject, the patient’s
physical condition, and use outside of the operating instructions detailed in this manual. Interpretation of BP
measurement should be made only by a veterinarian or trained medical staff. Minimize limb movement during the
measurement.
CAUTION: A compressed or kinked connection hose may cause continuous cuff pressure resulting in blood flow
interference and potentially harmful injury to the patient. If the cuff fails to deflate, the operator should be instructed
on how to remove the cuff.
CAUTION: Performance can be affected if used or stored outside the specified temperature and humidity ranges.
CAUTION: Replace user replaceable parts that are broken, worn, missing, damaged, incomplete, or contaminated.
Contact SunTech Medical for service on parts that are not user replaceable and stop using device until repaired.
Failure to repair a damaged product may cause injury to the user and/or patient.
2. Icons and Symbols
Some of the symbols, listed in the table below refer to the following FDA SDO Consensus standards:
•Recognition #5-103, ISO 7000: 2014: Graphical symbols for use on equipment - Registered symbols
•Recognition #5-116, ISO 7010: 2011: Graphical symbols - Safety colours and safety signs - Registered
safety signs
•Recognition #5-102, ISO 60417: 2002 DB: Graphical symbols for use on equipment
•Recognition #5-117, ISO 15223-1: 2016: Medical devices - Symbols to be used with medical device labels,
labelling, and information to be supplied - Part 1: General requirements
Symbol
Description
Standard/Source
General Warning Sign
ISO 7010-W001
Batch Code
ISO 7000-2492
Caution
ISO 7000-0434A
Classification –Class II
IEC 60417-5172
Refer to Instruction Manual
ISO 7010-M002
Authorized representative in the European Community
SunTech Design

80-0083-00-RevB SunTech Vet25E User Manual | 7
2019-12-04
USB-A or USB-B
Industry
Direct Current
IEC 60417-5031
Alternating Current
IEC 60417-5032
Polarity of DC power connector
IEC 60417-5926
Rechargeable battery
IEC 60417-5639
Consult Instructions for Use
ISO 7000-1641
This product meets the requirements of the applicable
Directives
EU Directive
Disposal in compliance with WEEE Directive
WEEE Directive
Manufacturer
ISO 7000-3082
Date of Manufacture
ISO 7000-2497
Serial Number
ISO 7000-2498
Cuff index line must fall within range markings
SunTech Design
Arrow should be placed over artery
SunTech Design
Symbol indicating limb circumference
SunTech Design
Index line
SunTech Design
Not made with natural rubber latex
SunTech Design
Not made with PVC
SunTech Design
Reference Number
ISO 7000-2493
Type BF Applied Part
IEC 60417-5333
Fragile, handle with care
ISO 7000-0621
Humidity Limits
ISO 7000-2620
Temperature Limits
ISO 7000-0632
Keep Dry
ISO 7000-0626
Accesses Settings screen
SunTech Design
Small animal mode
SunTech Design
Large animal mode
SunTech Design
Equine mode
SunTech Design
Opens the Icon Menu
SunTech Design
Begins Interval BP Mode
SunTech Design

80-0083-00-RevB SunTech Vet25E User Manual | 8
2019-12-04
3. Getting to Know SunTech Vet25E
3.1 Applied Parts
The following are the applied parts of the Vet25E:
•BP Cuffs
The Vet25E has been tested with specific parts of the system used within the Patient Environment. The parts of the
system that can be used in the patient environment are:
•Vet25E monitor
•All applied parts as defined above
•All accessories as defined in Section 10.5, excluding the AC Adapter
The patient environment is defined in the following diagram:
Adjusts volume
SunTech Design
View Memory
SunTech Design
Exits or closes a screen
SunTech Design
Goes back to previous screen
SunTech Design
Deletes all stored memory data
SunTech Design
Averages selected BP readings
SunTech Design
Begins STAT Mode
SunTech Design
Bluetooth
Bluetooth
Begins data transfer
SunTech Design
TIP:
Provides practical advice for using monitor
SunTech Design
Maximize or minimize a focus screen
SunTech Design
Power on/off
IEC 60417-5009
Start/Stop a BP measurement
IEC 60417-5107B
IEC 60417-5110B
Battery Indicator
SunTech Design

80-0083-00-RevB SunTech Vet25E User Manual | 9
2019-12-04
3.2 Device Placement
WARNING: As with all medical equipment, carefully route patient cabling to reduce the possibility of patient
entanglement or strangulation.
CAUTION: Do not position the monitor so that it is difficult to access and remove the AC adapter from the electrical
supply mains. The power supply is the means of disconnection to the supply mains.
Place the Vet25E monitor in a convenient location to ensure user’s ability to monitor the screen continuously. Ensure
monitor is placed away from table top edges and route the patient cables so that if pulled, the monitor will not fall.
3.3 Front Panel
3.4 Connect Power, Hose, and Sensors
CAUTION: Read all warnings, cautions, and instructions provided prior to using the device.
1. Insert AC adapter plug into the Vet25E. Plug other end of the AC adapter into a power supply to begin charging
the battery. Only use AC Adapter supplied by SunTech Medical.
Power button.
Press once to turn ON. The button is illuminated when power is on.
To turn OFF, press the button again.
Start/Stop button.
Starts BP measurement. Stops
measurement at any time.

80-0083-00-RevB SunTech Vet25E User Manual | 10
2019-12-04
WARNING: The AC adapter must be unplugged and the battery must be disconnected in order to completely
disconnect device from power. See Section 8.3 for additional information on battery disconnection.
2. Connect the patient hose to the back of the monitor making sure the connector “clicks” into the locking position
by rotating clockwise. For additional information on how to take a BP measurement, see Section 5.
3.5 Display
Animal Selection Screen
When you turn on your SunTech Vet25E, you will see the Animal Selection Screen. Even if you are not ready to
measure BP on a patient, select an animal mode so that you can proceed to the Main Screen. This screen can be
turned off (see Animal Selection in Section 4). Additionally, the animal mode can be toggled using the animal
selection icon on the Main Screen.
BP Hose

80-0083-00-RevB SunTech Vet25E User Manual | 11
2019-12-04
Main Screen
After you begin using your Vet25E, your main screen will display your most recent patient measurements. Here is a
quick overview of the key symbols and numeric values you will see. Prior to the first reading upon power on, the
screen will display dashes instead of values.
Icon Menu
After you press on the Menu button on the main screen, the Icon Menu will open. Here you can access various
functions and settings of the device. The Icon Menu is not accessible during a BP measurement.
1. Exit Icon Menu
2. Settings
For more information on selecting settings, see Section 4.3
3. Animal Selection
4. Speaker Volume
5. Memory
For more information on reviewing and transferring data, see Section 6
Battery life indicator
Size of Animal
Mean arterial pressure (MAP)
BP Reading
Menu
Volume
7
3
2
1
4
5
6
8
9
STAT
Bluetooth
Connection
Status
Heart Rate (HR)

80-0083-00-RevB SunTech Vet25E User Manual | 12
2019-12-04
6. STAT Mode
For more information STAT BP Mode, see Section 5.5
7. Interval BP Mode
For more information on Interval BP Mode, see Section 5.4
8. Bluetooth Connect
For more information on Bluetooth connection, see Section 6.3
9. Data Transfer
For more information on reviewing and transferring data, see Section 6
3.6 Start/Stop Button
The color of the LED on the START/STOP button indicates the status of the Vet25E.
•START/STOP button is magenta during normal operation
•START/STOP button is blue during a BP reading
•START/STOP button is white when in service mode
•START/STOP button is red during an error, when a status message is prompted or the device is unable to
connect via Bluetooth
4. Selecting Your Settings
4.1 Animal Mode
Small Animal Mode should be chosen when taking BP measurements on cats and dogs up to a #3 BP cuff size. This
size typically applies to dogs or cats weighing less than 8kg (~17.5 lbs.). Large Animal Mode has been designed for
animals requiring a #4 BP cuff or larger. This size typically applies to dogs weighing more than 8 kg (~17.5 lbs.).
Equine Mode is designed for measuring BP on horses. If a problem arises, try switching animal modes by touching
the Animal Selection button on the main screen or in the menu.
4.2 Volume
The Vet25E monitor’s default setting is Speaker Off so that patients are not disturbed by sounds. To toggle between
Speaker Off, Low Volume, and High Volume, press the Speaker button. When sound is OFF, you still will hear a very
quiet clicking when you touch buttons but no beeps.
4.3 Settings
To access the settings screen, select the settings button ( ) in the Icon Menu.

80-0083-00-RevB SunTech Vet25E User Manual | 13
2019-12-04
Clinical Alarms
The SunTech Vet25E allows clinical alarms for all values (SYS, DIA, MAP, and HR). Factory setting is OFF.
•To change alarm values, select the Settings screen in the Icon Menu, then choose Clinical Alarms.
•Select the parameter of interest.
•Touch On, then Set Alarm Values.
•Touch the numeric range value that you want to adjust. The alarm range cannot be adjusted by dragging the blue
bar. The value on the left side represents the value for which all values below that number will trigger the alarm.
The value on the right side represents the value for which all values above that number will trigger the alarm.
•Using the keypad, type in the desired value and touch the checkmark.
Touch the numbers
on the right or left to
set the alarm limits.
Clinical Alarms.
Provides access to turning ON and
setting clinical alarms.
Power Management.
Select how long monitor stays
on before Auto OFF shutdown.
Auto OFF is disabled when
powered by an AC adapter.
Animal Selection.
Interval BP.
Select time between BP
measurements in Interval BP Mode.
Time.
Set the time.
Date.
Set the date.
Language.
Select desired language.

80-0083-00-RevB SunTech Vet25E User Manual | 14
2019-12-04
•To reset to default clinical alarms, touch Use Defaults. For information on the default clinical alarm values, see
Section 14.
•When alarm is triggered, values that are outside of the set ranges will turn red on the Main Screen. If speaker is
ON, a beep will occur. For more information on alarms, see Section 10.
Power Management
The Vet25E includes an Auto OFF feature which turns the monitor off after a selected period. The Auto OFF timer is
disabled when powered by an AC Adapter and during Interval Measurement Mode. To edit the Auto OFF timer, select
the Settings screen in the Icon Menu, then choose Power Management. Factory setting is 10 minutes. Auto-off Timer
may be set to 5, 10, and 20 minutes or Always ON.
TIP: Battery charge may be rapidly depleted if set to always ON.
Note: Only use the power cord provided (Part Number: 19-0020-00).
Interval BP
To set the time between BP measurements during Interval Mode, select the interval time desired. To access the
Interval BP options, select the Settings screen in the Icon Menu, then choose Interval BP.
•Intervals include 1, 2, 3, 4, 5, 10, 15, 30, 60, and 90 minutes

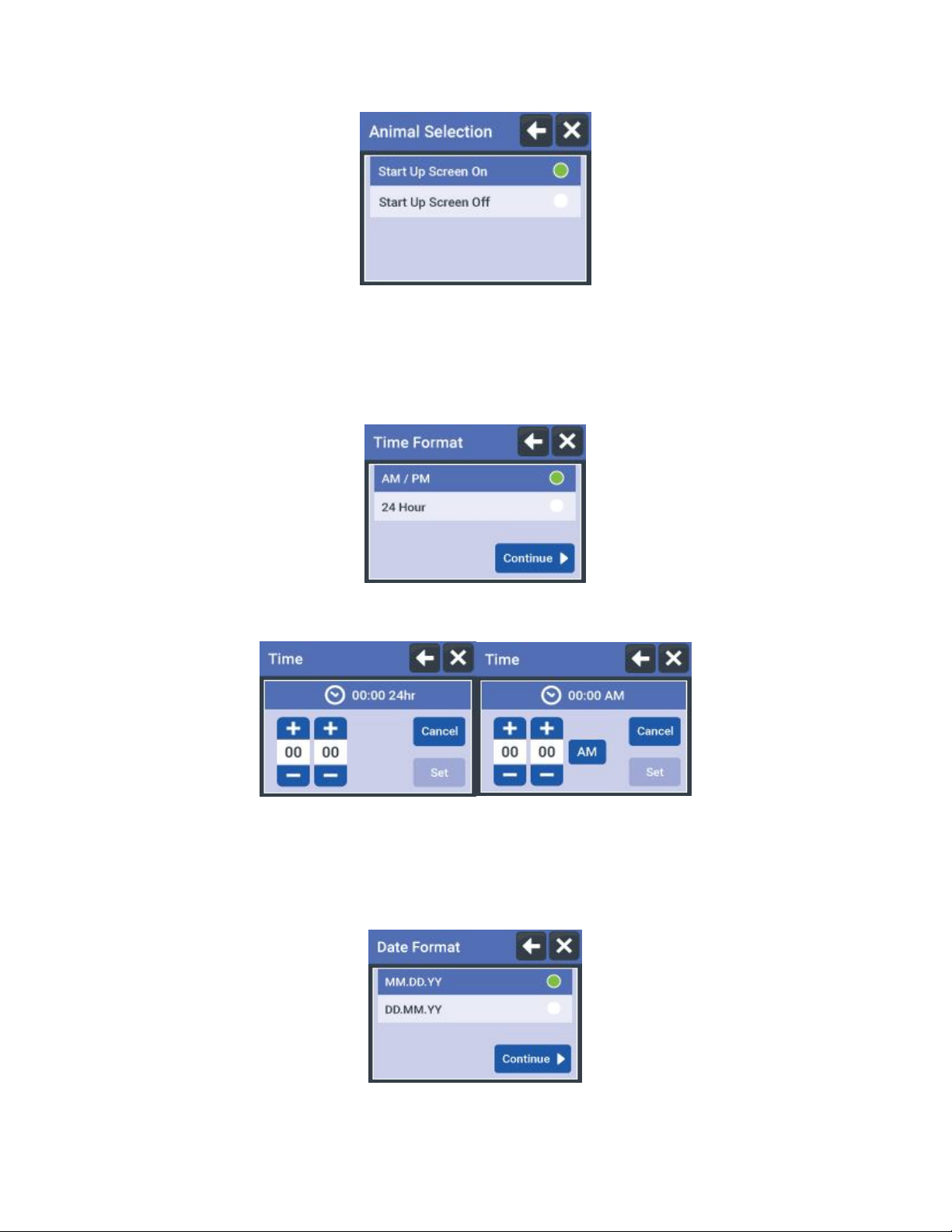

Animal Selection
The animal selection start up screen can be turned OFF. This is useful for clinics catering to a specific species such
as an all cat clinic. To change the animal selection screen options, select the Settings screen in the Icon Menu, then
choose Animal Selection.

80-0083-00-RevB SunTech Vet25E User Manual | 15
2019-12-04
Time
To set the internal clock, select the Settings screen in the Icon Menu, then choose Time.
•Two time formats are available: AM/PM and 24 Hour.
•Select the desired time format and touch Continue.
•Use the + and –buttons to select the hour and minute. In AM/PM format, touch the AM or PM button to
toggle between them.
•To exit without changing the time, touch Cancel. To save the time, select Set.
Date
To set the date, select the Settings screen in the Icon Menu, then choose Date.
•Two date formats are available: MM.DD.YY and DD.MM.YY
•Select between the two date formats and touch Continue.
•Use the + and –buttons to set the day, month, and year and touch Set to save the date.

80-0083-00-RevB SunTech Vet25E User Manual | 16
2019-12-04
•Touch Cancel to return to the Date Format screen without changing the date. Press X to exit to the main
screen.
Language
Multiple languages are available including English, French, Italian, German, Spanish and Brazilian Portuguese. To
access the languages, select the Settings screen in the Icon Menu, then choose Language.
•Touch the desired language to select it. Press X to save and exit.
5. Blood Pressure Measurement
5.1 Cuff Sizing
The SunTech Vet25E comes with a variety of different BP cuff sizes. Each cuff contains important markings that help
with selecting the right cuff size. These are SunTech designed symbols.
Make sure this part of cuff is placed over the patient’s artery.
When the cuff is wrapped around the patient’s limb or base of the tail, its Index Marker should fall
within this line.
When you wrap the cuff around the patient’s limb or base of the tail, the Index Marker should fall within
the Range Marker on the inside of the cuff.
Indicates limb/tail circumference range of the cuff.
Not made with natural rubber latex.

80-0083-00-RevB SunTech Vet25E User Manual | 17
2019-12-04
Not made with PVC.
TIP: When more than one cuff size fits the limb, always choose the larger size for more accurate measurements.
When a cuff is too small, it can cause BP values to be overestimated.
An alternative sizing method is to measure the circumference of the limb and choose a cuff whose width is 40% of
the circumference for dogs and 30% for cats.
5.2 Applying the Cuff and Taking a BP Measurement on Small Animals
WARNING: The cuff should not be applied over a wound as this can cause further injury.
SunTech recommends that the cuff be placed on a front limb while the patient is lying on the right or left side. This
helps ensure that the cuff is at heart level, which is best for measurement accuracy. Also, the patient is less likely to
retract the front limb when the cuff gently squeezes it during the measurement. The cuff should be placed so that its
artery marker aligns with the limb artery.
Alternate Patient Positioning: If the patient seems more comfortable seated, position the cuff as described above
and hold up the limb during the BP measurement. This will help keep the cuff at heart level and relax the patient’s
muscles. If the patient appears agitated enough to bite or scratch, or is standing, the base of the tail is an acceptable
alternate location.
1. Position patient so that they are lying down, seated, or held. Place the cuff on the limb making sure not to place it
over a joint. Connect cuff hose to monitor hose.
TIP: The success of the BP measurement is dependent on choosing the correct cuff and attaching it to the patient
correctly. The cuff is the sensor so make sure to snugly fit the cuff as this provides better signals to the monitor.
2. Press the Power Button to turn on the Vet25E. Select appropriate animal size.
TIP: To change animal size after initial selection, touch the Animal Selection icon on Main Screen to toggle between
Large and Small. For more information on selecting animal size, see Section 4.
3. If patient is awake, allow patient to acclimate for approximately 5 minutes in a quiet area. Press START/STOP
button to start blood pressure measurement. START/STOP button turns blue during measurement. Reading is
complete when START/STOP button returns to magenta. Main Screen will show systolic (SYS) and diastolic (DIA)
values, plus mean arterial pressure (MAP) and heart rate (HR) in beats per minute.
TIP: During a BP reading, the Icon Menu is not available. To access the Icon Menu, either wait until the BP reading is
complete or stop the reading by pressing the START/STOP button.
TIP: When a BP reading is in progress, pressing the START/STOP button will immediately stop the measurement and
deflate the cuff.
TIP: For information on averaging BP measurements, see Section 8.2.
5.3 Applying the Cuff and Taking a BP Measurement on Horses
WARNING: The cuff should not be applied over a wound as this can cause further injury.

80-0083-00-RevB SunTech Vet25E User Manual | 18
2019-12-04
SunTech recommends that the cuff is placed at the base of the tail.
1. Position patient so that the base of the tail is at the same height as the heart. Wrap the cuff around the base of the
tail. Connect cuff hose to monitor hose.
TIP: The success of the BP measurement is dependent on choosing the correct cuff and attaching it to the patient
correctly. The cuff is the sensor so make sure to snugly fit the cuff as this provides better signals to the monitor.
2. Press the Power Button to turn on the Vet25E. Select equine mode.
3. If patient is awake, allow patient to acclimate for approximately 5 minutes in a quiet area. Press START/STOP
button to start blood pressure measurement. START/STOP button turns blue during measurement. Reading is
complete when START/STOP button returns to magenta. Main Screen will show systolic (SYS) and diastolic (DIA)
values, plus mean arterial pressure (MAP) and heart rate (HR) in beats per minute.
TIP: During a BP reading, the Icon Menu is not available. To access the Icon Menu, either wait until the BP reading is
complete or stop the reading by pressing the START/STOP button.
TIP: When a BP reading is in progress, pressing the START/STOP button will immediately stop the measurement and
deflate the cuff.
TIP: For information on averaging BP measurements, see Section 8.2.
5.4 Interval BP Mode
In Interval BP Mode, the SunTech Vet25E automatically takes a BP reading at set time intervals. The time interval can
be changed through the Interval BP settings (see Section 4).
•To start taking BP measurements in Interval Measurement Mode, enter the Icon Menu, then touch the
Interval BP icon:
•The Icon Menu will close and the first BP measurement will automatically begin. Once the BP reading has
finished, the device will wait the set amount of time before automatically taking another BP reading.
•When the SunTech Vet25E is in Interval Measurement Mode, a clock icon will appear on the screen,
indicating the set time interval.
•An additional BP reading can be taken by manually pressing the START/STOP button in between Interval BP
readings.
•During a BP reading, the Icon Menu is not available.
•To exit Interval Measurement Mode, touch the Interval BP icon in the Icon Menu or press the START/STOP
button during a BP measurement.
TIP: For information on setting the amount of time between interval measurements, see Section 4.3.
5.5 STAT Mode
WARNING: Check the limb frequently to ensure that operation of the monitor does not result in prolonged
impairment of the circulation of the patient.
Interval BP indicator

80-0083-00-RevB SunTech Vet25E User Manual | 19
2019-12-04
During STAT Mode, the SunTech Vet25E will automatically take continuous BP measurements for 10 minutes.
•To enter STAT Mode, select the STAT icon at the top of the Main Screen.
•Alternatively, enter the Icon Menu, then touch the STAT icon.
•When the device is in STAT Mode, the STAT icon is displayed on the main screen.
•During a BP reading, the Icon Menu is not available.
•To exit STAT Mode, touch the STAT icon again or press the START/STOP button while a BP measurement is
in progress. STAT Mode will automatically stop after 10 minutes.
5.6 Interrupting/Stopping a Measurement
To stop a measurement while in progress, touch the START/STOP button. When a BP reading is in progress, pressing
the START/STOP button will immediately stop the measurement and deflate the cuff. An abort message will appear
on the screen and a short beep will sound if volume is on. START/STOP button returns to magenta and monitor gets
ready to start a new reading.
6. Reviewing and Transferring Data
6.1 Viewing Stored Measurements
To take additional BP readings, press START/STOP again.
To view previous readings, touch Menu, then touch the Memory icon. Select the parameters to view. The time and
date will alternate. Up to 960 measurements can be stored in memory.
6.2 Averaging Measurements
The BP data can be averaged in the memory screen. To average measurements, touch the rows with the
measurements you wish to average. Selected rows will turn green. To unselect a measurement, touch its row a
second time. Limit the number of measurement rows averaged to under one hundred (100) to avoid incorrect results
due to too many measurements.
Deletes all
memory
data
Averages values
for selected data
STAT Mode Icon

80-0083-00-RevB SunTech Vet25E User Manual | 20
2019-12-04
Average of selected readings shows on top row with “AVG” as the identifier.
6.3 Bluetooth Connection
The SunTech Vet25E can pair with a PC within a 30-foot radius to transfer data via Bluetooth. To pair with a PC, the
Vet Data Capture PC application must first be installed on the PC. The application is available for download from the
SunTech website at https://www.suntechmed.com/Vet25E-data-capture. The PC application is supported on
Windows 10, Windows 8.1, and Windows 7.
Installation and Setup
1. Download the Vet Data Capture application from the SunTech website. Double click on the zip file to extract
the folder. The folder can be dragged onto the desktop for easy access to the application.
2. Insert the USB Bluetooth Transmitter into an open USB port on the PC. The computer will automatically
install the Bluetooth USB.
Pairing with the Vet25E
1. To turn on Bluetooth on the Vet25E, touch the Bluetooth icon ( ) in the Icon Menu. The monitor will
automatically attempt to pair with the other device. While the device is connecting via Bluetooth, the
Start/Stop button will flash blue light. Continue to step 2 while the device is flashing blue light.
2. Open the Vet Data Capture application by double clicking on the file with the purple paw icon:
3. When the Vet Data Capture application opens, select a Vet25E for pairing. Identify the Vet25E using the last
four digits of the serial number, found on the bottom of the device. Continue to Section 6.4 for Data Transfer
instructions.
The last 4 digits of
the serial number
should match.
