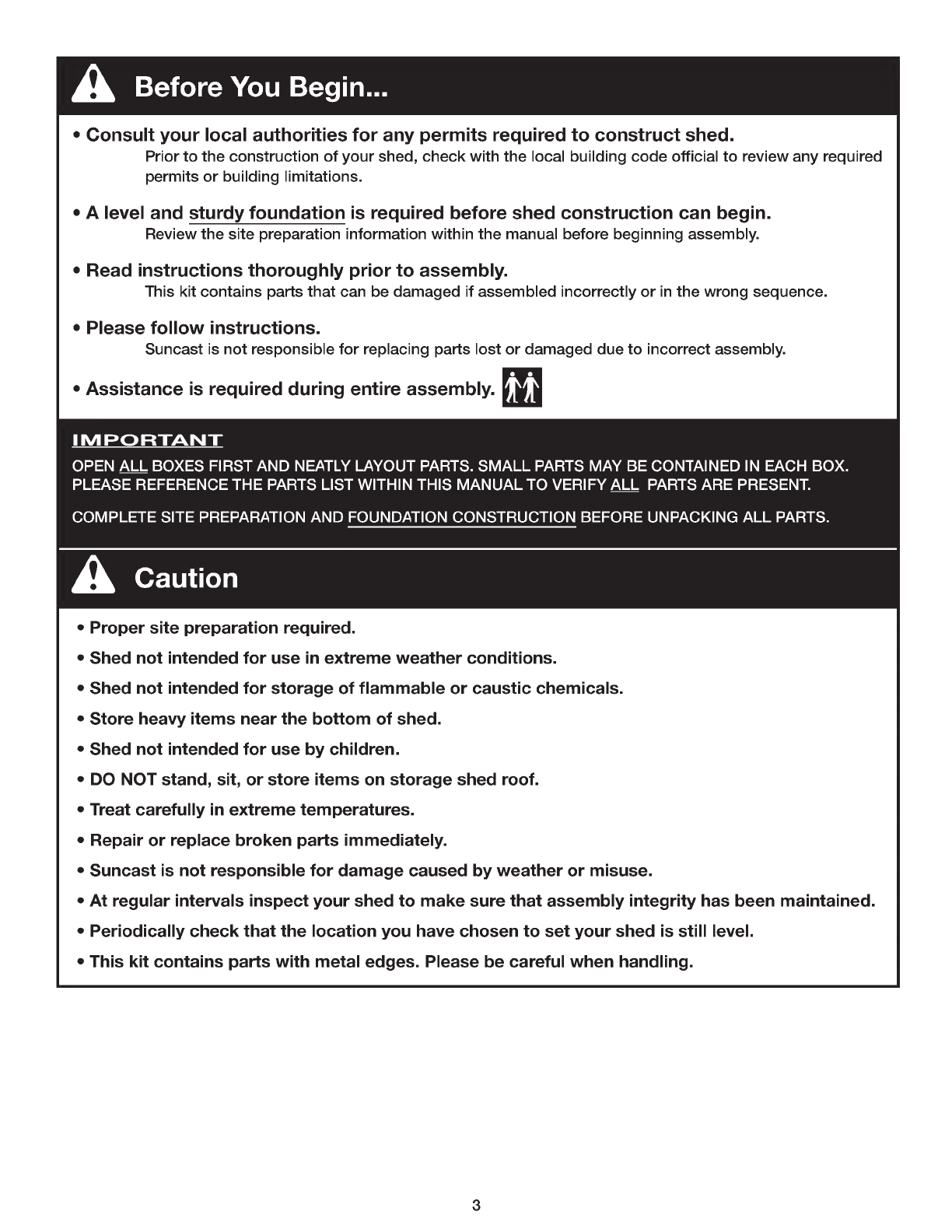

A Before You Begin...
• Consult your local authorities for any permits required to construct shed.
Prior to the construction of your shed, check with the local building code official to review any required
permits or building limitations.
• A level and sturdy foundation is required before shed construction can begin.
Review the site preparation information within the manual before beginning assembly.
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Assistance is required during entire assembly.
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN EACH BOX.
PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE UNPACKING ALL PARTS.
A Caution
• Proper site preparation required.
• Shed not intended for use in extreme weather conditions.
• Shed not intended for storage of flammable or caustic chemicals.
• Store heavy items near the bottom of shed.
• Shed not intended for use by children.
• DO NOT stand, sit, or store items on storage shed roof.
• Treat carefully in extreme temperatures.
• Repair or replace broken parts immediately.
• Suncast is not responsible for damage caused by weather or misuse.
• At regular intervals inspect your shed to make sure that assembly integrity has been maintained.
• Periodically check that the location you have chosen to set your shed is still level.
• This kit contains parts with metal edges. Please be careful when handling.
3

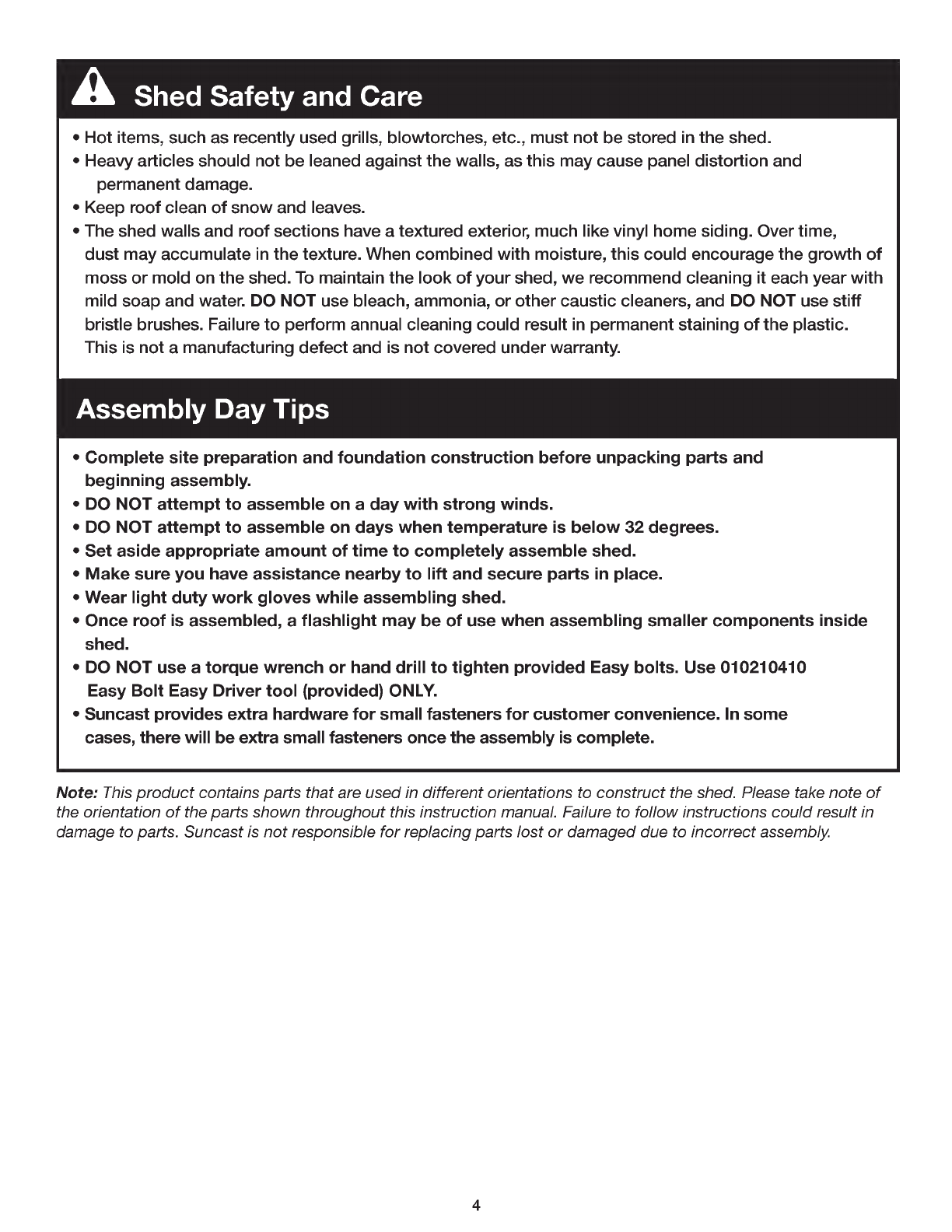

A Shed Safety and Care
• Hot items, such as recently used grills, blowtorches, etc., must not be stored in the shed.
• Heavy articles should not be leaned against the walls, as this may cause panel distortion and
permanent damage.
• Keep roof clean of snow and leaves.
• The shed walls and roof sections have a textured exterior, much like vinyl home siding. Over time,
dust may accumulate in the texture. When combined with moisture, this could encourage the growth of
moss or mold on the shed. To maintain the look of your shed, we recommend cleaning it each year with
mild soap and water. DO NOT use bleach, ammonia, or other caustic cleaners, and DO NOT use stiff
bristle brushes. Failure to perform annual cleaning could result in permanent staining of the plastic.
This is not a manufacturing defect and is not covered under warranty.
Assembly Day Tips
• Complete site preparation and foundation construction before unpacking parts and
beginning assembly.
• DO NOT attempt to assemble on a day with strong winds.
• DO NOT attempt to assemble on days when temperature is below 32 degrees.
• Set aside appropriate amount of time to completely assemble shed.
• Make sure you have assistance nearby to lift and secure parts in place.
• Wear light duty work gloves while assembling shed.
• Once roof is assembled, a flashlight may be of use when assembling smaller components inside
shed.
• DO NOT use a torque wrench or hand drill to tighten provided Easy bolts. Use 010210410
Easy Bolt Easy Driver tool ( provided) ONLY.
• Suncast provides extra hardware for small fasteners for customer convenience. In some
cases, there will be extra small fasteners once the assembly is complete.
Note: This product contains parts that are used in different orientations to construct the shed. Please take note of
the orientation of the parts shown throughout this instruction manual. Failure to follow instructions could result in
damage to parts. Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
4

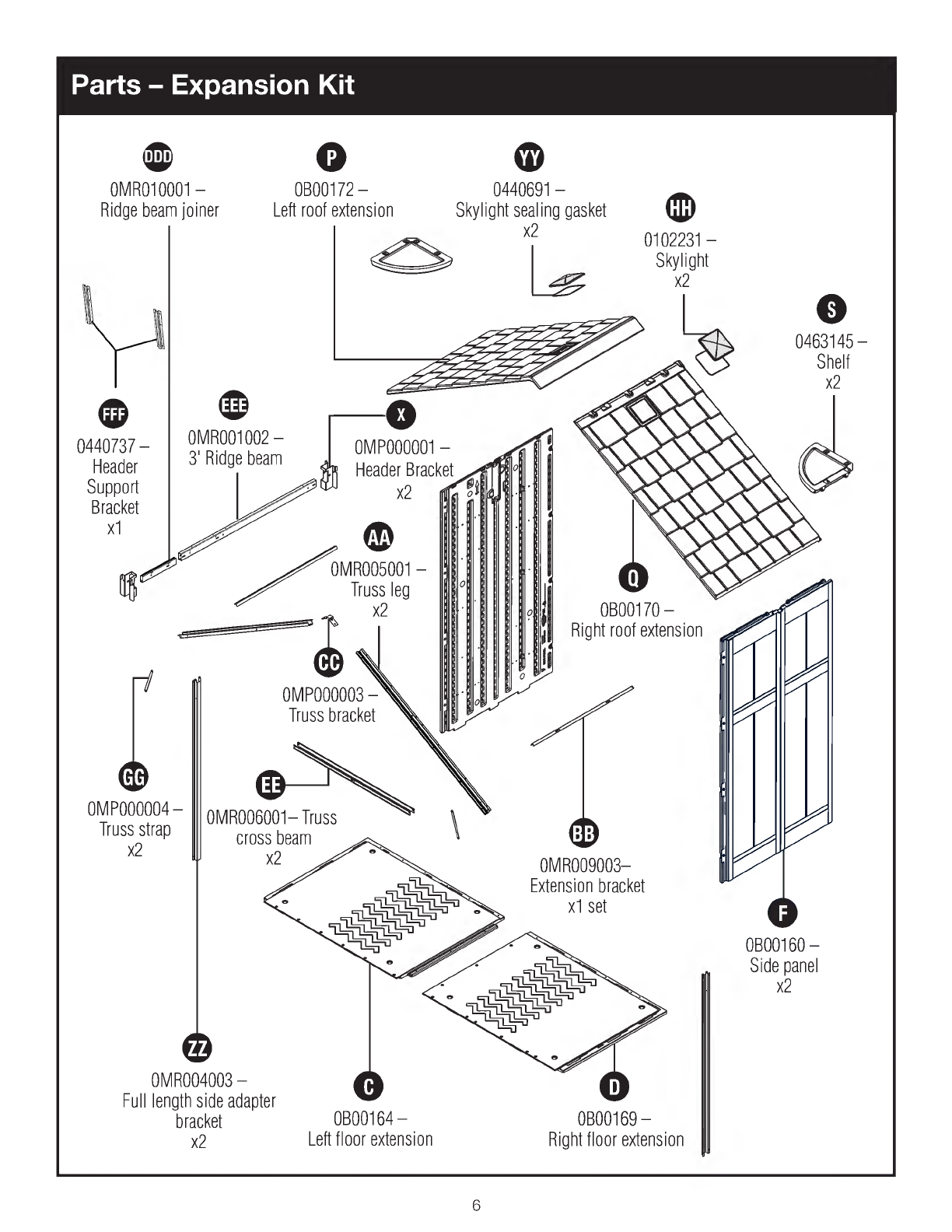

Parts - Expansion Kit
DDD
OMR010001 —
Ridge beam joiner
0440737 —
Header
Support
Bracket
x1
e
0M P000004 —
Truss strap
x2
o
OB00172 —
Left roof extension
OMR001002 —
3' Ridge beam
OMP000001 —
Header Bracket
x2
o
, OMR005001 —
Truss leg
x2
(;,
0M P000003 —
Truss bracket
OMR006001— Truss
cross beam
x2
OMR004003 —
Full length side adapter
bracket
x2
0B00164—
Left floor extension
Q
0440691 —
Skylight sealing gasket
x2
.eJ7'
111)
0102231 —
Skylight
x2
0B00170—
Right roof extension
OMR009003—
Extension bracket
x1 set
OB00169 —
Right floor extension
o
0463145 —
Shelf
x2
OB00160 —
Side panel
x2
6

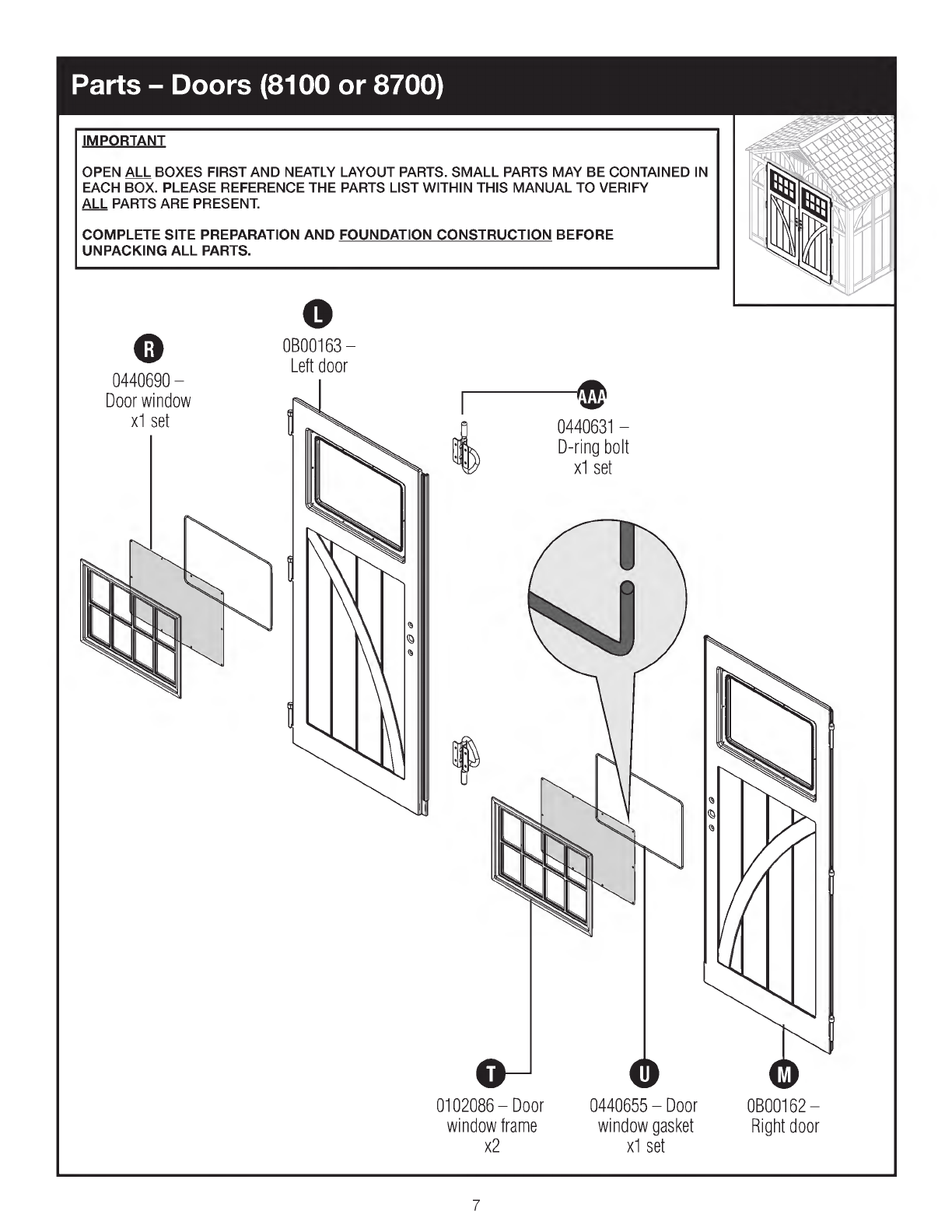

Parts - Doors ( 8100 or 8700)
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
o
0440690 —
Door window
x1 set
0
OB00163 —
Left door
I
Flo
0440655 — Door
window gasket
x1 set
OB00162 —
Right door
0102086 — Door
window frame
x2
fe
0440631 —
D- ring bolt
x1 set
i
7

Parts - BMS8700 Walls and Floors
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
o o
OB00165 —
Left front corner
OB00157 —
Shelf
x2
0
OB00171 —
Back
0B00173—
Left floor
0B00174—
Right floor
OB00166 —
Right front corner
OB00160 —
Side panel
x2
00156—
Rear corner
x2
8

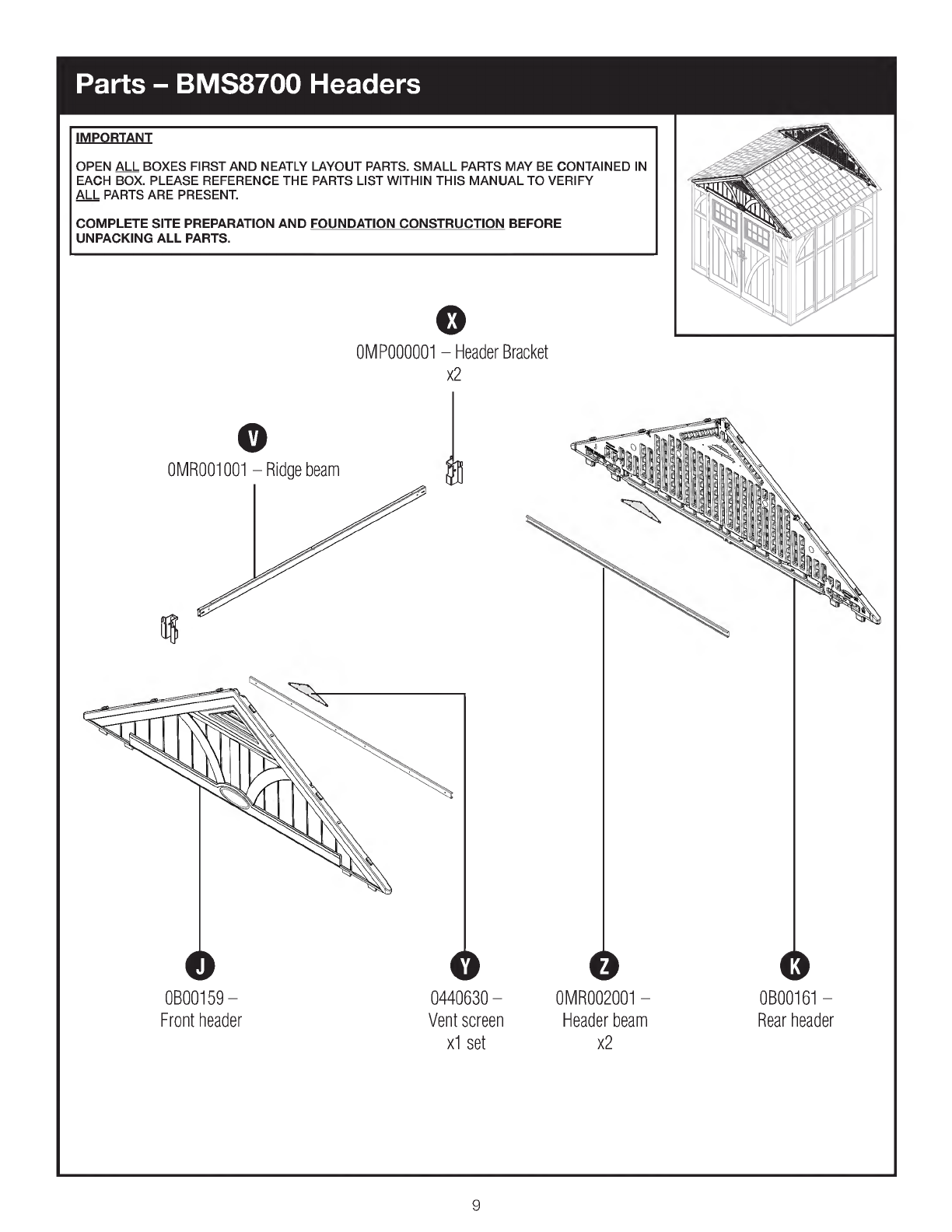

Parts - BMS8700 Headers
I.
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
0
OMR001001 — Ridge beam
OB00159 —
Front header
0
0M P000001 — Header Bracket
x2
0440630 —
Vent screen
x1 set
OMR002001 —
Header beam
x2
OB00161 —
Rear header
9

Parts - BMS8700 Truss
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
0
OMR005001 —
Truss leg
x2
/
OMR006001 — Truss
cross beam
x2
e CD
OMP000003— OMR009001 — Roof
Truss bracket support bracket
x4
0 M P00004 —
Truss strap
x2
OMR004001 — Side
adaptor bracket
x2
10

Parts - BMS8700 Roof
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
o
0B00167-
Left roof
x2
o
0102231 -
Skylight
x4
Q
0440691 -
Skylight sealing gasket
x2 sets
o
OB00168 -
Right roof
x2
11

Parts - BMS8100 Walls and Floors
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
0
OB00165 —
Left front corner
0
01300157 — Shelf
x2
o
0B00164—
Left floor extension
0
00171—
Center back
0B00173—
Left floor
OB00174 — 0B00166—
Right floor Right front corner
OB00160 —
Side panel
x4
OB00156 —
Rear corner
x2
o
OB00169 — Right
floor extension
12

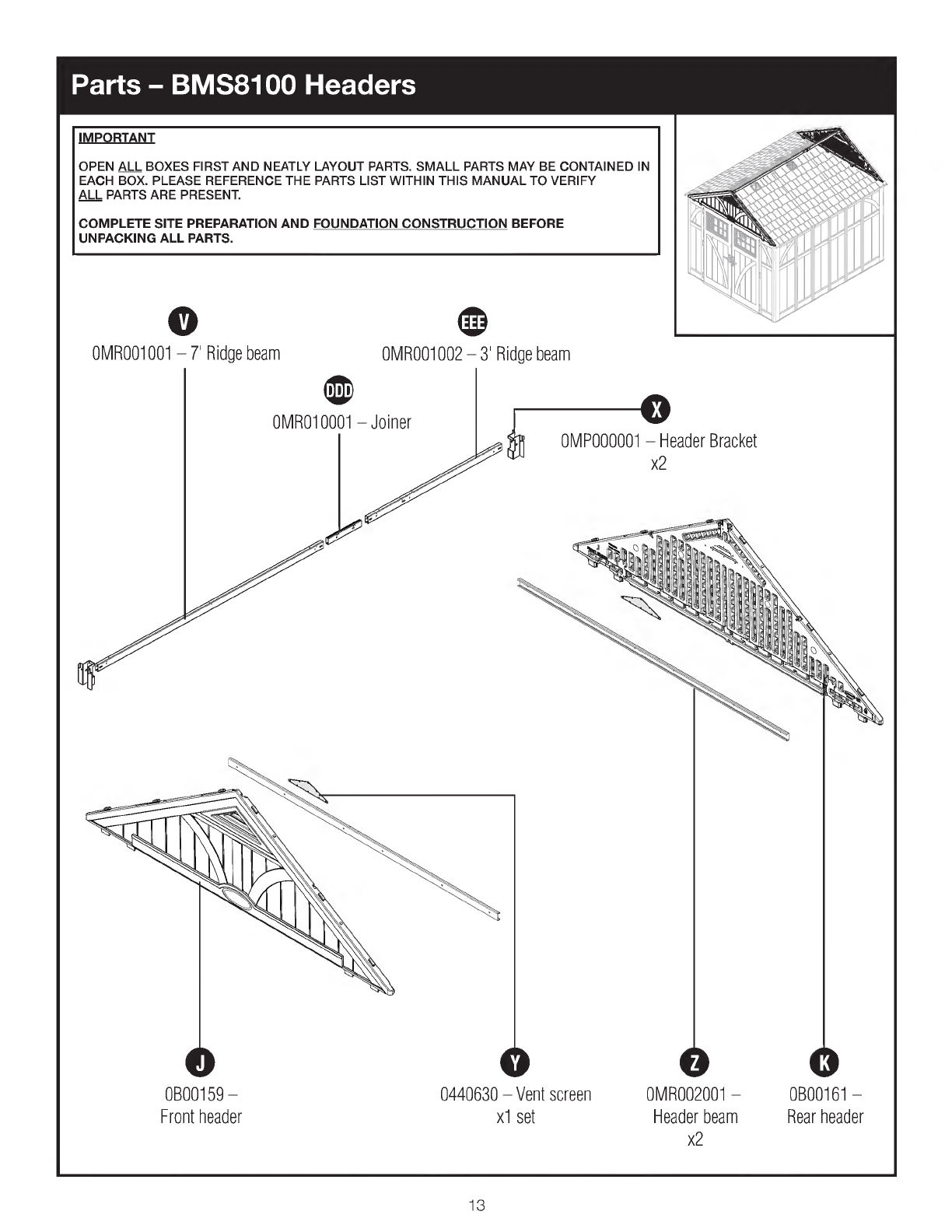

Parts - BMS8100 Headers
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
o
OMR001001 — 7' Ridge beam
DDD
0
OMR001002 — 3' Ridge beam
OMR010001 — Joiner
OB00159 —
Front header
0440630 — Vent screen
x1 set
OB00161 —
Rear header
Ill
0M P000001 — Header Bracket
x2
OMR002001 —
Header beam
x2
13

Parts - BMS8100 Truss
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
CD
OMR005001 —
Truss leg
x4
BB
OMR009003 —
Extension bracket
x1 set
OMR006001 — Truss
cross beam
x4
e CD
OMP000003 — OMR009001 — Roof
Truss bracket support bracket
x2 x6
OMR004001 — Side
adaptor bracket
x4
0 M PO00004 —
Truss strap
x4
14

Parts - BMS8100 Roof
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN
EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
o
OB00167 —
Left roof
x2
o
0B00172—
Left roof extension
o
0102231 —
Skylight
x6
.e'
o
0440691 —
Skylight sealing gasket
x6
OB00168 — 0B00170—
Right roof Right roof extension
x2
15

Hardware - Expansion Kit
Hardware bag
Easy Bolt 7/8"
x9
CD
*Easy Bolt easy driver
0480374 - Hardware bag
("))
.25"
Locking nut
x2
.25" x 2"
Hex bolt
x2
0480341 -
Hardware bag
.75" Sealing screw
x3
Rubber washer
x3
0480340 - Hardware bag
.25" x 1"
Hex bolt
x2
.25" . 25" x 2"
Locking nut Hex bolt
x6 x4
Hardware shown at actual size (* Unless otherwise noted.) Extra hardware provided. Not all are used.
0480290A - Hardware bag
e
.625" Truss head screw
x75
0480325A - Hardware bag
e
.625" Truss head screw
x47
0671103 - Hardware bag
e
.625" Truss head screw
x14
Note: For BMS8700 converting to BMS8130,
Note: For BMS8700 converting to BMS8160,
Note: For BMS8100 converting to BMS8130,
Note: For BMS8100 converting to BMS8160,
2 expansion kits and 2 bags of hardware are required.
3 expansion kits and 3 bags of hardware are required.
1 expansion kit and 1 bag of hardware is required.
2 expansion kits and 2 bags of hardware are required.
16

Door hinge
x6
Hardware - BMS8700
0480290 -
Hardware bag
.625" Truss head screw
x75
0480336 -
Hardware bag
.625" Truss head screw
x125
Hardware bag
Easy Bolt 7/8"
x28
*Easy Bolt easy driver
0480337 — Hardware bag
.25" x . 75"
Phillips machine screw
x6
.25" Locking nut
x6
0480342 — Hardware bag
.75" Sealing screw
x6
Rubber washer
x6
0480374 - Hardware bag
(_)
.25" Locking nut
x2
.25" x 2" Hex bolt
x2
Hardware shown at actual size (* Unless otherwise noted.) Extra hardware pro
0480340 - Hardware bag
WI
o
.25" x 1" Hex bolt
x2
.25" Locking nut . 25" x 2" Hex bolt
x6 x4
vided. Not all are used.
17

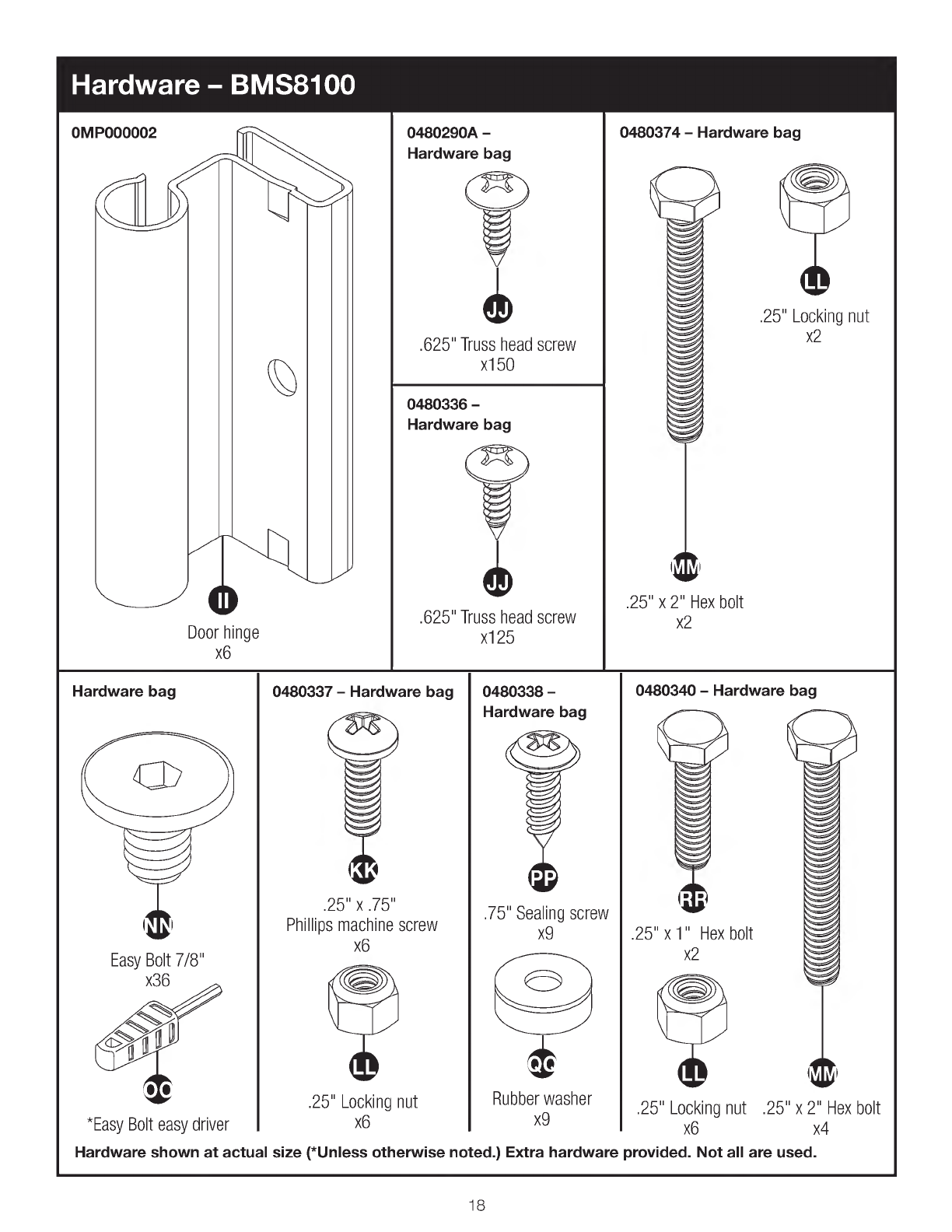

Door hinge
x6
Hardware - BMS8100
0480290A -
Hardware bag
.625" Truss head screw
x150
0480336 -
Hardware bag
.625" Truss head screw
x125
0480374 - Hardware bag
131
.25" x 2" Hex bolt
x2
.25" Locking nut
x2
Hardware bag
Easy Bolt 7/8"
x36
*Easy Bolt easy driver
0480337 — Hardware bag
.25" x . 75"
Phillips machine screw
x6
.25" Locking nut
x6
0480338 -
Hardware bag
.75" Sealing screw
x9
Rubber washer
x9
0480340 — Hardware bag
.25" x 1" Hex bolt
x2
.25" Locking nut . 25" x 2" Hex bolt
x6 x4
Hardware shown at actual size (* Unless otherwise noted.) Extra hardware provided. Not all are used.
18

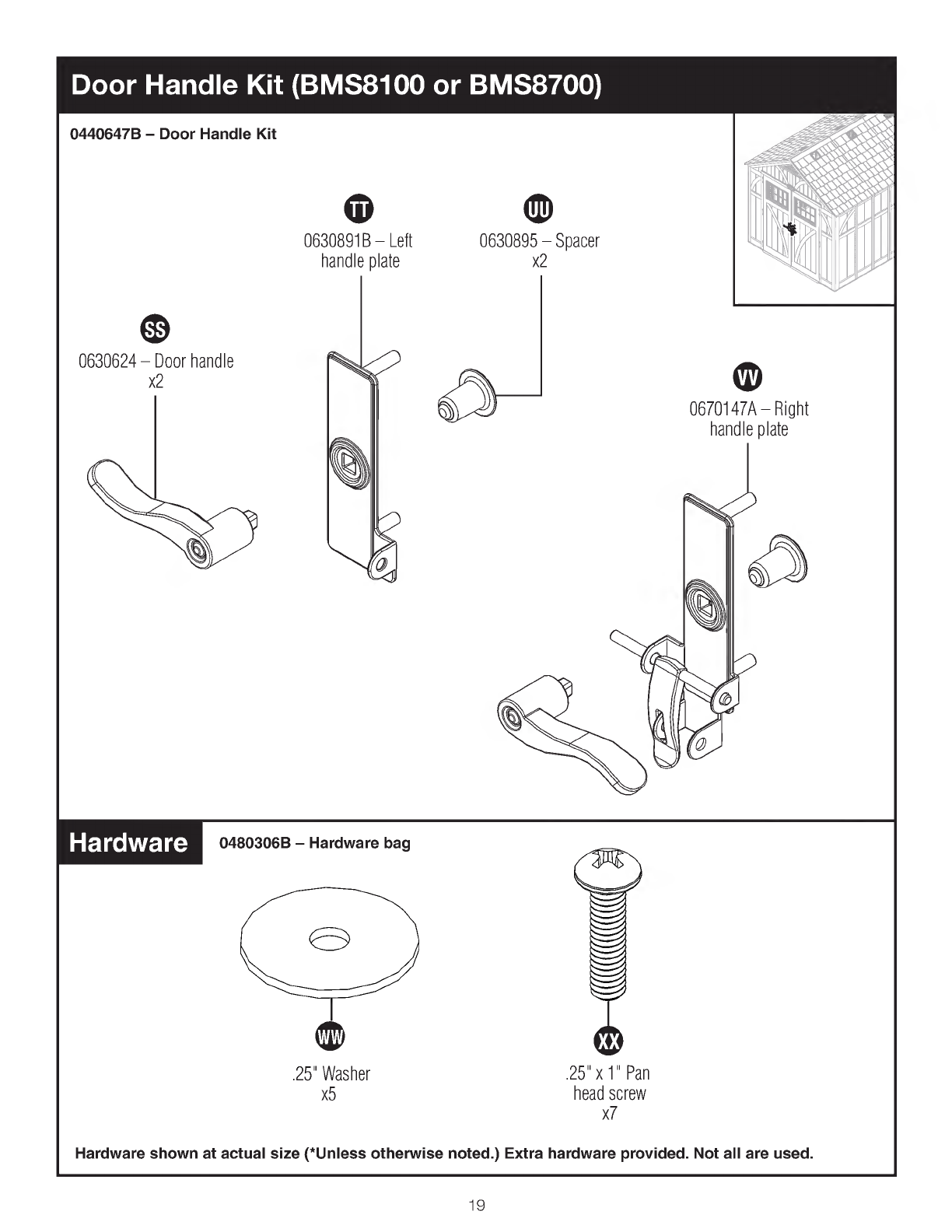

Door Handle Kit ( BMS8100 or BMS8700)
0440647B - Door Handle Kit
(ID
0630624 — Door handle
x2
Hardware
0630891B — Left
handle plate
e
0630895 — Spacer
x2
0670147A — Right
handle plate
0480306B - Hardware bag
e
.25" Washer
x5
.25" x 1" Pan
head screw
x7
Hardware shown at actual size (* Unless otherwise noted.) Extra hardware provided. Not all are used.
19

Site Preparation and Platform Construction
(Materials NOT supplied with Shed Kit)
Note: Site preparation is required for this shed. Placing the shed on a constructed foundation is required. Without
a constructed foundation, settling will probably occur, causing distortion and damage to the shed. Suncast is not
responsible for replacing parts damaged or property lost due to incorrect assembly. Warranty requires foundation.
Note: Complete the site preparation and foundation construction before unpacking parts and beginning assembly.
For tips on site preparation, go to www.suncast.com, consult retailer, or local code.
To prepare your shed site, follow the below steps:
1) Consult your local authorities for building codes and covenants before beginning foundation or erecting
shed.
2) Before any digging, check with local utilities to determine location of buried cables, pipes, etc.
3) Decide which type of foundation you want:
- Concrete slab, 4" thick
o
- Wood platform
Use exterior grade wood. The wood platform should be set on pier blocks or footing. Consult your local
retailer for help to determine the best anchoring method for your particular installation. The provided
plans are sized for the minimum number of cuts to lumber and plywood.
4) Prepare the building site:
- The ground should slope away from the foundation area to provide drainage.
- The foundation surface must be flat and level.
-A vapor barrier should be provided to prevent excessive condensation in the shed.
- Follow local building codes for a proper vapor barrier.
5) Anchoring the shed to the foundation:
- Consult your local retailer for help to determine the best anchoring method for your particular installation.
- To secure the shed to a concrete pad, use masonry fasteners available at your local hardware retailer.
- To secure the shed to a wood platform, use 1/4" x 3" long lag screws with washers. See diagram on page
10 for anchoring locations.
20
