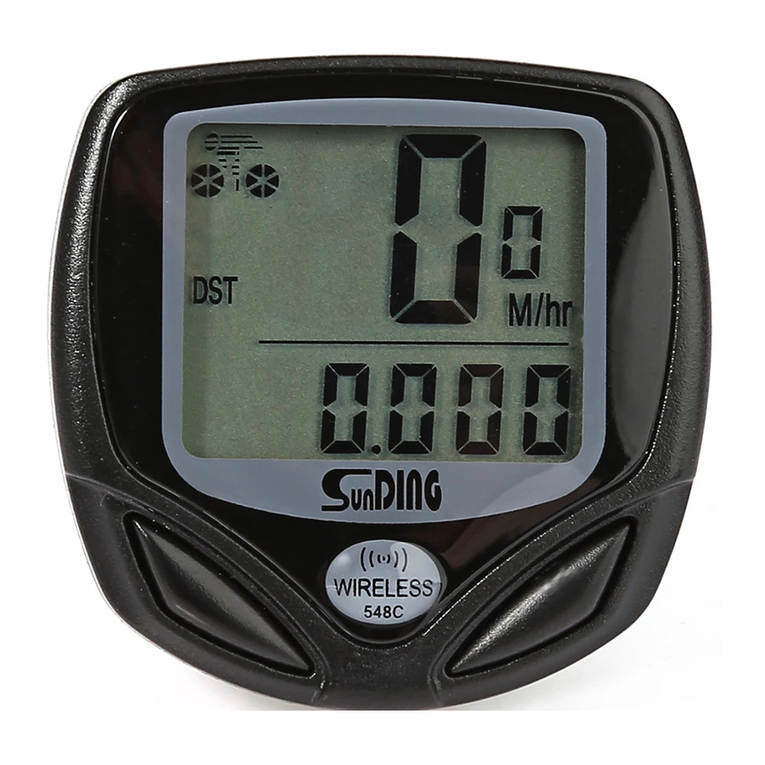

SunDING SD-558C User manual

SD-558C Installation
Computer and accessories:
1
2
3
4
5
6
Computer
Mounting shoe
Fixed shoe
Sponge sticker
Fixed rings
Connection bar
7
8
10
Bridge bar
Magnet cover
Ties
Installation of mounting shoe:
Caution:The mounting shoe and fixed shoe is already
installed and with sponge sticker.
You can intalled them by four
different ways.The right is
The 1st way:
Mounting shoe
Fixed shoe
Ties
Sponge sticker
The 2nd way:
Mounting shoe
Fixed shoe
Sponge sticker
Ties
The 4th way:
Mounting shoe
Fixed shoe
Sponge sticker
Ties
The 3rd way:
Mounting shoe
www.sunding.com Patents adopted for the product:
ZL201220467006.6
ZL201320007511.7
ZL201120060579.2
ZL201230074475.7
10 9Lock bar

Close
Open
Coin
Fix the shoe
firmly by ties.
In INQUIRY MODE, press the SET button for 3 seconds
to go to DATA SETTING MODE, press UP button to choose C or F,
press SET button to confirm and enter into CLOCK SETTING MODE.
In any mode, press and hold UP button for 3seconds, then all the data of this single trip riding will be reset to zero
except CLK ODO and RAT.
Press UP button to switch 12/24 hour mode. press the SET button to
confirm and enter to HOUR setting, when figure indicates HOUR and
start flashing, press the UP button to adjust the figure to the proper one,
each press makes one number plus. Then press the
SET button to set MINUTE, SECOND SETTING MODE
and adjust them by pressing UP button as well. When
this setting is over, press SET button to enter into
WHEEL SIZE SETTING MODE.
When in WHEEL SIZE SETTING MODE, the default
wheel circumference setting is 2080mm, Choose
correct wheel circumference figure as the chart below.
Press UP button to change each figure properly, press
SET button to confirm and jump to next figure.
(Range: 0~9999mm). When this setting is over, press
SET button to enter into (KH/H) / (M/H) SETTING MODE.
When in (KM/H) / (M/H) SETTING MODE, press the UP button to switch
KM/H or M/H mode, press SET button to confirm and enter into
ODOMETER SETTING MODE.
When in ODOMETER SETTING MODE, Press UP button to adjust the
flashing. ODO figure. Press SET button to jump to next number and set
them as the same way. The default number is 0000
(range: 0~9999kms/miles). When this setting is over,
press SET button to enter into RAT SETTING MODE.
When in RAT SETTING MODE, press UP button to adjust press SET
button to jump to next figure. The default number is. The defalut number
is 00:00:00 (range : 0~9999Hrs). When this setting is over, press SET
button to enter into DISPLAY MODE, then press MODE to enter into
TM UP & TRIP UP SETTING MODE.
When in TM DOWM &TRIP DOWN SETTING MODE, press and hold SET
button for three seconds to SET the figure of TM DOWM &TRIP DOWN.
Press UP button to adjust, press SET to jump to next figure. The
TM DOWM default number is 00:00:00(range: 0~99:59:59Hrs). The
TRIP DOWN default number is 000.0(range: 0~999.9kms/miles). Press
SET button to finish this setting and back to TM DOWM &TRIP DOWN
SETTING MODE.
When in TM UP & TRIP UP SETTING MODE, press and hold SET button
for three seconds to SET the figure of TM UP & TRIP UP. Press UP button
to adjust, press SET to jump to next figure. The TM UP default number is
00:00:00(range: 0~99:59:59Hrs). The TRIP UP default number is
000.0(range: 0~999.9kms/miles). Press SET button to finish this setting
and back to TM UP & TRIP UP SETTING MODE. Press SET button to
enter into TM DOWM &TRIP DOWN SETTING MODE.
The current outdoor temperature. its ranges is:
-20~70(°C) / -4~158(°F).
In DST or ODO mode, press SET button to enter into
STOPWATCH MODE. Start stopwatch with UP button,
press UP button again to freeze, press one more UP
button to start the stopwatch again. Clean the
stopwatch data by pressing SET button.
Riding time record in total from the beginning zero to
the current. its range is 0~9999 Hr.
The total trip time record from the beginning zero to
the current. Its range is: 0~99:59:59, The display will
automatically turn to zero if the value is out of the
range.
The trip time is how long one single trip riding lasts.
The average speed of one single trip.
The maximum speed of one single trip.
The distance of one single trip. Its range is:
0~9999km(m), The display will automatically turn to
zero if the value is out of the range.
The total distance record from the beginning zero to
the current. its mileage ranges: 0.001~99999km(m).
The display will automatically turn to zero if the value
is out of the range.
During riding, or will dispaly on the screen,
indicates the speed is higher than average
speed. indicates the current speed is lower than
average speed.
When the wheel is cicrling, the current speed data is
showing all the time on the screen, its ranges is:
0~99.9km/(m/h), and it is accurate to
+/- 0.1km/h(m/h).
The wired remote control button is attached the
mounting shoe, it is able to replace the MODE button.
Press the UP button in any mode except STOPWATCH
mode to enter into Freeze Frame memory mode, DST,
TTM, SPD data will be freezed and the figures start
flashing
When the
ODO is over
300KM,
the will
be flashing, press both UP SET and MODE button at
the same time to clear the reminder.
When the ODO is over 300KM, will be flashing,
press both UP and MODE button at the same time to
clear the reminder.
When the SPD is over 20KM/H, the SPD will be
flashinguntil the SPD is less than 20KM/H.
If the computer is free for over 300 seconds, the
computer will automatically enter into Sleep mode and
hide all data but CLK. It will turn back to the previous
mode with all the data when start circling or press any
botton.
COMPUTER SETTINGS
TEMPERATURE SETTING (°C / °F)
12/24 CLOCK SETTING
WHEEL SIZE SETTING & CHART
(KM/H) / (M/H) SETTING
ODOMETER SETTING
RAT SETTING
TM UP & TRIP UP SETTING
TM DOWM & TRIP DOWN SETTING
ONE SINGLE TRIP DATA RESET
FUNCTIONS
SPD
SPD COMPARATOR
ODO
DST
MAX SPD
AVS
TM
TTM
RAT
STOPWATCH
TH
SLEEP MODE
OVER-SPEED REMINDER
MAINTENANCE ALERT
CARE REMINDER
FREEZE FRAME MEMORY
WIRED REMOTE CONTROL (SD-558A)
TRIP UP Trip count up.
TRIP DN Trip count down.
TM UP Time count up.
TM DN Time count down.
- COMPARATOR
- SETTING SPEED SCALE(km/h,m/h)
- MAINTENANCE ALERT
- MACHINE OIL REMAINDER
- LOW BATTERY INDICATOR
-SETTING TYRE CIRCUMFERENCE
- SETTING THE LAST VALUE OF ODOMETER.
- FREEZE FRAME MEMORY
-SIGNAL INTERFERENCE-RESISTANCE
-AUTO BACK LIGHT
- EVER-BRIGHTENING BACK LIGHT
-SMART BACK LIGHT
-SLEEP MODE
- WIRELESS WAKE UP
-SPD CURRENT SPEED
- ODO ODOMETER(0-9999km/m)
- DST TRIP DISTANCE
- MAX MAXIMUM SPEED
- AVS AVERAGE SPEED
- TTM TOTAL TRIP TIME
- TM TRIP TIME
- RAT RIDING ALL TIME
- CLK CLOCK (12H/24H)
- SW STOPWATCH
- Th TEMPERATURE
- TM UP TRIP TIME UP
- TM DN TRIP TIME DOWN
- TRIP UP TRIP DISTANCE UP
- TRIP DN TRIP DISTANCE DOWN
FUNCTIONS
2
Attach the sensor to the front fork by the ties, the computer and the
sensor should be installed on the same side of the fork, and the distance
between them should be less than 60cm. the arrow sign on the sensor
should point to the magnet Install the magnet as shows in the figure.
Adjust the sensor and magnet to make sure the distance between them
is 3 mm.
Attach the computer to the handlebar by the ties. Spin the front
wheel to check for proper installation.
Adjust the position of sensor and magnet if there is no or weak
reaction from the computer screen.
Attach the wired control to the handlebar. Adjust it to the most
most convenient position for use.
put the ties through the slots
under he button to fix the
wired control to the handlebar.
Slide the
mounting
shoe to the
computer
until they
attached to
each other
firmly.
Attach the sensor to the front fork,
using the pad to make it fixed firmly.
AUTO BACK LIGHT &
EVER-BRIGHENING BACK LIGHT
It can sense automatically the light intensity around
the computer. It will be ON when there is insufficient
light. press any button to turn on the back light. It
will be OFF automatically when there is sufficient
light. Press the MODE button for 5 seconds, the
back light will keep brightening, press it for another
5 seconds ,the back light will be OFF.
Ever-brightening back light will be OFF when
it enter SLEEP MODE.
AUTO WAKE UP
It can automatically wake up and enter the work.
When battery is put in the computer, the display is in DST mode. It has three modes of this computer,
DST, TRIP UP / DOWN and INQUIRY MODE. Each press of the MODE button switches into one of
three MODEs. The DST MODE is the default one.
INSTRUCTION
MODE INSTRUCTION
DST MODE TRIP UP/DOWN MODE
INQUIRY MODE
MAIN UNIT
FRONT BACK
SPEED
TIME
SETMODE
UP COMPUTER & MOUNTING
SHOE TRIGGER
BATTERY COVER
MALFUNCTIONS AND REASONS
1, No speedometer
A. Improper magnet / sensor alignment.
2, Inaccurate value is indicated
A. Improper input, such as wheel circumference.
3, Slow display response
A. Temperature exceeds operating limits (0°C~55°C).
4, Weak display
A. Poor battery or dead battery.
5, Displays irregular figures
A. Take battery out and reinstall it after 10seconds.
Remove the battery
cover out of the
bottom of the
computer
by using a flat blade
screwdriver,
install one CR2032
battery with the
positive (+) pole
facing the battery
cover and close
the cover.
Computer
CR2032 Battery
Magnet
Mounting Shoe
Sensor
Ties
UP MODE SET
3mm
TIRE SIZE CIRC TIRE SIZE CIRC TIRE SIZE CIRC
700CX38mm 2180
700CX35mm 2168
700Cx32mm 2155
700Cx30mm 2146
700Cx28mm 2136
700Cx25mm 2105
700Cx23mm 2096
700Cx20mm 2086
700CxTubular 2130
26"x1.75" 2023
26"X1.5 0" 2010
26"X1.25" 1950
24"x1.75" 1916
20"x1.50" 1490
18"X2.0" 1340
16"X1.50" 1185
14"X1.50" 1020
12"X1.75" 935
650CX23mm 1944
650CX20mm 1938
27"x2.10" 2148
27"x1.95" 2090
27"x1.50" 2079
26"x3.00" 2170
26"x2.35" 2083
26"x2.10" 2068
26"X1.95" 2050

Close
Open
Coin
Fix the shoe
firmly by ties.
In INQUIRY MODE, press the SET button for 3 seconds
to go to DATA SETTING MODE, press UP button to choose C or F,
press SET button to confirm and enter into CLOCK SETTING MODE.
In any mode, press and hold UP button for 3seconds, then all the data of this single trip riding will be reset to zero
except CLK ODO and RAT.
Press UP button to switch 12/24 hour mode. press the SET button to
confirm and enter to HOUR setting, when figure indicates HOUR and
start flashing, press the UP button to adjust the figure to the proper one,
each press makes one number plus. Then press the
SET button to set MINUTE, SECOND SETTING MODE
and adjust them by pressing UP button as well. When
this setting is over, press SET button to enter into
WHEEL SIZE SETTING MODE.
When in WHEEL SIZE SETTING MODE, the default
wheel circumference setting is 2080mm, Choose
correct wheel circumference figure as the chart below.
Press UP button to change each figure properly, press
SET button to confirm and jump to next figure.
(Range: 0~9999mm). When this setting is over, press
SET button to enter into (KH/H) / (M/H) SETTING MODE.
When in (KM/H) / (M/H) SETTING MODE, press the UP button to switch
KM/H or M/H mode, press SET button to confirm and enter into
ODOMETER SETTING MODE.
When in ODOMETER SETTING MODE, Press UP button to adjust the
flashing. ODO figure. Press SET button to jump to next number and set
them as the same way. The default number is 0000
(range: 0~9999kms/miles). When this setting is over,
press SET button to enter into RAT SETTING MODE.
When in RAT SETTING MODE, press UP button to adjust press SET
button to jump to next figure. The default number is. The defalut number
is 00:00:00 (range : 0~9999Hrs). When this setting is over, press SET
button to enter into DISPLAY MODE, then press MODE to enter into
TM UP & TRIP UP SETTING MODE.
When in TM DOWM &TRIP DOWN SETTING MODE, press and hold SET
button for three seconds to SET the figure of TM DOWM &TRIP DOWN.
Press UP button to adjust, press SET to jump to next figure. The
TM DOWM default number is 00:00:00(range: 0~99:59:59Hrs). The
TRIP DOWN default number is 000.0(range: 0~999.9kms/miles). Press
SET button to finish this setting and back to TM DOWM &TRIP DOWN
SETTING MODE.
When in TM UP & TRIP UP SETTING MODE, press and hold SET button
for three seconds to SET the figure of TM UP & TRIP UP. Press UP button
to adjust, press SET to jump to next figure. The TM UP default number is
00:00:00(range: 0~99:59:59Hrs). The TRIP UP default number is
000.0(range: 0~999.9kms/miles). Press SET button to finish this setting
and back to TM UP & TRIP UP SETTING MODE. Press SET button to
enter into TM DOWM &TRIP DOWN SETTING MODE.
The current outdoor temperature. its ranges is:
-20~70(°C) / -4~158(°F).
In DST or ODO mode, press SET button to enter into
STOPWATCH MODE. Start stopwatch with UP button,
press UP button again to freeze, press one more UP
button to start the stopwatch again. Clean the
stopwatch data by pressing SET button.
Riding time record in total from the beginning zero to
the current. its range is 0~9999 Hr.
The total trip time record from the beginning zero to
the current. Its range is: 0~99:59:59, The display will
automatically turn to zero if the value is out of the
range.
The trip time is how long one single trip riding lasts.
The average speed of one single trip.
The maximum speed of one single trip.
The distance of one single trip. Its range is:
0~9999km(m), The display will automatically turn to
zero if the value is out of the range.
The total distance record from the beginning zero to
the current. its mileage ranges: 0.001~99999km(m).
The display will automatically turn to zero if the value
is out of the range.
During riding, or will dispaly on the screen,
indicates the speed is higher than average
speed. indicates the current speed is lower than
average speed.
When the wheel is cicrling, the current speed data is
showing all the time on the screen, its ranges is:
0~99.9km/(m/h), and it is accurate to
+/- 0.1km/h(m/h).
The wired remote control button is attached the
mounting shoe, it is able to replace the MODE button.
Press the UP button in any mode except STOPWATCH
mode to enter into Freeze Frame memory mode, DST,
TTM, SPD data will be freezed and the figures start
flashing
When the
ODO is over
300KM,
the will
be flashing, press both UP SET and MODE button at
the same time to clear the reminder.
When the ODO is over 300KM, will be flashing,
press both UP and MODE button at the same time to
clear the reminder.
When the SPD is over 20KM/H, the SPD will be
flashinguntil the SPD is less than 20KM/H.
If the computer is free for over 300 seconds, the
computer will automatically enter into Sleep mode and
hide all data but CLK. It will turn back to the previous
mode with all the data when start circling or press any
botton.
COMPUTER SETTINGS
TEMPERATURE SETTING (°C / °F)
12/24 CLOCK SETTING
WHEEL SIZE SETTING & CHART
(KM/H) / (M/H) SETTING
ODOMETER SETTING
RAT SETTING
TM UP & TRIP UP SETTING
TM DOWM & TRIP DOWN SETTING
ONE SINGLE TRIP DATA RESET
FUNCTIONS
SPD
SPD COMPARATOR
ODO
DST
MAX SPD
AVS
TM
TTM
RAT
STOPWATCH
TH
SLEEP MODE
OVER-SPEED REMINDER
MAINTENANCE ALERT
CARE REMINDER
FREEZE FRAME MEMORY
WIRED REMOTE CONTROL (SD-558A)
TRIP UP Trip count up.
TRIP DN Trip count down.
TM UP Time count up.
TM DN Time count down.
- COMPARATOR
- SETTING SPEED SCALE(km/h,m/h)
- MAINTENANCE ALERT
- MACHINE OIL REMAINDER
- LOW BATTERY INDICATOR
-SETTING TYRE CIRCUMFERENCE
- SETTING THE LAST VALUE OF ODOMETER.
- FREEZE FRAME MEMORY
-SIGNAL INTERFERENCE-RESISTANCE
-AUTO BACK LIGHT
- EVER-BRIGHTENING BACK LIGHT
-SMART BACK LIGHT
-SLEEP MODE
- WIRELESS WAKE UP
-SPD CURRENT SPEED
- ODO ODOMETER(0-9999km/m)
- DST TRIP DISTANCE
- MAX MAXIMUM SPEED
- AVS AVERAGE SPEED
- TTM TOTAL TRIP TIME
- TM TRIP TIME
- RAT RIDING ALL TIME
- CLK CLOCK (12H/24H)
- SW STOPWATCH
- Th TEMPERATURE
- TM UP TRIP TIME UP
- TM DN TRIP TIME DOWN
- TRIP UP TRIP DISTANCE UP
- TRIP DN TRIP DISTANCE DOWN
FUNCTIONS
2
Attach the sensor to the front fork by the ties, the computer and the
sensor should be installed on the same side of the fork, and the distance
between them should be less than 60cm. the arrow sign on the sensor
should point to the magnet Install the magnet as shows in the figure.
Adjust the sensor and magnet to make sure the distance between them
is 3 mm.
Attach the computer to the handlebar by the ties. Spin the front
wheel to check for proper installation.
Adjust the position of sensor and magnet if there is no or weak
reaction from the computer screen.
Attach the wired control to the handlebar. Adjust it to the most
most convenient position for use.
put the ties through the slots
under he button to fix the
wired control to the handlebar.
Slide the
mounting
shoe to the
computer
until they
attached to
each other
firmly.
Attach the sensor to the front fork,
using the pad to make it fixed firmly.
AUTO BACK LIGHT &
EVER-BRIGHENING BACK LIGHT
It can sense automatically the light intensity around
the computer. It will be ON when there is insufficient
light. press any button to turn on the back light. It
will be OFF automatically when there is sufficient
light. Press the MODE button for 5 seconds, the
back light will keep brightening, press it for another
5 seconds ,the back light will be OFF.
Ever-brightening back light will be OFF when
it enter SLEEP MODE.
AUTO WAKE UP
It can automatically wake up and enter the work.
When battery is put in the computer, the display is in DST mode. It has three modes of this computer,
DST, TRIP UP / DOWN and INQUIRY MODE. Each press of the MODE button switches into one of
three MODEs. The DST MODE is the default one.
INSTRUCTION
MODE INSTRUCTION
DST MODE TRIP UP/DOWN MODE
INQUIRY MODE
MAIN UNIT
FRONT BACK
SPEED
TIME
SETMODE
UP COMPUTER & MOUNTING
SHOE TRIGGER
BATTERY COVER
MALFUNCTIONS AND REASONS
1, No speedometer
A. Improper magnet / sensor alignment.
2, Inaccurate value is indicated
A. Improper input, such as wheel circumference.
3, Slow display response
A. Temperature exceeds operating limits (0°C~55°C).
4, Weak display
A. Poor battery or dead battery.
5, Displays irregular figures
A. Take battery out and reinstall it after 10seconds.
Remove the battery
cover out of the
bottom of the
computer
by using a flat blade
screwdriver,
install one CR2032
battery with the
positive (+) pole
facing the battery
cover and close
the cover.
Computer
CR2032 Battery
Magnet
Mounting Shoe
Sensor
Ties
UP MODE SET
3mm
TIRE SIZE CIRC TIRE SIZE CIRC TIRE SIZE CIRC
700CX38mm 2180
700CX35mm 2168
700Cx32mm 2155
700Cx30mm 2146
700Cx28mm 2136
700Cx25mm 2105
700Cx23mm 2096
700Cx20mm 2086
700CxTubular 2130
26"x1.75" 2023
26"X1.5 0" 2010
26"X1.25" 1950
24"x1.75" 1916
20"x1.50" 1490
18"X2.0" 1340
16"X1.50" 1185
14"X1.50" 1020
12"X1.75" 935
650CX23mm 1944
650CX20mm 1938
27"x2.10" 2148
27"x1.95" 2090
27"x1.50" 2079
26"x3.00" 2170
26"x2.35" 2083
26"x2.10" 2068
26"X1.95" 2050
