SUNSCAN SunSmart SSD-0360410A User manual

Air to Water Heat Pump
Installation &Operation Manual
Retain this document for future referencece.
AGuide to the installation and operation of SunScan SunSmart Air to water Heat pumps.
Please read this manual carefully before installing and operating the Heat pump
Model Number :SSD-0360410A
SSD-0540410A
SSD-0900410A
SSD-0132410A

- 1 -
Introduction
Congratulations on purchasing a SunScan SunSmart Heat pump, our Heat pumps
use cutting edge technology and attractive design to bring you a high quality
product.This manual must be read thoroughly and understood before undertaking to
install any of the SunScan range of heat pumps, please note that this manual is
specific to the product/s listed or described on the cover page. If after reading this
manual any aspect of the installation process remains unclear contact a SunScan
representative prior to installation.
This manual serves only as a guide to the correct installation of SunScan
components; it does not seek to defy logic and or the experience of suitably trained
installers, use discretion within the parameters of the below standards.
SunScan water heating apparatus must be installed in compliance with the
following:
SANS 198, SANS 10252 -1, SANS 10254, SANS 1352, SANS 60335-2-21
SANS 10400 – parts A, B, L, XA, SANS 10142-1
No modifications from these standards are allowed. All local bylaws and estate laws
must also be adhered to.Failure to comply with any or all of these standards may
result in injury or death and may void the warranty.Any attachment, connection,
integration or general association of parts or components that
directly or indirectly affect the operation or performance of a SunScan product
could void the warranty. Such parts not supplied by SunScan must be authorised by
SunScan in writing in order to retain the benefits of the warranty.
SunScan does not accept responsibility for the final fitness of the water for
consumption, as the water quality is not affected by the heat pump.

- 2 -
Codes and Standards
Important Notice:
IMPORTANT SAFETY PRECAUTIONS
Attention Installer: This guide contains important information about the
installation, operation and safe use of this product. This information should be
given to the owner and/or operator of this equipment after installation.
Attention User: This manual contains important information that will help you in
operating and maintaining this product. Please retain document for future
reference.
WARNING -This manual must be read thoroughly and understood
before undertaking to install any of the SunScan range of heat pumps.Failure to
follow safety warnings and instructions may result in severe injury, death,or
property damage.
WARNING - This water heater is not intended to be operated or adjusted by young
children, the elderly, infirmed or physically/mentally handicapped persons.
SunScan water heating apparatus must be installed in compliance with the
following:SANS 198, SANS 10252 -1, SANS 10254, SANS 1352, SANS 60335-2-21
SANS 10400 – parts A, B, L, XA, SANS 10142-1
No modifications from these standards are allowed. All local bylaws and estate lawsmust
also be adhered to. Failure to comply with any or all of these standards may void the
warranty.
DANGER — Risk of electric shock
The electrical supply to this product must be installed by a licensed and
certifiedelectrician in accordance with the National Electrical Code and all
applicablelocal codes and ordinances. Improper installation will create an
electrical hazard which could result in death or serious injury to heat pump
users, installers orothers due to electrical shock, and may also cause damage
to property. Readand follow the instructions inside this guide.

- 3 -
What's in the box?
9 Heat Pump Unit 1
No. Name Qty.
1 Installation &Operation Manual 1
2 Wire-controller 1
3 Wire-controller sensor wire 1
4Wire controller box & pad (plastic) 1
5Power cable (selected models) 1
6Drain-pipe 1
7Drain-pipe connector 1
8Rubber shock absorber 4

- 4 -
Please read the manual carefully before operation and keep it for future reference.
Content
Initial Operation...................................................................................19
Operation And Maintenance............................................................20
Technical Parameter.......................................................................... 21
Operating Instructions......................................................................14
Installing Electrical Components...................................................12
Installing The Water Pipes..............................................................10
Installing The Unit...............................................................................9
How Heat Pumps Work.................................................................... 8
General Safety..................................................................................... 5
Warranty...............................................................................................21

- 5 -
Range of application:
1. Power supply: 230V/1N~50Hz.
2. Environment temperature: -7°C〜43°C ：
The power supply to the unit must be grounded.
NOTICE
General Safety
Theheat pump has a anti-freezing operation. In winter when the ambient is below
0℃,the unit will start automatically to keep water from freezing, this protectsthe unit
andwater piping system. DO NOT switch the unit off or disconnect it from the power
supply during low ambient (0°C) times.
If the unit is not in use for extended periodsin winter when the ambient temperature is
below 0℃, theuser can switch off the unit and disconnect it from the power supply,if all
water is discharged from the heat pump and piping system. Failure to discharge water from
the heat pump before switching off or disconnecting the power supply may result in damage
to the unit or piping system.
Please read the below precautions carefully to avoid damage to the unit and/or harm to
the user
The installation, dismantlement and maintenance of the unit
must be performed by qualified personnel. DO NOT make any
changes to the structure of the unit.

- 6 -
Use a dedicated socket outlet / circuit for this unit.
Keep the unit away from other home appliance or heat sources,
this preventsany possible magnetic interferance and ensures
the unit'sperformance.
Do not touch the power plug or any electrical components with
wet hands. Never pull theplug out by pulling on the
power-cable.
Never cover the unit with clothes,plastic or any other material
that may block ventilation of theunit,this will lead to low
efficiency or non-operation of this unit.
Coil fins are sharp and may cut fingers
Never pour water or liquid into or over the unit.

- 7 -
Do not touch the air outlet grill when fan motor is running
Please ensure the power supply is switched off before any
maintenance / cleaning works.
Always select the correct fuse or breaker. Steel wire or copper
wire cannot be used as a substitute for fuse or breaker.
Keep the unit away from combustible or corrosive
environment.
It is mandatory to use a suitable circuit breaker for the heat
pump and make sure the power supply to the heater
corresponds to the specifications.
The minimum inlet water pressure should be 0.1MPa and
maximum pressure 0.7MPa.

- 8 -

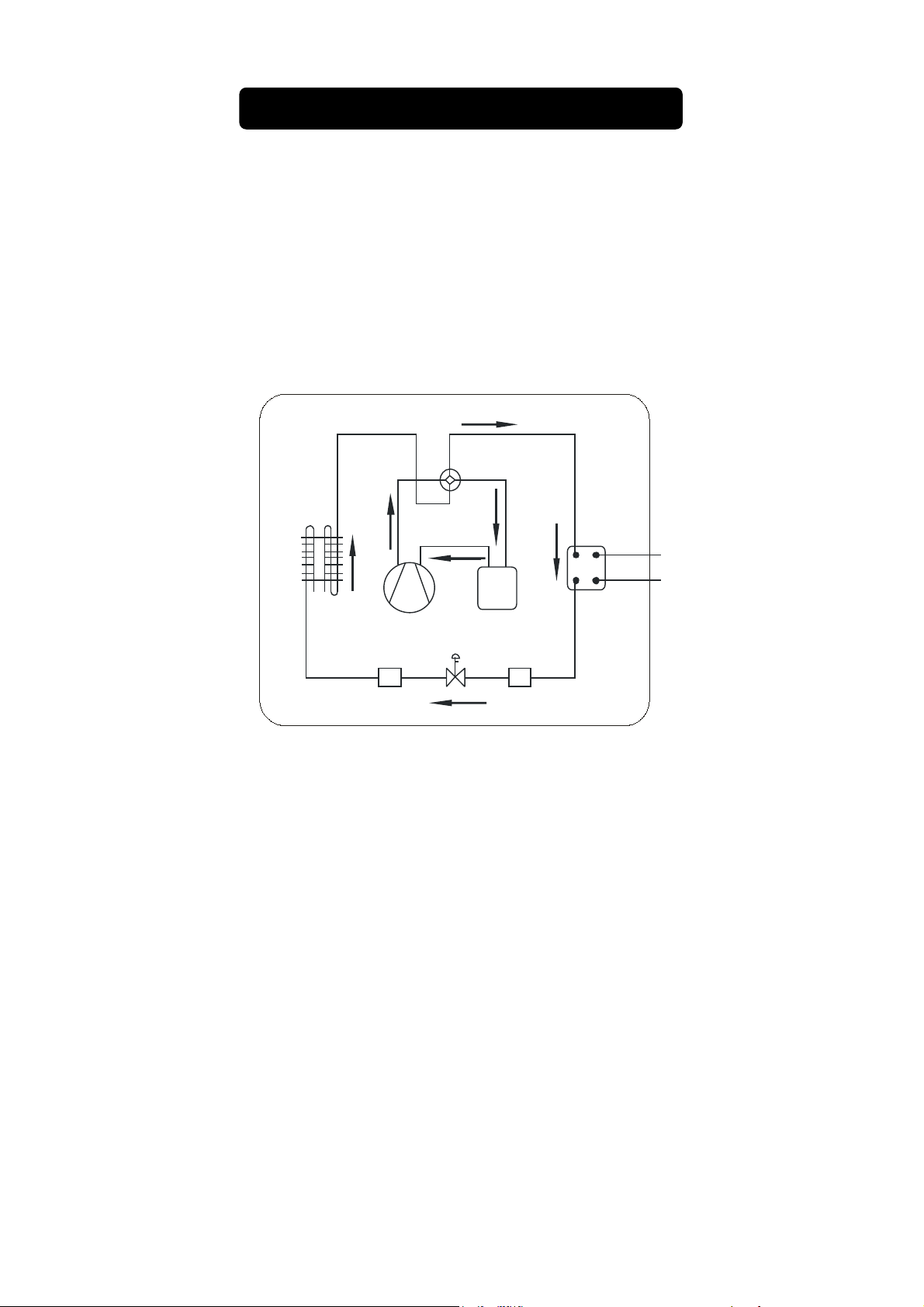

4 way valve-
water inlet
water outlet
condenser
liquid gas seperator- compressor
filter
expansion valve
filter
evapo rator
f an
Figure 1
Qc (Heat energy get) =Qa (Compressor consumption) +Qb (Heat energy absorbed from ambient environment)
How heat Pumps work
Heat pumps transfer heat by circulating refrigerant through a cycle of evaporation and condensation. A
compressor pumps the refrigerant between two heat exchanger coils. In one coil, the refrigerant is
evaporated at low pressure and absorbs heat from its surroundings. The refrigerant is then compressed
en route to the other coil, where it condenses at high pressure. At this point, it releases the heat it
absorbed earlier in the cycle.
1. Heat pump process
2. Air source heat pump diagram

- 9 -
Size（mm）
installation requirements.
Figure 2 Horizontal type heat pump size, side air outlet
Model No.
A
B
C
D
E
F
Installing The Unit
1. Installation check
●Ensure the model number, name etc corresponds to this manual to avoid incorrect installation.
●Ensure adequete space for installation and maintenance.
●Ensure there are no obstructions to the air inlet and outlet.
●Ensure that the mounting surface can bear the weight of the unit.
● The power supply, capacity and the wire diameter should be in accordance with the electrical
●The electrical installation must comply with the relevant technical standards for electrical
equipment.
SSD-0360410A 936
550 311 650 143 385
SSD-0540410A 936 550 311 650 143 385
SSD-0132410A 986 798 380 680 183 420
● There shall be no obstacles within 1.5 meters in front & 0.25 meters of the back of the heat pump.
2. Heat pump unit size

- 10 -
Figure 3 Hoisting diagram
Figure 4
●Use the rubber pads provided to absorb shocks and vibration.
Installing The Water Pipes
Refer to the Figure 4.
1. Attention
●Ensure the intended pipework is free from dirt and debris.
● Install / Mount the Heat pump unit before connecting any of the water pipes.
● Water inlet and outlet pipes shall be protected by insulation.
● Stable water flow and velocity shall be ensured, so that excessive throttling can be avoided.
●Never use the water pipes or connections to the unit to move or lift the heat pump.
●Two pipe wrenches must be used when tightening or loosening the inlet and outlet water connections.
3. Hoisting
●Use four or more soft lifting belts to move the unit .
●Use protective plateson the surface of the unit when moving, this will avoid scratches and deformation.
●Check that the mounting structure is suitable before hoisting the unit.
● The heat pump will produce condensate (water),consider drainage when installing the unit.

- 11 -
Figure 5 Diagram
2. Instruction
(1) Water pipe installation diagram

- 12 -
(2) Selection of the water pipes
Model No.
Inlet
Outlet
2. Electrical Wiring Specification
3*2.5mm²
●Poor water quality or water with a higher mineral concentration will produce more scale and sediment.
SSD-0360410A DN20 DN20
SSD-0540410A DN20 DN20
SSD-0132410A DN20 DN20
Installing Electrical Components
● After all wiring is completed, re-check all connections before switching on power to the unit.
● Refer to the below table for wiring specifications.
1. Electrical wiring
● The unit shall use a dedicated power supply, with rated voltage.
●The power supply to the unit must be grounded.
● Wiring must be done by aqualified electrician in accordance with the circuit diagram.
Model No. Electrical Wiring Specification
SSD-0360410A
3*2.5mm²
SSD-0132410A
3*2.5mm²
SSD-0540410A
●Water quality should be analysed before running the system, measure the PH value, conductivity,
Chloride ion concentration and sulphate ion concentration, and install suitable filtration if required.

- 13 -
Y/GN
C2
BK
BL
BR
RD BL
BK
C1
Po w e r I n
Transformer
E-heater
Pump
Low speed
High speed
4WV
COMP
WFS
EEV
Co i l
Tem p.
N
N2 N3
X5
RD Y
BL
BK
RD
BK WH Y BL
Wire Controller
L
N
1
2
BL
RD
E- h e a te r
≤15 0 0W
Y/GN
BL
BL
BL
BK
Y/GN
WH
WH
RD
BK
BK
GN
BL
BL
RD
BR
Y/GN
LPS HPS
X4 X3 X2 X1 X6
Am b .
Tem p.
Ex h au st Te m p.
In l et Te mp .
Su c . T em p.
Out le t T em p .
3. Electrical wiring diagram
Figure 6 Electrical Diagram

- 14 -
1. Control system specifications
(1) Operating condition
● Voltage:230V～±10%,50Hz±1Hz.
● Ambient temperature: -7～+43℃
● Temperature accuracy: ±1℃
(2) Main function
Operating Instructions
● Display the storage tank temperature, setting temperature and monitoring coil, ambient and exhaust
temperaturesetc.
● Power outage memory function.
● When power outage occurs, the clock retains memory.
● Timing on/off.
● Automatic defrost.
● Large LCD display.
●Error code display and query
● Key-Lock Function
● Anti-freezing function
● When thewire controller is removed, the system recognizesit, and controlsthe heat pump
automatically

- 15 -
Symbol
Status
Meaning
Constantly bright
Heat pump is on
Extinguished
Currently in the manual set temperature state
Constantly bright
This unit is a water connection heat pump
Flashing
Heat pump is on and at defrost delay
Flashing
Heat pump is off and at refrigerant recovery status
Constantly display
Electric heater is on for quick heating
Flashing
Electric heater is on for disinfection
Constantly display
Current water temperature in the tank
Constantly display
Set water temperature in the tank
Constantly display
Current outlet water temperature
Constantly display
Current inlet water temperature
2. Wire controller settings and operation
(1) Interface Display and icons
Extinguished Heat pump is off
Constantly display Cooling mode on
Constantly display Heating mode on
Constantly display Fault needsrepair
Constantly display AUTO mode on
Constantly display Show Current Celsius temperature
Display Actual water temperature, set water temperature anddisplay
fault code
Extinguished This unit is a refrigerant connection heat pump
Constantly bright Heat pump is on and defrosting

- 16 -
(2) Set the Temperature Control Mode
When the controller is in normal display mode, press the “M” key to switch between manual temperature
control mode and automatic temperature control mode;
The “AUTO” symbol lights up in the automatic temperature control mode and the “AUTO” symbol does not light
up in the manual temperature control mode;
In the manual mode, the heating/cooling water temperature is controlled according to the manual temperature
setting value;
(3) Set the water temperature
(4) Real time clock settings
display Show real time
display Timer function is on
display On-time "heating"hours
Flashing End time of current set "heating" time
Constantly display The button is locked
Constantly display The controller is connected to the router
Flashing Set start time for "heating" hours
display Show boot time, non-heating time
3. Operating Instructions
(1) Turn Heat pump ON/OFF
When the controller is in the normal display state, press “ ” button for more than 1 second to switch the
power to the controller ON or OFF. When the heat pump is ON,“ ” lights up and is normally controlled.
When heat pump is off,“ ”does not light up and the controller stops controlling output. The controller can
In the automatic mode, the hot water temperature is automatically adjusted according to the ambient
temperature for control;
In the automatic mode, press the “∧” or “∨” key to enter the automatic temperature adjustable parameter
deviation setting state. Press “∧” or “∨” to increase or decrease the deviation setting value; press “∧” or “∨”
for more than 1second to quickly adjust or decrease the deviation setting value; press and Immediately
release the “ ”button or if no button is pressed after 5 seconds, controller exitsthe modification and returns
to the normaldisplay state. Whenthe parameter value is modified, it flashes for 2 seconds and then returns to
the normaldisplay state.
In manual mode, press“∧” or “∨” key to enter the water temperature setting state. Press the “∧” or “∨”
button to increase or decrease the water temperature setting value; Press and hold the “∧” or “∨” button for
more than 1 second to quickly increase ordecrease the water temperature setting. Press and release the “ ”
button immediately or if no button is pressed after 5 seconds, controller exits the modification and returnsto
thenormal display state. When the parameter value is modified, it will flash for 2 seconds and then return to
thenormal display state.
In the main interface, press the “ ” button to enter the real-time clock setting interface; In the real-time clock
display and operate normally in the power ON and OFF mode. When the controller is powered ON for the first
time, it will be in the OFF mode. Thereafter, the mode will be the same as last time before power off.

- 17 -
(6) Set the cooling/heating mode
(8) Forced defrosting
Press “M” + “∨” button at the same time for more than 5 seconds to activate or deactivate the "Defrost"
interface, press the “ ” button, the hour flashes, press “∧” or “∨”, you can set the hourof the clock; when
the hour part is set, press the “clock ” button again, the minutes will flash, press“∧” or “∨” to set the minute
of the real time clock; After the minute part is set, press the “ ” button again toconfirm the real-time clock
setting and return to the main interface;
In the real-time clock setting interface, if there is no button operation for 5 seconds, the current real-time clock
setting value is confirmed and returnsto the main interface; in the real-time clock setting interface, press the
mode. When the timed heating mode is enabled, enter the time period setting. Press and release “ ” to
set the hour and minute of the start time and end time of the three time slots in sequence., The adjustable
value flashes when switching to the corresponding value of the certain time slot. At the same time, “ON” or
“OFF”symbol flashes, Press “∧” or “∨” to increase or decrease the corresponding value. After setting the
time period, press and immediately releasethe “ON/OFF” button or if no button is pressed after 15 seconds,
thechanges will be saved and the controller returnsto the normal display state. When the timed heating
modeis enabled, thecorresponding symbols are displayed during the working period (ON) and the
non-working period(OFF)respectively. In the power-on mode, heating/cooling is performed only during the
set working period. When the start time and end time of aheating period are the same, that time slot is
discarded. When all timed periods are canceled, it isconsidered to be in working hours throughout the day. If
the start time of a certain working period is greaterthan the end time, the end time is considered to be the
next day. The three time period default settings are 05:00~07:00, 16:00~18:00, 20:00~00:00.
When the following conditions are met at the same time: the controller is in the normal display state and
heatpump is in the power-on state.
When the following conditions are met at the same time: the controller is in the normal display state and
heat pump is in the power-on state.
The heat pump needs to be in a timed heating period and timed heating enabled.
“ ” button to confirm the current real-time clock setting value and return to the main interface.
(5) Heating Time Settings
Press and hold the “ ” button for 3 seconds in the main interface to enable or disable the timed heating
(7) Forced electrical quick heating
The current heating mode is met and the temperature condition for continuing heating is satisfied, without
error "quick heating" may occur.
Press“M” + “∧” button at the same time for more than 5 seconds, the “quick heating” function can be
activated ordeactivated. When the “quick heating” is running, the symbol lights up. If the heat pump is in
cooling mode,“quick heat” is not allowed.
The heat pump needs to be in the working period after the timed control is enabled.
The current heating mode is set and the set defrosting time is not zero and the temperature condition for
defrosting is continued, without error "defrost" may occur.
when the controller is in normal display, press “ ” to switch between cooling or heating mode. When
switchingto the cooling or heating mode, the cooling or heating symbol flashes quickly for 3 seconds and then
returns to the normal display state. When switching to the cooling mode, the temperature adjusts automatically
and selects“manual mode”, and the water temperature can be set at this time. When the cooling/heating mode
isswitched,the compressor will only start running after 3 minutes.

- 18 -
(9) Key lock
Error
code
Error Description
Possible Causes
Solution
01E
Water flow switch
disconnected
02E
Exhaust temperature too high
Lack of refrigerant/Fluorine system leak
03E
11E
Evaporator coil temperature
12E
Ambient temperature sensor
failure
Sensor failure/Connection is loose
13E
Exhaust temperature sensor
failure
Sensor failure/Connection is loose
14E
Water inlet temperature
sensor failure
Sensor failure/Connection is loose
15E
Tank temperature sensor
failure
Sensor failure/Connection is loose
17E
Absorb temperature sensor
failure
Sensor failure/Connection is loose
18E
Water outlet temperature
sensor failure
Sensor failure/Connection is loose
19E
Return water temperature
sensor failure
Sensor failure/Connection is loose
20E
Outlet water temperature too
21E
Outlet water temperature too
low protection
Set too low target temperature, heat pump will
protect it from freezing
function. The symbol is illuminated when "Defrost" is running. If the heat pump is in cooling mode,
"defrost"operation is not allowed.
Contact Qualified Installer
When the controller is in the normal display state, the keypad is locked when there is no button operation
formore than 60 seconds. Press any button at this time to unlock.
Water flow switch is broken/water flow switch
connection is loose /No water flow switch
High pressure protection Water flow rate is low/Debris or blockage in water
pipe system/Circulation pump failure /Excessive
scale build up in heat exchanger/High pressure
switch faulty/Loose connection
Low pressure protection Lack of refrigerant/Fluorine system
04E leak/Defrost function is disabled/high
pressure switch fault/Loose connection
Communication failure Signal wire connection loose/There is Strong
09E magnetic field/PCB is broken/Signal wire
loose or broken
Sensor failure/Connection is loose
sensor failure
high protection
Set too high target temperature, exceed heat
pump max. operating temperature
4. Trouble shoot Error Code
