Sunsky OBTNL B11 User manual

OBTNL B11 Quick Start Guide for Watch(safekeeper)
Please read this instruction carefully before starting to use the device
in order to install and use quickly.Pictues are only for
information.take practicality as standard.
1. Prepare
Confirm the device type,check the accessories.
Choose GSMnetwork’s SIM card.Reference business
operator’suggestion. Please turn off the device before install the card.
The watch SIM card need to have GPRS and caller ID
function(It must be compatible with 2g of data traffic).
Install client APPon the phone,which can inquiry your agency.
Bar-code or two-dimension code for user to register.
2. Products function
•GPS+base station+wifi.Three mode to lactation
•Mobile phone or Computer GPRS service platform,double control

model
•GPRS real-time location,trace,monitor
•The phone book
•Talkback
•Intercom
•Health
•Trace
•Watch alarm
•Safety area
•SOS emergency alarm
•Watch remove alarm
•Low power alarm
•Remote turn off
•Bumper dating
Watch inturction

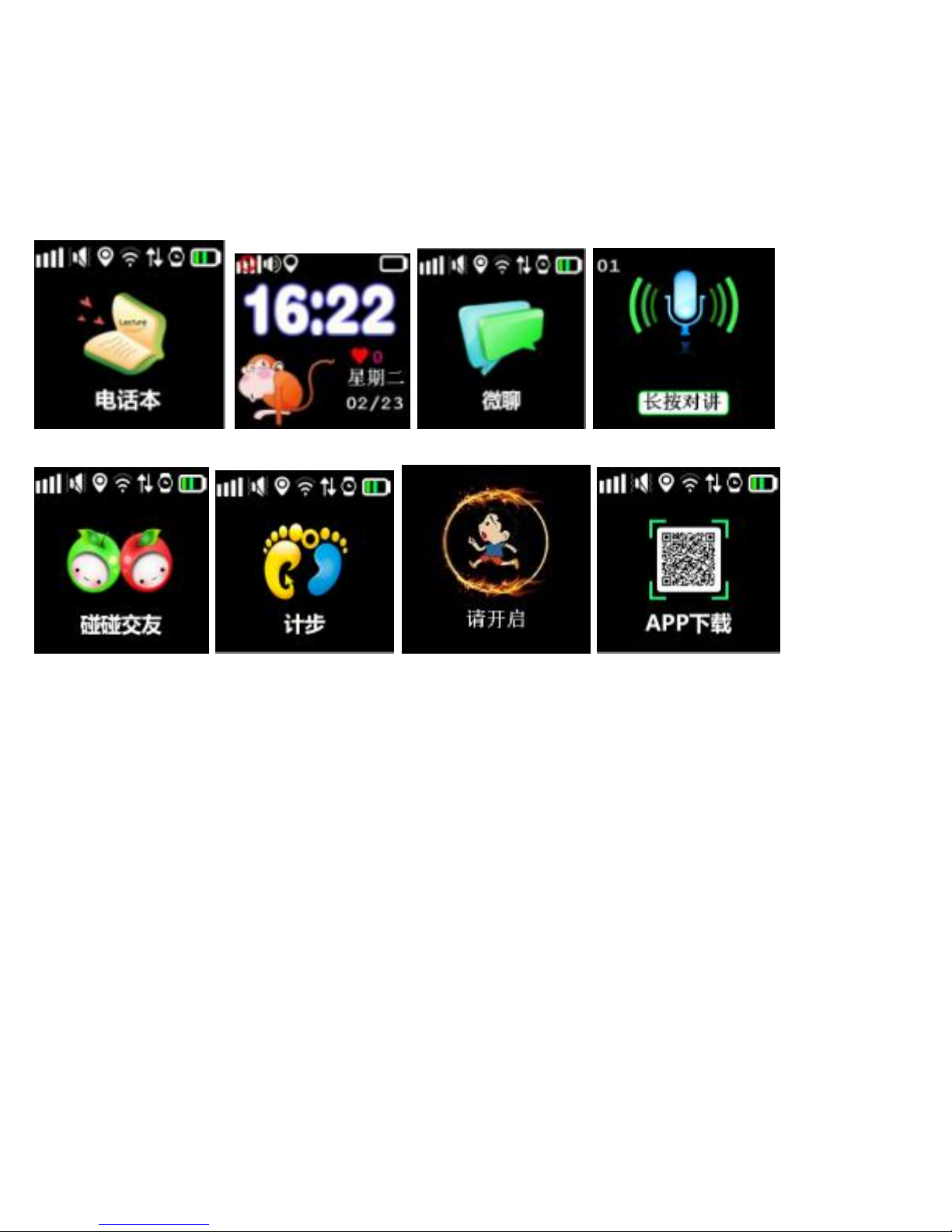

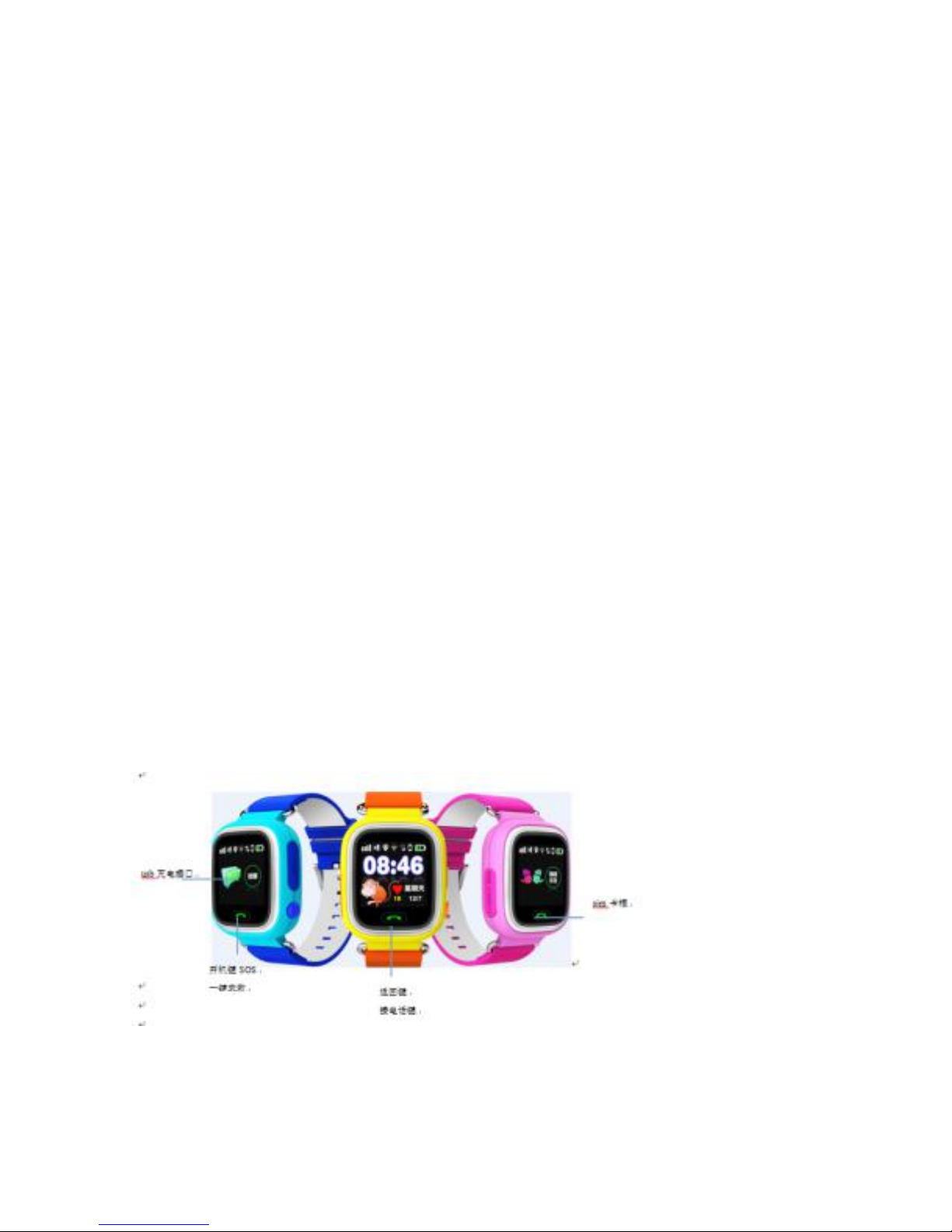

3. Part description and screen
3.1 Home page; The first line of small icons were gsm signal.
Ringing mode,networking flag.location icon,symbol voice(not
shown),light perception flag,flag battery,below the
time,date,Love.
3.2 The phone book: Click to go to see the 15 numbers app
settings,click to dial Pick.
3.3 Micro-chat: Point into the micro-chat app that send voice
phone.
3.4 Press intercom: Press recording,release-dimensional code is a
two-dimensional code to download the app, click on the icon to

zoom below watch id numbei,automatic identification.
4. Clents(safe-keeper)operate instruction

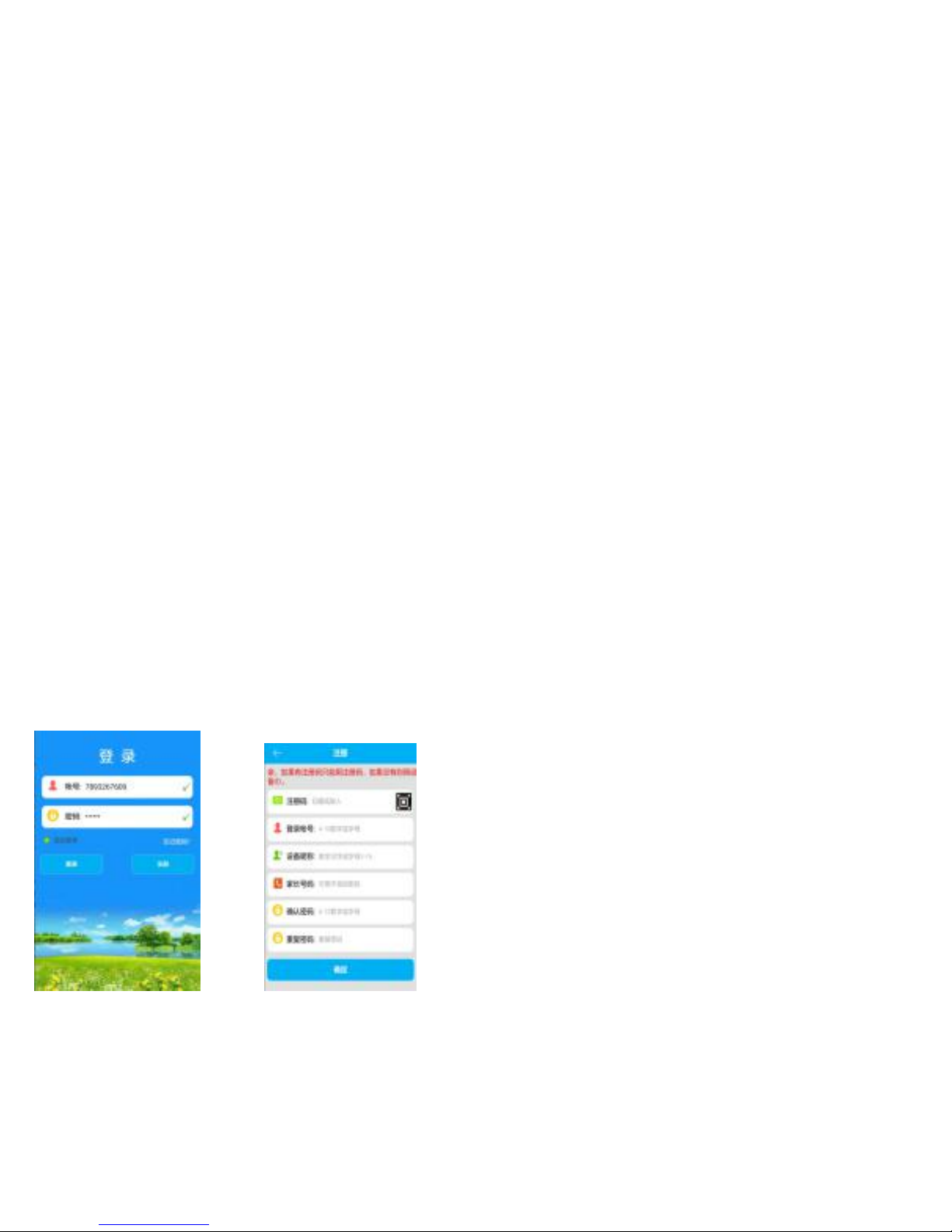

4.1APP register
Before logging in need to manually register the
account,registration code scanner 15 or manually enter the
registration code registration,registration code is unique and
can not re-registered,if registered agent is required to restore
the corresponding ID number; account must be unique, and
others can not repeat,repeat if the user needs to replace the
account re-registration;additional information customers can
enter their own password can be modified,retrieve password
required registration code. Login account and fill in the
registration phone number, the registration interface as shown
below:
4.2 Login

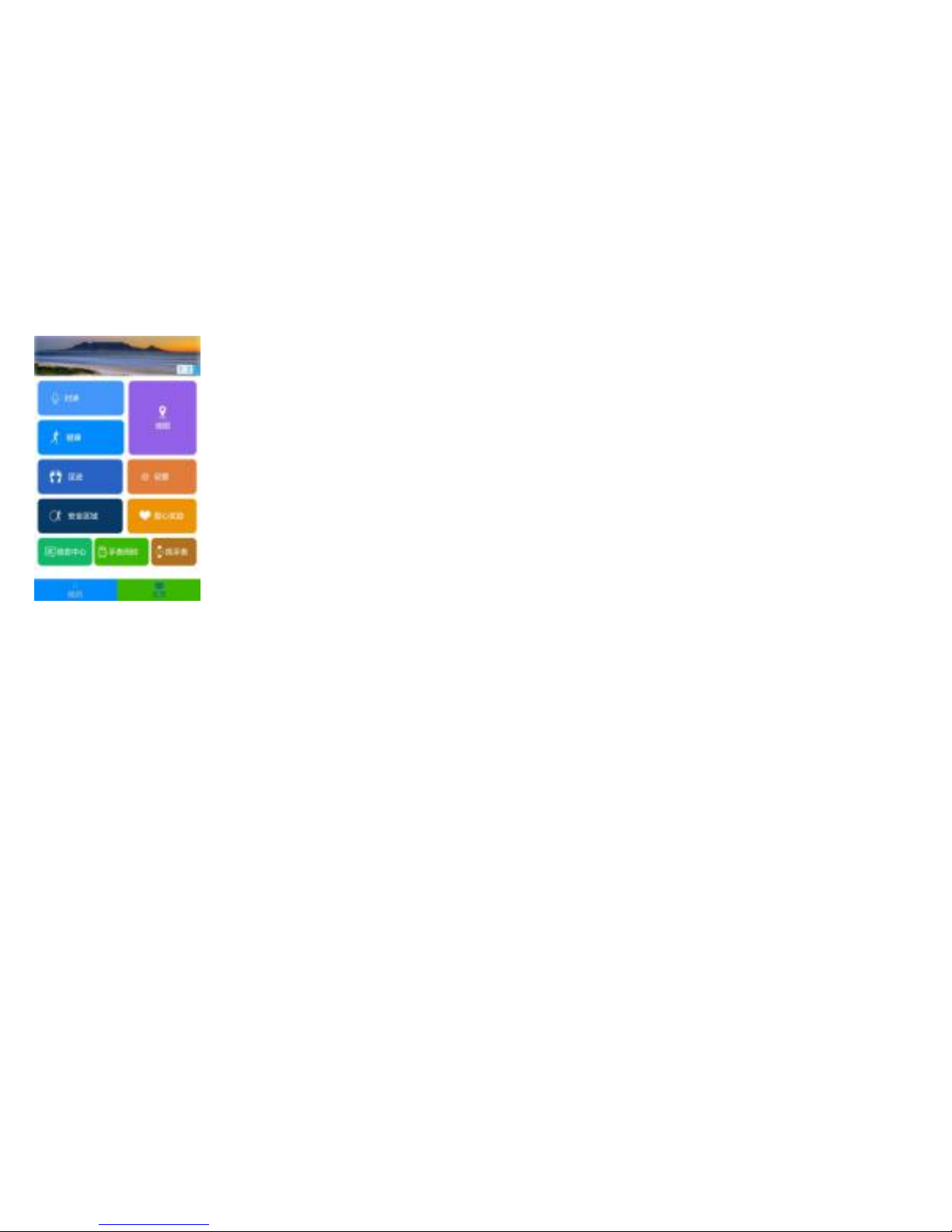

4.2.1 APP function menu
After finish register, input the correcter account number and password, click
login, enter the main menu. The main menu show as below:
Partlal functlon instruction:
(1) Inter-phone:Watch talk to mobile phone
App sent voice:After turn on record function. App start to recoed and
sent to watch.The longest voice can be 15s.Micro-end watches into the
chat interface short press to play the voice box.
Watch for sending recording app:Enter the micro-chat screen,press the
intercom icon recording(The longest record time is 15s),release the
recording sent to app;
Watch recordings Send to a friend: Press the record button a friend,
watches after sending recordings to a frind watches release,the
maximum recording 15 seconds,

(2) Map:Real-time check the watch’s location
The map menu display the watch and APP mobile phone position.
Watch start to count for 3 minutes by Click”location”. The interval time
for upload is 20s. After 3 minutes it will back to the default work style.
We can know the pattern of the watch location in real-time on the
map menu. When location icon is red it is GPS location, Yellow is LBS
location, Green is WIFI location, That green wifi positioning network
targeting.

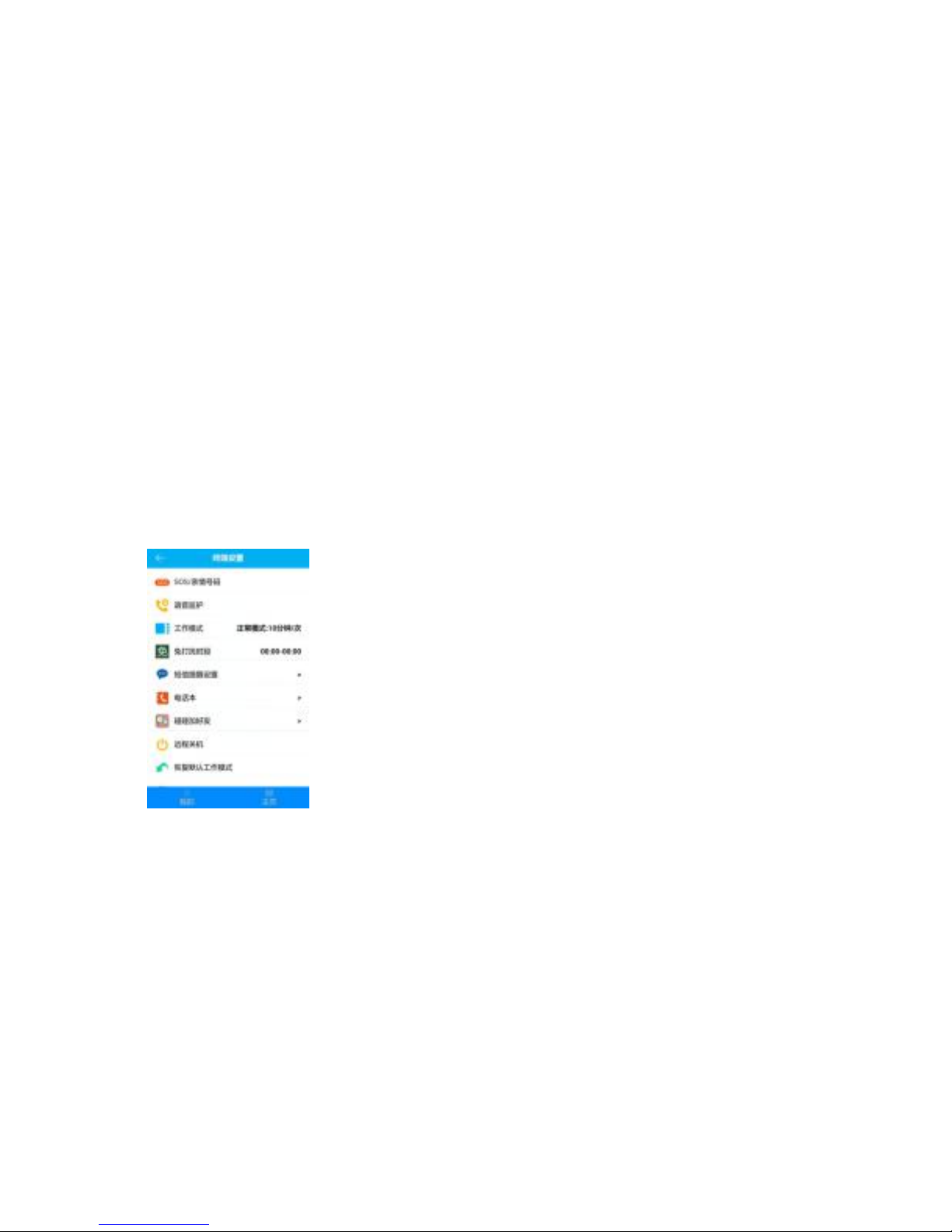

(3) Setting: Parameters setting for watch
a. Set SOS phone number:3 phone numbers can be set, it will
alert after 3S if press SOS key when in emergency situation.
Call the 3 phone number periodic. If nobody answer it will be
over after two turns.
b. Monitor: Usually parents’ phone number are set as monitor
number. When confirmed the watch dial the monitor number

initiatively,
But the watch can not hear any sound from phone. Inthat way
the phone can monitor watch.
c. No disturbing time: The three time shield all
calls(Saturday,excluding weekends).
d. Message prompt setting: Low voltage, SOS, three kinds of
alert message switch when turn
off the watch, That number is set wristwatch alarm messages
according to the normal SMS charges, after the number is set to
open by default will monitor inside.
e. Phone bool: 15 phone book numbers can be set in the watch.
These 15 numbers can dial to watch in two-way.
f. Recover default work model: Default work model-open APP
for 24 hours, the upload interval time is 60s.
g. Turn off: It can not press “OFF” key to turn off the watch once
it start work normal. Only Through APP to remote turn-off.
h. Bumper Dating: Watches will show your friends add friends
after the id, and can delete the add friends, watch re-cross a
friend, a friend can only be submitted for each watch.
(4) Safety area: The smallest radius of the fence is 200m. Alert
will happen when for inside of
the fence to outside. NOTE: fence alarm only when the watch gps
positioning will trigger an alarm message, the base station location is

not traveling fence alarm information.
(5) Watch alarm: 3 watch alarm is available and also you can
select the model of the watch to
meet your needs.
(6) Award for warm heart: Choose the number of the red hearts,
click to send to watch, it will
display the warm heart and the numbers.
(7) Sek the watch: Send command while the watch is not at hand,
the watch will ring for 1
minutes so that you can find out it. Press any key can stop it.
Clients can know other function will be introduced in “MINE” and
“HELP”menu.

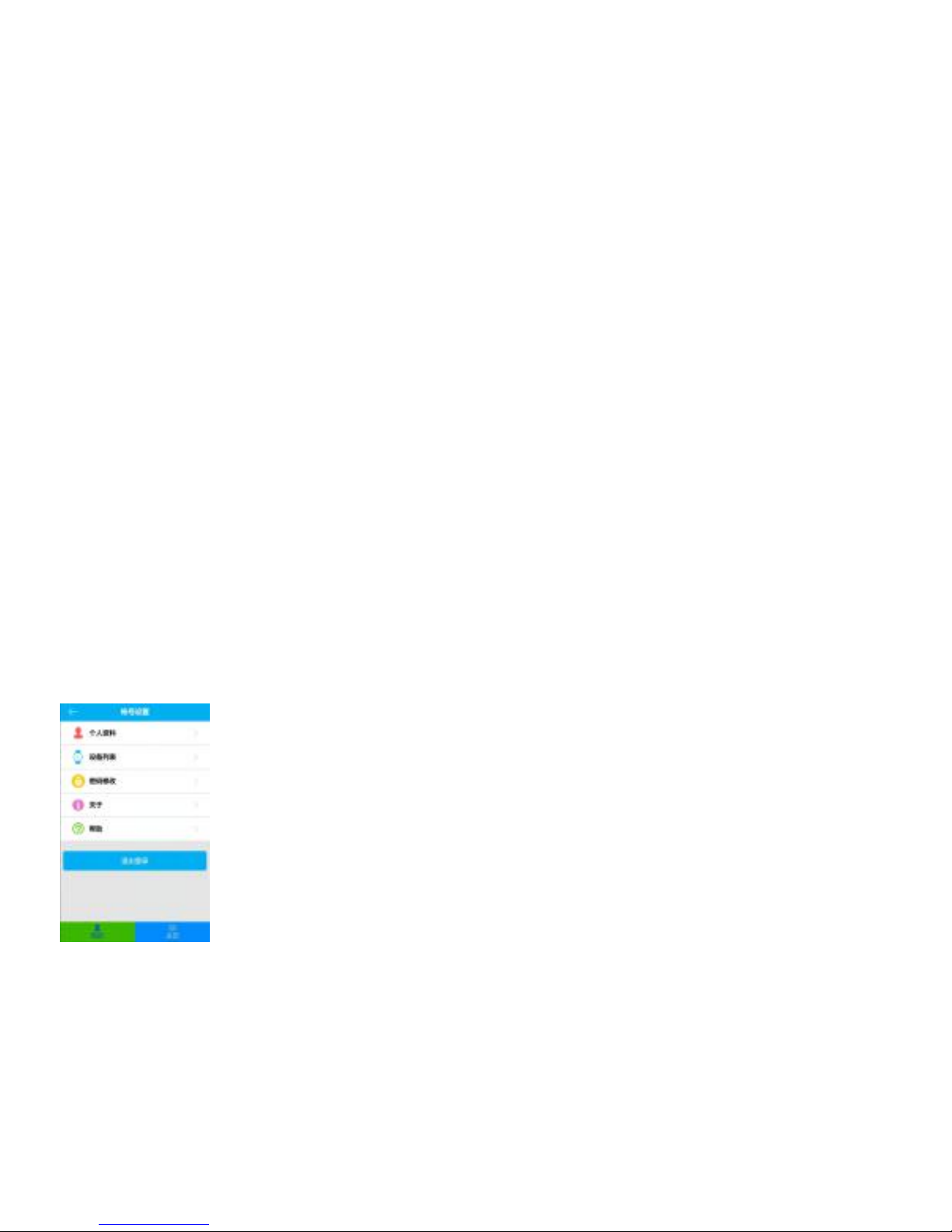

4.2.2”Mine” men
Note: The list of devices which can check customer registration id
number, this id and watches posted id inconsistent watches can not

connect app.
“HELP” document describe details of all function. Client can go
through that.
4.3 Watch alert instruction
Client will get alert push when it happens from watch. Phone
client click the alert and enter APP main menu to check the details in
information center.
5. Watch work model
Three base work models: Normal model, Power saving model,
Real-time location model.Different models have different interval
upload time. Client can set work model based one needs.
Normal model: 600s upload time interval; Power saving model: 3600s
upload time interval;
Real-time model: 60s upload time interval,
6. Watch relative instructions
6.1Watch SOS emergency alert
Long press SOS key for 3s.It will display SOS on screen. Watch will be
on alert state.
Circular dial 3 SOS numbers for two turns. it will stop when call
answered. If not, it will continue until the two turns over.Watch can
send message to monitor number(default”Off”state) .Also, send alert
notification to APP.
6.2Remove wrist alert

There is sensor switch on watchband. It will alert unless you wear the
watch for at least 3 minutes. The watch send alert message to monitor
number(default ”Off” state). At the same time sent alert notification to
APP. The watch then have remove symbol.
6.3Low power alert
The watch battery appear in percentage. When lower than 20% the
alert will happen. The watch send alert message to monitor
number(default ”OFF” state). At the same time sent alert notification
to APP.
6.4Micro-chat
Watch enter the micro chat interface, and optional micro-chat app
Press and friends watch the recording button to start recording,
release the button after sending recordings to watch Friends.
Watch received a voice. a voice will mark the screen, press the record
button to play all voice finished playing flag disappeared while being
removed.
6.5Voice Care
Watch care need to set the number, the default display settings inside
guardianship SMS alert number, After the app delivers turn on voice
care instrucyions, dial the number to care for single talk,
6.6Shutdown
Watches can be no card keys off, App remote shutdown, power off.
6.7family number

Only one family watch dial keys, press “Mom” corresponding to the
number dialws sos1.
6.8The phone book
Watch app can set up 10 phone book numbers, press watch “Mom” to
enter the phone book, and then a short press to select the number,
and finally press the dial.
6.9Answer and end calls
The number of calls related to watch, touch screen virtual buttons can
answer the phone, hang up the power button.
7.Trouble shoot
1 )The SIM inside watch is GSM networks or not, such as
telecommunications does not support.
2) The SIM card is opened the data traffic, data traffic must be
compatible with 2g of watches currently only 2g of data traffic.
3 ) Server parameters namely IP and port. ID is correct, we must
ensure consistent and watches factory barcode id id watches posted
writes, customers can edit their own mobile phone text messages pw,
123456, ts # sent to watch (wristwatch card must be installed power,
SMS must be in English input method). if agents do not understand can
ask,
4) Not registered in two situations: a prompt device number does
not exist or the device number has been registered, must find agents
processing; b Tip account that is already registered the account has

been registered, the customer can simply change an account.
7. Entrance to scan bar-code
Download Android and IOS for mobile phone client by scan bar-code
