Sunwood MARINO User manual

Installation and operation manual
SUNWOOD
SUNWOOD SUNWOOD
SUNWOOD MARINO
MARINOMARINO
MARINO
Version: Natural Gas
LPG

Specifications
Manufacturer Sunderman Openhaarden V.O.F. / Sunwood ®
Contact details Christiaan Huygensstraat 10
2665 KX Bleiswijk
Tel: [phone]
Fax: [phone]
Model Sunwood Marino
Versions Natural gas / LPG
Countries of destination AU, BE, BG, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU,
IE, IS, IT, LV, LI, LT, LU, MT, NL, NO, PL, PT, RO, SK,
SI, ES, SE, CH, TR, UK
PIN number (CE) 0063CM3866
Connection Propane Pressure Regulator and hose (not included)
Connection Natural Gass 12mm compression fitting
Chart 1. Suitable gas types and pressures.
Suitable
types LPG
Suitable types NG
Gas
Category
I
3p
-
30
I
3p
-
37
I
3P
-
50
I
3B/P
-
30
I
2L
-
25
I
2
E
LL
I
2
ELL
Gas
Type
G31
G31
G31
G30
G25
G25
G20
I
njector
(mm)
1,1
1,1
1,1
1,1
1,8
1,8
1,8
Pressure
(mbar)
30
37
50
30
25
20
20
Nom.
Input
(kW)
5,02
5,51
6,48
5,72
6,21
5,45
6,73

WARNING
- Read the manual carefully before you using this product. Never throw the manual away.
- This product and the gas cylinder need to be installed as per instructions in this manual and
conform any national and/or local regulations.
- The minimum distance between the product and flammable materials has to be 1,5 meter.
- Never leave the fire unattended.
- Do not move the Marino while in use.
- Keep the product out of reach for children when the fireplace is on, and untill it’s completely
cooled down.
- Always close the gas cylinder before you move the product.
- Never try to repair this product yourself, and don’t make modifications to this product.
- Never block the air to the burner and or injector.
- Never block the air to the gas cylinder housing.
- With strong wind, always put the product on the breaks, or move the product to a wind still
place to prevent from falling over.
- The use of this product in a confined space is dangerous and strictly forbidden! The product is
intended to be used outside or in a well ventilated area. An area is considered well ventilated

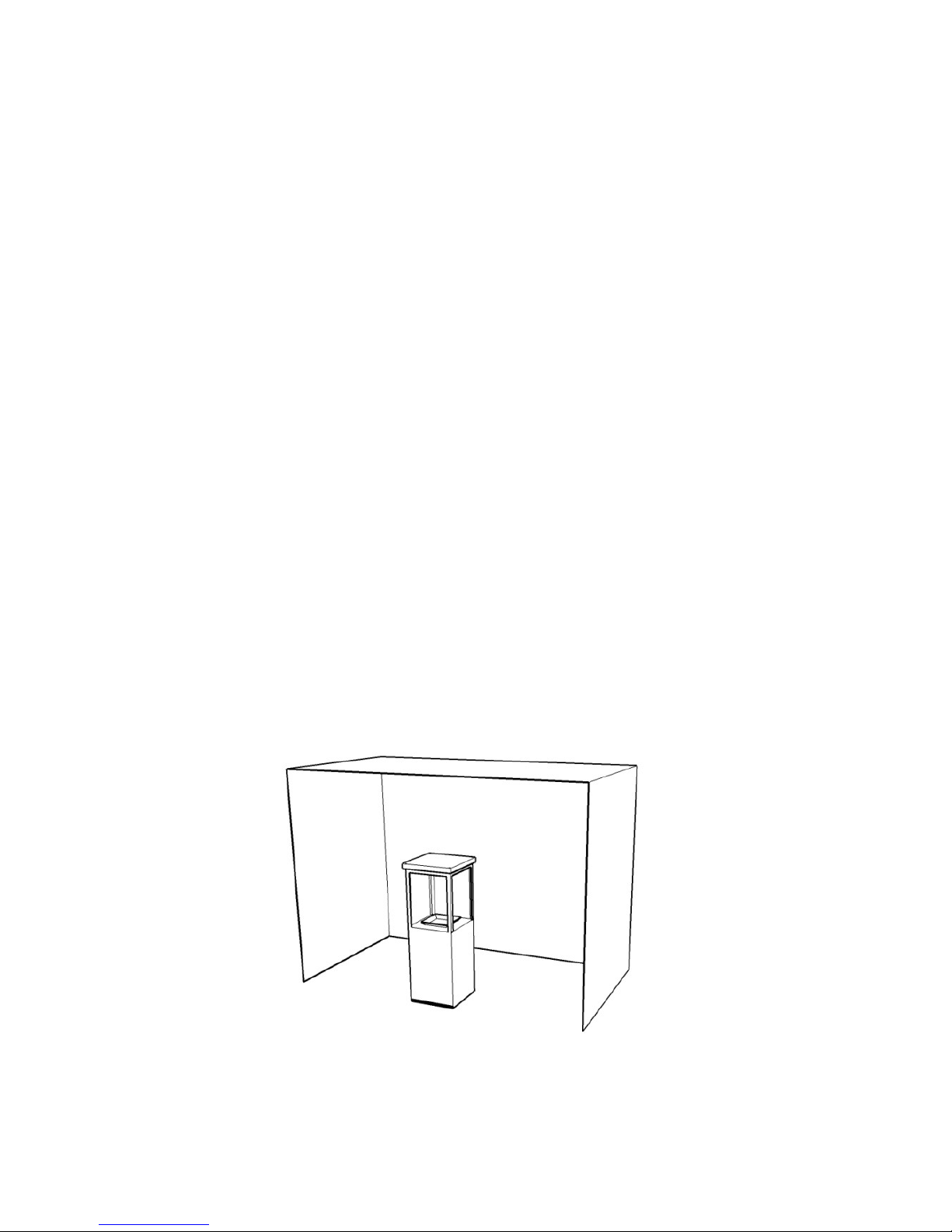

when a minimum of 25% of the wall’s surface is open. See image below.

Attention!: When you need help to install the fireplace, please contact your dealer.
Installation instructions LPG / propane
1. Place the lava stones equally over the burner and the surrounding frame. While doing this
make sure that as little dust as possible will get in to the burner.
2. Assemble the top of the Marino with the supplied screws.
3. Install the fireplace with a gas pressure regulator and a propane hose (8x15mm, 2,5meter
maximum length) conform any national and/or local regulations. The pressure regulator
should supply the pressure as shown in chart 1 of this manual. Usage of an adjustable
pressure regulator is not allowed.
Install the propane hose with hose clamps on the hose pylon of the pressure regulator and
the gas control cube.
4. Mount the pressure regulator on the gas cylinder with a good fitting wrench. Tighten it firmly,
failing to do so will result in leakage and possibly dangerous situations. Change the gas
cylinder only in a well ventilated space, and out of sight of candles, cigarettes, and other
flammable products.
Attention!: Before installing the fireplace, always check if the rubber ring is still in the gas
regulator and if it is undamaged. You are not allowed to use the product when the rubber
ring is missing or damaged.
5. Always place the gas cylinder standing up. Don’t let the hose contact any sharp objects or
edges which may damage the hose.
6. Check all the connections on signs of leakage. You can do this by using soap or a gas
leaking spray. Moiston or spray this on the gas fittings / connections. If you notice any air
bubbles then there is a leak.
7. The fireplace is now ready and safe to use.
WARNING
Check the hose at least once a month and every time you change the gas cylinder. If the hose
contains any damage, it will need to be changed by a hose of the same length and quality.

Installation instructions natural gas
1. Only let qualified personnel mount the gaspipe and according to any national and/or local
regulations in force.
2. For all the connections use appropriate and approved gas installation materials.
3. If you make use of the optional PLUG1 gas plug then continue to step 4. If not, please
continue to step 6.
4. Consult the manual of the PLUG1 for installing the gas outlet.
5. Attach the gas hose on the product to tighten it firmly with the product’s adapter. You can
find the adapter on the back side of the product. Now you will be able to plug the gas hose in
the gas plug. Continue to step 9.
6. Let the gas pipe (depending on what type) go through the hole on the bottom or side from
the product.
7. With a 12mm copper pipe and the supplied 3/8” compress + crimp ring, attach the gas pipe
to the gas control valve.
8. Mount the fireplace securely to the ground. You can use the 4 holes on every corner of the
base by doing this. (materials are not supplied)Place the lava stones equally over the burner
and the surrounding frame. While doing this make sure that as little dust as possible will get
in to the burner.
9. Assemble the top of the Marino with the supplied screws.
10.Check all the connections on signs of leakage. You can do this by using soap or a gas
leaking spray. Moiston or spray this on the gas fittings / connections. If you notice any air
bubbles then there is a leak.
11.The fireplace is now ready and safe to use.

Operations Manual
You operate the fireplace with the gas control valve. You can find this valve behind the
product’s door. .
Turning on
1. Push the control knob and turn to the ignition
position. You will hear a click sound which is the
spark to turn on the pilot burner.
2. When the pilot burner is on keep the control
knob depressed for approximately 10 seconds.
Then let go.
3. Repeat steps one and two untill the pilot burner
doesn’t go off when letting go of the button.
Adjusting the flames
1. You can set the flames to the desired position
by turning the Flame Height Button.
2. Turn clock wise to set the fire to a lower position.
3. Turn counter clock wise to set the fire to a higher position.
Turning off
1. You turn the fireplace off by turning the control knob back to the same position as the
image.
WARNING – WHAT TO DO WHEN YOU SMELL GASS
In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be
shut off and the appliance shall be investigated and rectified before it is used again. If
necessary request your dealer for assistance.
When checking the appliance for leakage a soap solution should be applied directly on all
connections / fittings to pin point the exact location of the leak.
Do not use the appliance again until all leaks are resolved.

Warranty
1. The Sunwood Marino comes with a 1 year guarantee from the date of purchase.
To claim your warranty you will need the original invoice or receipt.
2. If any defects occur within the warranty period due to faulty of materials or production
please contact your point of sales. Sunwood will ship the faulty part to your dealer on
its own expense within the warranty period.
3. Warranty only applies if the product has been used properly, according to its intended
use and according to the information in this manual.
4. If your dealer can not solve the the products defect Sunwood will assist per the dealers
request.
5. The following is excluded from warranty
- Transport Costs
- Changes in color and damage to the coating
- Glass and lava stones
- Defects because of improper use or treatment of the product
6. For all our other terms and conditions the Terms and Conditions of “De Metaalunie”
apply.
