Supermicro H13SAE-MF User manual

H13SAE-MF
ENGLISH
QUICK REFERENCE GUIDE
Revision 1.0

H13SAE-MF QUICK REFERENCE GUIDE
Standardized Warning Statements
Motherboards
The following statements are industry standard warnings, provided to warn the user of
situations where bodily injury might occur. Should you have questions or experience di󰀩culty,
contact Supermicro's Technical Support Department for assistance. Only certied technicians
should attempt to install or congure components.
Read this section in its entirety before installing or conguring components in the Supermicro
chassis.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
Battery Handling
Warning!
There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only
with the same or an equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer's instructions.
警 告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按
照製造商的說明指示處理廢棄舊電池。
警 告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电
池。请按制造商的说明处理废旧电池。
電池の取り扱い
電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメーカーが推
奨する型、または同等のものを使用下さい。使用済電池は製造元の指示に従って処分して下さい。
경고!
배터리가올바르게교체되지않으면폭발의위험이있습니다.기존배터리와동일하거나제조
사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된
배터리를처리하여주십시오.




Note: For complete product safety information, refer to http://www.supermicro.com/about/
policies/safety_information.cfm.
Product Safety Information

H13SAE-MF QUICK REFERENCE GUIDE 限用物質含有情況標示聲明書
限
限
用
用
物
物
質
質
含
含
有
有
情
情
況
況
標
標
示
示
聲
聲
明
明
書
書
設備名稱：主機板 / Motherboard

型號（型式）：H13SAE‐MF
單元 Ｕnit
限用物質及其化學符號
鉛 Lead
(Pb) 汞
Mercury
(Hg) 鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr
+6
)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
電路板組件
(PCBA)
－○○○○○
連接器
(Connector) －○○○○○
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準
值。
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3.〝－〞係指該項限用物質為排除項目。
Equipment name
Type designation (Type)
Restricted substances and its chemical symbols
Declaration of the Presence Condition of the Restricted Substances Marking
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the
reference percentage value of presence condition.
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.

H13SAE-MF QUICK REFERENCE GUIDE

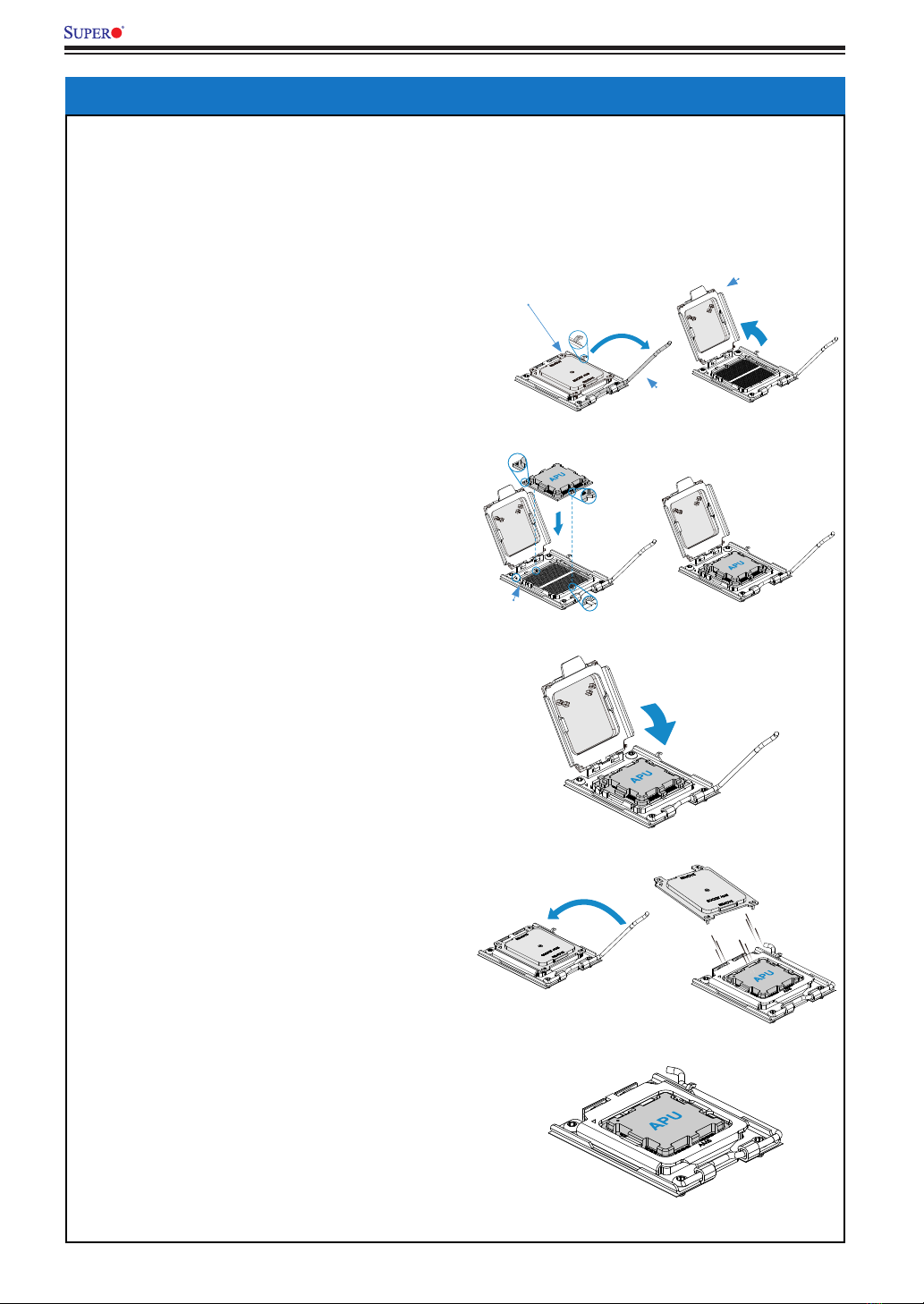

Installing the Processor
Note: Do not remove the plastic cover covering the outside of the socket. This cover will
pop out during installation of the processor.
Load Lever
Socket Force Frame
Lever Lock
Outer Plastic Cover
Pin 1
Pin 1
Processor Notch
Socket Processor Notch
Processor Arrow
Socket Arrow
CPU Installation
CPU Installation
1. Use a nger to push down the lever, then
move the lever rightward. Pull the lever
until it passes over the processor socket.
2. Pick up the processor on its left and
right edges. Hold the processor over the
socket and align the arrow on the top-left
corner of the processor with the arrow on
the top-left corner of the socket. Gently
lower it onto the AM5 socket pins.
3. With the processor in the socket, lower
the socket force frame.
4. Reattach the lever arm onto the right side
of the socket. The outer plastic cover will
pop out when the lever arm is reattached.
Note: Store the outer plastic cover. Attach
the outer plastic cover to the socket force
frame when storing or transporting the moth-
erboard without a processor.
5. When nished, the socket force frame will
secure the processor.

H13SAE-MF QUICK REFERENCE GUIDE

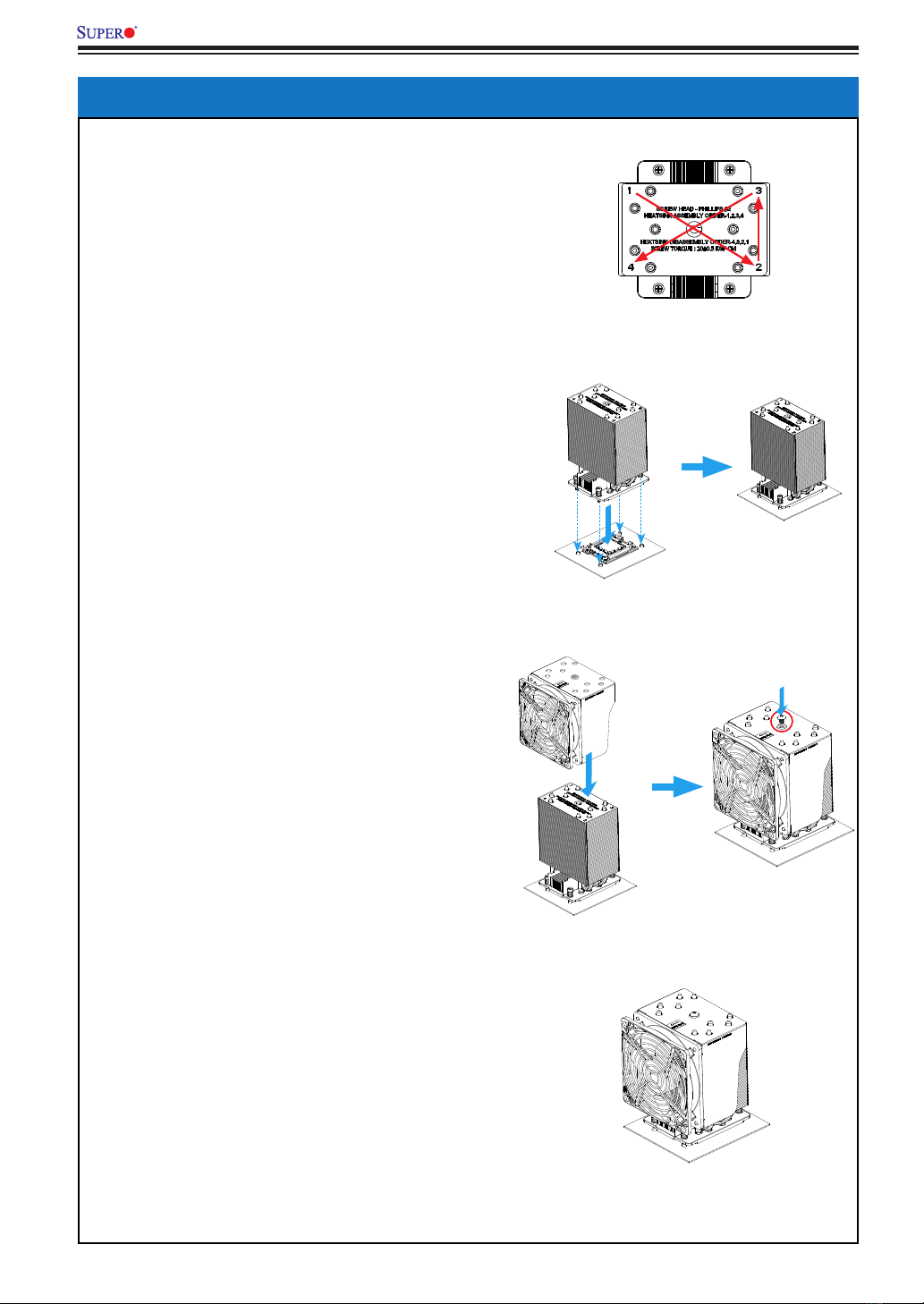

1. After the processor is secured, now you must
install the heatsink to the socket frame. Lower
the heatsink down until the four screws on the
heatsink align with the four screw holes on
the socket frame.
2. Using a diagonal pattern, tighten the four
screws down on the heatsink in the sequence
1-2-3-4 till it is secured. The heatsink will now
be secured and you have nished installing
the processor and heatsink onto the moth-
erboard. When nished, the heatsink will be
secured over the socket and processor.
4. Connect cooling fan connector to the fan
header labeled for CPU on the motherboard.
Heatsink Installation
Heatsink Installation
3. Install the heatsink cooling fan and holder as-
sembly on the heatsink body and then tighten
the single locking screw on top of the fan
holder.

H13SAE-MF QUICK REFERENCE GUIDE
Notes:
• It is strongly recommended that you install a heatsink on the M.2 device or use a M.2 device
with a built-in heatsink.
• Be sure to install the M.2 device(s) prior to placing the motherboard into a chassis.

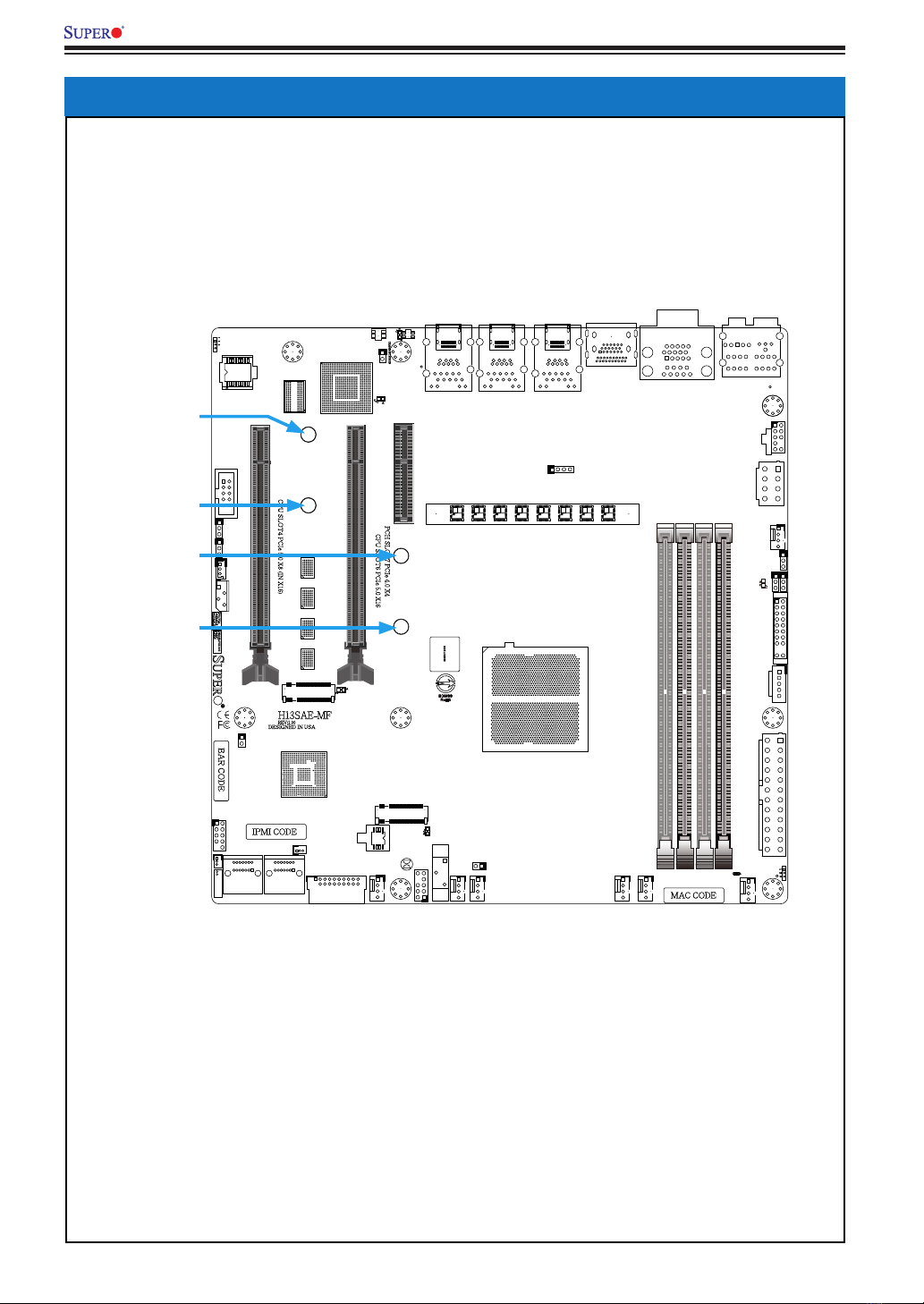

This motherboard has four M.2 M-key sockets that support the 2280 and 22110 M.2 devices.
One stando󰀨 and a screw are pre-installed into the position of each 22110 mounting hole.
Refer to the illustration below for the locations of M.2 sockets and mounting holes. Follow
the steps on the next two pages to install the M.2 device.
H13SAE-MF
MAC CODE
REV:1.00
DESIGNED IN USA
BIOS LICENSE
BAR CODE
IPMI CODE
C A
A
C
A
CA
1 2 3
1 2 3
CPU SLOT6 PCIe 5.0 X16
PCH SLOT7 PCIe 4.0 X4
CPU SLOT4 PCIe 5.0 X8 (IN X16)
1-2:ENABLE JPG1:VGA 2-3:DISABLE
JWD1:WATCH DOG
1-2:RST 2-3:NMI
CHASSIS INTRUSION
22110
22110
2280
2280
M.2 Device Installation
M.2 Device Installation

H13SAE-MF QUICK REFERENCE GUIDE

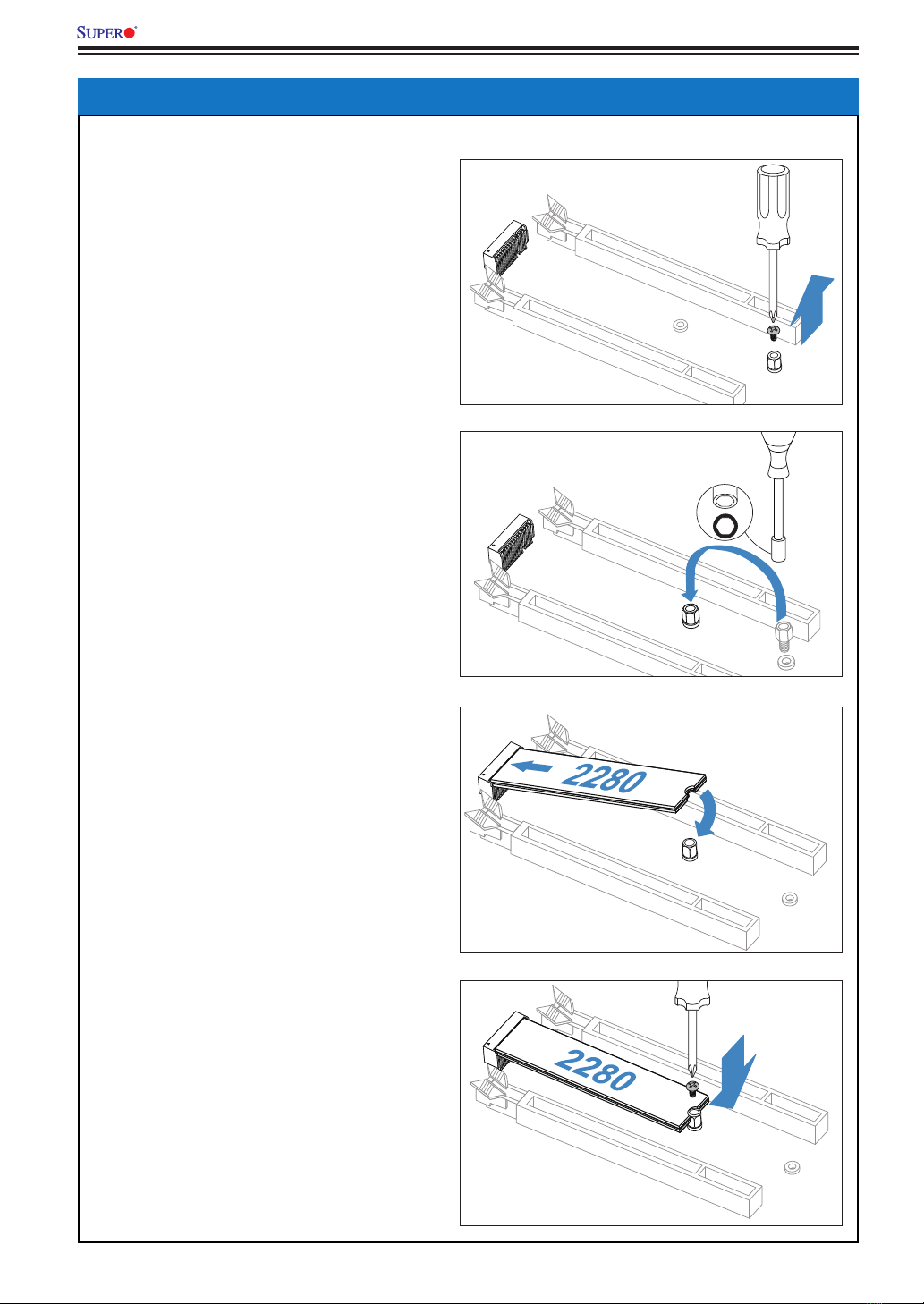

1. Locate the pre-installed stando󰀨 and
screw. Remove the screw and set it
aside.
2280 M.2 Device Installation
M.2 Device Installation
2. Using a hex socket screwdriver, re-
move and then re-install the stando󰀨
to the position of the 2280 mounting
hole.
3. Insert the M.2 device into the M.2
socket at a 30-degree angle and press
it down.
4. Tighten the screw to secure the M.2
device into place. Do not overtighten
so as to avoid damaging the M.2 de-
vice.

H13SAE-MF QUICK REFERENCE GUIDE

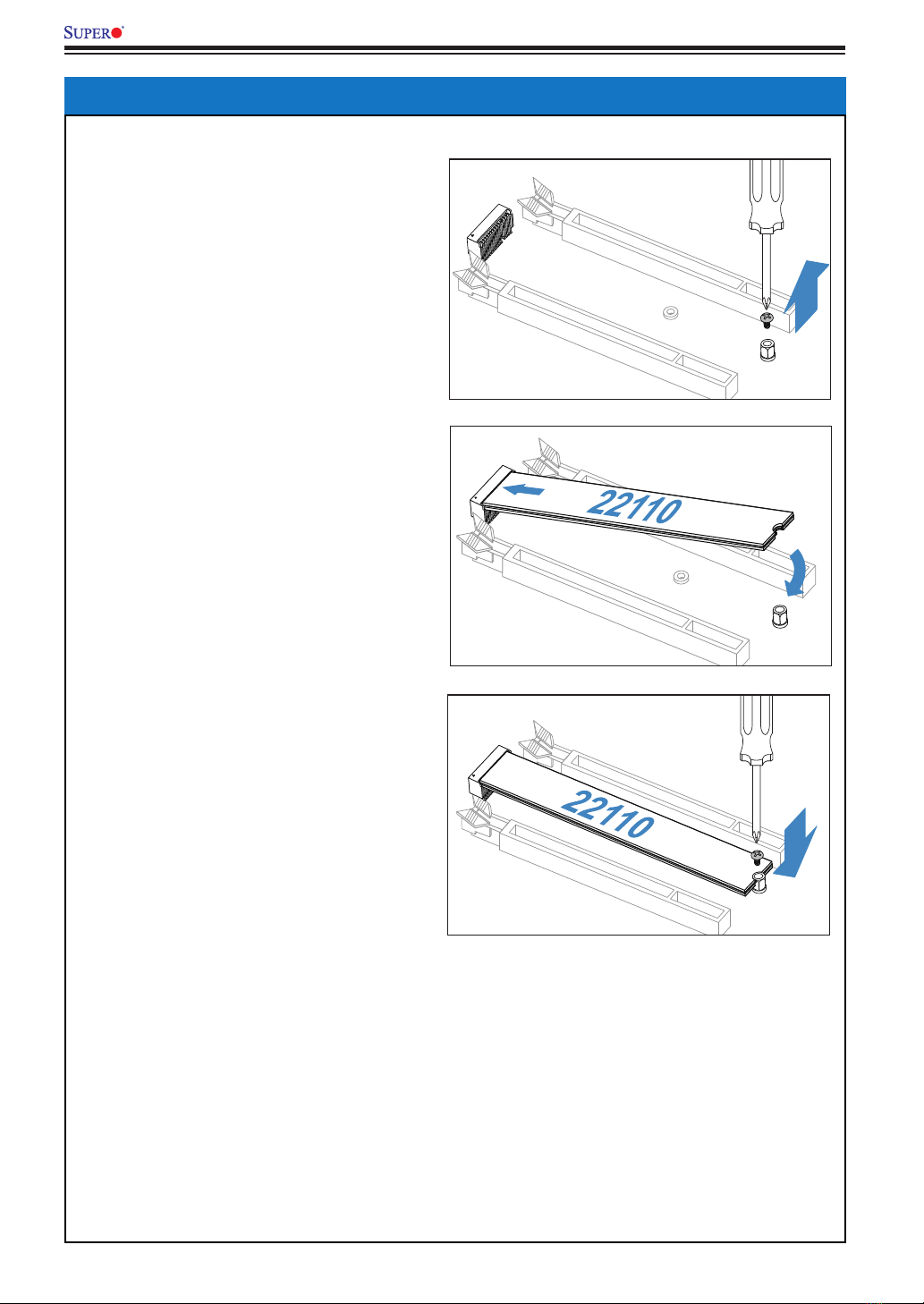

1. Locate the pre-installed screw. Re-
move the screw and set it aside.
22110 M.2 Device Installation
M.2 Device Installation
2. Insert the M.2 device into the M.2
socket at a 30-degree angle and press
it down.
3. Tighten the screw to secure the M.2
device into place. Do not overtighten
so as to avoid damaging the M.2
device.

H13SAE-MF QUICK REFERENCE GUIDE
NOTES

H13SAE-MF
Quick RefeRence Guide Rev. 1.0
SUPERMICR R
Motherboard Layout and Features
H13SAE-MF
MAC CODE
REV:1.00
DESIGNED IN USA
BIOS LICENSE
BAR CODE
IPMI CODE
C A
A
C
A
CA
1 2 3
1 2 3
CPU SLOT6 PCIe 5.0 X16
PCH SLOT7 PCIe 4.0 X4
CPU SLOT4 PCIe 5.0 X8 (IN X16)
1-2:ENABLE JPG1:VGA 2-3:DISABLE
JWD1:WATCH DOG
1-2:RST 2-3:NMI
CHASSIS INTRUSION
I/O BACK PANEL
= mounting hole
FAN1
FAN2FAN3
FAN4
JBT1
FANA
FANB JTPM1
USB8/9(3.2)
SATA0-1
SATA2-3
JSD2
JSD1
USB0/1
M.2-C2
VGA/COM1 HD AUDIO
JPW2
J4901
FAN5
LED4
JF1
JPI2C1
CPU
JPW1
DIMMB1 DIMMB2 DIMMA1 DIMMA2
DP/HDMI
LAN2 LAN1
BMC LAN
JL1
PCIe 5.0x16
PCIe 4.0x4
PCIe 5.0x8
COM2
JPG1
JWD1
JSTBY1
IPMI
M.2-C1 LEDM22
LEDM21
JUBUD1
UID SW
LEDM1
UID_LED
USB 3.2 USB 3.2
USB 3.2
USB 3.2
USB 3.2 USB 3.2

Package contents
• One Supermicro Motherboard
• Four SATA Cables
• One I/O Shield
• One Quick Reference Guide
Jumpers
Jumper Description Default
JBT1 Clear CMOS (Onboard) Short Pads to Clear CMOS
UID SW Unit ID Switch (Push-Button Toggle Switch ON/OFF) O󰀨
JPG1 VGA Enable Pins 1-2 (Enabled)
JWD1 Watch Dog Control Pins 1-2 (Reset)
JUBUD1 BIOS Update O󰀨
Connectors
Connector Description
JL1 Chassis Intrusion Header
SATA0-1, SATA2-3 Dual SATA Port Connectors Supporting up to Four Devices
J4901 Front Panel HD Audio Header
JPW2 12V 8-pin CPU Core Power Supply Connector (Required)
JPW1 24-pin ATX Main Power Connector (Required)
JF1 Front Control Panel Header
BT1 Onboard Battery
M.2-C1/M.2-C2 M.2 PCIe Interfaces
JSTBY1 Inject External P5V_STBY Power
JIPMB1 4-pin BMC External I2C Header (For an IPMI-Supported Card)
DIMMA1~DIMMB2 DIMM Slots
FAN1~FAN5 CPU Fans
FANA~FANB System Cooling Fans
BMC LAN BMC LAN Port
JTPM1 TPM (Trusted Platform Module)/Port 80
JPI2C1 Power System Management Bus (SMB) I2C Header
COM1/COM2 Serial Port/Header
VGA Rear Panel VGA Port
USB0/1 USB 2.0 Ports
USB2/4 Rear USB 3.2 Gen1 Alt Ports
USB3/5/7 Rear USB 3.2 Gen2 Ports
USB6 USB 3.2 Gen2x2 Port
USB8/9 Front USB3.2 Gen1 Ports
Jumpers and Connectors
LED Indicators
LED Description Color/State
LED1 Unit Identier (UID) LED Blue: UID Identied
LED4 Onboard Power LED Solid Green: Power On
LEDM1 BMC Heartbeat LED Blinking Green: BMC Normal
LEDM21~LEDM22 M.2 SSD LED Blinking Green: Device Working
LED Indicators

ContaCt InformatIon
• www.supermicro.com (Email: [email protected])
• Manuals: http://www.supermicro.com/support/manuals
• Drivers & Utilities: https://www.supermicro.com/wdl/
• Safety: http://www.supermicro.com/about/policies/safety_information.cfm
Memory Population Guidelines
There is no specic order or sequence required when installing memory modules.
However do keep the following in mind:
• The motherboard supports up to 192GB of memory with speeds of up to 5200MT/s (2DPC)
and 3600MT/s (1DPC).
• To achieve the best memory performance, fully populate the motherboard with validated
memory modules and follow the recommended memory population rules and refer to the
table below.
DIMM Memory Installation
Memory Support
The H13SAE-MF motherboard supports up to 192 GB of ECC/Non ECC UDIMM DDR5
5200/4800/3600 MT/s speed, populated in four DIMM slots. Refer to the table below for
additional memory information.
Notes:
• Always use DDR5 DIMM modules of the same type, size and speed.
• For memory optimization, use only DIMM modules that have been validated by Supermicro.
For the latest memory updates, please refer to our website at http://www.supermicro.com/
products/motherboard.
• Please be aware that removing a DDR5 DIMM module at a slant angle may cause dam-
ages. It is recommend that you lift the module straight up out of the slot.
• The DDR5 DIMM module is NOT hot-swappable and be sure to disconnect power for a
minimum of twenty seconds before inserting or removing it.
DIMM Population Guide
Type
Channel
A1 A2 B1 B2
1 DIMM V
2 DIMMs V V
4 DIMMs VVVV
CPU
DIMMB1 DIMMB2 DIMMA1 DIMMA2

MNL-2627-QRG-100
© 2023 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.
Notes
• Graphics shown in this quick reference guide are for illustration purposes only. Your compo-
nents may or may not look exactly the same as the drawings shown in this guide.
• Refer to Chapter 2 of the User Manual for detailed information on jumpers, connectors, LED
indicators, memory support and CPU/motherboard installation instructions.
Front Control Panel (JF1)
Rear I/O Ports
# Description # Description # Description
1Center/LFE Out 8VGA Port 15 USB 3.2 Gen2 Type A (10 Gb)
2Surround Out 9DisplayPort 1.4a 16 USB 3.2 Gen2 Alt Mode*
3S/PDIF Out 10 HDMI 2.0 Port 17 Dedicated IPMI LAN Port (1 Gb)
4Line In 11 1 Gb RJ45 Port 18 USB 3.2 Gen2 Type A (10 Gb)
5Line Out 12 USB 3.2 Gen2 Type A (10 Gb) 19 USB 3.2 Gen2x2 (20 Gb)
6Mic In 13 USB 3.2 Gen2 Alt Mode* 20 UID
7COM Port 14 1 Gb RJ45 Port 21 JUBUD1
14
7
10
20 21
11
12
25
8
36
9
13 16 19
14 17
15 18
Back Panel I/O Connectors
*Video out only supports one output at the same time, and it must use Type C to DP
(standard) cable.
UID LED-
1
NIC1 Link LED-
Key, no pinKey, no pin
2
HDD LED-
PWR_LED-
Ground
Ground
Ground
19 20
Power Fail LED+
Reset Switch
Power Fail LED-
NIC2 Link LED-
UID LED+
NIC1 Link LED+
HDD LED+/UID Switch+
PWR LED+
NMI Switch
NIC2 Link LED+
Power Switch
