Supero H8DGG-QF User manual

H8DGG-QF
USER’S MANUAL
Revision 1.0c
®
SUPER

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.
IN NO EVENT WILLSUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATASTORED OR USED WITHTHE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.
Manual Revision 1.0c
Release Date: July 8, 2011
Unless you request and receive written permission from SUPER MICRO COMPUTER, you may
not copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2011 by SUPER MICRO COMPUTER INC.
All rights reserved.
Printed in the United States of America

Preface
iii
Preface
About This Manual
This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides information for the installation and use of the
H8DGG-QF serverboard.
The H8DGG-QF serverboard is based on the AMD® SR5690/SP5100 chipset
and supports two AMD Socket G34 type processors with up to 256GB of DDR3
Registered ECC 1333/1066/800 SDRAM or 64GB of DDR3 Unbuffered ECC/non-
ECC SDRAM in16 DIMMs.
Please refer to the motherboard specifications pages on our web site for updates on
supported processors (http://www.supermicro.com/aplus/). This product is intended
to be professionally installed.
Manual Organization
Chapter 1 includes a checklist of what should be included in your motherboard
box, describes the features, specifications and performance of the motherboard
and provides detailed information about the chipset.
Chapter 2 begins with instructions on handling static-sensitive devices. Read this
chapter when installing the processor(s) and memory modules and when installing
the motherboard in a chassis. Also refer to this chapter to connect the hard disk
drives, the various ports, and the power and reset buttons and the system LEDs.
If you encounter any problems, see Chapter 3, which describes troubleshooting
procedures for the video, the memory and the setup configuration stored in CMOS.
For quick reference, a general FAQ (Frequently Asked Questions) section is
provided. Instructions are also included for contacting technical support. In addition,
you can visit our web site for more detailed information.
Chapter 4 includes an introduction to BIOS and provides detailed information on
running the CMOS Setup utility.
Appendix A provides BIOS Error Beep Code Messages.
Appendix B lists BIOS POST Checkpoint Codes.

iv
H8DGG-QF Serverboard User’s Manual
Notes

v
Table of Contents
Chapter 1 Introduction
1-1 Overview ............................................................................................................ 1
Checklist............................................................................................................. 1
1-2 Contacting Supermicro....................................................................................... 2
H8DGG-QF Quick Reference ............................................................................ 5
1-3 Chipset Overview............................................................................................... 9
AMD SR5690/SP5100 Processor...................................................................... 9
HyperTransport Technology ............................................................................... 9
1-4 PC Health Monitoring......................................................................................... 9
1-5 Power Configuration Settings........................................................................... 10
1-6 Power Supply....................................................................................................11
1-7 Super I/O...........................................................................................................11
1-7 UIO................................................................................................................... 12
Chapter 2 Installation
2-1 Static-Sensitive Devices..................................................................................... 1
Precautions ........................................................................................................ 1
Unpacking .......................................................................................................... 1
2-2 Processor and Heatsink Installation................................................................... 2
2-3 Mounting the Motherboard into a Chassis......................................................... 4
2-4 Installing Memory............................................................................................... 4
DIMM Module Population Configuration ....................................................... 6
2-5 PCI Expansion Cards......................................................................................... 7
2-6 I/O Port and Control Panel Connections ........................................................... 8
Front Control Panel............................................................................................ 8
2-7 Connector Definitions ........................................................................................ 9
Power Connectors ........................................................................................ 9
PW_ON Connector........................................................................................ 9
Reset Connector ........................................................................................... 9
Overheat/Fan Fail LED (OH)....................................................................... 10
NIC2 (LAN2) LED........................................................................................ 10
NIC1 (LAN1) LED........................................................................................ 10
HDD LED..................................................................................................... 10
Power On LED............................................................................................ 10
NMI Button ...................................................................................................11
Universal Serial Bus Ports...........................................................................11
USB Headers ...............................................................................................11
Table of Contents

vi
Fan Headers.................................................................................................11
SGPIO......................................................................................................... 12
Power I2C.................................................................................................... 12
Chassis Intrusion ........................................................................................ 12
Overheat LED.............................................................................................. 12
IPMB............................................................................................................ 12
Unit Identifier Button.................................................................................... 13
Video Connector.......................................................................................... 13
LAN1/2 (Ethernet Ports).............................................................................. 13
Serial Port.................................................................................................... 13
2-8 Jumper Settings............................................................................................... 14
Explanation of Jumpers ................................................................................... 14
CMOS Clear................................................................................................ 14
BMC Jumper ............................................................................................... 15
Watch Dog Enable/Disable ......................................................................... 15
LAN1/2 Enable/Disable .............................................................................. 15
VGA Enable/Disable.................................................................................... 15
2-9 Onboard Indicators........................................................................................... 16
LAN1/LAN2 LEDs........................................................................................ 16
Dedicated IPMI LAN LEDs.......................................................................... 16
UID LED (LE1) ........................................................................................... 16
Power LED.................................................................................................. 16
2-10 SATA Drive Connections.................................................................................. 17
SATA Ports .................................................................................................. 17
2-11 Enabling SATA RAID........................................................................................ 18
Serial ATA (SATA)............................................................................................. 18
Installing the OS/SATA Driver.......................................................................... 18
Building a Driver Diskette............................................................................ 18
Enabling SATA RAID in the BIOS.................................................................... 19
Using the Adaptec RAID Utility........................................................................ 20
Installing the RAID Driver During OS Installation............................................ 20
2-12 Installing Drivers............................................................................................... 21
Supero Doctor III.............................................................................................. 22
Chapter 3 Troubleshooting
3-1 Troubleshooting Procedures.............................................................................. 1
Before Power On ............................................................................................... 1
No Power ........................................................................................................... 1
No Video ............................................................................................................ 2
H8DGG-QF Serverboard User’s Manual

Table of Contents
vii
Memory Errors .................................................................................................. 2
Losing the System’s Setup Configuration.......................................................... 2
3-2 Technical Support Procedures........................................................................... 3
3-3 Frequently Asked Questions.............................................................................. 3
3-4 Returning Merchandise for Service.................................................................... 4
Chapter 4 BIOS
4-1 Introduction......................................................................................................... 1
4-2 Main Menu ......................................................................................................... 2
4-3 Advanced Settings Menu................................................................................... 2
4-4 Security Menu.................................................................................................. 19
4-5 Boot Settings Menu.......................................................................................... 19
4-6 Exit Menu......................................................................................................... 20
Appendix A BIOS Error Beep Codes
Appendix B BIOS POST Checkpoint Codes
B-1 Uncompressed Initialization Codes.................................................................... 1
B-2 Bootblock Recovery Codes................................................................................ 2
B-3 Uncompressed Initialization Codes.................................................................... 3

Notes
viii
H8DGG-QF Serverboard User’s Manual

Chapter 1: Introduction
1-1
Chapter 1
Introduction
1-1 Overview
Checklist
Congratulations on purchasing your computer motherboard from an acknowledged
leader in the industry. Supermicro boards are designed with the utmost attention to
detail to provide you with the highest standards in quality and performance.
Please check that the following items have all been included with your motherboard.
If anything listed here is damaged or missing, contact your retailer.
One (1) H8DGG-QF serverboard•
One (1) CD containing drivers and utilities•

1-2
H8DGG-QF Serverboard User’s Manual
1-2 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacific
Address: Super Micro Computer, Inc.
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: [phone], ext.132 or 139

Chapter 1: Introduction
1-3

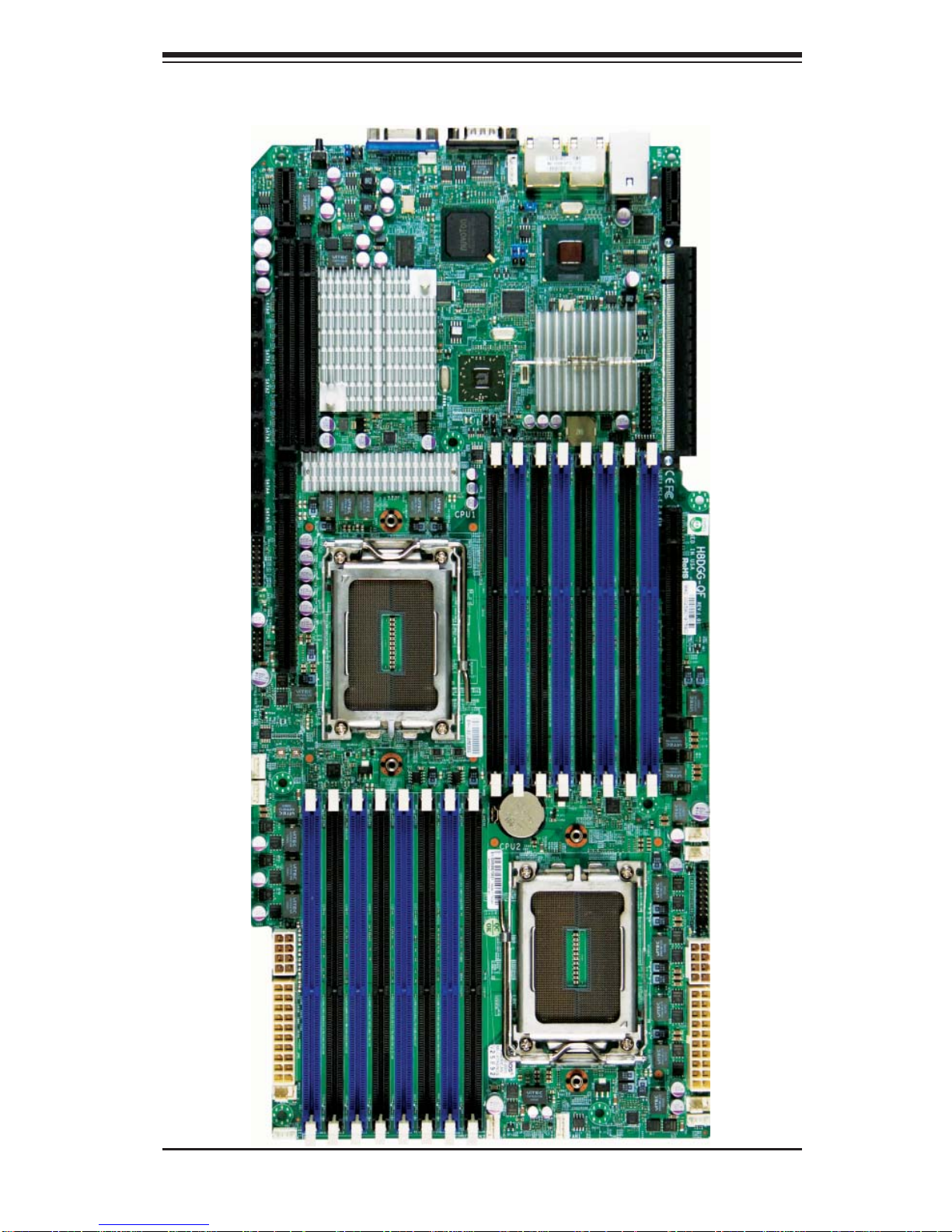

Figure 1-1. H8QI6-F Image

1-4
H8DGG-QF Serverboard User’s Manual
Notes:
Jumpers not indicated are for test purposes only.
Not all ports, jumpers or LED Indicators are available on all serverboards.

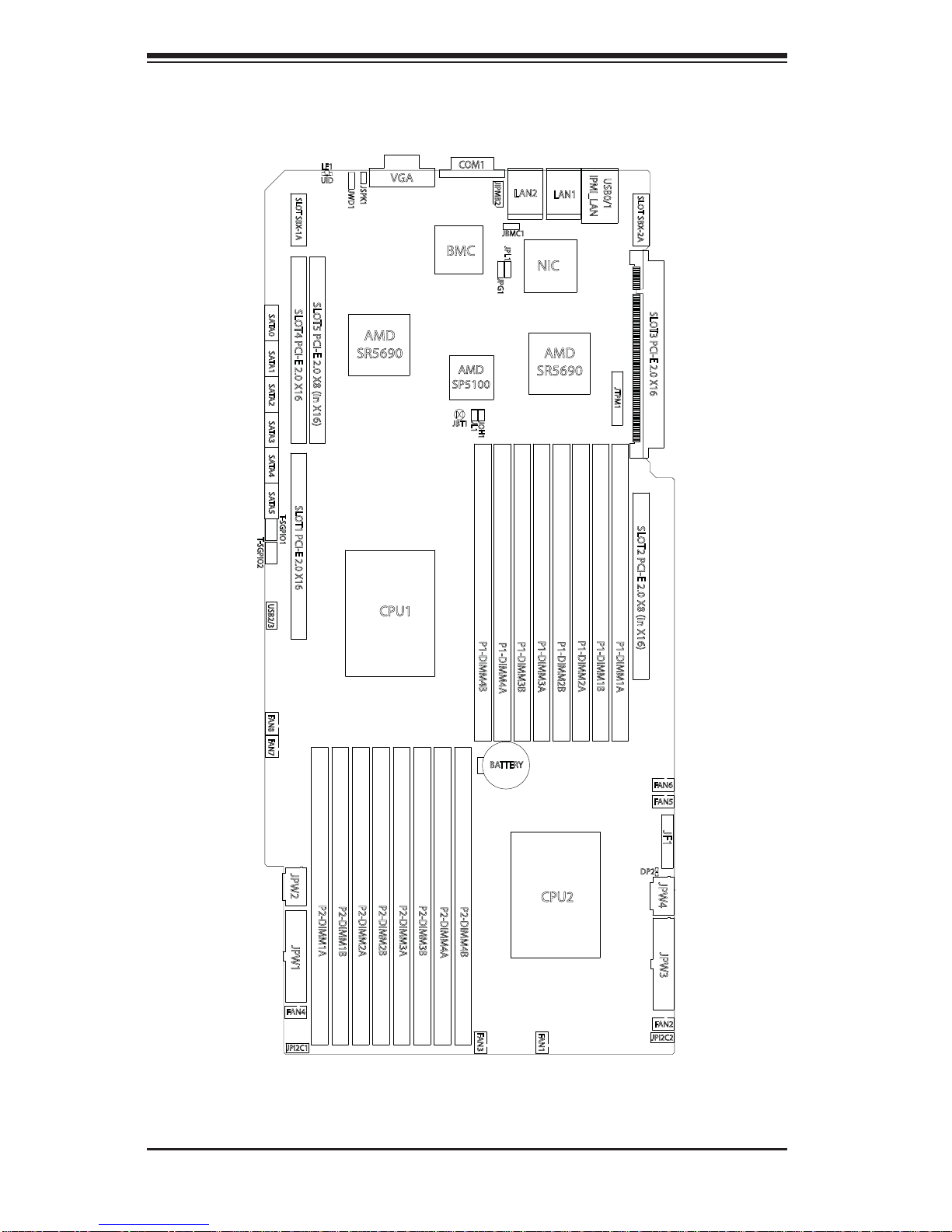

Figure 1-2. H8DGG-QF Motherboard Layout
(not drawn to scale)
BATTERY
JIPMB2
JPI2C1
JPI2C2
SLOT SBX-2A
FAN6
FAN5
FAN8 FAN7
FAN4
FAN3
FAN2
FAN1
LE1
JPW2
JPW4
JF1
JBT1
JWD1
JPL1 JPG1
JBMC1
DP2
JSPK1
JL1
JOH1
SATA2 SATA3 SATA4 SATA5SATA0 SATA1
JPW1
JPW3
USB0/1
IPMI_LAN
SLOT2 PCI-E 2.0 X8 (in X16)
P1-DIMM1A
CPU2
P1-DIMM1B
P1-DIMM2A
LAN1
P1-DIMM2B
P1-DIMM3A
P1-DIMM3B
COM1
P1-DIMM4A
P1-DIMM4B
P2-DIMM4B
P2-DIMM4A
P2-DIMM3B
P2-DIMM3A
VGA
UID
SLOT5 PCI-E 2.0 X8 (in X16)
SLOT4 PCI-E 2.0 X16
P2-DIMM2A
P2-DIMM2B
P2-DIMM1A
P2-DIMM1B
USB2/3
T-SGPIO1
T-SGPIO2
CPU1
LAN2
BMC
NIC
AMD
SP5100
AMD
SR5690
AMD
SR5690
SLOT SBX-1A
SLOT1 PCI-E 2.0 X16
JTPM1
SLOT3 PCI-E 2.0 X16

Chapter 1: Introduction
1-5
H8DGG-QF Quick Reference
Jumper Description Default Setting
JBT1 CMOS Clear (See Section 2-7)
JBMC1 BMC Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JPL1 LAN 1/2 Enable/Disable Pins 1-2 (Enabled)
JWD1 Watch Dog Pins 1-2 (Reset)
LED Description
LAN Ports LEDs for the LAN Ethernet ports
Dedicated IPMI LAN LEDs for the dedicated IPMI LAN Ethernet port
LE1 LED for UID Button
DP2 LED for Serverboard Power-On
Connector Description
COM1 COM1 Serial Port
FAN 1-8 Chassis/CPU Fan Headers
IPMI LAN Dedicated IPMI LAN Port
JF1 Front Panel Connector
JIPMB2 System Management Bus Header for the IPMI Slot
JL1 Chassis Intrusion Header
JOH1 Overheat Warning Header
JPI2C1/JPI2C2 Power I2C Headers
JPW1/3 20-pin Main ATX Power Connectors
JPW2/4 +12V 8-pin CPU Power Connectors
JSPK1 Speaker Header
JTPM1 Trusted Platform Module Header
LAN1/2 Gigabit Ethernet (RJ45) Ports
SATA0 ~ SATA5 SATA Ports
T-SGPIO-1/TSGPIO-2 Serial General Purpose Input/Output Header for SATA
UID Unit Identifier Button
USB0/1 and USB2/3 Universal Serial Bus (USB) Ports and Headers
VGA VGA Connector

1-6
H8DGG-QF Serverboard User’s Manual
Motherboard Features
CPU
Dual AMD Opteron 6100 series (Socket G34 type) processors•
Note: You must install at least two processors for full functions to be supported.
Memory
Sixteen single/dual/tri/quad channel DIMM slots supporting up to 256GB of•
DDR3 Registered ECC 1333/1066/800 or 64GB of DDR3 Unbuffered ECC/
non-ECC SDRAM
Note: Refer to Section 2-4 before installing memory and our web site for recommended DIMMs.
Chipset
Dual AMD SR5690 chipsets and one SP5100 Southbridge chipset•
Expansion Slots
1U (2 GPU):
Two (2) PCI-Express x16 Gen. 2•
One (1) PCI-Express x8 (in x16 slot) Gen. 2•
Note: Slot SBX-1A with slot 1 and slot SBX-2A with slot 2 require a SuperMicro
riser card or add-on card to work properly. The riser cards need both the SBX and
PCI-E slots on each side of the serverboard to be connected.
BIOS
16 Mb AMIBIOS• ® SPI Flash ROM
AMI 1.2, DMI 2.3, PCI 2.2,ACPI 1.0 (ACPI 2.0 is BIOS supported), SMBIOS 2.3,•
Real Time Clock Wakeup, Plug and Play (PnP), BIOS resume hot keys
PC Health Monitoring
Onboard voltage monitors•
Fan status monitor with firmware/software on/off and speed control•
Watch Dog/NMI•
Environmental temperature monitoring via BIOS•
Power-up mode control for recovery from AC power loss•
System resource alert (via included utility program)•
Auto-switching voltage regulator for the CPU core•
CPU thermal trip support•

Chapter 1: Introduction
1-7
I• 2C temperature sensing logic
ACPI Features
Microsoft OnNow•
Slow blinking LED for suspend state indicator•
BIOS support for USB keyboard•
Hardware BIOS Virus protection•
Wake-On-LAN (WOL)•
Internal/external modem ring-on•
Onboard I/O
Six (6) SATA ports supported by an on-chip SATA controller (RAID 0, 1, 10•
supported)
One (1) Fast UART 16550 compatible serial port•
Four (4) USB (Universal Serial Bus 2.0) ports (2x rear, 2x header)•
Two (2) LAN ports supported by an onboard Intel® 82576 dual port Ethernet•
controller for 10/100/1000Base-T
One (1) dedicated IPMI LAN port•
One (1) VGA port supported by an onboard Matrox• ®G200 graphics controller
(with 16 MB DDR2 memory)
Other
Onboard power LED•
Suspend State indicator LED•
UID/Remote UID•
Chassis intrusion detection•
Chipkill support•
CD Utilities
BIOS flash upgrade utility•
Super Doctor III•
IPMI 1.5 / 2.0 (Optional)•
Dimensions
Propriatory format: 7.74" x 16.64" (197 x 423 mm)•

1-8
H8DGG-QF Serverboard User’s Manual
AMD
Socket G34
CPU2
HT3 Link
(8+8)x(8+8)-6.4GT/s
HT3 Link
16x16-5.2GT/s
HT3 Link
8x8-3.2GT/s
PCI-E GEN2 X16
Slot3
SATA x6
PCI-E GEN2 X16
Slot1
A-Link
SP5100
BMC
VGA
WPCM450-R
PCI
LPC
USB
SIO
W83527
HWM
W83795G
SPI Flash
RMII
DDR2 SDRAM
64Mb X16bit
PSU I2C
IPMB
FE PHY
RTL8201N
VGA
Clock Gen
TPM (/OPT)
SR5690-S
COM
PCI-E GEN2 X4
INTEL
KAWELA
RJ45
RJ45
SR5690-M
Slot5
Slot2
Slot4
PCI-E GEN2 X8
PCI-E GEN2 X8
PCI-E GEN2 X16
HT3 Link
16x16-5.2GT/s
HT3 Link
8x8-3.2GT/s
AMD
Socket G34
CPU1
DIMM A1
DIMM A0
DIMM B0
DIMM B1
DIMM C0
DIMM C1
DIMM D0
DIMM D1
DIMM A0
DIMM A1
DIMM B0
DIMM B1
DIMM C0
DIMM C1
DIMM D0
DIMM D1
4xUSB
RJ45
Figure 1-3. AMD SR5690/SP5100 Chipset:
System Block Diagram
Note: This is a general block diagram and may not exactly represent
the features on your motherboard. See the previous pages for the
actual specifications of your motherboard.

Chapter 1: Introduction
1-9
1-3 Chipset Overview
The H8DGG-QF serverboard is based on the dual AMD SR5690 and one AMD
SP5100 chipsets. These chipset functions as a Media and Communications
Processors (MCP). Controllers for the system memory are integrated directly into
AMD Opteron processors.
AMD SR5690/SP5100 Processor
The dual AMD SR5690 and single SP5100 chips are each a single-chip, high-
performance HyperTransport peripheral controller. It includes a 42-lane PCI Express
interface, an AMD Opteron 16-bit Hyper Transport interface link, a six-port Serial
ATA interface, a dual-port Gb Ethernet interface and a four-port USB 2.0 interface.
This hub connects directly to the CPU.
HyperTransport Technology
HyperTransport technology is a high-speed, low latency point to point link that was
designed to increase the communication speed by a factor of up to 48x between
integrated circuits. This is done partly by reducing the number of buses in the
chipset to reduce bottlenecks and by enabling a more efficient use of memory
in multi-processor systems. The end result is a significant increase in bandwidth
within the chipset.
1-4 PC Health Monitoring
This section describes the PC health monitoring features of the H8DGG-QF
serverboard. The serverboard has an onboard System Hardware Monitor chip that
supports PC health monitoring.
Onboard Voltage Monitors
The onboard voltage monitor will continuously scan crucial voltage levels. Once
a voltage becomes unstable, it will give a warning or send an error message to
the screen. Users can adjust the voltage thresholds to define the sensitivity of the
voltage monitor. Real time readings of these voltage levels are all displayed in
BIOS.
Fan Status Monitor with Firmware/Software Speed Control
The PC health monitor can check the RPM status of the cooling fans. The onboard
fans are controlled by thermal management via BIOS.

1-10
H8DGG-QF Serverboard User’s Manual
CPU Overheat/Fan Fail LED and Control
This feature is available when the user enables the CPU overheat/Fan Fail warning
function in the BIOS. This allows the user to define an overheat temperature. When
this temperature is exceeded or when a fan failure occurs, the Overheat/Fan Fail
warning LED is triggered.
Auto-Switching Voltage Regulator for the CPU Core
The 6-phase-switching voltage regulator for the CPU core can support up to Opteron
6100SE series processors. This will allow the regulator to run cooler and thus make
the system more stable.
1-5 Power Configuration Settings
This section describes the features of your motherboard that deal with power and
power settings.
Microsoft OnNow
The OnNow design initiative is a comprehensive, system-wide approach to system
and device power control. OnNow is a term for a PC that is always on but appears
to be off and responds immediately to user or other requests.
Slow Blinking LED for Suspend-State Indicator
When the CPU goes into a suspend state, the chassis power LED will start blinking
to indicate that the CPU is in suspend mode. When the user presses any key, the
CPU will wake-up and the LED will automatically stop blinking and remain on.
BIOS Support for USB Keyboard
If a USB keyboard is the only keyboard in the system, it will function like a normal
keyboard during system boot-up.
Main Switch Override Mechanism
The power button can function as a system suspend button. When the user
depresses the power button, the system will enter a SoftOff state. The monitor
will be suspended and the hard drive will spin down. Depressing the power button
again will cause the whole system to wake-up. During the SoftOff state, the power
supply provides power to keep the required circuitry in the system alive. In case the
system malfunctions and you want to turn off the power, just depress and hold the
power button for 4 seconds. The power will turn off and no power will be provided
to the motherboard.

Chapter 1: Introduction
1-11
Wake-On-LAN (WOL)
Wake-On-LAN is defined as the ability of a management application to remotely
power up a computer that is powered off. Remote PC setup, up-dates and access
tracking can occur after hours and on weekends so that daily LAN traffic is kept
to a minimum and users are not interrupted. The motherboard has a 3-pin header
(WOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has
WOL capability. Wake-On-LAN must be enabled in BIOS.
1-6 Power Supply
As with all computer products, a stable power source is necessary for proper and
reliable operation. It is even more important for processors that have high CPU
clock rates.
The H8DGG-QF serverboard requires the use of proprietary power supplies. Please
refer to the pinout information for the power connectors in Section 6 of Chapter 2
for detailed information on power requirements.
In areas where noisy power transmission is present, you may choose to install a
line filter to shield the computer from noise. It is recommended that you also install
a power surge protector to help avoid problems caused by power surges.
Warning: To prevent the possibility of explosion, do not use the wrong type of
onboard CMOS battery or install it upside down.
1-7 Super I/O
The Super I/O includes a data separator, write pre-compensation circuitry, decode
logic, data rate selection, a clock generator, drive interface control logic and
interrupt and DMA logic. The wide range of functions integrated onto the Super
I/O greatly reduces the number of components required for interfacing with floppy
disk drives.
The Super I/O provides two high-speed, 16550 compatible serial communication
ports (UARTs), one of which supports serial infrared communication. Each UART
includes a 16-byte send/receive FIFO, a programmable baud rate generator,
complete modem control capability and a processor interrupt system. Both UARTs
provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced
speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed
modems.
The Super I/O provides functions that comply with ACPI (Advanced Configuration
andPowerInterface),which includessupportof legacyandACPIpowermanagement
through a SMI or SCI function pin. It also features auto power management to reduce
power consumption.

1-12
H8DGG-QF Serverboard User’s Manual
The IRQs, DMAs and I/O space resources of the Super I/O can be flexibly adjusted
to meet ISA PnP requirements, which support ACPI and APM (Advanced Power
Management).
1-7 UIO
The H8DGG-QF is a specially-designed serverboard that features Supermicro's
UIO (Universal I/O) technology. UIO serverboards have a PCI-Express x4 and
x8 signals that can support PCI-E cards or any one of several types of UIO card
types to add SAS ports, additional LAN ports, Infiniband®, etc. to the serverboard.
This allows the user to tailor the serverboard to their own needs.
