Preface
About This Manual
This manual is written for system houses, PC technicians and
knowledgeable PC end users. It provides information for the instal-
lation and use of SUPER P6DLH/P6DLF motherboard. SUPER
P6DLH/P6DLF supports Pentium II 233/266/300/333 MHz.
The Pentium II processor with the Dual Independent Bus Architec-
ture is housed in a new package technology called the Single Edge
Contact (S.E.C.) cartridge. This new cartridge package and its as-
sociated "Slot 1" infrastructure will provide the headroom for future
high-performance processors.
Manual Organization
Chapter 1, Introduction, describes the features, specifications and
performance of the SUPER P6DLH/P6DLF system board, provides
detailed information about the chipset, and offers warranty informa-
tion.
Refer to Chapter 2, Installation, for instructions on how to install the
Pentium II processor, the retention mechanism, and the heat sink
support. This chapter provides you with the instructions for han-
dling static-sensitive devices. Read this chapter when you want to
install or remove SIMM/DIMM memory modules and to mount the
system board in the chassis. Also refer to this chapter to connect
the floppy and hard disk drives, IDE interfaces, parallel port, serial
ports, as well as the cables for the power supply, reset cable,
Keylock/Power LED, speaker and keyboard.

If you encounter any problem, please see Chapter 3, Troubleshoot-
ing, which describes troubleshooting procedures for video, memo-
ry, and the setup configuration stored in memory. Instructions are
also included on contacting a technical assistance support repre-
sentative and returning merchandise for service and the BBS# for
BIOS upgrades.
iv
SUPER P6DLH/P6DLF User’s Manual

Preface
Table of Contents
Preface
About This Manual ......................................................................................... iii
Manual Organization...................................................................................... iii
Quick Reference........................................................................................... viii
Chapter 1:
1-1 Overview............................................................................................... 1-1
SUPER P6DLH ............................................................................. 1-3
SUPER P6DLF.............................................................................. 1-4

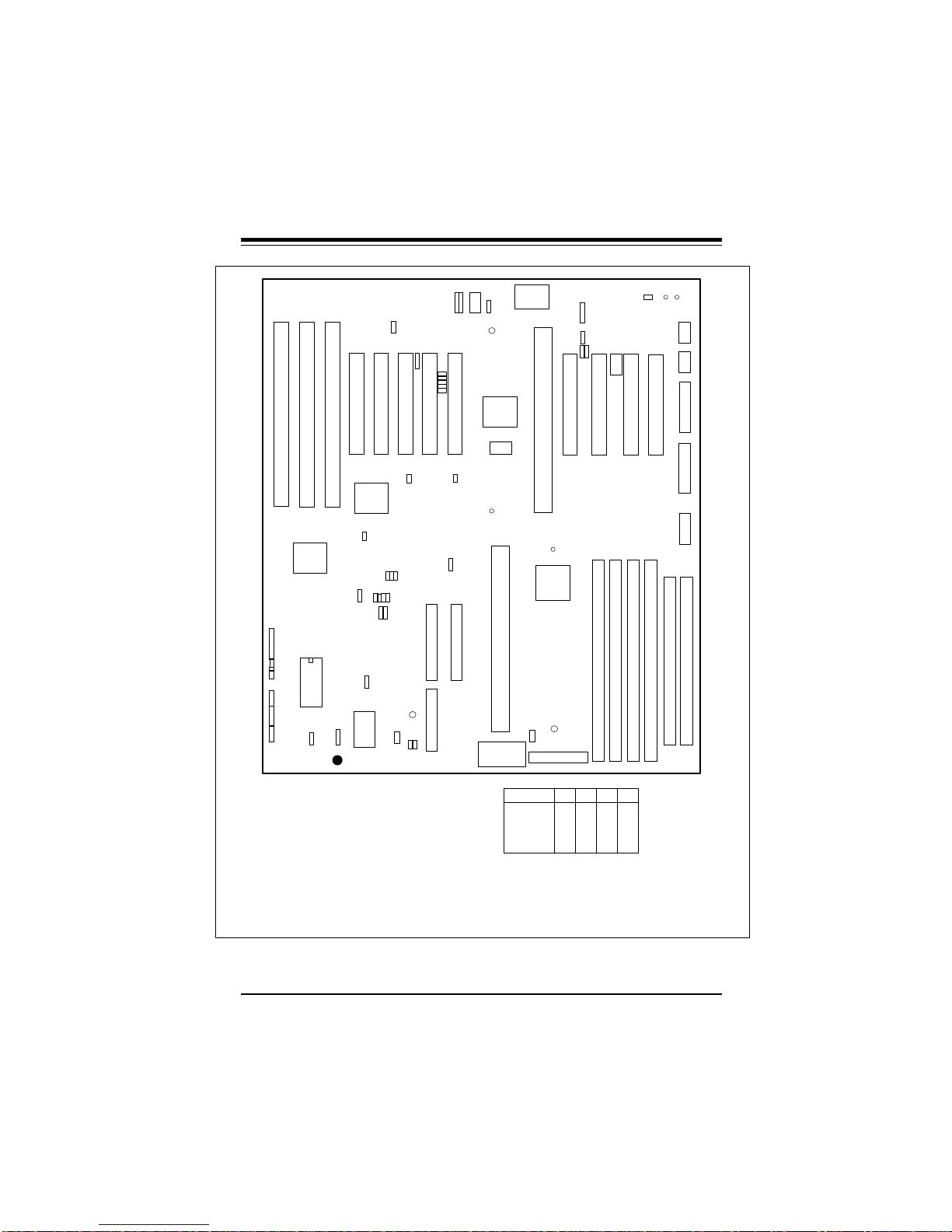

SUPER P6DLH Motherboard Layout........................................ 1-5

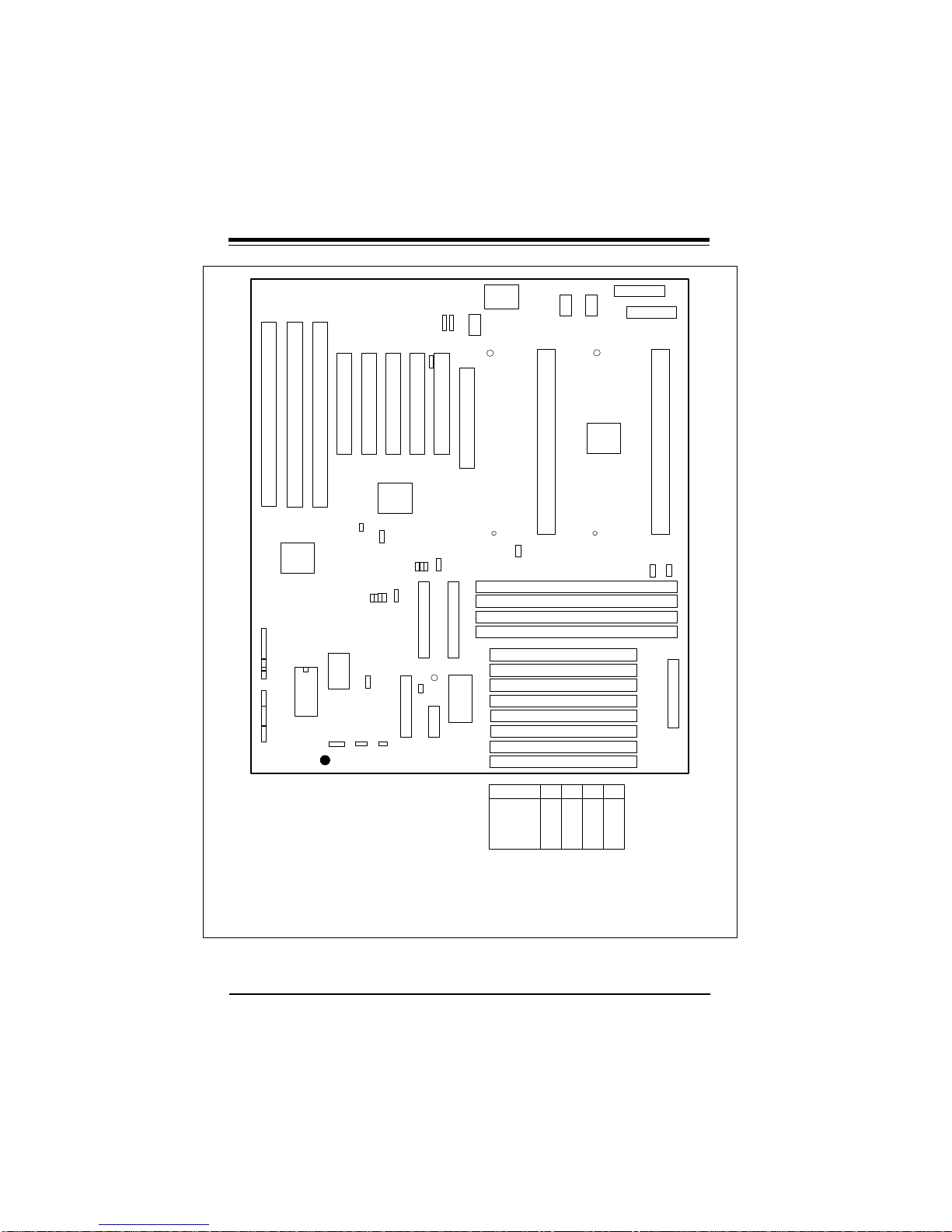

SUPER P6DLF Motherboard Layout ........................................ 1-6
SUPER P6DLH Features............................................................ 1-7
SUPER P6DLF Features ............................................................ 1-9
1-2 PC Health Monitoring ...................................................................... 1-11
1-3 ACPI/PC 98 Features ...................................................................... 1-14
1-4 Chipset Overview.............................................................................. 1-15
1-5 Wake-on-LAN .................................................................................... 1-16
1-6 Power Supply .................................................................................... 1-16
1-7 National Semiconductor Super I/O................................................ 1-17
1-8 Warranty, Technical Support, and Service.................................. 1-18
Parts.............................................................................................. 1-18
BIOS .............................................................................................. 1-18
Labor............................................................................................. 1-18
Returns......................................................................................... 1-18
Chapter 2: Installation
2-1 Pentium II Processor Installation................................................... 2-1
OEM Pentium II and Heat Sink Support.................................. 2-5
Removing the Pentium II Processor........................................ 2-6
v

2-2 Static-Sensitive Devices ................................................................... 2-7
Precautions ................................................................................... 2-7
Unpacking...................................................................................... 2-7
2-3 Changing the CPU Speed ............................................................... 2-7
2-4 Mounting the Motherboard in the Chassis................................... 2-8
2-5 Connecting Cables............................................................................ 2-9
Power Supply Connectors.......................................................... 2-9
PW_ON Connector...................................................................... 2-11
Infrared Connector ...................................................................... 2-11
Reset Connector ........................................................................ 2-12
Keylock/Power LED Connector ............................................... 2-12
Hard Drive LED .......................................................................... 2-13
Speaker Connector.................................................................... 2-13
AT Keyboard Connector ............................................................ 2-14
Universal Serial Bus .................................................................. 2-14
PS/2 Mouse Port.......................................................................... 2-15
Serial Ports.................................................................................. 2-15
Power On/Off State .................................................................... 2-16
SMI................................................................................................. 2-16
CMOS Clear................................................................................. 2-17
External Battery ........................................................................... 2-17
Overheat LED.............................................................................. 2-17
Buzzer Overheat Notification.................................................... 2-18
Chassis Intrusion Connector .................................................. 2-18
Power Supply Selection............................................................ 2-18
Wake-on-LAN .............................................................................. 2-19
Fan Connectors.......................................................................... 2-19
Optional Keyboard Connector ................................................. 2-20
i960 Serial Port........................................................................... 2-20
i960 Fail LED Indicator ............................................................. 2-21
i960 Initialization Modes........................................................... 2-21
vi
SUPER P6DLH/P6DLF User’s Manual

Table of Contents
vii
i960 Jumper Settings................................................................ 2-22
I2C Connector.............................................................................. 2-22
2-6 Installing/Removing SIMM/DIMM Modules .................................. 2-23
SIMM/DIMM Module Installation............................................... 2-24
Removing DIMM Modules......................................................... 2-25
Removing SIMM Modules ......................................................... 2-25
2-7 Connecting Parallel, FDD and HDD ............................................ 2-26
Parallel Port Connector ............................................................ 2-27
Floppy Connector ....................................................................... 2-28
IDE Interfaces ............................................................................. 2-29
AGP Port....................................................................................... 2-30
Chapter 3: Troubleshooting
3-1 Troubleshooting Procedures ........................................................... 3-1
No Video ........................................................................................ 3-1
Troubleshooting Flowchart ........................................................ 3-2
Memory Error................................................................................. 3-3
Losing the System’s Setup Configuration.............................. 3-3
3-2 Technical Support Procedures........................................................ 3-4
3-3 Returning Merchandise for Service................................................ 3-4

viii
SUPER P6DLH/P6DLF User’s Manual
Quick Reference
Jumpers Function Page
JB1, JB2, JB3, JB4 CPU Speed Selection 2-8
JC1, JC2, JC3 External Bus Speed 2-8
JBT1 CMOS Clear 2-17
JP17 Manufacturer Default 1-5
JP19 SMI 2-16
JP26 Power On/Off State 2-16
JP86 (P6DLF) Buzzer Selection 2-18
JP88 (P6DLH) Buzzer Selection 2-18
JP915 i960 Initialization Mode 2-21
JP918 i960 Initialization Mode 2-21
JP919 i960 Initialization Mode 2-21
JP920 i960 Initialization Mode 2-21
JP921 i960 Initialization Mode 2-21
JP911 i960 Jumper 2-22
JP917 i960 Jumper 2-22
JP924 i960 Jumper 2-22
JP925 i960 Jumper 2-22
SW1 Power Supply Selection 2-18
SW2 Manufacturer Default 1-5
Connectors Function Page
ID4 i960 Fail LED 2-21
J8 AGP Port 2-30
J15, J16 IDE Interfaces 2-29
J17, J18 USB 2-14
J19 Printer Port 2-27
J22 Floppy Port 2-28
J74 AT Keyboard 2-14
J940 I2C Connector 2-22
J943 i960 Serial Port 2-20
JP20, JP21 COM 1, COM 2 2-15
JP25 PS/2 Mouse 2-15
JP85 Wake-on-LAN 2-19

JP926 Optional Keyboard 2-20
JBT2 External Battery 2-17
JF1 IDE LED 2-13
Keylock 2-12
Speaker 2-13
JF2 IR Connector 2-11
PW_ON 2-11
Reset 2-12
JL1 Chassis Intrusion 2-18
JOH Overheat LED 2-17
JT1, JT2 CPU 1/CPU 2 Fan 2-19
JT3, JT4 Thermal/Overheat Fan 2-19
PW1 AT Power 2-10
PW2 ATX Power 2-9
PW5 +5V Extra 2-10
ix
Quick Reference

SUPER P6DLH/P6DLF User’s Manual
x

1-1
Chapter 1: Introduction
Chapter 1
Introduction
1-1 Overview
SUPER P6DLH and P6DLF support dual PentiumII 233/266/300/
333 MHz processors. They are based on Intel’s 440 LX chipset
which enables Accelerated Graphics Port (AGP), Wake-on-LAN,
SDRAM, concurrent PCI, and Ultra DMA 33 MB/s burst data transfer
rate. SUPER P6DLH is I2O-readyTM with a 66 MHz i960RD I/O
processor built-in. AGP is disabled on SUPER P6DLH.
Both motherboards are Full AT size (13.2" x 12.2"). SUPER P6DLF
provides 5 PCI slots, 3 ISA slots and an Accelerated Graphics Port.
It accommodates a total of 1 GB EDO or 512 MB SDRAM memory
with 8 72-pin SIMMs or 4 168-pin DIMM sockets.
SUPER P6DLH provides 9 PCI slots and 3 ISA slots. It accommo-
dates a total of 1 GB EDO or 512 MB SDRAM. The I2O architecture
of SUPER P6DLH consists of a 66 MHz i960 RD I/O processor, an 8
Mb Flash I/O BIOS, and local IOP memory of up to 64 MB. The I2O
architecture provides a standard way to off-load the I/O functions
from the CPU, creating a direct I/O pipeline that no longer passes
through the host processor. Besides delivering increased system
performance, the I2O specification eliminates the need for different
drivers for each combination of operating system and SCSI or Net-
work Interface Card. Because the drivers may be standardized, and
not re-written for new operating system releases, drivers can be-
come more highly optimized and robust, improving performance
and reliability in mission-critical enterprise computing.
To attain portability across multiple operating systems and host
platforms, I2O drivers are divided into the OS Services Module
(OSM), and Hardware Device Module (HDM). The first module inter-
faces with the host operating system. The second interfaces with
the particular device, media or server managed by the driver. The

1-2
SUPER P6DLH/P6DLF User’s Manual
two modules interface with each other through a two-layered com-
munications system. A Message Layer sets up a communications
session. A Transport Layer defines how information will be shared.
The Message Layer resides on the Transport Layer.
The i960 RD I/O processor (IU20) is a highly integrated intelligent I/
O subsystem on a chip. Mode 3 is the default setting for its normal
operation. The i960 RD has two main functions. As a local proces-
sor, it offloads interrupt-intensive I/O tasks from the host CPU. Its
architecture is composed of a RISC core surrounded by peripherals
essential to the I/O function. The on-board PCI-to-PCI bridge en-
ables designers to connect I/O components directly to the PCI bus
and also add additional PCI slots. The bridge improves overall
system performance by reducing bus traffic.
AGP reduces contention with the CPU and I/O devices by broaden-
ing the bandwidth of graphics to memory. It delivers a maximum of
532 MB/s 2x transfer mode which is quadruple the PCI speed!
Wake on LAN allows remote network management and configura-
tion of the PC, even in off-hours when the PC is turned off. This
reduces the complexity of managing the network.
Other features that maximize simplicity in managing the computer
are PC 98-ready and support for Advanced Configuration and Power
Interface (ACPI). With PC Health Monitoring, you can protect your
system from problems before they even occur.
Included I/O are 2 EIDE ports, a floppy port, an ECP/EPP parallel
port, a PS/2 mouse port, 2 serial ports, an infrared port and 2 USB
ports. The boards come with a CD with software utilities such as:
SUPERMICRO PIIX4 Upgrade Utility for Windows95, BIOS Flash
Upgrade Utility, DMI Browser for Windows 95, DMI Wizard,
SUPERMICRO SUPER Doctor Utility ver 1.20b, and Intel
LANDeskClient Manager for Windows NTand Windows 95 (op-
tional).

1-3
Chapter 1: Introduction
SUPER P6DLH
Figure 1-1. SUPER P6DLH Motherboard Picture

1-4
SUPER P6DLH/P6DLF User’s Manual
SUPER P6DLF
Figure 1-2. SUPER P6DLF Motherboard Picture

1-5
Chapter 1: Introduction
-
J22
Figure 1-3. P6DLH Motherboard Layout
—————Bus Speed–————
MHzJC1 JC2 JC3
50 ON ON ON
60 ON OFF OFF
66 OFF OFF OFF
75 OFF ON OFF
——–—–——————————
J79
J78
J77
CPU 1
CPU 2
JP21
RESET
U45
J9 J10 J11 J12 J84
J2
J1
PCI 1 PCI 2
U14
PW
ON
IR
CON
1
1
JB1 JB2 JB3 JB4
1
1
SW2
®
J940
1
JP915
JP918
JP921
IU20
i960 RD
1
J19
1
JP20
1
PW1
1
PW5
POWER
+5V EXTRA
i960 MEM
J917
J4 J6 J7
J5
J918
VR3 PW2
JT2
FAN2
1
KEY
LOCK
IDE
LED
JF1
JF2
BIOS
U47
SPEAKER +
BT2
BATTERY
J15 J16
JT3
SUPER P6DLH
JP88
BZ1
JOH
11
JP85
WOL
JC2 JC3 JC1
11
Ext
Battery
JBT2
CMOS
Clear
JBT1
1
JP19
1
1
IDE 2
IDE 1
FLOPPY
AT POWER
JL1
JP26
ATX POWER
PARALLEL
COM2
COM1
PCI 5
PCI 4
PCI 3
SW1
PWR
SEL
JP17
JP911
JP920
JP919
i960 BIOS
Bank0
Bank1 Bank2
Bank3
1
JP25J18J17
USB
JT1
J74 AT KB
1
1
U9
J943
1
1
JP925 JP924
PS/2
MOUSE
FAN1
JT4
1
1
JP926
1
JP917 ID4 ID3
* J9 is PCI slave only
——–—— Manufacturer Settings ————
JL1: OFF (normal)
1-2 (reserved)
2-3 (intrusion detection)
JP17: 2-3
JP19: 1-2 APIC SMI (default)
2-3 PIIX4 SMI
JP26: 1-2 PIIX4 CTL
2-3 Save PD State (default)
JP917: ON
JP924: 1-2
JP925: 1-2
JBT1: 1-2 (default)
2-3 CMOS Clear
SW1: ON Enable BIOS AT/ATX Setting
SW2: OFF
——–———————–———–——–——–—
CPU Core/
Bus Ratio
3.0
3.5
4.0
4.5
5.0
5.5
6.0
JB1
ON
OFF
ON
OFF
ON
OFF
ON
JB2
OFF
OFF
ON
ON
OFF
OFF
ON
JB3
ON
ON
OFF
OFF
OFF
OFF
ON
JB4
ON
ON
ON
ON
ON
ON
OFF

1-6
SUPER P6DLH/P6DLF User’s Manual
-
+
J15
J22
Figure 1-4. SUPER P6DLF Motherboard Layout
—————Bus Speed–————
MHzJC1 JC2 JC3
50 ON ON ON
60 ON OFF OFF
66 OFF OFF OFF
75 OFF ON OFF
——–—–——————————
J79
J78
J77
CPU 1 CPU 2
PW1
1
1PARALLEL
J19
1
COM2
COM1
JP20 1 JP21
J74 AT KB
1JP25
USB1 USB2
11
J17
J18
JF1
SPEAKER
RESET
JF2
U45
J9 J10 J11 J12
PS/2 MOUSE
J8
J84 J2 J1
U9
PCI 1 PCI 2 PCI 3 PCI 4 PCI 5
AGP
U14
PW2
ATX POWER
Bank1
Bank0
Bank2
Bank3
IDE
LED
KEY
LOCK
PW
ON
IR
CON
U47
1J16 1
IDE 1
IDE 2
1
FLOPPY
JC3 JC1 JC2
JP17
1
JB1 JB2 JB3 JB4
1
JL1
BIOS
VR3
1
JBT2 JOH
JBT1
1
BT2
BATTERY
1
JP26
1
JP85
WOL
SW1
JT3JT1
JT2
®
SUPER P6DLF
JP86BZ1
PW5
POWER +5V EXTRA
JP19
1
THERMAL
CONTROL
FAN
CPU 2 FAN
CPU 1 FAN
CMOS
Clear
OVER
HEAT
LED
Ext
Battery
Bank0
Bank1
Bank2
Bank3
Bank3
Bank0
Bank2
Bank1
——–—— Manufacturer Settings ————
JL1: OFF (normal)
1-2 (reserved)
2-3 (intrusion detection)
JP17: 2-3
JP19: 1-2 APIC SMI (default)
2-3 PIIX4 SMI
JP26: 1-2 PIIX4 CTL
2-3 Save PD State (default)
JBT1: 1-2 (default)
2-3 CMOS Clear
To clear the CMOS completely,
disconnect the power source.
JP85: Wake-on-LAN
SW1: ON Enable BIOS AT/ATX Setting
——–———————–———–——–——–—
CPU Core/
Bus Ratio
3.0
3.5
4.0
4.5
5.0
5.5
6.0
JB1
ON
OFF
ON
OFF
ON
OFF
ON
JB2
OFF
OFF
ON
ON
OFF
OFF
ON
JB3
ON
ON
OFF
OFF
OFF
OFF
ON
JB4
ON
ON
ON
ON
ON
ON
OFF

1-7
Chapter 1: Introduction
SUPER P6DLH Features
The following list covers the general features of SUPER P6DLH:
CPU
•Dual Pentium II processor 233/266/300/333 MHz
I2O-Ready
•66 MHz i960 RD IO processor
•up to 64 MB Local IOP memory
•8 Mb Flash I/O BIOS
Memory
•1 GB EDO or 512 MB SDRAM
•Error Checking and Correction and Parity Checking support
Chipset
•Intel 440LX
Expansion Slots
•9 PCI slots
•3 ISA slots
BIOS
•2 Mbit AMI®Flash BIOS
•DMI 2.0, Plug and Play (PnP)
PC Health Monitoring (LM78)
•Seven on-board voltage monitors for CPU cores, CPU I/O,
+3.3V, ±5V, and ±12V
•Three-fan status monitors with firmware/software control on/off
•Chassis temperature monitor and control
•CPU fan auto-off in sleep mode
•System overheat control and alarm
•Chassis intrusion detection
•System resource alert
•Hardware BIOS virus protection
•Switching voltage regulators for the CPU core
•SUPERMICRO SUPER Doctor and Intel LANDesk Client
Manager (LDCM) support

1-8
SUPER P6DLH/P6DLF User’s Manual
ACPI/PC 98 Features
•MicrosoftOnNow
•Slow blinking LED for sleep-state indicator
•BIOS support for USB keyboard
•Real time clock wake-up alarm (ATX power only)
•Main switch override mechanism
•External modem ring-on if system is in SoftOff state
On-Board I/O
•2 EIDE Bus Master interfaces support Ultra DMA/33 and Mode 4
•1 floppy interface
•2 Fast UART 16550 serial ports
•EPP (Enhanced Parallel Port) and ECP (Extended Capabilities
Port) parallel port
•PS/2 mouse port
•Infrared port
•2 USB ports
Dimensions
•Full AT size (13.2" x 12.2")

1-9
Chapter 1: Introduction
SUPER P6DLF Features
The following list covers the general features of SUPER P6DLF:
CPU
•Dual Pentium II processor 233/266/300/333 MHz
Memory
•1 GB EDO or 512 MB SDRAM
•Error Checking and Correction and Parity Checking support
Chipset
•Intel 440LX
Expansion Slots
•5 PCI slots
•3 ISA slots
•1 AGP slot
BIOS
•2 Mbit AMI Flash BIOS
•DMI 2.0, Plug and Play (PnP)
PC Health Monitoring (LM78)
•Seven on-board voltage monitors for CPU cores, CPU I/O,
+3.3V, ±5V, and ±12V
•Three-fan status monitors with firmware/software control on/off
•Chassis temperature monitor and control
•CPU fan auto-off in sleep mode
•System overheat control and alarm
•Chassis intrusion detection
•System resource alert
•Hardware BIOS virus protection
•Switching voltage regulators for the CPU core
•SUPERMICRO SUPER Doctor and Intel LANDesk Client
Manager (LDCM) support

1-10
SUPER P6DLH/P6DLF User’s Manual
ACPI/PC 98 Features
•Microsoft OnNow
•Slow blinking LED for sleep-state indicator
•BIOS support for USB keyboard
•Real time clock wake-up alarm (ATX power only)
•Main switch override mechanism
•External modem ring-on if system is in SoftOff state
On-Board I/O
•2 EIDE Bus Master interfaces support Ultra DMA/33 and Mode 4
•1 floppy interface
•2 Fast UART 16550 serial ports
•EPP (Enhanced Parallel Port) and ECP (Extended Capabilities
Port) parallel port
•PS/2 mouse port
•Infrared port
•2 USB ports
Dimensions
•Full AT size (13.2" x 12.2")
