SERVICE MANUAL

WASHER DRYER COMBO

SERVICE

To become an authorized Supra Appliance Servicer

Please contact Supra Appliances at 1-877-44-SUPRA

PARTS

To order for Supra Parts and accessories please

contact Supra Appliances at 1-877-44-SUPRA

PUBLISHED BY

Supra Technical & Service Division

POWER SOURCE

SW5L65D - 220V, 60Hz; SW5L30D - 115V, 60Hz

This manual is upgraded periodically and may not include modifications done subsequently. Please visit www.supraservice.com

to receive updates. SUPRA reserves the right to continuosly improve product design and specificaitons without compromise to

product safety, quality and standards in the users interest.

SUPRA CORPORATION

Sharman Bldg., Nishiwaseda,3-Chome

Shinjuku-Ku, Tokyo, Japan

[email protected]

www.supraamerica.com

www.supraservice.com

SW5L65D

SW5L30D

CONTENTS

1. Introduction

2. Fault Report

3. Technical Specifications – SW5L65D

4. Technical Specifications – SW5L30D

5. Wiring Diagram – SW5L65D

6. Wiring Diagram – SW5L30D

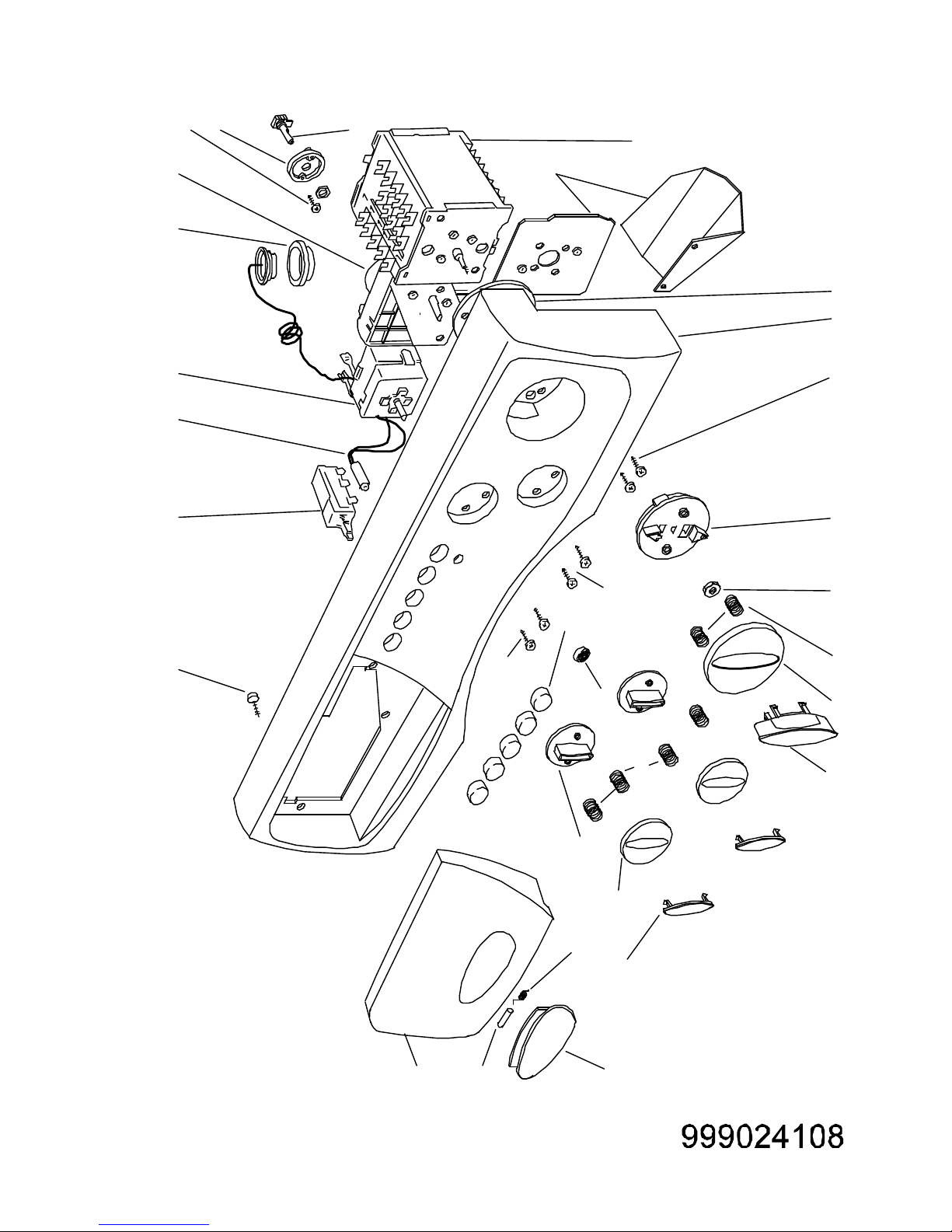

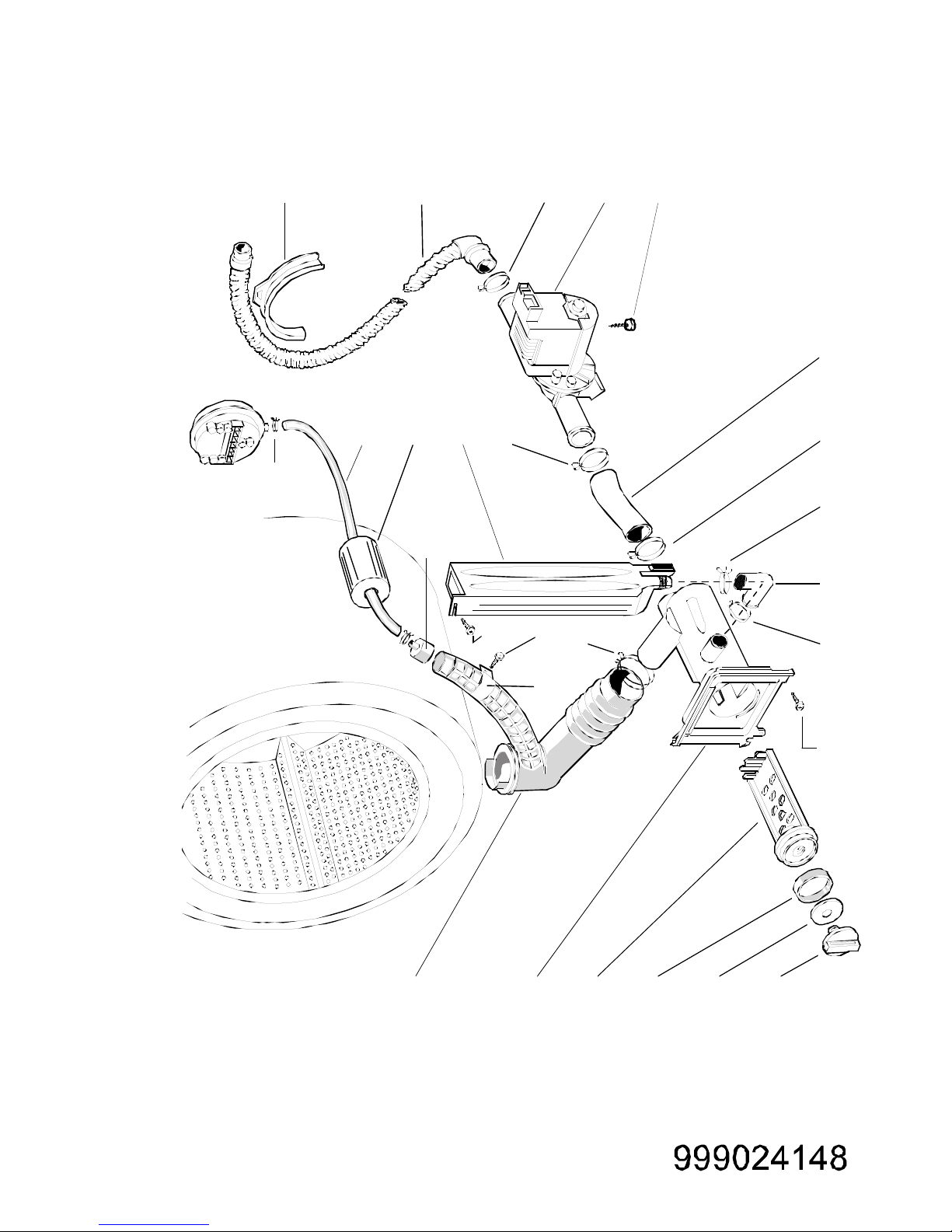

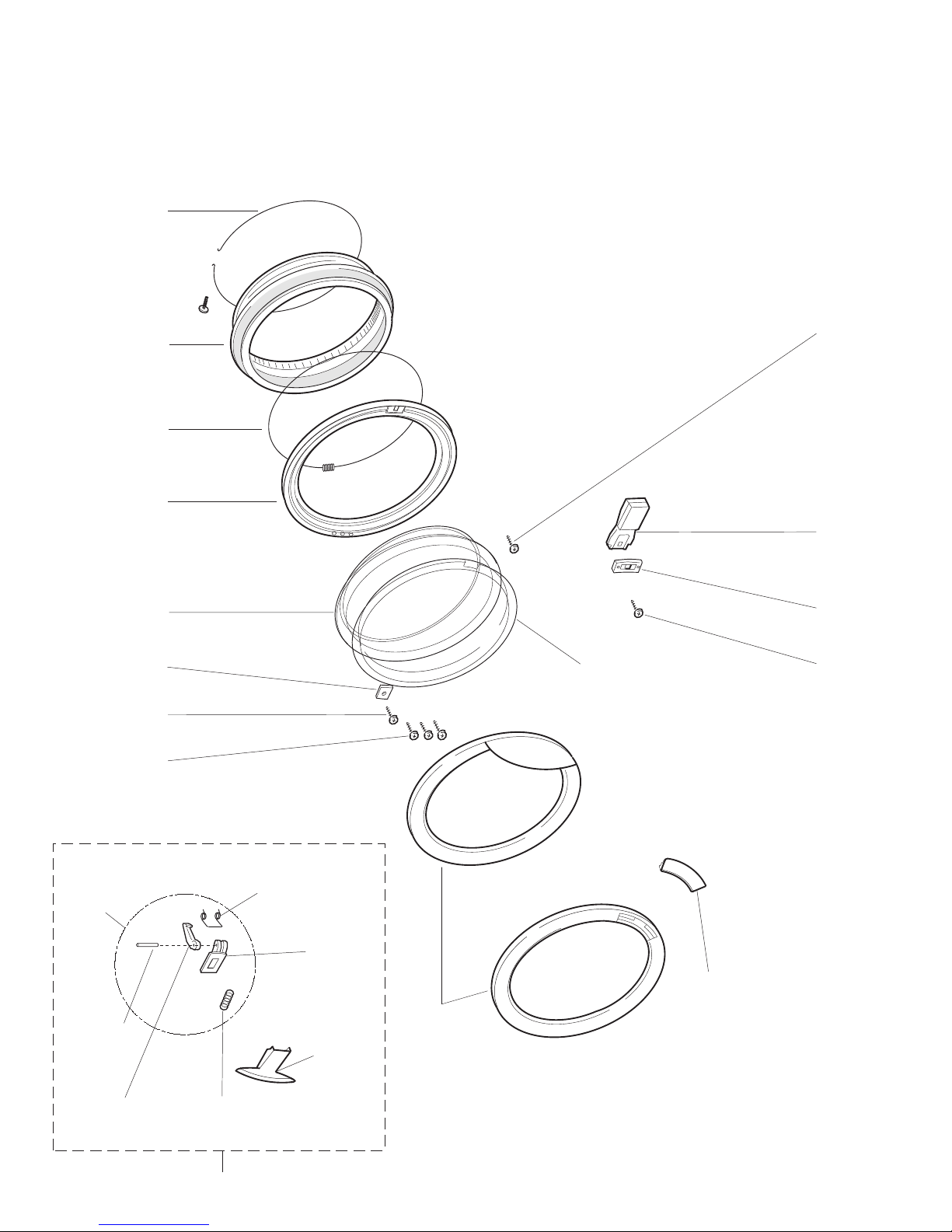

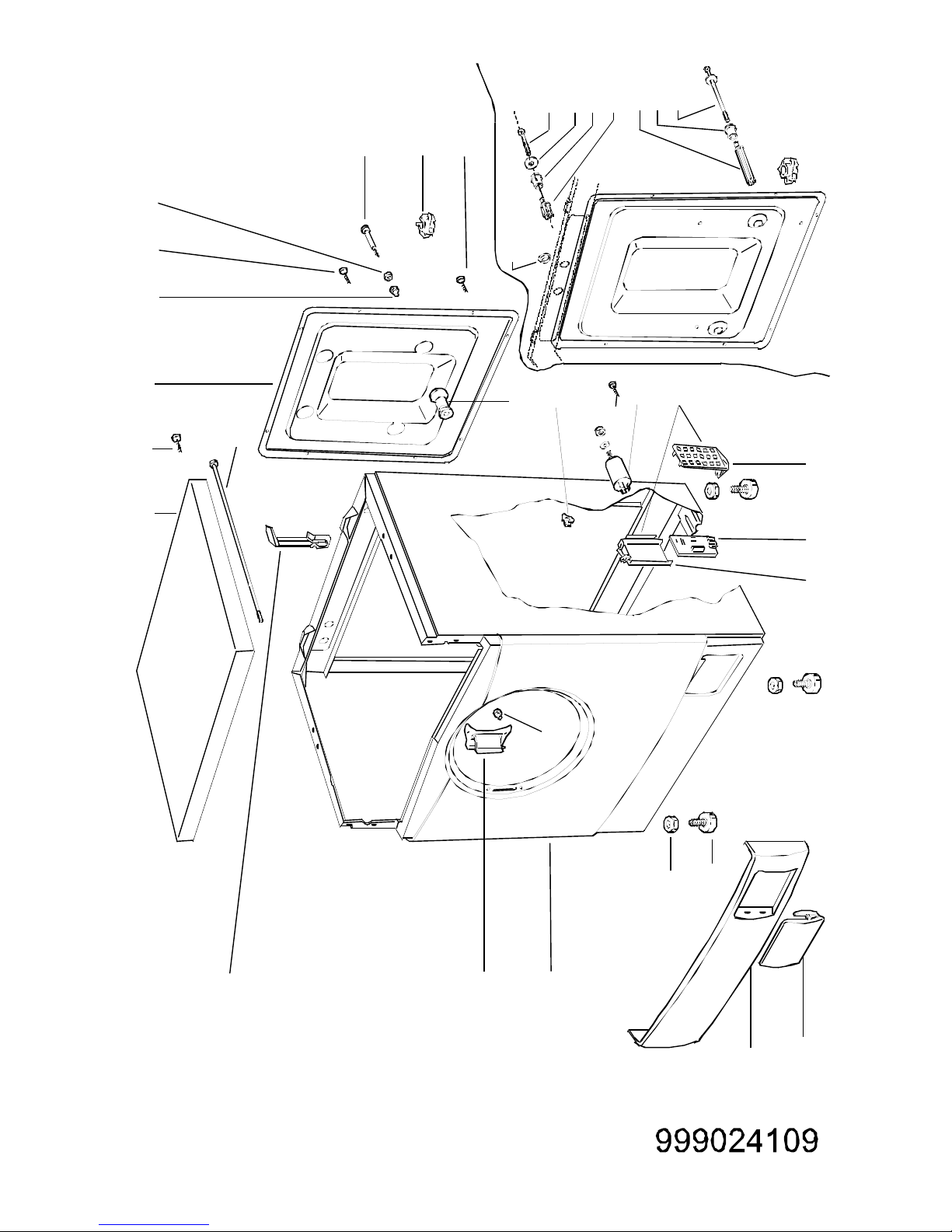

7. Exploded View

8. Trouble Shooting

9. Maintenance

10. Parts List - SW5L65D

11.Parts List - SW5L30D

COMMON TO BOTH MODELS

PARTS

INTRODUCTION

ThisService Manual has been designed and printed tobe used only

by an authorized service technician familiar with and knowledgeable of proper safety

servicing procedures and possessinghigh quality test equipment associatedwith

repair of Electronic products.

AllIndividuals, who attempts repairsby improper means or adjustments, subject

themselves and others to the risk of serious or fatal injury.

This service manual is a valuable tool and care should be taken to keep it up-to-date

by prompt and proper filling of subsequent pages that may be issued time to time.

Please update this manual periodically with revised component parts list and service

procedures.

UPDATES RECORD

Update Release date Regarding Modifications

Please use “FAULT REPORT FORM” for comments on the contents in this service manual or if

information provided is not sufficient to fix the unit or for additional help from the factory to fix

specific service problems.

SUPRA APPLIANCES

Fault Ref. #

101, 3rd St.,

Kentwood, LA, 70444

Tel: 1-877-44-SUPRA

Fax: 985-229-4334

CUSTOMER / SERVICE CENTER INFORMATION

Name :

Service Center :

Full Address

City: State : Pin:

Tel/Fax #

Email:

PRODUCT DETAILS

Supra Model # Purchase Date

Description Serial #

Wiring Diagram Document # Exploded view #

No. of Defective units Voltage

DESCRIPTION OF THE PROBLEM (Include as much information as you can)

SERVICE PROCEDURE TO BE FOLLOWED TO RECTIY PROBLEM

ANY PARTS TO BE REPLACED

SERVICE MANUAL REFERENCE

Submitted by Solution Provided by

Date : Date:

Footnote:

Please attach additional pages if required.

Fax Fault report to 985-229-4334; Email Fault report to [email protected]

Download fault report form from www.supraservice.com, subpage Product Service Manual refer download box

For Supra

Technical

Service

FAULT REPORT

For Servicer

For Supra

Technical

Service

For Supra

Technical

Service

TECHNICAL SPECIFICATION SHEET SW5L65D

ATYPE

Loading FrontLoader

Intelligent Mechanical controls Yes

Panel Up Front

Drying System

Ventless Condensing

BCAPACITY

Total 1.72 Cu ft

Wash 12.1 lbs

Dry

6.lbs

CCONVENIENCE FEATURES

4 Detergent Dispensers YES

2 Heating Elements YES

Glass Door with 180 degree swing YES

Door Lock YES

4 leveling legs YES

Noise reduction system YES

Temperature Electronically Controlled YES

Water Level Automatic sensing system YES

Auto Heat Adjust in Drying Cycle YES

Drain Filter does not need cleaning YES

Safety Thermostat prevents excessive water Temp YES

Anti water spilling system to prevent overflow YES

Maintenance Free YES

External Shipping bolts YES

Lint Filter cleaning Every 25 loads

Thermal Safety Device to protect motor

YES

DMATERIAL AND FINISH

Motor Type Induction

Tub Enameled with base material alloy of Steel and Titanium

Drum Stainless steel

Cabinet Top Plastic

Door window Clear Glass

Door Trim Plastic

Cabinet Painted Steel

Control Panel Plastic

Color

White

EPOWER

Voltage 220V, 60 Hz Single Phase

Tolerance +6% & -10%

Type Electric

Main motor Washing 270 W

Main motor Spinning 750 W

Drain Pump rating - Wattage

Fan Blower 50 M

per Hr

Thermostat 302

F & 212

Heating Element - Wash 1875 W

Heating Element - Dry 1200W

Current

10 Amps

FDIMENSIONS

Product - WHD - Inches 23.62 X 33.46 X 21.65

Carton - WHD - Inches 25.60 x 35.43 x 22.83

Weight - Net Lbs 182.6

Weight - Gross Lbs 185.9

Drain Hose - Cms 63

Power Cord - Cms 118

Inlet Hose - Cms

49.2

GACCESSORIES

Rubber Washers for hose connection 2

Inlet water Hose 1

Operation Manual - English

CORD AND PLUG

Cord 4 core - 15 amps

Plug

4 prong - NEMA14-30P

Velocidad de centrifugado Máx. Spin speed Máx. tours 1000 R.p.m.

Tipo de motor Motor type Type du Moteur 2 16 DT

Módulo electrónico Electronic module Module électrinique DMPA

Programador Programmer Programmateur -

Voltage / Frecuencia Voltage and Hertz Voltege et Hertz 220 V. - 60 Hz.

Potencia maxima Maximum absorbed power Puissance maximum absorbé 2100 W.

Potencia resist. Calent. Heating element power Résistance de chaufage 1875 W.

Fusible Protective fuse Thermo fusible 10 A.

Capacidad del tambor Drum capacity Capacité du tambour 47 L.

Capacidad de lavado Wash capacity Capacité de charge 5,5 Kg.

Capacidad de secado Drying capacity Capacité d' éssorage 2,5 Kg.

Nº de compartimientos jabonera Nº detergent compartments Nombre de bac à lessive 4 Ud.

Nº de programas Numbers of programmes Nombre de programmes 17+2 Ud.

Selector de temperatura Temperature selector Termostat X

Selector de centrifugado Spin speed selector Vitesse variable -

Temporizador Drying time selector Temp de séchage X

Paro / marcha On / Off. Marche / arrêt X

Lavado en frio Cold wash Lavage à froid -

Sin centrifugado No spin Suppresion d' essorage X

1/2 carga Half load Demi charge -

Eco 60º Eco 60º Eco 60º -

Super aclarado Extra rinse Rançage supplémentaire X

Antiarrugas Rinse hold Arrêt cuve plaine X

550 / 850 R.p.m. 550 / 850 spin 550 / 850 tours -

550 / 1200 R.p.m. 550 / 1200 spin 550 / 1200 tours X

Lavado 60º + secado (5kg.) Wash 60º + Dry (5kg.) Lavage 60º + sechage (5kg.) 125min.90+90

Consumo energía Energy consumption Consommation d' énergie 1,25Kwh.1,73+1,73

Consumo de agua Water consumption Consommation d'eau 50 L. 38+38

Eficiencia de centrifugado Spin efficiency Efficaté d'essorage 56 % H.R.

Clase eficiencia energética Energy efficiency class Classe énergétique -

Clase eficiencia lavado Wash efficiency index Classe de lavage -

Clase eficiencia centrifugado Spin efficiency class Classe d'essorage -

Peso lavadora embalada Gross weight packed Poids brut emballé 84 Kg.

Peso lavadora sin embalage Net weight unpacked Poids net sans emballage 82,5 Kg.

Alto, ancho, fondo embalada Height, Width, Depth packed Heuteur - Largeur - Profondeur emb. 90 X 65 X 58 cm.

Alto, ancho, fondo sin embalar Height - Width - Depth unpacked Heuteur - Largeur - Profondeur sans 85 X 60 X 55 cm.

Nº : 014596001

MODEL : Supra SW5L 65 D

TECHNICAL SPECIFICATION SHEET SW5L30D

ATYPE

Loading FrontLoader

Intelligent Mechanical controls Yes

Panel Up Front

Drying System

Ventless Condensing

BCAPACITY

Total 1.72 Cu ft

Wash 12.1 lbs

Dry

6. lbs

CCONVENIENCE FEATURES

4 Detergent Dispensers YES

2 Heating Elements YES

Glass Door with 180 degree swing YES

Door Lock YES

4 leveling legs YES

Noise reduction system YES

Temperature Electronically Controlled YES

Water Level Automatic sensing system YES

Auto Heat Adjust in Drying Cycle YES

Drain Filter does not need cleaning YES

Safety Thermostat prevents excessive water Temp YES

Anti water spilling system to prevent overflow YES

Maintenance Free YES

External Shipping bolts YES

Lint Filter cleaning Every 25 loads

Thermal Safety Device to protect motor

YES

DMATERIAL AND FINISH

Motor Type Induction

Tub Enamelled with base material alloy of steel and Titanium

Drum Stainless steel

Cabinet Top Plastic

Door window Clear Glass

Door Trim Plastic

Cabinet Painted Steel

Control Panel Plastic

Color

White

EPOWER

Voltage 115V 60 Hz, Single Phase

Tolerance +6% & -10%

Type Electric

Main motor Washing 270 W

Main motor Spinning 750 W

Drain Pump Wattage

Fan Blower 50 M

per Hr

Thermostat 302

F & 212

Heating Element - wash 1350 W

Heating Element - Dry 1250W

Current

16 Amps

FDIMENSIONS

Product - WHD - Inches 23.60 x 33.46 x 21.65

Carton - WHD - Inches 25.60 x 35.43 x 22.83

Weight - Net Lbs 182.6

Weight - Gross Lbs 183.7

Drain Hose - Inches 63

Power Cord - Inches 118

Inlet Hose - Inches

49.2

GACCESSORIES

Rubber Washers 2

Inlet water Hose 1

Operation Manual - Eng/Fre/Spa

CORD AND PLUG

Cord 3 core - 15 amps

Plug

3 prong - NEMA5-20P

Velocidad de centrifugado Máx. Spin speed Máx. tours 1000 R.p.m.

Tipo de motor Motor type Type du Moteur 2 16 DT

Módulo electrónico Electronic module Module électrinique DMPA

Programador Programmer Programmateur -

Voltage / Frecuencia Voltage and Hertz Voltege et Hertz 115 V. - 60 Hz.

Potencia maxima Maximum absorbed power Puissance maximum absorbé 1600 W.

Potencia resist. Calent. Heating element power Résistance de chaufage 1350 W.

Fusible Protective fuse Thermo fusible 16 A.

Capacidad del tambor Drum capacity Capacité du tambour 47 L.

Capacidad de lavado Wash capacity Capacité de charge 5,5 Kg.

Capacidad de secado Drying capacity Capacité d' éssorage 2,5 Kg.

Nº de compartimientos jabonera Nº detergent compartments Nombre de bac à lessive 4 Ud.

Nº de programas Numbers of programmes Nombre de programmes 17+2 Ud.

Selector de temperatura Temperature selector Termostat X

Selector de centrifugado Spin speed selector Vitesse variable -

Temporizador Drying time selector Temp de séchage X

Paro / marcha On / Off. Marche / arrêt X

Lavado en frio Cold wash Lavage à froid -

Sin centrifugado No spin Suppresion d' essorage X

1/2 carga Half load Demi charge -

Eco 60º Eco 60º Eco 60º -

Super aclarado Extra rinse Rançage supplémentaire X

Antiarrugas Rinse hold Arrêt cuve plaine X

550 / 850 R.p.m. 550 / 850 spin 550 / 850 tours -

550 / 1000 R.p.m. 550 / 1000 spin 550 / 1000 tours X

Lavado 60º + secado (5kg.) Wash 60º + Dry (5kg.) Lavage 60º + sechage (5kg.) 120min.90+90
