Supra SR234B50A User manual

%
#
$
^
6
2
1
4
5
3
!
@
*
(
)
&
1

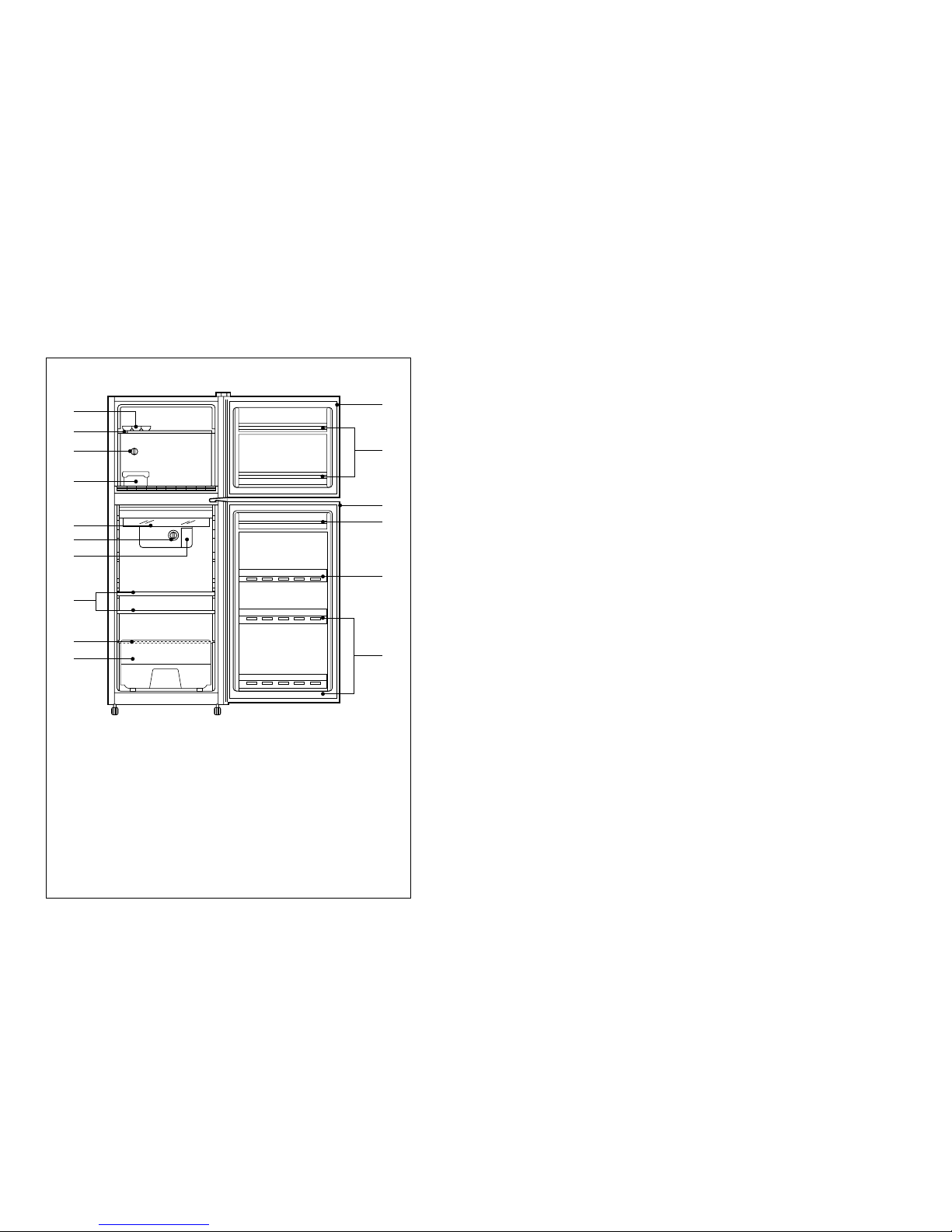

FEATURE CHART
! FREEZER DOOR GASKET
@ FREEZER POCKET
#FREEZER REMOVABLE SHELF
$ FREEZER TEMPERATURE
CONTROL KNOB
% ICE TRAY
^ ICE BOX
& REFRIGERATING-ROOM DOOR
GASKET
* EGG POCKET
( REFRIGERATING-ROOM
POCKET (SMALL)
) REFRIGERATING-ROOM
POCKET (LARGE)
1 LAMP COVER
2 REFRIGERATOR TEMPERATURE
CONTROL KNOB
3 REMOVABLE SHELF (LARGE)
4 GLASS SHELF
5 VEGETABLE BOX
6 CHILLED TRAY

32
Here are the features of your new refrigerator.
Take a moment to know all the features and convenience it was designed to
provide. Numbers match those in the illustration on page 1.
§ Ice tray
Fill tray 3/4 full to allow expansion of water during freezing. Place the tray
in freezer chest. To release cubes, twist lid slightly.
§
Removable Shelf
Shelves can be removed by pulling forward. The shelf can be placed at
your desirable position.
§
Freezer Shelf
To remove the freezer shelf!
1.Remove the screw on the left of inside freezer shelf with screw driver.
2.Push the shelf hooks to the back slightly and remove it by lifting off the
slots of bottom side.
3.Reverse procedure to install.
§
Defrost Drain Vessel
To remove defrost drain vessel.
1.Lift the defrost drain vessel slightly, then rotate bottom out and pull it down.
2.Reverse procedure to install.
CAUTION: 1. Check your voltage before inserting the power supply cord
into the socket.
2. Contact the earthing conductor to this unit with an
attachment earthing screw.
3. DonÕt make it spill to this unit.
4. DonÕt work with flammable spray, such as painting, near this
unit.
5. DonÕt put ignitable materials, such as, benzine, LP, Gas,
alcohol, etc., into this unit.
6. Precaution to the leakage of any gas equipment near this
unit
7. Precaution not to hold on to the door of this unit by children.
8. Precaution not to reinsert the power supply cord within 5
minutes after release it from socket. If not, a trouble may be
occured to compressor.
§§ ö

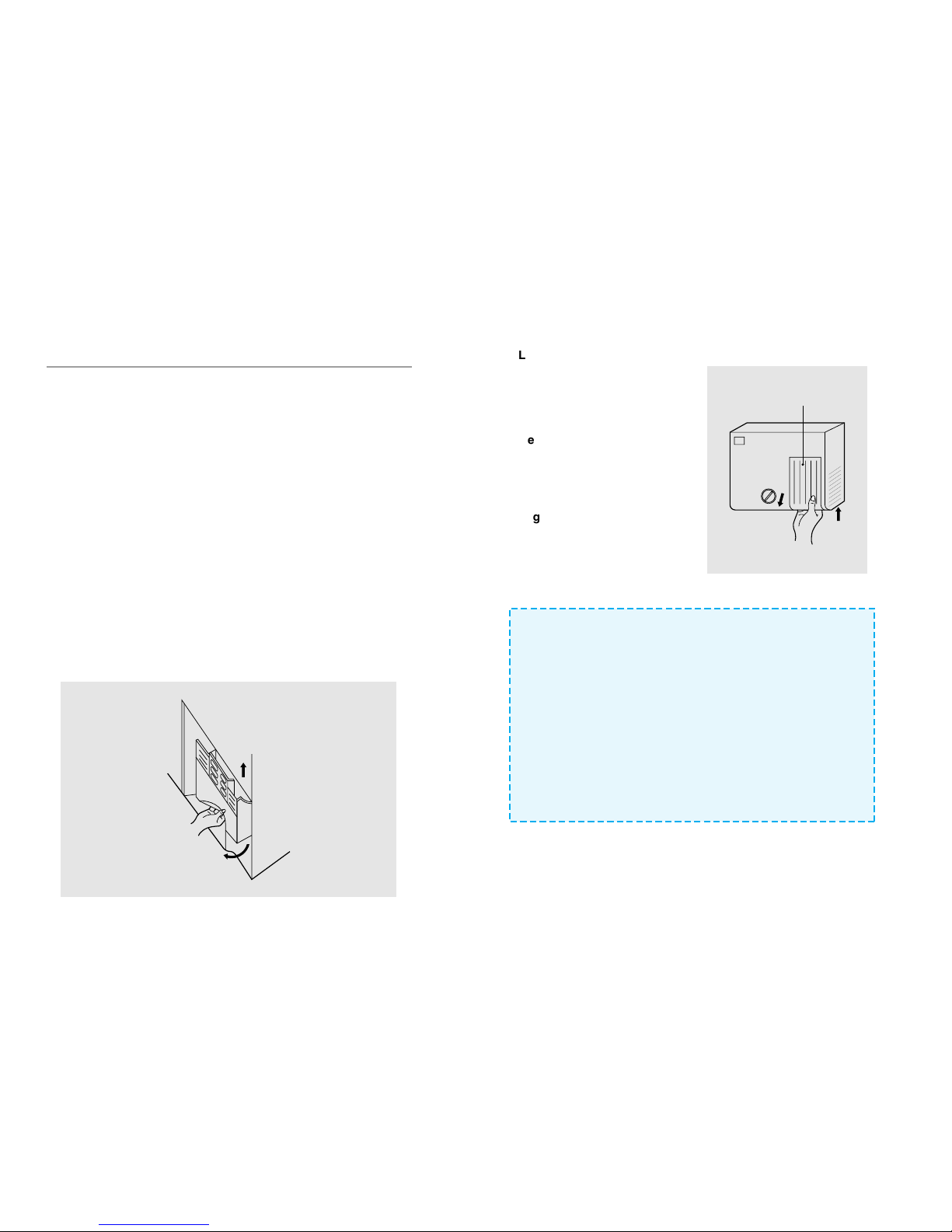

Lamp cover
To remove lamp cover
1. Push up the bottom ends of lamp
cover gently, then pull out.
2. Reverse procedure to install.
§§ ö
Vegetable Crisper
May be used for fruit and vegetable
storage. Both the crisper and its cover
shelf are removable for easy cleaning.
Simply slide forward to remove.
§§ ö
Egg Pocket
Egg supporter in this pocket can be
turned upside down.
May be used of small size goods.
@
!
!
@
Lamp Cover

Freezer temperature control Refrigerator temperature control
Location
To change temperature
54
HOW TO INSTALL
Leveling
Install refrigerator in a convenient location away from extreme heat and cold.
Allow sufficient clearance between the refrigerator and side wall so the door
will open for a fully usable interior. Refrigerator is not designed for recessed
installation.
Level refrigerator so it rests solidly on the floor without rocking. There are two
leveling glides, one at each front corner. Turn to the left to raise a corner, to
the right to lower it. Use shims under rear corners, if necessary.
§If you want, the refrigerator door to close when not held open, adjust glides
so that the front of the refrigerator is raised. However, front corners must
be level with each other, and rear corners with each other.
§If you want, the refrigerator door to remain motionless when open, adjust
the leveling glides so that all four corners are level with each other.
NOTE : Make sure all packing material is removed. If the shipping tape has
left a residue on the door, touch the residue lightly with the
adhesive side of tape or with isopropyl alcohol (most rubbing
alcohol is this type).
HOW TO OPERATE

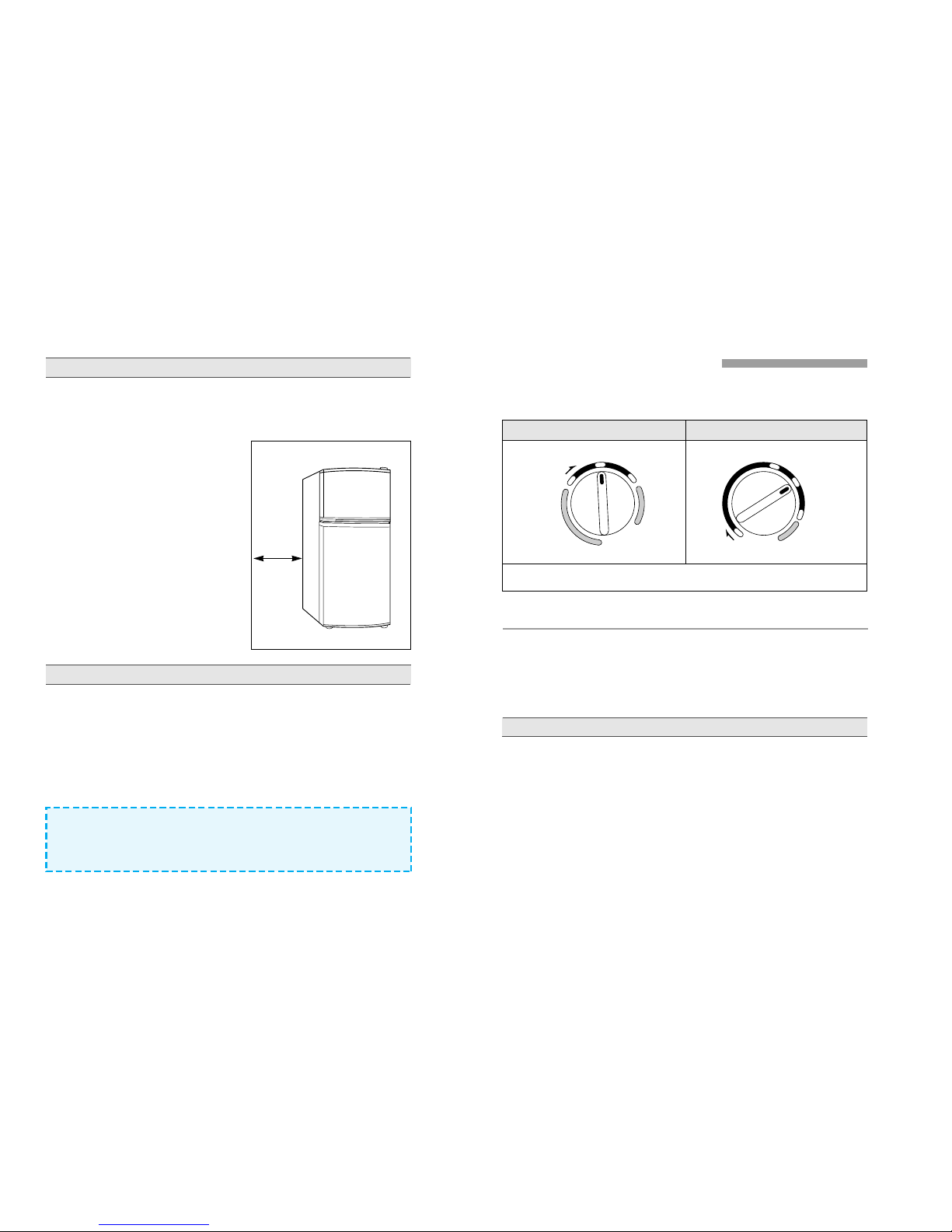

1. TEMPERATURE CONTROL
Temperature is controlled automatically. The TEMPERATURE CONTROL at
the in side of the refrigerator and freezer section control the degree of cooling
of each compartment.
Many factors influence the internal temperature of the refrigerator section
and freezer section.
§The temperature and humidity of the home.
§The frequency of door openings and the amount of warm food placed in
the refrigerator.
§The combination of foods and containers stored in the refrigerator
For these reasons, you may want to adjust the control to suit the season
and your needs. When adjusting the temperature:
§Select a place with strong level floor.
§Allow 6cm of space between the
refrigeratorÕs side and the wall.
Starting your new refrigerator
1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the
inside with a damp cloth.
2. Set TEMPERATURE CONTROL at MED.
3.Connect the power supply cord.
The control has three settings from MIN to MAX.
MAX.
MED.
MIN.
MAX.
MED.
MIN.
OFF
6 cm

6 7
To turn off refrigerator
Disconnect the power supply cord. Remove ice tray and food. Leave
doors ajar for air circulation and dehumidification of both sections.
§Turn TEMPERATURE CONTROL toward MAX for colder temperature in
refrigerator and freezer sections, and toward MIN for warmer temperature
in both sections.
§Allow approximately 12 hours or overnight for temperature to stabilize.
Then check to see if further adjustments are necessary.
DEFROSTING THE REFRIGERATOR
It is defrosted automatically in the refrigerator. You donÕt need to defrost the
refrigerator.
Remove all food and special compartments from the freezer and refrigerator
sections.
Exterior : Wash with warm, soapy water, rinse and dry.
Use appliance polish or wax periodically to keep the exterior
looking like new.
Door gasket : Clean at least twice a year with mild soap and water. Rinse and
dry. Apply a light film of petroleum jelly to the gaskets to keep
them soft and pilable.
Interior : Wash the liner with warm, soapy water.
Rinse and dry.
**NOTE: Interior and Exterior
1. DO NOT USE abrasive, heavy-duty Powders, etc.
These can sctatch and dull the surface, depending on their
abrasiveness and the cleaning pressure applied.
Avoid metal pads and abrasive impregnated plastic, nylon and
cloth pads, etc.
2. DO NOT USE concentrated liquid dishwashing detergent
(disslove in warm water before using.), abrasive cleaners,
solvents or polishing anents on plastic parts. These cleansers
may cause cracking or discoloring.
CAUTION
To Avoid the Risk of Electrical Shock or Death unplug the power
cord before replacing a burned out light bulb or cleaning.
METHODS OF SAFE INSTALLATION

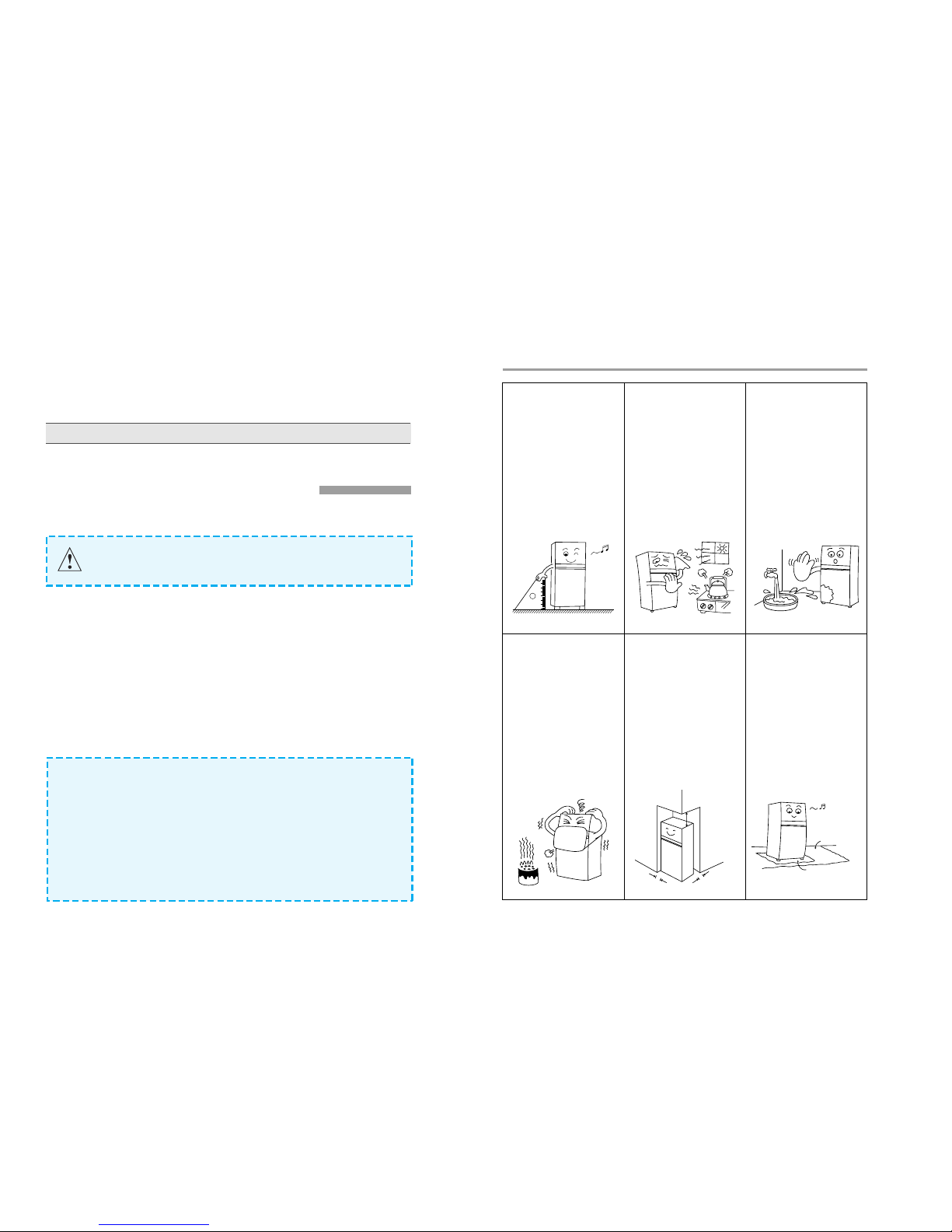

1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR
¥ Place the refrigerator
on a hard and level
floor.
¥ Place your refrigerator
where there is no heat
source nearby.
High surrounding
temperature will lower
cooling efficiency and
increase your electricity
bill.
¥ Place the refrigerator in
an area with low
moisture.
Splashing water or a
high moisture area
may cause a short
circuit and make
rusting easier.
¥ Avoid places that are
exposed to smoke.
The discoloring can
occur on the
refrigerator.
¥ For good ventilation,
place refrigerator with
the spaced specified
on the figure.
This helps to cooling
efficiency and lowers
the electricity bill.
¥ Placing the refrigerator
on the carpet may
cause heat to develop
and discolor the
appliance. In such a
case put a hard
wooden board or a
rubber mat between
the refrigerator and the
carpet.
NO
NO
At least 6cm
At least 6cm
At least 30cm
Carpet
Wooden Board,
Rubber Mat

98
¥ Select a safe place to
install your refrigerator.
¥ Level the refrigerator
by using the adjustable
foot.
¥ Install the parts to their
own place.
¥ Check if the doors are
completely shut.
¥ Check the voltage.
Then wait about an
hour before plugging
the power cord into the
outlet.
¥ After running the
refrigerator for 2~3
hours put food in the
refrigerator .
Safe installation
place
Maintain ~
Level
Components to their
original places
Check
Check
Plug in after
about hour
Put food after
2~3 hours
2. INSTALLATION STEPS
3. WHAT YOU NEED TO KNOW BEFORE MOVING
OR RELOCATING THE REFRIGERATOR!
¥ Unplung the power
cord.
¥ Take food out of the
refrigerator
compartiments.
¥ Fasten the interior
components with tape.
¥ When moving have
two people carry the
refregerator for safety.
¥ Fasten the doors with
tape while moving to
prevent them from
opening.
Adhesive
Tape
Adhesive Tape
Relocating
Indoors
¥ For relocating indoors
use the wheels.

10 11

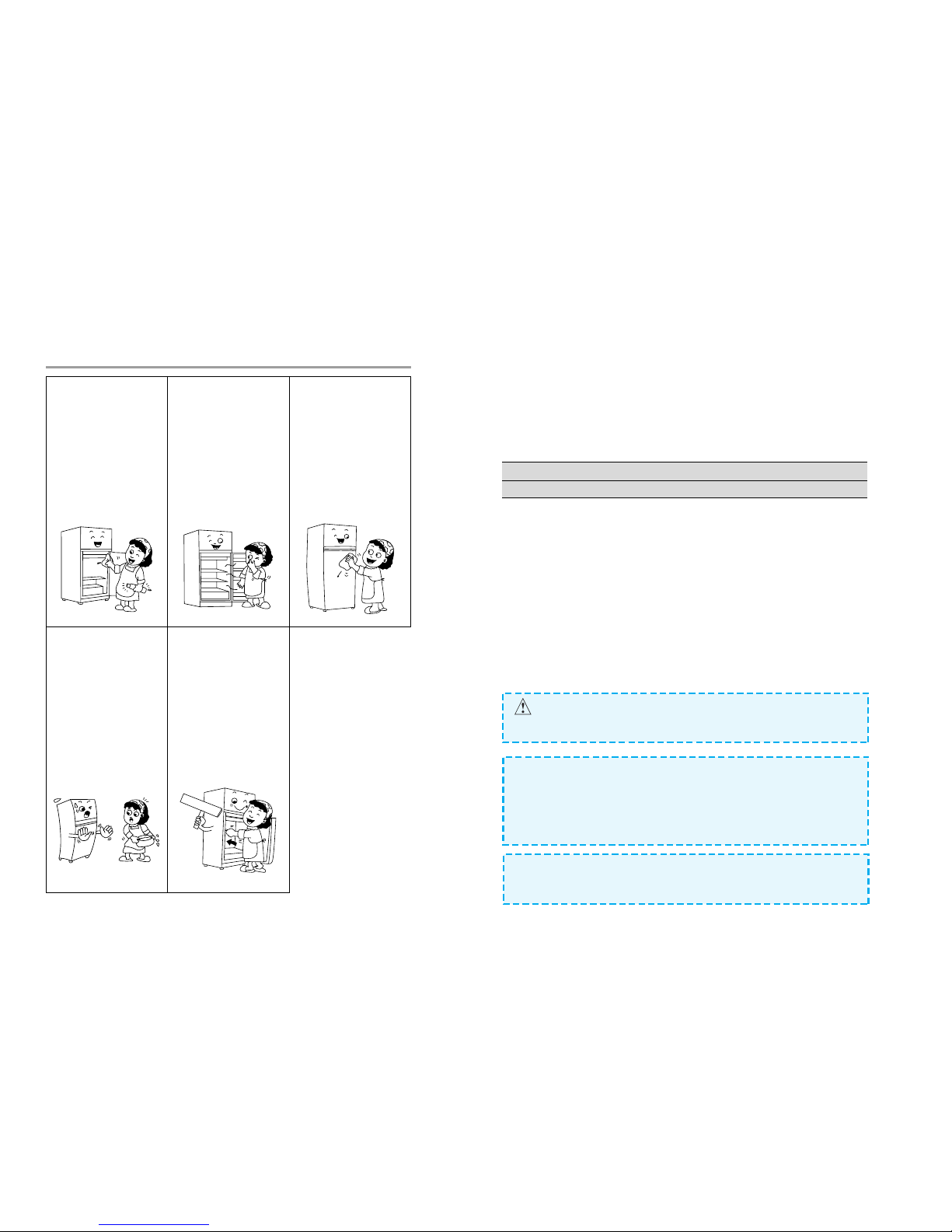

WHAT TO DO...
1. When not of operating for a long time
§Remove the power supply cord.
§Dry your refrigerator opening the door for 2-3 days.
2. When you get ready to move.
§ Securely fasten removable interior parts (or move and package them separately)
§Do not lay your refrigerator horizentally, otherwise compressor may be get
damaged.
When you need service: Before you call for service make sure you
need it, check a few things noted below for yourself first.
If refrigerator is not operating:
§Is the power supply cord unplugged?
§Is home fuse blown or circuit breaker off?
If refrigerator is warmer than usual:
§Has the door been open frequently or for a long period?
§Is the hot stuff stored without cooling?
§Is the clearance between side and rear plate of the refrigerator and the
wall allowed sufficiently?
If there are unusual sounds:
§Is refrigerator placed on the level?
§Are foreign objects behind the refrigerator?
§Are dishes on refrigerator shelves vibrating?
If so, rearrange the dishes.
¡If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a simmilary qualified person in order to avoid a hazard.
¡The appliance is not intended for use by young children or infirm persons without
supervision.
¡Young children should be supervised to ensure that they do not play with the
appliance.
§ Changing the internal light bulb
Disconnect the refrigerator from the main supply by removing the plug.
Replace the bulb with one of the correct type and size(15 watt SES E14 base).
CAUTION
Improper use of the grounding plug can result in a risk of electric shock. If a
grounding adapter is used, make sure the receptacle box is fully grounded.
4. CLEANING YOUR REFRIGERATOR
¥ When cleaning your
refrigerator, unplug the
power cord and use a
soft cloth and
dishwashing liquid to
clean.
¥ The refrigerator can
smell on its initial
operation, but the
odour will be away
when the refrigerator is
cooled sufficiently.
¥ Use a soft cloth for
cleaning the interior
and exterior of the
refrigerator.
¥ Do not splash water
directly on the
refrigerator itself.
¥ Put the parts back in
their original position.
Soft cloth
Soft cloth
Water
Components to their
original places
